C&C SmartView VS-812PF User manual

VIDEO
SPLITTER
(VS-812PF)
1In2Out
(VS-814PF)
1In4Out
(VS-818PF)
1In8Out
(VS-8116PF)
1In16Out
USER MANUAL V2.0
VS-812PF / VS-814PF /
VS-818PF / VS-8116PF
Package Contents-
1 Smart View VS-812PF or VS-814PF or VS-818PF
or VS-8116PF Video Splitter
1 user manual
1 power adapter DC 12V 600mAfor VS-812PF,
814PF, 818PF or 1 DC 12V 1.25A for VS-8116PF
2 rack rails, 8 screws for VS-8116PF only
Any thing missed, please contact with your vendor.
Introduction
Through the video splitter VS-812PF, VS-814PF,
VS-818PF, VS-8116PF, you can use one PC to display
identical image on 2,4,8,16 monitors or even more.
Video splitter is ideal for:
Test bench facilities
Data Center
Help desk
Video broadcasting:
Presentation
Stock quotes
Timetables
Educational facilities
Features
With 400 MHz pixel frequency.
Extends the video signal up to 65 meter (213 feet).
Supports the DDC, DDC2, DDC2B. (For video out port
1)
Can be cascaded.
1U rack design for VS-8116PF.
The output is compatible with standard VGA card.
Specifications
Function VS-812PF VS-814PF VS-818PF VS-8116PF
Video Input
Connector
(HD-15 Female) 1 1 1 1
Video Output
Connector
(HD-15 Female) 2 4 8 16
Max. Resolution 2048 x 1536 60 Hz
Pixel Frequency 400 MHz
Cable Distance
(Device to
Monitor) 65 m (213 feet) Max.
Signal Type VGA, SVGA, XGA, QXGA, UXGA, Multisync
Power Adapter
(Min.) DC 12V 600mA DC 12V 1.25A
Housing Metal
Weight 420 g 455 g 680 g 1480 g
Dimensions
(LxWxH) 130x75x42 mm 200x75 x42 mm 343x105 x42 mm
-1-
Technical Specifications
Input/Output Signal
Pin # Signal Pin # Signal
1 Red video 9 NC
2 Green video 10 Ground
3 Blue video 11 ID0
4 ID2 12 ID1
5 Ground 13 Horizontal Sync
6 Analog Ground 14 Vertical Sync
7 Analog Ground 15 ID3
8 Analog Ground

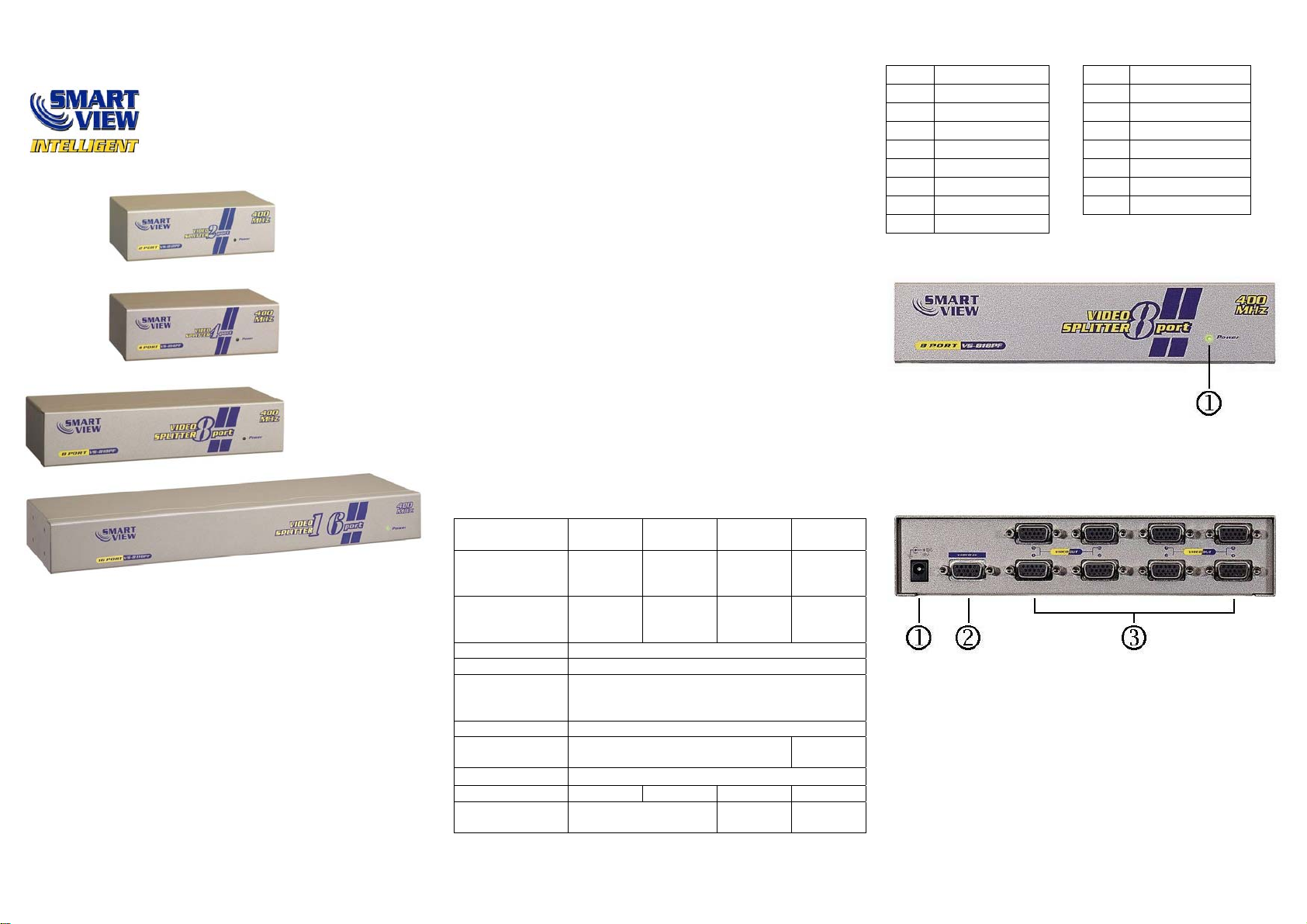

FRONT VIEW
1. Power LED
REAR VIEW
1. Input Power Jack
2. “Video In” Port
3. “Video Out” Port
*There are 2/4/8/16 out ports for VS-812PF/ VS-814PF
/ VS-818PF / VS-8116PF.
-2-

Installation
1. Turn off the PC and monitors.
2. Connect the HD-15 video extension cable between the
PC and the “video in” port of splitter.
3. Connect the HD-15 video extension cables between
the monitors and the “video out” ports of splitter.
4. Connect the power cord and turn on the splitter.
5. Turn on the PC and monitors.
Note:
If you install the DDC monitor for the splitter, the rest of
monitors must be the same resolution as the DDC
monitor.
Available monitors include the VGA, SVGA, XGA,
QXGA, UXGA, Multisync, and exclude the CGA, EGA,
Mono.
Operation for cascade:
1. The function to display identical image on more
monitors, you request to attach another splitter.
2. Connect the HD-15 male/male video extension cable
between the “video out” port of the former splitter and
the “video in” port of the latter splitter.
Note:
Even though you are allowed to cascade the splitter with
varied ports, the image might become unstable if
cascade too many tiers of splitters.
-3-
P.S.: The example cascades the 4 and 8 ports splitters;
however, you can cascade the video splitter with
demanded port.
© C&C TECHNIC TAIWAN CO., LTD. All rights reserved.
Trademarks:
All the companies, brand names, and product names
referred to this manual are the trademarks or registered
trademarks belonging to their respective companies.
-4-
