C&T Solution CT-MHW0X User manual

CT-MHW0X
Intel®4th Generation Core™Processor i7/i5/i3/Pentium/Celeron
Industrial Micro-ATX Motherboard
User’s Manual
Version 1.1
C&T Solution Inc.
17F -2, No.700, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan
TEL: [phone]
http://www.candtsolution.com

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
２
Table of Contents
I. Preface...............................................................................................................５
1.1 Disclaimer ...............................................................................................５
1.2 Copyright Notice......................................................................................５
1.3 Trademarks Acknowledgment.................................................................５
II. Introduction.......................................................................................................７
2.1 Product Description.................................................................................７
2.2 Specifications..........................................................................................８

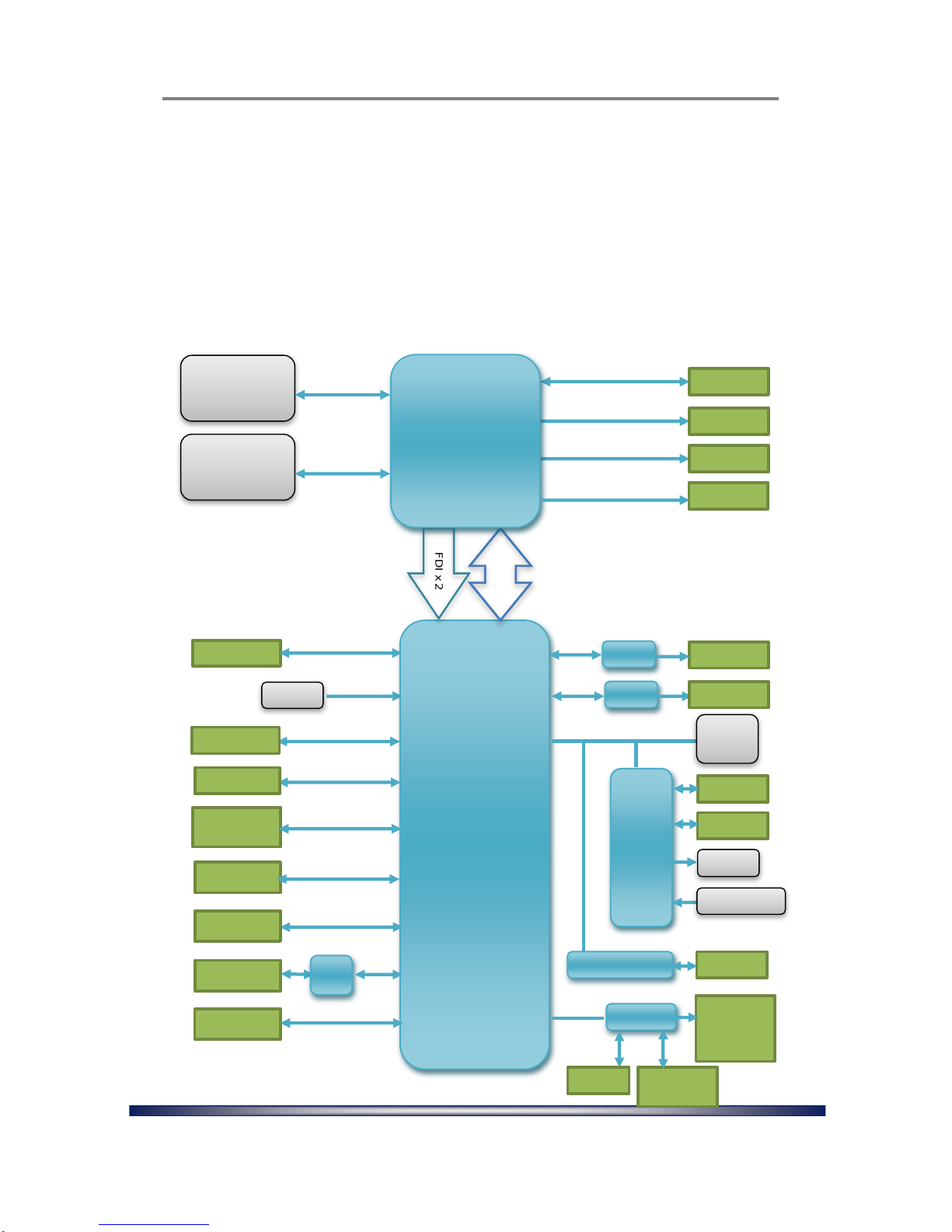

2.3 Block Diagram..................................................................................... １０
2.4 SKU..................................................................................................... １１
III. Mechanical Specification.............................................................................. １２

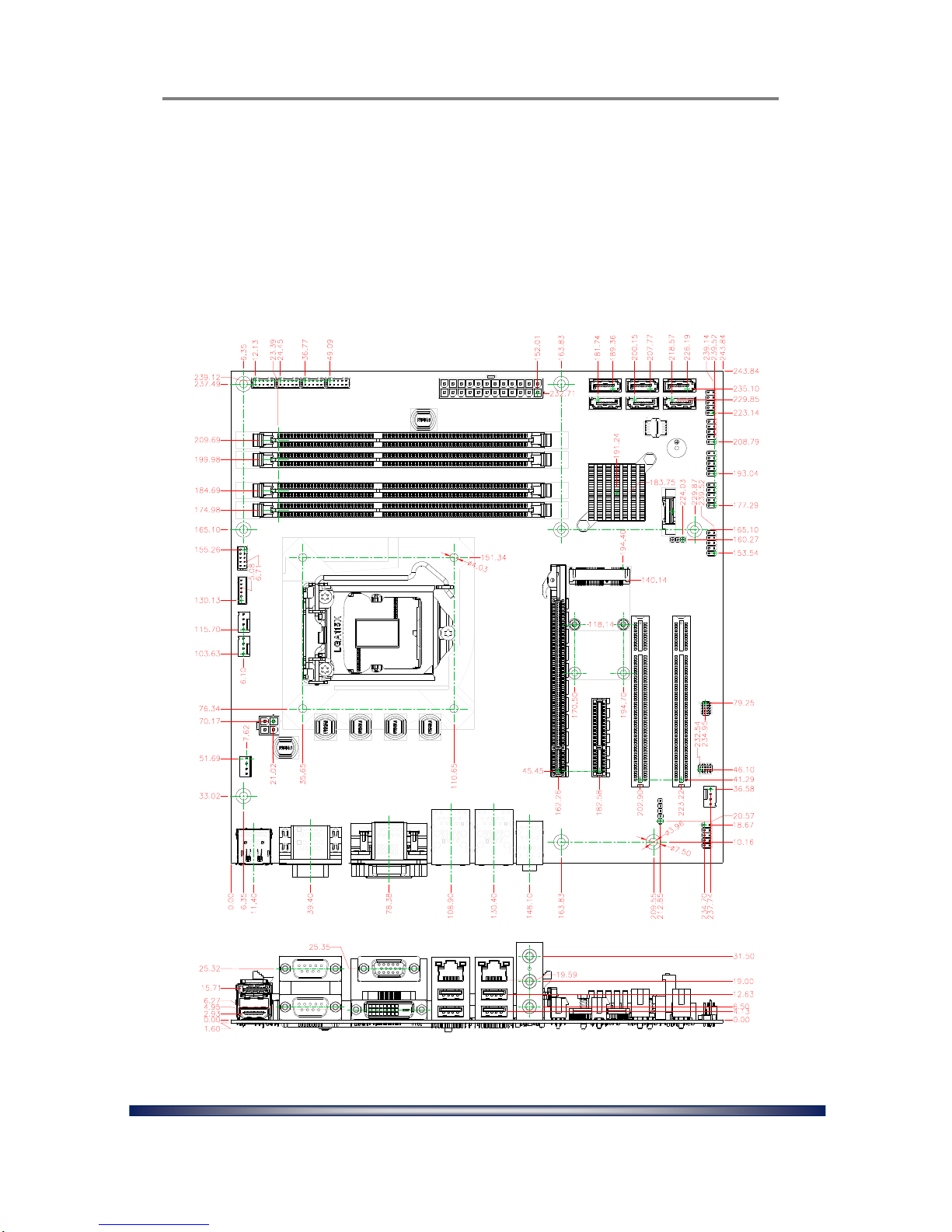

3.1 Module Dimensions............................................................................. １２
3.1.1 CT-MHW01 .............................................................................. １２
3.1.2 CT-MHW02 .............................................................................. １３

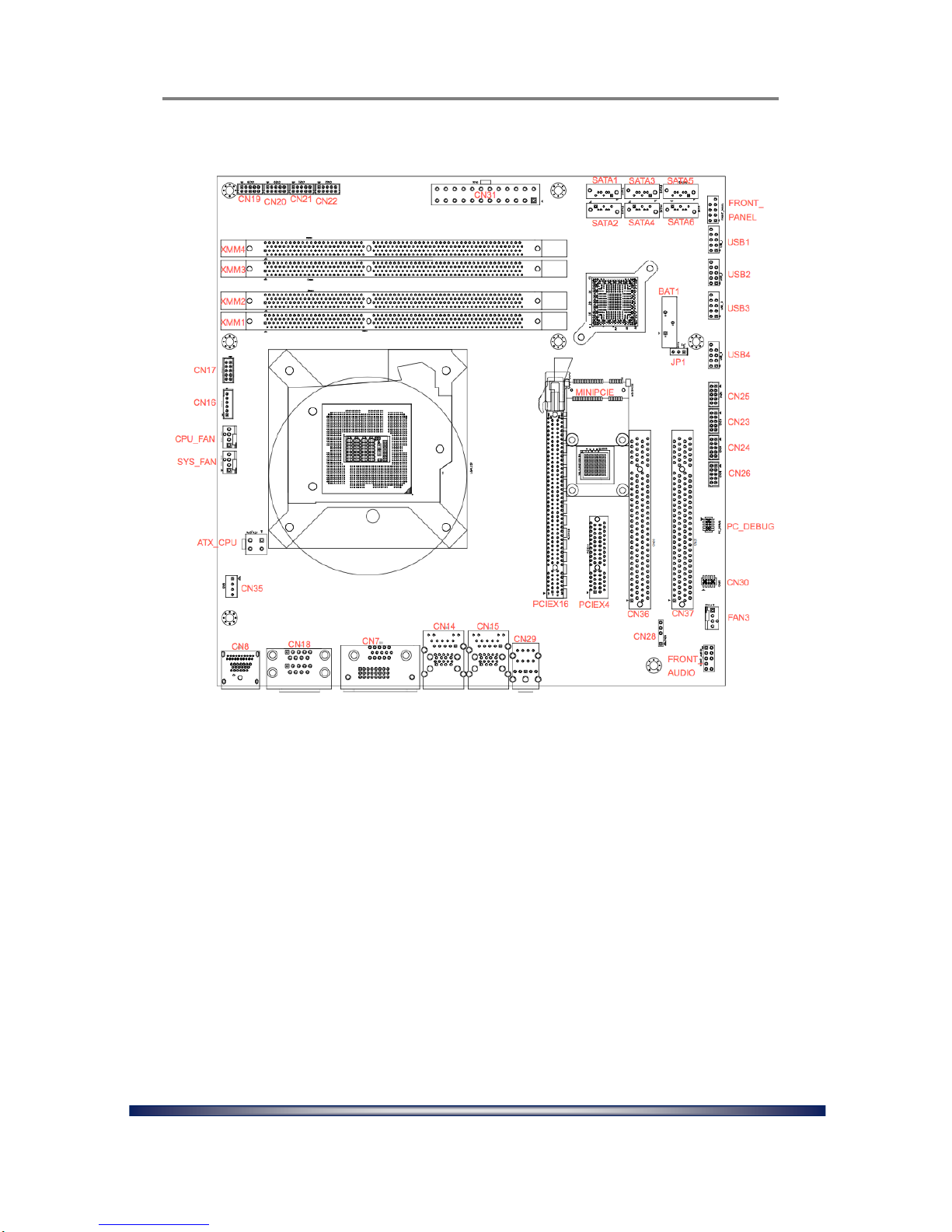

3.2 Layout................................................................................................. １４
3.2.1 Connectors............................................................................... １５
3.2.2 Jumper..................................................................................... １６
3.3 Internal Connectors............................................................................. １６
3.3.1 CPU Power Connector: ATX_CPU........................................... １６
3.3.2 KB/MS Connector: CN16.......................................................... １６
3.3.3 GPIO Connector: CN17............................................................ １６
3.3.4 RS-232 Connector: CN19~CN26.............................................. １７
3.3.5 Audio S/PDIF Connector: CN28............................................... １７
3.3.6 JTAG Connector: LPC_DEBUG ............................................... １７
3.3.7 ATX Power Connector: CN31................................................... １７
3.3.8 5V Output Connector: CN35..................................................... １８
3.3.9 PCI Slots: CN36 & CN37.......................................................... １８
3.3.10 SATA III Connector: SATA1~6:.............................................. ２０
3.3.11 USB2.0 Connector: USB_1~USB_4....................................... ２０
3.3.12 Front Panel Audio Connector: FRONT_AUDIO...................... ２１
3.3.13 Front Bezel Connector: FRONT_PANEL................................ ２１
3.3.14 Memory Sockets: XMM1~XMM4............................................ ２１
3.3.15 PCI Express x4 Connector: PCIE_x4 ..................................... ２３
3.3.16 PCI Express x16 Connector: PCIE_x16 ................................. ２４
3.3.17 Mini PCIE Connector: MINI_PCIE.......................................... ２５
3.3.18 FAN Connector: CPU_FAN/SYS_FAN/FAN3......................... ２６
3.4 External Connectors............................................................................ ２７

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
３
3.4.1 DP & HDMI Connectors: CN8................................................... ２７
3.4.2 COM Connectors：CN18......................................................... ２８
3.4.3 VGA and DVI-D Connectors：CN7 .......................................... ２９
3.4.4 RJ-45 LAN & USB Connectors: CN14/CN15............................ ３０
3.4.5 Front Audio Jack: CN29 ........................................................... ３１
3.5 Jumper Setting.................................................................................... ３１
3.5.1 Clear CMOS: JP1..................................................................... ３１
IV. Features & Interfaces .................................................................................. ３２
4.1 Processor............................................................................................ ３２
4.2 BIOS ................................................................................................... ３２
4.3 System Memory .................................................................................. ３２
4.4 Chipset................................................................................................ ３２
4.5 Graphics.............................................................................................. ３２
4.6 USB..................................................................................................... ３３
4.6.1 USB2.0..................................................................................... ３３
4.6.2 USB 3.0.................................................................................... ３３
4.7 SATA................................................................................................... ３３
4.8 PCI Express........................................................................................ ３４
4.9 High Definition Audio........................................................................... ３４
4.10 Ethernet ............................................................................................ ３４
4.11 LPC................................................................................................... ３５
4.12 Testability Signals (JTAG)................................................................. ３５
4.13 General Purpose Input Output........................................................... ３５
4.13.1 GPIO Configuration................................................................ ３６
4.14 Watchdog Timer................................................................................ ３７
4.14.1 Board Design ......................................................................... ３７
4.14.2 PSUEDO CODE..................................................................... ３７
V. SYSTEM BIOS............................................................................................. ３９
5.1 Main.................................................................................................... ３９
5.2 Advanced............................................................................................ ４０
5.2.1 ACPI Settings........................................................................... ４２
5.2.2 Trusted Computing (for CT-MHW01 only) ................................ ４３
5.2.3 CPU Configuration.................................................................... ４４
5.2.4 SATA Configuration.................................................................. ４６
5.2.5 PCH-FW Configuration............................................................. ４９
5.2.6 AMT Configuration (for CT-MHW01 only)................................. ５０
5.2.7 USB Configuration.................................................................... ５１

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
４
5.2.8 SMART Settings....................................................................... ５２
5.2.9 F81216 Second Super IO Configuration (for CT-MHW02 only).５３
5.2.10 F81866 Super IO Configuration.............................................. ５４
5.2.11 F81866 Hardware Monitor...................................................... ５６
5.2.12 Serial Port Console Redirection.............................................. ５８
5.2.13 Intel(R) Ethernet Network Connection i217-LM ...................... ６０
5.2.14 Intel(R) I210 Gigabit Network Connection .............................. ６１
5.3 Chipset................................................................................................ ６２
5.3.1 PCH-IO Configuration............................................................... ６３
5.3.2 System Agent (SA) Configuration............................................. ６８
5.4 Boot..................................................................................................... ７４
5.4.1 CSM16 Parameters.................................................................. ７５
5.4.2 Hard Disk Drive BBS Priorities ................................................. ７６
5.5 Security............................................................................................... ７７
5.5.1 Secure Boot ............................................................................. ７８
5.6 Save and Exit...................................................................................... ７９
VI. Address Map ............................................................................................... ８０
6.1 I/O Port Address Map.......................................................................... ８０
6.2 Interrupt Controller (IRQ) Map............................................................. ８４
6.3 Memory Map....................................................................................... ８９

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
５
I. Preface
1.1 Disclaimer
All specifications and information in this User’s Manual are believed to be
accurate and up to date. C&T Solution Inc. does not guarantee that the
contents herein are complete, true, accurate or non-misleading. The
information in this document is subject to change without notice and does not
represent a commitment on the part of C&T Solution Inc.
C&T Solution Inc. disclaims all warranties, express or implied, including,
without limitation, those of merchantability, fitness for a particular purpose with
respect to contents of this User’s Manual. Users must take full responsibility for
the application of the product.
1.2 Copyright Notice
All rights reserved. No part of this manual may be reproduced or transmitted in
any form or by any means, electronic or mechanical, including photocopying,
recording, or information storage and retrieval systems, without the prior
written permission of C&T Solutions Inc.
Copyright © 2012 C&T Solutions Inc.
1.3 Trademarks Acknowledgment
Intel®, Celeron®and Pentium®are trademarks of Intel Corporation.
Windows®is registered trademark of Microsoft Corporation.
AMI is trademark of American Megatrend Inc.
IBM, XT, AT, PS/2 and Personal System/2 are trademarks of International
Business Machines Corporation

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
６
All other products and trademarks mentioned in this manual are trademarks of
their respective owners.

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
７
II.Introduction
2.1 Product Description
The CT-MHW0X is a single board computer in the Micro-ATX form factor. Its
LGA1150 socket is for Intel®4th Generation Core i7/i5/i3/Celeron processor,
which is with the new 22 nm process technology. The four 240-pin DIMM
sockets are for dual channel DDR3/DDR3L 1333/1600MHz memory with
maximum capacity up to 32GB. The HD graphic controller integrated within the
processor works with the Intel®Q87/H81 PCH to support three independent
displays. The Intel®Q87/H81 PCH implements Flexible I/O, a technology to
allow high speed signals to be configured as PCIe, USB3.0, or SATA signals.
Besides, the CT-MHW0X provides Gigabit Ethernet, USB2.0, COM, GPIO,
PCI Expressx16, and mini PCI-Express expansion for variety industrial
applications.

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
８
2.2 Specifications
CPU
Intel®4th Generation Core i7/ i5/ i3/Pentium/Celeron
processor
LGA1150 socket
Chipset
Intel®Q87/H81 PCH
System Memory
240-pin DDR3/DDR3L DIMM sockets
Four DIMM sockets for Q87 SKU
Two DIMM sockets for H81 SKU
1333MHz or 1600MHz
Up to 32GB
BIOS
AMI uEFI BIOS
8MB SPI Flash ROM
iAMT
iAMT9.0 for Q87 SKU only
Graphics
Intel®HD Graphics Gen 8 integrated within CPU
Three displays supported
DisplayPort interface supports up to 3840x2160@60Hz
HDMI interface supports up to 4096x2304@24Hz or
2560x1600@60Hz
DVI-I/LVDS/VGA interface supports up to
1920x1200@60Hz
Ethernet
One Intel®I217LM GbE PHY (LAN1)
One Intel®I210AT GbE Controller (LAN2)
10/100/1000 Base-Tx GbE compatible
Both LAN1 & LAN2 with WOL/PXE support
Audio
Realtek ALC886
Line-In, Line-Out and Mic-In
Expansion Interface
One PCI Express x16

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
９
One PCI Express x4 (4 lanes for Q87 SKU; 2 lanes for H81
SKU)
One mini PCI Express (full size)
Two PCI slots
Internal I/O
SATA3 Port
6 x SATA3 ports for Q87 SKU
2 x SATA3 ports for H81 SKU
SATA2 Port
2 x SATA2 ports for H81 SKU only
USB2.0 Port
8 x USB2.0 ports for Q87 SKU
4 x USB2.0 ports for H81 SKU
RS-232 Port
4 x RS-232 ports for Q87 SKU
8 x RS-232 ports for H81 SKU
1 x PS/2 keyboard and mouse
1 x 8-bit GPIO
1 x front panel audio
1 x S/PDIF in and out
1 x Front bezel interface
1 x standard ATX power connector
1 x CPU power input connector
1 x +5VSB and GND output connector
1 x battery socket for CR-2032 battery
3 x 4-pin fan connectors
External I/O
1 x DP
1 x HDMI
1 x DVI-D
1 x VGA
2 x RS232/422/485
2 x GbE
4 x USB3.0 (2xUSB3.0 & 2xUSB2.0 for H81 SKU)
1 x Mic-In
1 x Line-In
1 x Line-Out

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
１０
Watchdog Timer
H/W Monitor
Power Management
ACPI 4.0a(Advanced Configuration and Power Interface)
Form Factor
Micro-ATX, 244mm x 244mm
2.3 Block Diagram
DDR3
1333/1600MHz
SPI
6xSATA 6G
PEG x 16
PCIE 3.0 x 16
PCH
Intel Q87/H81
Channel A
240pin
DDR3/L DIMM
I210AT
DMI x 4
FDI x 2
Channel B
240pin
DDR3/L DIMM
DDR3
1333/1600MHz
F81866A
VGA
PCIEx1,
Port 1
LPC
ALC886
HDMI
DDI1
DVI-D
SATA x 6
USB2.0 x 8
8 x USB 2.0
CPU
LGA1150
BIOS
VGA
RJ-45
I217LM
RJ-45
PCIEx1, Port 4
TPM1.2
(Option)
GPI x 4
GPO x 4
DDI2
COM1-6
PS2 KB/MS
Front panel
Audio
Line-Out
Line-In
Mic-In
USB 3.0 x 4
HD
Audio
4 x USB 3.0
DDI3
DP
8-bit GPIO
Mini-PCIE
WDT
HW Monitor
PCI slot x 2
PCIEx1
Port 3
PCIE x 4
PCIEx4, Port 5-8
F81216A
COM7-10
PCIEx1,
Port 2
SPDIF
XIO
2001

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
１１
2.4 SKU
Product
Number
Processor
PCH
Features
CT-MHW01
Intel 4th Gen
LGA1150
Q87
4xDDR3, DP, HDMI, VGA, DVI-D, 2xGbE,
4xUSB3.0, 12xUSB2.0, 6xSATA, 6xCOM, Audio,
KB/MS, GPIO, mini-PCIe, 2xPCI, PCIex16, PCIex4
(with 4 lanes), iAMT9.0, RAID0, 1, 5, 10
CT-MHW02
Intel 4th Gen
LGA1150
H81
2xDDR3, DP, HDMI, VGA, DVI-D, 2xGbE,
2xUSB3.0, 8xUSB2.0, 4xSATA, 10xCOM, Audio,
KB/MS, GPIO, mini-PCIe, 2xPCI, PCIex16, PCIex4
(with 2 lanes)

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
１２
III. Mechanical Specification
Module Dimensions3.1
The PCB size of CT-MHW0X is 244mm x 244mm, the standard micro-ATX
size. CT-MHW013.1.1

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
１３
CT-MHW02
3.1.2

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
１４
Layout3.2

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
１５
3.2.1 Connectors
Connector
Description
ATX_CPU
CPU Power Connector
CN7
VGA & DVI-D Connectors
CN8
Display Port & HDMI Connectors
CN14
Two USB3.0 & LAN Connectors
CN15
Two USB3.0 & LAN Connectors (USB2.0 for H81 SKU)
CN16
Keyboard/Mouse Wafer Connector
CN17
GPIO Wafer Connector
CN18
Two RS-232/422/485 Connectors
CN19~CN22
Four RS-232 Connectors
CN23~CN26
Four RS-232 Connectors for H81 SKU only
CN28
Audio S/PDIF Wafer Connector
CN29
Front Audio Jacks
LPC_DEBUG
JTAG Connector
CN31
ATX Power Connector
CN35
5V Output Wafer
CN36~CN37
Two PCI Slots
SATA1~SATA2
SATA Port 1 and 2 Connectors
SATA3~SATA4
SATA Port 3 and 4 Connectors for Q87 SKU only
SATA5~SATA6
SATA Port 5 and 6 Connectors
USB_1
Two USB2.0 Ports for Q87 SKU only
USB_2
Two USB2.0 Ports
USB_3
Two USB2.0 Ports for Q87 SKU only
USB_4
Two USB2.0 Ports
FRONT_AUDIO
Front Audio Wafer Connector
FRONT_PANEL
Front Bezel Pin Header
XMM1
DDR3 DIMM Socket
XMM2
DDR3 DIMM Socket for Q87 SKU only
XMM3
DDR3 DIMM Socket
XMM4
DDR3 DIMM Socket for Q87 SKU only
PCIE_x4
PCI Express x4
PCIE_x16
PCI Express x16
MINI_PCIE
Mini PCI Express
BAT1
Battery Socket
So
CPU_FAN
CPU Fan Wafer
SYS_FAN
System Fan Wafer
FAN3
Rear Chassis Fan Wafer

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
１６
3.2.2 Jumper
Jumper
Description
JP1
Clear CMOS
Internal Connectors3.3
3.3.1 CPU Power Connector: ATX_CPU
Connector Type: 2x2-pin ATX power connector
Pin
Signal
Pin
Signal
1
GND
3
+12V
2
GND
4
+12V
3.3.2 KB/MS Connector: CN16
Connector Type: 1x6-pin pitch 2.0mm wafer connector
Pin
Signal
1
KB_DATA
2
KB_CLK
3
+5V
4
GND
5
MS_DATA
6
MS_CLK
3.3.3 GPIO Connector: CN17
Connector Type: 2x5-pin pitch 2.0mm wafer connector
Pin
Signal
Pin
Signal
1
+5V
2
GND
3
GPO0
4
GPI0
5
GPO1
6
GPI1
7
GPO2
8
GPI2
9
GPO3
10
GPI3

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
１７
3.3.4 RS-232 Connector: CN19~CN26
Connector Type: 2x5-pin pitch 2.0mm wafer connector
Note: CN23~CN26 are for H81 SKU only
Pin
Signal
Pin
Signal
1
DCD, Data Carrier Detect
2
DSR, Data Set Ready
3
RXD, Receive Data
4
RTS, Request To Send
5
TXD, Transmit Data
6
CTS, Clear To Send
7
DTR, Data Terminal
Ready
8
RI, Ring Indicator
9
GND
10
NC
3.3.5 Audio S/PDIF Connector: CN28
Connector Type: 1x5-pin pitch 2.54mm pin header
Pin
Signal
1
+5V
2
KEY
3
SPDIF_OUT
4
GND
5
SPDIF_IN
3.3.6 JTAG Connector: LPC_DEBUG
Connector Type: 2x5 pin pitch 1.27mm
Pin
Signal
Pin
Signal
1
+3.3V
2
GND
3
TDO
4
GND
5
TDI
6
GND
7
TMS
8
GND
9
TCK
10
GND
3.3.7 ATX Power Connector: CN31
Connector Type: 2x12-pin standard ATX power connector
Pin
Signal
Pin
Signal
1
+3.3V
13
+3.3V
2
+3.3V
14
-12V
3
GND
15
GND

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
１８
Pin
Signal
Pin
Signal
4
+5V
16
PSON
5
GND
17
GND
6
+5V
18
GND
7
GND
19
GND
8
PWROK
20
-5V
9
5VSB
21
+5V
10
+12V
22
+5V
11
+12V
23
+5V
12
+3.3V
24
GND
3.3.8 5V Output Connector: CN35
Connector Type: 1x4 pin pitch 2.0mm Wafer Connector
Pin
Signal
1
+5V
2
+5V
3
GND
4
GND
3.3.9 PCI Slots: CN36 & CN37
Pin
Signal
Pin
Signal
B1
-12V
A1
TRST#
B2
TCK
A2
+12V
B3
Ground
A3
TMS
B4
TDO
A4
TDI
B5
+5V
A5
+5V
B6
+5V
A6
INTA#
B7
INTB#
A7
INTC#
B8
INTD#
A8
+5V
B9
PRSNT1#
A9
Reserved
B10
Reserved
A10
+5V (I/O)
B11
PRSNT2#
A11
Reserved
B14
Reserved
A14
3.3Vaux
B15
Ground
A15
RST#
B16
CLK
A16
+5V (I/O)

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
１９
Pin
Signal
Pin
Signal
B17
Ground
A17
GNT#
B18
REQ#
A18
Ground
B19
+5V (I/O)
A19
PME#
B20
AD[31]
A20
AD[30]
B21
AD[29]
A21
+3.3V
B22
Ground
A22
AD[28]
B23
AD[27]
A23
AD[26]
B24
AD[25]
A24
Ground
B25
+3.3V
A25
AD[24]
B26
C/BE[3]#
A26
IDSEL
B27
AD[23]
A27
+3.3V
B28
Ground
A28
AD[22]
B29
AD[21]
A29
AD[20]
B30
AD[19]
A30
Ground
B31
+3.3V
A31
AD[18]
B32
AD[17]
A32
AD[16]
B33
C/BE[2]#
A33
+3.3V
B34
Ground
A34
FRAME#
B35
IRDY#
A35
Ground
B36
+3.3V
A36
TRDY#
B37
DEVSEL#
A37
Ground
B38
Ground
A38
STOP#
B39
LOCK#
A39
+3.3V
B40
PERR#
A40
Reserved
B41
+3.3V
A41
Reserved
B42
SERR#
A42
Ground
B43
+3.3V
A43
PAR
B44
C/BE[1]#
A44
AD[15]
B45
AD[14]
A45
+3.3V
B46
Ground
A46
AD[13]
B47
AD[12]
A47
AD[11]
B48
AD[10]
A48
Ground
B49
Ground
A49
AD[09]
B52
AD[08]
A52
C/BE[0]#
B53
AD[07]
A53
+3.3V

CT-MHW0X Intel 4th Gen Core Processor i7/i5/i3/Pentium/Celeron Micro-ATX IMB
２０
Pin
Signal
Pin
Signal
B54
+3.3V
A54
AD[06]
B55
AD[05]
A55
AD[04]
B56
AD[03]
A56
Ground
B57
Ground
A57
AD[02]
B58
AD[01]
A58
AD[00]
B59
+5V (I/O)
A59
+5V (I/O)
B60
ACK64#
A60
REQ64#
B61
+5V
A61
+5V
B62
+5V
A62
+5V
3.3.10 SATA III Connector: SATA1~6:
Connector Type: 7-pin SATA connector
Note: SATA3 and SATA4 are for Q87 SKU only
Pin
Signal
1
GND
2
SATA_TX+
3
SATA_TX-
4
GND
5
SATA_RX-
6
SATA_RX+
7
GND
3.3.11 USB2.0 Connector: USB_1~USB_4
Connector Type: 2x5-pin pitch 2.54mm pin header connector
Note: USB_1 and USB_3 are for Q87 SKU only
Pin
Signal
Pin
Signal
1
+5V
2
+5V
3
USB_D-
4
USB_D-
5
USB_D+
6
USB_D+
7
GND
8
GND
9
KEY
10
N.C.
