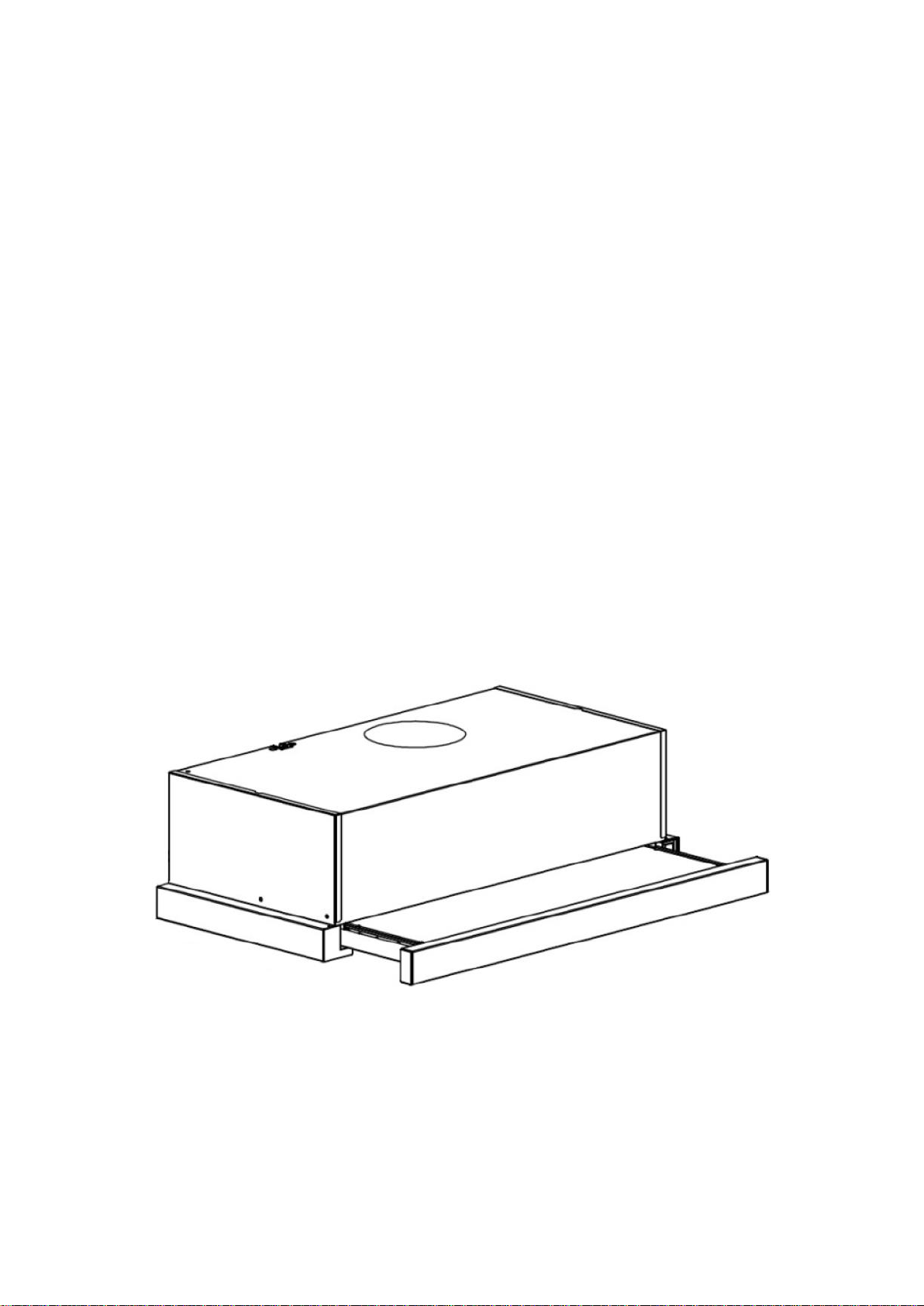

Candy CBT6130/2W-07 User manual

CBT6130/2W-07
CBT6130/2N-07
CBT6020/2X-07
Instruction manual

1
CONTENT
1………………………………………. Introduction
2………………………………………. Safety precaution
3……………………………………….. Installation instructions
4……………………………………….. Operation
5…………………………………………Use and maintenance
6 …………………………………………Trouble shooting
7…………………………………………Environmental protection

2
INTRODUCTION
Thank you for choosing this cooker hood.
This instruction manual is designed to
provide you with all required instructions
related to the installation, use and
maintenance of the appliance. In order to
operate the unit correctly and safety, please
read this instruction manual carefully before
installation and usage.
SAFETY PRECAUTION
This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not
be made by children without supervision

3
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
The instructions shall state the substance
of the following:
–there shall be adequate ventilation of
the room when the range hood is used at
the same time as appliances burning gas
or other fuels (not applicable to
appliances that only discharge the air
back into the room);
–the details concerning the method and
frequency of cleaning;
–there is a fire risk if cleaning is not
carried out in accordance with the
instructions;
–do not flambé under the range hood;
–CAUTION: Accessible parts may
become hot when used with cooking
appliances.

4
The installation instructions shall include
the substance of the following:
–the air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other fuels
(not applicable to appliances that only
discharge the air back into the room);
–the minimum distance between the
supporting surface for the cooking vessels
on the hob and the lowest part of the
range hood. (When the range hood is
located above a gas appliance, this
distance shall be at least 65 cm.
–regulations concerning the discharge of
air have to be fulfilled.
The installation instructions for range
hoods with accessible metallic enclosures
of class II construction shall include
details that indicate the location and
maximum permitted lengths for any fixing
or mounting screw or other fixing device
that penetrates into the range hood to

5
attach an accessory such as a facia or
duct fitting.
Where fixing or mounting screws, or other
fixing devices are used, that penetrate
into the range hood with an accessible
metallic enclosure of class II construction,
to attach an accessory, the instructions
shall indicate the required location of
these screws or fixing devices and include
the substance of the following warning.
Warning: Failure to install the screws or
fixing device in accordance with these
instructions may result in electrical
hazards
For safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this instruction
manual.
Warning: Failure to install the screws or
fixing device in accordance with these
instructions may result in electrical
hazards

6
Regarding the instructions method of
fixing for the fixed appliance and how the
appliance is to be fixed to its support,
thanks to refer to the section
“INSTALLATION AND FIXING”.
Regarding the instructions for the bulb
changing, thanks to refer to the section
“light changing”. ILCOS D code for this
lamp is: IBB/C-40-230-E14-35
3. Installation instructions
The cooker hoods should be placed at a distance of 65-75cm from the
cooking surface for best effect. （See Pic 1）
65cm
75cm
Pic 1
Way one: (See Pic 2A)
4.1.1 To install onto the wall drill 4 holes of Ø8mm on a suitable place
according with the centre distance of hole in the back of the cooker
hood.

7
4.1.2 Insert the wall plugs into the holes.
4.1.3 Insert the screws into the wall pulgs and tight the screws.
4.1.4 Put up the cooker hood onto the fixed screws.
4.1.5 Put the one air outlet and extensible pipe onto the cooker hood. (the
extensible pipe is optional not supplied)
Way two: (See Pic 2B)
4.2.1 Drill 6 holes of 4mm diameter at the bottom of the hanging cupboard
4.2.2 Put the air outlet on the cooker hood, then install the cooker hood on
the bottom of the cupboard, tighten the hood with enclosed 6 screws.
4.3.3 Install the adjusted board on the bottom of the hood in order to keep
out the gap between hood back and cupboard.

8
For safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this instruction
manual.
Warning: Failure to install the screws or
fixing device in accordance with these
instructions may result in electrical
hazards
4. OPERATION
5.1 Connect the plug into the power.
5.2 Push the switch ① into “ ”, the lamp be on; push into “0”, the lamp
be off.
5.3 Push the switch ② into “I、II”, the motor will be on “low、high” two
speeds, push into “0”, the motor will be off.
5.4 The cooker hood will working at low or high speed when pull out the
front panel.

9
5. USE AND MAINTENANCE
It is recommended to operate the appliance prior to cooking.
There shall be adequate ventilation of the room when the cooker hood is
used at the same time as appliances burning gas or other fuels(not
applicable to appliances that only discharge the air back into the room.
It is recommended to leave the appliance in operation for 15 minutes
after cooking is terminated in order to completely eliminate cooking
vapours and odours.
If the appliance is not used, please turn off.
Don’t have flame under the cooker hood.
Don’t use or stop use if the appliance is damaged especially the supply
cord and the case.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
Don’t immerse the appliance in liquid.
The exhaust air must not be discharge into a flue which is used for
