INTRODUCTION
Thank you for choosing this cooker hood.
This instruction manual is designed to provide you with all required
Instructions related to the installation, use and maintenance of the
appliance.
In order to operate the unit correctly and safety, please read this instruction
manual carefully before installation and usage.
The cooker hood use high quality materials, and is made with a
streamlined design. Equipped with large power electric motor and
centrifugal fan, it also provides strong suction power, low noise operation,
non-stick grease filter and easy assembly installation.
SAFETY PRECAUTION

Never let the children operate the machine.
 The cooker hood is for home use only, not suitable for
barbecue, roast shop and other commercial purpose.
 The cooker hood and its filter should be clean regularly in
order to keep in good working condition.

Clean the cooker hood according to the instruction manual and
keep the unit from danger of burning. There is a fire risk if
cleaning is not carried out in accordance with the instructions.
 Forbid the direct baking from the gas cooker.
 Please keep the kitchen room a good convection.

If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent similarly qualified persons in
order to avoid a hazard.
 There shall be adequate ventilation of the room when the
range hoods used at the same time as appliances burning gas
or other fuels;
3

 The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other fuels;
 Regulations concerning the discharge of air have to be fulfilled.

This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.

Children should be supervised to ensure that they do not play
with the appliance.

Cleaning and user maintenance shall not be made by children
without supervision.
 Do not flame under the range hood.

CAUTION: Accessible parts may become hot when
used with cooking appliance.

The warning shall be in the same part of the instructions that
include details of how to mount the equipment.
Electrical Shock Hazard
 Only plug this unit into a properly earthed outlet. If in
doubt seek advice from a suitably qualified engineer.
 Failure to follow these instructions can result in
death, fire, or electrical shock.
The lamp used in this product is not suitable for use
in the lighting of a room.
The purpose of this lamp is to provide illumination for using the product.
4

32

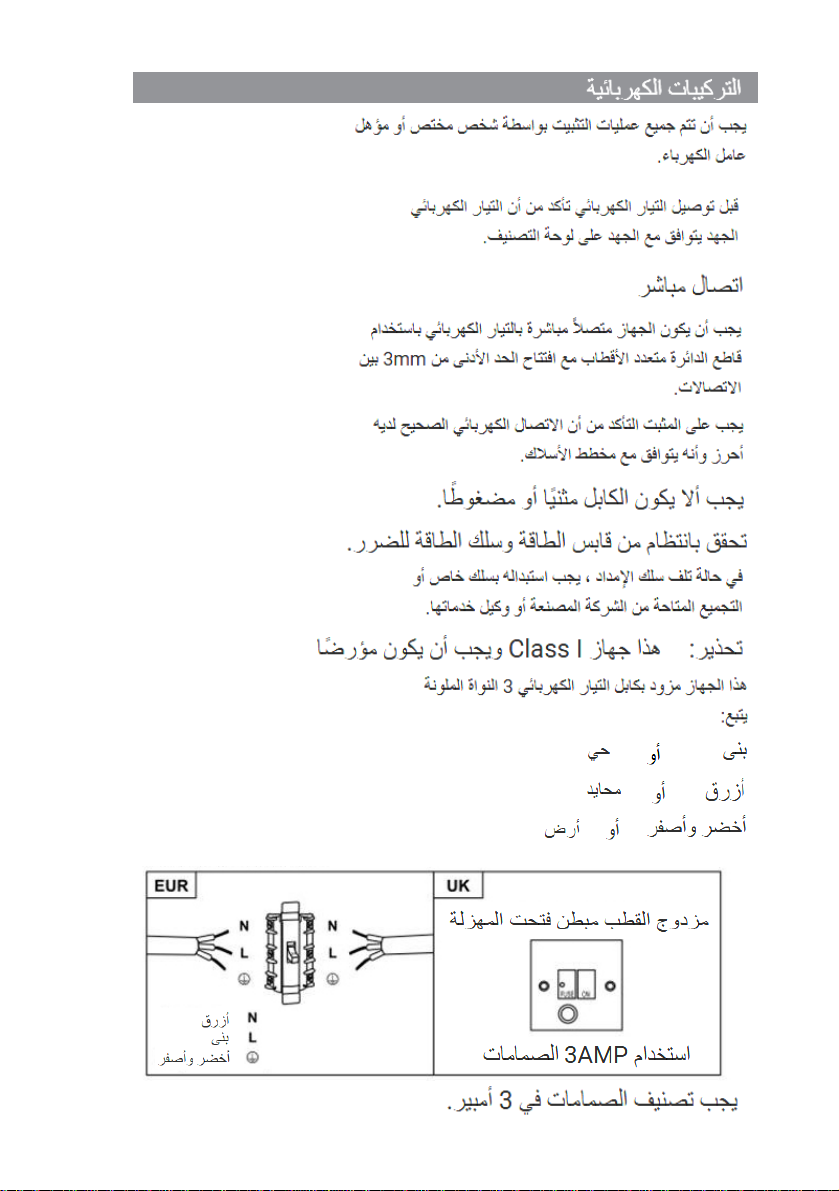

Direct Connection
The appliance must be connected directly to the mains using an
omnipolar circuit breaker with a minimum opening of 3mm between
the contacts.
The installer must ensure that the correct electrical connection has
been made and that it complies with the wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and power cord for damage. If the
supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
WARNING: This is a Class I appliance and MUST be earthed
This appliance is supplied with a 3 core mains cable coloured as
follows:
Brown = L or Live
Blue = N or Neutral
Green and Yellow = E or Earth
The fuse must be rated at 3 Amps.
Electrical Installation
All installation must be carried out by a competent person or qualified
electrician. Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate.
5

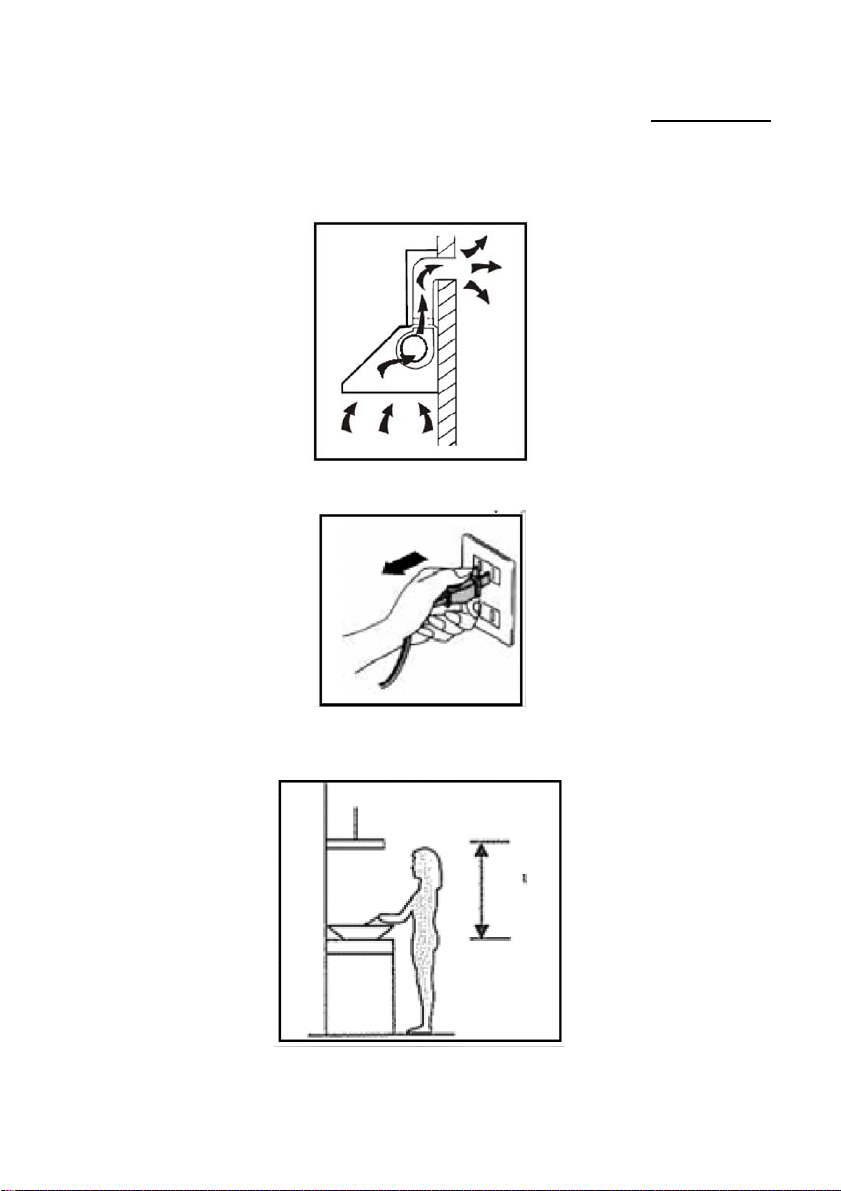

Prepare for installation:
a. If you have an outlet to the outside, your cooker hood can be connected
as below picture by means of an extraction duct (enamel, aluminum,
flexible pipe or inflammable material with an interior diameter of 150mm)
b. Before installation, turn the unit off and unplug it from the outlet.
c. The cooker hood should be placed at a distance of 65~75cm above the
cooking plane for best effect.
6

Specifications

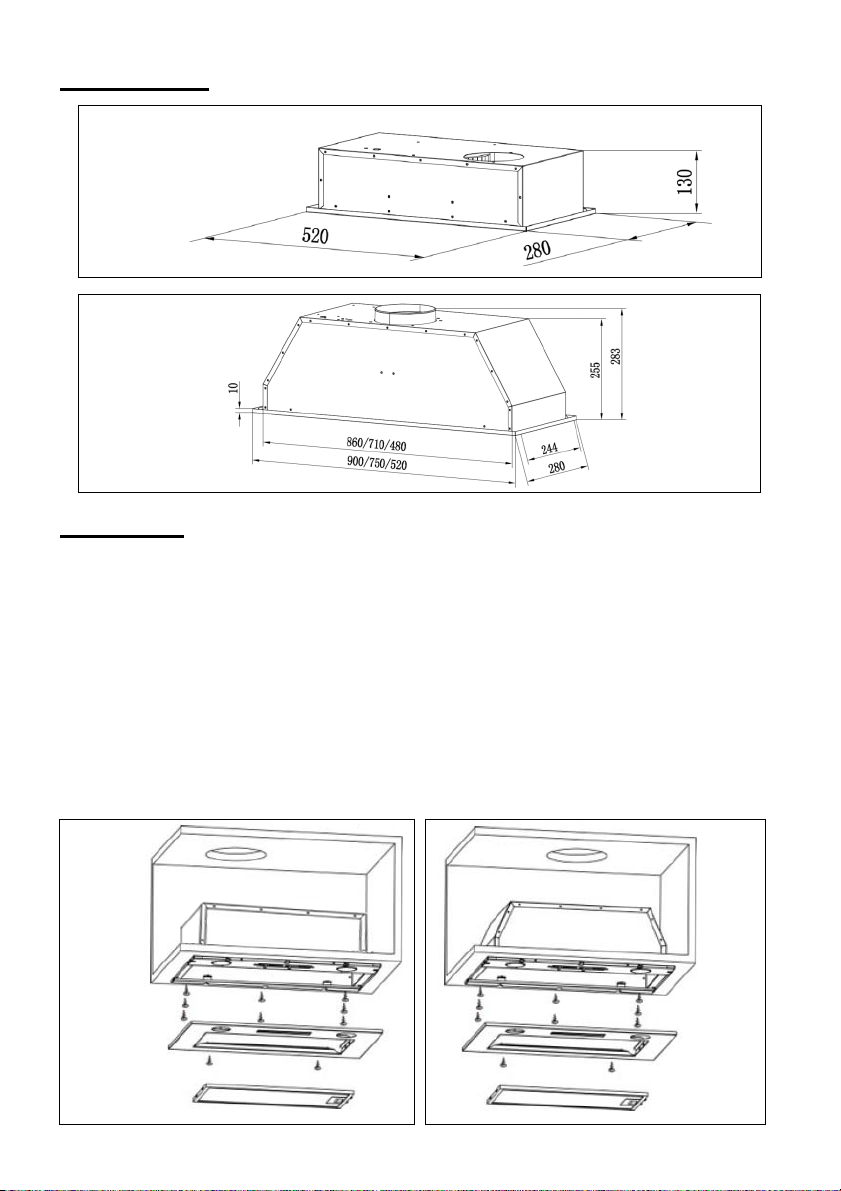

Installation
–The typical installation method for your range hood is into a purpose
built overhead/wall cabinet.
– Using a jigsaw, create the required cut-out for your range hood,
as 490 × 250mm
– Make sure the cut-out is at least 35mm from the cabinet edge.
– Remove the grease filter and remove the 2 screws on the panel.
– Screw the range hood into the cabinet using 8 screws (supplied).
– Re-fit the panel with the 2 screws (previously removed).
CBG620/1X
CBG620/1W
CBG620/1N
CBG625/1X
CBG625/1W
CBG625/1N
CBG640/2X
CBG6250/1X
CBG620/1X
CBG620/1W
CBG620/1N
CBG625/1X
CBG625/1W
CBG625/1N
CBG52SX
CBG640/2X
CBG6250/1X
CBG52SX
7

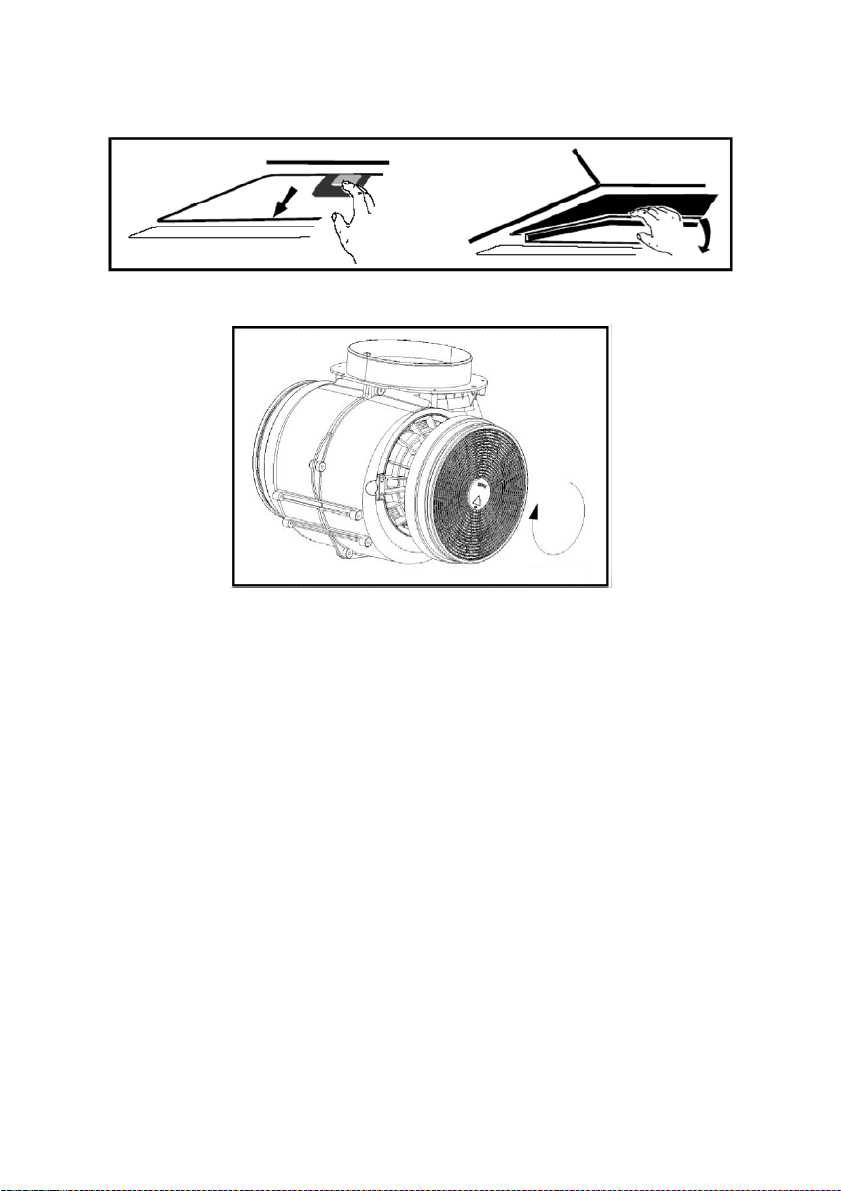

Activated carbon filter can be used to trap odors.
In order to install the activated carbon filter, the grease filter should be
detached first. Press the lock and pull it downward.
Plug the activated carbon filter into the unit and turn it in clockwise direction.
Repeat the same on the other side.
NOTE:
oMake sure the filter is securelylocked. Otherwise, it would
loosen and cause dangerous.
oWhen activated carbon filter attached, the suction power will
be lower.
8

DESCRIPTION OF COMPONENTS
OPERATION
Low Speed button 1
It’s used for Ventilation on the kitchen. It is suitable for simmering and cooking
which do not make much steam.
Medium Speed button 2
Airflow speed is ideally for ventilation in standard cooking operation.
High Speed button 3
When high density of smoke or steam produced, press high-speed button for
highest effective ventilation.
Light button
NOTE: If Low / Medium / High speed buttons are press at the same time, the
unit will only operate at the highest speed.
Off button
It’s used for turning off the fan.
9

MAINTENANCE

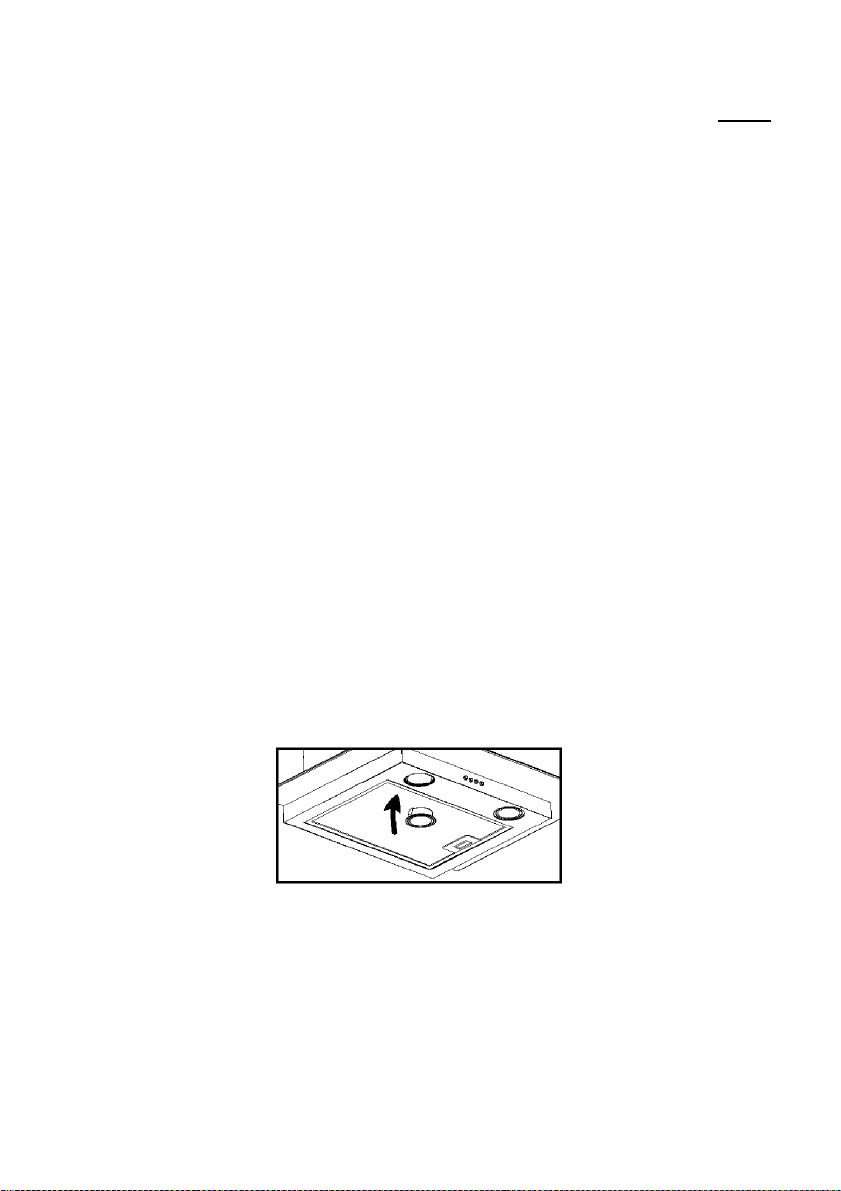

Before cleaning switch the unit off and pull out the plug.
I. Regular Cleaning
Use a soft cloth moistened with hand-warm mildly soapy water or household
cleaning detergent. Never use metal pads, chemical, abrasive material or stiff
brush to clean the unit.
II. Monthly Cleaning for Grease Filter
ESSENTIAL: Clean the filter every month can prevent any risk of fire.
The filter collects grease, smoke and dust…...so the filter is directly affecting
the efficiency of the cooker hood. If not cleaned, the grease residue (potential
flammable) will saturate on the filter. Clean it with household cleaning
detergent.
III. Annual Cleaning for Activated Carbon Filter
Apply SOLELY to unit that installed asa recirculation unit (not vented to the
outside). This filter traps odours and must be replaced at least once a year
depending on how frequent the cooker hood used.

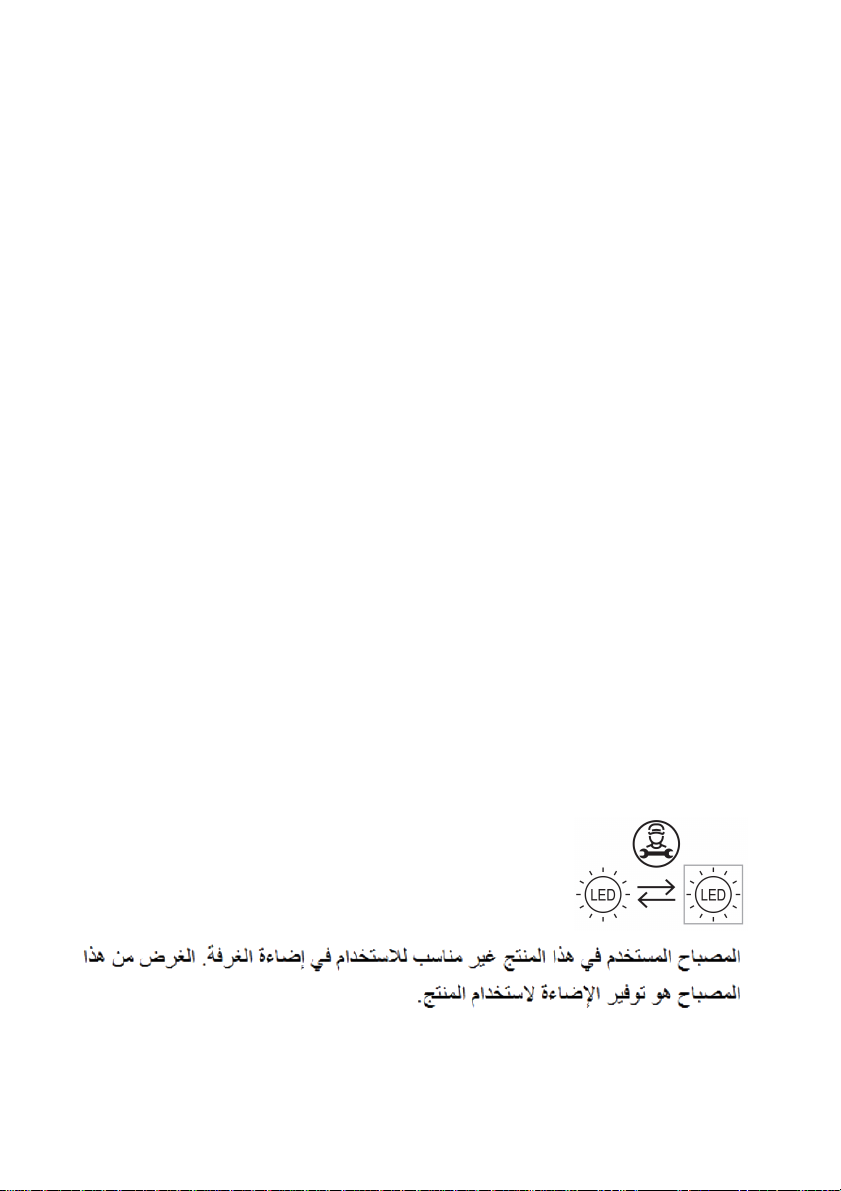

III. Bulb Replacement
1.Switch the unit off and unplug the appliance.
2.Remove the lamp cover by unscrewing the 2 screws.
3.Unscrew the LED lamp
4.Replace with the same type and lamp
LED lamp (220V max,2W).
