Cooker Hood
Instruction Manual

2
Content
1…………………………………..………………………………Safety instructions
2…………………………………..………………………………Installation
3…………………………………..………………………………Start using your cooker hood
4…………………………………..………………………………Troubleshooting
5…………………………………..………………………………Maintenance and cleaning
6…………………………………..………………………………Environment protection

3
SAFETY INSTRUCTIONS
This manual explains the proper installation and use of your cooker hood,
please read it carefully before using even if you are familiar with the product.
The manual should be kept in a safe place for future reference.
Never to do:
●D o not try to use the cooker hood
without the grease filters or if the filters
are excessively greasy!
●Do not install above a cooker with a
high level grill.
●Do not leave frying pans unattended
during use because overheated fats or
oils might catch fire.
●Never leave naked flames under the
cooker hood.
●If the cooker hood is damaged, do not
attempt to use.
●Do not flambé under the cooker hood.
●CAUTION: Accessible parts may
become hot when used with cooking
appliances.
●The minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest part
of the cooker hood. (When the cooker
hood is located above a gas appliance,
this distance shall be at least 65 cm)
●The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels.
Always to do:
●Important! Always switch off the
electricity supply at the mains during
installation and maintenance such as
light bulb replacement.
●The cooker hood must be installed in
accordance with the installation
instructions and all measurements
followed.
●All installation work must be carried
out by a competent person or qualified
electrician.
●Please dispose of the packing material
carefully. Children are vulnerable to it.
●P ay attention to the sharp edges
inside the cooker hood especially
during installation and cleaning.
●When the cooker hood is located
above a gas appliance,the minimum
distance between the supporting
surface for the cooking vessels on the
hob and the lowest part of the cooker
hood that distance must be:
Gas cookers: 75 cm
Electric cookers: 65 cm
Coal or oil cookers: 75 cm
●Make sure the ducting has no bends
sharper than 90 degrees as this will
reduce the efficiency of the cooker
hood.
●Warning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards

4
Always to do:
●Always put lids on pots and pans
when cooking on a gas cooker.
●When in extraction mode, air in the
room is being removed by the cooker
hood. Please make sure that proper
ventilation measures are being
observed. The cooker hood removes
odours from room but not steam.
●Cooker hood is for domestic use only.
●If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
●This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.
Always to do:
●Caution: The appliance and its
accessible parts can become hot
during operation. Be careful to avoid
touching the heating elements.
Children younger than 8 years old
should stay away unless they are
under permanent supervision.
●There shall be adequate ventilation of
the room when the cooker hood is
used at the same time as appliances
burning gas or other fuels.
●There is a fire risk if cleaning is not
carried out in accordance with the
instructions
●Regulations concerning the discharge
of air have to be fulfilled.
●Clean your appliance periodically by
following the method given in the
chapter MAINTENANCE.
●For safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this
instruction manual.
●Regarding the details about the
method and frequency of cleaning,
please refer to maintenance and
cleaning section in the instruction
manual.
●Cleaning and user maintenance shall
not be made by children without
supervision.
●When the cooker hood and
appliances supplied with energy other
than electricity are simultaneously in
operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5
bar).
●WARNING: Danger of fire: do not
store items on the cooking surfaces.
●Asteam cleaner is not to be used.
●NEVER try to extinguish a fire with
water, but switch off the appliance and
then cover flame e.g. with a lid or a
fire blanket.

5
INSTALLATION (VENT OUTSIDE)
If you have an outlet to the outside, your cooker hood can be connected as
below picture by means of an extraction duct (enamel, aluminum, flexible pipe
or inflammable material with an interior diameter of 120/150mm)

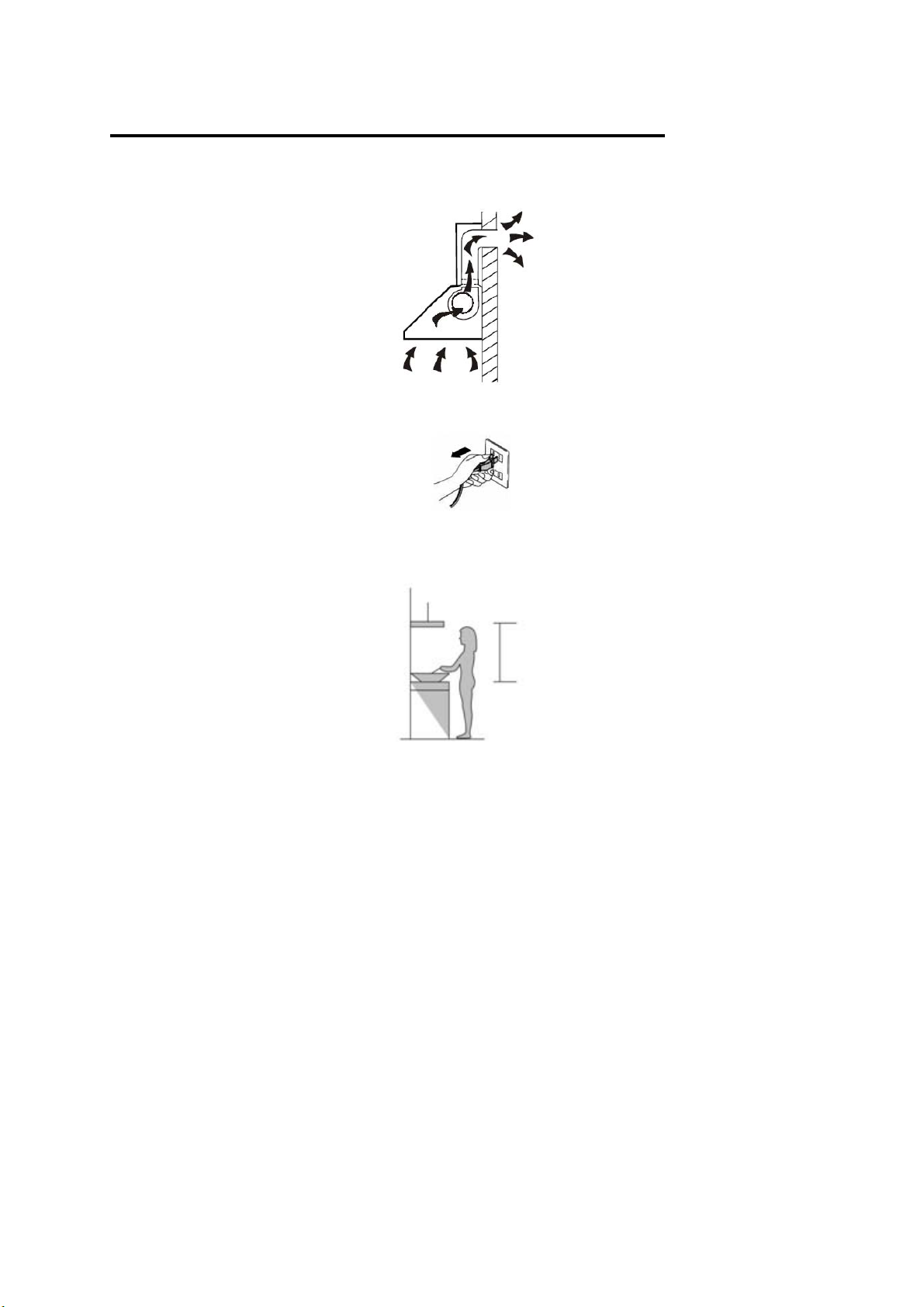

1. Before installation, turn the unit off and unplug it from the outlet.
2. The cooker hoods should be placed at a distance of 65-75cm from the
cooking surface for best effect. See Pic 1
3. To install onto the wall, drill 4 holes of Ø 8mm on a suitable place according
with the centre distance of hole in the back of the cooker hood.See Pic 2
4. Insert the nut into the holes.
5. Insert the screws into the nuts and tight.
6. Put up the cooker hood onto the fixed screws.
7. Then use the attached accessories enclosed to turn the screws into the two
holes of inside the hood, and then fix the screws to tighten the hood onto the
wall.
8. Put the one way valve onto the cooker hood.

6
Pic 2
Method B See Pic3:
1. Drill 4 holes of Ø 6mm at the bottom of the hanging cupboard.
2. Put the one way valve on the air outlet of cooker hood, then install the
cooker hood on the bottom of the cupboard, tighten the cooker hood with
enclosed 4 screws.
3. Install the adjusted board on the bottom of the hood in order to keep out
the gap between hood back and cupboard.
Noice: There are 2 methods for ventilation, including ' horizontal ventilation'
and ' vertical ventilation'. Please pay attention to the ventilation method when
installation.
Horizontal ventilation: See Pic 4A, please use the cover to seal the outlet on the
top, then the air can be vented from back.
Vertical ventilation: See Pic 4B, please use the cover to seal the outlet on the
back, then the air can be vented from top.

7

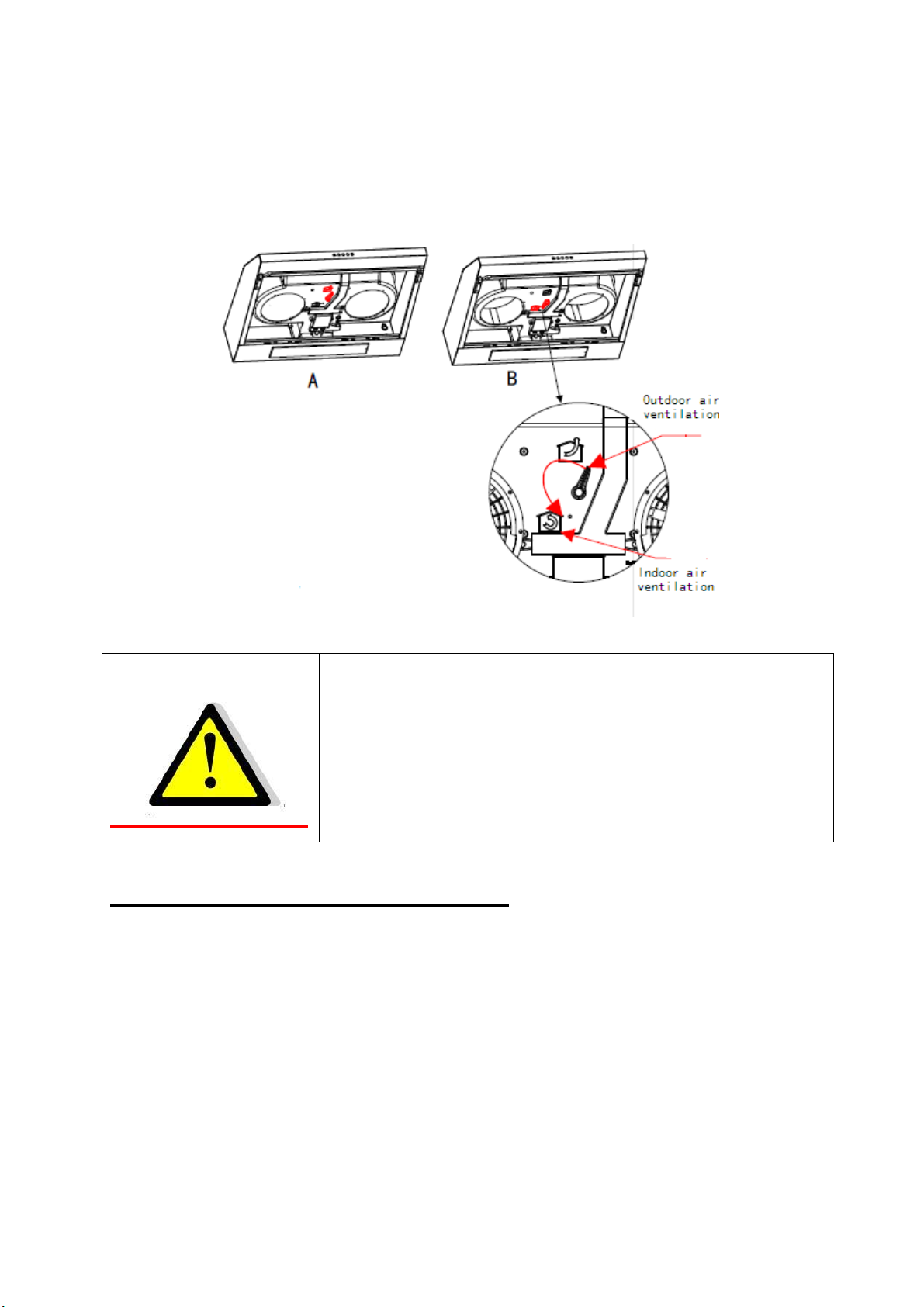

Air ventilation setting
Outdoor air ventilation: Turn the adjuster to outdoor position(pic.5A), install the
outlet, turn on the cooker hood, then the air will be vented from the outside
outlet.
Indoor air ventilation: Turn the adjuster to indoor position (pic.5B), install the
outlet cover, turn on the cooker hood, then the air can be vented from the
inside outlet.
WARNING: For safety reason, please use only the same
size of fixing or mounting screw which are
recommended in this instruction manual.
Failure to install the screws or fixing device in
accordance with these instructions may result
in electrical hazards.
Start Using Your Cooker Hood
Push button
a. Press the button “Stop”, the motor is stopped then.
b. Press the button “Low”, the motor is running at low speed.
c. Press the button “Mid”, the motor is running at medium speed.
d. Press the button “High”, the motor is running at high speed.

8
e. Press the button “Lamp”, both lights start shining .Press the button
again; the lights are switched off then.
TROUBLESHOOTING
Fault Possible Cause Solution
Light on, but motor
does not work
Fan switch turned off Select a fan switch position.
Fan switch failed Contact service center.
Motor failed Contact service center.
Light does not
work, motor does
not work
House fuses blown Reset/Replace fuses.
Power cord loose or
disconnected
Refit cord to power outlet.
Switch power outlet on.
Oil leakage
One way valve and the outlet
are not tightly sealed
Take down the one way valve
and seal with sealant.
Leakage from the connection of
chimney and cover Take chimney down and seal.
Lights not working Broken/Faulty globes Replace globes as per this
instruction.
Insufficient suction
The distance between the
cooker hood and the gas top is
too far
Refit the cooker hood to the
correct distance.
The Cooker hood
inclines
The fixing screw not tight
enough
Tighten the hanging screw and
make it horizontal.
NOTE:
Any electrical repairs to this appliance must conform to your local, state and
federal laws.Please contact the service centre if in any doubt before
undertaking any of the above.Always disconnect the unit from the power source when
opening the unit.

9
MAINTENANCE AND CLEANING
Caution:
• Before maintenance or cleaning is carried out, the cooker
hood should be disconnected from the main power supply.
Ensure that the cooker hood is switched off at the wall socket
and the plug removed.
• External surfaces are susceptible to scratches and abrasions, so please follow the
cleaning instructions to ensure the best possible result is achieved without damage.
GENERAL
Cleaning and maintenance should be carried out with the appliance cold especially
when cleaning.Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on
the surfaces.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life
expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may
be used.
NOTE:
Ensure that wiping is done along with the grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives,as this will affect the appliance
appearance and potentially remove any printing of artwork on the control panel and
will void manufactures warrantee.

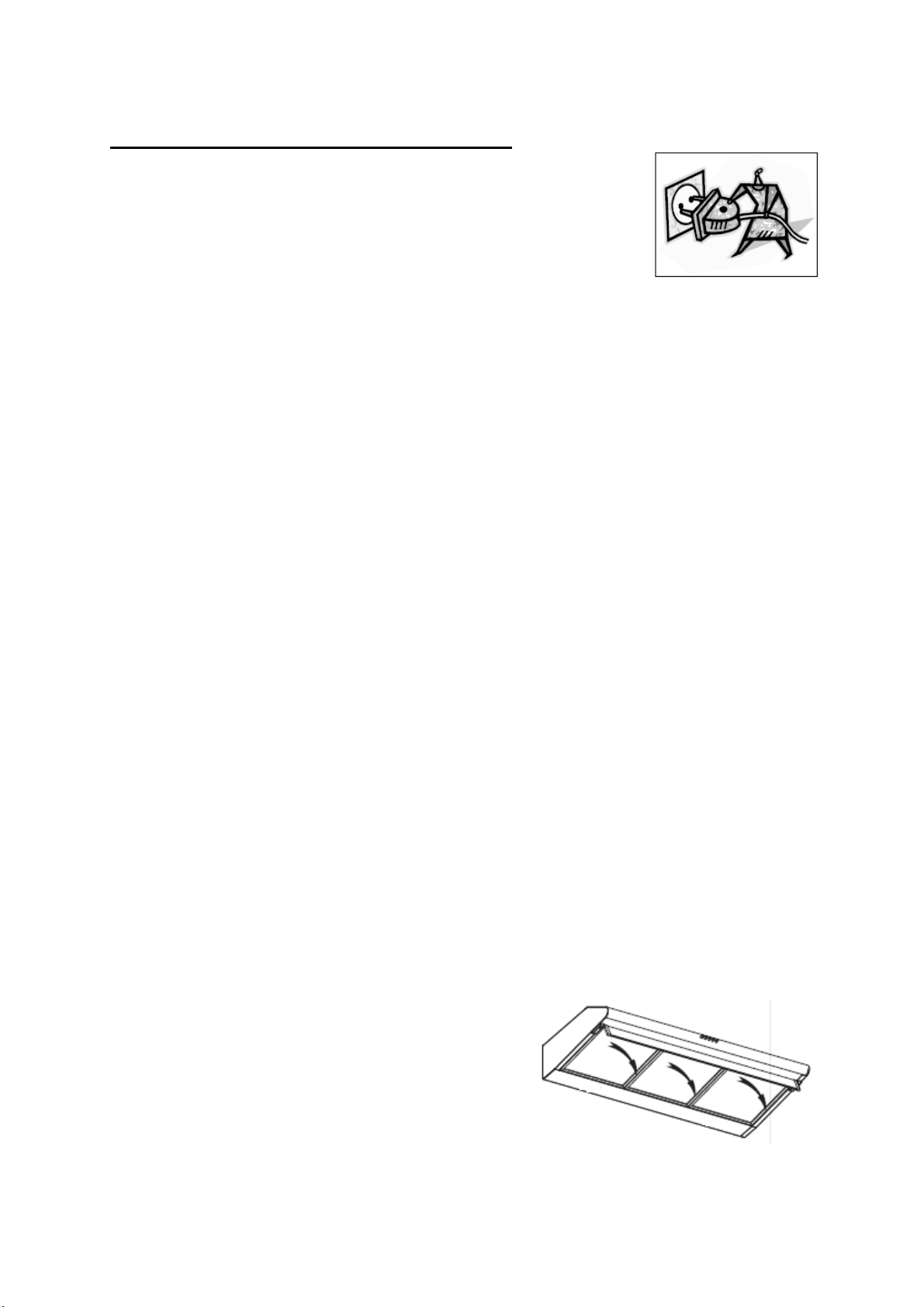

GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a
grease-loosening detergent then brush it gently with a soft brush. Please do not apply
too much pressure, avoid to damage it . (Leave to dry naturally out of direct sun light)
Filters should be washed separately to crockery
and kitchen utensils. it is advisable not to use
rinse aid.
●Removing the filters as the instruction.
●Please do not use abrasive detergent for it
will damage the hood.

10

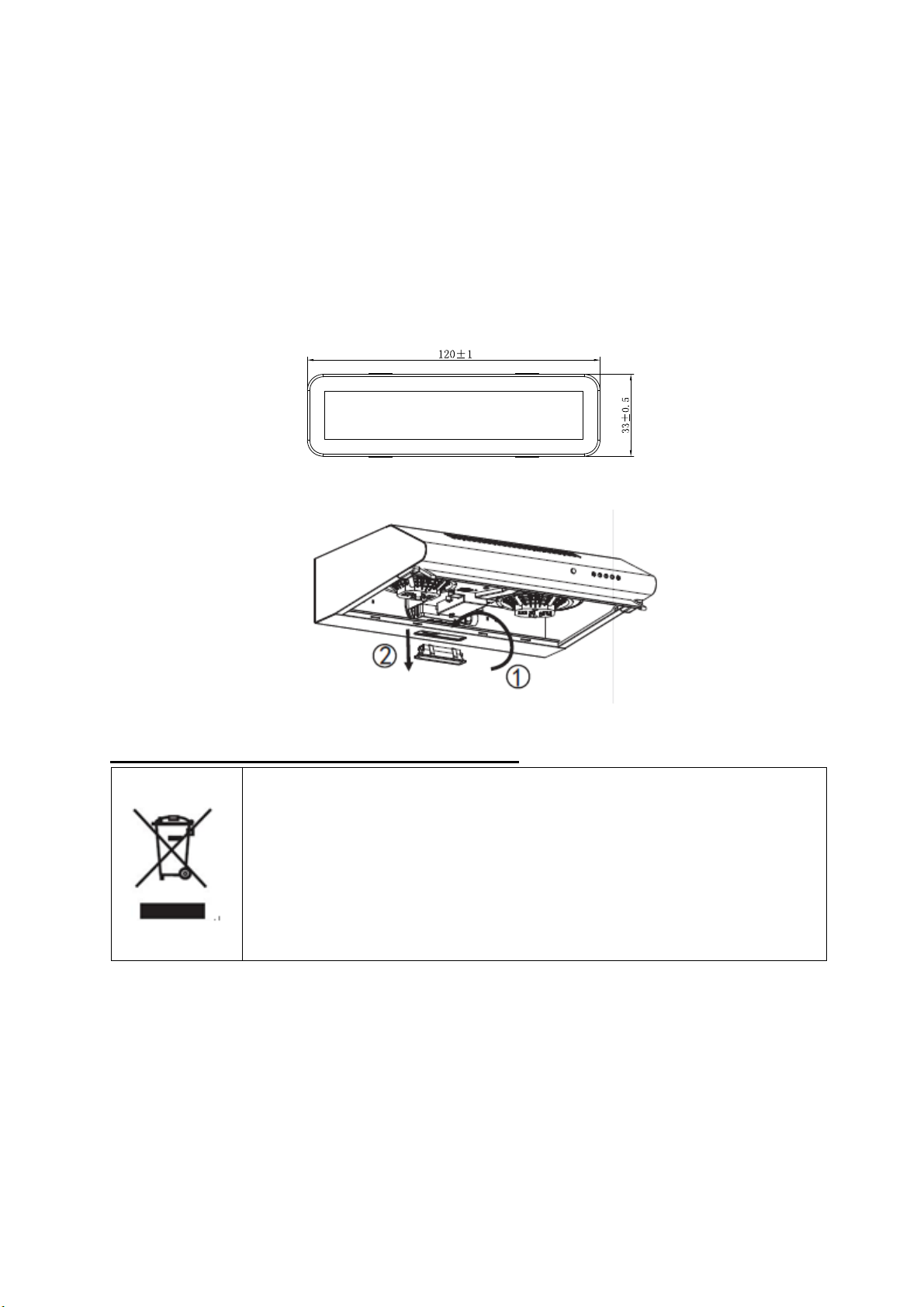

INSTALLING GREASE MESH FILTERS
• To install filters for the following four steps .
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.
CARBON FILTER
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
should be changed at three or six months according to your cooking habit. The
installation procedure of activated carbon filter is as below.
1. Before installing or replacing the carbon filters, please remove power to the unit.
2. Press the filter lock and remove the mesh filter.
3. Turn the carbon filter on both side of the motor anti-clockwise. Replace the
carbon filters with the new carbon filters.
4. Place the mesh filter.
5. Connect the power supply to the wall socket.
NOTE:
Make sure the filter is securely locked. Otherwise, it would loosen and cause
dangerous.
When activated carbon filter attached, the suction power will be lowered.
BULB REPLACEMENT
Important :
The bulb must be replaced by the manufacturer, its
service agent or similarly qualified persons.
Always switch off the electricity supply before
carrying out any operations on the appliance. When
handling bulb, make sure it is completely cool down
before any direct contact to hands.
When handling globes hold with a cloth or gloves to
ensure perspiration does not come in contact with
the globe as this can reduce the life of the globe.

11
Changing the light
Use the screw driver loosen the ST4*8MM self tapping screw (2pcs) from the lighting
panel, take out the lighting fixture. Open the terminal box that connected with the wire,
disconnect the wire connector and replace the lamp.
• ILCOS D code for this lamp is: DBS-2/65-H-120/33
– LED modules –rectangle lamp
– Max wattage: 2W
– Voltage range: AC 0-240V
– Dimensions:
ENVIRONMENTAL PROTECTION:
NOTE:
The following shows how to reduce total environmental impact (e.g. energy use) of the
cooking process).
(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical
and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE).
The WEEE contain both polluting substances (that can have a negative effect on the environment)
and base elements (that can be reused). It is important that the WEEE undergo specific treatments
to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play
an important role in ensuring that the WEEE do not become an environmental problem;
it is essential to follow a few basic rules:
- the WEEE should not be treated as domestic waste;
- the WEEE should be taken to dedicated collection areas managed by the town council or
a registered company.
ln many countries, domestic collections may be available for large WEEEs.
When you buy a new appliance, the old one can be returned to the vendor who must accept it free of
charge as a one-off, as long as the appliance is of an equivalent type and has the same functions
as the purchased appliance.

12
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance could not be dismantled by user. At the end of life, the appliance should
not be disposed of with household waste. Check with you Local Authority or retainer
for recycling advice.
INFORMATION FOR DISMANTLING

13
Kuhane jedi
Navodila za uporabo

14
Vsebina
1 ...................................................................................................................Varnostna navodila
2 ................................................................................................................................Namestitev
3 ...................................................................................... Začetek uporabe vaše kuhinjske nape
4 ................................................................................................................... Odpravljanje težav
5 ............................................................................................................Vzdrževanje in čiščenje
6 .......................................................................................................................... Varstvo okolja

15
VARNOSTNA NAVODILA
Vteh navodilih smo opisali pravilno namestitev in uporabo vaše kuhinjske nape. Prosimo vas,
da jih natančno preberete, tudi če izdelek že poznate. Navodila shranite na varno mesto, kjer
bodo na voljo za kasnejšo uporabo.
Nikoli ne:
●Ne uporabljaje kuhinjske nape brez
maščobnega filtra, ali če je na filtru
prevečmaščobe!
●Ne nameščajte je nad štedilnik z žarom
na visokem nivoju.
●Ne puščajte ponev, v katerih cvrete jedi,
brez nadzora, ker lahko razgreta
maščoba ali olja zagorijo.
●Nikoli ne puščajte odprtega ognja pod
napo.
●Če je kuhinjska napa poškodovana, je
ne uporabljajte.
●Pod kuhinjsko napo ne flambirajte.
●PREVIDNO: Dostopni deli se lahko
med uporabo kuhalnika močno
segrejejo.
●Minimalna razdalja med površino
kuhalnika, na katero postavite posodo,
in najnižji del nape. (Če je kuhinjska
napa nad plinskim štedilnikom, mora
biti ta razdalja najmanj 65 cm)
●Zrak ne sme biti speljan v dimno cev, ki
se uporablja za izpuh plinskih naprav
ali naprav na druga goriva.
Vedno:
●Pomembno! Med nameščanjem in
vzdrževalnimi deli, kot je na primer
tudi menjava žarnice, vedno izklopite
električno napajanje.
●Kuhinjsko napo morate namestiti
v skladu z navodili za namestitev in
nadaljnjimi ukrepi.
●Celotno namestitev lahko opravi samo
kompetentna oseba oz. strokovno
usposobljen električar.
●Prosimo vas, da embalažo previdno
odložite med odpadke. Lahko
predstavlja nevarnost za otroke.
●Bodite pozorni na ostre robove
kuhinjske nape, zlasti med
nameščanjem in čiščenjem.
●Če je kuhinjska napa nad plinskim
štedilnikom, je minimalna razdalja
med površino štedilnika, na katero
postavite posodo, in najnižjim delom
kuhinjske nape:
Plinski štedilnik: 75 cm
Električni štedilnik: 65 cm
Štedilnik na premog ali olje: 75 cm
●Zagotovite, da napeljava ne bo imela
ostrejših kotov od 90 stopinj, ker bi
bila učinkovitost kuhinjske nape
močno zmanjšana.
●POZOR:Če vijakov ali delov za
pritrditev ne namestite v skladu
z navodili, obstaja električna
nevarnost

16
Vedno:
●Če kuhate na plinskem štedilniku,
posode in ponve pokrijte s pokrovko.
●Ko je v načinu odvajanja, kuhinjska
napa odstranjuje zrak iz prostora. Ne
pozabite na ustrezno zračenje.
Kuhinjska napa s prostora odstrani
vonjave, ne pa tudi pare.
●Kuhinjska napa je primerna samo za
uporabo v gospodinjstvih.
●Če je električni kabel poškodovan, ga
mora zamenjati proizvajalec, serviser
ali podobno kvalificirana oseba, da
preprečite morebitne nevarnosti.
●Ta aparat lahko uporabljajo otroci,
starejši od 8 let, ter osebe
z zmanjšanimi fizičnimi, senzoričnimi
ali umskimi sposobnostmi ali s
pomanjkljivimi izkušnjami in znanjem,
vendar samo pod ustreznim nadzorom
ali če imajo navodila za varno uporabo
naprave in če razumejo morebitne
nevarnosti. Otroci naj se z aparatom
ne igrajo. Brez nadzora otroci nape ne
smejo čistiti in na njej ne smejo izvajati
vzdrževalnih del.
●Pozor:Preden dostopate do terminalov,
morate izključiti vsa napajanja.
Vedno:
●Pozor: Napa in njeni dostopni deli se
med delovanjem močno segrejejo.
Bodite pozorni in ne dotikajte se vročih
delov. Otroci, mlajši od 8 let, ne smejo
biti v bližini kuhinjske nape, razen pod
stalnim nadzorom.
●V prostoru mora biti zagotovljeno
primerno zračenje, če kuhinjsko napo
uporabljate hkrati s štedilnikom na plin
ali na drugo gorivo.
●Obstaja nevarnost požara, če nape ne
čistite v skladu z navodili
●Odvod zraka mora biti urejen v skladu s
pravili.
●Napo redno čistite, pri čemer pa
upoštevajte navodila v poglavju
VZDRŽEVANJE.
●Podrobnosti načina in časovni intervali
čiščenja so predstavljeni v poglavju
o vzdrževanju in čiščenju v navodilih
za uporabo.
●Podrobnosti načina in časovni intervali
čiščenja so predstavljeni v poglavju
o vzdrževanju in čiščenju v navodilih
za uporabo.
●Brez nadzora otroci nape ne smejo
čistiti in na njej ne smejo izvajati
vzdrževalnih del.
●Ko hkrati delujejo kuhinjska napa in
kuhinjski aparati, ki se napajajo razen
z elektriko tudi z drugo energijo,
negativni tlak v prostoru ne sme preseči
4 Pa (4 x 10-5 bar).
●POZOR: Nevarnost požara: ne hraniti
stvari na kuhalni površini.
●Ne uporabljajte parnega čistilnika.
●NIKOLI ognja ne poskušajte pogasiti
z vodo, ampak izklopite aparat in nato
ogenj prekrijte npr. s pokrovom ali
protipožarno odejo.

17
NAMESTITEV (ODVOD ZRAKA IZ PROSTORA)
Če speljete odvod zraka iz hiše ven, lahko svojo kuhinjsko napo povežete kot prikazuje slika
spodaj z napeljavo za odvod (emajl, aluminij, fleksibilne cevi ali ne gorljivi materiali z
notranjim premerom 120/120 mm)
1. Pred namestitvijo napo izklopite in izključite z napajanja.
2. Kuhinjsko napo za optimalno učinkovitost namestite 65-75 cm nad kuhalno površino. Glej sl.
1
3. Za namestitev na steno izvrtajte 4 luknje s Ø 8 mm na primerno mesto glede na razdaljo
centra od luknjo na zadnji strani nape. Glej sl. 2
4. V luknje namestite vložke.
5. Vijake namestite v vložke in jih privijte.
6. Napo namestite na pritrjene vijake.
7. Potem s priloženimi dodatki privijte vijaka v dve luknji v notranji strani nape in nato vijaka
privijte, da bosta fiksirala napo na steno.
8. Enosmerni ventil namestite na napo.
65 cm
75 cm
Sl. 1

18
Sl.2
Metoda B glej sl. 3:
1. Izvrtajte 4 luknje s Ø 6 mm na viseči omarico spodaj.
2. Enosmerni ventil priključite na izhod zraka nape, nato namestite napo na spodnji del
omarice in napo pritrdite s 4 priloženimi vijaki.
3. Ustrezni del namestite na spodnji del nape, da boste ohranili odprtino med zadnjim delom
nape in omarico.
Ne pozabite: Obstajata dva načina odzračevanja, vključno z 'vodoravnim odzračevanjem' in
'navpičnim odzračevanjem'. Prosimo vas, da ste med nameščanjem nape pozorni na
odzračevanje.
Vodoravno odzračevanje: Glej sl. 4 A, uporabite pokrov, da zatesnite izhod na vrhu, nato se bo
zrak lahko odvajal od zadaj.
Navpično odzračevanje: Glej sl. 4B, uporabite pokrov, da zatesnite izhod na vrhu, nato se bo
zrak lahko odvajal z vrha.
Sl. 2 60 cm
Sl. 4

19
Nastavitve odzračevanja
Zunanje odzračevanje: Stikalo namestite na zunanje odzračevanje (sl. 5A), namestite izhod,
vklopite napo in zrak bo speljan ven skozi odvod.
Notranja ventilacija: Stikalo namestite na notranjo ventilacijo (sl. 5B), namestite pokrov izhoda,
vklopite napo in zrak bo speljan skozi notranji odvod.
POZOR: Iz varnostnih razlogov uporabljajte vijake za
pritrditev ali montažo, ki jih priporočamo
v navodilih za uporabo.
Če vijakov ali delov za pritrditev ne namestite
v skladu z navodili, obstaja električna nevarnost
Začetek uporabe vaše kuhinjske nape
Pritisnite gumb
a. Pritisnite gumb “Stop”in motor se zaustavi.
b. Pritisnite gumb “Počasi”in motor bo deloval počasi.
c. Pritisnite gumb “Srednje”in motor bo deloval s srednjo hitrostjo.
d. Pritisnite gumb “Hitro“in motor bo deloval hitro.
e. Pritisnite gumb “Luč”in obe luči bosta zasvetili. Pritisnite gumb še enkrat in luči
prenehata svetiti
D
A B
