SAFETYINSTRUCTIONS
Thismanualexplainstheproperinstallationanduseofyourcookerhood,
pleasereaditcarefullybeforeusingevenifyouarefamiliarwiththeproduct.
Themanualshouldbekeptinasafeplaceforfuturereference.

Nevertodo:
●Do not try to use the cooker hood
without the grease filters or if the filters
are excessively greasy!
●Do not install above a cooker with a
high level grill.
●Do not leave frying pans unattended
during use because overheated fats or
oils might catch fire.
●Never leave naked flames under the
cooker hood.
●If the cooker hood is damaged, do not
attempt to use.
●Do not flambé under the cooker hood.
●CAUTION: Accessible parts may
become hot when used with cooking
appliances.
●The minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest part
of the cooker hood. (When the cooker
hood is located above a gas appliance,
this distance shall be at least 65 cm)
●The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels.
Alwaystodo:
●Important! Always switch off the
electricity supply at the mains during
installation and maintenance such as
light bulb replacement.
●The cooker hood must be installed in
accordance with the installation
instructions and all measurements
followed.
●All installation work must be carried
out by a competent person or qualified
electrician.
●Please dispose of the packing material
carefully. Children are vulnerable to it.
●Pay attention to the sharp edges
inside the cooker hood especially
during installation and cleaning.
●Make sure the ducting has no bends
sharper than 90 degrees as this will
reduce the efficiency of the cooker
hood.
●Warning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards.
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.






4
Alwaystodo:
●Always put lids on pots and pans
when cooking on a gas cooker.
●When in extraction mode, air in the
room is being removed by the cooker
hood. Please make sure that proper
ventilation measures are being
observed. The cooker hood removes
odours from room but not steam.
●Cooker hood is for domestic use only.
●If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
●This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.


Alwaystodo:
●Caution: The appliance and its
accessible parts can become hot
during operation. Be careful to avoid
touching the heating elements.
Children younger than 8 years old
should stay away unless they are
under permanent supervision.
●There shall be adequate ventilation of
the room when the cooker hood is
used at the same time as appliances
burning gas or other fuels.
●There is a fire risk if cleaning is not
carried out in accordance with the
instructions.
●Regulations concerning the discharge
of air have to be fulfilled.
●Clean your appliance periodically by
following the method given in the
chapter MAINTENANCE.
●For safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this
instruction manual.
●Regarding the details about the
method and frequency of cleaning,
please refer to maintenance and
cleaning section in the instruction
manual.
●Cleaning and user maintenance shall
not be made by children without
supervision.
●When the cooker hood and
appliances supplied with energy other
than electricity are simultaneously in
operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5
bar).
●WARNING: Danger of fire: do not
store items on the cooking surfaces.
●Asteam cleaner is not to be used.
●NEVER try to extinguish a fire with
water, but switch off the appliance and
then cover flame e.g. with a lid or a
fire blanket.

5
INSTALLATION(VENTOUTSIDE)
If you have an outlet to the outside, your cooker hood can be connected as below
picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-
flammable material with an interior diameter of 120mm)

Before installation, turn the unit off.

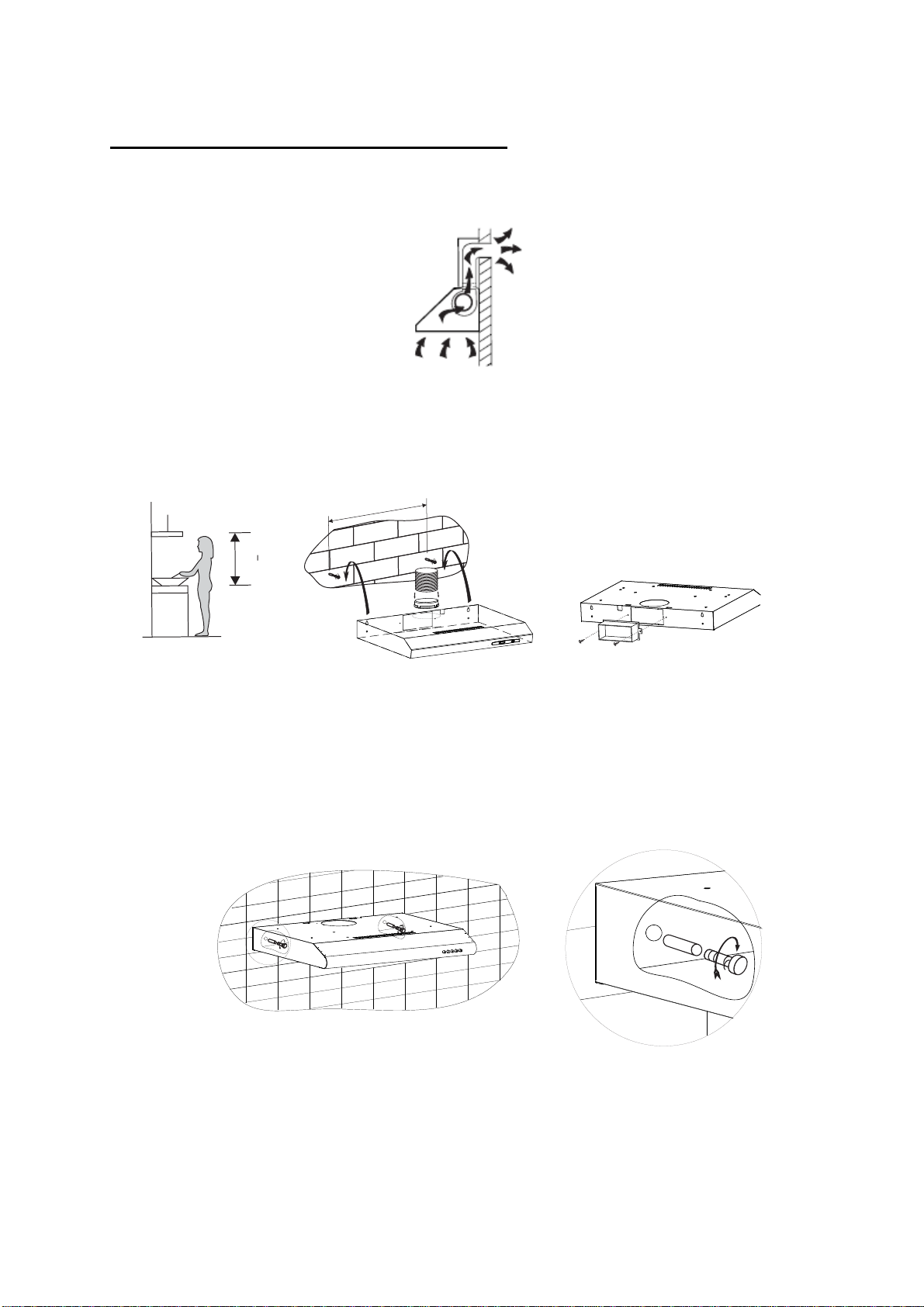

Method A(Wall Mounting):
1. The cooker hoods should be placed at a distance of 65-75cm from the cooking
surface for best effect. See Pic 1.
2. To install onto the wall, drill 2 holes of Ø 8mm at a suitable place according to the
centre distance of the holes in the back of the cooker hood.See Pic 2
3. Insert the wall plugs into the holes.
4. Insert the ST4*30mm screws into the wall plugs and tighten.
5. Put up the cooker hood onto the fixed screws.
6. Use the attached accessories enclosed to turn the safety screws into the two holes
inside the hood, and then fix the screws to tighten the hood onto the wall.See pic 3.

7. Put the expansion pipe on the outlet, then lead it outdoors, or use the outlet cover
to seal the outer outlet and open the inner exhaust valve. Note: the expansion pipe
is not included in the product.
65cm
75cm
500mm
Pic 1 Pic
Pic
2
3

6
Method B(Cabinet Mounting):
1. Drill 4 holes of Ø 6mm at the bottom of the hanging cupboard.See pic 4.

2. Install the cooker hood on the bottom of the cupboard, tighten the cooker hood with
the included M4 screws + flat washers.
3. Put the expansion pipe on the outlet, then lead it outdoors. Note: the expansion
pipe is not included in the product.
Noice: There are 2 methods for ventilation, including ' horizontal ventilation' and '
vertical ventilation'. Pay attention to the ventilation method when installing.
Horizontal ventilation: See Pic 5 A, please use a tool to knock out the outlet cover on
the top, then the air can be vented from the top.

Vertical ventilation: See Pic 5 B, please use a tool to knock out the outlet cover on the
back, then the air can be vented from the back.


Airventilationsetting
Outdoor air ventilation: Turn the adjuster to the outdoor position (pic 6A), install the
outlet, turn on the cooker hood, then the air will be vented from the outside outlet.
Indoor air ventilation: Turn the adjuster to the indoor position (pic 6B), install the outlet
cover, turn on the cooker hood, then the air can be vented from the inside outlet.
475mm
350mm
290m m
AB
3LF
3LF



CD
AB
3LF
7
Electrical Installation
All installation must be carried out by a competent person or qualified electrician.
Before connecting the mains supply ensure that the mains voltage corresponds to the
voltage on the rating plate.
Direct Connection
The appliance must be connected directly to the mains using an omnipolar circuit
breaker with a
minimum opening of 3mm between the contacts.
The installer must ensure that the correct electrical connection has been made and
that it complies with the wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and power cord for damage. If the supply
cord is damaged, it must be replaced by a special cord or assembly
available from the manufacturer or its service agent.
This appliance is supplied with a 2 core mains cable coloured as follows:
Brown = L or Live
Blue = N or Neutral
WARNING:
For safety reason, use only the same size of
fixing or mounting screws which are
recommended in this instruction manual.
Failure to install the screws or fixing device in
accordance with these instructions may result in
electrical hazards.

8

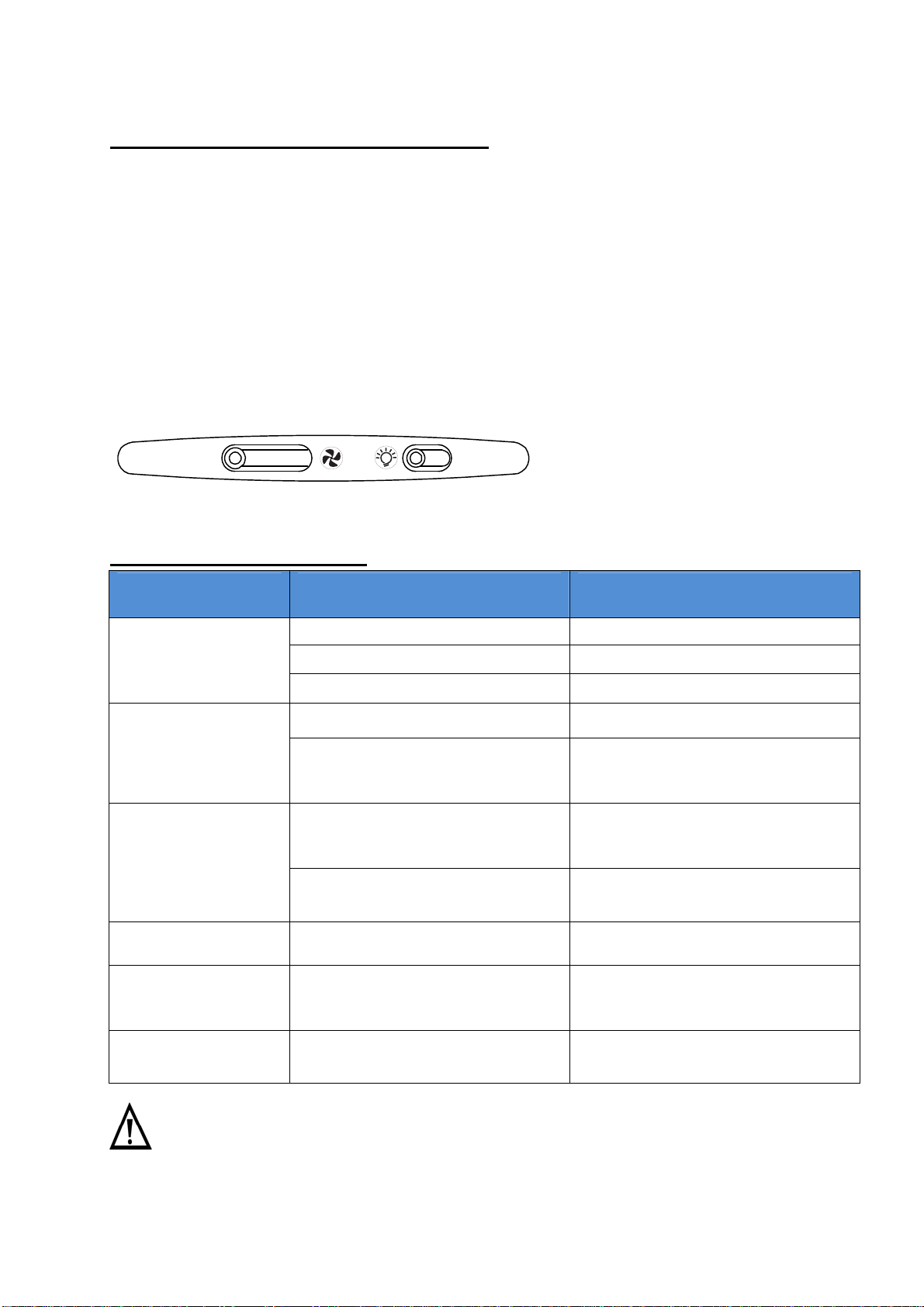

StartUsingYourCookerHood
Toggle switch
There are 3 speeds for the motor and on / off switch for the lamp.
Slide the switch for operation.
Motor Operation
0- off
1- Low Power Setting
2- Mid Power Setting
3- High Power Setting
Light Operation
0- Off
1- On

TROUBLESHOOTING
Fault PossibleCause Solution
Light on, but motor
does not work
Fan switch turned off Select a fan switch position.
Fan switch failed Contact service center.
Motor failed Contact service center.
Light does not
work, motor does
not work
House fuses blown Reset/Replace fuses.
Mains power cable is loose or
disconnected
Refit mains power cable to
power outlet.
Switch power outlet on.
Oil leakage
One way valve and the outlet
are not tightly sealed Take down the one way valve and seal with sealant.
Leakage from the connection of
chimney and cover Take chimney down and seal.
Lights not working Broken or faulty bulbs Replace blubs as per this
instruction.
Insufficient suction The distance between the cooker hood and the gas top is
too far
Refit the cooker hood to the
correct distance.
The Cooker hood
inclines The fixing screw is not tight enough Tighten the hanging screw and make it horizontal.
NOTE:
Any electrical repairs to this appliance must conform to your local, state and
federal laws. Please contact the service centre if in any doubt before
undertaking any of the above. Always disconnect the unit from the power source when
opening the unit.
321010

9
MAINTENANCEANDCLEANING
Caution:
• Before maintenance or cleaning is carried out, the cooker hood should be
disconnected from the mains power supply. Ensure that the cooker hood is switched
off at the wall socket.
• External surfaces are susceptible to scratches and abrasions, so follow the cleaning
instructions to ensure the best possible result is achieved without damage.
GENERAL
Cleaning and maintenance should be carried out with the appliance cold especially
when cleaning.Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on
the surfaces.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure a long life
expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may
be used.
NOTE:
Ensure that wiping is done along with the grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives,as this will affect the appearance of the
appliance and potentially remove any printing of artwork on the control panel and will
void manufactures warrantee.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a
mild detergent and then brush it gently with a soft brush. Do not apply too much
pressure so as to avoid any damage to it . (Leave to dry naturally out of direct sun
light.)
Filters should be washed separately to crockery and kitchen utensils. it is advisable
not to use rinse aid.
Removing grease mesh filter
a. Push the grease mesh filter buckles forward and remove the front of the filters.
b. Then push the left or right lower side stops of the filter up until the hanging point at
one side stop is not hanging the hood cavity.
c. Finally,take the whole mesh filters away.

10
Installing grease mesh filter
To install filters for the following four steps .
- Angle the filter into the slots at the back of the hood.
- Push the button on the handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.
CARBON FILTER
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
should be changed every 3 to 6 months according to your cooking habit. The
installation procedure of activated carbon filter is as below.
1. Remove the grease filter.
2. Take away the filter cloth from the back of the grease filter.
3. Fix the carbon filter on the back of the grease filter with the small steel wire.
4. Reinstall the grease filter.
5. Use carbon filters for recirculation mode only.

11

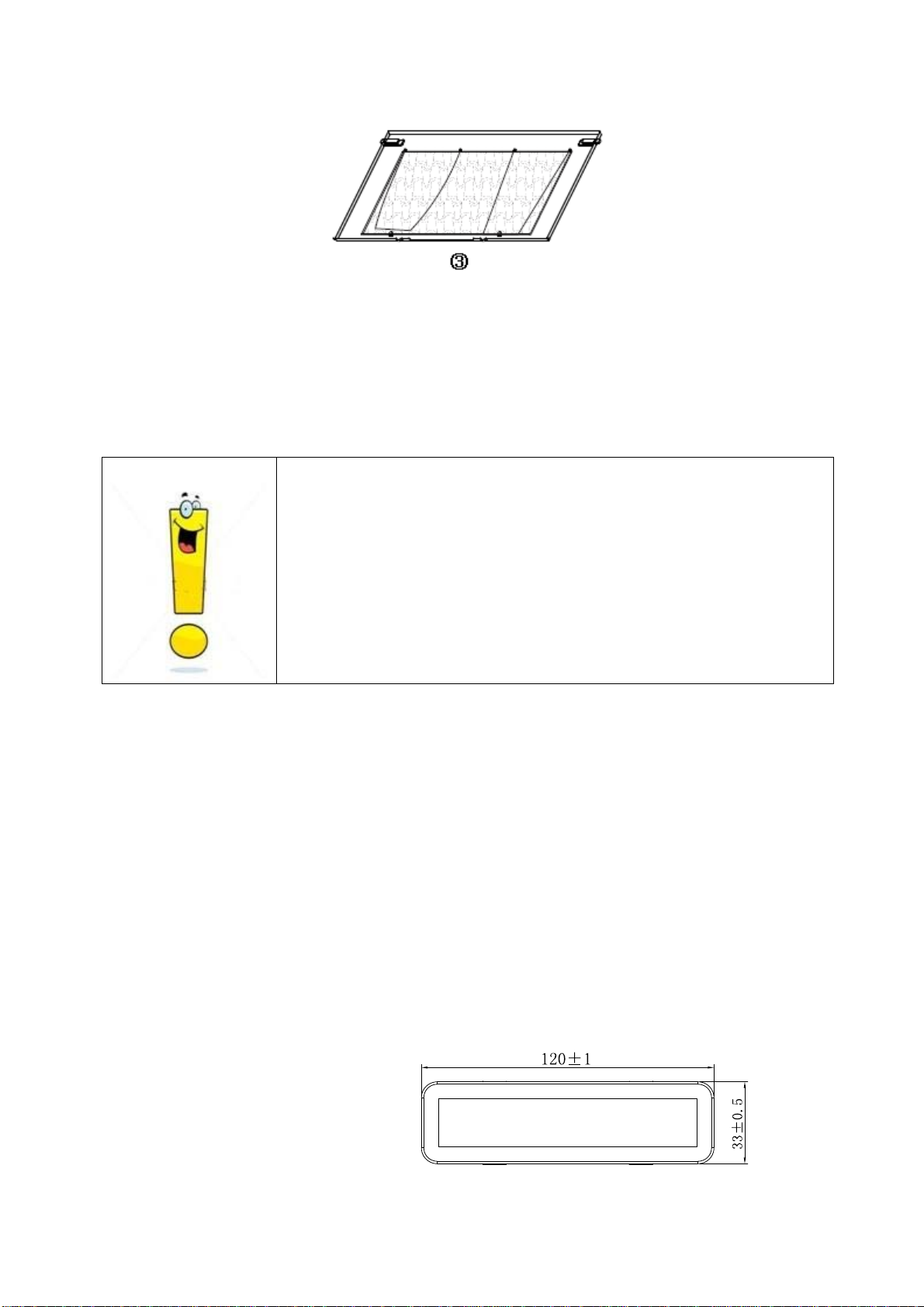

NOTE:
Make sure the filter is securely locked. Otherwise, it would loosen and cause
danger.
When activated carbon filter attached, the suction power will be lowered.
BULB REPLACEMENT
Important :
The bulb must be replaced by the manufacturer, its
service agent or similarly qualified persons.
Always switch off the electricity supply before
carrying out any operations on the appliance. When
handling bulb, make sure it has completely cooled
down before any direct contact to hands.
When handling blubs hold with a cloth or gloves to
ensure perspiration does not come in contact with
the blub as this can reduce the life of the blub.
Note:
Before changing the lights that the cooker hood can be isolated from the supply
mains by means of a plug or an all-pole switch.
Protect against danger when changing lights, such as wearing gloves.
Changing the light
• Remove the grease filter.
• Loosen the 2pcs ST4*8mm screws from the lighting panel, then take out the
lighting fixture.
• Disassembly the 3pcs ST3*12mm screws on the terminal box cover and take down
the wire cover.
• Pull out the terminal from the PCB terminal block, disconnect the wire connector
and replace the lamp.
• ILCOS D code for this lamp is: DBS-2/65-H-120/33
– LED modules –rectangle lamp
– Max wattage: 1×2 W
– Voltage range: AC 110-240V
– Dimensions:

12
ENVIRONMENTALPROTECTION:

This product is marked with the symbol on the selective sorting of
waste electronic equipment. This means that this product must not
be disposed of with household waste but must be supported by a
system of selective collection in accordance with Directive
2012/19/EU. It will then be recycled or dismantled to minimize
impacts on the environment, electrical and electronic products are
potentially dangerous for the environment and human health due to
the presence of hazardous substances.For more information, please
contact your local or regional authorities.
NOTE:
The following shows how to reduce total environmental impact (e.g. energy use) of the
cooking process).
(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance could not be dismantled by user. At the end of life, the appliance should
not be disposed of with household waste. Check with your Local Authority or retainer
for recycling advice.
1
2
3
