INSTALLATION AND USER’S MANUAL
(CMBI970LX)
(CVMI970LX)
CONTENT
INTRODUCTION
10
11
11
12
2
2-3
5-6
7-8
9
9
SAFETY PRECAUTION
SPECIFICATION
INSTALLATION
DESCRIPTION OF COMPONENTS
OPERATION
MAINTENANCE
TROUBLESHOOTING
CONFORMITY WITH DIRECTIVES
ENVIRONMENTAL PROTECTION
1

INTRODUCTION
Thank you for choosing this cooker hood.
This instruction manual is designed to provide you with all required
instructions related to the installation, use and maintenance of the appliance.
In order to operate the unit correctly and safety, please read this instruction
manual carefully before installation and usage.
The cooker hood uses high quality materials, and is made with a streamlined
design. Equipped with large power electric motor and centrifugal fan, it also
provides strong suction power, low noise operation, non-stick grease filter and
easy assembly installation.
SAFETY PRECAUTION
□Never let the children operate the machine.
□The cooker hood is for home use only, not suitable for barbecue, roast
shop and other commercial purpose.
□The cooker hood and its filter should be clean regularly in order to
keep in good working condition.
□Clean the cooker hood according to the instruction manual and keep
the unit from danger of burning.
□Forbid the direct baking from the gas cooker.
□Please keep the kitchen room a good convection.
□Before connecting this appliance check that the power supply cord is
not damaged. A damage supply cord must be replaced by qualified
service personnel only.
□There shall be adequate ventilation of the room when the range hood
is used at the same time as appliances burning gas or other fuels;
□The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels;
□Regulations concerning the discharge of air have to be fulfilled.
□This appliance if not intended for use by persons(including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person slide for their
safety.
□Children should be supervised to ensure that they do not play with the
appliance.
□Do not flame under the range hood.
□The range hood is not intended to be installed over a hob having more
than four hob elements
Electrical Shock Hazard
□Only plug this unit into a properly earthed outlet. If in doubt seek
advice from a suitably qualified engineer.
□Failure to follow these instructions can result in death, fire, or
electrical shock.
2

- These shall be adequate ventilation of the room when the range
hood is used at the same
time as appliances burning gas or other fuels(not applicable to
appliances that only discharge the air back into the room);
- the details concerning the method and frequency of cleaning.
- there is a fire risk if cleaning is not carried out in accordance with the
instructions;
- do not flame under the range hood;
- CAUTION:Accessible parts may become hot when used with
cooking appliances.
The lamp used in this product is not suitable for use
in the lighting of a room.
The purpose of this lamp is to provide illumination for using the product.
3

32

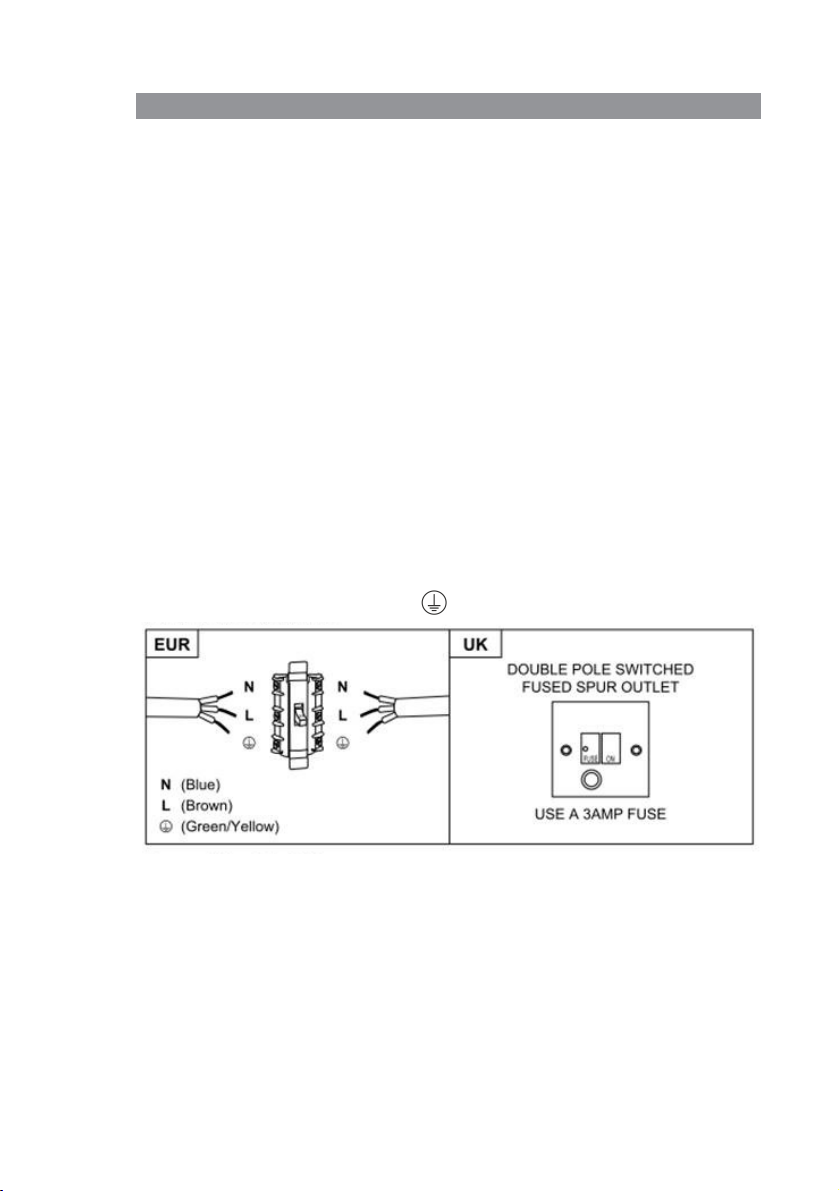

Direct Connection

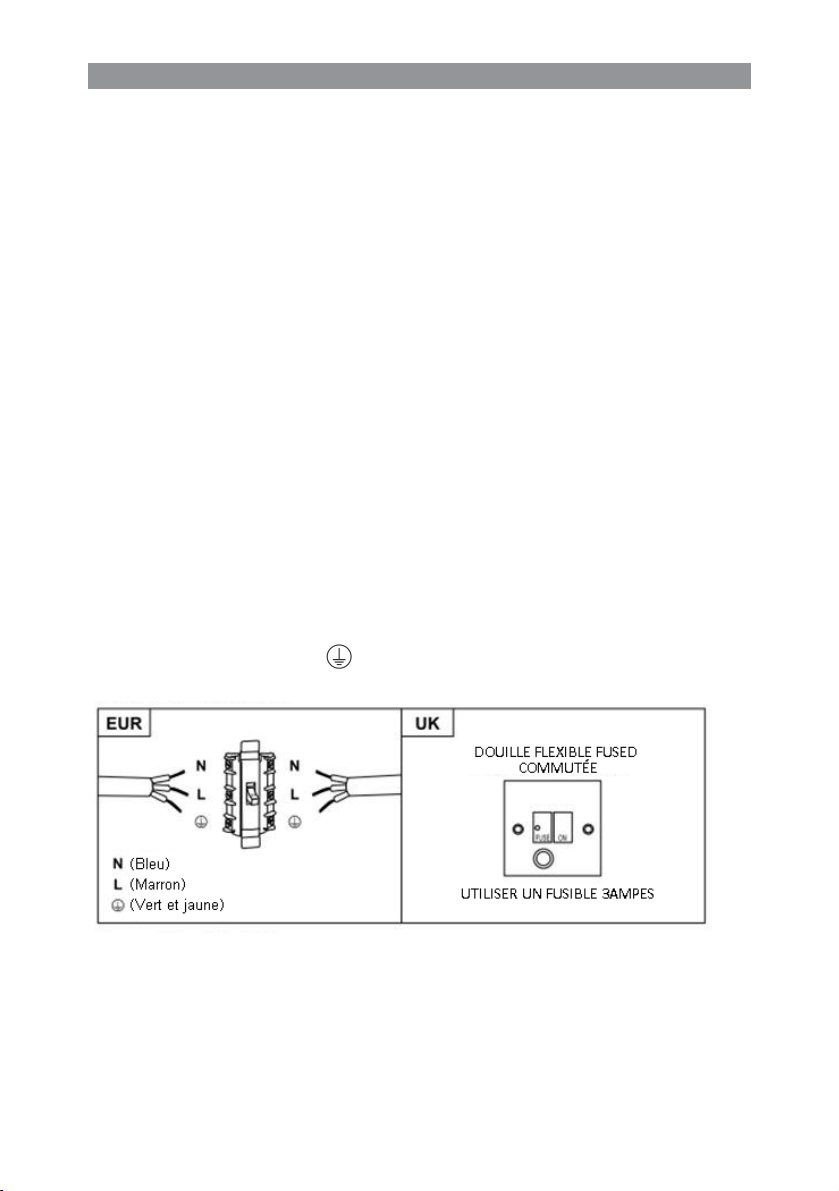

The appliance must be connected directly to the mains using an
omnipolar circuit breaker with a minimum opening of 3mm between
the contacts.
The installer must ensure that the correct electrical connection has
been made and that it complies with the wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and power cord for damage. If the
supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
WARNING: This is a Class I appliance and MUST be earthed
This appliance is supplied with a 3 core mains cable coloured as
follows:
Brown = L or Live
Blue = N or Neutral
Green and Yellow = E or Earth
The fuse must be rated at 3 Amps.
Electrical Installation
All installation must be carried out by a competent person or qualified
electrician. Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate.
4

Standard Installation Accessories List
Spec.
Illustration Picture
Qty
Casing
(CMBI970LX)
(CVMI970LX)
1
Upper Chimney 600mm
1
Lower Chimney 600mm
1
Hanging Board
1
Screws M6×60
8
φ8 Rawl Plugs
φ8×φ6 white color
11
Screws
ST6.0×40
11
φ7.2 Screws
ST4.0×8
4
Screws M5x12
40
Washers
16
Nuts
16
5

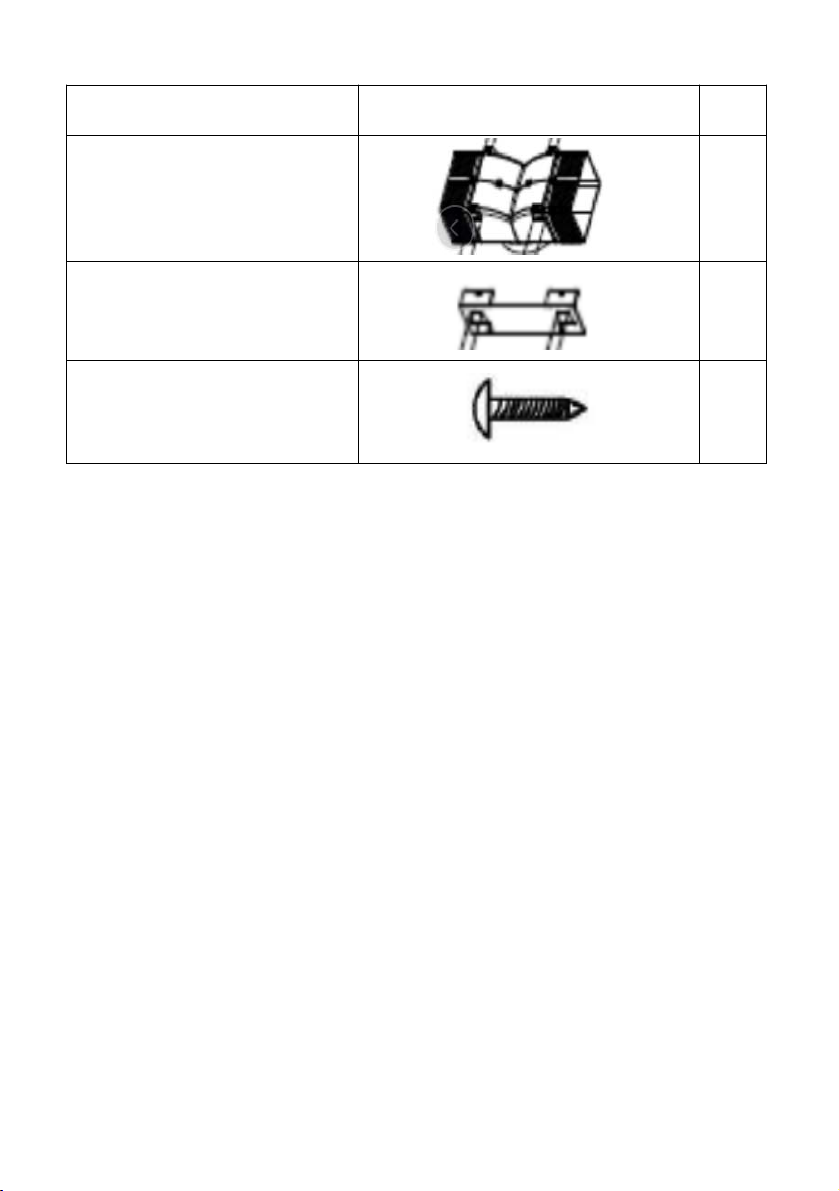

Spec. Illustration Picture Qty
Air Deflector 1
Bracket 2
Screws
ST3.5×12
4
6

CEILING MOUNTING INSTALLATION

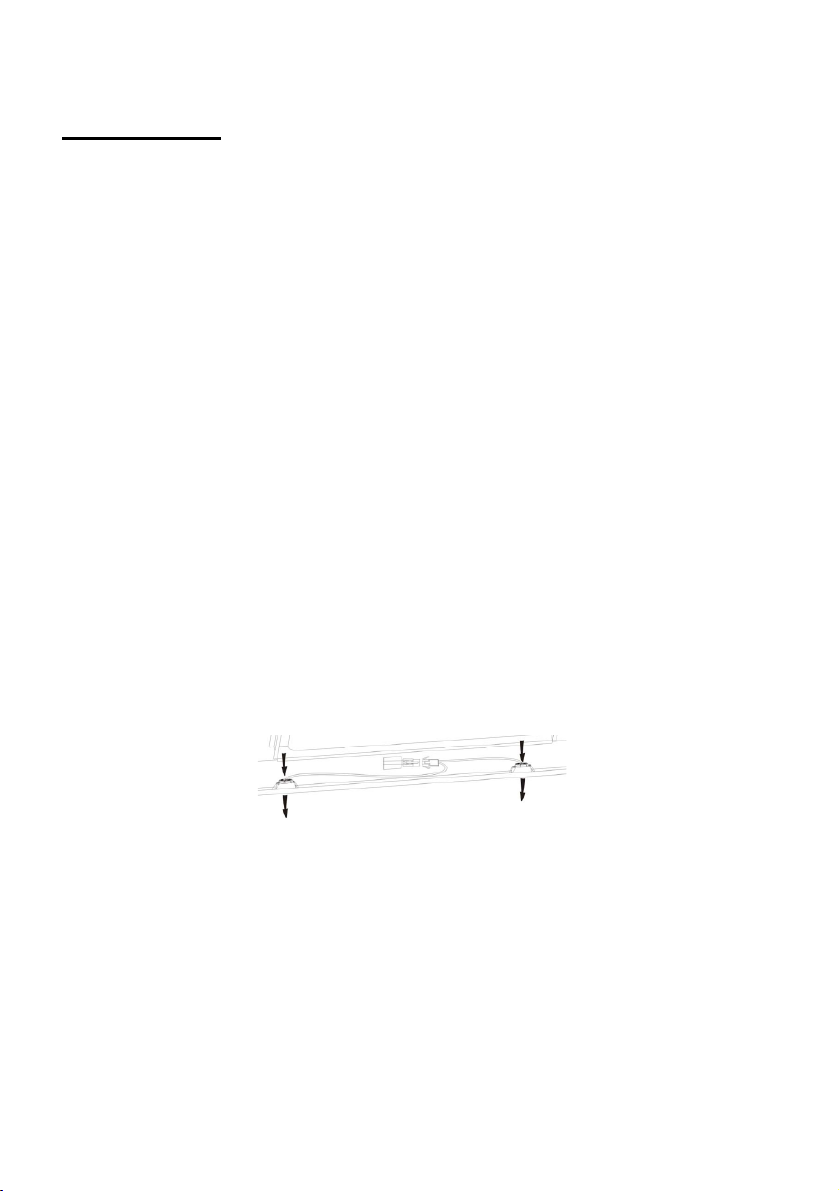

1)Position the hanging plate on the
ceiling and then mark the position of the
screw holes.
The hanging plate should be securely fixed
to the ceiling,
11 x ST6 (40 mm)screws for wooden ceiling
8 x expansion bolts for cement ceiling
2) Fix the angle bars to the hanging plate,using
the 8 x M5 screws.
3) Extend the angle bars to the repuired
height and then fix them in position using the
16 x M5 screws and nuts with metal washers.
IMPORTANT: The angle bars must have an overlap of AT LEAST 100
mm.
4) If your cooker hood is going to
be used in extraction mode, then
you should connect the ducting
hose to the ceiling adaptor at this
point.
Fix the upper chimney section to
the hanging plate, using the 4 x
self tapping screws.
Slide the lower chimney section
onto the angle bars and raise it
until it sits just below the upper
chimney section.
Air deflector is mentioned as included and not optional.
2)Fix the 2pcs brackets to the T-shaped plastic outlet with 4pcs
ST3.5x12mm screws provided.
7

5) If the glass canopy has not been
pre-assembled by the factory, then it
should be fixed to the top of the main
body of the cooker hood at this stage.
6) Lift the main body of the cooker
hood onto the angle bar and then fix it
into position using the 16 x M5 screws.
IMPORTANT: This stage of the
installation process MUST be
completed by two people.
IMPORTANT: The 16 x M5 screws
MUST be securely tightened.
7) If you are going to be using the
hood in
extraction mode, you should fix the
ducting
hose to the spigot.
The electrical connection must correspond to the electrical
repuirement noted on the rating plate, which is placed inside the
cooker hood. The appliance should now be connected to the
electrical supply.
Check that the appliance is operating correctly by selecting each speed
and switching the light bulbs on and off.
Remove the hanging hook and then slide the lower chimney section
downwards, until it rests against the main body of the cooker hood.
Use a stainless steel cleaner and polish on the stainless steel sections of
the appliance.
If you are using the appliance in recirculation mode, then you
should now fit the carbon filter.
“Please kindly be noted: T-shaped plastic outlet and v-
flaps can not be used at the same time. You can use them in two ways:
1) Add v-flap on existing outlet;
2) Use T-shaped plastic outlet, no add v-flap.”
“Note: The product is provided with v-
flap accessory. This accessory is not mandatory for installation, operati
on and use of the product.”
8

DESCRIPTION OF COMPONENTS

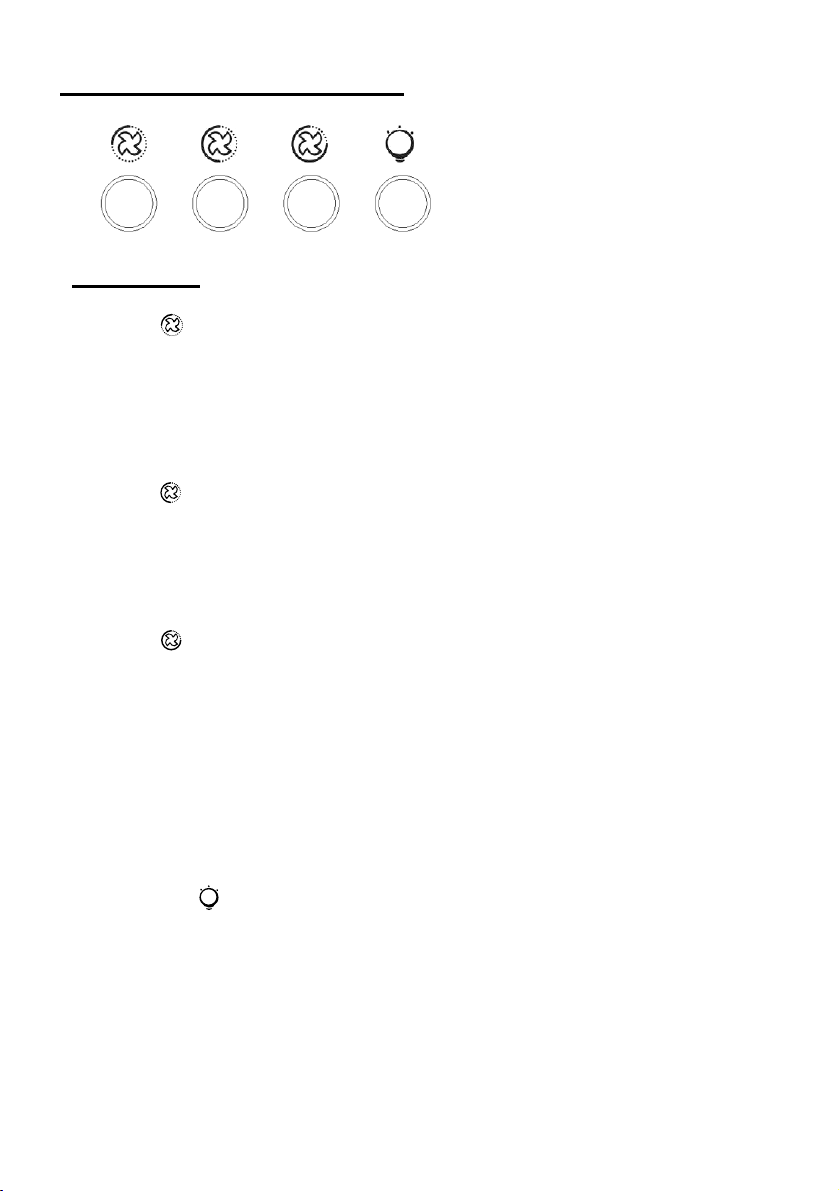

OPERATION
Light button
NOTE: If Low / Medium / High speed buttons are press at the same time, the
unit will only operate at the highest speed.
Button 1
The button is with indicate backlit, when you press the button,the backlit will
be turned on and the fan will be turned on at low speed. when press again, it
will turn off the fan.
It’s used for Ventilation on the kitchen. It is suitable for simmering and cooking
which do not make much steam.
Button 2
The button is with indicate backlit, when you press the button,the backlit will be
turned on and the fan will be turned on at Medium Speed. when press again, it will
turn off the fan.
Airflow speed is ideally for ventilation in standard cooking operation.
Button 3
The button is with indicate backlit, when you press the button,the backlit will
be turned on and the fan will be turned on at High Speed. when press
again,. it will turn off the fan.
When high density of smoke or steam produced, press high-speed button for
highest effective ventilation.
9

MAINTENANCE
Before cleaning switch the unit off and pull out the plug.
I. Regular Cleaning
Use a soft cloth moistened with hand-warm mildly soapy water or
household cleaning detergent. Never use metal pads, chemical, abrasive
material or stiff brush to clean the unit.
II. Monthly Cleaning for Grease Filter
ESSENTIAL: Clean the filter every month can prevent any risk of fire.
The filter collects grease, smoke and dust…... so the filter is directly
affecting the efficiency of the cooker hood. If not cleaned, the grease
residue (potential flammable) will saturate on the filter. Clean it with
household cleaning detergent.
III. Annual Cleaning for Activated Carbon Filter
Apply SOLELY to unit that installed as a recirculation unit (not vented to
the outside). This filter traps odors and must be replaced at least once a
year
depending on how frequent the cooker hood used.

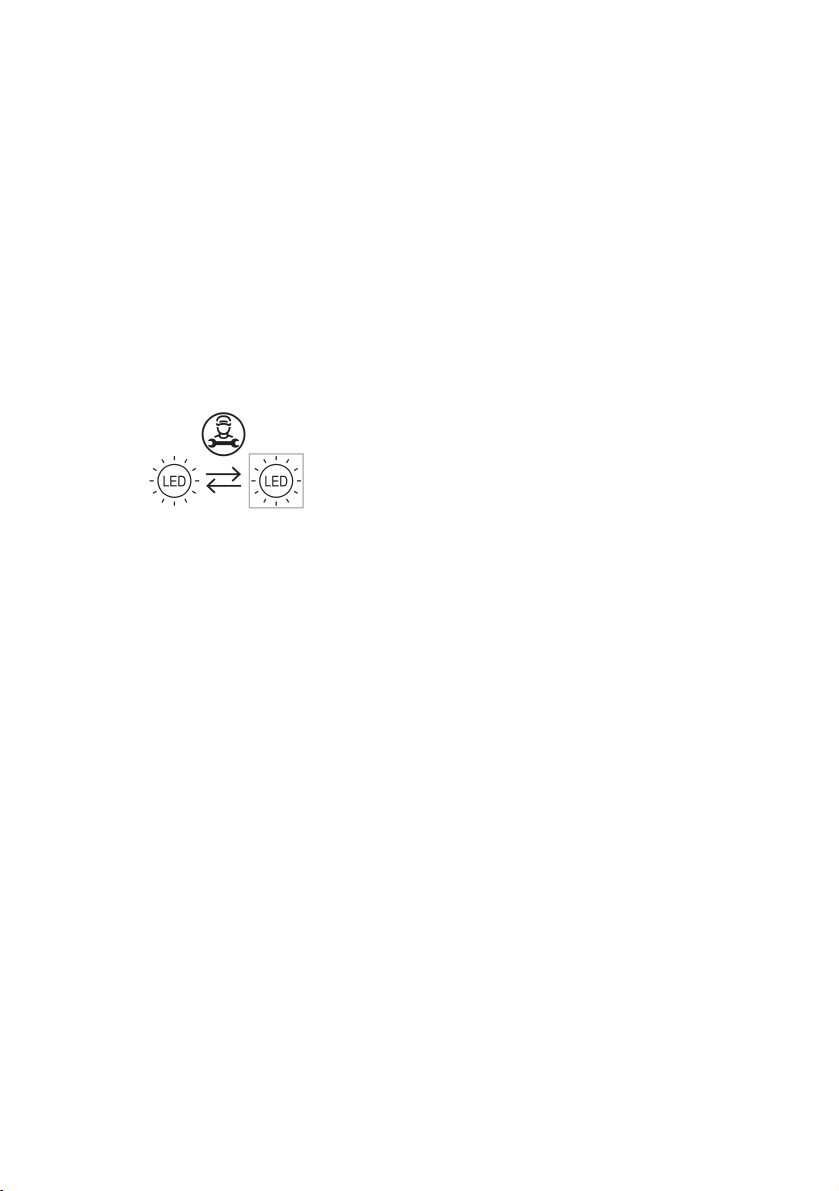

IV. Changing a light bulb
Remove the screws on the glass, take off the hood glass. Find the
bulb that requires replacement, you will find it located in the light
fixture which is inside the exposed section of the canopy.
Disconnect the light wiring point and remove the bulb holders and
wiring from the hood. Important: It’s not possible to replace the bulbs
individually, it will be necessary to obtain the bulbs, bulb holders and
wiring as a complete part. (LED light: MAX 1.5W)
Fit the replacement bulbs, bulb holders and wiring in the same
manners as the originals. Then reconnect the light wiring point.
Refit the hood glass and fasten the glass screws. Make sure the screws
are fully tightened.
10

TROUBLESHOOTING
Fault
Cause
Solution
Light on, but
fan does not
work
The fan blade is
jammed.
Switch off the unit and repair by
qualified service personnel only.
The motor is damaged.
Both light and
fan do not
work
Halogen light bulb burn.
Replace the bulb with correct
rating.
Power cord looses.
Plug in to the power supply again.
Serious
Vibration of
the unit
The fan blade is
damaged.
Switch of the unit and repair by
qualified service personnel only.
The fan motor is not
fixed tightly.
Switch off the unit and repair by
qualified service personnel only.
The unit is not hung
properly on the bracket.
Take down the unit and check
whether the bracket is in proper
location.
Suction
performance
not good
Too long distance
between the unit and
the cooking plane
Readjust the distance to 65-75cm
CUSTOMER ASSISTANCE SERVICE
If you cannot identify the cause of the operating anomaly, switch off the
appliance and contact the Assistance Service.
PRODUCT SERIAL NUMBER. Where can I find it?
It is important you to inform the Assistance Service of your product code
and its serial number (a 16 character code which begins with the number 3);
this can be found on the guarantee certificate or on the data plate located
on the appliance.
It will help to avoid wasted journeys to technicians, thereby (and most
significantly) saving the corresponding callout charges.
11

ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling
advice.
This appliance is marked according to the European directive 2012/19/EU
on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this
product.
The symbol on the product indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of
this product, please contact your local city office, your household waste
disposal service or the shop where you purchased the product.
12

Notice d’installation et d’utilisation
(CMBI970LX)
(CVMI970LX)
Sommaire
22
22
23
24
24
25
14
14-15
17-18
19-21
INTRODUCTION
Conseils pour la sécurité
Cahier des charges
Installation
Description des composants
Fonctionnement
Entretien
Dépannage
Service après ventes
Protection de l’environnement
13

Introduction
Merci d‘avoir choisi cette hotte.
Ce manuel d'instructions est conçu pour vous fournir toutes les
instructions requises relatives àl'installation, l'utilisation et l'entretien
de l'appareil. Afin de faire fonctionner l'appareil correctement et en
toute sécurité, merci de lire attentivement ce manuel avant
l'installation et l'utilisation.
La hotte utilise des matériaux de haute qualitéavec un design épuré.
Equipé d’un moteur électrique de grande puissance et d’un
ventilateur centrifuge, il fournit également une puissance d'aspiration
forte, un fonctionnement avec un bruit modéré, un filtre àgraisse et
un montage facile.
Avertissement de sécurité
Ne pas laisser d’enfants utiliser l’appareil
Cette hotte est dédiée àun usage domestique uniquement.
Elle ne doit pas être utilisée pour les barbecues, les
rôtisseries ou toutes autres activités
La hotte et ses filtres doivent être nettoyés régulièrement
pour en garantir un bon état de fonctionnement
Respecter les consignes de ce manuel pour le nettoyage de
la hotte afin d’empêcher tout risque d’incendie
Merci de garder une ventilation dans la cuisine
Avant de connecter cet appareil, contrôlez que le cordon
d'alimentation n'est pas endommagé. Un cordon
d'alimentation endommagé doit être remplacé par une
personne qualifiée.
Il doit y avoir une ventilation adéquate de la pièce quand la
hotte est utilisée en même temps que des appareils utilisant
du gaz ou d'autres combustibles
l'air ne doit pas être évacuépar un conduit qui est utilisépour
évacuer les fumées des appareils utilisant le gaz ou d'autres
combustibles
La réglementation concernant le rejet de l’air doit être
satisfaite
14

Cet appareil n’est pas destiné à être utilisé par des personnes
(notamment les enfants) incapables, irresponsables ou sans
connaissance sur l’utilisation du produit, à moins qu’elle ne
soit surveillées ou instruites sur l’utilisation de l’appareil par
une personne responsable de leur sécurité
Les enfants doivent être surveillés pour s'assurer qu'ils ne
jouent pas avec l'appareil.
Ne pas faire flamber sous la hotte
La hotte n'est pas destinée à être installé au-dessus d’une
plaque de cuisson ayant plus de quatre foyers de cuisson
Risque de choc électrique
Cette hotte ne peut être branchée seulement sur une prise
reliée à la terre. En cas de doute, demandez conseil à un
ingénieur qualifié
Le non-respect de ces instructions peut entraîner la mort, un
incendie ou un choc électrique.
- Il doit y avoir une ventilation adéquate de la pièce lorsque la
hotte est utilisée de la même manière
temps écoulé en tant qu'appareils fonctionnant au gaz ou à
d'autres combustibles (ne s'applique pas aux appareils qui
rejettent uniquement l'air dans la pièce);
- les détails concernant la méthode et la fréquence de
nettoyage.
- il y a un risque d'incendie si le nettoyage n'est pas effectué
conformément aux instructions;
- ne pas flamber sous la hotte;
- ATTENTION: Les pièces accessibles peuvent devenir
chaudes lors de l'utilisation d'appareils de cuisson.
Le but de cette lampe est de fournir un éclairage pour
l'utilisation du produit.
La lampe utilisée dans ce produit ne
convient pas pour l'éclairage d'une pièce.
15

Connexion directe
The appliance must be connected directly to the mains using an
omnipolar circuit breaker with a minimum opening of 3mm between the
contacts.
L'installateur doit s'assurer que le bon raccordement électrique a
été fait et qu’il est conforme au schéma de câblage.
The cable must not be bent or compressed.
Vérifiez régulièrement le cordon d’alimentation et le cordon
d’alimentation.
Si le cordon d'alimentation est endommagé, il doit être remplacé par un
cordon spécial ou assemblage disponible auprès du fabricant ou de son
agent de service.
ATTENTION: Ceci est un appareil de classe I et DOIT être mis à la terre
Cet appareil est fourni avec un câble secteur à 3 conducteurs coloré
comme suit:
Marron=L ou Vivre
Bleu =N ou Neutre
Vert et jaune = E ou Terre
Le fusible doit être évalué à 3 ampères.
Installation électrique
Toute installation doit être effectuée par une personne compétente ou
qualifiée électricien. Avant de brancher l’alimentation secteur, assurez-
vous que la tension correspond à la tension indiquée sur la plaque
signalétique.
16

Liste d’accessoires pour l’installation
Caractéristiques
Visuels
Qty
Base
(CMBI970LX)
(CVMI970LX)
1
Cheminée supérieure 600mm
1
Cheminée inférieure 600mm
1
Plaque s'accrochant
1
Vis M6×60
8
φ8 Chevilles
φ8×φ6 blanches
11
Vis
ST6.0×40
11
φ7.2 Vis
ST4.0×8
4
Screws M5x12
40
Washers
16
Nuts
16
17

Caractérisriques Visuels Qty
Déflecteur d'air 1
Support 2
φ7.2 Vis
ST3.5×12
4
18

Installation de votre hotte ilot.
1)Placer la plaque s'accrochant au
plafond et marquez la position des
trous de vis, puis vissez.
La plaque doit êtresolidement fixée
au plafond.
11 vis ST6 pour les plafonds en bois
8 vis d'expansion pour les plafonds en ciment
2)Fixer les barres angulaires à la
plaque, pour cela utiliser 8 vis M5
3) Etendre les barres angulaires àla
hauteur requise, fixez les ensuite à
l’endroit indiqué sur les schémas en
utilisant 16 vis M5 et des vis avec des
rondelles métalliques.
Important : les barres angulaires doivent obligatoirement se chevaucher
d’au moins 100 mm.
Le déflecteur d’air est mentionné comme étant inclus et non optionnel.
2) Fixez les supports 2pcs à la sortie en plastique en forme de T à
l’aide des vis 4pcs ST3.5x12mm fournies.
19
