Candy CG654XT User manual

W.MACHINE/WASHER-DRYER
31133234 CG654XT

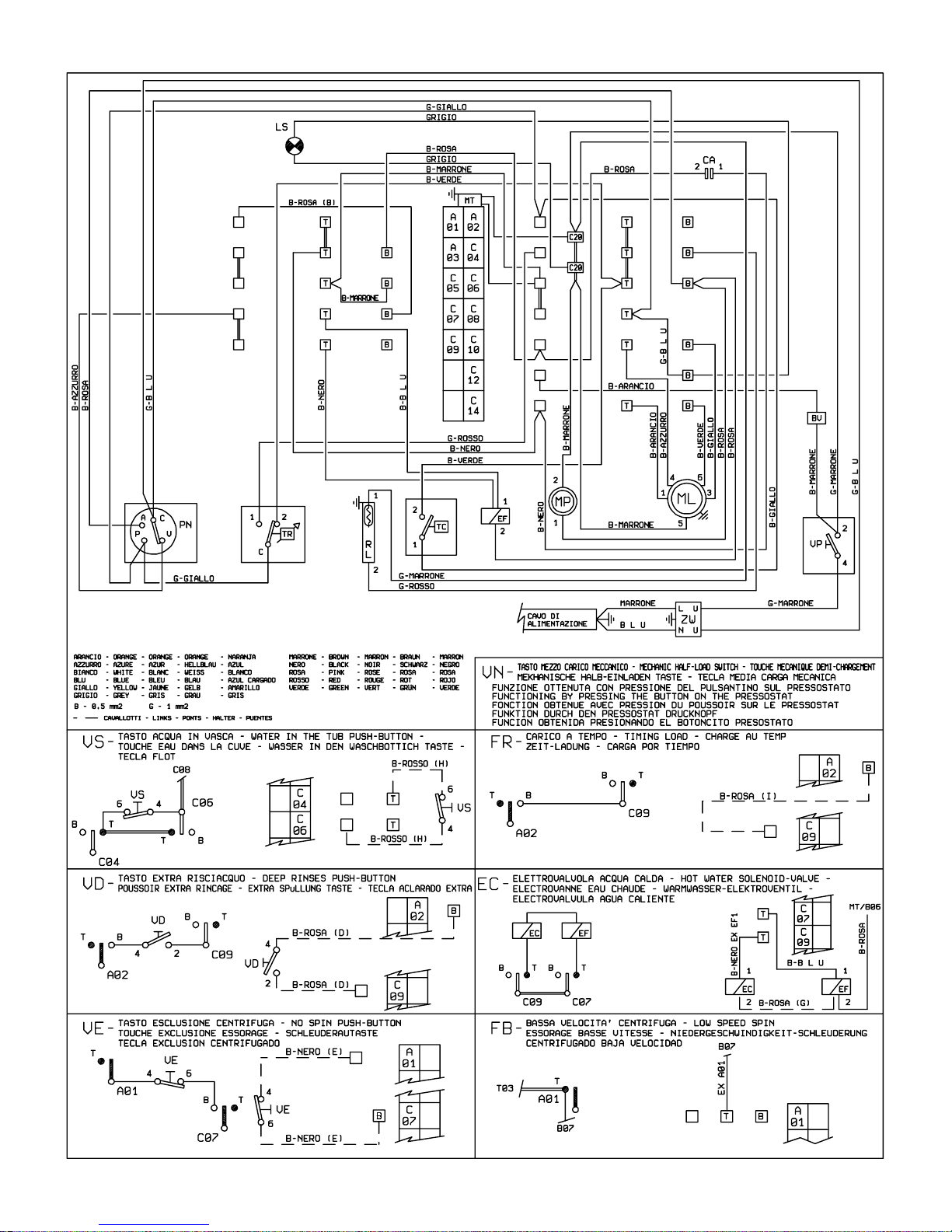

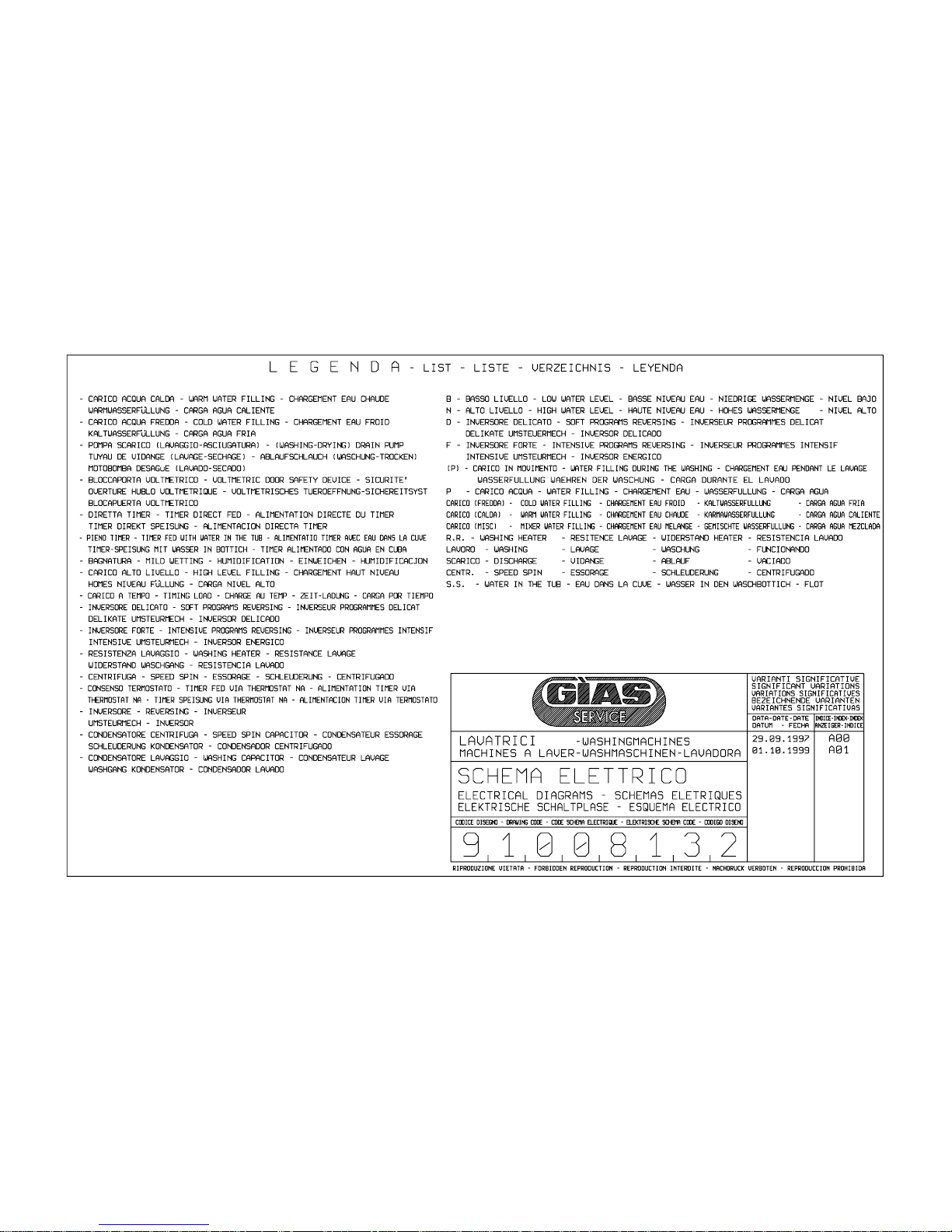

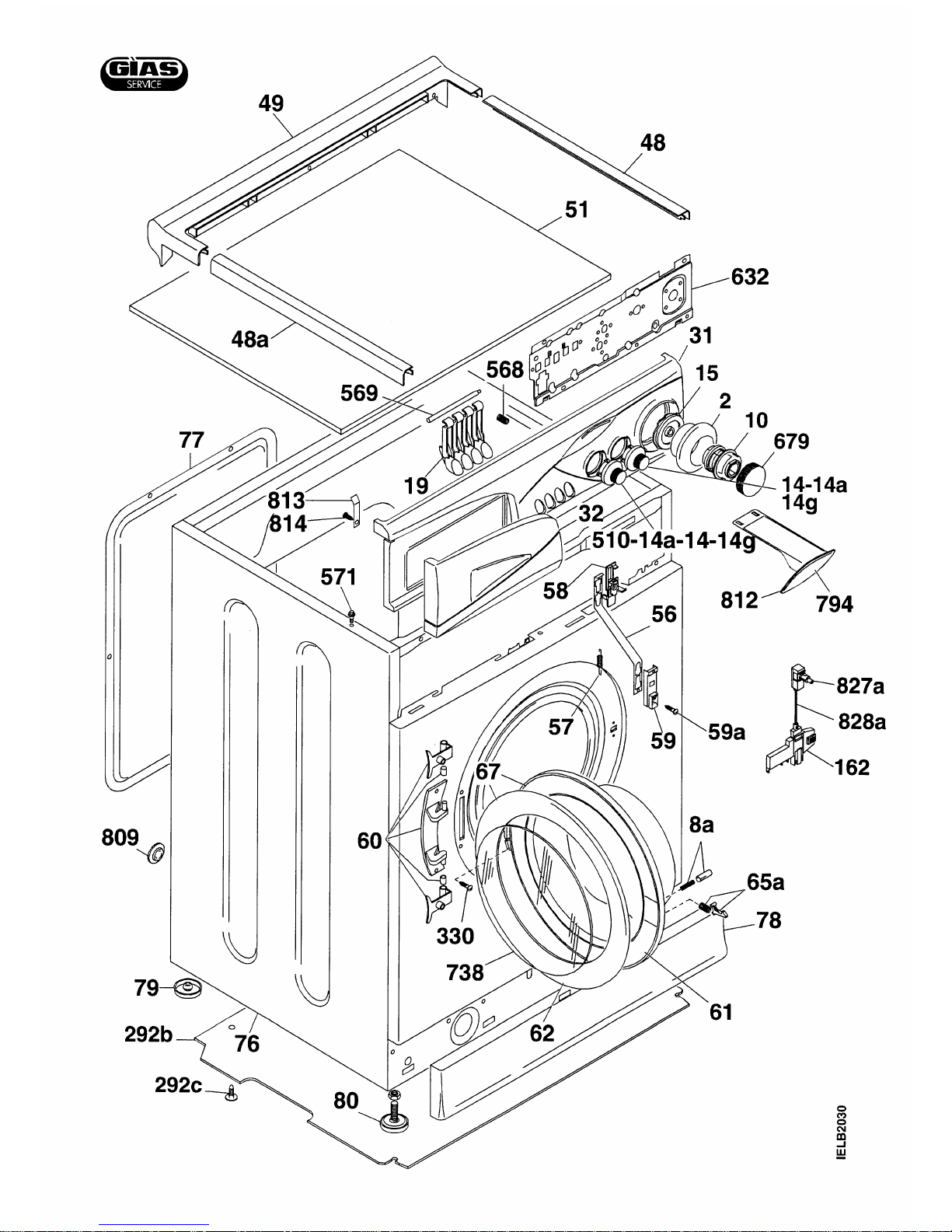

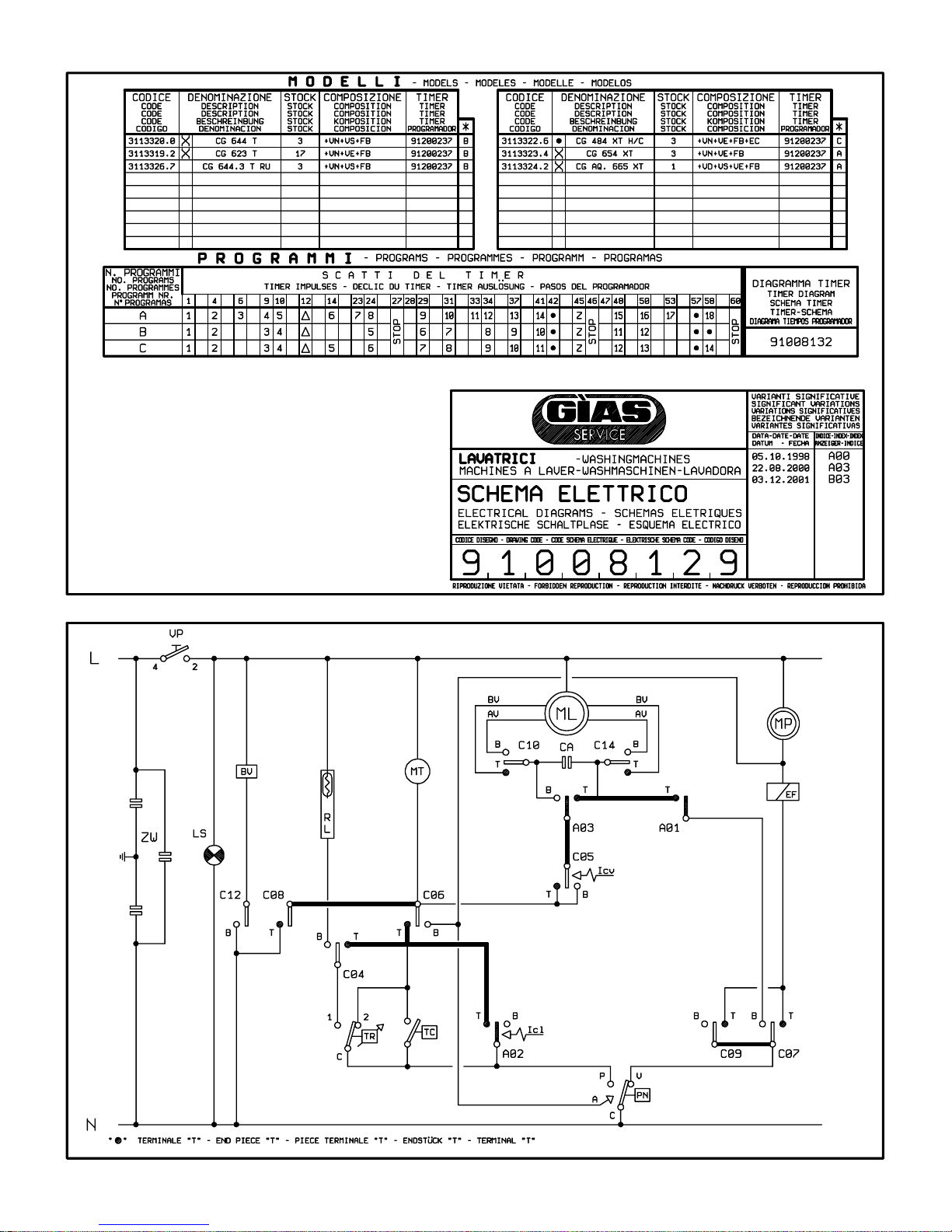

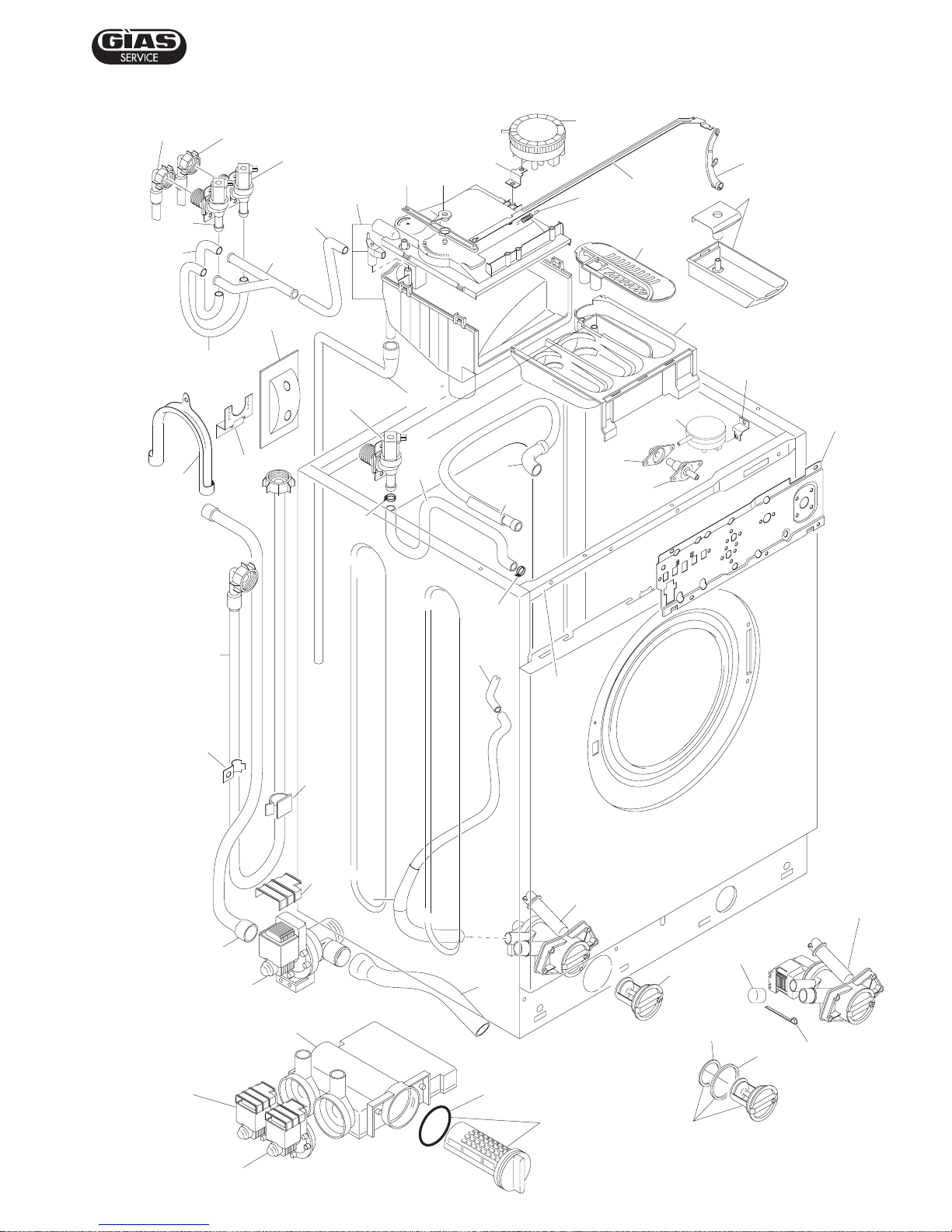

Service Manual

134
138b
97d
749
558
113 116
153
118 112
103
101
114
810
74
138
496
94c
511
499
142
134a
142 142a
132b
132c
464
132d
IELB2415
109
138a
830
74a
133
131
99a
132
134
556
556
856
161d
422
97c
94b
96a 96
96 94b
97
161
161e
811
124
153a
665
125
632

IELB2414
800
226
487228
227
617 800
483a
473
226
828
829
479
547

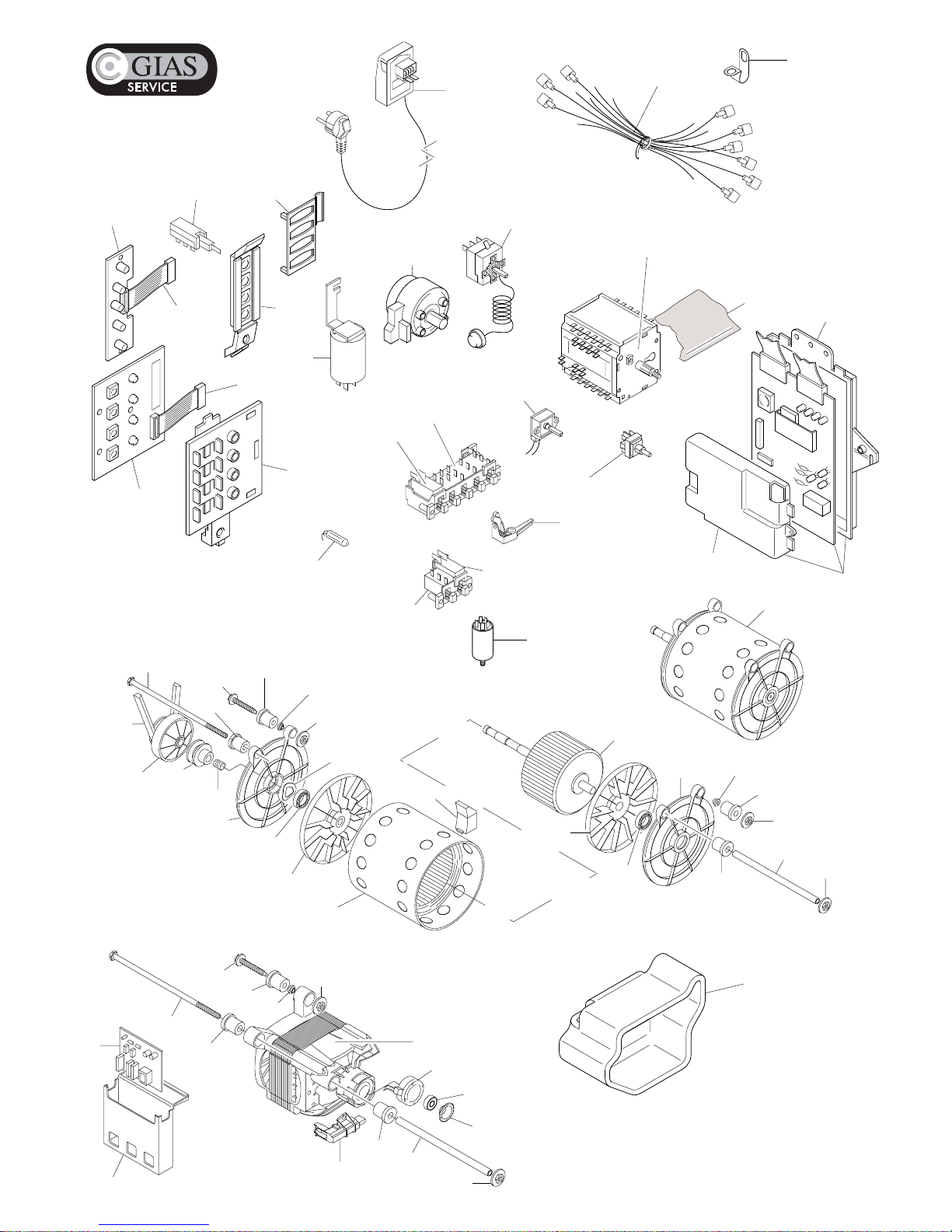

835
292
171
172
177
175
226 800
174
183/183a
184a
487 228a 488/488a
227
176
181
185/186 226
617 800
173
183
800
228b
488/488b
181
185
156
547a
328 152f 672
491 157 190
734 547
479
774
488a
155/155a/494
152
152a
126
618/619/620
509
152
152a
328a
157h164
614
157h
151
288/287h
151
328

Copyright 2003 Gias S.r.L.
Ricambio
Part No.
Piece
E-Teil
Pieza
Inizio
Beginning
Debut
Begin
Inicio
Fine
Ending
Fin
End
Fin
Ref. Descrizione - Description - Beschreibung - Descripcion
Mod: 31133234 CG654XT 0025 (16/06/2000)
2Programs disc 91601892 0207 (14/02/2002)
2Programs disc 41002889 0207 (14/02/2002)
8a Buffer with spring service pack 91942582
10 Timer/select. knob 92963230
14 Temp.regulation knob 91670263 0127 (02/07/2001)
14 Temp.regulation knob 91670230 0127 (02/07/2001)
15 Cam disc 91601332 0207 (14/02/2002)
15 Cam disc 41002906 0207 (14/02/2002)
19 Button 91624874
31 Control panel 91670741
32 Dispenser drawer front 91602166
48 R/H side frame 91619296
48a L/H side frame 91619304
49 Top rear frame 91619270
51 Work top 91503052
56 Latch 91800558
57 Spring 91408709
58 Latch block 91601643
59 Latch guide 91601642
59a Latch guide fix.screw 91402201
60 Hinge 91944064
61 Counter ring 91601644
62 Door surround 91601646
65a Door catch with spring service pack 91942580
67 Glass door with frame 91670645
74 Steam drain hose 92154491
76 Cabinet assy 91750606
77 Rear panel 92888429
78 Socle 92149418
79 Rear foot 92606474
80 Front foot 92692300
94b Filter knob with removable gasket 91940540

Copyright 2003 Gias S.r.L.
Ricambio
Part No.
Piece
E-Teil
Pieza
Inizio
Beginning
Debut
Begin
Inicio
Fine
Ending
Fin
End
Fin
Ref. Descrizione - Description - Beschreibung - Descripcion
Mod: 31133234 CG654XT 0025 (16/06/2000)
94c Filter knob with gasket 91941111
96 Gasket 92606391
96a Gasket 92607639
97c Stopper x drain/recycle pump 91941774
97d Filt hous w/filter cartridge 91941772
101 Dispenser drawer 91602912
103 Rack 91602938
109 Dispenser drawer container assembly 92967926
112 Direction control rod 92884212
113 Lever 92621606
114 Lever 92152800 0120 (16/05/2001)
114 Lever 41000950 0120 (16/05/2001)
116 Cam 92621614
118 Spring 92483148
126 Pressostat lever assy 92152941
131a Hose clip 92470194
132 Valve hose cold water 92131739
133 Hose clip 92470012
134 Solenoid valve 92206333 0136 (03/09/2001)
134 Solenoid valve 25686057 0136 (03/09/2001)
138 Drain hose 92693373
138a Drain house elbow 92689587
138b Hose clamp 92895051
141 Rubber washer 92485226
142 Fill hose 92250869

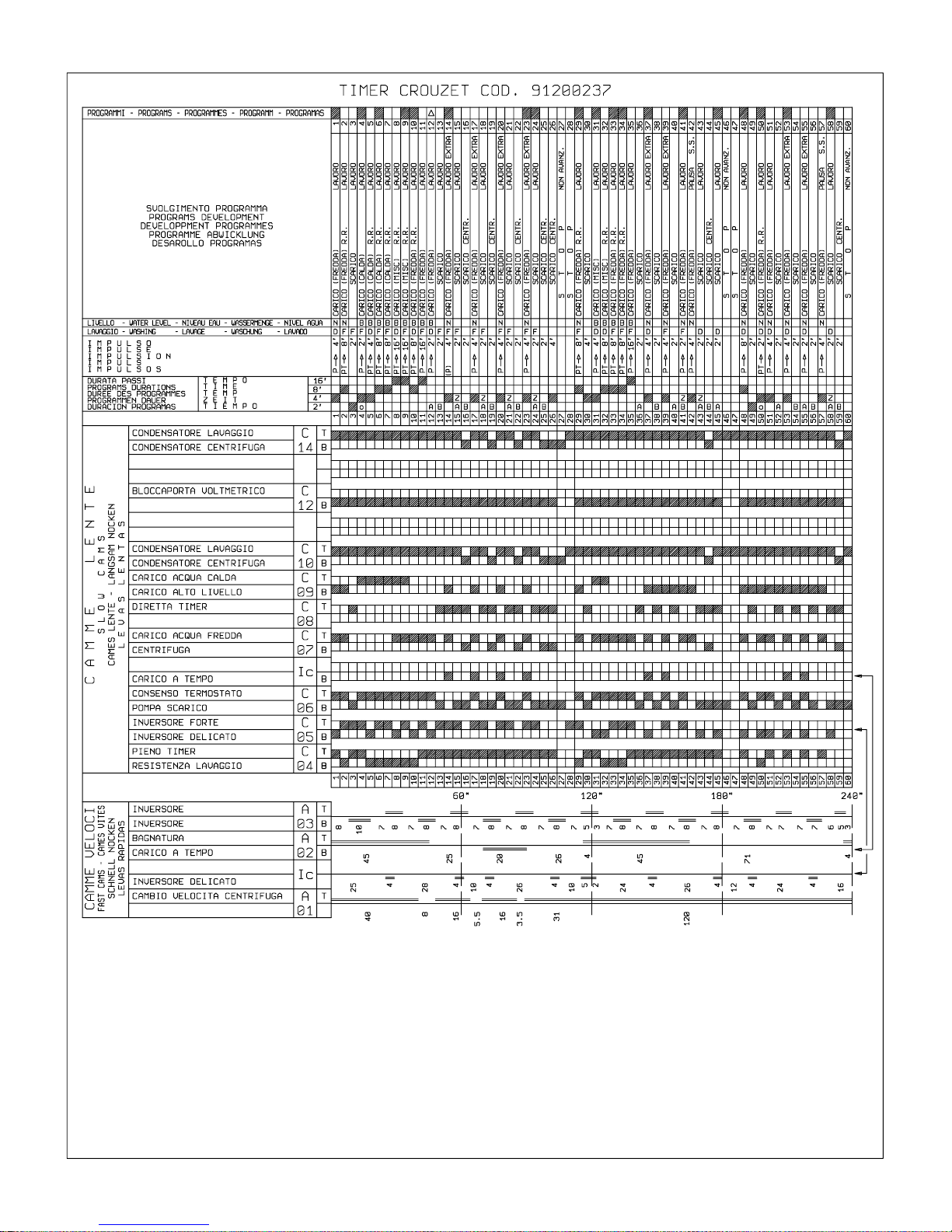

151 Timer 91200237 0207 (14/02/2002)
151 Timer 41002632 0207 (14/02/2002)
152 Switch assy 91201258
152a Opening delay 92129592
153 Pressure switch 91208785
155a White indicator light 92123967
156e Capacitor 12,5 MF 92213420

Copyright 2003 Gias S.r.L.
Ricambio
Part No.
Piece
E-Teil
Pieza
Inizio
Beginning
Debut
Begin
Inicio
Fine
Ending
Fin
End
Fin
Ref. Descrizione - Description - Beschreibung - Descripcion
Mod: 31133234 CG654XT 0025 (16/06/2000)
157 Harness 91201385 0207 (14/02/2002)
157 Harness 41003185 0207 (14/02/2002)
161d Drain/recycle pump complete 91941771
164 Anti jamming filter radio 91200192
171 Main motor 92129329
172 Stator 92202431
173 Rotor 92995125
175 Motor variable pulley 92791466
176 Sleeve 92475094
177 Motor connector 92657170
181 End plate 92728427
183 Bearing 92440106
184a Washer 92439538
185 Fan 91607515
186 Pulley side fan 91607796
200 Front support panel 92793942
201 Front flange 91800449
202 Drum 91750618
203 Tub 92787084
204 Rear panel 92795012
205 Drum shaft assy 92994870
211 Bolt 92400589
212 Asbestos washer 92439512
214 Selflocking nut 92427756
215 Tub gasket 92605930
217 Seal retainer 92445550
218 Bearing 92440049
219 Bolt 92417690
220 Nut 92420314
221 Nut 92424209
224 Bearing 92440072

Copyright 2003 Gias S.r.L.
Ricambio
Part No.
Piece
E-Teil
Pieza
Inizio
Beginning
Debut
Begin
Inicio
Fine
Ending
Fin
End
Fin
Ref. Descrizione - Description - Beschreibung - Descripcion
Mod: 31133234 CG654XT 0025 (16/06/2000)
225a Gasket 92603968
226 Shoch absorber bearing 92130418
227 Motor stay bolt 92411891
228a Pulley bearing 92130129
228b Pulley opp.side bearing 92604800
230 Tub gasket clip 91750457
230a Tub gasket clip 90488603
232 Heater holder 92732445
242a R/H support spring 92483981
242b L/H support spring 92482900
242c R/H bush 92138551
242d L/H bush 92682178
244b Washer 92436757
245 Asbestos washer 92438720
246 Bolt 92411883
247 Upper balance weight 92579457
248 Lower balance weight 91500480
251 Shoch absorber spring 92484120
256 Clamp 92851302
259 Support 92673961
271 Door gasket 91620026
272 Discharge pipe 92606151 0105 (01/02/2001)
272 Discharge pipe 91620108 0105 (01/02/2001)
273 Fill pipe 91620032
274 Pressure switch air chamber 92673847 0105 (01/02/2001)
274 Pressure switch air chamber 91602469 0105 (01/02/2001)
275 5x8 hose 92132034
278 Hose clip 92470137
279 Hose clip 92470285 0105 (01/02/2001)
280 Hose clip 92470269 0105 (01/02/2001)
281 Shock Absorder grommet 90421165
286 Heater 90457722

Copyright 2003 Gias S.r.L.
Ricambio
Part No.
Piece
E-Teil
Pieza
Inizio
Beginning
Debut
Begin
Inicio
Fine
Ending
Fin
End
Fin
Ref. Descrizione - Description - Beschreibung - Descripcion
Mod: 31133234 CG654XT 0025 (16/06/2000)
287 Thermostat (30) 91203273 0207 (14/02/2002)
288 Temperature regulator 91200287
290 Drum pulley 92730860
292a Extensible belt 92130871
292b Bottom panel 91670253
292c Clips 92473636
330 Screw x hinge 91402202 0102 (08/01/2001)
330 Screw x hinge 92401538 0102 (08/01/2001)
422 Circlip 91941775
487 Special bolt 92411875
488 Rivet 92466655
488a Pulley rivet 92466705
488b Pulley opp.side rivet 92466689
489 Rivet 92464460
491 Mains cable 91200194
493 Tub.fixing plaque 92884584
504 Tub stopper 92607761 0207 (14/02/2002)
511 Tray liquid detergents 92965557
568 Spring for push.button 92483916
569 Pin for push buttons 92730167
571 Top sleeve 92730159
617 Cont.tray fix. bracket 92730647
632 Control support plate 91800562
679 Knob cover 91602334
730 Braking shells service pack 91941756
734 Timer protection 92941806
749 Adhesive plaque 92473529
794 Adhes.index program.IT. 91626622 0207 (14/02/2002)
794 Adhes.index program.IT. 41002895 0207 (14/02/2002)
794c Adhes.index program. FR. 91626598 0207 (14/02/2002)
794c Adhes.index program. FR. 41002892 0207 (14/02/2002)
794f Adhes.index program. UK. 91626630 0207 (14/02/2002)
