Candy CTF1055-01 User manual

W.MACHINE/WASHER-DRYER
31002728 CTF1055-01
Service Manual

Dibujo despiece elementos
hidráulicos y eléctricos
94d
97d
101
111a
132
164
138a
142
151
153
138
166
138b
274
275
276a
491
556
557
588
272
278
111b
PR 2003
156
839
138
279
74
161d
134
133
479
547

171
201
202
203
205b
205a
207
206
211
212
244
215
271
242
230
290
292
304
287f
473
828
580
582
584
840
841
846
844
845
862

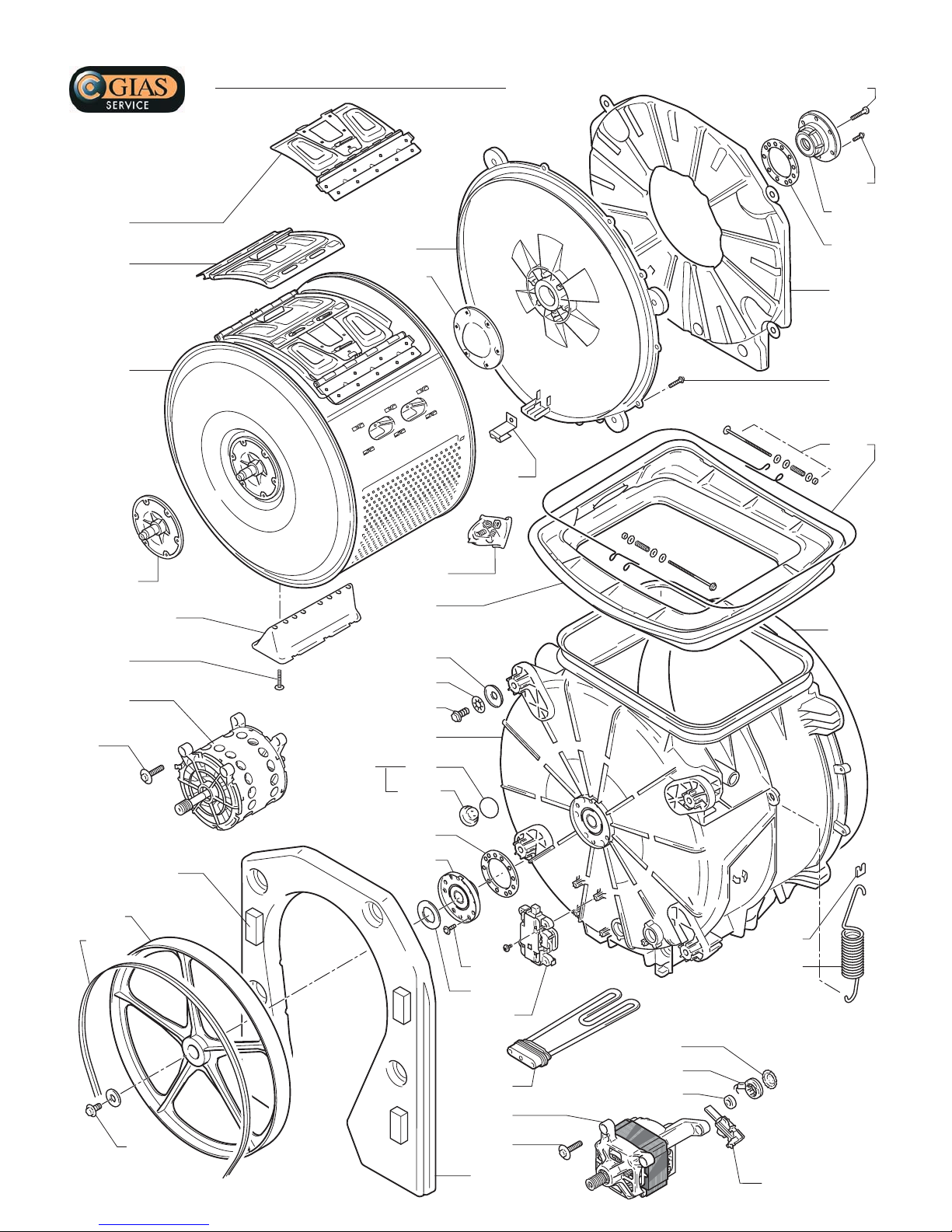

Dibujo despiece cuba y motor
233
487
259
483a
205c
PR 2003
829
835
232
487
842
845
843
844
286
219
833a
287m

31002728 CTF1055-01 0840 (01/10/2008)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
5 Door safety device 46002826
10 Timer/select. knob 46004797
10b Timer Shaft extension 41028256
31 Control panel 46004830
34 White cover 46002320
37 Upper frame 46004798
39c self-threading screw for metal 80007321
70a Chassis assy with wheels 46001521
74 Steam drain hose 46000786
76 Cabinet assy 46003739
76b Cabinet side cover 80049583
76c Cabinet side cover gasket 80007172
77 Rear panel 80049269
79 Rear foot 46000878
80 Front foot 41011335
86 Upper frame 46000870
87a Adhesive bumper 46001044
94d Filter w/knob without screw 41021233
97d Filt hous w/filter cartridge 49002227
101 Dispenser drawer 46002836 0937 (09/09/2009)
101 Dispenser drawer 46005155 0937 (09/09/2009)
111a Water inject.nozzle assy 46002848
132 Hose 46002053
133 Hose clip 92470012
134 Solenoid valve 41020418 0937 (09/09/2009)
134 Solenoid valve 41032538 0937 (09/09/2009)
138 Drain hose 92693373
138a Drain house elbow 80001787
142 Fill hose 92250869
153 Pressure switch 41026305
157 Wiring harness 46004804
158 Mains block 91623678

31002728 CTF1055-01 0840 (01/10/2008)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
161 Drain/recycle pump 46003742
164 Anti jamming filter radio 91200098
201 Front flange 46002261
202 Drum 46001969
203 Tub 46004583
206a Kit drum flap doors 81452850
211 Bolt 46004844
211a Bolt right 46001345
215 Tub gasket 46000063
219 Bolt 46000590
230 Tub gasket clip 46000125
232 Heater holder 92736578
233a Pulley fixing screw 46001626
242 Support spring. 46004152
244 Washer 80000664
251a Telescopic shock absorber 46001949
251e Shoch absorber pin 41017173
271 Door gasket 46001221
272 Discharge pipe 46002537
274 Pressure switch air chamber 91611202
275 5x8 hose 80024987
276a Grid steam hose 80049867
286a Heater+NTC 41026962
287m NTC probe 49015420
290 Drum pulley 46004459
292a Extensible belt 46000003
292b Bottom panel 46001043
328a Electronic module container 46004910
328f Pcb protection 46004805
473a Commutator motor SOLE-ACC 46000183
479t Electronic control INVENSYS not program. 41029707 1020 (13/05/2010)

31002728 CTF1055-01 0840 (01/10/2008)
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
479t Electronic control INVENSYS not program. 41033531 1020 (13/05/2010)
479u Coreboard INVENSYS programmed 81453147 1020 (13/05/2010)
479u Coreboard INVENSYS programmed 81453347 1020 (13/05/2010)
483a Brush with brush holder 81451998
487 Special bolt 46000559
491 Mains cable 91200194
556 Electric valve support 80050450
557 Hose support hook 80001753
580 Front connterweight 46004745
582 Pulley side count.weight 46004205
586 Counter cover pin 80049343
603 Self-cleaning protect. 46003744
604 Filter door 46003745
828b Tach.coil 49000464
832 Discharge pipe circlip 91408004
833 Upper counterweight support 46004011
833a Sponge balance weight 46002841
834 Lower counterweight supp. 92898923
835a Magnet 49000465
840 Drum paddle 46000165
842 Tub bearing disk 46002264
843 Flange bearing disk 46002361
845 Gasket 46000255
863 Rubber door stop 46000692
1147 Transit bolt kit 81452279
1147a Rear pannel fixing kit 81452281

31002728 CTF1055-01 0840 (01/10/2008) - Modifications History -
Ref. Descrizione - Description - Beschreibung - Descripcion
Fine
Ending
Fin
End
Fin
Inizio
Beginning
Debut
Begin
Inicio
Ricambio
Part No.
Piece
E-Teil
Pieza
Copyright 2011 Gias S.r.L.
NEW DISPENSER DRAWER
101 Dispenser drawer 46002836 0937 (09/09/2009)
101 Dispenser drawer 46005155 0937 (09/09/2009)
134 Solenoid valve 41020418 0937 (09/09/2009)
134 Solenoid valve 41032538 0937 (09/09/2009)
SOSTITUZIONE SCHEDA CUORE
479u Coreboard INVENSYS programmed 81453147 1020 (13/05/2010)
479u Coreboard INVENSYS programmed 81453347 1020 (13/05/2010)
479t Electronic control INVENSYS not program. 41029707 1020 (13/05/2010)
479t Electronic control INVENSYS not program. 41033531 1020 (13/05/2010)

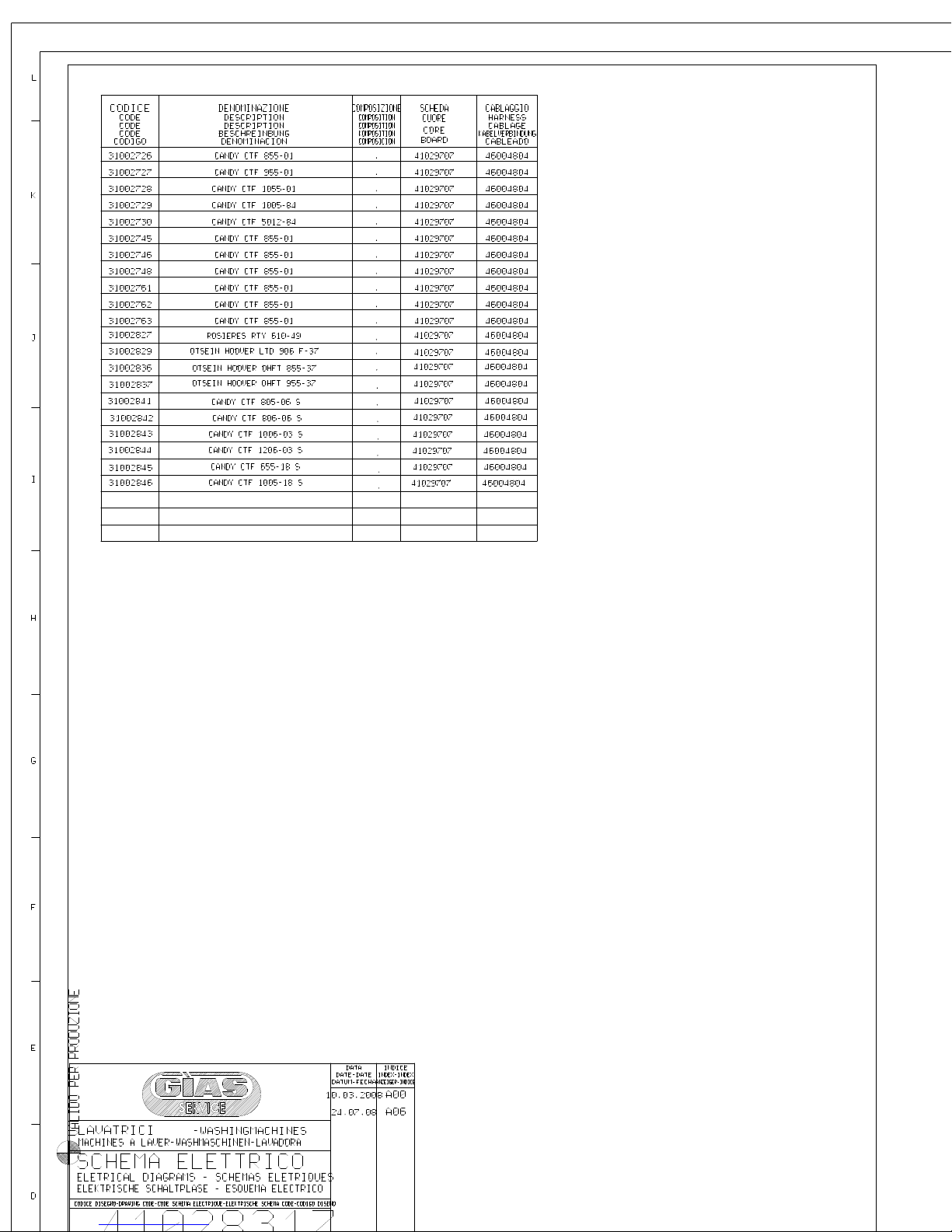

1
2005
Legenda componenti lavaggio - Washing components list
Liste composantes lavage - Waschung komponenten liste
Leyenda componentes lavado – Yıkayıcılar parça listesi
Versione 22/04/2009
4Centrifuga lenta - Slow speed spin - Essorage lent - Langsame Zentrifuge - Centrifugado
bajo – Düúük hızda sıkma
8Centrifuga veloce - Fast speed spin - Essorage vite - Schnelle Zentrifuge - Centrifugado
rapido – Yüksek hızda sıkma
AN Antitrabocco - Anti-overflow - Dispositif anti debordement - Antiuberlaufener -
Antidesbordamento – Taúma önleyici
AT Timer asciugatura - Dryer timer - Programmateur sechage - Trochner timer -
Programador secado – Kurutucu zamanlayıcı
BL Basetta di linea - Terminal box - Boite a liesons - Klemmbrett - Placa de linea – Terminal
kutusu
BR Ritardatore apertura amperometrico - Amperometric opening delayer - Retardateur
ouverture amperemetrique - Stromverzögerungsrelais - Placa retardadora amperimetrica
– Akımsal kapı kilit mekanizması
BV Ritardatore apertura voltmetrico - Voltmetric opening delayer - Retardateur ouverture
voltmetrique - Voltmeter-Verzögerungsrelais - Placa retardadora voltmetrica – Gerilimsel
kapı kilit mekanizması
CCarico acqua calda - Hot water filling - Chargement eau chaude - Warmtwasserfuel lung -
Entrada agua caliente – Sıcak su giriú
CA Condensatore - Capacitor - Condensateur - Kondensator - Condensador - Kondansatör
CB Condensatore aggiunto - Additional capacitor - Condensateur supplementaire -
Beifuegende Kondensator - Condensador suplementario – ølave kapasitör
CC Condensatore centrifuga - Spin capacitor - Condensateur centrifuge - Zentrifuge
Kondensator - Condensador centrifugado – Sıkma kapasitörü
CL Condensatore lavaggio - Washing capacitor - Condensateur lavage - Waschen -
Kondensator - Condensador lavado – Yıkama kapasitörü
DLavaggio delicato - Soft tumble - Mouvement delicat - Delikate Washung - Lavado
delicado – Hassas kurutma

2
2005
DT Dinamo tachimetrica - Tachometric dynamo - Bobine tachymetrique - Regel Dynamo -
Dinamo taquimetrica – Takometrik dinamo
EA Elettrovalvola asciugatura - Drying solenoid valve - Electrovanne sechage - Trochen -
Elektroventil - Electrovalvula secado – Kurutucu solenoid valfi
EC Elettrovalvola acqua calda - Solenoid valve for hot water - Electrovanne eau chaude -
Warmes Wasser Elektroventil - Electrovalvula agua caliente – Sıcak su solenoid valfi
EF Elettrovalvola acqua fredda - Solenoid valve for cold water - Electrovanne eau froid -
Kaltes Wasser Elektroventil - Electrovalvula agua fria – So÷uk su solenoid valfi
FLavaggio forte - Strong tumble - Mouvement intensif - Stark Washung - Lavado energico
FA Centrifuga alta velocità - High speed spin - Centrifuge haute vitesse - Hochgesch
windigkeit Schleuderung - Centrifugado alta velocidad – Yüksek hızda sıkma
FB Centrifuga bassa velocità - Low speed spin - Centrifuge basse vitesse - Geschwi ndigkeit
Schleuderung - Centrifugado baja velocidad – Düúük hızda sıkma
FD Funzione 4° risciacquo - 4th rinse function - Fonction 4eme rincage - 4 Spülung Funktion
- Funcion cuarto enjuague – 4’üncü durulama fonksiyonu
FG Funzione lavaggio 35 giri - 35 rpm washing function - Fonction 35 tours lavage - 35
Abwashung Funktion - Foncion lavado 35 giros – 35 dev/dak yıkama fonksiyonu
FN Variante stock nord - Northern Europe market variation - Variation pour l'Europe du Nord
- Anderung Nord Europa - Variante stock nortico – Kuzey Avrupa pazarı farklılı÷ı
FP Protezione termostato di consenso - Protection for N.O. thermostat - Protection pour
thermostat N.O. - Schutz fuer N.O. Thermostat - Protecciòn termostato de paso 30°C –
N.A. termostat koruma
FR Rigenero - Regenerating rinse - Rincage avec regeneration - Ausspuelung - Aclarado –
Rejeneratif durulama
FS Funzione salto "stop con acqua in vasca" - Function for "jumping" over the "stop with
water in tub" - Fonction pour "sauter" le "stop avec l'eau dans la cuve" - Funktion für
"springen" die "stop mit wasser in wanne" - Foncion salto de "parada con agua en cuba"
– “Suda bekletme” fonksiyonu için durdurma fonksiyonu
FT Termofusibile - Thermal fuse - Fusible thermique - Thermosicherung - Termofusible –
Termal sigorta
GRigenero - Water exchange - Regénération d'eau - Wasser-Austausch – Regeneracion
de agua – Su çevrimi

3
2005
GT Morsetto generale di terra - Earth connection - Serre cable de sol - Erdklemme - Toma
general tierra – Topraklama ba÷lantısı
GV Morsetto messa a terra vasca - Tub earth connection - Serre cable de sol cuve -
Waschbottich Erdklemme - Toma tierra cuba L1 Lampada spia alimentazione elettrica -
Net pilot lamp - Lampe temoin - Kontrollampe - Piloto alimentacion electrica – Tambur
topraklama ba÷lantısı
HCarico acqua fredda - Cold water filling - Chargement eau froid - Kaltwasserfuellung -
Entrada agua fria – So÷uk su alma
LAlto livello - High water level - Haut niveau d'eau - Hoch Wasser Pegel - Nivel alto –
Yüksek su seviye
L2 Lampada spia fine asciugatura - End of drying pilot lamp - Lampe temoin du fin sechage
- Ende-Trochnen -Kontrollampe - Piloto fin ciclo secado – Kurutma bitti lambası
L3 Lampada spia raffreddamento - Cool down pilot lamp - Lampe temoin refroidisseme nt -
Abkuehlung-Kontrollampe - Piloto enfriamiento – So÷uma pilot lambası
L4 Lampada spia cassetto acqua pieno - Pilot lamp for full water container - Lampe tem oin
boite eau plein - Wasser Behaelter Voll Kontrollampe - Piloto nivel maximo agua – Su
haznesi dolu lambası
L5 Lampada spia filtro intasato - Clogged filter pilot lamp - Lampe filtre engorgè - Versto
pfter Filter Kontrollampe - Piloto filtro sucio – Filte tıkalı lambası
LA Spia asciugatura - Drying cycle pilot lamp - Lampe temoin sechage - Trochen-
Kontrollampe Piloto secado – Kurutma pilot lambası
LD Spia LED - LED pilot lamp - Lampe temoin LED - LED Kontrollampe - Piloto LED – LED
lamba
LF Spia asciugatura forte - Intensive drying pilot lamp - Lampe temoin sechage inten sif -
Starktrochen Lampe – Hassas kurutma lambası
LS Spia generale - Pilot lamp - Lampe temoin - Kontrollampe – Pilot lambası
MCarico acqua miscelata - Mixed water filling-up - Chargement eau mélangé – Gemischte
Wasserfüll. -Entrada agua mezclada – Karıúım suyu alma
MA Timer asciugatura - Drying timer - Timer sechage - Trochen Timer - Timer secado –
Kurutma zamanlayıcı
MC Motore a collettore - Brushes and collector motor - Moteur collecteur - Kollektor Motor -
Motor a collector – Kömürlü (fırçalı) motor

4
2005
MD Motore centrifuga - Spin motor - Moteur essorage - Schleuderung Motor - Motor secado –
sıkma motoru
ML Motore lavaggio - Washing motor - Moteur lavage - Waschung motor - Motor lavado –
Yıkama motoru
MP Elettropompa di scarico - Discharge electric pump - Pompe de vidange - Auslauf pumpe -
Electrobomba vaciado – Tahliye pompası
MR Elettropompa di ricircolo - Electric pump for water recycling- Pompe de reciclage -
Rezirkulation Pumpe - Electrobomba de recirculo – Su çevrim pompası
MT Motorino timer - Timer motor - Moteur timer - Timer motor - Motor programador –
Zamanlayıcı motoru
MV Motoventilatore asciugatura - Drying motor ventilator - Helice sechage - Trochen Fluegel
- Motoventilador secado – Kurutma fanı
PSpull stop - Stop with water in tub - Arret avec eau dans la cuve - Spüllstop - Stop cuba
llena(flot) – Suda bekletme
PA Pressostato alto livello - High level pressure switch - Pressostat du haut niveau - Hoch
Pegel Druckwaechter - Presostato nivel alto – Yüksek seviye basınç úalteri
PB Pressostato basso livello - Low level pressure switch - Pressostat du bas niveau - Niedrig
Pegel Druckwaechter - Presostato nivel bajo – Düúük seviye basınç úalteri
PD Potenziometro tempo lavaggio - Potenziometer adj length of cycle - Potenziometre temps
de lavage - Washzeit potentiometer - Potenciometro tiempo lavado – Yıkama süresi
potansiyometresi
PH Potenziometro temperatura - Potenziometer adj temperature - Potenziometre
temperature - Temperatur potentiometer - Potenciometro temperatura – Sıcaklık
potansiyometresi
PN Pressostato - Pressure switch - Interrupteur niveau - Druckwaechter - Presostato –
Basınç úalteri
PR Pressostato sicurezza resistenza- Heating element security pressure switch - Interrupteur
niveau protection resistance - Heizwiderstand Sicherheit Druckwaechter - Presostato
seguridad resistencia lavado – Isıtıcı emniyet basınç úalteri
PS Pressostato sicurezza - Security pressure switch - Interrupteur niveau de securitè -
Sicherheit Druckwaechter - Presostato seguridad – Emniyet basınç úalteri

5
2005
PT Potenziometro velocità centrifuga - Potentiometer adj spin speed - Potentiometre vitesse
essorage - Schleuderung geschwindigkeit potentiometer - Potenciometro velocidad
centrifugado – Sıkma hızı ayar potansiyometresi
PV Pressostato variabile - Adjustable pressure switch - Pressostat variable - Varierbarer
pressostat - Presostato variable – Ayarlanabilir basınç úalteri
RA Resistenza asciugatura - Drying heating element - Resistance sechage - Trockenheizung
- Resistencia secado – Kurutma rezistansı
RF Resistenza asciugatura forte - Intensive drying heating element - Resistance sechage
fort - Starktrocken Heizwiderstand - Resistencia secado energico. – Hassas kurutma
rezistansı
RL Resistenza lavaggio - Washing heating element - Resistance lavage - Waschung
Heizwiderstand - Resistencia lavado – Yıkama rezistansı
RT Regolatore di temperatura a tempo - Timer for temperature regulation - Reglage
temperature au temps - Zeit-Temperatur-Regler - Regulacion temperatura por tiempo –
Isı ayarı için zamanlayıcı
SScarico - Discharge - Vidange - Ablauf – Vaciado - Tahliye
SC Modulo motore a collettore - Collector motor electronic module - Platine electroni que
moteur collecteur - Modulo motor a colector – Motor sürücü elektronik kart
SD Ritardatore di partenza - Start delay - Retardateur de depart - Start-Verspaeter - Placa
retardadora – Baúlama geciktirme
SF Modulo funzioni – Function module – Module fonctions – Funktions modul - Modulo
funciones – Fonksiyon modülü
SM Selettore motorizzato – Motorised selector – Selecteur motorise – Programmselektor -
Selector motorizado – Motorlu seçici
ST Sonda termostato regolabile - Adjustable thermostat probe - Sonde pour thermostat
reglable -Einstellbar Thermostat Sonde - Sonda termostato regulable – Ayarlanabilir
termostat probu
ST3 Presa di campo – Tapped field coil – Modulation de champ - Conexion velocidad
maxima – Kollu sargı
SV Velocità regolabile (potenziometro) - Adjustable speed (potentiometer) - Vitesse reglable
(potentio-metre) - Einstellbar Geschwindigkeit (potentiometer) - Velocidad regulable
(potenciometro) – Hız ayarlama (potansiyometre)

6
2005
TResistenza con consenso termostato - Heater with thermostatic consent - Resistan ce
avec consentement thermostatique - Heizung mit Thermostat Erlaubnis - Resistencia con
paso termostato – Termostatlı ısıtıcı
TA Termostato di sicurezza asciugatura - Drying cycle safety thermostat - Thermostat de
securitè sechage - Sicherheits-Thermostat Trocknung - Termostato seguridad secado –
Kurutma emniyet termostatı
TB Termostato bassa temperatura - Low temperature thermostat - Thermostat pour basse
temperature - Niedrige temperatur thermostat - Termostato baja temperatura – Düúük
sıcaklık termostatı
TC Termostato di consenso N.A. - Timer feed through N.O. thermostat - Alimentation timer
par thermostat N.O. - N.O. thermostat timer speisung - Termostato de paso – N.A. kontak
üzerinden zamanlayıcı beslemesi
TF Termostato sicurezza asciugatura forte - Strong drying safety thermostat - Thermos tat
securitè essorage fort - Starke Abtrocknen Sicherheit Thermostat - Termostato seguridad
secado energico – Güçlü kurutma emniyet termostatı
TM Termostato di massima (84°C+/-2°) - Limit thermostat (84°C+/-2°) - Thermostat de
securitè (84°C+/-2°) - Sicherhelts-Thermostat (84°C+/-2°) - Termostato de maxima
(84°C+/-2°) – Emniyet termostatı (84°C+/-2°)
TN Termostato NTC - NTC termostat - Thermostat NTC - NTC thermostat - Termostato NTC
– Termostat NTC
TP Termostato di sicurezza ricircolo - Water recycling safety thermostat - Thermostat de
securitè recirculation eau sechage - Sicherheits-Thermostat für Rezirkulation -
Termostato de seguridad recirculo – Su çevrim emniyet termostatı
TR Termostato regolabile - Adjustable thermostat - Thermostat reglable - Regulierbarer-
Thermostat - Termostato regulable – Ayarlı termostat
TS Termostato di sicurezza - Safety thermostat - Thermostat de securitè - Sicherhei ts
Thermostat Termostato de seguridad – Emniyet Termostatı
VRaffreddamento - Cool down - Refroidissements - Abkühlung – Enfriamiento - So÷utma
V6 Tasto 6 Kg – 6 Kg push button – Poussoir 6 Kg – 6 Kg taste – Tecla 6 Kg – 6kg butonu
VA Tasto ammollo - Soak button - Poussoir trempage Einweicken Taste - Tecla remoio –
Suda bırakma butonu

7
2005
VB Tasto bassa temperatura (60°C) - Low temperature (60°C) button - Touche basse
temperature (60°C) - Niedrige Temperatur (60°C) Taste - Tecla baja temperatura (60°C)
– Düúük sıcaklık (60°C) butonu
VC Tasto ciclo freddo - Cold washing button - Bouton lavage froid - Taste Kaltes Wasche -
Tecla lavado frio – So÷uk yıkama butonu
VD Tasto extrarisciacquo - Super rinse pushbutton - Touche extra rincage - Extra spuelung
taste - Tecla de superaclarado – Ekstra durulama butonu
VE Tasto esclusione centrifuga - Spin cut-out button - Touche exclusion centrifuge -
Schleuderans Taste - Tecla exclusion centrifugado - Sıkma kesme butonu
VF Tasto asciugatura forte – Intensive drying pilot lamp - Touche sechage fort - Starke
Trocknungstatste - Tecla secado energico – Hassas kurutma lambası
VG Tasto lavaggio 35 giri - 35 rpm washing pushbutton - Touche 35 tours lavage - 35
Abwashung Drehzahl - Tecla 35 r.p.m. lavado VH Tasto start delay-Star delay
pushbutton-Touche start delay-Start delay taste - Tecla start delay – 35 dev/dak yıkama
butonu
VI Tasto centrifuga istantanea - Sudden spin button -Touche essorage istantanè - Taste
Augenblick-licher-Schleuderung - Tecla centrifugado istantaneo – Sıkma butonu
VK Tasto 90° - 90° pushbutton - Touche 90° - 90° taste - Tecla 90° - 90° butonu
VL Tasto "Plus" - "Plus" pushbutton - Poussoir "Plus" - "Plus" taste - Tecla "Plus" – “Plus”
butonu
VM Tasto mezzo carico elettrico - Switch for electric half load - Touche demi chargeme nt
electrique - Elektrische Halb-Einladen Taste - Tecla media carga electrico – Elektrikli yarı
yük butonu
VN Tasto mezzo carico meccanico - Switch for mechanical half load - Touche demi
chargement mecanique - Mechanische Halb-Einladen Taste - Tecla media carga
mecanico – Mekanik yarı yük butonu
VO Tasto prelavaggio - Prewash pushbutton - Touche prelavage - Vorwashung taste - Tecla
prelavado – Ön yıkama butonu
VP Tasto marcia/arresto - On/Off button - Touche marche/arret - Ein/Aus Schalter - Tecla
marcha / parada - On/Off butonu
VQ Tasto unidirezionale cesto – Unidirectional tumbling pushbutton - Touche rotation
tambour unidirectionel - Taste für einseitige Trommeldrehung -Tecla unidireccional del
tambor – øki yöne sıkma butonu

8
2005
VR Tasto economia - Economic washing pushbutton - Poussoir lavage economique -
Billigwasche Taste - Tecla economico – Ekonomik yıkama fonksiyonu
VS Tasto fermo con acqua in vasca (spull stop) - Stop with water in tub button (spull stop) -
Poussoir arret avec eau dans la cuve (spull stop) - Spull stop taste - Tecla flot – “Suda
bekletme” tuúu (sıkma durdurma)
VT Tasto 4° risciacquo - 4th rinse pushbutton - Touche de rincage - Spueltaste - Tecla
asclarado – 4’üncü durulama butonu
VU Tasto super rapido - Rapid program button - Touche super rapide - Super schnelltaste -
Tecla super rapido – Hızlı program butonu
VV Tasto cambio velocità - Speed change button - Poussoir changement de vitesse. -
Geschwindigkeitsaenderung Taste - Tecla cambio velocidad – Hız de÷iútirme butonu
VW Tasto "Softwasher" - "Softwasher" pushbutton - Poussoir "Softwasher" - "Softwasher"
Taste -Tecla "Softwasher" – “Softwasher” butonu
ZR Relè - Relay - Relais - Relais - Rele - Röle
ZT Trasformatore - Transformer - Transformateur - Transformator - Transformador - Trafo
ZW Filtro antidisturbi radio - Radio interference suppressor - Filtre anti-bruit radio -
Entstoerungsfilter - Filtro antiparasitario – Antiparazit filtre

9
2005
TABELLA CORRISPONDENZA CONTATTI PRESSOSTATO E BLOCCAPORTA
REFERENCE LIST FOR CONNECTIONS TO PRESSURE SWITCH AND DOOR
INTERLOCK
TABLEAU DE CORRESPONDENCE POUR LES CONTACTS DU PRESSOSTAT ET
RETARDATEUR OVERTURE
REFERENZEN LISTE FÜR DIE DRUCHWÄCHTER KONTAKTS UND OEFFNUNGS
VERSPATER
TABLA DE CORRESPONDENCIA DE LOS CONTACTOS DEL PRESOSTATO Y
BLOCAPUERTA
BASINÇ ùALTERøVE KAPI EMNøYET ùALTERøNE BAöLANTI øÇøN REFERANS
LøSTESø
CContatto comune - Common lead - Contatct comun - Gemeinkontakt - Contacto comun –
Ortak uç
VVuoto - Tub without water - Sans eau dans la cuve - Ohne wasser in dem Waschbottich -
Sin agua en la cuba – Tamburda su yok
PPieno - Tub full of water - Avec eau dans la cuve - Mit wasser in dem Washbottich - Con
agua en la cuba – Tambur su dolu
AAntitrabocco - Anti-overflow device - Antidebordage - Antiuberlaufener -
Antidesbordamiento – Taúma önleyici úalter
A B
C11 11
V12 12
P14 13
A16 /
C21 21
V22 22
P24 23
A / 24
Il contatto 16 della versione "A" corrisponde al
contatto 24 della versione "B".
Contact 16 of "A" version corresponds to contact
24 of "B" version.
Le contact 16 de la version "A" correspond au
contact 24 de la version "B".
Der Kontakt 16 von "A" Version bezhalt der
Kontakt 24 von "B" Version.
El contacto 16 de la version "A" corre-sponde al
contacto 24 de la version "B".
16 kontaklı A versiyonu 24 kontaklı B
versiyonuna karúılık gelmektedir.

10
2005
ll contatto L della versione "A" corrisponde al contatto 3 della
versione "B".
Contact L of "A" version corresponds to contact 3 of "B" version.
Le contact L de la version "A" corre- spond au contact 3 de la
version "B".
El contacto L de la version "A" corresponde al contacto 3 de la
version "B".
Der Kontakt L von "A" Version bezhalt der Kontakt 3 von "B"
Version.
“A” versiyonunun L konta÷ı “B” versiyonunun 3 konta÷ına karúılık
gelmektedir.

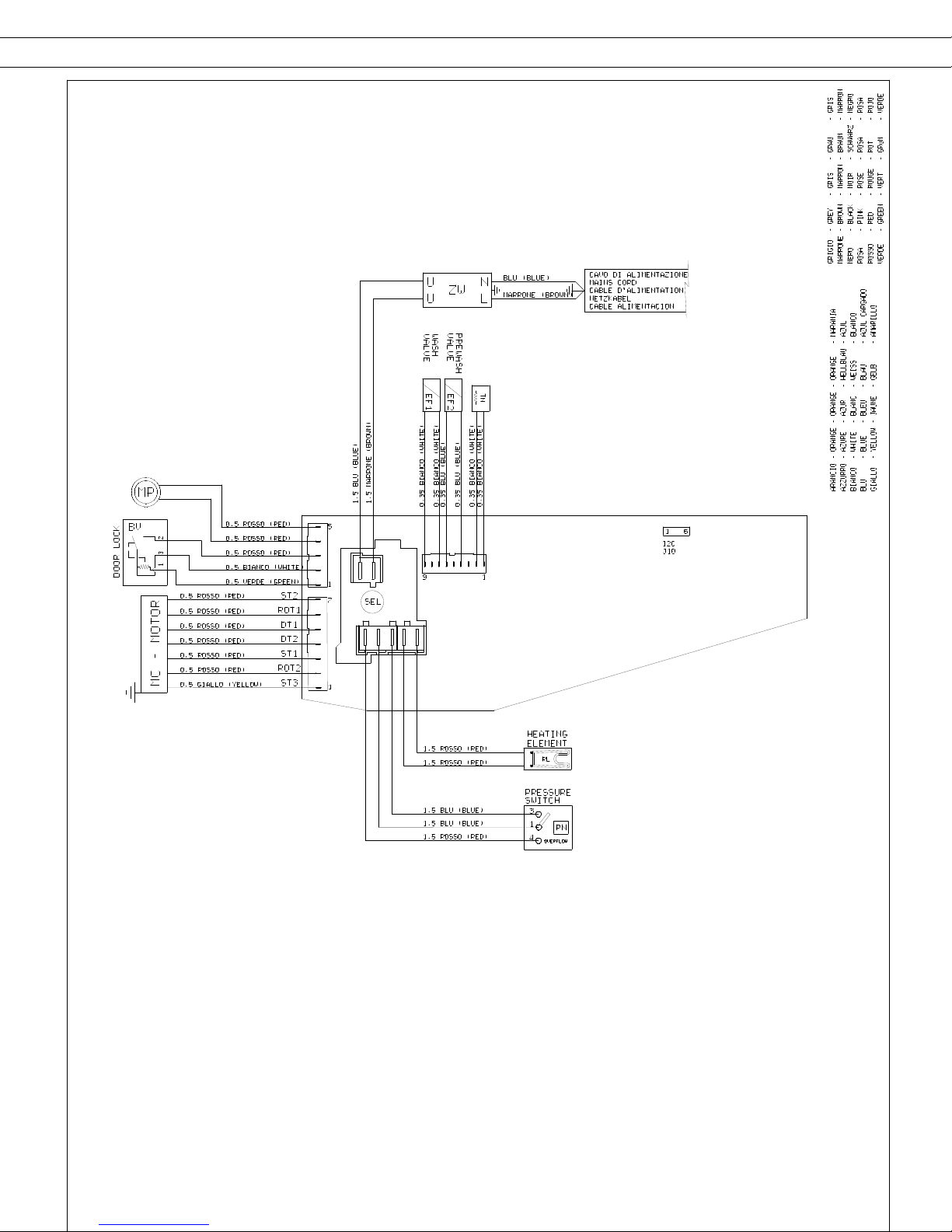

AAZZURRO AÇIK MAVĀ
BBLU MAVĀ
CCREMA KREM
F ROSA PEMBE
GGRIGIO GRĀ
KPONTE KÖPRÜ
MMARRONE KAHVERENGĀ
NNERO SĀYAH
OARANCIO TURUNCU
PVERDE YEāĀL
RROSSO KIRMIZI
VVIOLA MOR
YGIALLO SARI
WBIANCO BEYAZ
