Cannon Tools Neilsen CT2210 User manual

100LB SPIKE / SEEDER / SPREADER CT2210
INSTRUCTION MANUAL
SAVE THESE INSTRUCTIONS AND PRECAUTIONS.
READ ALL PRECAUTONS AND INSTRUCTIONS BEFORE USE.
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.

1

1
EC DECLARATION OF CONFORMITY
We CANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Declare that the following machine complies with the appropriate basic safety
and health requirements of the EC Directive based on its design and type, as
brought into circulation by us.
In case of alteration of the machine, not agreed upon by us, this declaration will
lose its validity.
Product description:100LB SPIKE / SEEDER / SPREADER
Model: CT2210
Applicable EC Directives:
EC Machinery Directive 2006/42/EC
Harmonized standards
EN ISO 12100:2010, EN 349:1993+A1:2008,
EN ISO 14120:2015, EN ISO 13857:2008
20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Mr. Gurcharan Tony Singh Sanghera
Managing Director
CANNON TOOLS LTD
sign
Gurcharan Tony Singh Sanghera
2021-07-06

2
1. SPECIFICATIONS
Capacity: 100LB
Spread Width: 32"/0.8M
Rubber Tyre: 10"
Coverage: 17500 Sq/ft
Spikes: 9 spike wheels, 7" dia.
Adjustable flow control lever with stop feature.
Works with lawn/garden tractors and ATVs.
2. GENERAL SAFETY INSTRUCTIONS
Warning: When using tool, basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment. Read all instructions
before using this tool!
STAY ALERT. Do not operate the machine while under the influence of drugs,
alcohol, or any medication that could affect your ability to use it properly. Do not
use this machine when you are tired or distracted from the job at hand. Be aware
of what you are doing at all times. Use common sense.
USERS. Do not at any time carry passengers sit or stand on the machine. Do not
allow children to play on, stand upon or climb in the machine. Never allow
children or people unfamiliar with these instructions to use the machine.
Local regulations can restrict the age of the operator.
AVOID DANGEROUS CONDITIONS. Make sure there is adequate surrounding
workspace. Cluttered areas invite injuries. Keep your work area clean with
sufficient light. Keep the area around the machine clear of obstructions, grease,
oil, rubbish & other debris which could cause persons to fall onto moving
parts.
KEEP BYSTANDERS AND CHILDREN AWAY. Keep unauthorised persons a
safe distance away from the machine. If approached, stop the machine
immediately. Do not allow children to handle, climb on or use the machine. Keep

3
in mind the operator or user is responsible for accidents or hazards occurring to
other people or their property.
INSPECT YOUR MACHINE. Check all bolts, nuts & screws for tightness before
each use, especially those securing guards & drive mechanisms. Vibration
during use, may cause these to loosen. Replace damaged, missing or
failed parts before using. Warning labels carry important information. Replace
any missing or damaged warning labels.
DRESS PROPERLY. Do not wear loose clothing, gloves, scarfs, neckties
or jewellery (rings, wrist watches), which can be caught in moving parts.Always
wear long trousers. Always wear substantial non slip, substantial or heavy-duty
safety footwear are highly recommended when working. Never operate barefoot
or when wearing sandals. Wear a face or dust mask if the operation is dusty.
Always wear safety glasses/goggles and/or face shields. Everyday eyeglasses
have only impact resistant lenses; they are not safety glasses/goggles. Wear
protective hair covering to contain long hair, preventing it from getting caught in
machinery.
DO NOT OVERREACH. Keep proper footing and balance at all times
when using the machine. Never stand on the machine. Serious injury could occur
if the machine is tipped or if the moving parts are unintentionally contacted. Do
not store anything above or near the machine, where anyone might stand on the
machine to reach them.
AVOID INJURY FROM UNEXPECTED ACCIDENT. Keep hands & feet out of the
way of all moving parts. Do not place any part of your body or any tool e.g. in
moving parts of the machine during operation.
DO NOT FORCE TOOL. Always work within the rated capacity. Do not operate
for a purpose for which it was not intended. Before operating vehicle on any
grade (hill) refer to the safety rules in the vehicle owner’s manual concerning
safe operation on slopes. Stay off steep slopes! Always operate at reduce speed
in rough terrain, along creeks, ditches and on hillsides. Do not operate close to
creeks, ditches and public highways. To avoid personal injury and/or equipment
damage DO NOT EXCEED 5 MPH. Always use caution when loading and
unloading the cart.

4
Only tow with recommended vehicles (Lawn/Garden Tractors and ATVs). Always
secure and lock dump cart to the vehicle hitch before operating.
This equipment is not designed to be used with zero-turn mowers.
NEVER LEAVE MACHINE RUNNING UNATTENDED. Do not leave the
machine unattended until it has come to a complete stop.
TYRE INFLATION. WARNING! Over-inflated tyres can explode and cause
serious injury. Avoid injury by NEVER over inflating tyres beyond the maximum
pressure printed on the side of the tyre wall. ALWAYS use FOOT or HAND pump
inflation devices.
INSPECT. Before using, always visually inspect to see that the tools are not worn
or damaged. Replace worn or damaged elements and bolts in sets, to preserve
balance. Always secure and lock aerator spreader to the vehicle hitch before
operating.
CRUSH AND CUT HAZARDS. Always keep hands and feet clear from moving
parts while operating the equipment. Always clear and keep work area clean
when operating. Always wear safety gear, eye protection, gloves and work
boots when operating the aerator spreader.
MAINTAIN YOUR MACHINE WITH CARE. Clean the machine immediately after
use. Keep the machine clean to ensure it operates to its full & safest
performance. When maintaining this machine, only the manufacturer’s original
replacement parts should be used.
PROTECT THE ENVIRONMENT. Take left over materials to an authorised
collection point or follow the stipulations in the country where the machine is
used. Do not discharge into drains, soil or water.
STORE IDLE EQUIPMENT. When not in use, the machine should be stored in a
dry location. Keep the machine away from children and others not qualified to
use it.

5
3. CONTROLS AND FEATURES IDENTIFICATION
Read this owner’s manual before operating the equipment. Familiarize yourself
with the location and function of the controls and features. Save this manual for
future reference.
1) Flows Control Lever – Controls the flow of material.
2) Poly Hopper – Do not exceed maximum load capacity 175lb.
3) Tires / Wheel
4) Aerator Spikes – Puts small holes in the ground.
5) Hitch Bracket
6) Spike Control Handle – Lifts and lowers the aerator spikes.

6
4. ASSEMBLY
1. READ THE INSTRUCTIONS BEFORE ASSEMBLY
Any power equipment can cause injury if operated improperly or if the user does
not understand how to operate the equipment. Exercise caution at all times,
when using power equipment.
Read this owner’s manual before attempting to assemble or operate the
spike/spreader.
Read the towing vehicle owner’s manual and know how to operate the
tractor before using the spike/spreader attachment.
Do not allow anyone to ride on or sit on the spike/spreader.
Never allow children to operate the tractor or spike/spreader attachment.
Do not allow adults to operate the tractor or spike/spreader without proper
instructions.
Wear eye and hand protection when handling and using lawn chemicals.
Do not drive too close to a creek or ditch and be alert for holes and other
hazards which could cause you to loose control of the tractor and
spike/spreader.

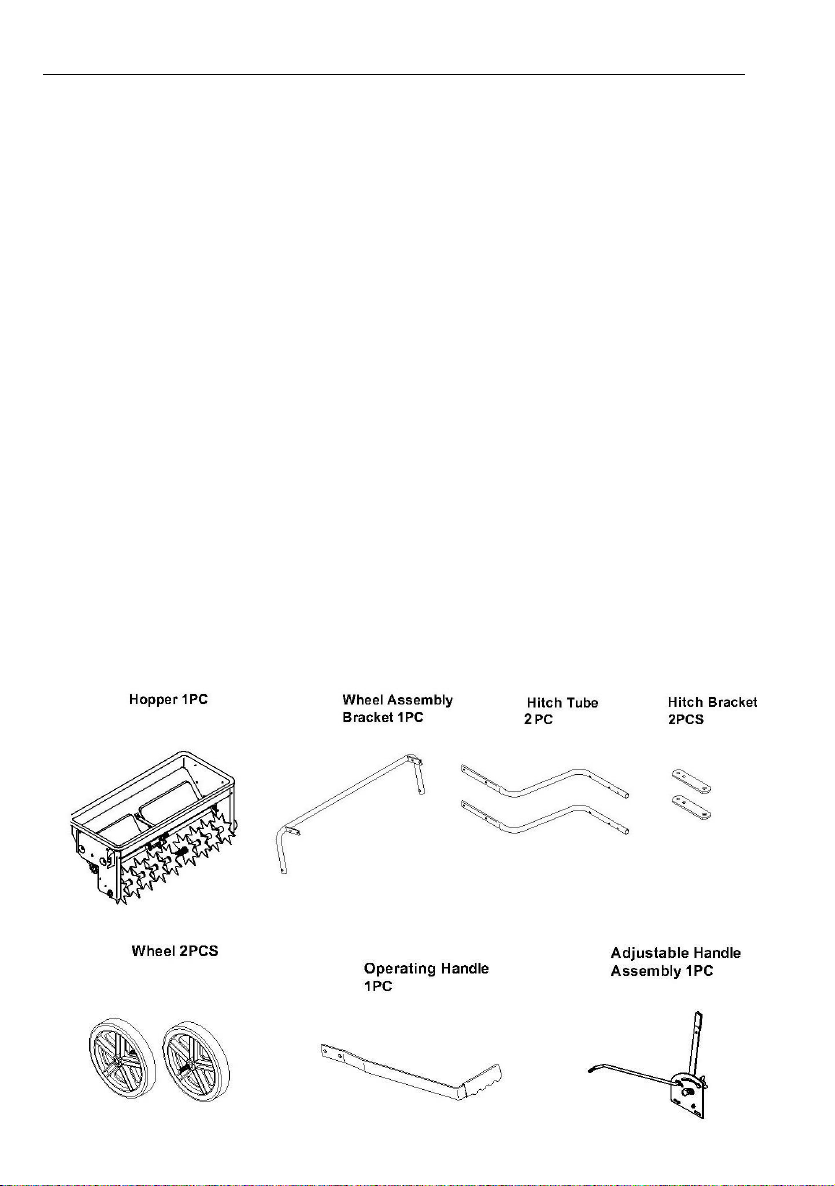

2. REMOVE AND IDENTIFY LOOSE PARTS FROM CARTON AND BAG

7
3. ASSEMBLY
STEP 1
1. Insert the Bolt M12X90 on one of the wheels into the hole on Wheel Bracket，
make sure the wheel should be at the outside. Then lock it by a Nylon Lock Nut
M12. Adjust the position of the Hex Nut M12 to make sure the wheel is not so
tight and not so loose，just can swiveling flexible. Finally,please tighten both of
the Nylon Lock Nut and Hex Nut.
2. The other wheel is assembled by the same way.

8
STEP 2
Insert a Hex Bolt M8X35 with a Flat Washer Φ8 through the hole on hopper, like
the picture b showing. Assemble hitch tube by a nylon lock nut M8. Make sure do
not tighten this lock nut at the moment.
STEP 3
Insert a Hex Bolt M8X35 with a flat washer Φ8 through the hole on the
hopper,like the picture c showing, and assemble the other piece of Hitch tube by
a nylon lock nut M8. The lock nut should not be tightened at this moment.

9
STEP 4
1. Insert a Hex Bolt M8X45 with a Flat Washer Φ8 through the hole on the hopper,
like the picture d showing,then assemble the Wheel Bracket and Operating
Handle by a Nylon Lock Nut M8. The Lock Nut should not be tightened at this
moment.
2. Insert a Hex Bolt M8X20 through the other hole on the Wheel Bracket and
Operating Handle, and assemble them by a Nylon Lock Nut M8. Please tighten
the lock nut now.
STEP 5
Assemble the hopper, hitch tube and wheel bracket by a Hex Bolt M8X40 and a
Nylon Lock Nut M8.The lock nut should not be tightened at this moment.

10
STEP 6
1.Put together 2 Hitch Tubes and the Adjustable Handle assembly, and lock them
by the Hex Bolts M6 x 65 , Nylon Lock Nuts M6 and 2pcs of big washer Φ6 like
the picture f showing. The bolts and nuts should not be tightened at this moment.
2. Connect the Control Pole and Adjustable Plate by a Flat Washer Φ8 and a
Nylon Lock Nut M8 like the picture f.
3.Adjust the position between the Hitch Tube, wheel bracket and the hopper,
make sure the control handle can be operated properly and the distance of the
handle in both front and rear should be proper. Then tighten all of the bolts and
nuts from Pic.b to f.

11

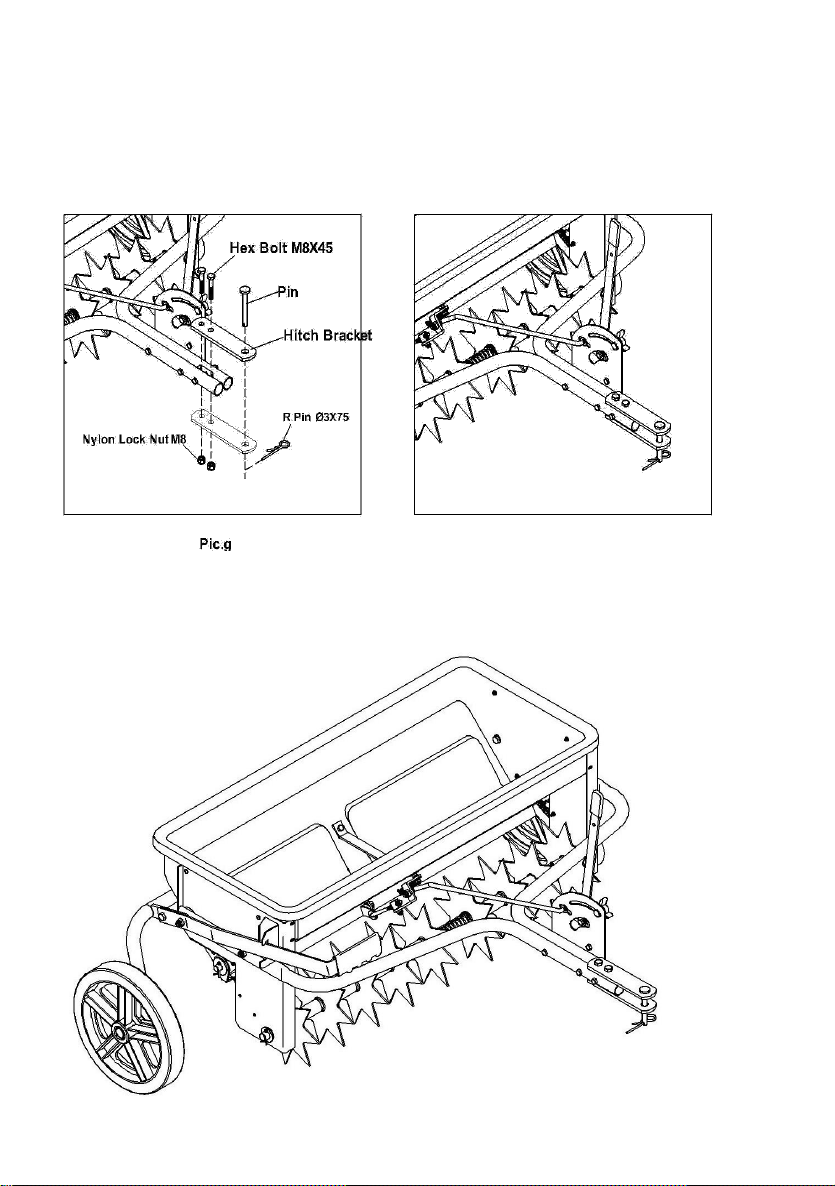

STEP 7
1. Assemble 2 hitch brackets on each side of hitch tube assembly by 2Hex Bolt
M8 x 45 and 2 Nylon Lock Nut M8, tighten the nylon lock nut M8.
2. Insert the pin through 2 brackets and lock it by a R Pin Φ3x75
STEP 8

12
5. OPERATION
How to use your spiker/spreader?
1.Determine the approximate square footage of the area to be covered and
estimate the amount of fertilizer or seed required.
2.Move the spreader to the area where application is to begin.
3.Loosen the plastic wing nut and move it to the desired setting. Retighten the
nut.
4.Making sure the flow control lever is in the “OFF” position, fill the hopper,
breaking up any lumps.
5.Lower the aerator spikes to the operating position.
6.Start the spreader in motion and then move the flow control lever to the “ON”
position as you travel across your lawn.
7.Do not make sharp turns with spikes in the ground.
8.Raise aerator spikes to transport position when crossing over concrete or other
hard surfaces.
9.Do not aerate if the ground is extremely hard or dry. If ground is too dry,
sprinkle or water for one to two hours prior to use.
10.Do not aerate if the ground is too wet (muddy).

13
6. MAINTENANCE AND STORAGE
MAINTENANCE
● Rinse/dry inside and outside of the aerator spreader after each use.
●Regularly grease axle and wheel bearing area or when needed.
● Periodically check all fasteners for tightness.
● Annually clean and lightly lubricate spike assembly and shaft or when needed.
● Use a glossy enamel spray paint to touch up scratched or worn painted metal
surfaces.
● Spikes periodically need to be sharpened with a small grinder to maintain good
penetration.
● Never exceed load capacity rating of 100lbs it will damage the equipment..
IMPORTANT:
If a part needs replacement, only use parts that meet the manufacturer’s
specifications. Replacement parts that do not meet specifications may result in a
safety hazard or poor operations.
STORAGE
● Never allow material to be stored in the hopper for extended periods of time.
● Before storing make sure the aerator spreader is clean and dry for years of
trouble free service.
● Lightly lubricate all metal surfaces and moving parts to prevent rust.
● Store indoors or protected area during severe weather and winter months.

14
7. PARTS DRAWING

15
PARTS LIST
Part#
Description
QTY
Part#
Description
QTY
1
Hopper & Side Plate
Assembly
1
35
Nylon Lock Nut M12
2
2
Axle & Gear Assembly
1
36
Spring
1
3
Cotter Pin Ø4x30
4
37
Fluted Disc & Fixed Spacer
Assy
2
4
Screw M5x6
10
38
Small Sprocket Wheel
Spacer
1
5
Scratch Board
2
39
Big Sprocket Wheel Spacer
1
6
Flat Washer Ø12
6
40
Bushing Chain
1
7
Scratch Board Support
Spacer
2
41
Bushing Chain Cover
1
8
Scratch Board Axle
Spacer
2
42
Flat Washer Ø4
2
9
Big Flat Washer Ø12
2
43
Screw M4X12
2
10
Flat Washer Ø10
2
44
Hex Bolt M6X30
1
11
Rotating Door Assembly
1
45
Support Shelves
1
12
Flat Washer Ø16
10
46
Hex Bolt M6x16
1
13
Axle Spacer
11
47
Big Washer Ø6
9
14
Fluted Disc Spacer
(Short)
1
48
Nylon Lock Nut M6
11
15
Fluted Disc
7
49
Nylon Lock Nut M4
2
16
Fluted Disc Spacer(Long)
5
50
Connecting Bolt
1
17
Hex Bolt M12x95
2
51
Nylon Washer
2
18
Wheel
2
52
Threaded Pole
1
19
Hex Nut M12
2
53
Cotter Pin Ø3X20
1
20
Wheel Bracket Assembly
1
54
Connecting Plate
1
21
Hex Bolt M8x20
1
55
Tension Spring
1
22
Operating Handle
1
56
Adjustable Pole
1
23
Handle Grip
1
57
Hex Bolt M6x20
2
24
Hitch Tube
2
58
Gauge and Lever Assembly
1
25
Hex Bolt M6x65
3
59
Carriage Bolt M6X25
1
26
Nylon Lock Nut M8
9
60
Teeth Washer Ø8
1
27
R Pin
1
61
Bushing
1
28
Hitch Bracket
2
62
Wing Nut
1
29
Pin
1
63
Adjustable Handle
1
30
Hex Bolt M8X45
3
64
Handle Grip
1
31
Axle & Small Gear
Assembly
1
65
Support Shelves
1

16
32
Flat Washer Ø8
6
66
Hex Bushing
2
33
Hex Bolt M8X35
2
67
Fluted Disc Spacer 1 (Short)
1
34
Hex Bolt M8X40
1

17

18
CANNON TOOLS LTD
Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K.
Made in China
