Cannon CAST18R Installation guide

USE, CARE AND INSTALLATION
INSTRUCTIONS
FOR YOUR NEW CANNON HORIZON HEATER
Models: CAST18R, CAST24R, CAST32R
Delivers a wide heat spectrum for consistent
warmth, backed by the strength & rigidity of the
wave element design.
™
• The heater must be installed in accordance with the manufacturer’s
installation instructions.
• The heater MUST ONLY be installed or removed by an
authorised person.
• The heater MUST be installed in accordance with AS/NZS 3000
(wiring rules)and all other applicable local & state building and
OH & S requirements.

Models: CAST18R, CAST24R, CAST32R
Thank you for purchasing a Cannon Horizon Heat strip heater.
Outdoor entertaining is increasingly popular and the Cannon Horizon™ strip heaters are
the perfect solution to extend your outdoor living spaces beyond the summer period, for
year-round comfort. The Horizon Heat™ range provides a number of options, depending
on the area size and heating requirements with an 1800W, 2400W and 3200W models on
offer. Backed by a 2 year warranty, the Cannon Horizon strip heater range provides perfect
outdoor heating for all occasions.
Wide & even heat with Horizon Heat™
The Cannon Horizon strip heater range uses far infrared heating, which warms objects and
people, rather than the air, for a more efcient and comfortable heating source. Its wave
design allows a wide angled coverage for a broad heat distribution and offers extra strength
and rigidity to the heater construction.
Easy to Install and Operate
Our Canon Horizon range has been designed for easy installation into your outdoor
living spaces. With the 1800W and 2400W being supplied with a 3 pin, 10amp plug for
quick ‘plug-n-play’ operation and mounting brackets to direct the heat, easy installation and
operation is assured. All Cannon Horizon heaters are supplied with a remote control,
in addition to an on-product switch and a 3 heat setting display.
Efcient heating & low running costs
When compared to outdoor gas heating, electric strip heaters offer an efcient and low cost
option for warming your outdoor living space.
Outdoor protection
The Cannon Horizon range of heaters have an IP65 rating. This rating ensures that
electrics are protected from dust and water ingress and are ideal for outdoor undercover
living and entertaining environments.

Models: CAST18R, CAST24R, CAST32R
CAUTION
Young children must be supervised when in the vicinity of this heater, when in
operation.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of knowledge, unless
they have been given supervision or instructions concerning the use of the
appliance by a person responsible for their safety and have the capacity to follow
these instructions.
Some parts of this product can become very hot and cause burns. Particular
attention has to be given where children and vulnerable people are present.
This heater is not intended for use by young children or inrm people without
supervision.
1. DO NOT use this heater with a programmer, timer or any other device that switches
the heater ON automatically, since a re risk exists if the heater is covered or
positioned incorrectly.
2. DO NOT use this heater in the immediate surroundings of a bath, a shower or a
swimming pool.
3. DO NOT place the unit close to curtains and/or other ammable objects.
4. DO NOT place articles on or against this appliance.
5. DO NOT wrap the power supply cord on the unit.
6. DO NOT use this unit in place where causticity or volatile air exists,
i.e. dust, steam, gas, etc.
7. DO NOT use this unit as a cloth drier or towel drier.
8. DO NOT use this unit as a sauna heater.
9. DO NOT use this unit as a room heater.
10. DO NOT use this unit in an animal propagating area.
11. DO NOT use this unit in heating system of hot air centre.
12. DO NOT immerse this unit into water for cleaning.
13. The unit gets VERY HOT during operation. To avoid burns DO NOT touch
any surface of the heater.
14. The heater will retain signicant heat for a period after shutdown. To avoid burns
DO NOT touch any part of the heater during this period.
15. The unit must be handled with care, avoid vibrating or hitting the unit.
16. The unit must be securely grounded during operation.
17. When damaged, the unit must be repaired by qualied service agent.
18. If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.

Models: CAST18R, CAST24R, CAST32R
CAUTION
19. When assembling, keep clear from any board or ammable material.
20. The unit is for household use only. It is not suitable for use on a building site,
greenhouses, barn or stable, where there’s ammable dust.
21. The head of the unit is at high temperature during operation. Unplug the unit
and wait till it’s cool before cleaning.
22. The units (1800W & 2400W) should be plugged in a socket outlet, which is easily
visible and reachable.
23. DO NOT store or use any ammable liquids in the vicinity of this unit.
24. DO NOT spray aerosols in the vicinity of this appliance whilst appliance is operating.
Most aerosols are ammable, which can be a re hazard if used neae appliance when
it is in use.
25. DO NOT modify this appliance. Any modication may create a hazardous situation and
void your warranty.
26. DO NOT allow young children or the inrm to remain unsurpervised or sleep directly
infront of or below the appliance while in operation.
WARNING:
This heater is not equipped with a device to control the room temperature.
Do not use this heater in small rooms when they are occupied by persons
not capable of leaving the room on their own, unless constant supervision
is provided.
IMPORTANT INFORMATION:
Models CAST18R and CAST24R are tted with an Australian / New Zealand
exible 1.8M cord and 3 pin plug. A dedicated 240V 50Hz earthed 10AMP
socket outlet must be used with this appliance.
Model CAST32R are tted with an Australian exible 1.8M cord and can be
hardwired, or it can be tted with a 3 pin, 15amp plug into a 15amp socket
outlet. This MUST only be performed by an authorised person. In accordance
with local regulations.
DO NOT Coil or bundle the electric cord to reduce its length as overheating
may result which could become a re hazard.
The electrical cord MUST NOT come into contact with the heated parts of this
appliance.
DO NOT use this appliance as a portable heater. Use of an extension cord on
this appliance is not recommended.
Page 4

Preparation:
1. Unpack the carton. Take out the accessories pack from the carton. Make sure the
accessories listed in the below Accessories Check List are included. If anything is
missing, ask your retailer to provide it to you, or contact the Cannon distributor.
2. Ensure you have a philips - head screw driver and a spanner (not supplied) suitable
for M6 screw nut.
3. Read this instruction manual carefully before installation and use. Keep this instruction
manual in a safe place.
Cleaning:
Unplug the unit from the socket outlet before cleaning. Make sure unit is cool prior to
cleaning. It should be wiped with a damp cloth only, avoid excess liquid.
PREPARATION
ACCESSORIES NAME QTY
Upper L Bracket 2
Lower L Bracket 2
Expansion Bolt M6*70 2
Screw M6* 16 2
Accessories Check List:
ACCESSORIES NAME QTY
Remote Control 1
Allen Key 1
Screw M6*8 4
Models: CAST18R, CAST24R, CAST32R

ACCESSORIES NAME QTY
Remote Control 1
Allen Key 1
Screw M6*8 4
MODEL NO. CAST18R CAST24R CAST32R
Rated Power (Watts) 1500 -1800W 2000 - 2400W 2700 - 3200W
Rated Voltage 220-240V 50Hz 220-240V 50Hz 220-240V 50Hz
Plug Type 10 Amp 10 Amp
Hardwired unit or
15amp plug
(Not supplied)
Power Cord Length
(Metres) 1.8M 1.8M 1.8M
IP Rating IP65 IP65 IP65
Product Dimensions (mm) 1263 x 154 x 74 1543 x 154 x 74 1938 x 154 x 74
Unit Weight (Kg) 5.0Kg 6.8Kg 8.0Kg
Mounts Supplied Ceiling & Wall Ceiling & Wall Ceiling & Wall
Heat Settings 3 (Low/Med/High) 3 (Low/Med/High) 3 (Low/Med/High)
Remote Control Yes Yes Yes
Timer Cut Off Up to 9 hrs Up to 9 hrs Up to 9 hrs
1
2
3,4,5
6
10
7
<
<
11
8
9
12
<
NO. PART NAME
1 Expansion Bolt M*70
2 Upper L Bracket
3 Washer
4 Spring Washer
5 Screw Nut M6
6 Screw M6* 16

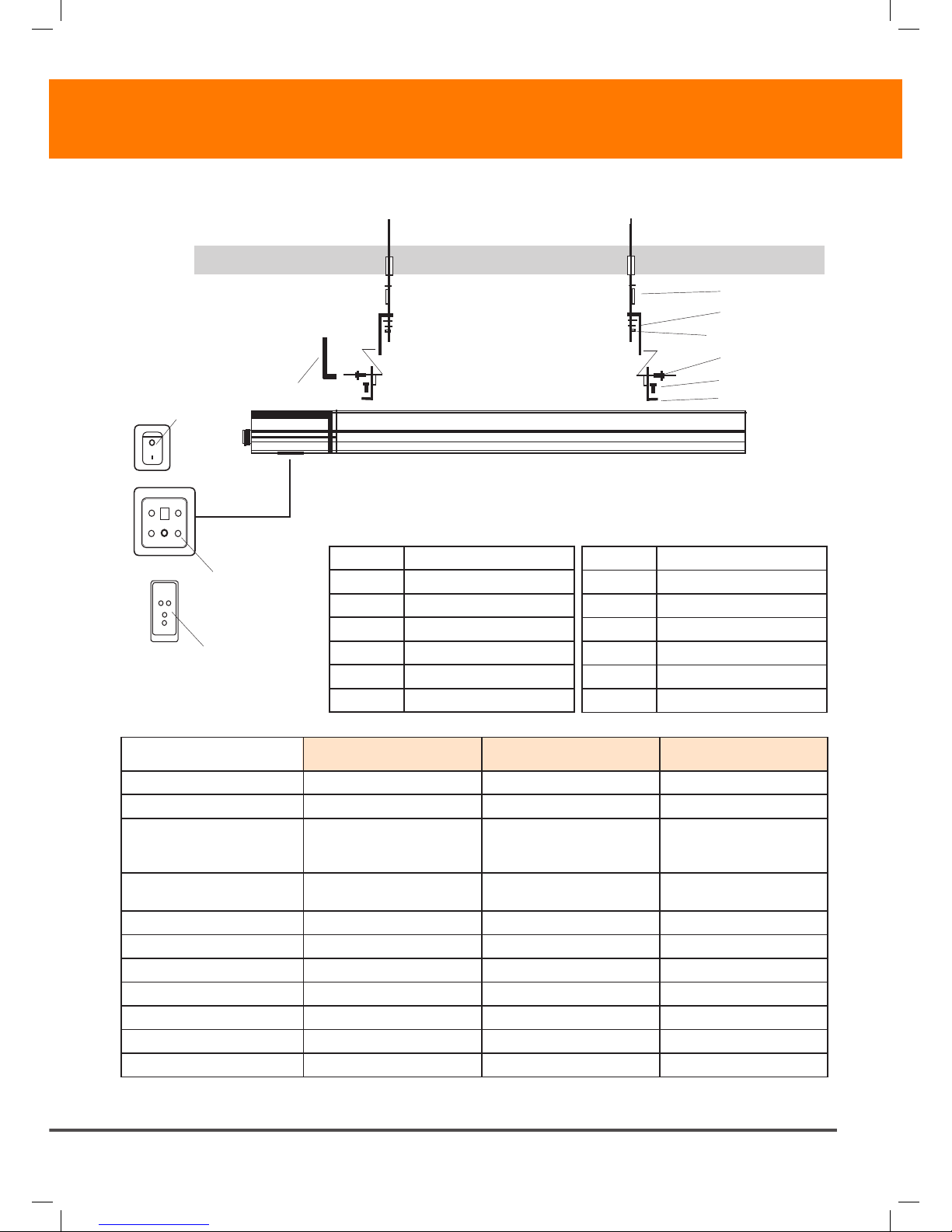

PARTS DESCRIPTIONS:
SPECIFICATION
NO. PART NAME
7 Lower L Bracket
8 Main Switch
9 Control Panel
10 Screw M6*8
11 Allen Key
12 Remote Control
Page 6
Models: CAST18R, CAST24R, CAST32R

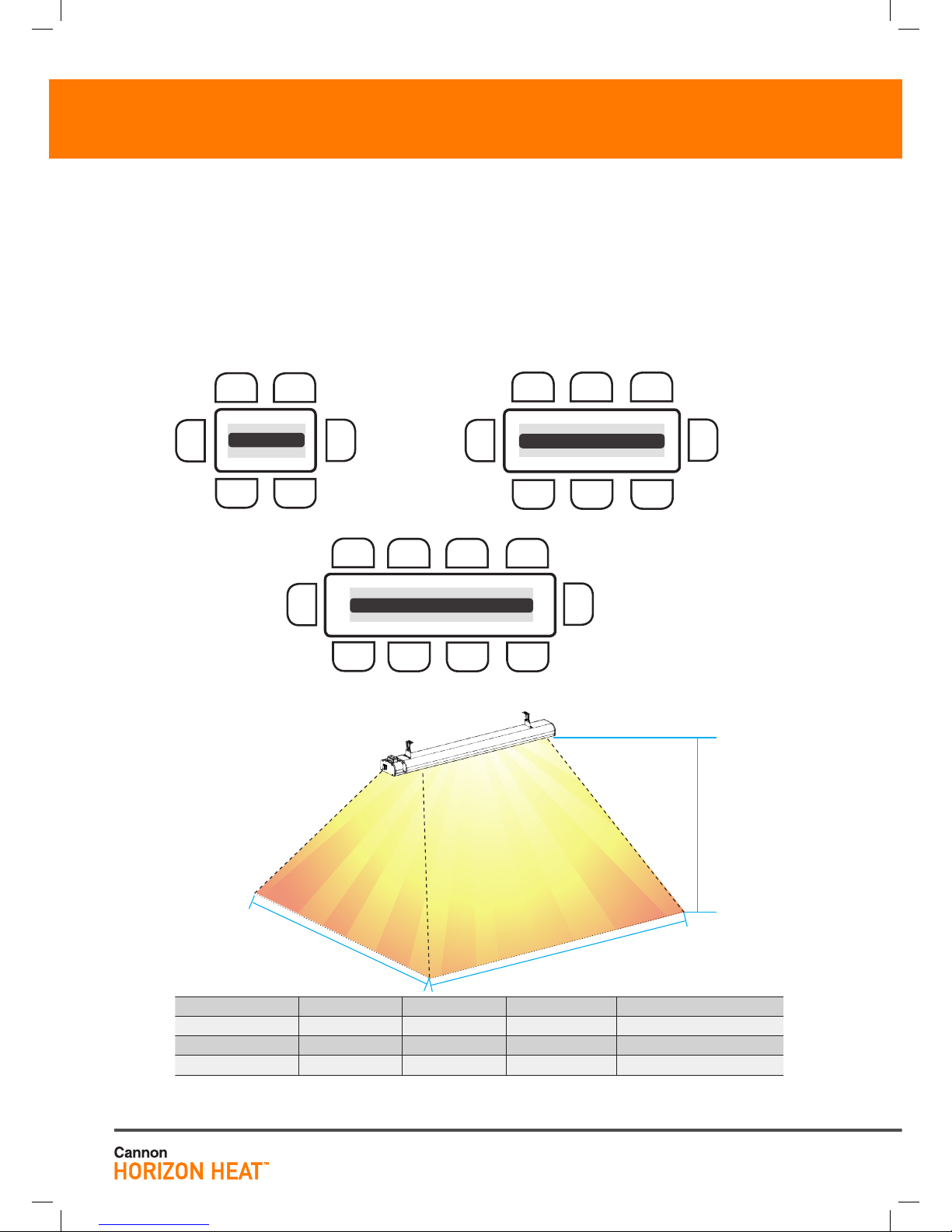

HEATING COVERAGE
For the majority of outdoor heating applications the most effective method to heat a particular area
is displayed below. The diagrams provide an easy selection guide for the approximate coverage
capacity in common settings & area sizes.
><
>
<
><
(X)
(Z)
(Y)
Model (X)m (Y)m (Z)m Heating Area m2
CAST18R 2.5 4 1.8 10
CAST24R 3 4.5 1.8 13.5
CAST32R 3.5 5 1.8 17.5
Thermal
Radiation
><
><
><
(X)
(Z)
(Y)
Model (X)m (Y)m (Z)m Heating Area m2
CAST18R 2.5 4 1.8 10
CAST24R 3 4.5 1.8 13.5
CAST32R 3.5 5 1.8 17.5
Thermal
Radiation
CAST18R
(4-6 seat capacity)
CAST24R
(6-8 seat capacity)
CAST32R
(8-10 seat capacity)
Outdoor enclosed
Table settings
Models: CAST18R, CAST24R, CAST32R

INSTALLATION
The Cannon Horizon strip heaters use Horizon Heat which use infrared radiant heat, that heats
objects and people rather than air, for a more efcient and comfortable heat. Having the optimal
placement, where people are within the heated footprint area, will ensure an ideal result.
Application
Recommended for use in outdoor uncovered areas with a ceiling height between 2.1 - 2.7m.
Areas such as patios, verandas, balcony ceilings & spot heating indoors for open areas including
drying rooms, bathrooms, studios or exercise spaces.
Heated Area
The below drawings provide an approximate heating area for each model, based on an enclosed
indoor & outdoor environment, with an overhead mounted unit.
<>
<>
2000
1263
<>
2100
<>
<>
3500
1938
<>
2100
<>
<>
2600
1543
<>
2100
<>
<>
1500
1263
<>
2100
<>
<>
2700
1938
<>
2100
<>
<>
2000
1543
<>
2100
INDOOR SPOT HEATING
Page 8
Models: CAST18R, CAST24R, CAST32R
OUTDOOR ENCLOSED AREA

INSTALLATION
Installation Requirements
Please ensure that you inspect the unit prior to installation for any damage. If damage is present
DO NOT INSTALL or OPERATE and contact the supplier for advice.
For optimal positioning we recommend a horizontal ceiling mounted unit, directly above the area
that requires heating, facing downward. If this position is not possible, then the Cannon Horizon
models are supplied with mounting brackets that allow for downward angled wall and ceiling
positions. For this position, please ensure that the mounting height is within 2.1M to 2.7M.
Heating effectiveness will be reduced if appliance is mounted at greater heights.
CORRECT INSTALLATION INCORRECT INSTALLATION
The electrical connection or socket outlets should not be located at the back of the heater. They
must be located outside the installation footprint of the unit, to reduce the heat build-up behind the
unit. If the strip heater is mounted on a incline (gabled ceiling), ensure that the electrical connection
is located at the lowest point of the heater.
DO NOT use power boards or double adaptors for this appliance.
ORH OIM
ORH OIM
ORH OIM
Models: CAST18R, CAST24R, CAST32R

INSTALLATION
Installing the unit
1. Remove heater and accessories from packaging and inspect for damage.
2. Review area and determine the ideal mounting position taking into account the required
clearances.
3. Set the adjustable mounting brackets to the desired angle, based on the clearances
and area where it is to xed.
4. Mark the location for mounting brackets, referring to
the below recommended spacing, as determined
by the model.
5. Afx the brackets to the selected surface with
appropriate xing hardware
(screws, anchors etc)
<>
108mm internal Horizon Heat width
<>
74mm
<>
154-168mm
Depending
on hole
<>
154mm
outer width
CAST18R
1800W
Distance (MM)
L 1263mm
<>
<>
140mm
<>
215mm
858mm centre line
once brackets are xed
<>
1263mm
<>
<>
140mm
<>
215mm
1140mm centre line
once brackets are xed
<>
1543mm
CAST24R
2400W
Distance (MM)
L 1543mm
<>
<>
140mm
<>
234mm
1515mm centre line
once brackets are xed
<>
1938mm
CAST32R
3200W
Distance (MM)
L 1938mm
Page 10
Models: CAST18R, CAST24R, CAST32R

INSTALLATION
Clearances
See below the minimum recommended clearances
<>
1500mm Min
<>
57mm Min
<>
60mm
Min
2700mm Max
<> <>
1000mm Min
Surface below the heater
FLOOR
CEILING
Wall
>
>
>
FLOOR
>
CEILING Wall
>
>
<>
300mm Min
<>
160mm Min
<>
600mm Min
<>
1000Min
<>
2700mm Max
Surface below the heater
Ceiling Installation
LIGHT, FAN OR SPRINKLER MUST NOT BE BELOW THE HEATER
Angled Wall Installation
LIGHT, FAN OR SPRINKLER MUST NOT BE BELOW THE HEATER
<>
177mm Min
30o
Models: CAST18R, CAST24R, CAST32R

Clearances
See below the minimum recommended clearances
INSTALLATION
FLOOR
>
CEILING Wall
>
>
Surface below the heater
<>
57mm Min
<>
1500mm Min
<>
1000mm Min
<>
2700mm Max
<>
60mm Min
Angled Ceiling Installation
LIGHT, FAN OR SPRINKLER MUST NOT BE BELOW THE HEATER
The Cannon Horizon Models come supplied with two mounting brackets,
allowing you to adjust the angle, for angled ceiling & wall installation
Ceiling
30o 22.5o PARALLEL 22.5o 30o
Wall >
22.5o
30o
<>
177mm Min
WARNING: This appliance must never be installed in the
upwards or inwards facing position, the heating surface
must always be positioned to direct heat in a downward
or outward direction. Refer to above diagram.
30o
Page 12
Models: CAST18R, CAST24R, CAST32R

OPERATION
1. Plug in the unit to a socket outlet. Make sure the power supply corresponds to the
ratings on the data plate of the appliance.
2. Press Main Switch on left side of the heater. The mark ”-” in the digital display
starts ashing showing the heater is on standby.
Press MODE button on control panel or remote control to switch the heater on or to
higher power. Power setting level 1 (low), level 2 (medium), level 3 (high) will show on
the digital display.
Press TIMER “+/-” button on control panel or remote control to choose the timer
between 0-9 hours. “0” means the timer is off.
The digits of the power settings and timer will be displayed on the unit, as selected:
- The heat power settings (1, 2 or 3) show displayed for ten seconds,
- Timer selection (0 to 9) stays ashing for ve seconds.
3. To shift the heater to standby mode, press OFF button on control panel or remote
control. The mark ”-” in the digital display starts ashing again.
4. To switch off the heater, press Main Switch on the left side of the heater accordingly.
Models: CAST18R, CAST24R, CAST32R

Two Year Warranty
This Warranty against defects for your newly purchased Cannon outdoor heating product is
proudly prepared by IXL Home Pty Ltd of 1/391 Boundary Rd, Truganina, VIC 3029, phone
1300 727 421.
1. Cannon outdoor heating products come with guarantees that do not exclude the
following consumer entitlements under the Australian Consumer Law &
New Zealand Consumer Law.
a. replacement or refund for a major failure and compensation for any other
reasonably foreseeable loss or damage; and
b. to have the goods replaced if goods fail to be of acceptable quality and the failure
does not amount to a major failure.
2. IXL Home warrants that your product and related supply will be free from defects
in materials and workmanship during the warranty term. Your warranty term is two
years commencing from the date of purchase.
IXL Home acknowledges this product requires professional installation and
product removal is hazardous to consumers. Accordingly any necessary inspections
and services will be carried out on site. You should not attempt de-installation.
3. Subject to Point 1, IXL Home will during the warranty term provide a repair or
replacement of an equivalent current model where the balance of the warranty period
from the original date of purchase will take effect.
4. To the fullest extent permitted by law and subject always to Point 1, IXL Home will
not be liable for:
a. any loss or damage arising from loss of use, loss of prots or revenue; or
b. for any indirect or consequential loss or damage resulting from any breach of this
warranty against defects.
5. Defective Cannon outdoor heating products may be repaired using refurbished parts
or if required, completely replaced by a refurbished product of the same type.
WARRANTY
Page 14
Models: CAST18R, CAST24R, CAST32R

WARRANTY
Limitations to Your IXL Home Warranty
6. Subject to Point 1, this Warranty:
a. will only be provided to the original purchaser where the original purchase was
made from a IXL Home Authorised Dealer or Reseller and proof of such
purchase can be presented at the time of service;
b. only applies to Cannon outdoor heating products purchased in Australia or
New Zealand from a IXL Home Authorised Dealer or Reseller;
c. will not apply where the defect in or failure of the product is attributable to misuse,
abuse, accident or non-observation of the manufacturer’s instructions. This product
must be used in accordance with the manufacturer’s instructions;
d. will not cover faults due to normal wear and tear with reasonable use nor
consumable components such as globes, lters, glass items, etc;
e. will not cover any damages or problems caused to this product by natural forces
eg. storm, re, ood, and earthquake; or by intrusion or accumulation (or both) of
foreign matters eg. dust, soil, and moisture. IXL Home recommends that you take
out appropriate insurances to protect your product to this end;
f. will not apply if this product is installed in a mobile dwelling eg. caravan or boat;
g. will not apply if this product is removed from the location where it was rst installed;
h. covers use of this product for domestic use only;
i. will not be restarted or extended upon replacement of the product or a part.
How to make a Claim under Your IXL Home Warranty
7. To make a claim under this Warranty you will need to:
a. contact IXL Home service department on 1300 727 421 or 0800 727 421
alternatively email at [email protected] or [email protected]
to provide details and register your claim enabling a IXL Home assessment;
b. submit proof of purchase with your claim eg. tax invoice or purchase receipt;
Models: CAST18R, CAST24R, CAST32R

WARRANTY
8. IXL Home will contact you to make arrangements for a replacement product,
if applicable.
9. Subject to Point 1, you will be responsible for any costs relating to the provision of
your product to a IXL Home Authorised Service Dealer.
10. Subject to Point 1, in the event you live more than 50Km from a IXL Home
Authorised Service Dealer you may be subject to travel or transport costs to
facilitate the repairing or replacement of your IXL product.
11. IXL Home and its Authorised Service Dealers reserve the right to seek
reimbursement of any costs incurred by them should your product be found
to be in good working order.
Privacy
The privacy of your personal information has always been important to us. To learn more
about how we collect, keep and use your personal information, please obtain a copy of
our privacy statement by visiting our website or contact us via email or telephone.
AUSTRALIA
T1300 727 421
E[email protected]
W cannonappliances.com.au
NEW ZEALAND
T0800 727 421
E[email protected]
W cannonappliances.co.nz
Page 16
Models: CAST18R, CAST24R, CAST32R

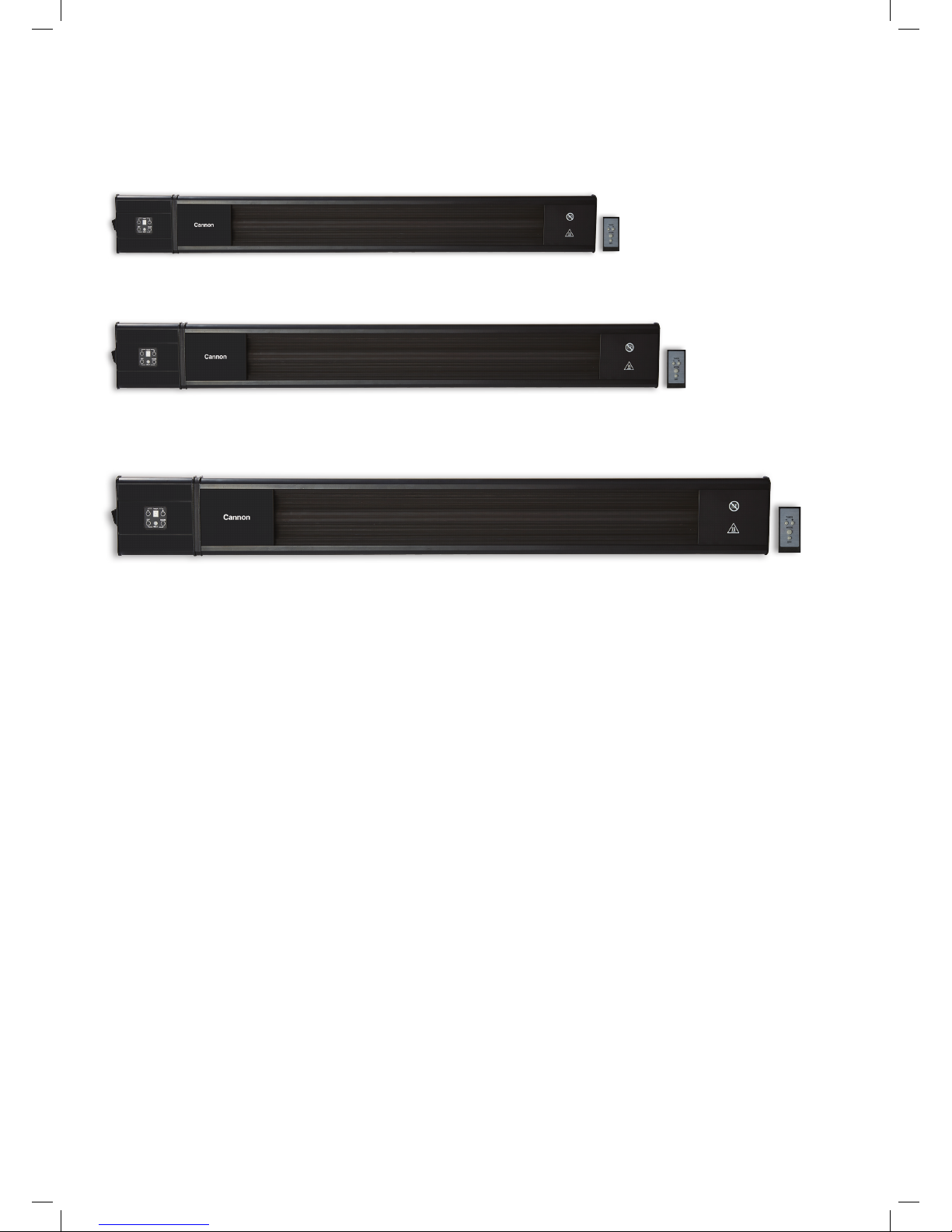

CAST18R
CAST24R
CAST32R
Models: CAST18R, CAST24R, CAST32R
Whilst every effort is made to provide current information at the time
this brochure was produced, continuing product improvements mean the
enclosed specications, images and literature may differ from what is
actually available.

AUSTRALIA
1/391 Boundary Road Truganina VIC 3029
T1300 727 421
F1300 727 425
E[email protected]
Wcannonappliances.com.au
NEW ZEALAND
T0800 727 421
E[email protected]
Wcannonappliances.co.nz
Distributed by
The Home of Premium Brands
