Canon 2183B001 User manual

PUB. DIE-285
0072W225 PUB. DIE-285 © CANON INC. 2007 0007NiXX.X
PRINTED IN JAPAN
Please read also the Backup Utility and
Digital Video Software instruction manuals
(on PDF file).
Instruction Manual
Canon Europa N.V.
P.O. Box 2262, 1180 EG Amstelveen, the Netherlands
Canon UK Ltd.
CCI Service Centre, Unit 130
Centennial Park, Borehamwood, Hertfordshire, WD6 3SE, England
Telephone [phone]
Canon Australia Pty. Ltd.
Info-Line: 131383
www.canon.com.au
Canon New Zealand Ltd.
Customer Care: [phone]
www.canon.co.nz
Canon Singapore Pte. Ltd
1 HarbourFront Avenue, #04-01 Keppel Bay Tower, Singapore 098632
Tel: [phone]
Fax: [phone]
Canon Hongkong Company Ltd
19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom,
Kowloon, Hong Kong
Canon Latin America, Inc.
Sales & Enquiries: 703 Waterford Way, Suite 400, Miami, FL 33126 USA
The information in this manual is verified as of 1 August 2007.
Printed on 100% reused paper.

2
Introduction
Important Usage Instructions
WARNING!
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING!
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK AND TO REDUCE ANNOYING
INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.
CAUTION:
DISCONNECT THE MAINS PLUG FROM THE SUPPLY SOCKET WHEN NOT IN USE.
The Mains plug is used as the disconnect device. The Mains plug shall remain readily operable
to disconnect the plug in case of an accident.
While using the compact power adapter, do not wrap it or cover it with a piece of cloth, and do
not place it in confined narrow spaces. Heat may build up, the plastic case may deform and it
could result in electric shock or fire.
CA-570 identification plate is located on the bottom.
Using any device other than the Compact Power Adapter CA-570 may damage the
camcorder.
This product has been classified under IEC60825-1:1993 and EN60825-1:1994.
D122_PAL_E.book Page 2 Thursday, July 19, 2007 6:54 PM

3
Enjoying High-Definition Video with
your Camcorder
Preserve your most treasured memories, be it unforgettable scenery or
cherished moments spent with family and friends, with high-definition video
recordings of a quality second only to actually being there.
What is High-Definition Video?
High-definition (HD) video allows you to record video of
unparalleled high quality on the built-in hard disk using
the AVCHD compression. HD video is composed of
1,080 horizontal lines - that is more than twice the
number of horizontal lines and approximately 4 times
the number of pixels in standard-definition TV
broadcasts - resulting in eye-catching colors and richly
detailed video recordings.
“Full HD 1080” refers to Canon camcorders compliant with high-
definition video composed of 1,080 vertical pixels (scanning lines).
What is Cinema Mode?
Give your recordings a cinematic look by using the [ CINE MODE] recording
program ( 48). Combine this recording program with the 25 fps progressive frame
rate [ PF25] ( 43) to get the enhanced effect of the 25p Cinema Mode ( 49).
How does the built-in hard disk enrich your shooting
experience?
Because this camcorder automatically records video in unused space on the hard
disk, you need not worry about accidentally recording over important videos. Not only
that, you can shoot up to 9 1/2 hours of video in XP mode ( 31). In addition, you
can use the software on the Corel Application Disc CD-ROM to transfer your videos
to a computer to back up, play and edit them. For a detailed explanation, refer to the
Corel Application Disc Installation Guide and User Manual.
1,080 lines
D122_PAL_E.book Page 3 Thursday, July 19, 2007 6:54 PM

4
Important Notes About the Hard Disk Drive
Your hard disk camcorder allows you to shoot and store many hours of video.
However, there are differences between recording onto a hard disk and
recording onto other media. Make sure to follow the points below when using
your camcorder. For more details, refer to Handling Precautions (97).
Back up your recordings periodically
Make sure to transfer your movies to an
external device such as a computer or
digital video recorder ( 37) and back
them up on a regular basis.
Do not subject the camcorder to
vibrations or strong impacts
The hard disk is a high-precision device.
Vibrations, strong impacts or dropping the
camcorder may result in permanent data
loss.
Keep the drop sensor activated
whenever possible
The drop sensor ( 44) detects when the
camcorder is dropped and activates a
protection mechanism to help prevent hard
disk damage. Turning this function off will
disable the mechanism. Even if this
function is set to [ ON] and the
camcorder is dropped, hard disk damage
can occur.
Do not disconnect the power source
while the HDD access indicator is on or
flashing
To prevent hard disk damage, do not
disconnect the power source or turn off the
camcorder while the HDD access indicator
is on or flashing.
D122_PAL_E.book Page 4 Thursday, July 19, 2007 6:54 PM

5
Important Notes About the Hard Disk Drive
Use the camcorder within its operating
temperature range
If the camcorder's temperature becomes
too hot or too cold, recording/playback
may stop in order to prevent hard disk
damage.
Do not use the camcorder at high
altitudes
Turning on or using the camcorder in
places with low atmospheric pressure,
such as at altitudes higher than 3,000 m,
may result in hard disk damage.
Initialize the hard disk when movies
cannot be recorded/played back
normally
As movies are recorded and deleted over
time, hard disk fragmentation may occur,
which may reduce performance. Initialize
the hard disk should this happen.
Protect personal information on the
hard disk
When the hard disk is initialized or movies
are deleted, stored data is not physically
erased. Remember this when disposing of
the camcorder or giving it to another
person.
D122_PAL_E.book Page 5 Thursday, July 19, 2007 6:54 PM

6
Table of contents
Introduction _________________________________
3 Enjoying High-Definition Video with
your Camcorder
4 Important Notes About the Hard Disk Drive
10 About this Manual
11 Getting to Know the Camcorder
11 Supplied Accessories
12 Components Guide
15 Screen Displays
Preparations ________________________________
18 Getting Started
18 Charging the Battery Pack

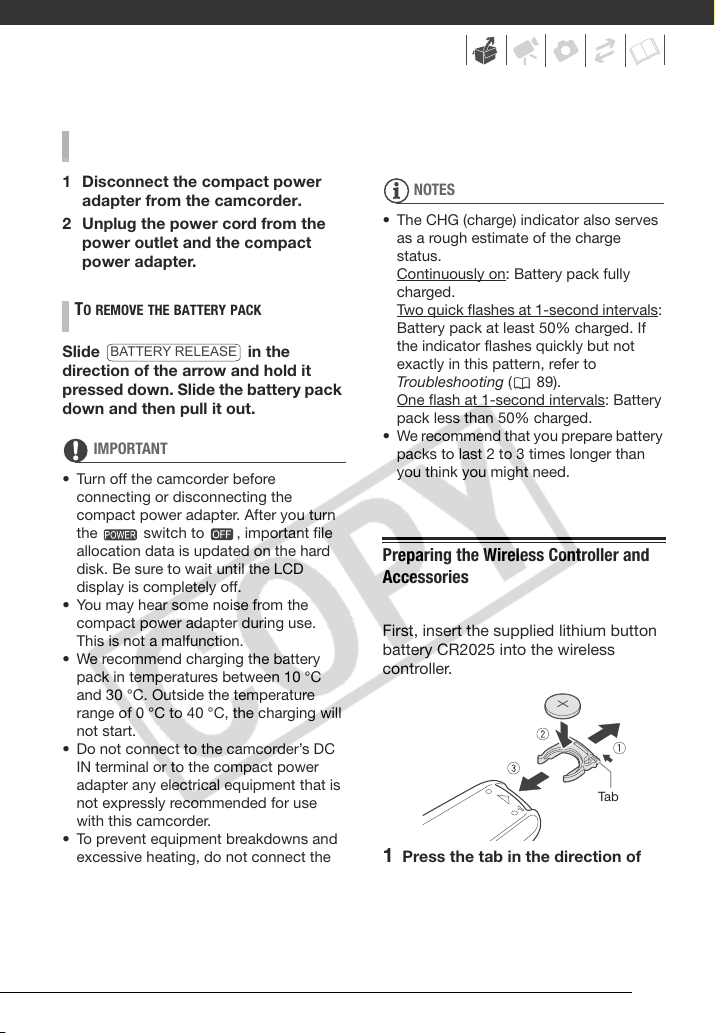

19 Preparing the Wireless Controller and Accessories
21 Basic Operation of the Camcorder
21 Power Switch
21 Operating Modes
22 Navigation Buttons and Control Dial
22 Function Guide
23 Using the Menus
24 First Time Settings
24 Setting the Date and Time
25 Changing the Language
25 Changing the Time Zone
26 Getting Ready to Start Recording
26 Adjusting the Position and Brightness of the LCD Screen
27 Inserting and Removing a Memory Card
D122_PAL_E.book Page 6 Thursday, July 19, 2007 6:54 PM

7
Video ______________________________________
29 Recording
29 Shooting Video
31 Selecting the Recording Mode
31 Zooming
32 Quick Start Function
33 Reviewing and Deleting the Last Scene Recorded
34 Playback and Video Backup
34 Playing Back the Video
34 Adjusting the Volume: Speaker and Headphones
37 Backing Up Videos
37 Searching Scenes by Date
38 Deleting Scenes
39 On-Screen Displays (Data Code)
39 Menu Options Lists
39 FUNC. Menu
41 Setup Menus
41 Camera Setup (Digital Zoom, Image Stabilizer, etc.)
44 Hard Disk Operations (HDD Usage Info, Initializing the
Hard Disk, etc.)
44 Still Image Operations (Card Initialization, etc.)
45 Display Setup (LCD Brightness, Language, etc.)
46 System Setup (Volume, Beep, etc.)
48 Date/Time Setup
48 Additional Functions
48 Giving a Cinematic Look to your Recordings
49 Special Scene Recording Programs
51 Flexible Recording: Changing the Aperture and Shutter
Speed
52 Mini Video Light
53 Self Timer
53 Manual Focus Adjustment
54 Automatic Backlight Correction and Manual Exposure
Adjustment
55 White Balance
56 Image Effects
57 Digital Effects
58 Using an External Microphone
D122_PAL_E.book Page 7 Thursday, July 19, 2007 6:54 PM

8
Video (cont.) ________________________________
60 Managing Scenes and the Hard Disk
60 Creating a Playlist
60 Moving Scenes in the Playlist
61 Initializing the Hard Disk
Photos _____________________________________
62 Recording
62 Taking Photos
63 Selecting Photo Size and Quality
64 Erasing the Last Photo Just Recorded
64 Playback
64 Viewing Photos
66 Magnifying Photos during Playback
66 Erasing Photos
67 Additional Functions
67 Flash
68 Continuous Shooting and Exposure Bracketing (Drive Mode)
69 Automatic Focus Priority
70 Light Metering Mode
70 Histogram and Other Screen Displays
71 Capturing a Still Image while Recording Movies
72 Capturing a Still Image from the Playback Scene
72 Protecting Photos
73 Initializing the Memory Card
74 Printing Photos
74 Printing Photos - Direct Print
75 Selecting the Print Settings
77 Trimming Settings
78 Print Orders
D122_PAL_E.book Page 8 Thursday, July 19, 2007 6:54 PM

9
External Connections _________________________
80 Connecting to a TV or VCR
81 Connection Diagrams
82 Playback on a TV Screen
84 Copying your Recordings to an External Video Recorder
85 Connecting to a Computer
85 PC Connection Diagram
85 Transferring Photos - Direct Transfer
88 Transfer Orders
Additional Information ________________________
89 Trouble?
89 Troubleshooting
93 List of Messages
97 Do’s and Don’ts
97 Handling Precautions
100 Maintenance/Others
101 Using the Camcorder Abroad
103 General Information
103 System Diagram
104 Optional Accessories
108 Specifications
110 Index
D122_PAL_E.book Page 9 Thursday, July 19, 2007 6:54 PM

Introduction
10
Thank you for purchasing the Canon HG10. Please read this manual carefully before
you use the camcorder and retain it for future reference. Should your camcorder fail
to operate correctly, refer to the Trouble sh ooting table ( 89).
Conventions Used in this Manual
• IMPORTANT: Precautions related to the camcorder’s operation.
• NOTES: Additional topics that complement the basic operating procedures.
• POINTS TO CHECK: Restrictions that apply if the function described is not
available in all operating modes (the operating mode to which the camcorder
should be set, etc.).
• : Reference page number.
• The following terms are used in this manual:
“Screen” refers to the LCD and the viewfinder screen.
“Scene” refers to one movie unit from the point you press the START/STOP button
to start recording until you press again to pause the recording.
The terms “photo” and “still image” are used interchangeably with the same
meaning.
The terms “hard disk” and “HDD” are used interchangeably to refer to the
camcorder's built-in hard disk drive.
• The photos included in this manual are simulated pictures taken with a still camera.
About this Manual
1Press .
2Press or to select the
icon and press to open the
setup menus.
3Press or to select
[DISPLAY SETUP] and press .
FUNC.
Changing the Language
Options
Default value
FUNC.
(27)
[DEUTSCH] [ ] [ ]
[ENGLISH] [TÜRKÇE] [ ]
[ESPAÑOL] [ ] [ ]
[
FRANÇAIS ][ ][ ]
[ITALIANO] [ ] [ ]
[POLSKI] [ ]
DISPLAY SETUP
LANGUAGE ENGLISH
ROMAN
A
Menu item shown at its default position
Names of buttons and switches other than the navigation
buttons are indicated within a “button”frame.
For example .
FUNC.
Buttons and switches to be operated
Brackets [ ] and capital letters are used to refer to menu
options as they are displayed on screen. In menu option
lists and option tables the default value is shown in
boldface.
For example [ON], [OFF].
D122_PAL_E.book Page 10 Thursday, July 19, 2007 6:54 PM
