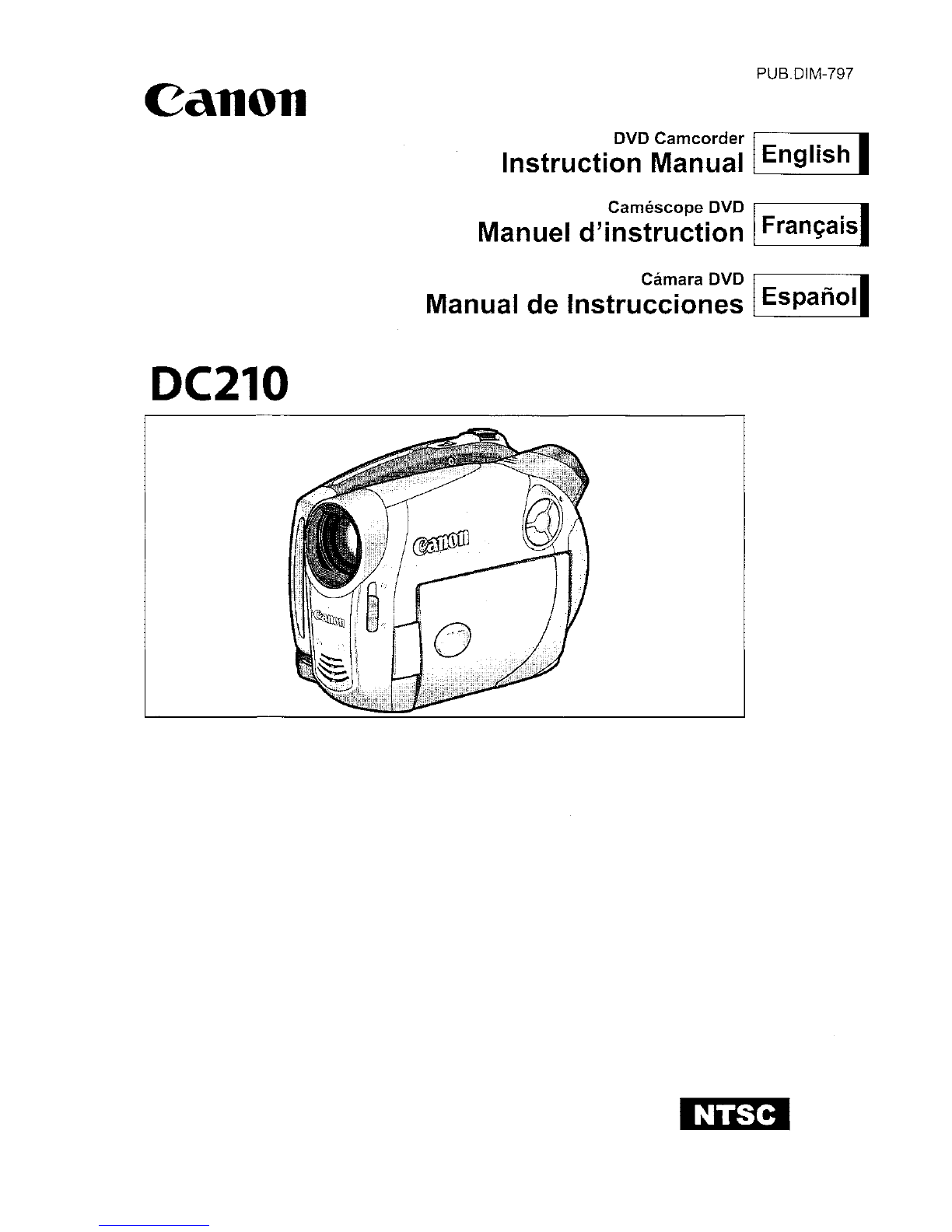

Canon OC210 User manual

Canon
OC210
PUB.DIM-797
DVD Camcorder II
Instruction Manual English
Camescope DVD II
Manuel d'instruction Fran~ais
Camara DVD II
Manual de Instrucciones Espafiol

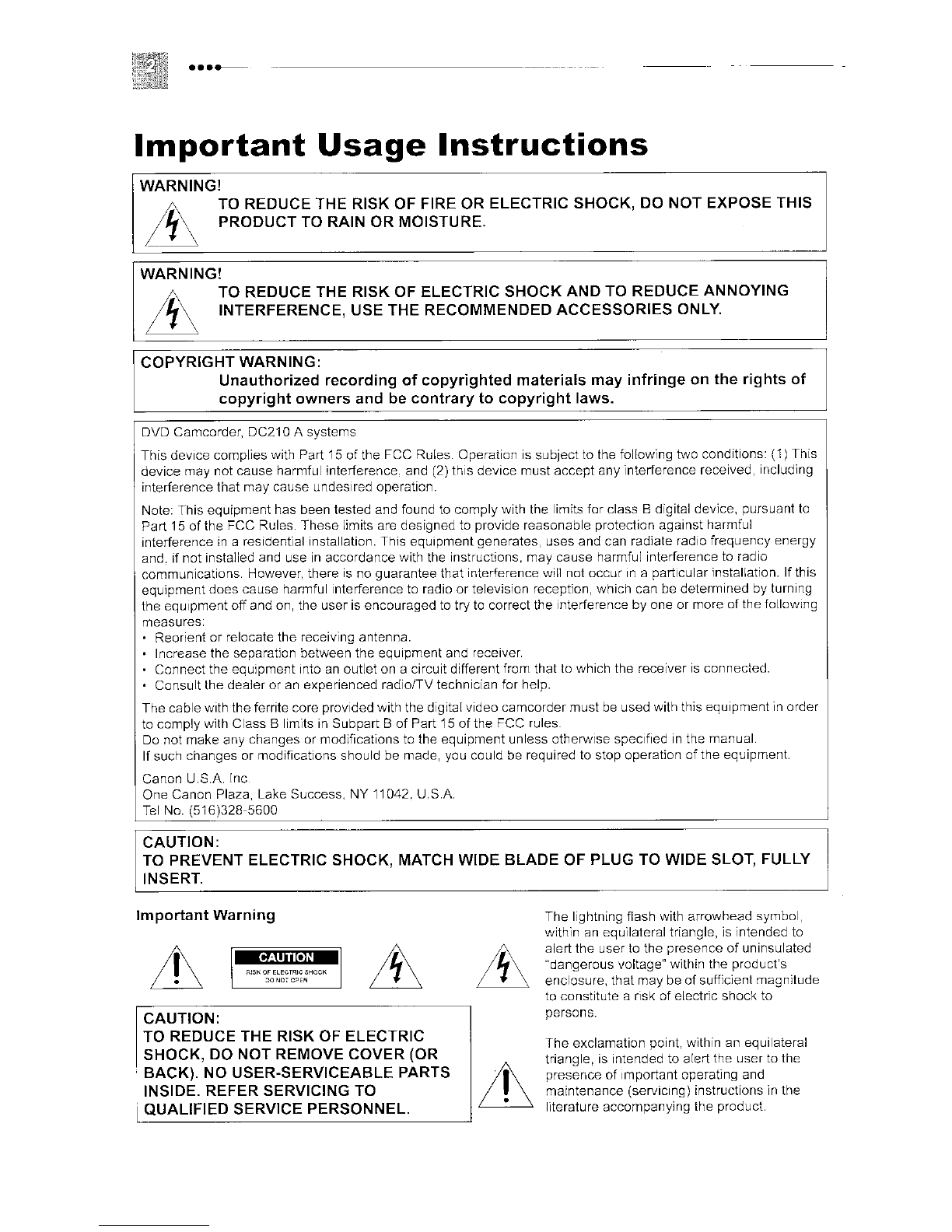

Important Usage Instructions
WARNING!
_
1iA LTO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
in PRODUCT TO RAIN OR MOISTURE.
WARNING!
~ TO REDUCE THE RISK OF ELECTRIC SHOCK AND TO REDUCE ANNOYING
~ INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.
COPYRIGHT WARNING:
Unauthorized recording
of copyrighted materials may infringe on the rights of
copyright owners and
be contrary to copyright laws.
DVD Camcorder, DC210 Asystems
This device complies with Part
15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received. including
interference that
may cause undesired operation
Note: This equipment has been tested and found to
comply with the limits for class Bdigital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
Interference
in aresidential installation. This equipment generates uses and can radiate radio frequency energy
and. if not installed and use in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
In aparticular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the Interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
Connect the equipment into
an outlet on acircuit different from that to which the receiver is connected.
•Consult the dealer
or an experienced radiolTV technician for help.
The cable with the ferrite core prOVided with the digital video camcorder must be used with this equipment
in order
to
comply with Class Blimits in Subpart B of Part 15 of the FCC rules
Do not make any changes or modifications to the equipment unless otherwise speCified in the manual.
If such changes or modifications should be made, you could be required to stop operation
of the equipment.
Canon U.S.A. Inc
One Canon Plaza, Lake Success, NY 11042. U.S.A.
Tel No. [phone]
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
Important Warning
&
1- .... uw.P-1 it
RiSK OF ELE:CTmCSHOCK
• :JOND:-CiJEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE
COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
,QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol
within
an equilateral triangle, is intended to
alert
the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure, that
may be of sufficient magnitude
to constitute arisk
of electric shock to
persons.
The exclamation point, within an equilateral
triangle, IS Intended to alert the user to the
presence
of Important operating and
maintenance (serviCing) instructions in the
literature accompanying the prodUCt.

•
In these safety instructions the word "product"
refers
to the Canon DVD Camcorder DC21 0 A
and all its accessories.
1Read Instructions -All the safety and
operating instructions should
be read
before the product
is operated.
2Retain Instructions -The safety and
operating instructions should
be retained
for future reference.
3Heed Warnings -All warnings on the
product and
in the operating instructions
should
be adhered to.
4Follow Instructions -All operating and
maintenance instructions should
be
followed.
5Cleaning -Unplug this product from the
wall outlet before cleaning. Do not use
liquid or aerosol cleaners. The product
should be cleaned only
as recommended
in this manual.
6Accessories - Do not use accessories not
recommended
in this manual as they may
be hazardous.
7Avoid magnetic or electric fields -Do not
use the camera close to TV transmitters,
portable communication devices or other
sources of electric or magnetic radiation.
They may cause picture interference, or
permanently damage the camera.
8Water and Moisture -Hazard of electric
shock -Do not use this product near
water or
in rainy/moist situations.
9Placing or Moving - Do not place on an
unstable cart, stand, tripod, bracket or
table. The product may fall, causing
serious injury to achild or adult, and
serious damage to the
product.
Aproduct and cart
til
combination should be ~
moved with care. Quick
stops, excessive force, •
~
and uneven surfaces may ~
cause the product and cart •• 'iiiIJ'
combination to overturn. ~
•
10 Power Sources -The CA-570 Compact
Power Adapter should be operated only
from the type
of power source indicated on
the marking label. If you are not sure
of the
type
of power supply to your home, consult
your product dealer or local power
company. Regarding other power sources
such as battery power, refer to instructions
in this manual.
11 Polarization -The CA-570 Compact
Power Adapter is equipped with a
polarized 2-prong plug (a plug having one
blade wider than the other).
The 2-prong polarized plug will fit into the
power outlet only one way. This is asafety
feature. Ifyou are unable
to insert the plug
fully into the outlet, try reversing the plug. If
the plug still fails to fit, contact your
electrician
to replace your obsolete outlet.
Do not defeat the safety purpose
of the
polarized plug.
12 Power Cord Protection -Power cords
should be routed so that they are not likely
to
be walked on or pinched by items placed
upon or against them. Pay particular
attention to plugs and the point from which
the cords exit the product.
13 Outdoor Antenna Grounding -If an
outside antenna is connected to the
product,
be sure the antenna is grounded
so as to provide some protection against
voltage surges and bUilt-up static charges.
Section 810
of the National Electrical
Code, ANSI /NFPA
No. 70-1984,
provides information with respect to proper
grounding of the mast and supporting
structure, grounding
of the lead-in wire to
an antenna discharge unit, size
of
grounding conductors, location of antenna
discharge unit, connection to grounding
electrodes, and requirements for the
grounding electrode. See figure
1.
-

· .... ---------------------------------
18 Damage Requiring Service -Disconnect
this product from the wall outlet and all
power sources including battery, and refer
servicing to qualified service personnel
under the following conditions:
a. When the power-supply cord or plug is
damaged.
b. If any liquid has been spilled onto, or
objects have fallen into, the product.
c. Ifthe product has been exposed to rain
or water.
d. Ifthe product does not operate normally
even if you follow the operating
instructions. Adjust only those controls
that are covered by the operation
instructions. Improper adjustment
of
other controls may result in damage and
will often require extensive work by a
qualified technician to restore the
product
to its normal operation.
e. Ifthe product has been dropped or the
cabinet has been damaged.
When the product exhibits adistinct
change
in performance. This indicates a
need for service.
19 Replacement Parts -When replacement
parts are required,
be sure the service
technician has used replacement parts that
are specified by Canon or that have the
same characteristics as the original part.
Unauthorized substitutions may result
in
fire, electric shock or other hazards.
20 Safety Check -Upon completion of any
service or repairs
to this product, ask the
service technician
to perform safety checks
to determine that the product is in safe
operating order.

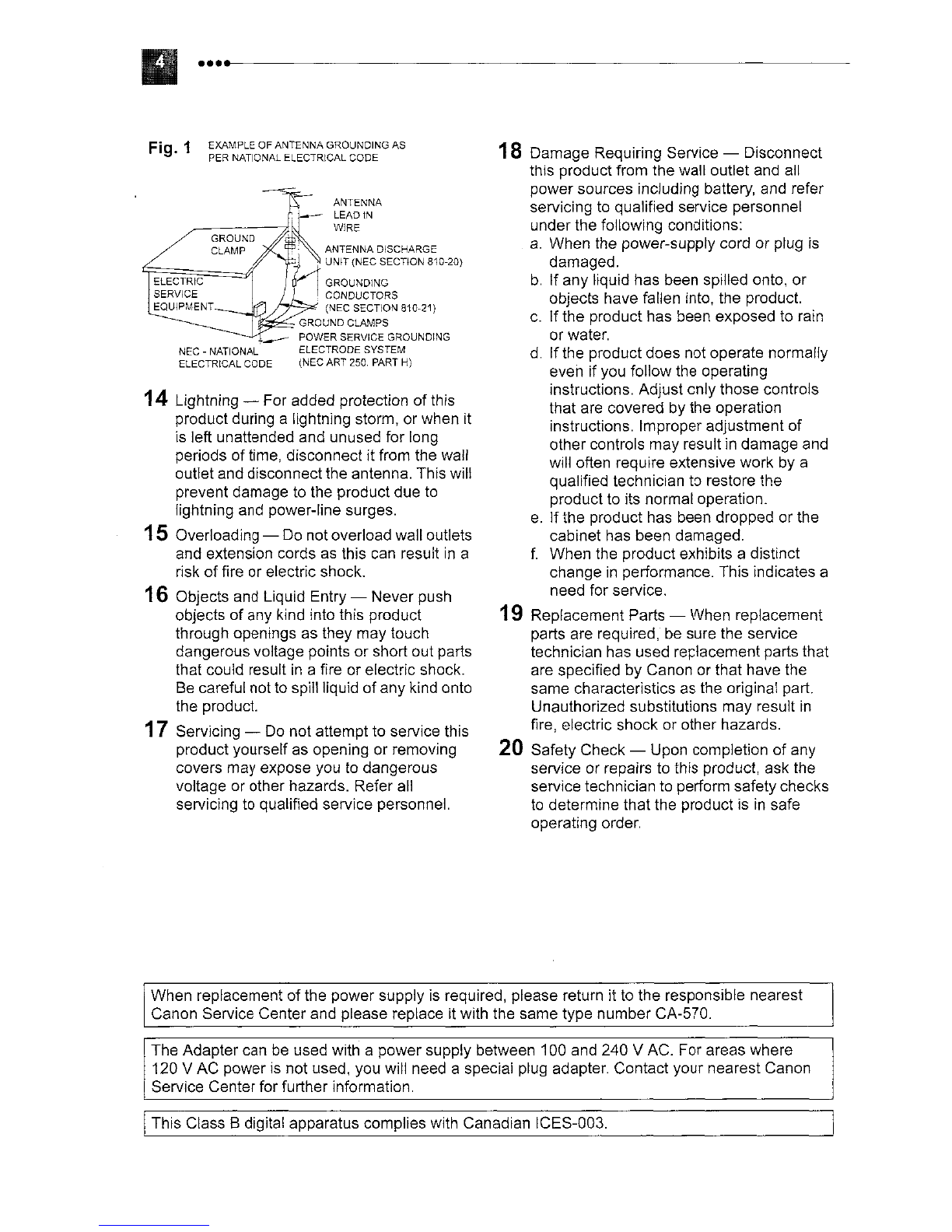

ANTENNA
LEAOtN
WIRE
ANTENNA DISCHARGE
~ UNIT (NEC SECTION 810-20}
6,1 GROUNDING
. I CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEG ART 250 PART H)
EXAMPLE OF ANTENNA GROUNDING
AS
PER NATIONAL ELECTRICAL CODE
--
NEC -NATIONAL
ELECTRICAL CODE
Fig. 1
14 Lightning -For added protection of this
product during alightning storm, or when it
is left unattended and unused for long
periods oftime, disconnect it from the wall
outlet and disconnectthe antenna. This will
prevent damage
to the product due to
lightning and power-line surges.
15 Overloading -Do not overload wall outlets
and extension cords
as this can result in a
risk
of fire or electric shock.
16 Objects and Liquid Entry -Never push
objects
of any kind into this product
through openings
as they may touch
dangerous voltage points or short out parts
that could result
in afire or electric shock.
Be careful not to spl1lliquid ofany kind onto
the product.
17 Servicing -Do not attempt to service this
product yourself
as opening or removing
covers may expose you to dangerous
voltage or other hazards. Refer all
servicing to qualified service personnel.
When replacement
of the power supply is required, please return it to the responsible nearest
Canon Service Center and please replace it with the same type number CA-570.
The Adapter can
be used with apower supply between 100 and 240 VAC. For areas where
120 VAC power
is not used, you will need aspecial plug adapter. Contact your nearest Canon
Service Center for further information.
IThis Class 8digital apparatus complies with Canadian ICES-003.

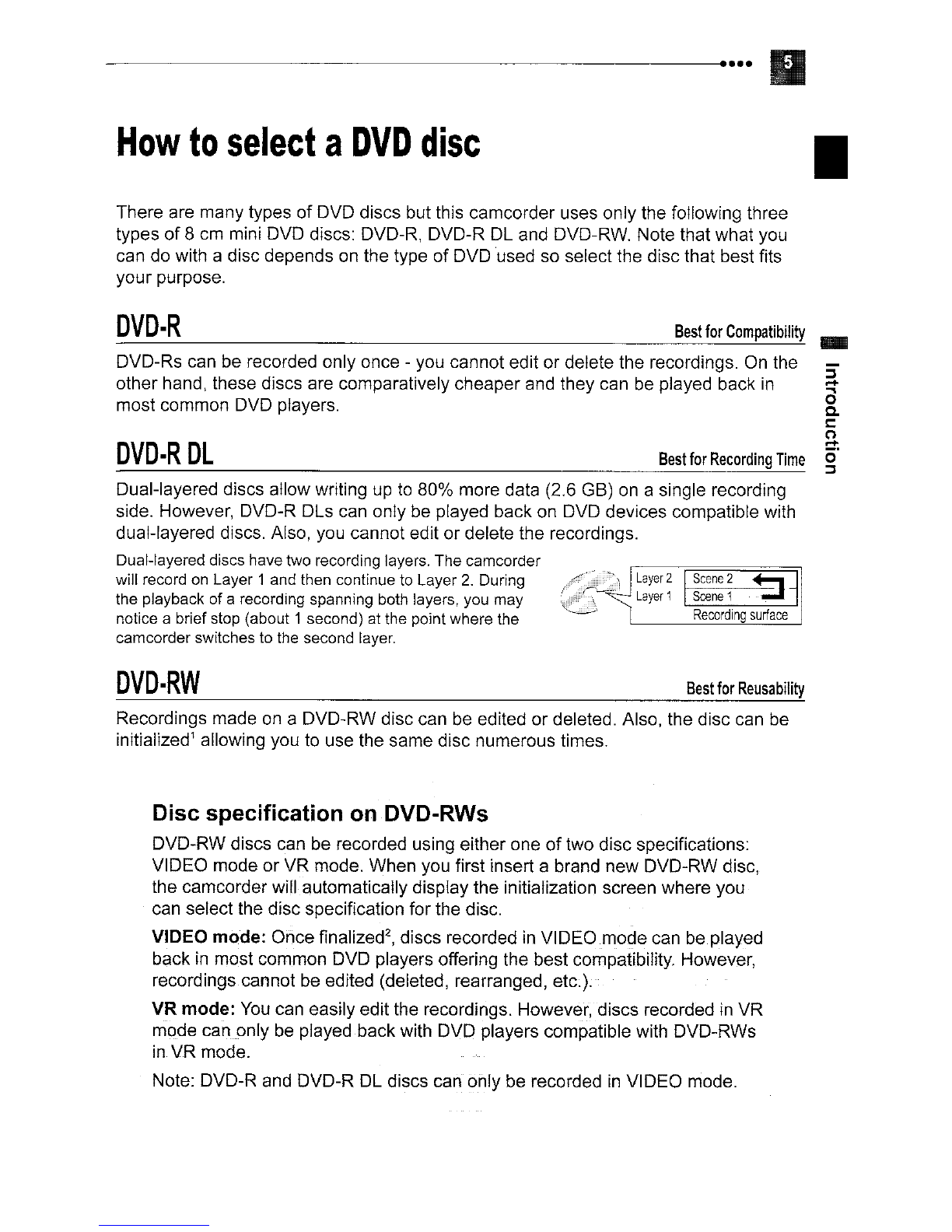

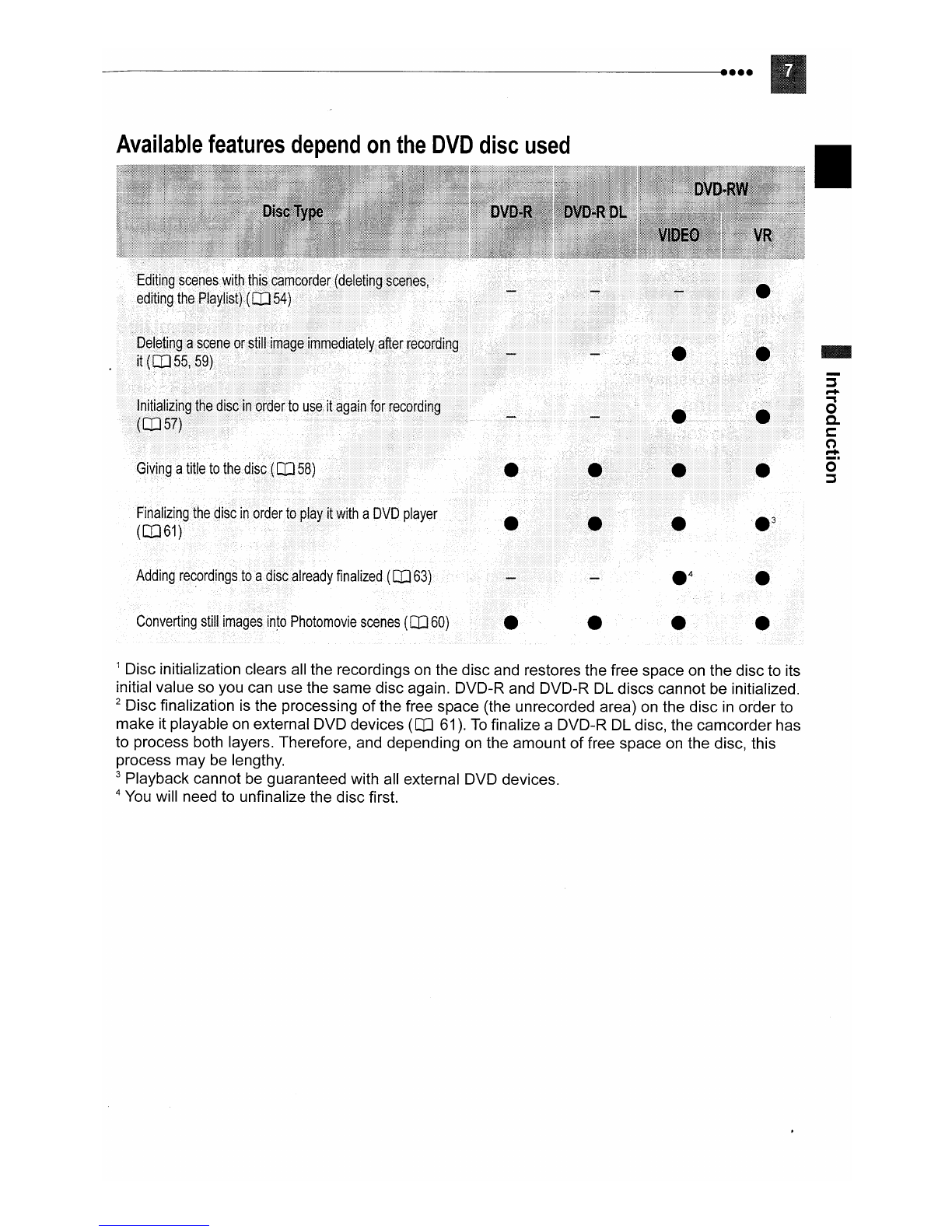

How to select a DVD disc
•
There are many types of DVD discs but this camcorder uses only the following three
types
of 8 em mini DVD discs: DVD-R, DVD-R DL and DVD-RW. Note that what you
can do with adisc depends on the type
of DVD used so select the disc that best fits
your purpose.
~:~:;~ I ~:~:~~j
Recording surface
3-
.,
o
a.
l:
~
Best for Recording Time O·
~
Dual-layered discs allow writing up to 80% more data (2.6 GB) on asingle recording
side. However, DVD-R DLs can only be played back on DVD devices compatible with
dual-layered discs. Also, you cannot edit or delete the recordings.
Dual-layered discs have two recording layers. The camcorder
will record
on Layer 1and then continue to Layer 2. During
the playback of arecording spanning both layers, you may
notice abrief stop (about 1second) at the point where the
camcorder switches to the second layer.
Best for Compatibility _
DVD-Rs can be recorded only once -you cannot edit or delete the recordings. On the
other hand, these discs are comparatively cheaper and they can be played back in
most common DVD players.
DVD·R DL
DVD·R
DVD·RW Best for Reusability
Recordings made on aDVD-RW disc can be edited or deleted. Also, the disc can be
initialized1allowing you to use the same disc numerous times.
Disc specification on DVD-RWs
DVD-RW discs can be recorded using either one of two disc specifications:
VIDEO mode or VR mode. When you first insert abrand new DVD-RW disc,
the camcorder will automatically display the initialization screen where you
can select the disc specification for the disc.
VIDEO mode: Once finalized2,discs recorded in VIDEO mode can be played
back in most common DVD players offering the best compatibility. However,
recordings cannot
be edited (deleted, rearranged, etc.).
VR mode: You can easily edit the recordings. However,discs recorded in VR
mode
canonry be played back with DVD players compatible with DVD-RWs
in
VR mode.
Note: DVD-R and DVD-R DL discs can ohly be recorded
in VIDEO mode.

I

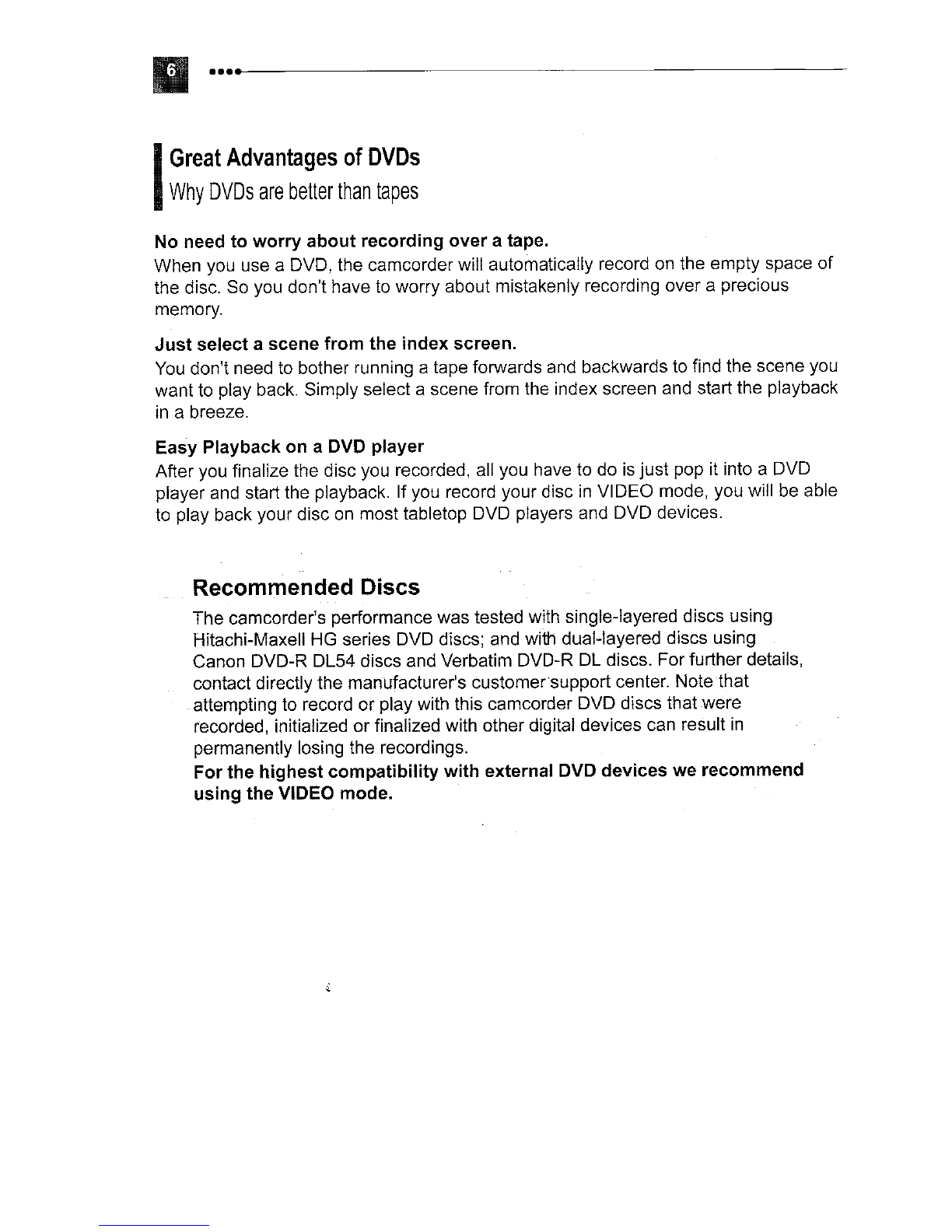

Great Advantages of DVDs
Why DVDs are better than tapes
No need to worry about recording over atape.
When you use aDVD, the camcorder witl automatically record on the empty space
of
the disc. So you don't have to worry about mistakenly recording over aprecious
memory.
Just select ascene from the index screen.
You don't need to bother running atape forwards and backwards to find the scene you
want to play back. Simply select ascene from the index screen and start the playback
in abreeze.
Easy Playback on aDVD player
After you finalize the disc you recorded, all you have to do
is just pop it into aDVD
player and start the playback. If you record your disc in
VI DEO mode, you will be able
to play back your disc
on most tabletop DVD players and DVD devices.
Recommended Discs
The camcorder's performance was tested with single-layered discs using
Hitachi-Maxell HG series DVD discs; and with dual-layered discs using
Canon DVD-R DL54 discs and Verbatim DVD-R
DL discs. For further details,
contact directly the manufacturer's customer'support center. Note that
attempting to record or play with this camcorder DVD discs thatwere
recorded, initialized
or finalized with other digital devices can result in
permanently losing the recordings.
Forthe highest compatibility with external DVD devices we recommend
using the VIDEO mode.

------------------------------- ....
Available features depend on the DVD disc used
Finalizing the disc in order to play it with a DVD player
(CD61)
Adding recordings. to a disc already finalized (CD 63)
Converting still images in~o Photomovie scenes (CD 60)
•••
.3
•
•
II
-
5'
r+
..,
o
0-
s::::::
(")
r+
o·
::s
1Disc initialization clears all the recordings on the disc and restores the free space on the disc to its
initial value so you can use the same disc again. DVD-R and DVD-R DL discs cannot be initialized.
2Disc finalization is the processing ofthe free space (the unrecorded area) on the disc in order to
make it playable
on external DVD devices (CD 61). To finalize aDVD-R DL disc, the camcorder has
to process both layers. Therefore, and depending
on the amount offree space on the disc, this
process may
be lengthy.
3Playback cannot be guaranteed with all external DVD devices.
4 You will need to unfinalize the disc first.

..... ---------------------------

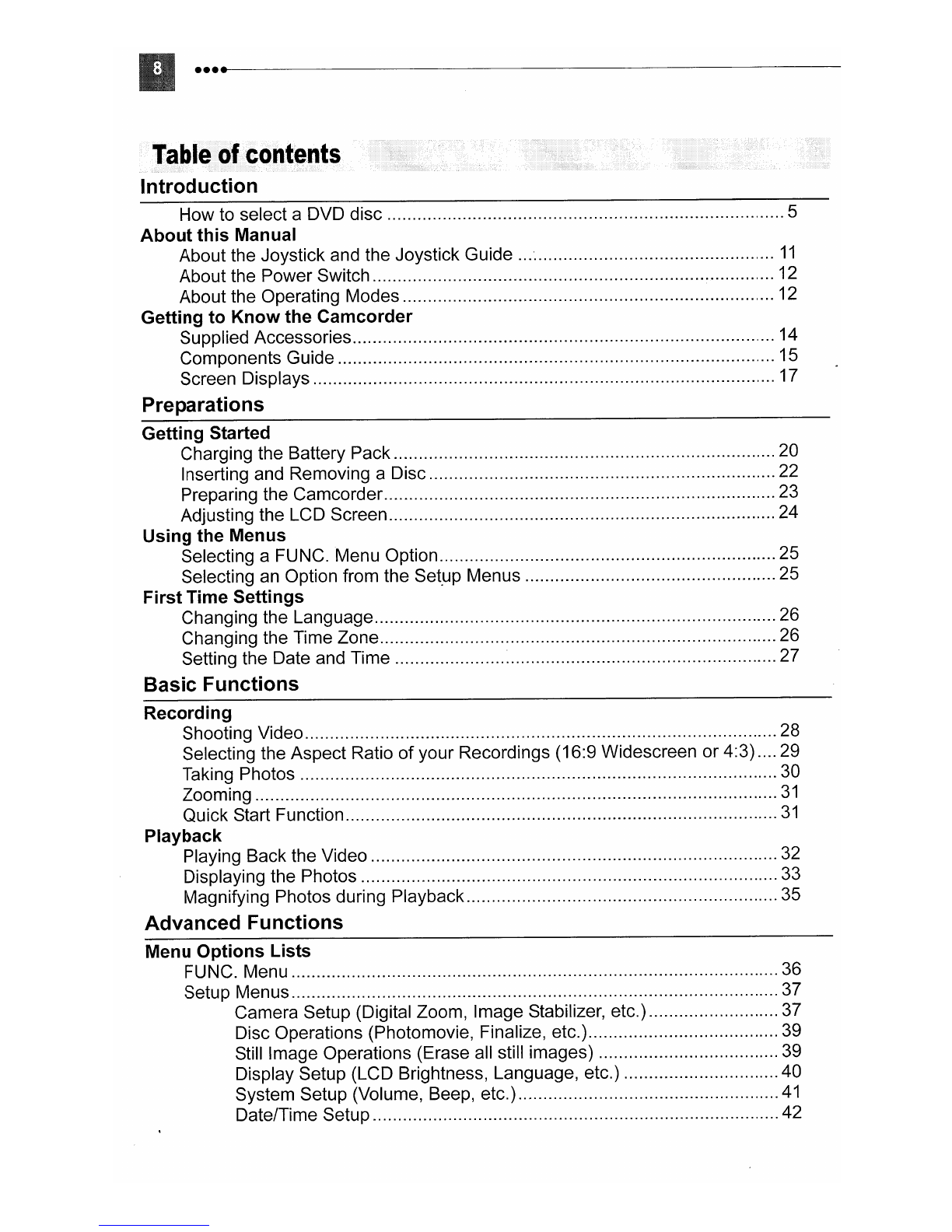

Table of contents
Introduction
How to select aDVD disc 5
About this Manual
About the Joystick and the Joystick Guide 11
About the Power Switch 12
About the Operating Modes 12
Getting to Know the Camcorder
Supplied Accessories 14
Components Guide 15
Screen Displays 17
Preparations
Getting Started

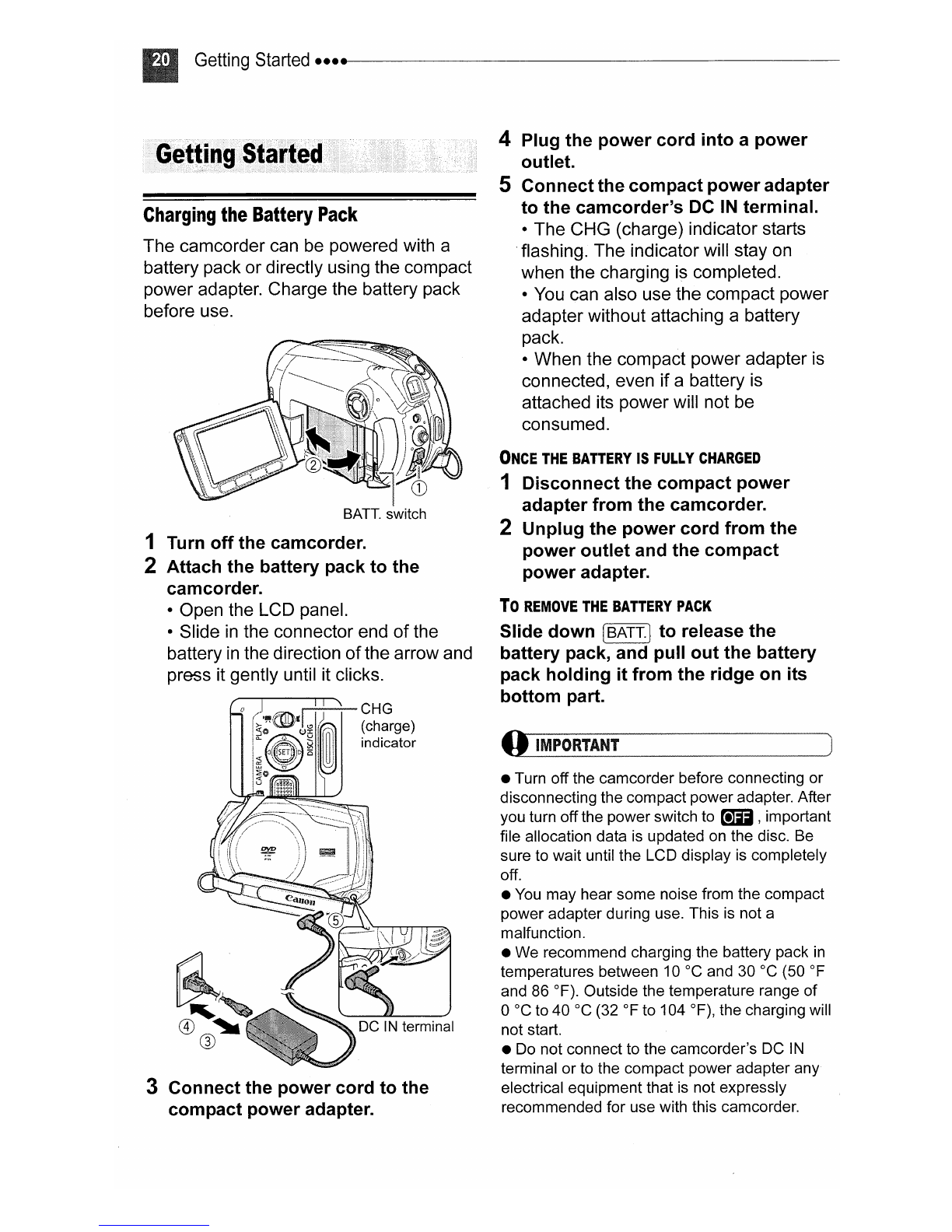

Charging the Battery Pack 20
Inserting and Removing aDisc 22
Preparing the Camcorder 23
Adjusting the LCD Screen 24
Using the Menus
Selecting aFUNC. Menu Option 25
Selecting an Option from the
Set,up Menus 25
First Time Settings
Changing the Language 26
Changing the Time Zone 26
Setting the Date and Time 27
Basic Functions
Recording
Shooting Video 28
Selecting the Aspect Ratio
of your Recordings (16:9 Widescreen or 4:3) 29
Taking Photos 30
Zooming
31
Quick Start Function 31
Playback
Playing Back the Video 32
Displaying the Photos 33
Magnifying Photos during Playback 35
Advanced Functions
Menu Options Lists
FUNC. Menu 36
Setup Menus 37
Camera Setup (Digital Zoom, Image Stabilizer, etc.) 37
Disc Operations (Photomovie, Finalize, etc.) 39
Still Image Operations (Erase all still images) 39
Display Setup (LCD Brightness, Language, etc.) 40
System Setup (Volume, Beep, etc.)
41
Date/Time Setup 42

---------------------------e ••••

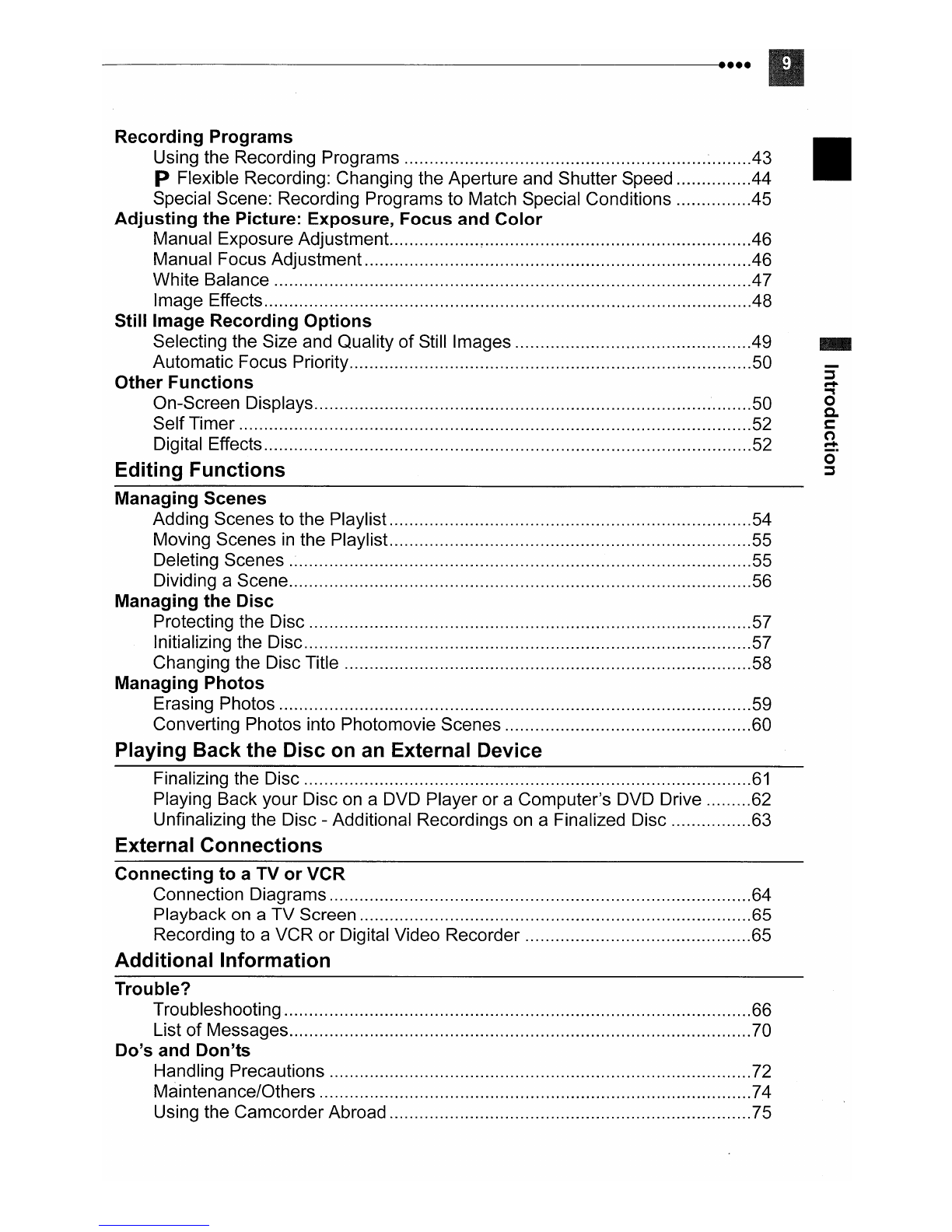

Recording Programs
Using the Recording Programs 43
PFlexible Recording: Changing the Aperture and Shutter Speed 44
Special Scene: Recording Programs to Match Special Conditions 45
Adjusting the Picture: Exposure, Focus and Color
Manual Exposure Adjustment.
~ 46
Manual Focus Adjustment 46
White Balance 47
Image Effects 48
Still Image Recording Options
Selecting the Size and Quality
of Still Images 49
Automatic Focus Priority 50
Other Functions
On-Screen Displays 50
Self Timer 52
Digital Effects 52
Editing Functions
Managing Scenes
Adding Scenes to the Playlist 54
Moving Scenes in the Playlist 55
Deleting Scenes 55
Dividing aScene 56
Managing the Disc
Protecting the Disc 57
Initializing the Disc 57
Changing the Disc Title 58
Managing Photos
Erasing Photos 59
Converting Photos into Photomovie Scenes 60
Playing Back the Disc on an External Device
Finalizing the Disc 61
Playing Back your Disc on aDVD Player or aComputer's DVD Drive 62
Unfinalizing the Disc -Additional Recordings on aFinalized Disc 63
External Connections
Connecting to aTV or VCR
Connection Diagrams 64
Playback on a TV Screen 65
Recording to aVCR or Digital Video Recorder 65
Additional Information
Trouble?
Troubleshooting 66
List
of Messages 70
Do's and Don'ts
Handling Precautions 72
Maintenance/Others 74
Using the Camcorder Abroad 75
II
..
5"
r+
""'l
o
0-
s:::::
(')
r+
o·
~

..•.. ----------------------------

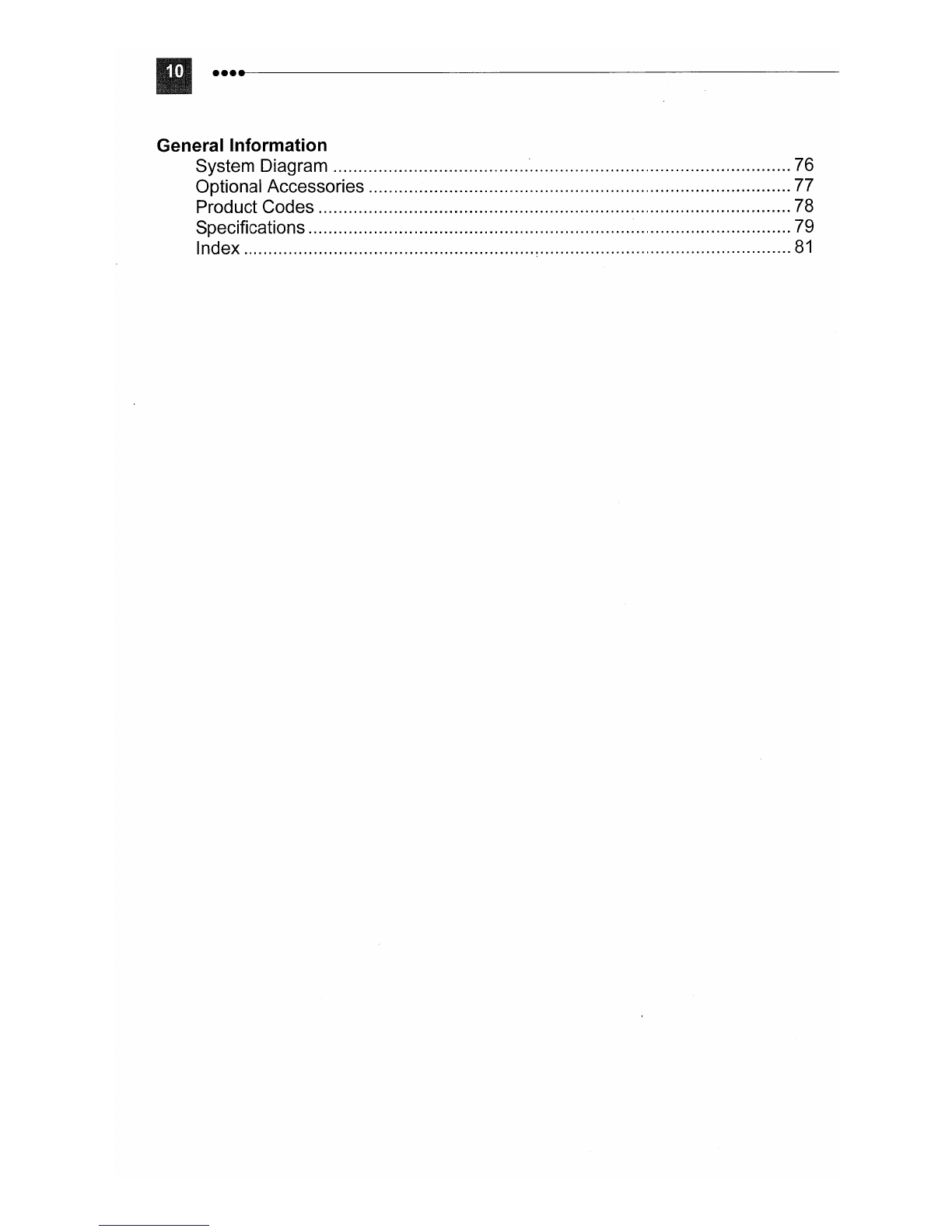

General Information
System Diagram 76
Optional Accessories 77
Product Codes 78
Specifications 79
Index :
81

-
---------------------------e •••• About this Manual
(iiiii i<1
Thank you for purchasing the Canon DC210. Please read this manual carefully before
you use the camcorder and retain it for future reference. Should your camcorder fail to
operate correctly, refer to the Troubleshooting table (OJ 66).
Conventions Used in the Manual
.0 IMPORTANT: Precautions related to the camcorder's operation.
• CD NOTES: Additional topics that complement the basic operating procedures.
•e POINTS TO CHECK: Restrictions that apply ifthe function described is not
available
in all operating modes (the operating mode to which the camcorder should be
set, the type
of disc required, etc.).
• OJ: Reference page number.
•The following terms are used
in the manual:
"Screen" refers to the LCD and the viewfinder screen.
"Scene" refers to one movie unit from the point you press the start/stop button to
start recording until you press again to pause the recording.
The terms "Photo" and "Still image" are used interchangeably with the same
meaning.
•The photos included
in the manual are simulated pictures taken with astill camera.
~
Brackets [ ] and capital letters are used to refer to menu options as ~ ~
they are displayed on screen. Menu options in boldface indicate the ------+i.:.:~t~~;.:.I:.:.:.:.:.::.'c:11!:: ... :::';.II] ,-",,-- ,
default setting (for example [ON] [OFF]). Ilf~"i=d:-i' .~
:::::::-:U::::h:::::~:::::::::::han the joystick are i Iji~l
indicated within a"button" frame (for example IFUNC·I)· ~~i~~;;~_~g;:::"
About the Joystick and the Joystick Guide
Push the joystick up, down, left
or right (.~, ...... ~) to select
an item or change settings.
~~~
~er«:r~ d) Press the joy.stick itself (~) to
\"~J save the settings or confirm an
~ JL/~ action. On menu screens,this is
indicated by the icon
•.

About this Manual ••••• -----------------------

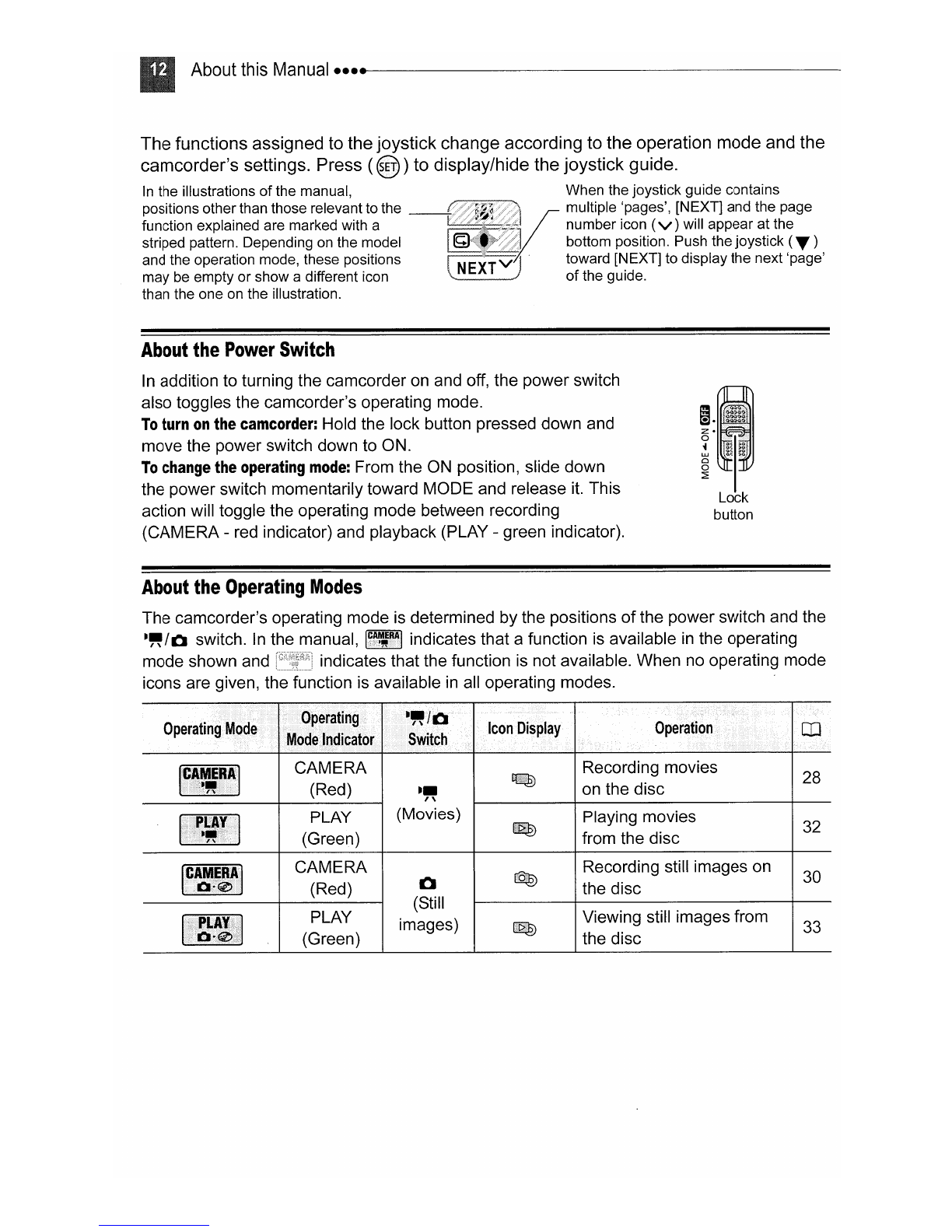

The functions assigned to the joystick change according to the operation mode and the
camcorder's settings. Press
(~) to display/hide the joystick guide.
In the illustrations of the manual, When the joystick guide contains
positions other than those relevant to the multiple 'pages', [NEXT] and the page
function explained are marked with anumber icon (v) will appear at the
striped pattern. Depending
on the model bottom position. Push the joystick ( .. )
and the operation mode, these positions toward [NEXT] to display the next 'page'
may be empty or show adifferent icon ofthe guide.
than the one on the illustration.
About the Power Switch
In addition to turning the camcorder on and off, the power switch
also toggles the camcorder's operating mode.
To turn on the camcorder: Hold the lock button pressed down and
move the power switch down to ON.
To change the operating mode: From the ON position, slide down
the power switch momentarily toward MODE and release
it. This
action will toggle the operating mode between recording
(CAMERA -red indicator) and playback (PLAY -green indicator).
t:'
Lock
button
About the Operating Modes
The camcorder's operating mode is determined by the positions of the power switch and the
.~/Q switch. In the manual, 1~~1l1 indicates that afunction is available in the operating
mode shown and indicates that the function is not available. When no operating mode
icons are given, the function is available
in all operating modes.
[ ..•... £· ...•.......•.....•... 1 ..•.•.•.......•...•......•......••.. •·M ..............•. 'E ...•.....•.... 8 ...................•..................•.. I .. · ..•.......•......•. · •••••. ]
.... -'Ii
I CA. M~RAI
10-0
CAMERA Recording movies 28
(Red)
.~
l'lZ@)
on the disc
PLAY (Movies)
~
Playing movies 32
(Green) from the disc
CAMERA
~
Recording still images on 30
(Red)
CJ
the disc
PLAY (Still Viewing still images from
(Green) images) Qe) the disc 33

STEREO CREATOR
-~~~~~~~~~~~~~~~~~~~~ ........ About this Manual

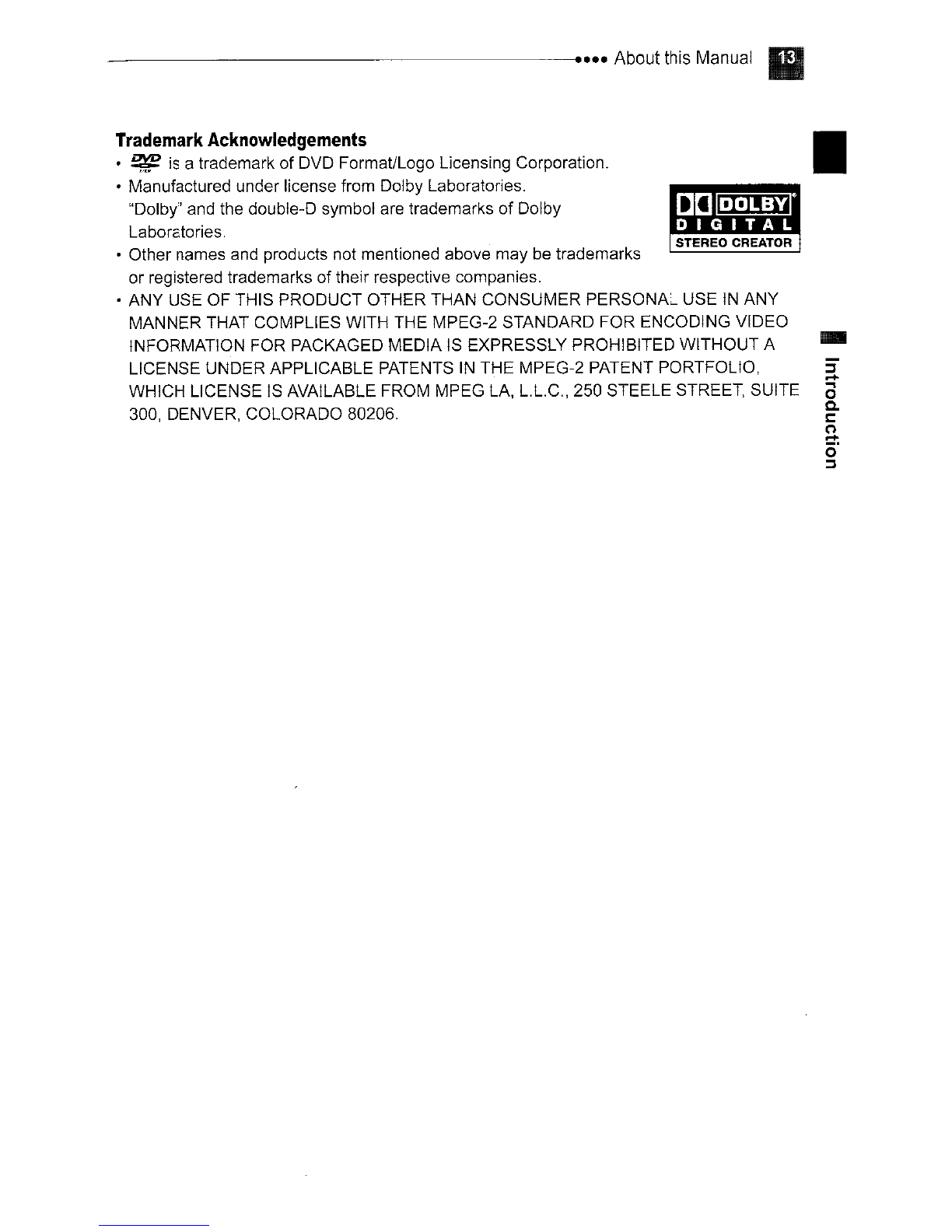

Trademark Acknowledgements
• ~ is atrademark of DVD Format/Logo Licensing Corporation.
•Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby
Laboratories.
•Other names and products not mentioned above may be trademarks
or registered trademarks of their respective companies.
•ANY USE OF THIS PRODUCT OTHER THAN CONSUMER PERSONAL USE
IN ANY
MANNER THAT COMPLIES WITH THE MPEG-2 STANDARD FOR ENCODING VIDEO
INFORMATION FOR PACKAGED MEDIA IS EXPRESSLY PROHIBITED WITHOUT A
LICENSE UNDER APPLICABLE PATENTS
IN THE MPEG-2 PATENT PORTFOLIO,
WHICH LICENSE
IS AVAILABLE FROM MPEG LA, L.L.C., 250 STEELE STREET, SUITE
300, DENVER, COLORADO 80206.
•
-

Getting to Know the Camcorder ••••• -----------------

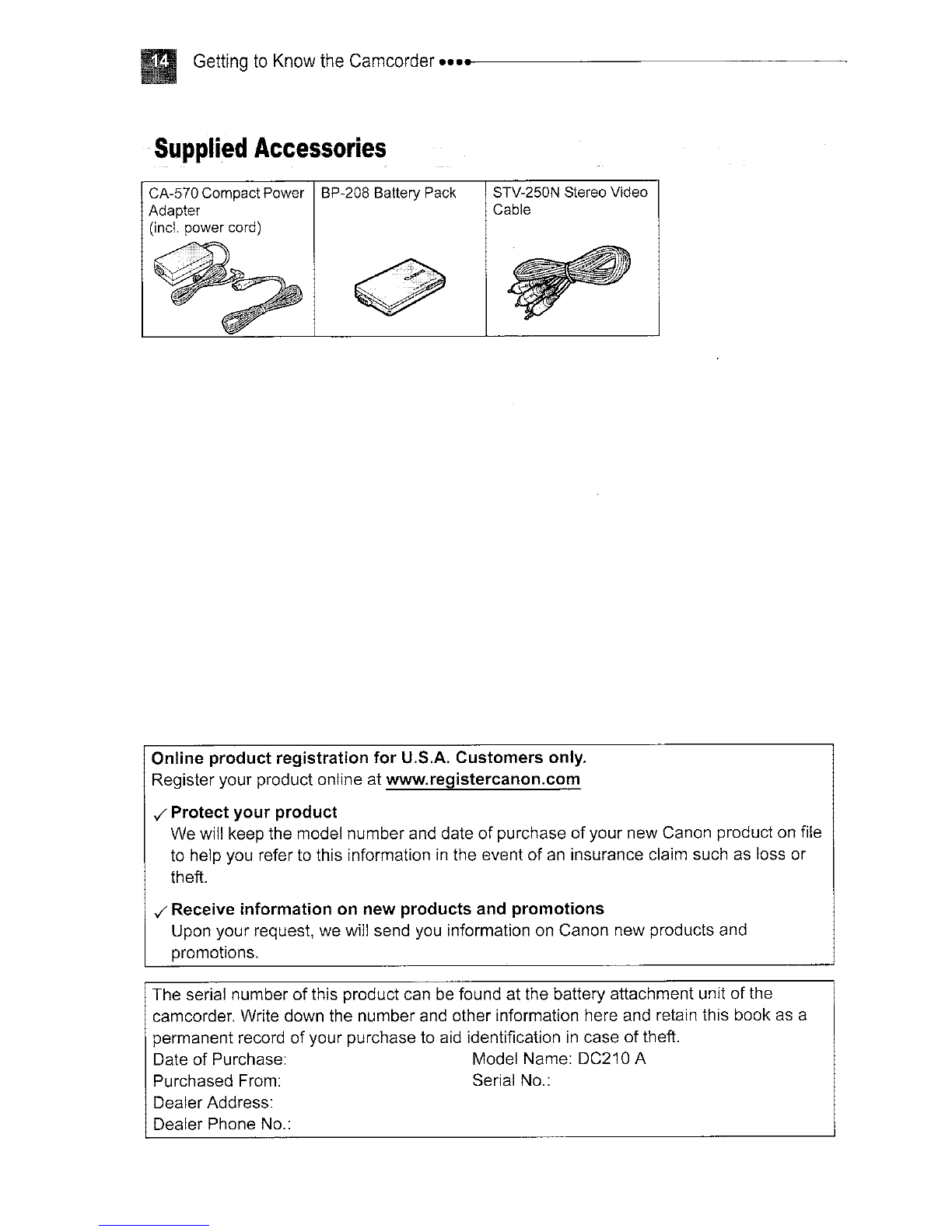

Supplied Accessories
CA-570 Compact Power BP-208 Battery Pack
Adapter
(inc!. power cord)
STV-250N Stereo Video
Cable
Online product registration for U.S.A. Customers only.
Register your product online at www.registercanon.com
,/ Protect your product
We will keep the model number and date
of purchase of your new Canon product on file
to help you refer to this information
in the event of an insurance claim such as loss or
theft.
,/ Receive information on new products and promotions
Upon your request, we will send
you information on Canon new products and
promotions.
The serial number
of this product can be found at the battery attachment unit of the
camcorder. Write down the number and other information here and retain this book
as a
permanent record of your purchase to aid identification
in case of theft.
Date of Purchase: Model Name: DC210 A
Purchased From: Serial No.:
Dealer Address:
Dealer Phone No.:

_----------------____e •••• Getting to Know the Camcorder

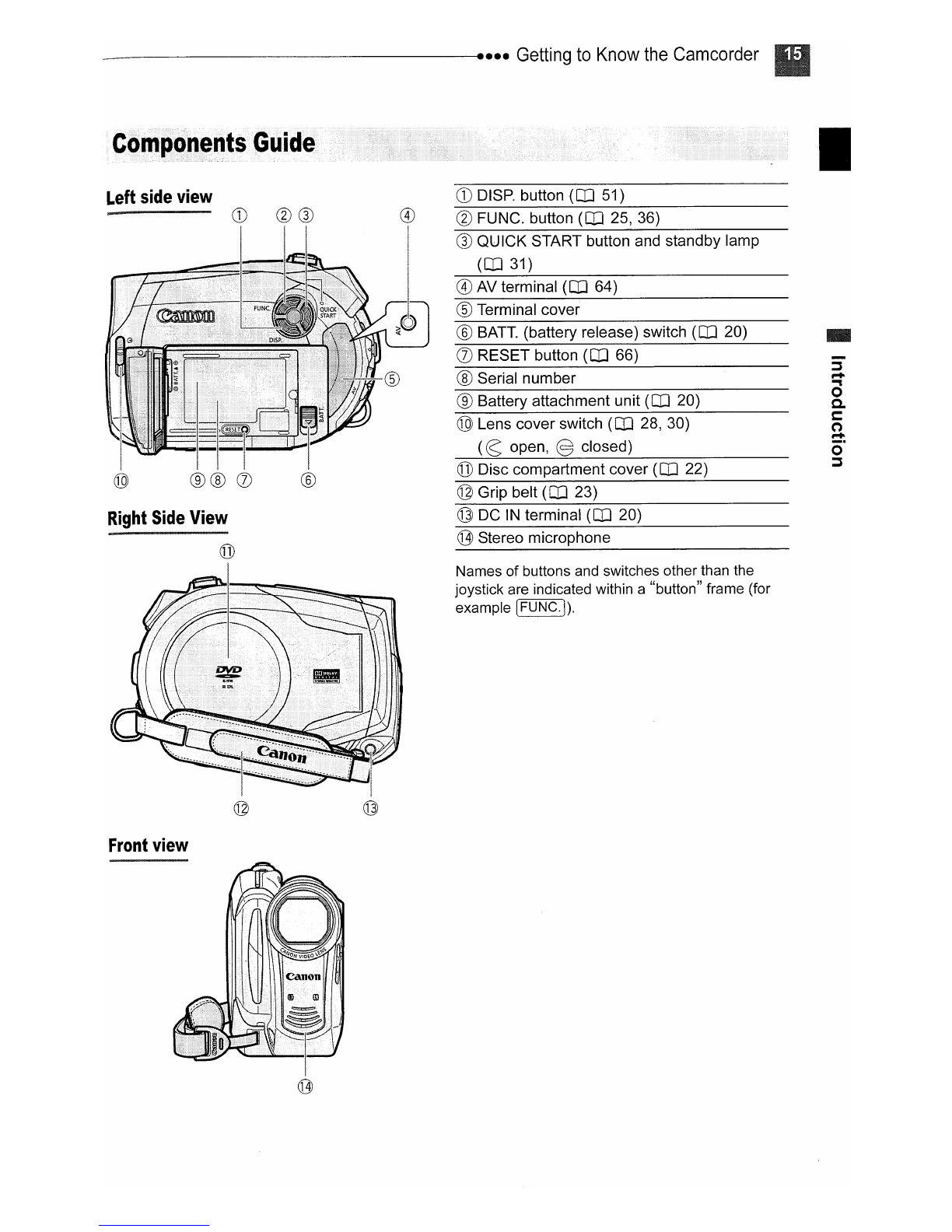

Components Guide
Left side view
CD DISP. button (OJ 51) I
Right Side View
Front view
@FUNC. button (OJ 25,36)
® au ICK START button and standby lamp
(OJ 31)
@AV terminal (OJ 64)
®Terminal cover
® BATT. (battery release) switch (OJ 20)
(J) RESET button (OJ 66)
®Serial number
®Battery attachment unit (OJ 20)
@Lens cover switch (OJ 28,30)
(e open, @closed)
@Disc compartment cover (OJ 22)
@Grip belt (OJ 23)
@DC IN terminal (OJ 20)
(jJl Stereo microphone
Names of buttons and switches other than the
joystick are indicated within a"button" frame (for
example [FUNC·I).
-
5'
r+
..,
o
a.
t:
(')
r+
o'
~

Getting to Know the Camcorder ....... -----------------
Back view
®
Top view
Bottom view
CD PLAY mode indicator (green) (OJ 12)
®Joystick (OJ 11)
®CAMERA mode indicator (red) (OJ 12)
@LCD screen (OJ 24)
®..... (fast reverse) button (OJ 33) /
Zoom out W(wide-angle) button (OJ 31)
®~ (fast forward) button (OJ 33) /
Zoom
in T(telephoto) button (OJ 31)
(J) ~ /11 (play/pause) button (OJ 32) /
START/STOP button (OJ 28)
® • (stop) button (OJ 32) /
PLAYLIST button (OJ 54)
®Viewfinder (OJ 23)
®Dioptric adjustment lever (OJ 23)
(jJ) -"'/0 (movies/still images) switch (OJ 12)
@DISC access indicator (OJ 28, 30) /
CHG (charge) indicator (OJ 20)
@Start/stop button (OJ 28)
@Power switch (OJ 12)
®OPEN (disc cover) switch (OJ 22)
®Grip belt (OJ 23)
@Mode switch (OJ 43)
@Zoom lever (OJ 31)
@PHOTO button (OJ 30)
@Speaker (OJ 33)
@Tripod socket (OJ 29)
@Strap mount
Names of buttons and switches other than the
joystick are indicated within a"button" frame (for
example I
FUNC. I).

------------------e •••• Getting to Know the Camcorder
I
~~ •• II.~~!!~ Recording Movies
cv® ®® @@
CD-"
@
®
®
®
®
CD Operating mode (OJ 12)
®Recording program (OJ 43)
®White balance (OJ 47)
®Image effect (OJ 48)
®Digital effects (OJ 52)
®Recording mode (OJ 36)
CV Selftimer (OJ 52) .
®Disc type @) DVD-R, @DVD-R DL,
@DVD-RW (OJ 5)
®Disc specification
(VIDEO mode,
VR mode) (OJ 5)
®Finalized disc mark (OJ 61)
-
:r
....
..,
o
0-
c::
(")
....
ci"
~
@Manual focus (OJ 46)
~1 •• III.mI)J Recording Still Images
@Image stabilizer (OJ 38)

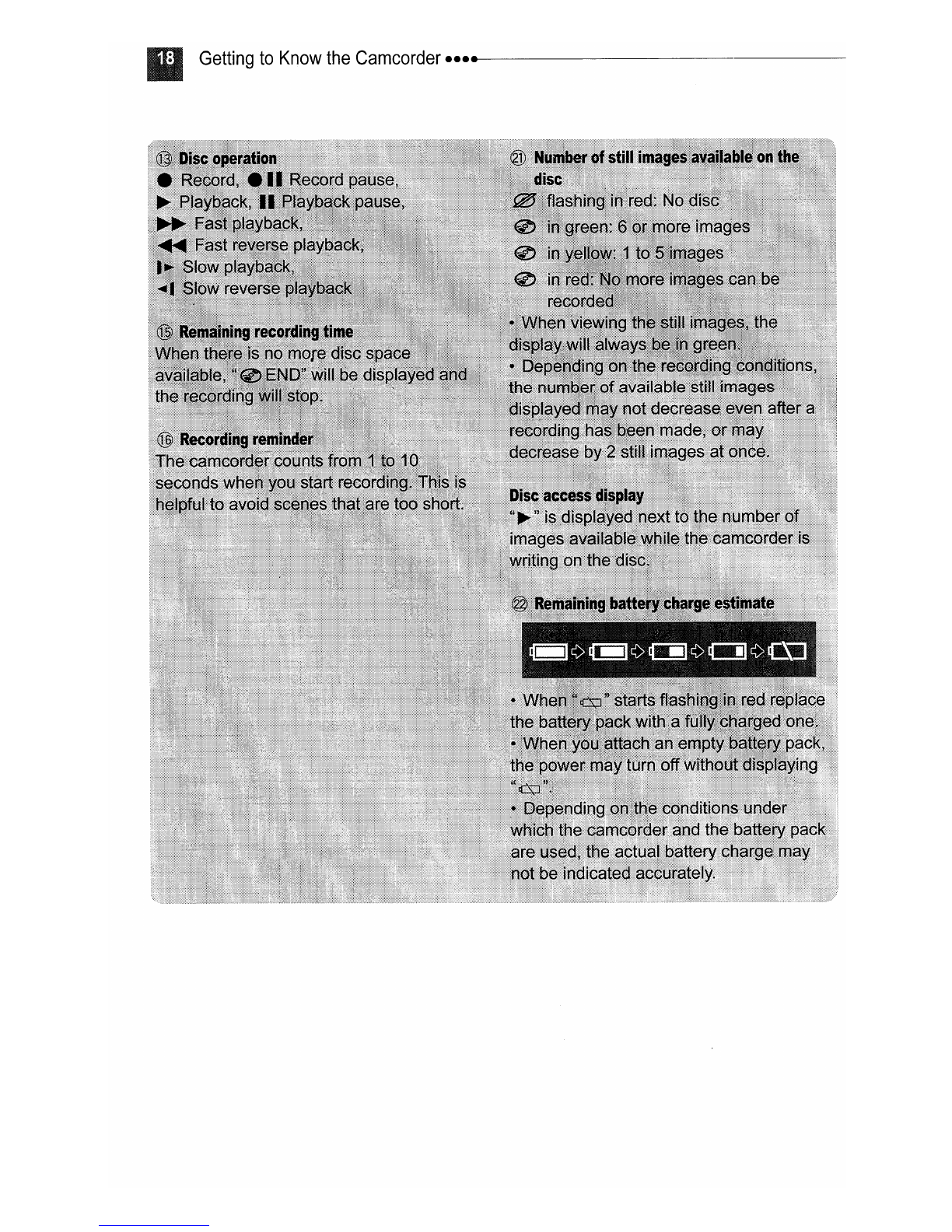

@Disc operation
@Time code (hours: minutes: seconds)
@Camcorder shake warning (OJ 37)
@AF frame (OJ 50)
@Number of still images available on the disc
@Remaining battery charge estimate
@Zoom (OJ 31), Exposure 0-1-0 (OJ 46)
@Still image quality/size (OJ 49)
@Level marker (OJ 40)
@Wind screen off (OJ 38)
®Recording reminder
®Remaining recording time on the disc
lIDs-ii
~4609
P
~;~:::
~
-
~
Sv
D
~
()J
~L
A0
I]
~
@ @
@Autofocus (AF) and exposure (AE) locked
(OJ 30)

Getting to Know the Camcorder ••••• -----------------

----------------- ......... Getting to Know the Camcorder

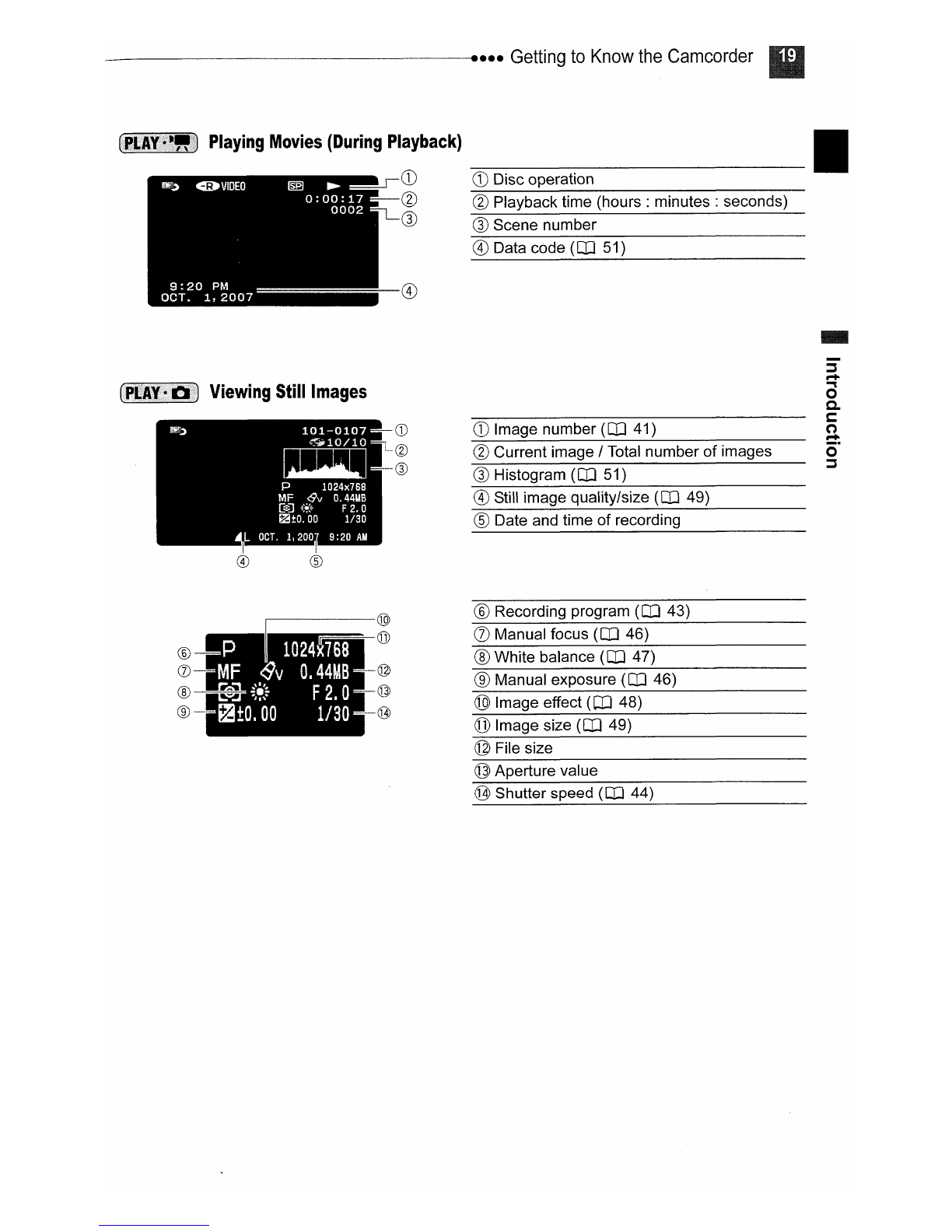

Playing Movies (During Playback) I
CD -CD D-isc o-pera-tion----
@ @ Playback time (hours: minutes: seconds)
® ® Scene number
®Data code (OJ 51)
-----®
Viewing Still Images
®Still image quality/size (OJ 49)
®Date and time of recording
@Current image /Total number of images
®Histogram (OJ 51)
CD Image number (OJ 41)
!H!tiMMIL CD
~~~L ... @
....... @
101-0107
a
P1024x768
MF SV O.44MB
[s] ':~f F 2.0
~±O.OO 1/30
OCT. 1, 200 9:20 AM
@) ®
®White balance (OJ 47)
®Manual exposure (OJ 46)
@Image size (OJ 49)
®Image effect (llJ 48)
®Recording program (OJ 43)
(J) Manual focus (OJ 46)
......... _ .. @
@
............ @
...-------@
R&ffi~(jJ)
iii PlU,qX/tits
fj MF ;ev 0.44MB
iii i:~:: F 2. 0
m f!±O. 00 1/30
©File size
@Aperture value
@Shutter speed (OJ 44)

Getting Started ••••• -----------------------
Charging the Battery Pack
The camcorder can be powered with a
battery pack or directly using the compact
power adapter. Charge the battery pack
before use.
switch
1Turn off the camcorder.
2Attach the battery pack to the
camcorder.
•Open the LCD panel.
•Slide
in the connector end of the
battery
in the direction of the arrow and
press it gently until it clicks.
3Connect the power cord to the
compact power adapter.
4Plug the power cord into apower
outlet.
SConnect the compact poweradapter
to the camcorder's DC
IN terminal.
•The CHG (charge) indicator starts
.flashing. The indicator will stay on
when the charging is completed.
•
You can also use the compact power
adapter without attaching abattery
pack.
•When the compact power adapter is
connected, even ifabattery is
attached its power will not be
consumed.
ONCE THE BATTERY IS FULLY CHARGED
1Disconnect the compact power
adapter from the camcorder.
2Unplug the power cord from the
power outlet and the compact
power adapter.
To REMOVE THE BATTERY PACK
Slide down [BATT.] to release the
battery pack, and pull out the battery
pack holding it from the ridge on its
bottom part.
o IMPORTANT
•Turn off the camcorder before connecting or
disconnecting the compact power adapter. After
you turn offthe power switch to _ , important
file allocation data
is updated on the disc. Be
sure to wait until the LCD display is completely
off.
•
You may hear some noise from the compact
power adapter during use. This is not a
malfunction.
•We recommend charging the battery pack
in
temperatures between 10°C and 30 °C (50 OF
and 86 OF). Outside the temperature range of
o °C to 40°C (32 OF to 104 OF), the charging will
not start.
•
Do not connect to the camcorder's DC IN
terminal or to the compact power adapter any
electrical equipment that
is not expressly
recommended for use with this camcorder.
