Canon RF 14-35mm F4 L IS USM User manual

ENG
Instructions
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Canon RF 14-35mm
f/4L IS USM o cerca il tuo prodotto tra le migliori offerte di Obiettivi per Fotocamere

ENG-1
Thank you for purchasing a Canon product.
Canon RF14-35mm F4 L IS USM is a wide
zoom lens for use with EOS R series cameras.
z“IS” stands for Image Stabilizer.
z“USM” stands for Ultrasonic Motor.
Conventions used in these instructions
Warning to prevent lens or camera malfunction
or damage.
Supplementary notes on using the lens and
taking pictures.
Camera Firmware and
Camera Applications
Please use the latest versions of firmware and
applications with the camera in use. For details on
whether the firmware and applications in use are the
latest version or not, and for details on updating them,
please check the Canon website.
If the camera’s* firmware is not a compatible
version, the following limitations will apply.
zMagnified view functionality is not available.
zIn some cases, the camera malfunction may
occur.
* Applies to the following camera models:
EOS R and EOS RP

ENG-2
Precautions to ensure that the camera is used
safely. Read these precautions thoroughly. Make
sure all details are observed in order to prevent
risks and injury to the user and other people.
Warning
Details pertaining to risks that may
result in death or serious injury.
zDo not look directly at the sun or other strong
light sources through a lens. This may result in
loss of sight.
zDo not leave a lens in the sun without the lens
cap attached. The lens may concentrate entering
sunlight and cause a malfunction or fire.
Caution
Details pertaining to risks that may
result in injury or damage to other
objects.
zDo not leave the product in places exposed to
extremely high or low temperatures. The product
may cause burns or injury when touched.
Safety Precautions

ENG-3
Handling Precautions
zDo not leave the product in excessive heat such as
in a car in direct sunlight. High temperatures can
cause the product to malfunction.
zIf the lens is taken from a cold environment into a
warm one, condensation may develop on the lens
surface and internal parts. To prevent condensation
in this case, first put the lens into an airtight
plastic bag before taking it from a cold to warm
environment. Then take out the lens after it has
warmed gradually. Do the same when taking the
lens from a warm environment into a cold one.
zIn order to optimize aperture control, there are
occasions in which the aperture blades will move
during zooming and focusing, even when the
aperture value is set for aperture-priority AE or
manual exposure, etc.
zPlease also read any lens related handling
precautions listed in your camera’s instruction
manual.
General Precautions

ENG-4
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Do not make any changes or modifications to the equipment
unless otherwise specified in the instructions. If such
changes or modifications should be made, you could be
required to stop operation of the equipment.
This equipment has been tested and found to comply with
the limits for a class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
CAN ICES-3 (B) / NMB-3 (B)

ENG-5
Focusing ring (→ 7)
Control ring (→ 8)
Hood mount (→ 11)
Filter mounting thread (→ 12)
Focus mode switch (→ 7)
Image stabilizer switch (→ 9)
Zoom ring (→ 7)
Rubber ring (→ 6)
Contacts (→ 6)
Lens mount (→ 6)
Lens mount index (→ 6)
Zoom position index (→ 7)
z For detailed information, reference page numbers are provided in parentheses (→ **).
Nomenclature

ENG-6
Lens mount index
Lens release button Dust cap
Attaching the Lens
Align the lens mount indexes of the lens and
camera, and turn the lens clockwise until you
hear a click.
Detaching the Lens
Turn the lens counterclockwise while pressing
the camera’s lens release button. Detach the
lens once it has stopped turning.
Please refer to the camera's instructions for
details.
zSet the camera’s power switch to OFF when
attaching or detaching the lens.
zAttach the lens cap before detaching the lens
from the camera.
zAfter detaching the lens, place the lens with the
rear end up and attach the dust cap to prevent
the lens surface and contacts from getting
scratched. Make sure the lens and dust cap
mount indexes are aligned when attaching the
dust cap.
zContacts that are scratched, soiled, or have
fingerprints on them may result in faulty
connections or corrosion, which may lead to
malfunctions. If the contacts get soiled, clean
them with a soft cloth.
zThe lens mount has a rubber ring to improve
dust-resistance and water-resistance
performance. This rubber ring may cause
friction marks to appear around the camera’s
lens mount, although this will have no effect on
usage.
zRubber rings can be replaced at Canon Service
Center. (chargeable)
1. Attaching and Detaching the Lens

ENG-7
2.
Setting the Focus Mode
3. Zooming
To zoom, turn the lens’ zoom ring.
zBe sure to finish zooming before focusing.
Zooming after focusing can affect the focus.
zBlurring may temporarily occur if the zoom ring is
quickly turned.
Focusing ring
Focus mode switch

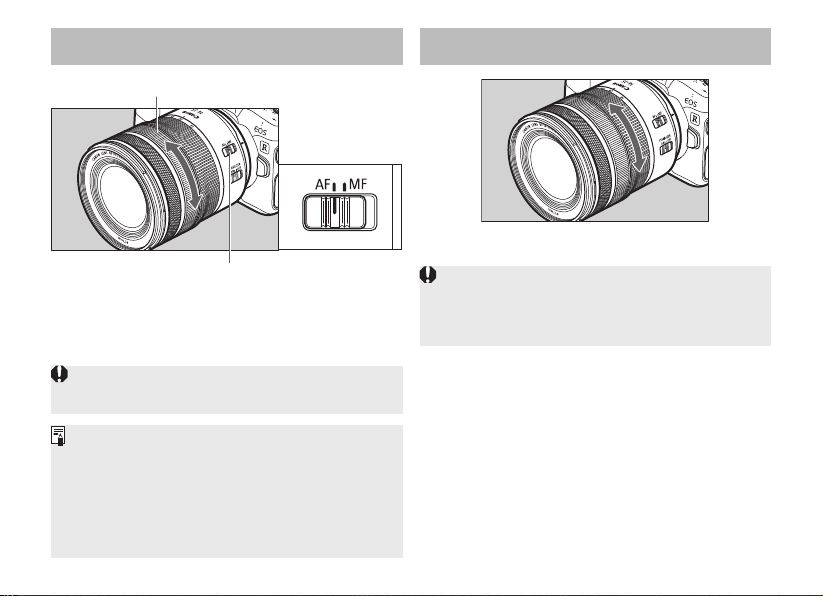

To shoot in autofocus (AF) mode, set the focus
mode switch to AF.
To use only manual focusing (MF), set the focus mode
switch to MF, and focus by turning the focusing ring.
zQuickly turning the focusing ring may result in
delayed focus.
zThe lens’ focusing ring is electronic.
z
When AF operation is set to [ONE SHOT],
manual focus is possible after autofocusing
has been completed by continuing to press the
shutter button halfway. However, the camera
settings need to be changed. Please refer to the
camera's instructions for details.

ENG-8

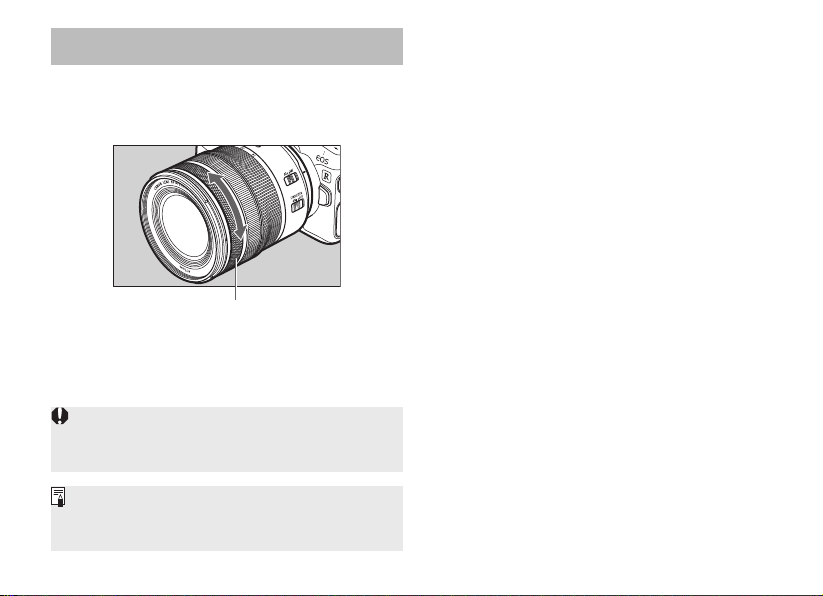

The control ring can be assigned the functions
that are commonly used with cameras, such as
shutter speed and aperture settings.
Control ring
The click action of the control ring allows you to
have a sense of how much it is being turned.
Please refer to the camera’s instructions for
details on how to use the control ring.
zThere are cases in which the sound of control
ring operations may be recorded when shooting
movies.
zThe clicking sensation of the control ring can
be removed by the Canon Service Center.
(chargeable)
4. Control Ring

ENG-9
Set the image stabilizer switch to ON when you
want to use the Image Stabilizer.
zThis function provides image stabilization
appropriate for shooting conditions (such as
shooting still subjects and panning shots).
zThe Image Stabilizer will work in combination
with cameras with in-body Image Stabilizer.
zSet the image stabilizer switch to OFF when
you are not going to use the Image Stabilizer.
5. Image Stabilizer
zThe Image Stabilizer cannot compensate for a
blurred shot caused by a subject that moved.
zThe Image Stabilizer may not be fully effective if
you shoot from a violently shaking vehicle or other
transportation.
zWhen using a tripod, it is recommended that you
set the image stabilizer switch to OFF.
zEven with a monopod, the Image Stabilizer will
be as effective as during hand-held shooting.
However, depending on the shooting conditions,
there are cases in which the Image Stabilizer
effect may be less effective.

ENG-10
Image Stabilizer
The Image Stabilizer for this lens is suited to hand-held shots in the following conditions.
zIn semi-darkened areas such as indoors or
outdoors at night.
zIn locations where the flash cannot be used,
such as art museums and theater stages.
zIn situations where your footing is uncertain.
zIn situations where fast shutter speed settings
cannot be used.
zPanning shots of vehicles, trains, etc.
It compensates for vertical camera shake during panning shots in a
horizontal direction, and compensates for horizontal camera shake
during panning shots in a vertical direction.

ENG-11
The custom lens hood reduces unwanted light that causes flare and ghosting and protects the front
of the lens from rain, snow, and dust.
6. Hood
Attachment position mark
Stop position mark
Attachment position mark
Red dot
Red dot
Red dot

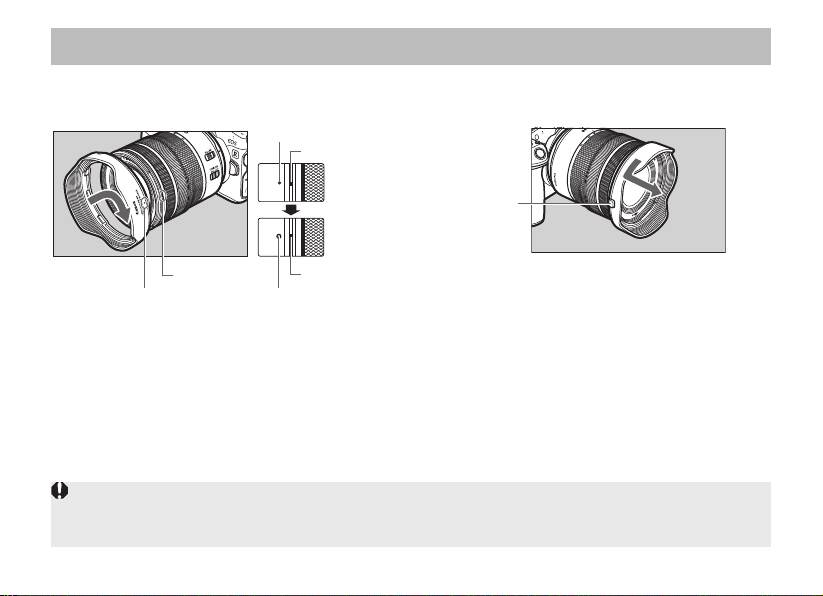

Attaching the Hood
Align the red attachment position mark on the
hood with the red dot on the front of the lens,
and then turn the hood in the direction of the
arrow until you hear a click.
Button
Detaching the Hood
Keep your finger pressed down on the button
located on the side of the hood, and then turn
the hood in the direction of the arrow until the
attachment position mark on the hood is aligned
with the red dot on the front of the lens to detach
it.
The hood can be reverse-mounted on the lens
for storage.
zIf the hood is not attached properly, vignetting (darkening of the perimeter of the picture) may occur.
zGrasp and turn the base of the hood when attaching and detaching it. There are cases in which it may
become deformed if the hood is turned with it grasped near to the rim.

ENG-12
7.
Filters (Sold separately)
You can attach filters to the filter mounting thread
on the front of the lens.
zOnly one filter may be attached.
zIf you need a polarizing filter, use the Canon
Circular Polarizing Filter PL-C B.
zDetach the hood when adjusting the polarizing
filter.
Attaching a 500D (77 mm) Close-up Lens
enables close-up photography.
Compatibility with Close-up Lenses is as follows.
zCan be used at the 35 mm end (magnification
0.41x - 0.07x)
zClose-up Lens 250D cannot be attached
because there is no size that fits the lens.
zMF mode is recommended for accurate
focusing.
8. Close-up Lenses
(Sold separately)

ENG-13
Specifications
Focal Length/Aperture 14-35mm f/4
Lens Construction 12 groups, 16 elements
Maximum Aperture f/4
Minimum Aperture f/22
Angle of View Horizontal: 104°- 54°, Vertical: 81°- 38°, Diagonal: 114°- 63°
Min. Focusing Distance 0.2 m/0.66 ft.
Max. Magnification 0.38x (at 35 mm)
Field of View Approx. 230 x 153 - 94 x 63 mm/
9.06 x 6.02 - 3.70 x 2.48 in. (at 0.2 m/0.66 ft.)
Filter Diameter 77 mm
Max. Diameter and Length Approx. 84.1 x 99.8 mm/3.31 x 3.93 in.
Weight Approx. 540 g/19.0 oz.
Hood EW-83P
Lens Cap E-77 II
Case LP1219

ENG-14
zThe lens length is measured from the lens mount surface to the front end of the lens.
Add 24.2 mm/0.95 in. when including the lens cap and dust cap.
zThe size and weight listed are for the lens only.
zYou cannot use extenders.
zThis lens cannot be used for multiple exposure shooting.
zThere are cases in which using the zoom function during continuous shooting may result in
conspicuous image distortion.
zAll data listed is measured according to Canon standards.
zProduct specifications and appearance are subject to change without notice.
Specications

CT1-D186-A 0321Ni © CANON INC. 2021
