Color Image Reader Unit - D1/D2
SERVICE MANUAL Rev4
Product Outline
Technology
Periodic Servicing
Parts Replacement and Cleaning Procedure
Adjustment
Installation
Appendix
Application
This manual has been issued by Canon Inc. for qualied persons to learn technical theory,
installation, maintenance, and repair of products. This manual covers all localities where the
products are sold. For this reason, there may be information in this manual that does not
apply to your locality.
Corrections
This manual may contain technical inaccuracies or typographical errors due to improvements
or changes in products. When changes occur in applicable products or in the contents of this
manual, Canon will release technical information as the need arises. In the event of major
changes in the contents of this manual over a long or short period, Canon will issue a new
edition of this manual.
The following paragraph does not apply to any countries where such provisions are
inconsistent with local law.
Trademarks
The product names and company names used in this manual are the registered trademarks
of the individual companies.
Copyright
This manual is copyrighted with all rights reserved. Under the copyright laws, this manual may
not be copied, reproduced or translated into another language, in whole or in part, without the
written consent of Canon Inc.
© CANON INC. 2012
Caution
Use of this manual should be strictly supervised to avoid disclosure of condential
information.

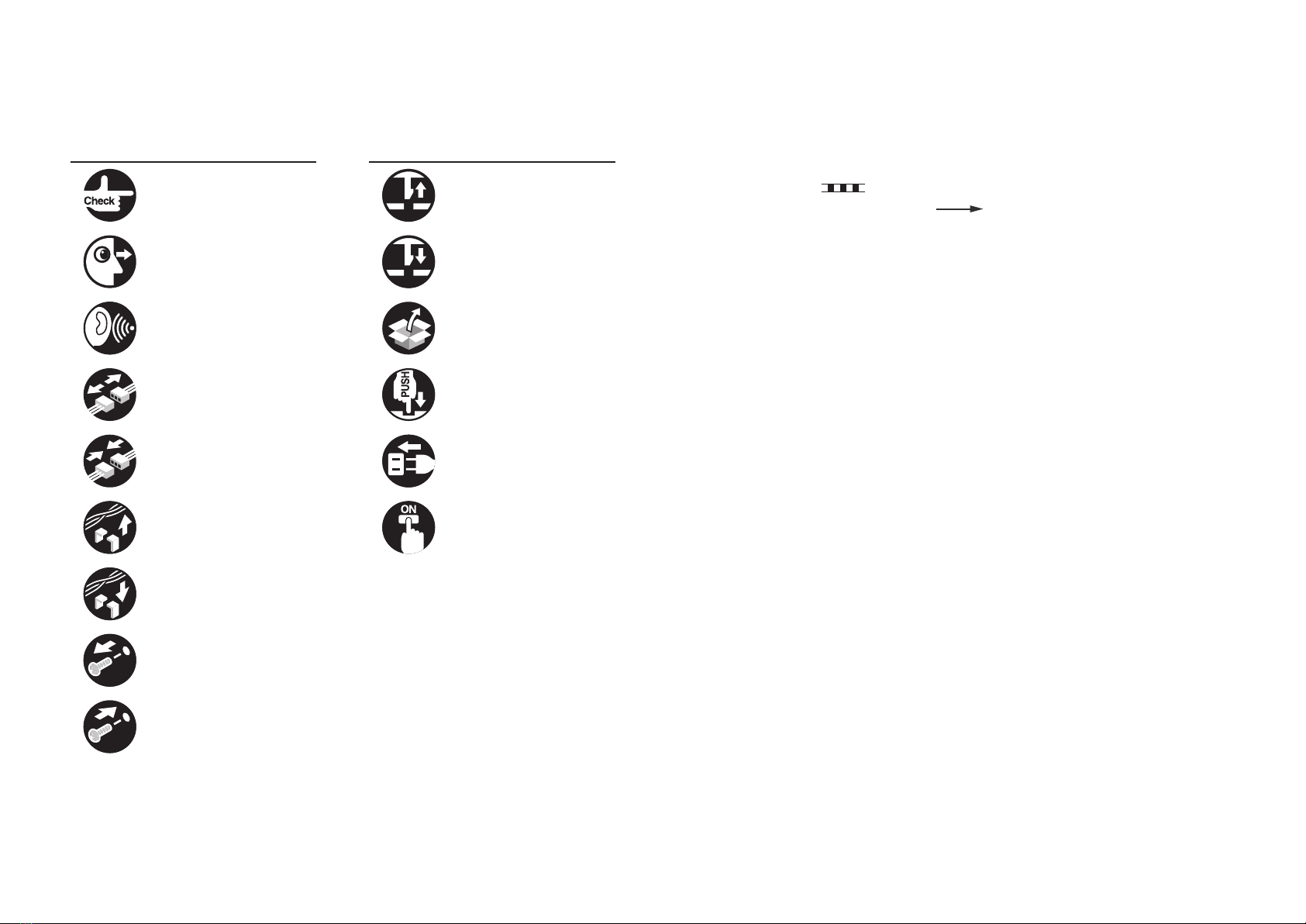

Explanation of Symbols
The following symbols are used throughout this Service Manual.
Symbols Explanation Symbols Explanation
Check. Remove the claw.
Check visually. Insert the claw.
Check the noise. Use the bundled part.
Disconnect the connector. Push the part.
Connect the connector. Plug the power cable.
Remove the cable/wire
from the cable guide or wire
saddle.
Turn on the power.
Set the cable/wire to the
cable guide or wire saddle.
Remove the screw.
Tighten the screw.
The following rules apply throughout this Service Manual:
1. Each chapter contains sections explaining the purpose of specic functions and the
relationship between electrical and mechanical systems with reference to the timing of
operation.
In the diagrams, represents the path of mechanical drive; where a signal name
accompanies the symbol, the arrow indicates the direction of the electric
signal.
The expression "turn on the power" means ipping on the power switch, closing the
front door, and closing the delivery unit door, which results in supplying the machine with
power.
2. In the digital circuits, '1' is used to indicate that the voltage level of a given signal is
"High", while '0' is used to indicate "Low". (The voltage value, however, differs from
circuit to circuit.) In addition, the asterisk (*) as in "DRMD*" indicates that the DRMD
signal goes on when '0'.
In practically all cases, the internal mechanisms of a microprocessor cannot be checked
in the eld. Therefore, the operations of the microprocessors used in the machines
are not discussed: they are explained in terms of from sensors to the input of the DC
controller PCB and from the output of the DC controller PCB to the loads.
The descriptions in this Service Manual are subject to change without notice for product
improvement or other purposes, and major changes will be communicated in the form of
Service Information bulletins.
All service persons are expected to have a good understanding of the contents of this Service
Manual and all relevant Service Information bulletins and be able to identify and isolate faults
in the machine.
Blank Page
Contents
0 Safety Precautions
Notes Before it Works Serving ---------------------------------------------0-2
1 Product Outline
Features (Reader) ------------------------------------------------------------1-2
Specications (Reader) ------------------------------------------------------1-2
Names of Parts (Reader) ---------------------------------------------------1-3

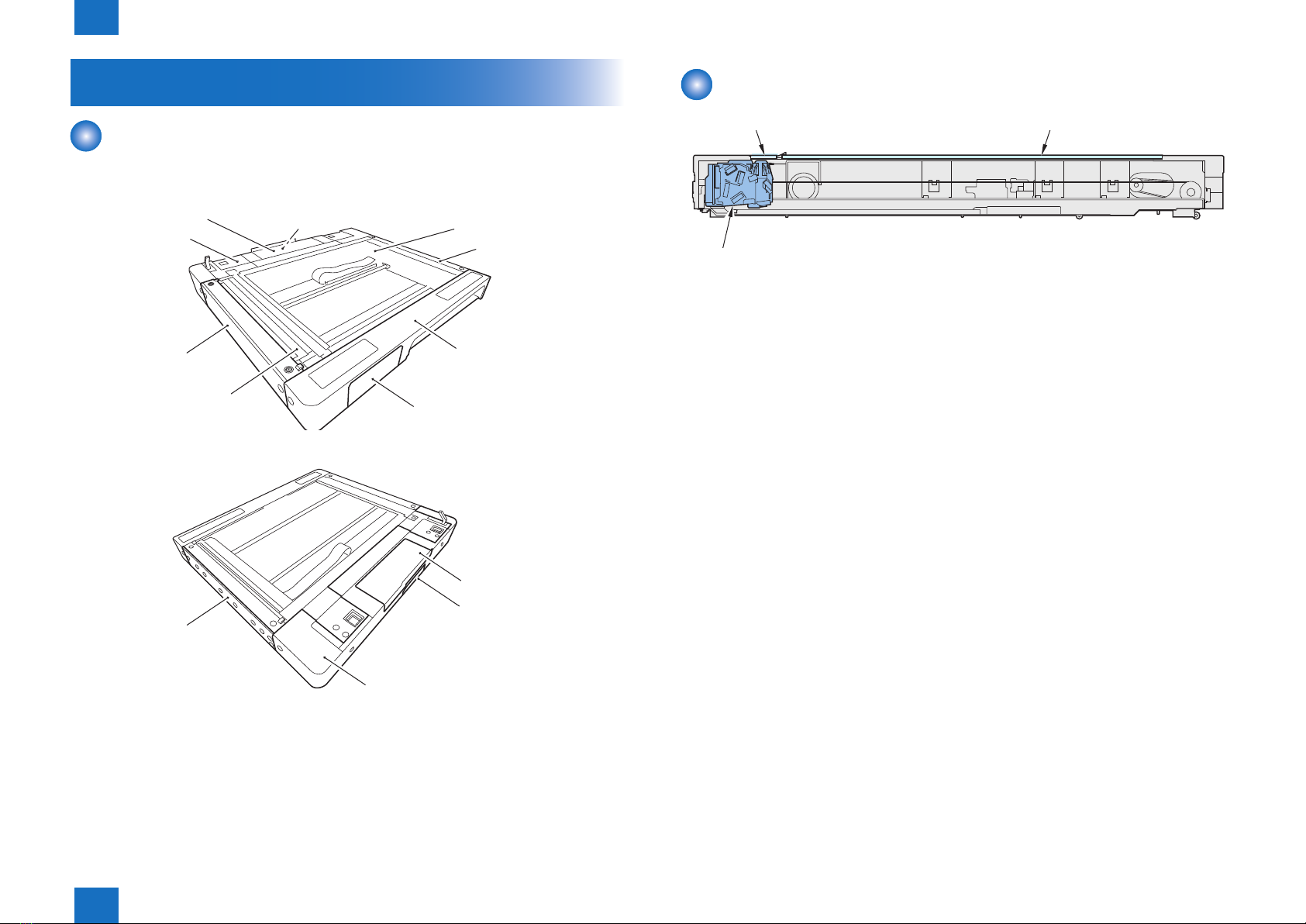

External View ----------------------------------------------------------------------- 1-3
Cross Section ----------------------------------------------------------------------- 1-3

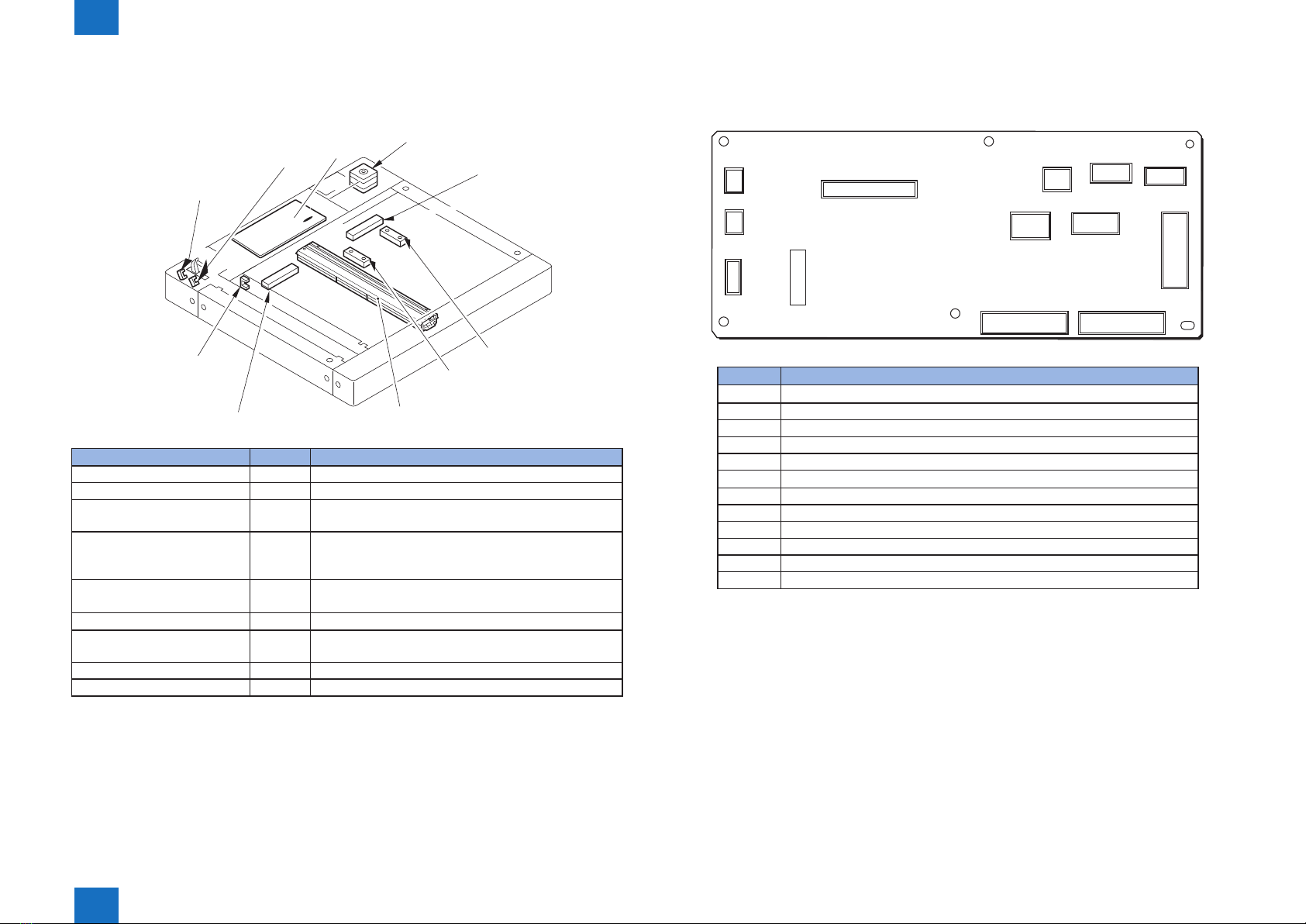

Major Components ------------------------------------------------------------------------- 1-4
Reader Relay PCB ------------------------------------------------------------------------- 1-4
Features (DADF) --------------------------------------------------------------1-5
Specications (DADF) -------------------------------------------------------1-5
Names of Parts (DADF) -----------------------------------------------------1-6
External View ----------------------------------------------------------------------- 1-6
Cross Section ----------------------------------------------------------------------- 1-6
2 Technology
Technology (Reader) ---------------------------------------------------------2-2
Basic Sequence -------------------------------------------------------------------- 2-2
Basic Sequence at Power-On ----------------------------------------------------------- 2-2
Basic Sequence at Start Key ON (book mode/1 original) ------------------------ 2-2
Basic Sequence at Start Key ON (ADF mode/1 original) ------------------------- 2-2
Controls (Reader) -------------------------------------------------------------2-3
Controlling the Scanner Drive System ------------------------------------------------ 2-3

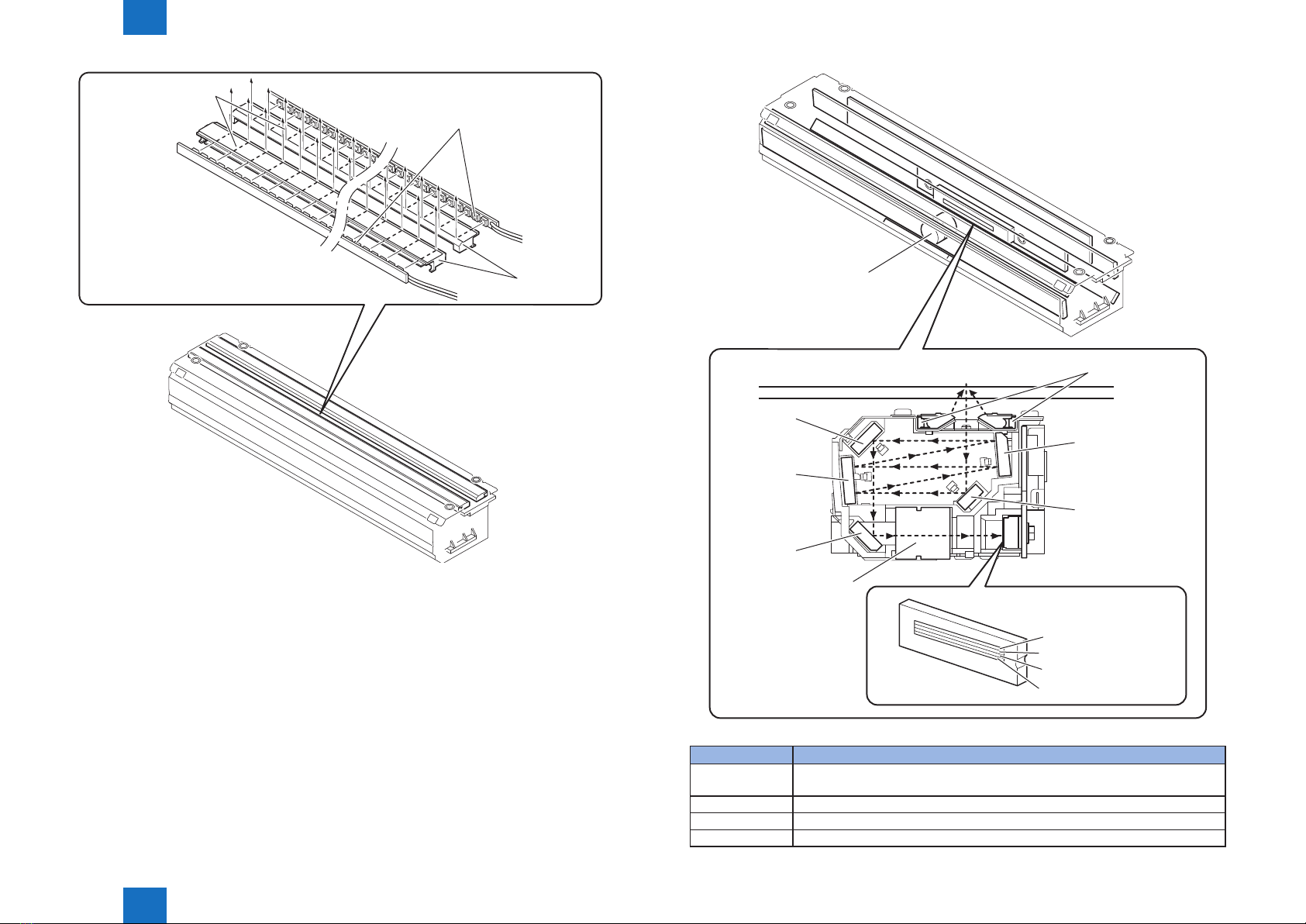

CCD -------------------------------------------------------------------------------------------- 2-4
Enlargement/Reduction ------------------------------------------------------------------- 2-6
Detecting the Size of Originals ---------------------------------------------------------- 2-6
Dirt Sensor Control ------------------------------------------------------------------------- 2-8
Image Processing -------------------------------------------------------------------------2-10
Reader Heater Control -------------------------------------------------------------------2-12
Basic Conguration (DADF) ---------------------------------------------- 2-13
Component Conguration ------------------------------------------------------2-13
Outline of Electric Circuits ---------------------------------------------------------------2-13
Sensor Layout ------------------------------------------------------------------------------2-14
Drive Conguration ---------------------------------------------------------------2-14
Outline of Operation Modes ----------------------------------------------------2-15
Outline ----------------------------------------------------------------------------------------2-15
Forward Pickup/Delivery Operation ---------------------------------------------------2-15
Forward Pickup/Reverse Delivery Operation ---------------------------------------2-16
Controls (DADF) ------------------------------------------------------------- 2-18
Document Detection -------------------------------------------------------------2-18
Outline ----------------------------------------------------------------------------------------2-18
Initial Document Size Detection --------------------------------------------------------2-19
Detecting Jams -----------------------------------------------------------------------------2-19
Power Supply ----------------------------------------------------------------------2-20
Fan -----------------------------------------------------------------------------------2-20
3 Periodic Servicing
Work of Service (Reader) ---------------------------------------------------3-2
List of Work for Scheduled Servicing -------------------------------------------------- 3-2
Action to take when replacing parts ---------------------------------------------------- 3-2
Consumables -------------------------------------------------------------------------------- 3-2
Service precautions ------------------------------------------------------------------------ 3-2
Work of service (DADF) -----------------------------------------------------3-3
When replacing the parts -------------------------------------------------------- 3-3
Periodic Servicing ------------------------------------------------------------------ 3-3
List of Work for Scheduled Servicing (DADF) -------------------------3-4
4 Parts Replacement and Cleaning Procedure
List of Parts(Reader) ---------------------------------------------------------4-2
External Covers -------------------------------------------------------------------- 4-2
Main Units --------------------------------------------------------------------------- 4-2
List of Clutchs, Solenoids, Motors, Fans, PCBs --------------------------- 4-2
List of Sensors ---------------------------------------------------------------------- 4-2
Consumable Parts Requiring Periodic Replacement and Cleaning
Points --------------------------------------------------------------------------------- 4-2
External Covers(Reader) ----------------------------------------------------4-3
Removing the Reader Left Cover ---------------------------------------------- 4-3
Removing the Reader Front Cover -------------------------------------------- 4-3
Removing the Reader Right Cover -------------------------------------------- 4-3
Removing the Reader Rear Cover -------------------------------------------- 4-4
Main Units/Parts (Reader) --------------------------------------------------4-5
Removing the CCD Unit ---------------------------------------------------------- 4-5
Action to Take after Replacing the CCD Unit ---------------------------------------- 4-7
Removing the Platen Glass ----------------------------------------------------- 4-8
Action to Take after Replacing the Platen Glass ------------------------------------ 4-8
Removing the ADF Scan Glass ------------------------------------------------ 4-9
Action to Take after Replacing the ADF Scan Glass ------------------------------- 4-9
List of Parts(DADF) --------------------------------------------------------- 4-11
External Covers ------------------------------------------------------------------- 4-11
Consumable Parts Requiring Periodic Replacement and Cleaning
Points -------------------------------------------------------------------------------- 4-11
List of Clutchs, Solenoids, Motors, Fans, PCBs --------------------------4-12
List of Sensors ---------------------------------------------------------------------4-12
External Covers (DADF) -------------------------------------------------- 4-13
Removing the Front Cover -----------------------------------------------------4-13
Removing the Rear Cover ------------------------------------------------------4-13
Removing the Feeder Cover ---------------------------------------------------4-14
Main Units (DADF) ---------------------------------------------------------- 4-15
Removing the Feed Unit --------------------------------------------------------4-15
Consumable Parts Requiring Periodic Replacement and Cleaning
Points (DADF) --------------------------------------------------------------- 4-16
Removing the Pickup Roller Unit ---------------------------------------------4-16
Removing the Separation Pad -------------------------------------------------4-17
Replacing the Stamp -------------------------------------------------------------4-17
Exchanging the Feed Roller Guide -------------------------------------------4-18
Clutch Solenoid Motor Fan PCB (DADF) ----------------------------- 4-19
Removing the ADF Motor(M1) -------------------------------------------------4-19
Removing the Release Motor(M2) --------------------------------------------4-19
Removing the Pressurization Solenoid(SL1) ------------------------------4-20
Pickup Clutch/Registration Clutch(CL1/CL2) -----------------------------4-20
Removing the ADF Driver PCB ------------------------------------------------4-21
Removing the LED PCB --------------------------------------------------------4-22
Removing the Fan ----------------------------------------------------------------4-22
Removing the Sensor(SR1,SR2,SR3) ---------------------------------------4-23
Removing the Timing Sensor(SR4) ------------------------------------------4-27
Removing the Document Set Sensor(SR5) --------------------------------4-27
Removing the Cover Open/Closed Sensor(SR6) -------------------------4-27
Removing the Last Document Detection Sensor(SR7) -----------------4-27
Removing the Document Length Sensor(SR8,SR9) ---------------------4-28
Removing the Release Motor HP Sensor(SR11) -------------------------4-28
5 Adjustment
Image position adjustment(Reader) --------------------------------------5-2
Leading Edge Non-Image Width ----------------------------------------------- 5-2
Left Non-Image Width ------------------------------------------------------------ 5-2
Overview (DADF) -------------------------------------------------------------5-3
Adjustment Method (DADF) ------------------------------------------------5-3
Adjusting the Height --------------------------------------------------------------- 5-3
Pre-check ------------------------------------------------------------------------------------- 5-3
Checking the left hinge height ----------------------------------------------------------- 5-4
Adjustment Procedure --------------------------------------------------------------------- 5-5
Adjust the height of the left hinge ------------------------------------------------------- 5-5
Check the height of the right hinge ----------------------------------------------------- 5-5
Adjust the height of the right hinge ----------------------------------------------------- 5-5
Adjusting the Perpendicularity -------------------------------------------------- 5-6
Adjusting the Read Position ----------------------------------------------------- 5-7
Adjusting the Horizontal Registration ----------------------------------------- 5-7
Adjusting the Trailing Edge Registration ------------------------------------- 5-7
Adjusting the Magnication ------------------------------------------------------ 5-7
Adjusting the White Level -------------------------------------------------------- 5-8
6 Installation
How to Utilize This Installation Procedure ------------------------------6-2
Illustrations Used in This Procedure ------------------------------------------ 6-2
Descriptions Used in This Procedure ----------------------------------------- 6-2
When Using the Contained Parts (Bundled Components in the Shipping
Carton) -------------------------------------------------------------------------------- 6-2
Symbols in the Illustration ------------------------------------------------------- 6-2
Caution During Installation --------------------------------------------------6-3
Turning OFF the Host Machine Power ----------------------------------6-3
Checking the Contents ------------------------------------------------------6-4
Installation Procedure --------------------------------------------------------6-5
Operation Check ------------------------------------------------------------ 6-16
Appendix
Service Tools ----------------------------------------------------------------------ii
Solvents and Oils ------------------------------------------------------------------------------ ii
Special Tools ------------------------------------------------------------------------------------ ii
General Circuit Diagram(DADF) -------------------------------------------- iii
General Circuit Diagram ---------------------------------------------------------------------iii
General Circuit Diagram(Reader) -------------------------------------------iv
General Circuit Diagram ------------------------------------------------------------iv
Signal Name List(Reader) -----------------------------------------------------v
Signal Name List(DADF) ------------------------------------------------------vi
Signal Name List -------------------------------------------------------------------------------vi
0
0
0-2
0-2
Safety Precautions > Notes Before it Works Serving
Safety Precautions > Notes Before it Works Serving
Notes Before it Works Serving
Caution:
At servicing, be sure to turn off the power source according to the specied steps and
disconnect the power plug.
Caution:
Do not turn off the power switch when downloading is under way.Turning off the main
power switch while downloading is under way can disable the machine.
1
1
1-2
1-2
Product Outline > Specications (Reader)
Product Outline > Specications (Reader)
Features (Reader)
• Adapting Reading sensor, allows low power consumption and high-speed trigger.
• Exposure to light by white color LED, enables low power consumption, size reducing, and
color balance improvement.
• Color aberration-free.
Specications (Reader)
The major specications, controls and functions of the original exposure system are described
below.
Item Specication/function
Original exposure Indirect exposure by LED (LED & photoconductive body)
Original scan In book mode Scan by movement of CCD
In ADF mode Stream reading with CCD xed
Maximum original size 297mm x 432mm (In book mode)
Read resolution 600 dpi (main scanning) x 600 dpi (sub scanning)
Gradation 256 gradation
Carriage position detection CCD HP sensor (SR1)
Magnication 25% to 400%
Main scanning
direction
Image is processed on main controller PCB 2
Sub scanning
direction
Image is processed on main controller PCB 2
Lens Gauss lens
CCD Number of lines: 4 (R, G, B, B/W)
Number of pixels: 7500 x 3 color lines, 7500 x 1 B/W line
Maximum original read width: 304mm
CCD unit drive control By scanner motor (M1)
Original size
detection
In book mode Main scanning direction: by CCD
Sub scanning direction: by reection sensor (AB/INCH)
In ADF mode Main scanning direction: by photo interrupter on DADF
Sub scanning direction: by photo interrupter on DADF
T-1-1
1
1
1-3
1-3
Product Outline > Names of Parts (Reader) > Cross Section
Product Outline > Names of Parts (Reader) > Cross Section
Names of Parts (Reader)
External View
[1]Reader Front Cover
[2]Reader Front Sub Cover
[3]Reader Left Cover
[7]Reader Right Cover
[5]Reader PCB Cover
[4]Reader Rear Cover
[10]Stream Read Glass
[9]Copyboard Glass
[6]Rear Small Cover
Reader PCB Cover
Reader Right Cover
Connector Cover
Reader Rear Cover
F-1-1
F-1-2
Cross Section
Stream reading glass Copyboard glass
CCD unit
F-1-3
1
1
1-4
1-4
Product Outline > Names of Parts (Reader) > Cross Section > Reader Relay PCB
Product Outline > Names of Parts (Reader) > Cross Section > Reader Relay PCB
■Major Components
Following shows major components of document exposure system.
[M1]Scanner Motor
[SR4]Original Size Sensor 0
[PCB1]Relay Board
[SR2]Copyboard Cover
Open/Closed Sensor(Rear)
[SR3]Copyboard Cover
Open/Closed Sensor(Front)
[SR1]CCD HP Sensor
[8]CCD Unit
[H5]Reader Heater(Option)
[H5]Reader Heater(Option)
[SR5
]Original Size Sensor 1
Item Notation Specication/function
Scanner motor M1 Pulse motor: controls the carriage drive
CCD HP sensor SR1 Detects CCD home position
Copyboard Cover Open/Closed
Sensor (front)
SR2 Ends original size identication with the copy board
cover at 15 deg
Copyboard Cover Open/Closed
Sensor (rear)
SR3 Detects the copyboard cover open/close. Starts original
size identication with the copy board cover at 5 and 25
deg.
Original Size Sensor 0 SR4 Helps identify original size(AB, INCH/AB, A)
Original Size Sensor 1 SR5 Helps identify original size(INCH/AB, INCH/A)
CCD unit - Indirect exposure by LED (LED & photoconductive
body)
Reader Heater (Option) H5 Prevents condensation on the copyboard glass
Reader relay PCB PCB1 The part of the image processing
F-1-4
T-1-2
■Reader Relay PCB
The function conguration of reader controller PCB is described below.
J504
J511
J507
J506
J509
J503
J512
J505 J502
J508
J501
J510
IC501
Jack No Description
J501 Connection to original size sensor
J502 Connection to original size sensor
J503 Power supply to DADF
J504 Communication with DADF
J505 Connection to Scanner motor
J506 Connection to original size sensor
J507 Communication with main controller PCB 2
J508 Communication with CCD
J509 Communication with DADF
J510 Connection to copyboard cover open/close sensor and CCD HP sensor
J511 Receives power from the host machine (printer unit)
J512 Communication with main controller PCB 2
F-1-5
T-1-3
1
1
1-5
1-5
Product Outline > Specications (DADF)
Product Outline > Specications (DADF)
Features (DADF)
• Mixed size loading mode enables the feeder to handle the different width originals in a job.
• New body shape and color.
• Interface cable is wired inside the body.
Specications (DADF)
Item Specications
Document pickup method Automatic pickup and delivery
Document loading direction Face-up
Document loading position Aligned to center
Document separation method Upper separation
Document type Single -sided AB type: 42-128 g/m2
Inch type: 50-128 g/m2
Double-sided 50-128 g/m2
Color document 64-128 g/m2
Black and White/
Color Mixed
50-128 g/m2 (Color:64-128 g/m2)
Document longer
than 432 mm
Single-sided one sheetFeed: 60- 90g/ m2
Document size AB type: B6/A5/B5/A4/B5R/A5R/A4R/B4/A3 (B6:Cross feed
only)
INCH type: STMT/LTR/LTRR/LGL/11"×17" (STMT:Cross feed
only)
Others:8K/16K
Document width: 148-297mm
Document length (longitudinal): 128-432mm (“630mm” is held by
the operator.)
Document tray capacity 50 sheets (80g/m2)
Document processing mode - Single-sided document processing
- Double-sided document processing
Document size recognition Available (Standard size)
Mixed document function Same types of paper can be mixed.
Different types of paper can be mixed.
Different types original mixable combination:
A/B type: A3/B4R,A4/B5,B4/A4R,B5/A5,A4R/B5R,A5/B6
Inch type: LDR/LGL,LTR/LGL,LTR/STMT
Book document Supported (The document thickness must be 50 mm or less.)
Interface with Install Connected
Equipment
Cereal Interface
Power supply Supplied from host machine
Dimensions 565 mm×510 mm×145 mm (W×D×H)
Weight Approx. 7.9 kg
T-1-4
1
1
1-6
1-6
Product Outline > Names of Parts (DADF) > Cross Section
Product Outline > Names of Parts (DADF) > Cross Section
Names of Parts (DADF)
External View
Feeder Cover
Front Cover
Rear Cover
Document supply tray
Document delivery tray
Slide guide
F-1-6
Cross Section
[13]
[12]
[3] [5][4] [6]
[7][8][9][10][15] [14]
[1] [2]
[11]
No. Part name
[1] Lower registration roller
[2] Upper registration roller
[3] Feed roller
[4] Separation pad unit
[5] Pickup roller
[6] Document supply tray
[7] Upper delivery reversal roller
[8] Lower delivery reversal roller
[9] Read roller 2 (lower)
[10] Read roller 2 (upper)
[11] Platen roller
[12] White sheet
[13] Read roller
[14] Read roller 1 (lower)
[15] Read roller 1 (upper)
F-1-7
T-1-5
2
2
2-2
2-2
Technology > Technology (Reader) > Basic Sequence > Basic Sequence at Start Key ON (ADF mode/1 original)
Technology > Technology (Reader) > Basic Sequence > Basic Sequence at Start Key ON (ADF mode/1 original)
Technology (Reader)
Basic Sequence
■Basic Sequence at Power-On
ON STBY
B F
( )
Light-ON
(LED)
ON
CCD adjustment
(CCD
HPsensor)
Scanner motor
Footnote
• F: Scanner motor moves forward (toward right).
• B: Scanner motor moves backward (toward left).
• Light-ON: LED on CCD unit lights-on.
• ON: When CCD HP sensor (photo interrupter type) detects.
■Basic Sequence at Start Key ON (book mode/1 original)
(Scanner motor)
Shading correction
Light-ON
Copy start In reading End
F
F
BB
ON ON
White board duct detection control
(LED)
(CCD HP
sensor )
Footnote
• F: Scanner motor moves forward (toward right).
• B: Scanner motor moves backward (toward left).
• Light-ON: LED on CCD unit lights-on.
• ON: When CCD HP sensor (photo interrupter type) detects.
F-2-1
F-2-2
■Basic Sequence at Start Key ON (ADF mode/1 original)
Copy start Dust detection control In stream reading End
B F F F B F B B
F F F F
(Scanner motor)
Light-ON
ON
Shading correction
White board duct detection control
Light-ON
(LED)
(CCD HP
sensor )
Dust detection control
This is activated when any of the following conditions is true.
• Dust has been detected in all 3 locations at previous 1 job.
• Dust detection could not be activated due to JAM etc at previous job.
Footnote
• F: Scanner motor moves forward (toward right).
• B: Scanner motor moves backward (toward left).
• Light-ON: LED on CCD unit lights-on.
• ON: When CCD HP sensor (photo interrupter type) detects.
F-2-3
2
2
2-3
2-3
Technology > Controls (Reader)
Technology > Controls (Reader)
Controls (Reader)
■Controlling the Scanner Drive System
●Overview
Parts conguration of scanner drive is described below.
Forward
Backward
Sensor light
block plate
CCD HP sensor (SR1)
Scanner motor (M1)
CCD unit
Reader relay PCB (PCB1)
Copyboard cover
open/closed sensor (SR2)
Guide shaft
Carriage drive belt
Copyboard cover
open/closed sensor (SR3)
- Scanner motor (M1) drive signal
Turns on/off the motor and controls its direction/speed of rotation.
- CCD HP sensor (SR1) detection signal
Checks if CCD is at home position.
- Copyboard cover open/closed sensor (front: SR2/rear: SR3) detection signal
Detects the open/close status of the copyboard cover
F-2-4
●Scanner Motor Control
Scanner motor driver turns on/off the motor and controls its direction/speed of rotation
according to the signals from CPU.
Main controller PCB 2
3.3V +24V
OPM_ENB
OPM_CLK
OPM_CWB
MOT_VREF
+5V
B*
B
A
A*
CPU Motor
driver
1
2
3
4
M1
Reader relay PCB
OPM_STB
NOTE:
The scanning speed of this machine is as follows.
Black/white (600dpi x 600dpi):30ipm
Color (600dpi x 600dpi):30ipm
F-2-5
2
2
2-4
2-4
Technology > Controls (Reader)
Technology > Controls (Reader)

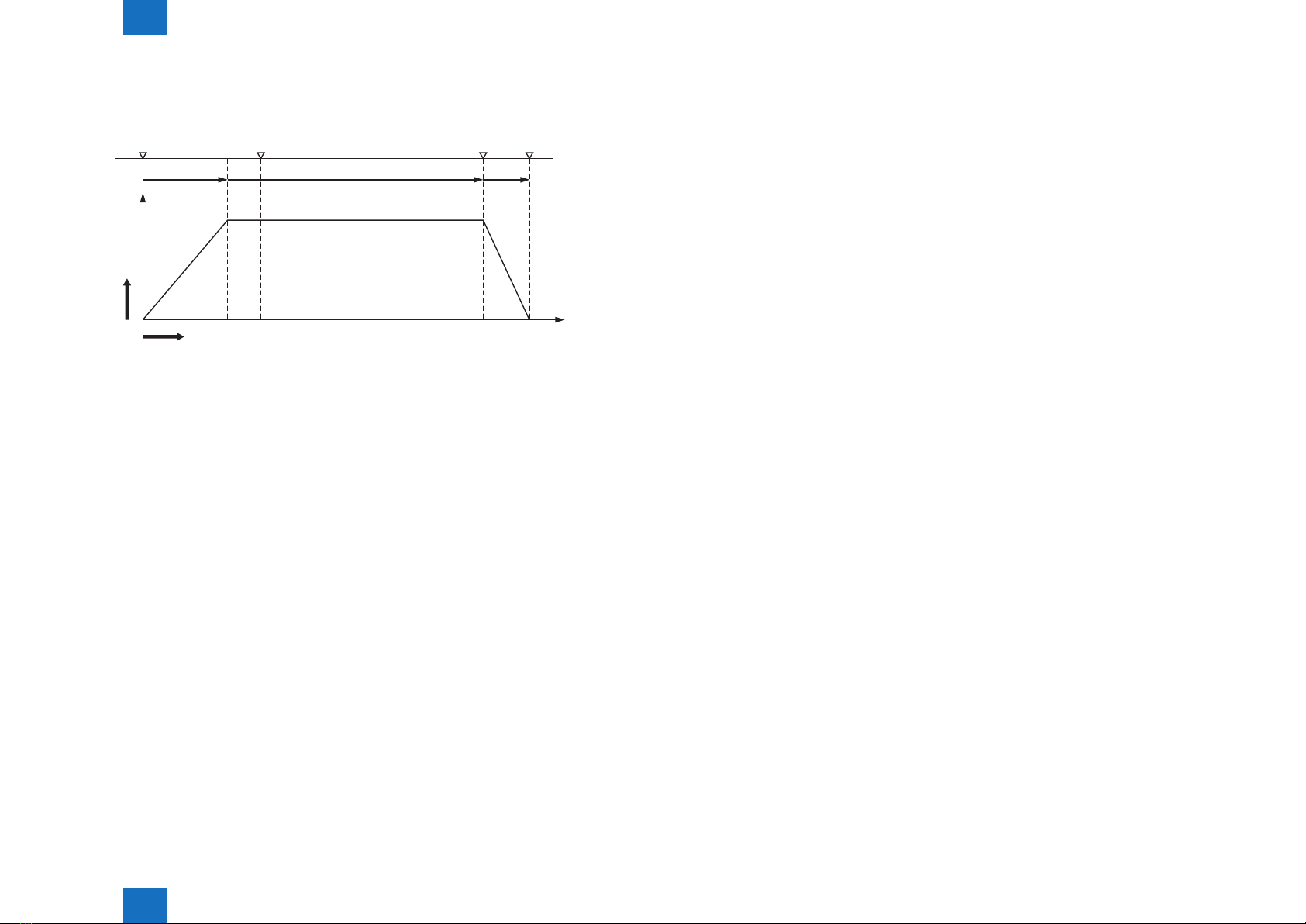

1) Forward movement when scanning an image
CCD operation is controlled by the following sensors when scanning the image.
Start position
position
Acceleration
Original
leading edge
Normal speed
Original
trailing edge
Deceleration
Stop
Shift
speed
Shift distance
[1] [2] [3] [4]
[1]
Acceleration area: Accelerates until a speed suited to the selected mode is reached
[2]Run-up speed area: Run-up margin to ensure a stable speed.
[3]Image reading area: Reads an image at a specific speed.
[4]
Deceleration area: Decelerates and stops promptly once the image end is reached.
2) Backward movement after scanning an image
After scanning an image, CCD moves backward to CCD shading position at a specic
speed (260 mm/sec).
F-2-6
■CCD
●Overview
The machine uses the CCD to expose and read an image and the image is read on a line-by-
line basis.
CCD features 4 lines (R, G, B, B/W) and B/W line is used in B/W copy and R, G, B lines are
used at color scan.
CCD overview
1. Integrated scanning conguration; CCD, lens, light source and mirror are integrated.
2. CCD elemental size: 4.7 μm
3. Lens diameter: 18mm dia
4. Light source: LED
5. Effective number of pixel: 7500 pix x 3 color lines, 7500 pix x 1 B/W line
[Optical path from LED]
The light generated from LED is reected by an original and by the 5 mirrors. And then it is
irradiated to the CCD through the lens.
2
2
2-5
2-5
Technology > Controls (Reader)
Technology > Controls (Reader)
LED lens cover
Photoconductive
body
LED (light source)
LED (light source)
Red (R) line
CCD
Lens
mirror
No.4
mirror
No.2
mirror No.3
mirror No.1
mirror
No.5
Lens
Green (G) line
Blue (B) line
Black & White (B/W) line
Items Description
CCD Receives the reected light that has gone through the lens and converts it into
electric signal to output it.
Lens Collects the light reected by an original.
LED(light source) Light source to expose an original to laser
mirror No. 1 - 5 Return the light
F-2-7
F-2-8
T-2-1
