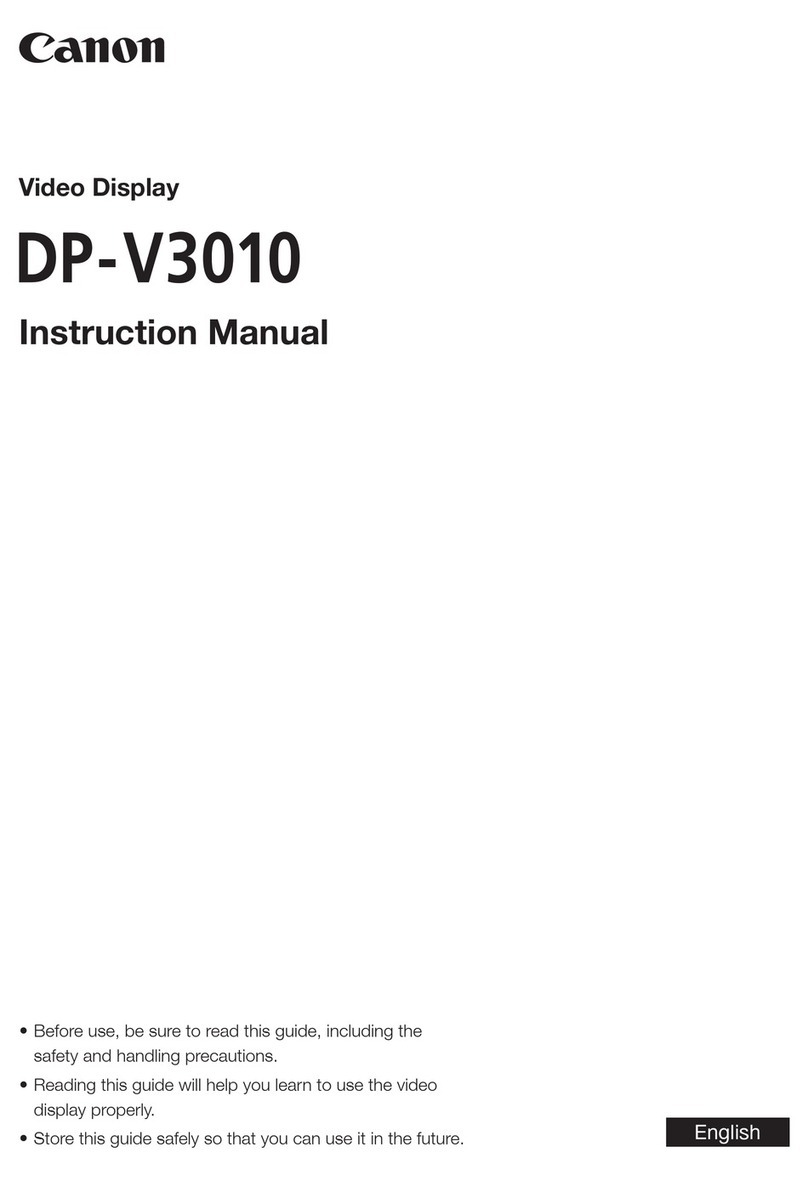

Canon dp-v3010 User manual

Instruction Manual
Video Display
•Beforeuse,besuretoreadthisguide,includingthe
safetyandhandlingprecautions.
•Readingthisguidewillhelpyoulearntousethevideo
displayproperly.
•Storethisguidesafelysothatyoucanuseitinthefuture. English
COPY

2Table of Content
Table of Content
Introduction .................................................................................................................................. 4
Aboutthismanual.................................................................................................................................... 4
Trademarks.............................................................................................................................................. 4
Safety Precautions ....................................................................................................................... 5
Handling Precautions ................................................................................................................... 6
Features........................................................................................................................................ 8
Supplied Accessories................................................................................................................. 10
Nomenclature ............................................................................................................................. 11
MainUnit................................................................................................................................................ 11
DisplayController................................................................................................................................... 13
Installation/Connection .............................................................................................................. 15
HowtoCarrytheMainUnit.................................................................................................................... 15
PreventingfromTipping......................................................................................................................... 15
ConnectingtheMainUnittoInputDevices............................................................................................. 16
ConnectingtheMainUnittotheDisplayController................................................................................. 19
InstallingtheDisplayControllerontheRack........................................................................................... 20
MountingtheMainUnitonaStandorWall............................................................................................. 21
Turning on the Power ................................................................................................................. 22
TurningonthePoweroftheMainUnit.................................................................................................... 22
TurningonMainUnitPowerfromtheDisplayController.......................................................................... 22
Pairing ........................................................................................................................................ 23
PairingtheMainUnitwiththeDisplayController..................................................................................... 23
Re-pairing.............................................................................................................................................. 23
Operating the Display Controller ................................................................................................ 24
AdjustingtheImageQuality.................................................................................................................... 24
AdjustingtheImageQualityonASCCDL............................................................................................... 24
TemporarilySavingParameters(AnchorPointSetting)............................................................................ 25
UsingtheFunction(F)Buttons............................................................................................................... 25
UsingtheChannel(CH)Button............................................................................................................... 26
CheckingSignalInformationandStatusoftheMainUnit........................................................................ 26
Using the OSD Menu.................................................................................................................. 27
BasicOperation..................................................................................................................................... 27
AdjustingImageQualityWhileViewingtheEntireImage......................................................................... 28
CalibrationwithoutaPC......................................................................................................................... 28
Export/Import......................................................................................................................................... 29
SetDate/Time........................................................................................................................................ 31
InputtingCharacters............................................................................................................................... 31
COPY

3Table of Content
OSD Menu.................................................................................................................................. 32
OSDMenuIndex.................................................................................................................................... 32
Adjustment............................................................................................................................................. 36
ChannelSettings.................................................................................................................................... 40
DisplaySettings...................................................................................................................................... 42
MarkerSettings...................................................................................................................................... 44
FunctionSettings................................................................................................................................... 48
SystemSettings..................................................................................................................................... 50
SignalInformation................................................................................................................................... 53
SystemInformation................................................................................................................................ 53
Main specifications/Performance............................................................................................... 54
MainUnit................................................................................................................................................ 54
DisplayController................................................................................................................................... 55
Dimensions............................................................................................................................................ 56
Appendix .................................................................................................................................... 57
SupportedSignalFormat....................................................................................................................... 57
Image/FrameDisplay.............................................................................................................................. 72
PictureDisplaySize................................................................................................................................ 74
InputSignalsandAdjustable/SettingItem............................................................................................... 77
Error Messages .......................................................................................................................... 78
Troubleshooting.......................................................................................................................... 80
Software Used in This Product................................................................................................... 81
Index........................................................................................................................................... 83
COPY

4Introduction
Introduction
ThankyouforpurchasingtheVideoDisplayDP-V3010.
TheOnScreenDisplay(thereafterreferredtoOSD)defaultlanguagesettingisEnglish.TochangetheOSDmenu
languagesetting,pleaserefertop.50.
About this manual
Someoftheillustrationusedinthemanualhavebeensimpliedforclarity.
Conventions used in this manual
:Indicatesareferencepage.
Note:Indicatesanote.
Reference:Indicatesreferenceinformation.
CAUTION:Indicatesanitemyoumustobserve.
Trademarks
• DisplayPortandVESAareregisteredtrademarksortrademarksofVideoElectronicsStandardsAssociationinthe
U.Sandothercountries.
• AdobeandReaderareregisteredtrademarksofAdobeSystemsIncorporatedintheUnitedStatesandother
countries.
• Otherproductandcompanynameshereinaretrademarksorregisteredtrademarksoftheirrespectiveowners.
COPY

5Safety Precautions
Safety Precautions
For the customers in the U.S.A.
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,pursuanttoPart15of
theFCCRules.
Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferencewhentheequipmentis
operatedinacommercialenvironment.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergy
and,ifnotinstalledandusedinaccordancewiththeinstructionmanual,maycauseharmfulinterferencetoradio
communications.Operationofthisequipmentinaresidentialareaislikelytocauseharmfulinterferenceinwhichcase
theuserwillberequiredtocorrecttheinterferenceathisownexpense.
Donotmakeanychangesormodicationstotheequipmentunlessotherwisespeciedinthemanual.Ifsuchchanges
ormodicationsshouldbemade,youcouldberequiredtostopoperationoftheequipment.
UseofshieldedcableisrequiredtocomplywithclassAlimitsinSubpartBofPart15ofFCCRules.
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevice
maynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterference
thatmaycauseundesiredoperation.
CanonU.S.AInc.
OneCanonPark,Melville,NY11747,U.S.A.
TelNo.(631)330-5000
For the customers in Canada
CANICES-3(A)/NMB-3(A)
For the customers in Europe
Thisproductmaycauseinterferenceifusedinresidentialareas.Suchusemustbeavoidedunlesstheusertakes
specialmeasurestoreduceelectromagneticemissionstopreventinterferencetothereceptionofradioandtelevision
broadcasts.
CANONINC.
30-2,Shimomaruko3-chome,Ohta-ku,Tokyo146-8501,Japan
CANONEUROPAN.V.
Bovenkerkerweg59,1185XBAmstelveen,TheNetherlands
OnlyforEuropeanUnionandEEA(Norway,IcelandandLiechtenstein)
Thissymbolindicatesthatthisproductisnottobedisposedofwithyourhouseholdwaste,
accordingtotheWEEEDirective(2012/19/EU)andnationallegislation.Thisproductshould
behandedovertoadesignatedcollectionpoint,e.g.,onanauthorizedone-for-onebasis
whenyoubuyanewsimilarproductortoanauthorizedcollectionsiteforrecyclingwaste
electricalandelectronicequipment(EEE).Improperhandlingofthistypeofwastecouldhave
apossiblenegativeimpactontheenvironmentandhumanhealthduetopotentiallyhazardous
substancesthataregenerallyassociatedwithEEE.Atthesametime,yourcooperationinthe
correctdisposalofthisproductwillcontributetotheeffectiveusageofnaturalresources.For
moreinformationaboutwhereyoucandropoffyourwasteequipmentforrecycling,please
contactyourlocalcityofce,wasteauthority,approvedWEEEschemeoryourhouseholdwaste
disposalservice.FormoreinformationregardingreturnandrecyclingofWEEEproducts,please
visit
www.canon-europe.com/weee.
COPY

6Handling Precautions
Handling Precautions
Places to avoid using the video display
Donotusethevideodisplayinthefollowingplacesorconditions.
• Placeswithexcessivedustorhumidity
• Places
thatwillexposethevideodisplaytodirectsunlight,smoke(suchasfromakeroseneheaterorothersuchsource)
orsteam
• Nearheatsources,humidiersorammablegas
• Nearawindowduringrainorsnow
• Nearwaterorotherplacesthatcouldcausemoisturetoformonthevideodisplay
Screen Handling
• Thescreenmaybedamagedifitisleftfacingstrongsourceoflight.Pleasetakeprecautionswhenplacingitneara
window.
• Donotpressrmlyonthescreen,scratchitorplaceanobjectonthescreen.Itcancausenon-uniformityordamage
tothepanel.
• Thescreenandcabinetmaybecomewarmduringuse.Notethisdoesnotconstituteamalfunction.
About Backlight
Thebacklighthasalimitedservicelifesoitsbrightnessmaydegradeandcolormaychangeduetoaging.
About Temporary Screen burn-in
Ifastationaryimageisdisplayedforaprolongedperiod,screenburn-inmayoccurwhereyouseeremnantsofwhat
wasdisplayed.ThisisacharacteristicofLCDandisnotafailure.However,thisisonlytemporaryandwilldisappear
whenplayingvideo.
About the LCD screen
Thescreenisproducedusingextremelyhigh-precisionmanufacturingtechniques,withmorethan99.99%ofthepixels
operatingtospecication.Lessthan0.01%ofthepixelsmayoccasionallymisreorappearasblack,red,blueor
greendots.Inaddition,thistendencymayincreasethroughlongtermuseduetocharacteristicoftheLCDpanel.
Thesedonotconstituteamalfunction.
Condensation
Ifthisequipmentisbroughtintoawarmroomwhileitiscoldoriftheroomisheatedsuddenly,condensationmayform
onthesurfaceorinsidetheequipment.Notethattheequipmentmaybedamagedifitisusedundersuchcondition.
Ifcondensationhasformedonthesurfaceorinsidetheequipment,donotusethevideodisplayasitmayget
damaged.Turnthepoweroffandwaituntilthecondensationhasevaporatedbeforeusingthevideodisplay.
COPY

7Handling Precautions
Cleaning
• Beforecleaning,pleaseunplugthepowerplugfromthewalloutlet.
• Thescreenhasaspecialsurfacetreatment,avoidtouchingitdirectlywithyourhand.Inaddition,neverafx
adhesiveobjectssuchasseals.
• Neverusealcoholorbenzene,thinner,acidiccleaningsolution,alkalinecleaningsolution,abrasiveorchemical
wipesbecausethesewilldamagethescreen.
• Ifthescreenisdirty,wipegentlywithsoftdryclothsuchascleaningclothoreyeglassescleaningcloth.Wipingthe
screentoohardmaycauseunevennessonthescreenordamagetheLCDpanel.Thescreenmaybescratchedif
wipedtoohardwithacleaningclothwithforeignparticlesattached.
• Whenthescreenisextremelydirty,wipewithsoftclothsuchascleaningclothoreyeglassescleaningcloth
moistenedwithwater-dilutedneutraldetergent.
• Useablowertoremovedustfromthesurfaceofthescreen.
• Sincethepartofthecabinetsurroundingthescreenhasaspecialsurfacetreatment,wipingofftheareamayfade
itssurfacecolor.
• Wipedirtoncabinetwithasoftcloth.Ifthescreenisverydirty,useamoistenedclothwithwaterormilddetergent
dilutedwithwater.Donotusealcohol,benzene,paintthinner,orpesticidesastheymaydamagethesurfacenish
orerasecharactersonthecabinet.
Disposing
• Donotdisposetogetherwithnormalwaste.Donotincludethevideodisplayinwastethatwillbetakentolandll.
• Observetherulesandregulationsofyourlocalauthoritieswhendisposing.
COPY

8Features
Features
DP-V3010videodisplayispackedwiththeessenceofCanon'simage-makingknow-howsuchashigh-denitionIPS
LCDpanel,displayengineandbacklighttechnology.Itprovidesoptimalperformanceandfunctionsintheeldofvideo
productionsuchascolorgradingandVFX(VisualEffects).
Faithful Color Reproduction
ThedisplayfeaturesaCanon-designedRGBLEDbacklightsystemandIPSLCDpanelwhichreproducearicharray
ofcolors.BesidestheDCI(DigitalCinemaInitiatives)colorgamut,itisalsoideallysuitedtodisplayingthecolorgamuts
ofamultiplenumberofotherbroadcaststandards,namely,ITU-RBT.709,ITU-RBT.2020,EBU,SMPTE-CandAdobe
RGB.
High-Resolution/High Definition
4Kcontentisdisplayeddot-by-dotwith10.5megapixelsresolution(4096x2560)and157.5μmpixelpitch.
High Contrast
DCI-P3standardcontrastratioof2000:1orgreaterisachievedbyadoptingimageprocessingtechnologyimplemented
throughtheuseofhighcontrastpanelandCanon'sproprietaryalgorithm.
Aspect Ratio Suitable for Video Production (16:10)
Theaspectratioenablesdot-by-dotdisplayofdigitalcinema(1.896:1)orHDTVbroadcast(16:9)contentsforcolor
gradingwork,aswellasdisplaystandardPCsignal(16:10)infull,whichisidealforVFXwork.
2K/Full-HD High Definition View
Canon'sproprietaryalgorithmreducesjaggedlinesandproducessmoothdisplaywhenexpanding2K/Full-HDcontent.
Specialized Performance and Functions for Video Production Display
• InterconnectivitywithCINEMAEOSSYSTEM
Forcolorgamutsettings,"CinemaGamutto709","CinemaGamuttoDCI","DCI-P3+to709",and"DCI-P3+
toDCI"areincorporatedinordertomonitorCinemaGamutandDCI-P3+videothatEOSC500/C500PLof
theCINEMAEOSSYSTEMsupports.Inaddition,"CanonLog",apicturemodetobestviewCanonLog,is
incorporated.
• ACESproxy(ACESSystemVer.0.7)support
"ACES(AcademyColorEncodingSystem)"isaworkowforvideoproductionproposedbytheAMPAS(Academy
ofMotionPictureArtsandSciences),and"ACESproxy"isthestandardfortransmittingACESinSDIformat.The
ACESworkowcanbesupportedbylinkingwiththeEOSC500/500PL.
• ASCCDLSupport
ColoradjustmentusingCDL(ColorDecisionList)recommendedbyASC(AmericanSocietyofCinematographers)
enablestheconsistentapplicationofthecolorparametersfromproductiontopost-production.
• LUTImportSupport
Easyimportingof1D/3D-LUTmakesitpossibletorecreatethesamecolorandgradationexpressionsoughtafter
byproducersatshootinglocations.
• BacklightScan
"Blurredvideo"specictoLCDpanelisreducedbyintegratingtheBacklightScanfeature,whichpartiallyturnsoff
thebacklightareaandreducestheimageholdperiodwhendisplayingimages.
COPY

9Features
• CalibrationwithoutaPC
Calibrationcanbeperformedeasilywithouttheuseofdedicatedapplication.Calibrationenablesbrightness
andcolortomaintainfactorydefaultsettings.Youcanalsoadjustthevideodisplayconditiontomatchyour
requirements,purpose,andtheambientlight.
• Operability
Allsettingsarepossiblewithdisplaycontrolleroperation.Minimumnecessaryoperationsarealsopossiblefrom
themainunit,providingmeansofoperationdependingontheusecases.Inaddition,theOSDmenuprovides
instantviewofcongurations.
Essential Functions as a Video Production Display
• MultipleDisplayFunctions
Providesdisplayfunctionssuchasmarkers,timecode,andtestpatternswhicharerequiredforvisual
conrmation.
• SupportsInterfaceforVideoProduction
Equippedwith3G/HD-SDIterminalthatisstandardinthebroadcastindustryandDisplayPortterminalusedinPC
withhighresolution.
• MultipleFormatSupport
Supports1280x720/24.00P,25.00P,30.00P,50.00P,60.00Pto4096x2160/24.00P,25.00P,30.00P,48.00P,
50.00P,60.00P,50.00i,60.00iSDIand640x480to4096x2560DisplayPortsignalstoenableviewingofavariety
ofsignal.
• EquipmentDesignEnablingEffectiveUseofSpace
Thespace-savinginstallationagainstawallispossiblethankstotheproprietaryheatdissipation.
COPY

10 Supplied Accessories
Supplied Accessories
Thefollowingitemsaresuppliedwiththisproduct.Pleasecheckbeforeusing.
ACPowerCordVT-20 DisplayControllerCL-01 LANCableLN-30
(3m)
CompactPowerAdapter
CA-PS700andACcable
RackMountBracketRB-01 RackMountBracketScrewSW-02
(M3x6mmx4)
HexKeyHK-01
(Allenwrench3mm)
TipPreventionFittingTP-01
(M6x10mmx2)
InstructionManualDisc* DP-V3010InstructionManual
(thisdocument)
*InstructionManualDisc
ThisdisccontainstheJapanese,English,French,German,andSimpliedChineseinstructionmanualsinPDFformat.
AdobeReader11.0orabovemustbeinstalledonyourcomputertoviewtheinstructionmanualsinPDFformat.
COPY

11Nomenclature
Nomenclature
Main Unit
■Front
1 2
3
1F1toF4button Executesthedenedfunction.
Thefollowingfunctionshavebeenassignedatthefactory.Thesefunctionscanbe
changedifnecessary.
F1:ChannelUP
F2:ChannelDOWN
F3:TimeCode(On/Off)
F4:AspectMarker(On/Off)
25
2button(Powerbutton) TurnspowerOn/Off. 22
3Powerindicator Displaysthestatusofthemainunit.Thebrightnessofthepowerindicatorcanalsobe
setfrom"1(dark)to5(brightest)".Evenwhenthepowerindicatoris"Off",itwillash
duringrmwareupgrade,networksettingsreset,orwhenanerrorisdetected.
Off:mainpowersupplyoff
Greenlit:mainpowersupply/Poweron
Greenash:duringcalibration,rmwareupgrade,ornetworksettingsresetin
progress
Amberlit:standby(Mainpowersupplyonandpowersupplyoff)
Amberash:whenerrorisdetected
51
80
■Rear
4 5 6 5
4Mainpowersupply
switch TurnsmainpowersupplyOn/Off. 22
5Handle Useforcarryingthemainunit. –
6ACpowerinputterminal ConnectstoACpowersupplycord. 22
COPY

12 Nomenclature
■Interface
Left side Right side
7
Ag
8
9
Aq
Aa
As
Ad
Af
Ah
Aj
7Aa
3G/HD-SDIinput
terminal1
Twoinputsystems
correspondingtoinput1.
8As
3G/HD-SDI
outputterminal1
Monitoroutput
correspondingto7Aa
9Ad
3G/HD-SDIinput
terminal2
Twoinputsystems
correspondingtoinput2.
AqAf
3G/HD-SDI
outputterminal2
Monitoroutput
correspondingto9Ad
Ag
LAN(10/100
BASE)terminal
Connectstodisplay
controller.
Themainunitconnects
1to1withthedisplay
controller.Itcanalsobe
connectedviaahub.
Ah
USBport Usedtoconnectexternal
sensorforcalibration
(28)orUSBmemoryfor
export/import( 29).
Aj
DisplayPortinput
terminal
Oneinputsystem
available.
CAUTION
• WhenconnectinganexternalsensorforcalibrationtotheUSBport,cablelengthmustnotexceed3m.Otherwise,
communicationerrormayoccurandcorrectcalibrationmaynotbepossible.
• DirectlyconnectexternalsensorsandUSBmemorywithoutusingahub.
Note
• DualLinkHD-SDIisusedforconnectingtwoinputsystems( 16,17)
• BothFAT16andFAT32USBmemorydevicesaresupported.
• ProperoperationcannotbeguaranteedforallUSBmemories.
• Itmaytake10secondsormorefortheUSBmemorytoberecognized.When"SettingsExport/Import"isexecutedwhile
theUSBmemoryisbeingrecognized,themessage"DetectingUSBmemory."willbedisplayed.
COPY

13Nomenclature
Display Controller
■Front
1F1-F10buttons Executestheassignedfunction. 25
2RGBselectbutton(whenusingCDL) SelectsandadjustsRGBduringCDLadjustment.
24
27
3SHARPNESSknob(normaluse) Adjuststhesharpnessofthe
Image.
Providesthesamecontrolasthe
buttonsintheOSDmenu.
POWERknob(whenusingCDL) Adjuststhepoweroftheimage.
4CHROMAknob(normaluse) Adjustthecolorsaturationofthe
image.
Providesthesamecontrolasthe
buttonsintheOSDmenu.
SATURATIONknob(whenusingCDL) AdjuststheSATURATIONofthe
image.
5BRIGHTNESSknob(normaluse) Adjuststheblackleveloftheimage.
OFFSETknob(whenusingCDL) AdjuststheOFFSEToftheimage.
6CONTRASTknob(normaluse) Adjuststhewhiteleveloftheimage.
SLOPEknob(whenusingCDL) AdjuststheSLOPEoftheimage.
7CDLselectswitch SwitchesbetweennormalandCDLmode.
8RESETbutton Returnsadjustments3to6todefaultvalue.Whenadjustingthe
valuesusingthesliderintheOSDmenu,presstheRESETbuttonabove
SHARPNESSorCHROMAtoreturntothedefaultvalue.
9MENUbutton Opens/closestheOSDmenu,ormovesuponelevelinamenu.
27
MovestheselectionframewithintheOSDmenu.Changessettings.
SETbutton ConrmsanOSDmenusettingormovestheselectionframeup/down
1level.WhentheOSDmenuisclosed,displaysvariousbanners.
26
27
Aq button Setsthebuttonbrightness.RotatesamongOff→1(dark)→2(normal)→3
(bright)eachtimebuttonispressed.Evenwhenthepowerindicator(Ad)
isoff,itwillashduringrmwareupgrade,networksettingsreset,or
whenanerrorisdetected.
–
Aa CH1-CH4buttons Changeschannel. 26
As button(Powerbutton) TurnsthepowerofmainunitOn/Off. 22
Ad Powerindicator Off:poweroff
GreenOn:mainpowersupplyofdisplay/Poweron/duringcalibration
Greenash:Whenmainunitpoweristurnedonfromthedisplay
controller,duringrmwareupgrade,ornetworksettingsresetin
progress
AmberOn:mainpowerofdisplayisoff/standbyorwhennotpaired.
Amberash:whenerrorisdetected
–
1 2 3
8 Aa Ad
As
4 5 6 7 9 Aq
COPY

15Installation/Connection
Installation/Connection
How to Carry the Main Unit
CAUTION
• Whenunpackingorcarryingthismainunit,pleasenotethatatleasttwopeoplearerequired.
• Pleasecarrythemainunitasillustratedinthegurebelow.Pleasetakeparticularcareasthemainunitmaytiltandcause
injuryorgetdamaged,whencarried.
Handle
Preventing from Tipping
ThesuppliedtippreventionttingTP-01canbeusedtosignicantlyreducetheriskofthemainunittippingorfalling.
Makesuretocompletethepowerandinputdeviceconnectionsbeforehand.
1. Remove two top screws at the rear of the main unit using the supplied hex key HK-01.
Donotlosetheremovedscrew.Donotusethesescrewsforotherpurposes.
2. Insert the tip prevention fitting TP-01 into the two top screw holes and secure.
Screws
3. Pass a safety strap through the ring of the tip prevention fitting TP-01 and secure to the wall or stand.
CAUTION
• Whensecuringthemainunittoastand,pleaseensurethestandisstrongenoughtocarrytheweightofthemainunit.
• Donotmovethemainunitafteritissecured.
COPY

16 Installation/Connection
Connecting the Main Unit to Input Devices
Thismainunithasfourinputswhichcorrespondtoadisplayarea.Thedisplayareaiconslocatedintheinputterminal
areashowswheretheinputvideoisdisplayedonthescreen.Pleaseensuretheseareconnectedcorrectlyasindicated
bytheicons.
Inaddition,SDIhastwoI/Osystems.Pleaseensuretheseareconnectedcorrectlyaccordingtotheinputnumber.
CAUTION
• Checkthatthemainpowerofthemainunitandinputdevicesisswitchedoffbeforeconnecting.
• Forsafety,donotconnectconnectorthatmayhaveexcessivevoltagetotheterminalofthismainunitwhenconnecting
peripheraldevices.
C
B
D
A
A B
C D
C
B
D
A
Displayareaicon Displayareaicon
3G/HD-SDI DisplayPort
Actualscreendisplaylocation
Input
number
Input
number
■4K or QFHD signals input through SDI
Displaysusing4inputs.
3G/HD-SDI Dual Link HD-SDI
3G/HD-SDIsupportstwoinputsystems.
InputLinkAsignaltoi
nput
1,LinkBsignaltoi
nput
2.
Input3G/HD-SDI1toinput1,
Input3G/HD-SDI2toinput2("InputConguration" 40).
AreaA
(3G/HD-SDI1)
AreaB
(3G/HD-SDI1)
AreaC
(3G/HD-SDI1)
AreaD
(3G/HD-SDI1)
AreaA
(3G/HD-SDI2)
AreaB
(3G/HD-SDI2)
AreaC
(3G/HD-SDI2)
AreaD
(3G/HD-SDI2)
AreaA
AreaC
AreaB
AreaD
COPY

17Installation/Connection
■2K or Full-HD signals input through SDI
Displaysusing1input.Tocenterthedisplayedcontent,select"ChannelSettings"→"SelectInputSignal"→"SingleInput"
andselecttheareatodisplayfromAtoD( 40).
3G/HD-SDI
3G/HD-SDIsupportstwoinputsystems.
Input3G/HD-SDI1toinput1.
Input3G/HD-SDI2toinput2("InputConguration" 40).
AreaA
(3G/HD-SDI1)
AreaA
(3G/HD-SDI2)
AreaA
Reference
• TheconnectionischeckedusingCanareCorp.BNCcable(multi)4VS03A-5C.
Dual Link HD-SDI
InputLinkAsignaltoinput1,LinkBsignaltoinput2.
COPY

18 Installation/Connection
■4K or QFHD signals input through DisplayPort
Displaysusing4inputs.
AreaB
AreaD
AreaA
AreaC
■2K or Full-HD signals input through DisplayPort
Displaysusing1input.Tocenterthedisplayedcontent,select"ChannelSettings"→"SelectInputSignal"→"SingleInput"
andselecttheareatodisplayfromAtoD( 40).
AreaA
WhenconnectingwiththeDisplayPortcable,usethecablewiththefollowingwiringspecications.
DisplayPortmale DisplayPortmale DisplayPortmale DisplayPortmale
1––––––––––––––––––– 12 11––––––––––––––––––– 2
2––––––––––––––––––– 11 12––––––––––––––––––– 1
3––––––––––––––––––– 10 13–––––––––––––––––––13
4––––––––––––––––––– 9 14–––––––––––––––––––14
5––––––––––––––––––– 8 15–––––––––––––––––––15
6––––––––––––––––––– 7 16–––––––––––––––––––16
7––––––––––––––––––– 6 17–––––––––––––––––––17
8––––––––––––––––––– 5 18–––––––––––––––––––18
9––––––––––––––––––– 4 19–––––––––––––––––––19
10––––––––––––––––––– 3 SHELL–––––––––––––––SHELL
CAUTION
• Besuretouseshieldedtypecablenolongerthan3minordertopreventmalfunctionduetonoise.
Reference
• TheconnectionisconrmedusingELECOMDisplayPortcableCAC-DP30BK.
COPY

19Installation/Connection
Connecting the Main Unit to the Display Controller
Thissectiondescribeshowtoconnectthemainunittothedisplaycontroller.
CAUTION
• WhenusingacommerciallyavailableLANcable,pleaseuseashieldedtypecablenolongerthan3minordertoprevent
malfunctionduetonoise.
1. Open the lid on the back of the display controller.
Whileholdingthedisplaycontrollerwithonehand,placeyourngerinthecutoutportionofthelidandpullforward.
Lid
Cutout
2. Connect the supplied LAN cable LN-30 and the compact power adapter CA-PS700.
InserttheconnectoroftheLANcableLN-30andplugofthecompactpoweradapterCA-PS700asshowninthe
gurebelow.Usethecutoutsectiontopassthecables,asillustrated.
LANCable
LN-30
CompactPowerAdapter
CA-PS700
3. Close the lid with cables hanging out from the cutout area.
4. Connect the other end of the LAN cable to the LAN terminal of the main unit.
COPY

20 Installation/Connection
Installing the Display Controller on the Rack
ThedisplaycontrollercanbeinstalledonanEIAstandardcompliant19-inchrack.
CAUTION
• Makesurethatthedisplaycontrollerdoesnotfallduringinstallation/removal.
1. Place the display controller on the rack mount bracket RB-01 as shown in the figure and match the screw
holes.
Makesurethecabledoesnotgetcaughtintherackmountbracketduringinstalling.
DisplayController
(Backside) RackMountBracketRB-01
(Backside)
RackMountBracketScrew
SW-02
RackMountBracketScrew
SW-02
2. Insert the rack mount bracket screw SW-02 into the rack mount bracket screw holes at the back and
tighten the screws to secure the display controller.
3. Mount the display controller on the rack using commercially available rack mount bracket screws.
Usescrewsappropriatefortherack.
Mountoncommerciallyavailablerack
Mountoncommerciallyavailablerack
COPY
Other manuals for dp-v3010
1
Table of contents
Other Canon Monitor manuals
