Items Included with the
Machine
Quick Setup

Before starting the installation
• Remove all of the tape.
• Do not remove the cap that covers the USB port.
Cap
Installation Requirements
Provide a space of 4" (100 mm) or more around
the machine.
15 1/2"
(394 mm) 18 1/2" (469 mm) 9 7/8" (249 mm)
18 3/4"
(476 mm)
Cassette feeding
module (optional)
14 7/8"
(379 mm)
5 1/8"
(130 mm)
1
2
3
3
Installing the Machine
Installation of the Machine
Quick Setup

Up to here
4
5
6
Install the cassette feeding
module (optional).
7
8
4
Installation of the Machine
Quick Setup

1
2
9
Next, proceed to configure the machine.
5
Quick Setup
Pt
En
Fr
Es

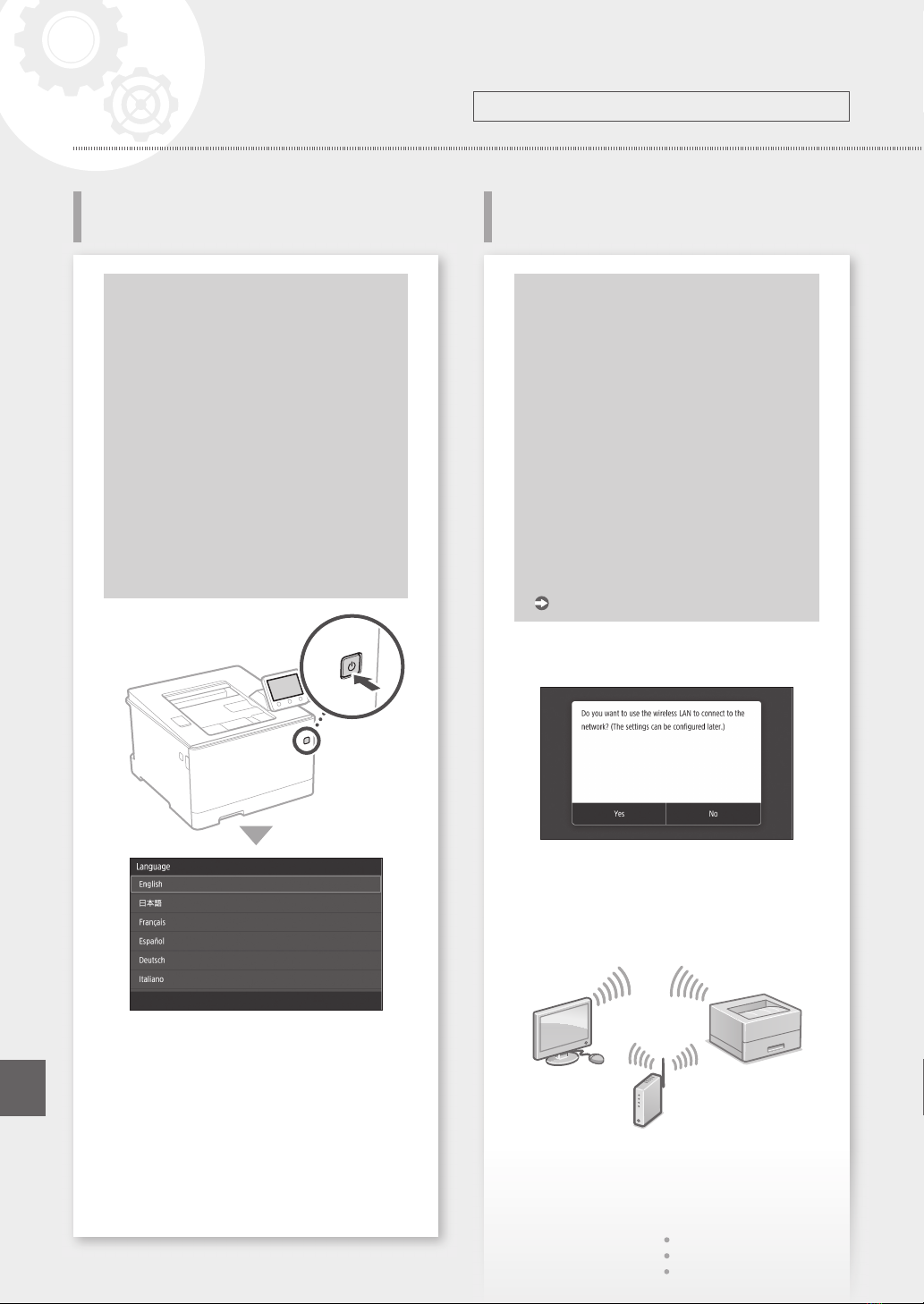

Configuring the Method of
Connecting to a Computer
About Application Library
Application Library is an application
that allows you to use useful functions
for routine jobs or other convenient
functions in a one-touch operation
without necessity of making functional
settings every time. You can access each
registered function by simply pressing
the appropriate button displayed in
the Home screen. For the respective
function, see the description displayed in
the Setup Guide.
1.
• Configure the initial settings, according to the
screen.
2. Set the language and country/region.
3. Set the time zone and current date/time.
4. Configure the settings to prevent unauthorized
access.
• For the purpose of confirmation, enter the
same PIN twice.
Before starting the configuration
• The machine cannot be connected to
both wired and wireless LANs at the
same time.
• If the machine is connected to an
unsecured network, your personal
information might be leaked to a third
party. Please be aware and careful of this.
• The machine does not come with a
router. Please have one ready, if necessary.
• Even in an environment without wireless
LAN router, you can use Access Point
Mode to make a wireless connection to
the machine directly from your mobile
device (Direct Connection).
User's Guide
Specifying the connection method
• To connect via wireless LAN : <Yes>
• To connect via wired LAN or USB : <No>
To connect via wireless LAN
1. Make sure that the computer is connected to a
router properly.
2. Check the network settings on the computer.
Configuring the Initial Settings of
the Machine
6
Configuring the Machine Configure the settings in the following order.
Quick Setup
En

3. Take note of the SSID and network key.
• Check the label on the router. User's Guide
• The setting operation is easier if the router is
provided with a WPS mark. User's Guide
4. Set the access point and network key
according to the screen below.
1. Select <OK>.
2. Select <SSID Settings>.
3. Select <Select Access Point>.
4. Select the access point (SSID).
5. Enter a WEP key (network key), and Select
<Apply>.
6. Select <Yes>.
• The IP address will be automatically
configured in a few minutes.
• "Connected." is displayed.
5. Install the driver and software.
"Installing the software" on P.8
Now you are finished with the
configuration of the initial settings.
To connect via wired LAN
The machine does not come with a LAN cable.
Please have one ready, if necessary.
1. Make sure that the computer is connected to a
router properly.
2. Check the network settings on the computer.
3. Connect the LAN cable.
• After connecting the cable, wait a few minutes
(until the IP address is set automatically).
• If a static IP address has been set on the
computer, set the machine's IP address
manually.
4. Install the driver and software.
"Installing the software" on P.8
Now you are finished with the
configuration of the initial settings.
For details
"Setting Up Using the Setup Guide" in the User's Guide
7
Quick Setup
En

8

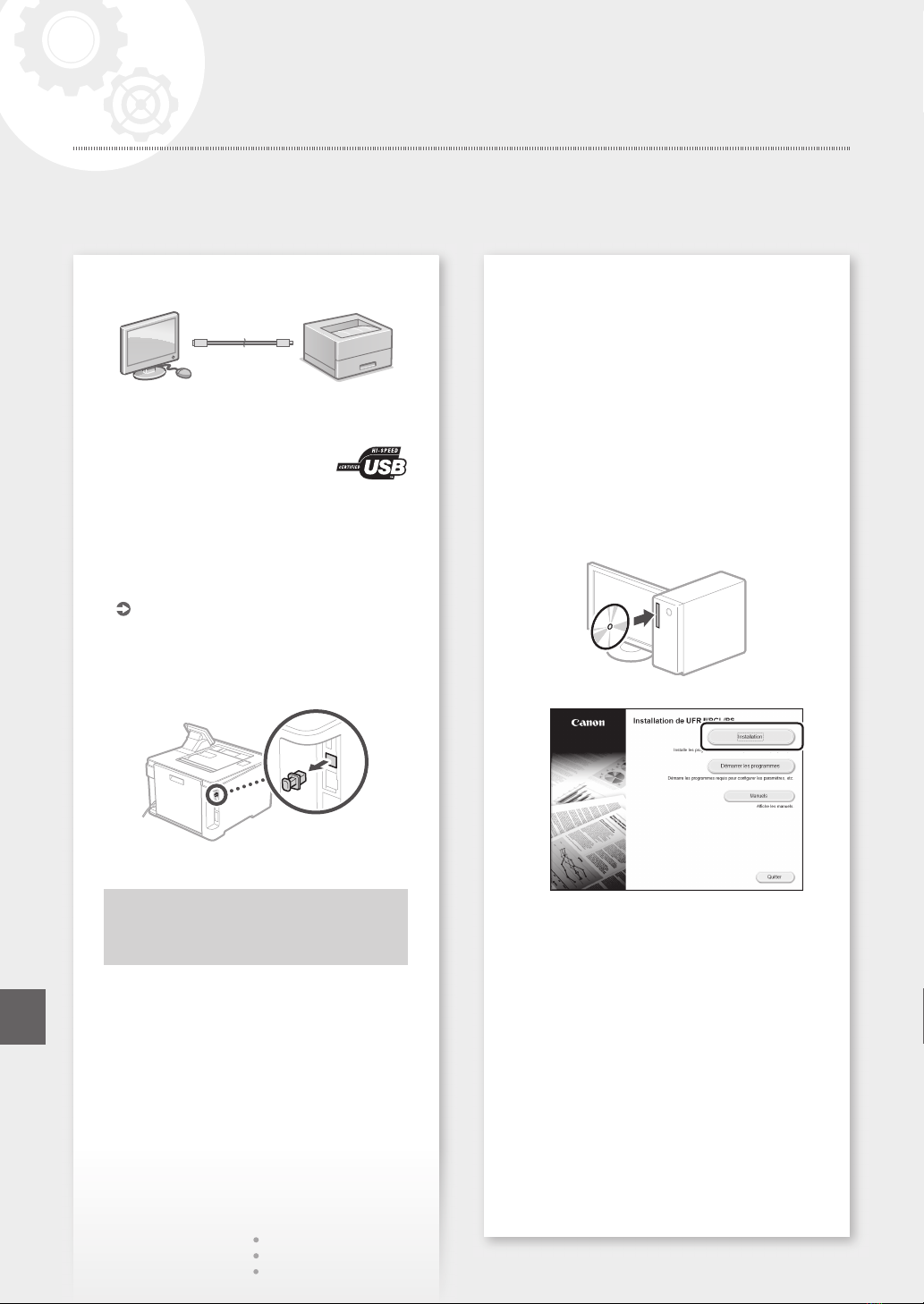

To connect via USB
• The machine does not come with a USB cable.
Please have one ready, if necessary.
• Make sure that the USB cable you
use has the following mark.
• Do not connect the USB cable before installing
the driver. If you did, disconnect the USB cable
from the computer, close the dialog box, and then
perform the following procedure from step 1.
1. Install the driver and software.
"Installing the software" on P.8
• When the screen to connect the USB cable to
the machine is displayed, remove the cap that
covers the USB port.
Now you are finished with the
configuration of the initial settings.
Installing the software
• The procedure described here is only applicable
when your computer runs on the Windows OS.
For more details on the software installation
procedure, see the driver's manual.
• For the installation when your computer runs on
the Mac OS, see the driver's manual.
• Your machine may not come with the driver for
the Mac OS, depending on the time of purchase.
New drivers are uploaded to the Canon website,
and you can download and use the latest one.
1.
2.
If the screen is not displayed properly, re-insert
the DVD-ROM or search for "D:\MInst.exe"
on the Windows platform (This description
assumes that "D:" is the DVD-ROM drive
name).
Configuring the Machine
Quick Setup
En

9

Configuration de la méthode
de connexion à un ordinateur
À propos d'Application Library
(Bibliothèque d'applications)
Application Library (Bibliothèque
d'applications) vous permet d'utiliser
des raccourcis associés à des boutons
1touche pour les fonctions fréquemment
utilisées, pour ne pas avoir à refaire tous
les réglages correspondant à chaque
utilisation de ces fonctions. Vous pouvez
accéder à chaque fonction enregistrée en
appuyant sur le bouton correspondant
affiché sur l'écran d'accueil. Pour une
description de chaque fonction, consultez
le guide de configuration.
1.
• Configurez les réglages initiaux en suivant les
instructions à l'écran.
2. Spécifiez la langue et le pays/région.
3.
Spécifiez le fuseau horaire et réglez la date et l'heure.
4. Configurez les réglages permettant d'empêcher
les accès non autorisés.
• Pour confirmation, saisissez le même code PIN
deux fois.
Avant de commencer la configuration
• Il n'est pas possible de connecter
l'appareil à la fois à un réseau sans fil et
à un réseau filaire.
• Faites attention, si l'appareil est
connecté à un réseau non sécurisé, vos
données personnelles peuvent être
divulguées à un tiers.
• L'appareil n'est pas livré avec un routeur.
Vous devez vous en procurer un.
• Même dans un environnement sans
routeur de réseau sans fil, vous pouvez
utiliser le mode Point d'accès pour
établir une connexion sans fil entre
l'imprimante et votre appareil mobile
(connexion directe).
Guide de l'utilisateur
Spécification de la méthode de connexion
• Connexion par réseau sans fil: <Oui>
• Connexion par réseau filaire ou USB: <Non>
Connexion par réseau sans fil
1. Assurez-vous que l'ordinateur est correctement
connecté à un routeur.
2. Vérifiez les réglages réseau sur l'ordinateur.
Configuration des réglages
initiaux de l'appareil
10
Configuration de l'appareil
Configurez les réglages dans l'ordre suivant.
Conguration rapide
Fr
