Canon PIXMA MP630 User manual

Getting Started
Make sure to read this manual before using the machine. Please keep it in hand for future reference.
MP630

Symbols■
The following symbols are used to mark important instructions. Observe these instructions.
Instructions that, if ignored, could result in personal injury or material damage.
Instructions that must be observed for safe operation.
Additional explanations.
Descriptions for operations that take some time to complete.
Microsoft is a registered trademark of Microsoft Corporation.
Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
Windows Vista is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
Macintosh and Mac are trademarks of Apple Inc., registered in the U.S. and other countries.
•
•
•
•Model Number: K10326(MP630)

1
Contents
Check the Included Items
Turn the Power On
Install the Print Head
Install the Ink Tanks
Align the Print Head
Install the Software
Loading Paper
1
2
3
4
5
6
7
After Installing the Machine

2
12 3 4 5 6 7
(C)
(B)
(A)
1
Check the Included Items
(B) 8cm CD-R adapter
(C) CD-R tray
Manuals
Setup CD-ROM
(containing the drivers, applications and
on-screen manuals)
Warranty
MP-101 paper
(for Automatic Print Head Alignment)
•
•
•
•
Before turning on the machine, remove all the orange tapes and the protective sheets.•
Open the Paper Output Tray with your hands, and take out the Print Head.
The Print Head is placed inside of the Paper Output Tray (A).
ink tank
Print Head
power cord
A USB cable is necessary to connect the machine with your computer.•

3
12 3 4 5 6 7
(1)
(2)
(A)
(B)
(C)
(D)
2
23
1

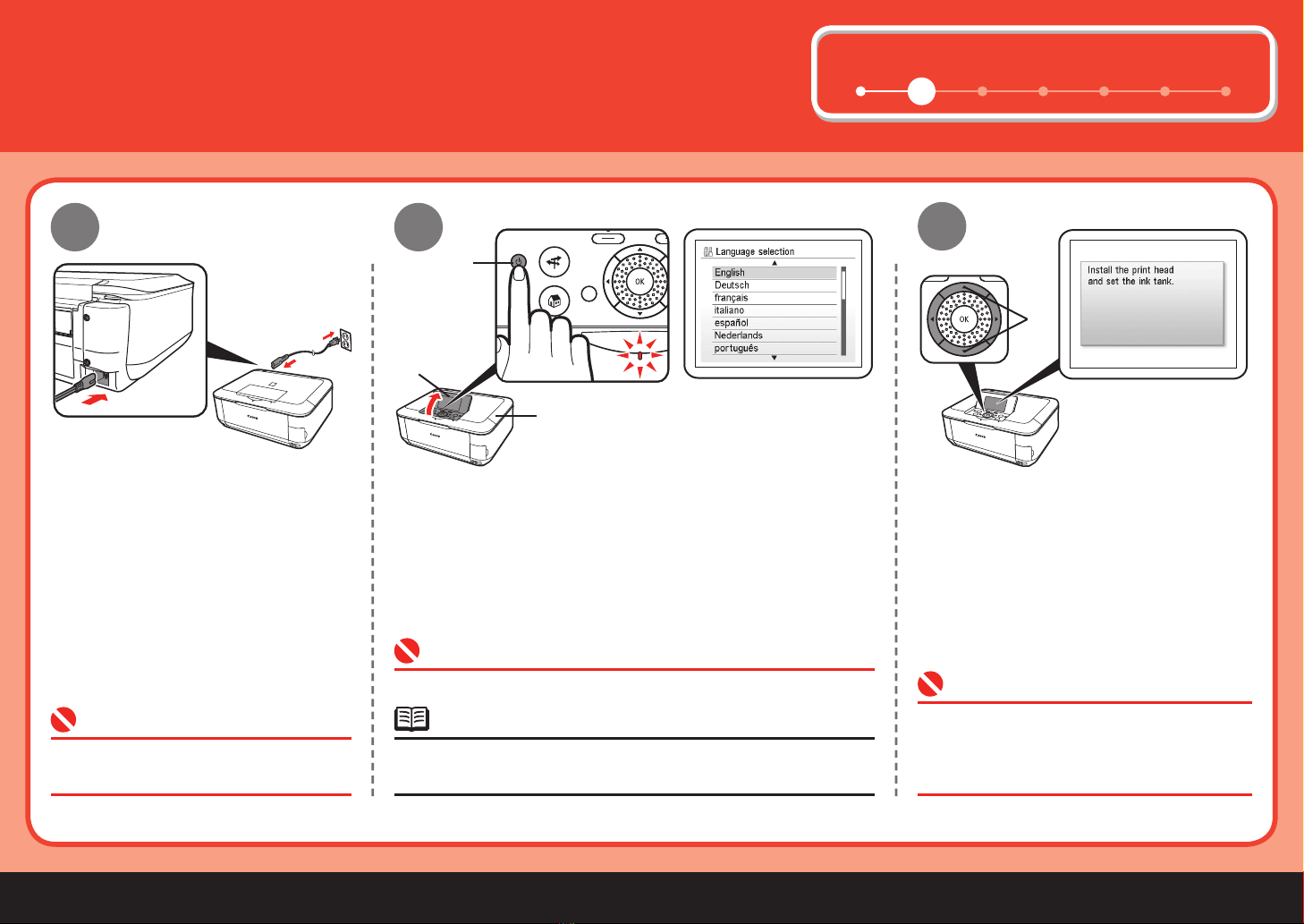

Turn the Power On
Make sure that the Document Cover (C) is closed.•
Do NOT connect the USB cable at this
stage.
•
Plug in the power cord on the left
side at the back of the machine and
connect the other end to the wall
outlet.
Open the Operation Panel (A) then, press the ON button (B)
to turn on the machine.
Use the
{ or }
button (D) on the
Operation Panel to select the language for
the LCD, then press the OK button. The
standby screen is displayed.
The machine may make some operating noises. This is normal
operation.
•
If an unintended language is displayed on
the LCD, press the Back button on the
Operation Panel to return to the Language
selection screen.
•

4
(A)
(B)
(C)
(D)
3
12
Install the Print Head
Close the Document Cover and lift it with the Scanning
Unit (Cover).
• Firmly raise the Print Head Lock Lever until it stops. (The Print
Head Lock Lever may feel heavy.)
•
If the Print Head Holder does not move, make sure that the
machine is turned on.
•
Open the Paper Output Tray (A), then lift the
Scanning Unit (Cover) (B) until it locks into place.
Raise the Print Head Lock Lever (D).
The Scanning Unit (Cover) (B) is fixed automatically.
The Print Head Holder (C) comes out. (This is where you
install the Print Head.)
Do not handle the Print Head
roughly such as applying them
excessive pressure or dropping
them.
•
The Print Head Holder makes a noise as it moves.
This is normal operation.
•

5
1 2 34 5 6 7
(D)
5
4
3

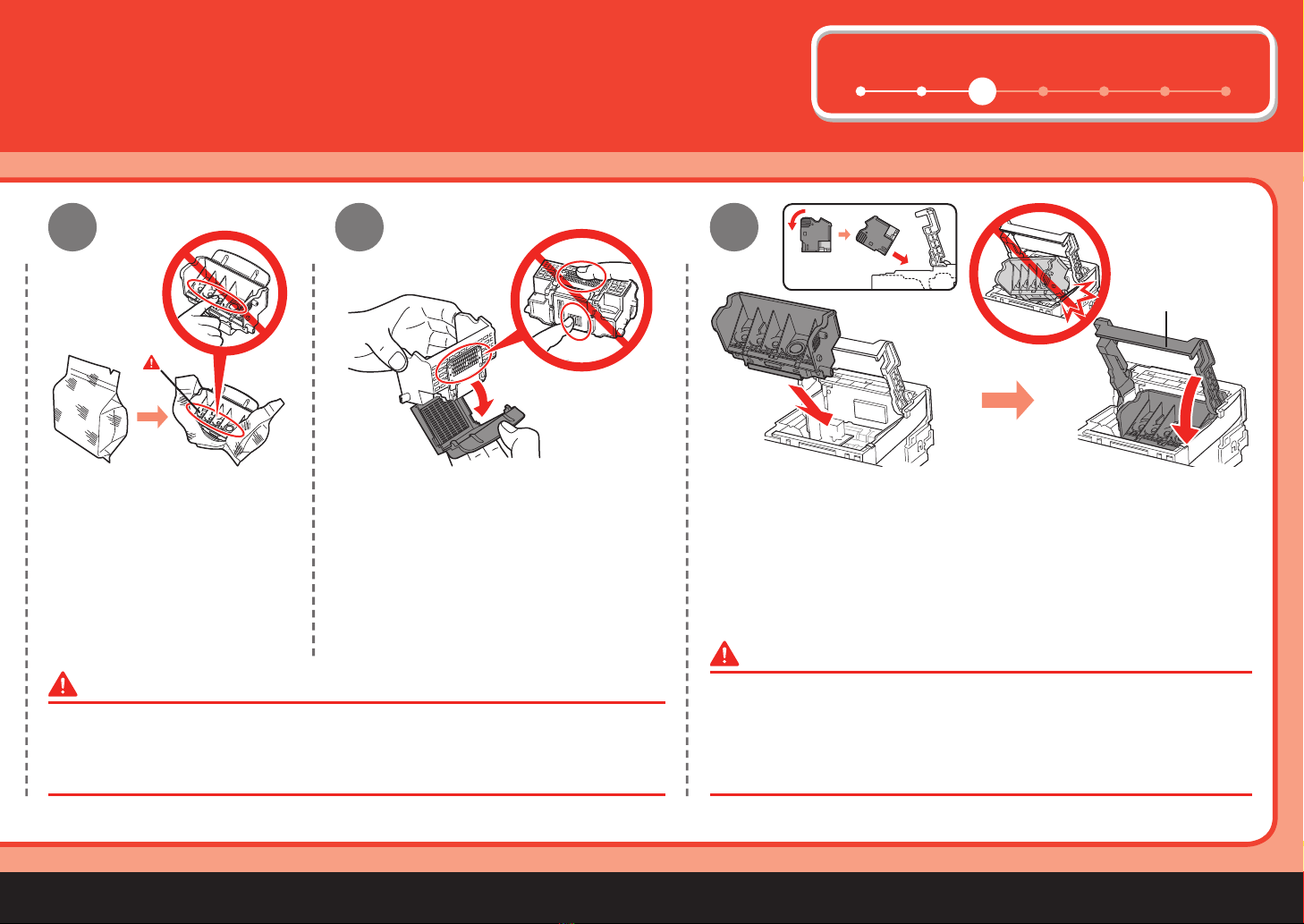

Remove the Print Head from
the silver package.
Remove and discard the orange
protective cap.
Tilt the Print Head and set it in place. Lower the Print Head Lock
Lever (D) completely.
There may be some transparent or light blue ink on the inside of the bag the Print
Head comes in, or the inside of the protective cap - this has no effect on print quality.
Be careful not to get ink on yourself when handling these items. Be careful not to stain
your hands.
•
Do not knock the Print Head against the sides of the Holder.
Be sure to install it in a well-lit environment.
Pinch the Print Head Lock Lever  rmly and lower it gently.
Once you have installed the Print Head, do not remove it unnecessarily.
•
•
•
•

6
(1)
(2)
(A)
4
12
Install the Ink Tanks
Do not hold the sides of the ink tank; ink may splash.•
Pull the orange tape (1) in the
direction of the arrow to peel off the
protective film and remove the film
(2) completely.
If the Print Head Holder moves to the right,
close and reopen the Scanning Unit (Cover).
Be sure to use the supplied ink tanks.
•
•
Do not handle the ink tanks roughly such as
applying them excessive pressure or dropping
them.
•
While pressing down with your left thumb, twist off the
orange protective cap (A) located on the bottom of the ink
tank.

7
5 61 2 3 47
5
4
3
Install all the other ink tanks in the same way.
Wait until the screen above appears (about 6
minutes) and go to the next step.
The machine may make some operating
noises when preparing to print. This is
normal operation.
•
•
Install all the ink tanks.
Close the Scanning Unit (Cover).
Make sure all the Ink lamp lights red.•
Once you have installed the ink tanks, do not
remove them unnecessarily.
•
If an error message is displayed on the LCD,
make sure that the Print Head and the ink tanks
are correctly installed.
•
Press the PUSH mark on the ink tank until it
clicks into place.
Make sure the Ink lamp lights red.
Install the Ink Tank
Be sure to install it in a well-lit environment.•
Match the labels when installing.•

8
(A)
(B) (B)
(D)
(C)
5
23
1
Align the Print Head
Align the Print Head for better print results.
This takes about 7 minutes.
Use a sheet of supplied speciality paper
(MP-101) for alignment.
Open the Paper Support
(A) and pull it out.
Load a sheet of supplied speciality paper
(MP-101) in the Rear Tray (D).
Move the Paper Guides
(B) to both edges.
For details, refer to "7 Loading Paper" on page
21.
•
Be sure to use the supplied speciality paper
(MP-101) for Automatic Print Head Alignment.
MP-101 cannot be fed from the Cassette. Load
it in the Rear Tray.
MP-101 has the front and back sides. Load it
with the whiter side facing up.
•
•
•
Make sure that the
Output Tray Extension
(C) is extended.
•

9
61 2 3 5 47
(E) (E)
6
5
4

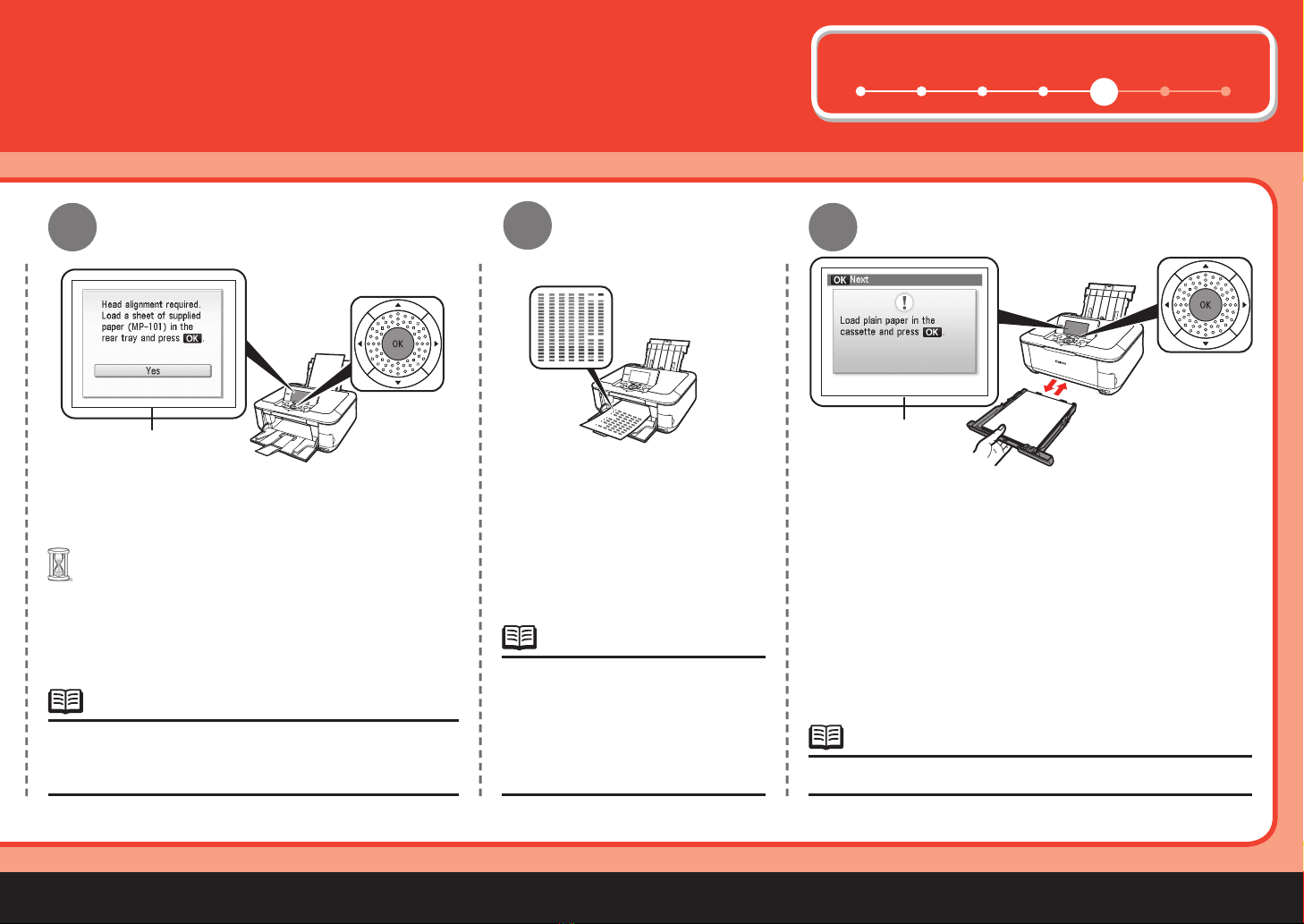

Confirm the message on the LCD (E) and press the
OK button.
Make sure that a pattern
similar to the one shown in the
illustration is printed.
Print Head Alignment takes about 7 minutes to
complete. Wait until the pattern is printed, then go
to the next step.
•
When an error message is
displayed on the LCD, refer to
"Troubleshooting" in the on-
screen manual: Advanced Guide.
The pattern is printed in black and
blue.
•
•
For details on media sizes and types you can use, refer
to "Loading Paper" in the on-screen manual: Basic
Guide.
•
For details, refer to "7 Loading Paper" on page 21.•
Confirm the message on the LCD (E), then load plain
paper into the Cassette and press the OK button.
The standby screen is displayed on the LCD.

10
6
Install the Software
Quit all running applications before installation.
You need to log on as the administrator (or a member of the Administrators
group).
Do not switch users during the installation process.
It may be necessary to restart your computer during the installation process.
Follow the on-screen instructions and click OK, and do not remove the Setup
CD-ROM during restarting.
The installation resumes from where it left off when your computer has been
restarted.
Mac OS 9, Mac OS X Classic environments, or Mac OS X v.10.3.8 or earlier
are not supported.
•
•
•
•
•
To use the machine by connecting it to a computer, software including
the drivers needs to be copied (installed) to the computer's hard disk.
Macintosh (P.17)
Windows (P.11)
The screens below are based on Windows Vista operating system
Ultimate Edition (hereafter referred to as "Windows Vista") and Mac OS
X v.10.5.x.

11
6
1 2 3 4 5 7
(A)
(B)
12
1
2
3
If the Found New Hardware or Found
New Hardware Wizard screen appears:
Press the ON button (A) to TURN
OFF THE MACHINE.
Turn on the computer, then insert the Setup
CD-ROM into the CD-ROM drive.
The setup program should run automatically.
Operating noise continues for about
30 seconds until the machine turns
off. Make sure that the POWER lamp
(B) stops  ashing.
• If the program does not start automatically,
double-click the CD-ROM icon on the
computer. When the CD-ROM contents
appear, double-click MSETUP4.EXE.
•
Windows Vista
Windows XP/2000
Go to Step
Go to Step
Windows
Click Cancel to quit the screen.
Proceed from .
Remove the USB cable connected to
your computer.
The screen may close. In this case,
proceed from .

12
345
6

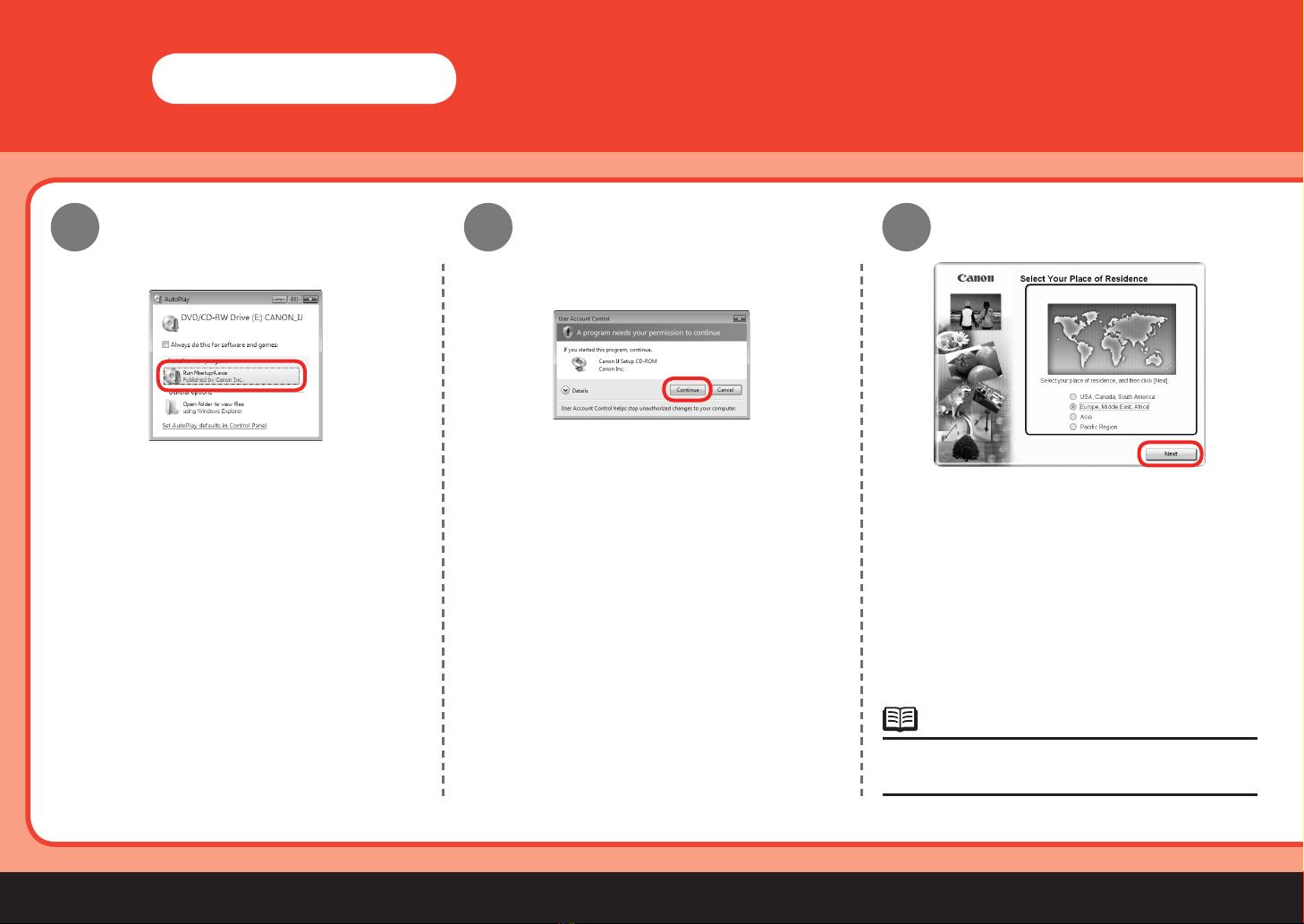

AutoPlay screen appears, click Run Msetup4.
exe.
User Account Control screen appears, click
Continue.
If the same screen reappears in subsequent steps,
click Continue.
Windows Vista Windows Vista
Windows
When the Select Your Place of Residence
screen appears, select your place of residence,
then click Next.
If the Select Language screen appears, select a
language, then click Next.
•

13
6
1 2 3 4 5 7
7
68

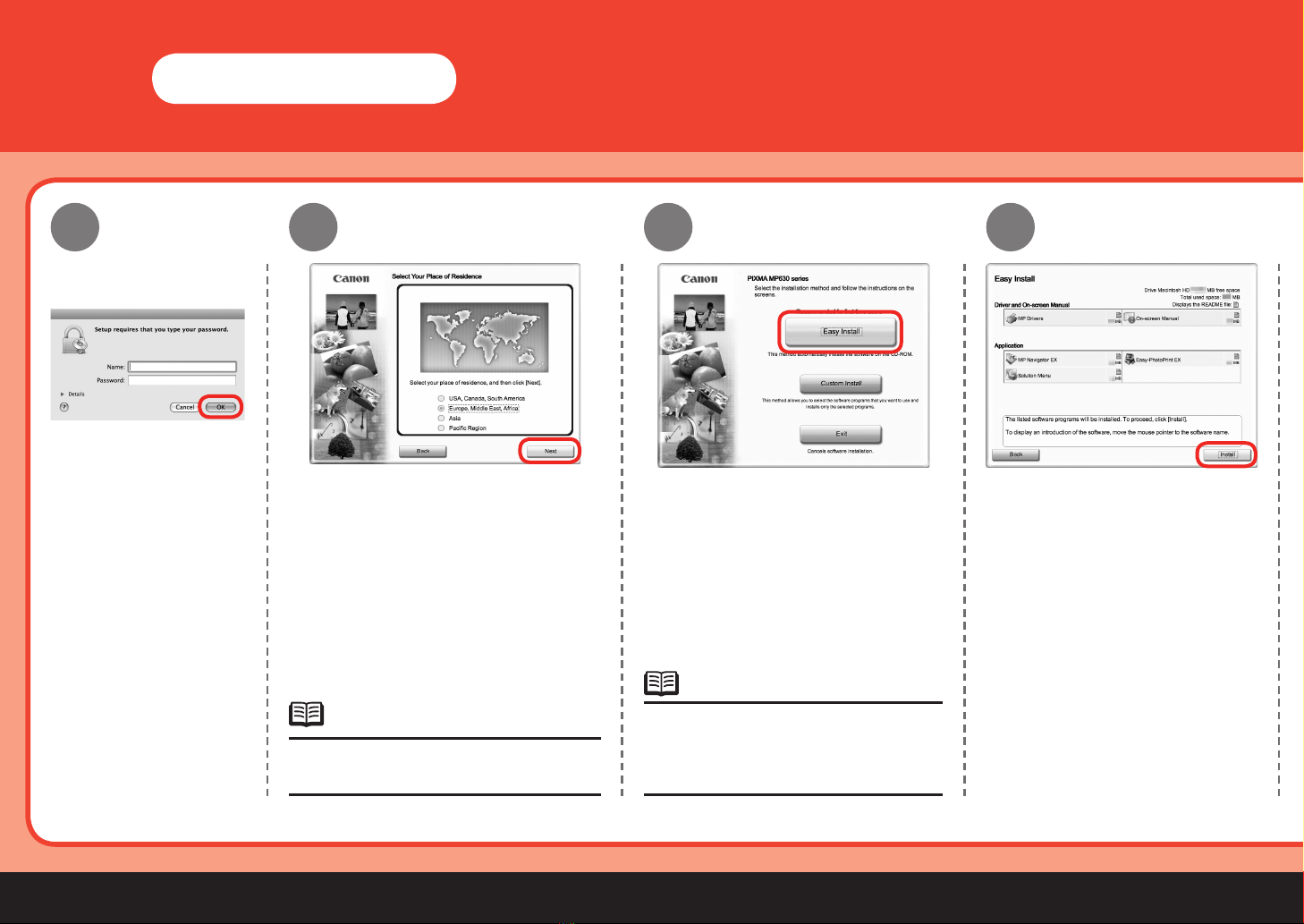

Read the License Agreement screen
carefully and click Yes.
Click Install.
Move the cursor over items to display
explanations. Installation starts.
Follow any on-screen instructions to install
the software.
•
Click Easy Install.
The drivers, application software, and on-screen
manuals are installed automatically.
If you want to select particular items to install,
click Custom Install and follow the on-screen
instructions to proceed with the installation.
•

14
USB
9
6
10
When the Printer Connection screen appears, connect one end of the USB cable to the
computer, the other to the machine, then TURN THE MACHINE ON.
When the Load plain paper into the cassette
screen appears, load plain paper in the Cassette
and click Next.
The USB port is located on the right side at the back of the machine.•
When the machine is recognized by the computer, a message appears on the screen.
If you cannot go to the next procedure after 10 minutes, click Help and conrm the message.
•
•
For details, refer to "7 Loading Paper" on page 21.•
Windows

15
6
1 2 3 4 5 7
Serial Number
* * * * * * *
11 12
Click Next.Click Next.
If connected to the Internet, the user registration page appears. Follow the on-screen instructions to
register your product. You will need your product serial number, which is located on the inside of the
machine.
To register later, click Cancel. User Registration can be started from the Solution Menu icon. For details,
refer to "Solution Menu" on page 25.
The User Registration screen will only be displayed when Europe, Middle East, Africa is selected on the
Select Your Place of Residence screen.
•
•
Internet connection is required. (Connection fees apply.)•
It may take a while for the next screen
to appear. Click Next only once.

16
13
6
14
Click Exit.
If Restart is displayed, make sure that the Restart the system now
(recommended) check box is selected, then click Restart.
After restarting the computer, remove the Setup CD-ROM and keep it in a safe
place.
When the Extended Survey Program screen appears, confirm the
message.
If you can agree, click Agree.
If you click Do not agree, the Extended Survey Program will not be installed.
(This has no effect on the machine's functionality.)
Next, read "7 Loading Paper" on page 21!
Windows

17
6
1 2 3 4 5 7
USB
23
1
Connect one end of the USB cable to the
computer and the other to the machine.
Make sure the machine is turned on.
Double-click the Setup icon.Turn on the computer, then
insert the Setup CD-ROM into
the CD-ROM drive. If the CD-ROM folder does not open
automatically, double-click the CANON_IJ icon
on the desktop.
The USB port is located on the right side at the back
of the machine.
•
Macintosh

18
56
6
47
Click Easy Install.
The drivers, application software,
and on-screen manuals are installed
automatically.
Click Install.
Move the cursor over items to display
explanations.
If you want to select particular items to
install, click Custom Install and follow
the on-screen instructions to proceed
with the installation.
•
Enter your administrator
name and password.
Click OK.
If you do not know your
administrator name or
password, click Help,
then follow the on-screen
instructions.
Macintosh
When the Select Your Place of
Residence screen appears, select your
place of residence, then click Next.
If the Select Language screen appears,
select a language, then click Next.
•
