Canon SELPHY ES2 User manual

Printer User Guide
CDP-E059-010 © 2007 CANON INC.
ENGLISH

2
What You Can Do with Your SELPHY
Enjoy printing images with your SELPHY printer.

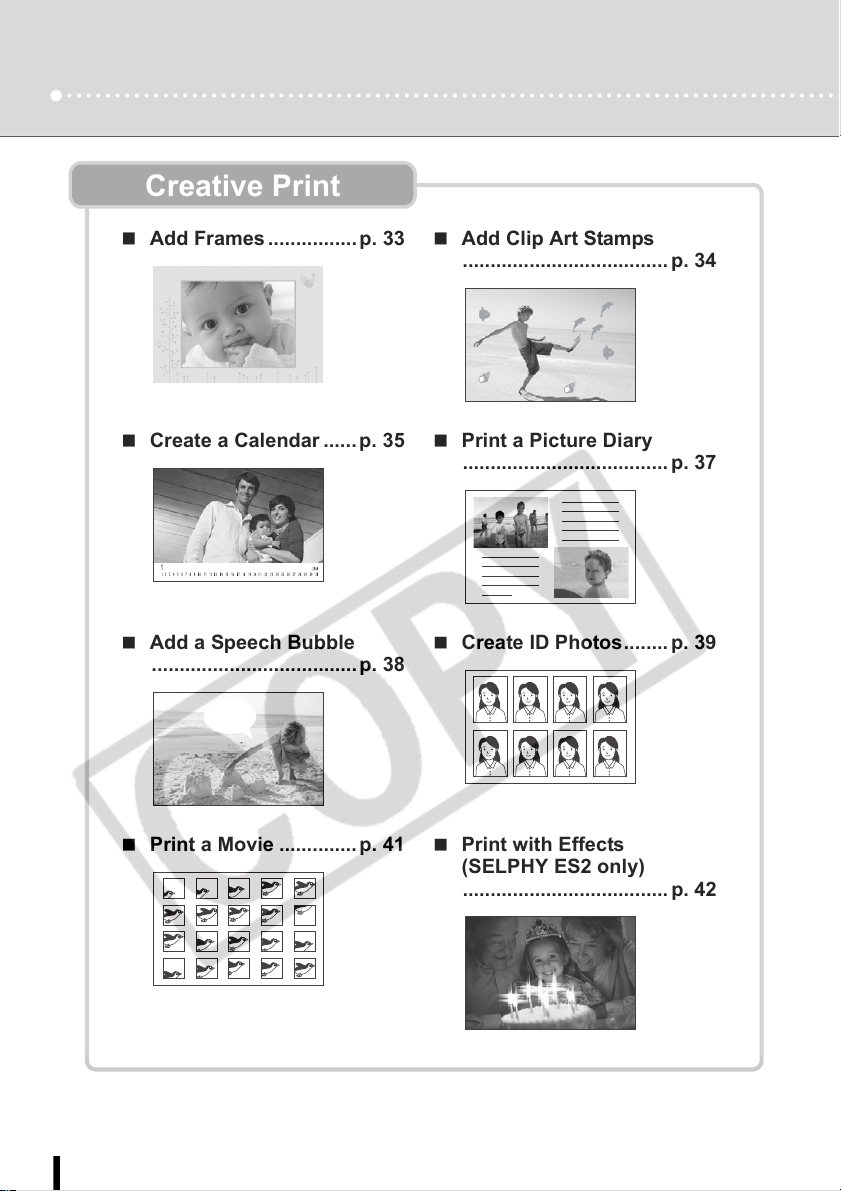

Creative Print
Add Frames ................ p. 33 Add Clip Art Stamps
..................................... p. 34
Create a Calendar ...... p. 35 Print a Picture Diary
..................................... p. 37
Add a Speech Bubble
..................................... p. 38
Create ID Photos........ p. 39
Print a Movie .............. p. 41 Print with Effects
(SELPHY ES2 only)
..................................... p. 42

3

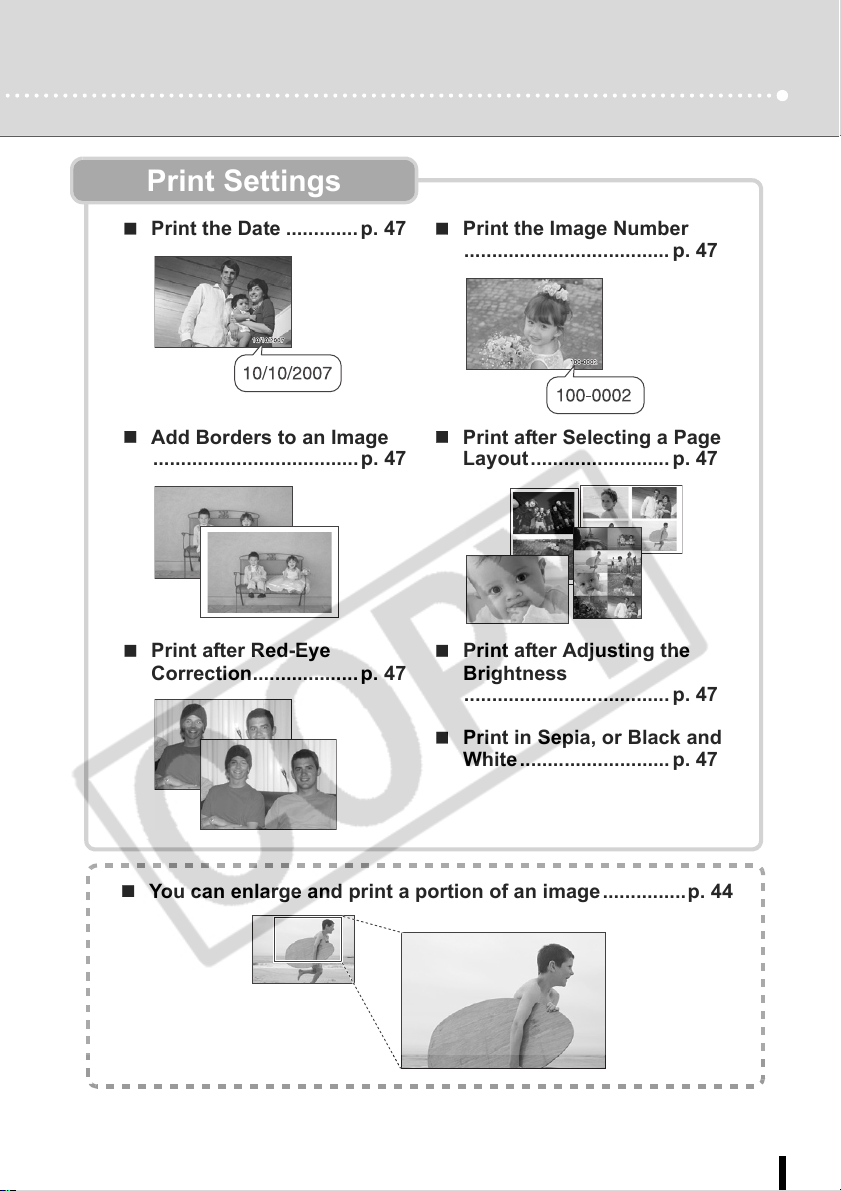

Print Settings
Print the Date ............. p. 47 Print the Image Number
..................................... p. 47
Add Borders to an Image
..................................... p. 47
Print after Selecting a Page
Layout......................... p. 47
Print after Red-Eye
Correction................... p. 47
Print after Adjusting the
Brightness
..................................... p. 47
Print in Sepia, or Black and
White ........................... p. 47
You can enlarge and print a portion of an image...............p. 44

4
EZ Navigator
Select how you wish to use your SELPHY printer.
Digital Camera
Images
Camera
Equipped Mobile
Phone Images
Images on
Your PC
Print
on Location
Memory Card ................... 24
Infrared (SELPHY ES2 only)/
Bluetooth.......................... 55
USB Cable ....................... 59
Battery.............................. 72
USB Cable ....................... 52

5

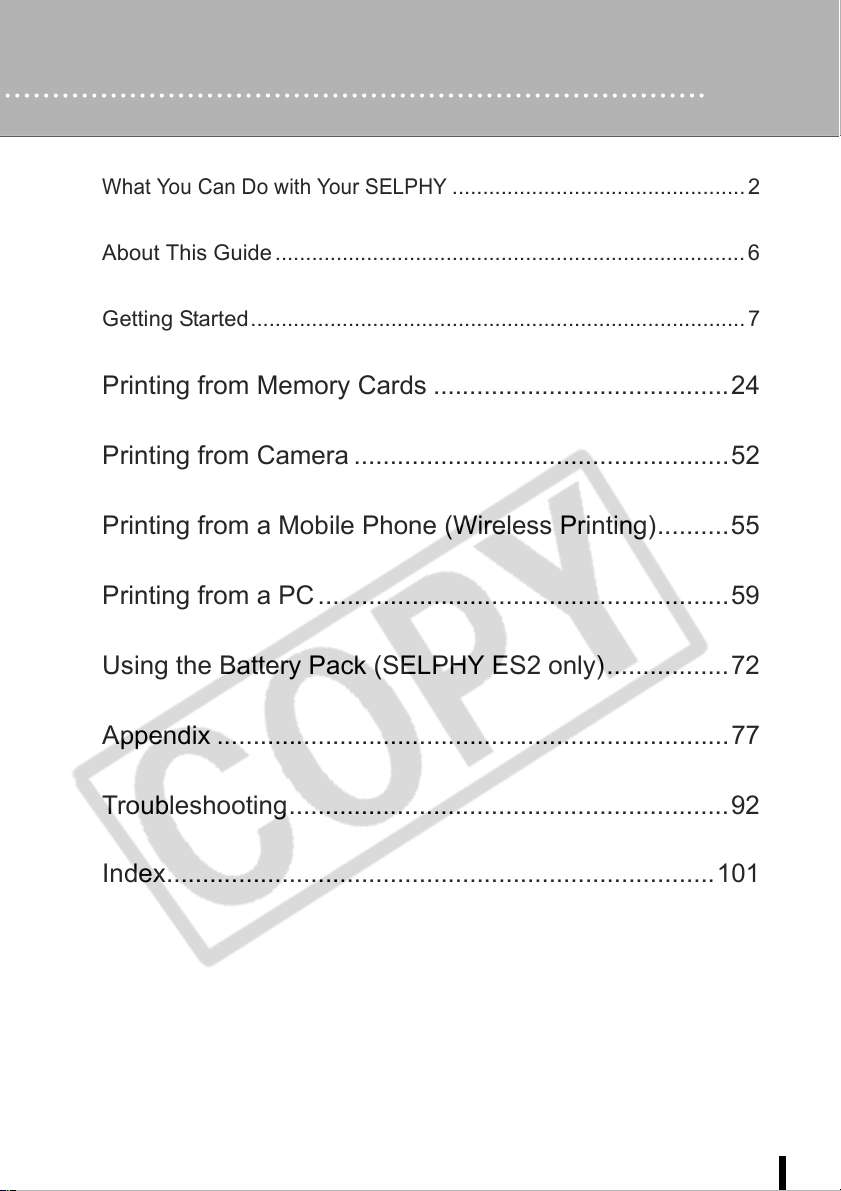

Table of Contents
What You Can Do with Your SELPHY ................................................ 2
About This Guide.............................................................................6
Getting Started................................................................................. 7
Printing from Memory Cards .........................................24
Printing from Camera ....................................................52
Printing from a Mobile Phone (Wireless Printing)..........55
Printing from a PC .........................................................59
Using the Battery Pack (SELPHY ES2 only).................72
Appendix .......................................................................77
Troubleshooting.............................................................92
Index............................................................................101

6
About This Guide
Conventions Used in this Guide
zUse the "Easy Photo Pack" which is an ink and paper integrated cartridge in the SELPHY ES
series. This is referred to as "Easy Photo Pack" or "cartridge" in this guide.
zThis printer can be used with various types of media, such as, SD*1 memory cards or
MultiMediaCards*2 (p. 25).
These types of media are referred to as "memory cards" in this guide.
zGeneral "camera" descriptions in this guide refer to digital cameras or digital camcorders
compatible with the SELPHY ES2/ES20. The explanations in this guide use Canon digital
cameras.
zThis guide primarily uses illustrations of the SELPHY ES2 and its LCD monitor. Unless
otherwise noted, the instructions are the same for the SELPHY ES20. Similarly, the screen
shots from the LCD monitor show a "P" for the Postcard-Size ink and paper integrated
cartridge.
zIllustrations and screen examples shown in this guide may differ slightly from the actual printer.
*1 SD is an acronym for Secure Digital.
*2 Reduced-Size MultiMediaCard is referred to as "RS-MMC."
Before using your printer for the first time, please read through the Safety Precautions
(p. 84) and the Handling Precautions (p. 87).
This mark denotes issues that
may affect the printer's operation.
This mark denotes additional
topics that complement the basic
operating procedures. The
number refers to the
corresponding step.

7
Getting Started
Getting Started

8Getting Started
Check the Package Contents
The package contains the following accessories. If there is anything missing, please contact the
store where you purchased this product.
Main Printer Unit 10 Print Trial Cartridge
(Postcard size)
Cleaner Unit
(Inserted prior to shipment)
Compact Photo Printer
Solution Disk
Compact Power Adapter
(CA-ES100)
Power Cord
• SELPHY Beginner's Guide
• Warranty Card

9
Getting Started
Accessories (Sold Separately)
Cartridge Type
* Card-sized label sheet.
Ink and paper integrated cartridge.
The cartridge differs depending on the paper size and ink type.
Please refer to the Cartridge Type table below.
You can print outdoors, or at locations without a power outlet
(p. 72) (SELPHY ES2 only).
You can print wirelessly from a Bluetooth-enabled mobile phone
(p. 57).
Paper Size Ink Type Name
(Product No.)
No. of
Sheets
Color of
Cartridge
Postcard size
(100 x 148mm)
(4 x 6 in.)
Color
Easy Photo Pack E-P100 100
Green
Easy Photo Pack E-P50 50
BW Easy Photo Pack E-P25BW 25 Gray
L size
(89 x 119mm)
(3.5 x 4.7 in.)
Color
Easy Photo Pack E-L100 100
Blue
Easy Photo Pack E-L50 50
Card size
(54 x 86mm)
(2.1 x 3.4 in.)
Color
Easy Photo Pack E-C25 25
Orange
Easy Photo Pack E-C25L*25
Cartridge
Battery Pack NB-ES1L
Bluetooth Unit BU-20

10 Getting Started
Components Guide
For more information, refer to the listed page.
Front View
1Print Receptacle Cover Opens automatically when printing starts.
2Print Receptacle Button Press to manually open the print receptacle cover.
3Paper-Handling Slot Paper projects from this slot while printing is in progress.
4Indicator Lamp Blinks/lights green when a memory card is accessed.
5Infrared Data Receiver Receives infrared data from a mobile phone (SELPHY ES2
only).
6Card Slot Cover Open to insert a memory card or card adapter with a
memory card inserted.
7Print Receptacle (Output
Tray)
Paper is deposited here after printing.
8Cartridge Compartment The cartridge is inserted into this compartment.
9Cartridge Lever Slide down to eject a cartridge.
10 Cartridge Cover Open to replace a cartridge.
11 Cartridge Cover Lever Slide up to open the cartridge cover.
12 Card Slots These are for inserting a memory card or card adapter with
a memory card inserted (p. 25).
1
2
3
4
5
6
7
8
9
1
0
11
1
2

Components Guide
11
Getting Started
Back View
1Carrying Handle Used for carrying the printer (p. 83).
2Battery Cover (SELPHY ES2
only)
Remove to install a battery pack.
3Battery Cover Lever
(SELPHY ES2 only)
Slide up to remove the battery cover.
4DC IN (Power Input) Terminal Connects to the compact power adapter.
5Air Vents Dissipates heat inside the printer.
6USB Terminal for PC
Connection
For USB connection to your PC using a commercially
available USB cable.
7USB Terminal for Camera
Connection
Connects to a camera using the interface cable, or
Bluetooth unit (sold separately).
8Terminal Cover Open to connect a USB cable, interface cable supplied with
a camera, or Bluetooth unit.
1
2
3
4
5
6
7
8

Components Guide
12 Getting Started
Controls
1(Enlarge, Reduce)
Button
Displays an enlarged or reduced view of the image (p. 13).
2Button Displays the properties of the selected image (p. 14).
3Button Used when editing an image, such as enlarging and printing
a portion of the image (trimming).
4Power Lamp Indicates the printer status.
Lit Green: Power on
Blinking Green: Printing or communicating
Lit Orange: Charging the battery pack (SELPHY ES2
only)
Blinking Orange: Battery pack depleted or temperature is
not within the operating temperature range for charging
(p. 74) (SELPHY ES2 only)
Lit Red: Error (p. 96)
Blinking Red: Error (p. 96)
5Button Turns the printer's power on when pushed until the power
lamp lights green.
6Button Displays the Creative Print menu (p. 31).
7Button Displays the menu screen.
Print All Photos (p. 28)
Creative Print (p. 31)
DPOF Print (p. 29)
Auto Play (p. 30)
Print Settings (p. 46)
Printer Setup (p. 78)
1
2
3
4
5
6
7
8
9
1
0
11
1
3
1
4
1
2
SELPHY ES20 does not
have an Easy-Scroll Wheel.

Components Guide
13
Getting Started
LCD Monitor
Main Display
zThe Main Display is the screen that displays the images on a memory card after turning the
power on.
zYou can switch between Multi View or Single View by pressing or in the Main Display.
zThe view that was displayed when the power was turned off (Multi View or Single View), will
display again when the power is turned on. The default view is Multi View.
zSingle View is used for the screen samples in this guide.
Enlarged View
You can enlarge an image by pressing in Single View. Press to return to Single View.
Switching the View to 9 Images at a Time
You can display the previous or next 9 images by pressing or after pressing in Multi
View. Press to return to Single View.
8LCD Monitor Displays images, setting screens, and error messages.
9Button Specify the number of prints for a selected image.
10 , , , (Up, Down,
Left, Right) Buttons
Used for selecting images, menu items, changing settings,
moving trimming frames, etc.
11 Easy-Scroll Wheel
(SELPHY ES2 only)
Used instead of , , , (excluding some
functions).
12 Button Starts printing.
13 Button Confirms settings.
14 Button Cancels a setting, and returns to the original screen of each
setting screen.
Cancels printing.
Main Display
Multi View Single View

Components Guide
14 Getting Started

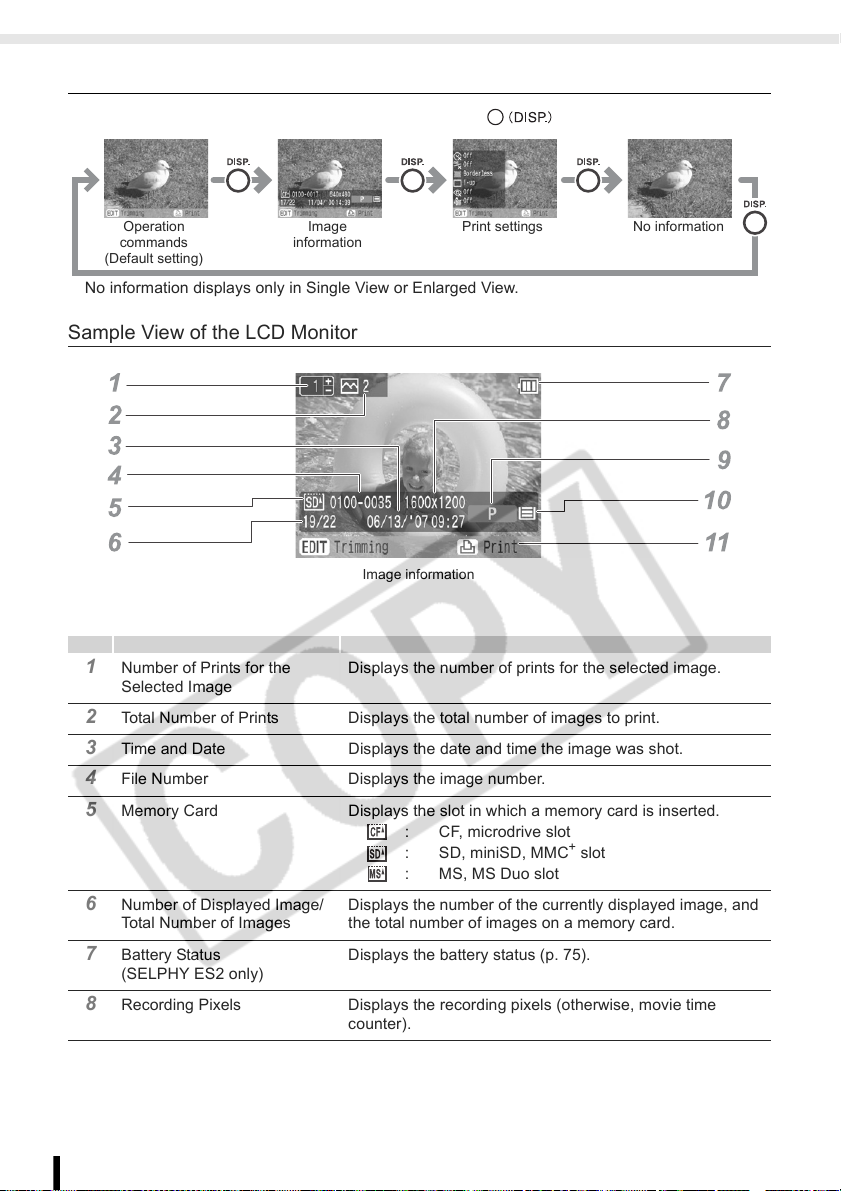

Information Views
You can switch the image information views by pressing .
No information displays only in Single View or Enlarged View.
Sample View of the LCD Monitor
1Number of Prints for the
Selected Image
Displays the number of prints for the selected image.
2Total Number of Prints Displays the total number of images to print.
3Time and Date Displays the date and time the image was shot.
4File Number Displays the image number.
5Memory Card Displays the slot in which a memory card is inserted.
: CF, microdrive slot
: SD, miniSD, MMC+slot
: MS, MS Duo slot
6Number of Displayed Image/
Total Number of Images
Displays the number of the currently displayed image, and
the total number of images on a memory card.
7Battery Status
(SELPHY ES2 only)
Displays the battery status (p. 75).
8Recording Pixels Displays the recording pixels (otherwise, movie time
counter).
No informationOperation
commands
(Default setting)
information
Print settings
Image information

Components Guide
15
Getting Started
The Jump Function
Pressing in Single View in the Main Display, or in the Creative Print image selection screen,
displays the Jump screen. Press or to select a search key, then press or to jump to
an image matching the search key.
9Paper Size Displays the paper size.
P: Postcard size
L: L size
C: Card size
C Label: Card size full-sized label sheet
BW : Postcard size (black and white)
10 Paper Status Displays the remaining amount of paper in the cartridge.
: 1/2 full or more (The trial cartridge is different
from the standard one and is not shown ).
: About 1/4 full or more.
: About 1/8 full or more.
: The cartridge is empty.
No Display : The status is unknown.
11 Operation Guides Displays operation guides. Follow the instructions to use
the printer.
Jump 10 Images Jumps ahead 10 images.
Jump 50 Images Jumps ahead 50 images.
Jump 100 Images Jumps ahead 100 images.
Jump Selected Images Jumps to selected image(s) you wish to print.

Components Guide
16 Getting Started
Easy-Scroll Wheel (SELPHY ES2 only)
The SELPHY ES2 allows you to select images or menu items, increase or decrease the number
of prints, and enlarge or reduce the trimming frame, just by turning the Easy-Scroll Wheel instead
of pressing , , or .
Image Scroll Function
Giving the Easy-Scroll Wheel a quick turn in Single View in the Main Display, or in the Creative
Print image selection screen, will display 5 images, with a magnified thumbnail of the center
image being displayed. You can scroll through the images one at a time by turning the wheel, and
select the center image by pressing .
• If there are less than 5 images on a memory card, the Image Scroll display will not appear on the
screen.

17
Getting Started
Preparing/Replacing the Cartridge
Replace the cartridge with the size of the paper you wish to print.
Preparing the Cartridge
An ink and paper integrated cartridge is used in this printer (p. 9). Prepare a cartridge with the size
of paper you wish to print.
Loading a Cartridge
1Check that the ink sheet is tight and that the paper is correctly
loaded in the cartridge.
2Slide the cover lever up to open the cartridge cover.
• When opening a cartridge, check the contents. If something seems to be damaged, contact the
dealer for assistance.
• Do not touch the ink sheet of the cartridge, or pull out the ink sheet or papers.
There may not be enough ink left for the allotted sheets, or paper jams or poor printing may result.
• Do not handle the cartridge with wet or sweaty hands.
• Please use only cartridges specified for use with the SELPHY ES series.
(Cartridges for the CP series cannot be used.)
• Do not apply excessive force to the cartridge.
The paper may come out from under the clips. In this case, push the paper down with your finger so
it is inside the clips.
Ink sheet Clip

Preparing/Replacing the Cartridge
18 Getting Started
3Grasp the cleaner unit that is inside and remove it.
4Make sure that the cartridge is oriented as shown on the direction
indicator on the inside of the printer, and insert the cartridge until it
clicks into place.
5Press the area marked PUSH to close the cover.
Protective paper
Direction
indicator

Preparing/Replacing the Cartridge
19
Getting Started

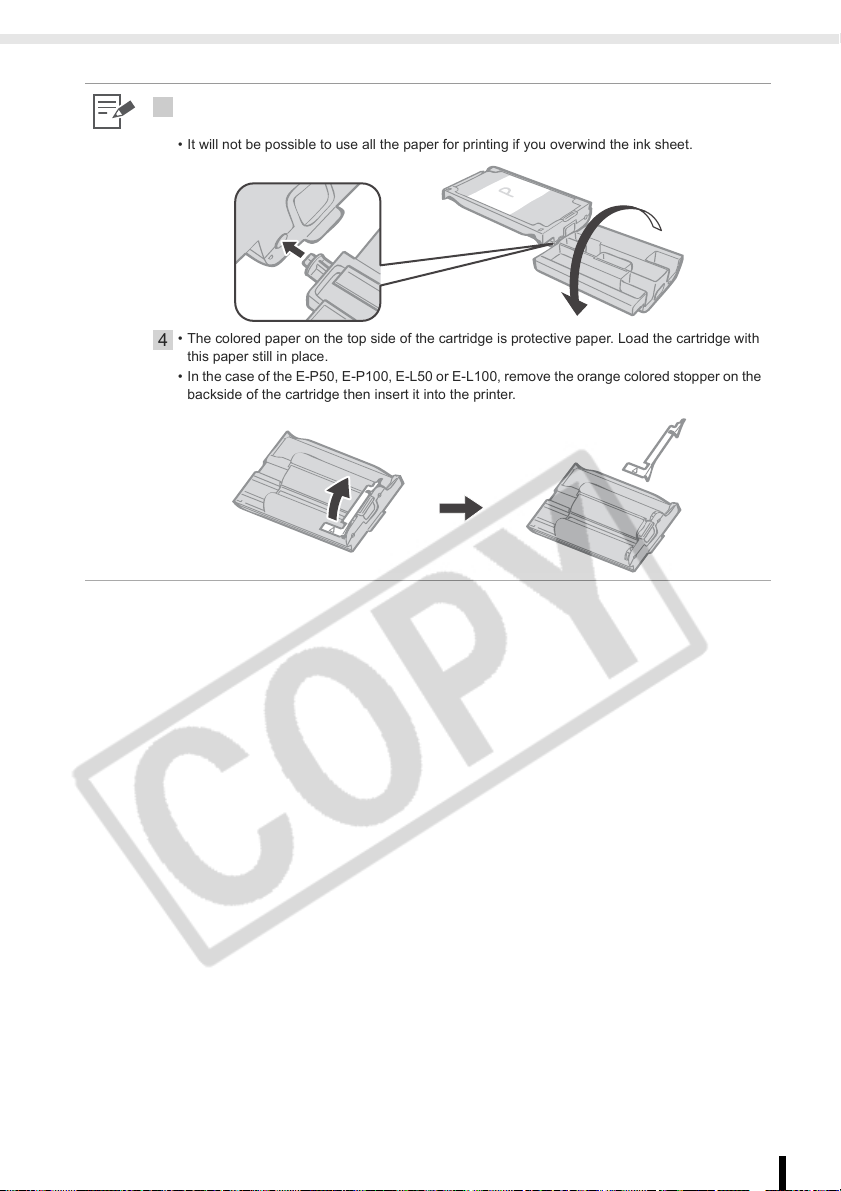

1• When inserting the cartridge into the printer, if the ink sheet is so slack it catches, insert the
cleaner unit and turn it slowly to take up the slack.
• It will not be possible to use all the paper for printing if you overwind the ink sheet.
4• The colored paper on the top side of the cartridge is protective paper. Load the cartridge with
this paper still in place.
• In the case of the E-P50, E-P100, E-L50 or E-L100, remove the orange colored stopper on the
backside of the cartridge then insert it into the printer.

Preparing/Replacing the Cartridge
20 Getting Started
Replacing the Cartridge
Replace the cartridge when paper has run out, or if another sheet size is required.
1Slide the cover lever up to open the cartridge cover ( ), and slide
the cartridge lever down ( ).
• Eject the cartridge.
2Replace the cartridge following the procedures in Preparing/
Replacing the Cartridge (p. 17).
• Do not remove the cartridge while paper is being fed into or ejected from the printer, or while
printing is in progress.
• When replacing the cartridge, remove all paper from the print receptacle.
• Do not reuse empty cartridges. Attempting to reuse an empty cartridge may result in malfunction or
damage to the printer.
2• You can check the type of cartridge and the amount of remaining paper (ink) loaded in the
printer, by the icons displayed in the print confirmation, printing or standby screens (p. 15).
• After power is turned on, or immediately after the cartridge cover is opened or closed, the
status icon is not displayed. This icon is displayed when one sheet has been printed.
