Canvys PD-BE32AU-OND User manual

User Manual PD-BE32AU-OND
32” Industrial Monitor
Code No.: CL3280AN
REV:A0
0623281705

2
TABLE OF CONTENTS
1. SAFETY SYMBOLS & PRECAUTIONS ............................................................................................. 3
1.1. SAFETY SYMBOLS .................................................................................................................... 3
1.2. PRECAUTIONS........................................................................................................................... 3
2. INTRODUCTION.................................................................................................................................. 6
2.1. Features........................................................................................................................................ 6
2.2. Package Contents......................................................................................................................... 6
3. CABLE CONNECTION ........................................................................................................................ 7
3.1. Before Connecting ....................................................................................................................... 7
3.2. Connecting the Cables ................................................................................................................. 7
4. ADJUSTMENT.......................................................................................................................................... 8
4.1 How to Use OSD Menu................................................................................................................. 8
4.2 OSD MENU Adjustments and Settings...................................................................................... 9
4.3 Screen Adjustment ....................................................................................................................... 9
5. TROUBLESHOOTING............................................................................................................................11
6. CLEANING.............................................................................................................................................. 12
7. GUARANTEE EXCLUSION .................................................................................................................. 12
8. SPECIFICATION.................................................................................................................................... 13
8.1 Specification............................................................................................................................... 13
8.2 D-Sub 15pin Connector .............................................................................................................. 13
8.2 Preset Timing.............................................................................................................................. 13

3
1. SAFETY SYMBOLS & PRECAUTIONS
1.1. SAFETY SYMBOLS
This manual uses the safety symbols below. They denote critical information. Please read them carefully.
WARNING
Failure to abide by the information in a WARNING may result in serious injury and can be life
threatening.
CAUTION
Failure to abide by the information in a CAUTION may result in moderate injury and/or property
or product damage.
Alert electrical hazard.
Indicates a prohibited action.
Indicates to ground for safety.
1.2. PRECAUTIONS
To ensure personal safety and proper maintenance, please read this section and the caution statements on the unit
WARNING
If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all
power connections immediately and contact your dealer for advice.
Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage.
Do not open the cabinet or modify the unit.
Opening the cabinet or modifying the unit may result in fire, electric shock, or burn.
Refer all servicing to qualified service personnel.
Do not attempt to service this product yourself as opening or removing covers may result in fire, electric shock,
or equipment damage.
Keep small objects or liquids away from the unit.
Small objects accidentally falling through the ventilation slots into the cabinet or spillage into
the cabinet may result in fire, electric shock, or equipment damage. If an object or liquid
falls/spills into the cabinet, unplug the unit immediately. Have the unit checked by a qualified
service engineer before using it again.
Set the unit in an appropriate location.
Not doing so may result in fire, electric shock, or equipment damage.
- Do not place outdoors.
- Do not place in the transportation system (ship, aircraft, trains, automobiles, etc.
- Do not place in a dusty or humid environment.
- Do not place in a location where the steam comes directly on the screen.
- Do not place near heat generating devices or a humidifier.
- Do not place in an inflammable gas environment.
To avoid danger of suffocation, keep the plastic packing bags away from babies and children.

4
Use the enclosed power cord and connect to the standard power outlet of your country.
Be sure to remain within the rated voltage of the power cord. Not doing so may result in fire or electric shock.
To disconnect the power cord, grasp the plug firmly and pull.
Tugging on the cord may damage and result in fire or electric shock.
The equipment must be connected to a grounded main outlet.
Not doing so may result in fire or electric shock.
Use the correct voltage.
- The unit is designed for use with a specific voltage only. Connection to another voltage than specified in this
User’s Manual may cause fire, electric shock, or equipment damage.
- Do not overload your power circuit, as this may result in fire or electric shock.
Handle the power cord with care.
- The unit is designed for use with a specific voltage only. Connection to another voltage
than specified in this User’s Manual may cause fire, electric shock, or equipment damage.
- Do not overload your power circuit, as this may result in fire or electric shock.
Never touch the plug and power cord if it begins to thunder.
Touching them may result in electric shock.
Do not touch a damaged LCD panel directly with bare hands.
The liquid crystal that may leak from the panel is poisonous if it enters the eyes or mouth. If any part of the
skin or body comes in direct contact with the panel, please wash thoroughly. If some physical symptoms result,
please consult your doctor.
Follow local regulation or laws for safe disposal.

5
CAUTION
Handle with care when carrying the unit.
Disconnect the power cord and signal cables and remove the optional unit. Moving the unit with the cord or the
option attached is dangerous. It may result in injury.
When handling the unit, grip the bottom of the unit firmly with both hands ensuring the
panel faces outward before lifting.
Dropping the unit may result in injury or equipment damage.
Do not block the ventilation slots on the cabinet.
- Do not place any objects on the ventilation slots.
- Do not install the unit in a closed space.
- Do not use the unit laid down or upside down.
- Blocking the ventilation slots prevents proper airflow and may result in fire, electric shock, or equipment
damage.
Do not touch the plug with wet hands.
Doing so may result in electric shock.
Use an easily accessible power outlet.
This will ensure that you can disconnect the power quickly in case of a problem.
Periodically clean the area around the plug.
Dust, water, or oil on the plug may result in fire.
Unplug the unit before cleaning it.
Cleaning the unit while it is plugged into a power outlet may result in electric shock.
If you plan to leave the unit unused for an extended period, disconnect the power cord from the wall
socket after turning off the power switch for the safety and the power conservation.
LCD PANEL
When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation
may occur inside and outside the monitor. In that case, do not turn the monitor on and wait until dew
condensation disappears, otherwise it may cause some damages to it.
In order to suppress the luminosity change by long-term use and to maintain the stable luminosity, please use the
monitor with the lower brightness.
The screen may have defective pixels. These pixels may appear as slightly light or dark area on the screen. This
is due to the characteristics of the panel itself, and not the product.
The backlight of the LCD panel has a fixed life span. When the screen becomes dark or begins to flicker,
please contact your dealer.
Do not press on the panel or edge of the frame strongly, as this may result in damage to the screen. There will be
prints left on the screen if the pressed image is dark or black. If pressure is repeatedly applied to the screen, it
may deteriorate or damage your LCD panel. Leave the screen white to decrease the prints.
Do not scratch or press on the panel with any sharp objects, such as a pencil or pen as this may result in damage
to the panel. Do not attempt to brush with tissues as this may scratch the LCD panel.
When the screen image is changed after displaying the same image for extended periods of time, an afterimage
may appear. Use the screen saver or timer to avoid displaying the same image for extended periods of time.

6
2. INTRODUCTION
Thank you very much for choosing this monitor.
2.1. Features
- VGA analog input
- Resolutions up to SXGA 1920x 1080
- Power management system conforms to VESA DPMS standard.
- Supports DDC1/2B for Plug & Play compatibility.
- Advanced On Screen Display (OSD) control for picture quality adjustment
2.2. Package Contents
Please contact your local dealer for assistance if any of the listed items are missing or damaged.
- LCD Monitor
- D-sub Signal Cable
- User Manual
- Power adapter
- Power cable
Note: Please retain the packing materials for future transference.

7

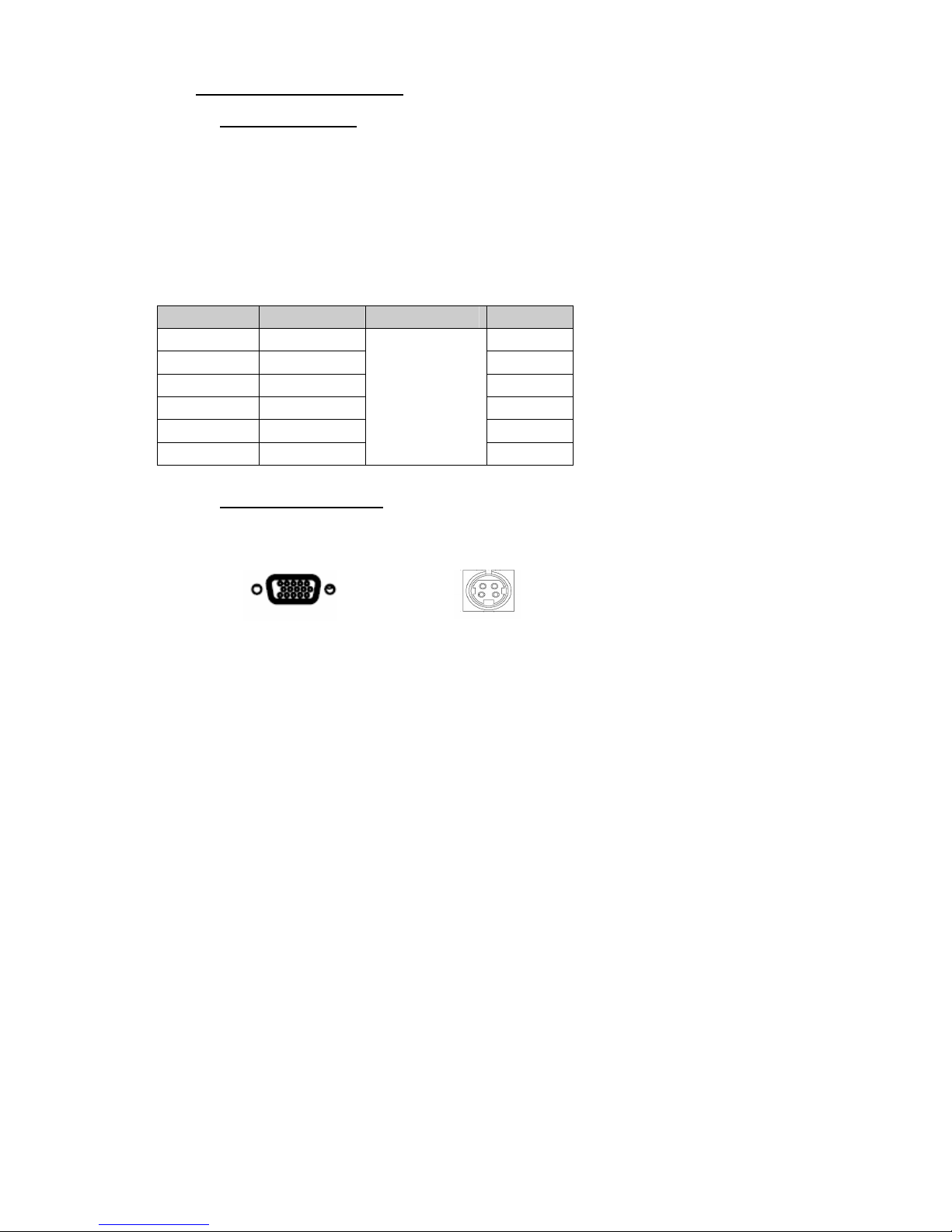

3. CABLE CONNECTION
3.1. Before Connecting
Before connecting your monitor to the computer, change the display screen settings (Resolution and frequency)
in accordance with the charts below.
Note:
- The lower display modes like 640x 480, automatically enlarge to the maximum display mode (1920 x 1080),
and some lines of the characters may become fuzzy.
- When your computer and display support VESA DDC, the suitable resolution and the refresh rate are set by
just plugging your display into the computer without any manual settings.
The monitor supports the following resolutions.
Resolution Refresh rate Dot Frequency Remark
640 x 480 60Hz VGA
800 x 600 60Hz VESA
1024 x 768 60Hz VESA
1280 x 1024 60Hz VESA
1600 x 1200 60Hz VESA
1920 x 1080 60Hz
138MHz
(Max.)
VESA
3.2. Connecting the Cables
Note: Be sure that the power switches of both the computer and the monitor are OFF.
D-sub DC IN 24V
VGA cable connection:
Plug 15-pin VGA signal cable to the VGA connector in the rear of the PC system, and plug the other end to the
monitor. Secure cable connectors with screws.
DC IN 24V cable connection (Optional):
Plug the DC IN signal cable to the DC IN connector in the rear of the AC and plug the other end to the monitor.

8
4. ADJUSTMENT
This touchmonitor will not likely require adjustment. Variations in video output and application may require
adjustments to the touchmonitor to optimize the quality of the display.
For best performance, the touchmonitor should be operating in native resolution 1920 x 1080. Use the Display
control panel in Windows to choose 1920 x 1080 resolution. Operating in other resolutions will degrade video
performance.
All control adjustments are automatically memorized.

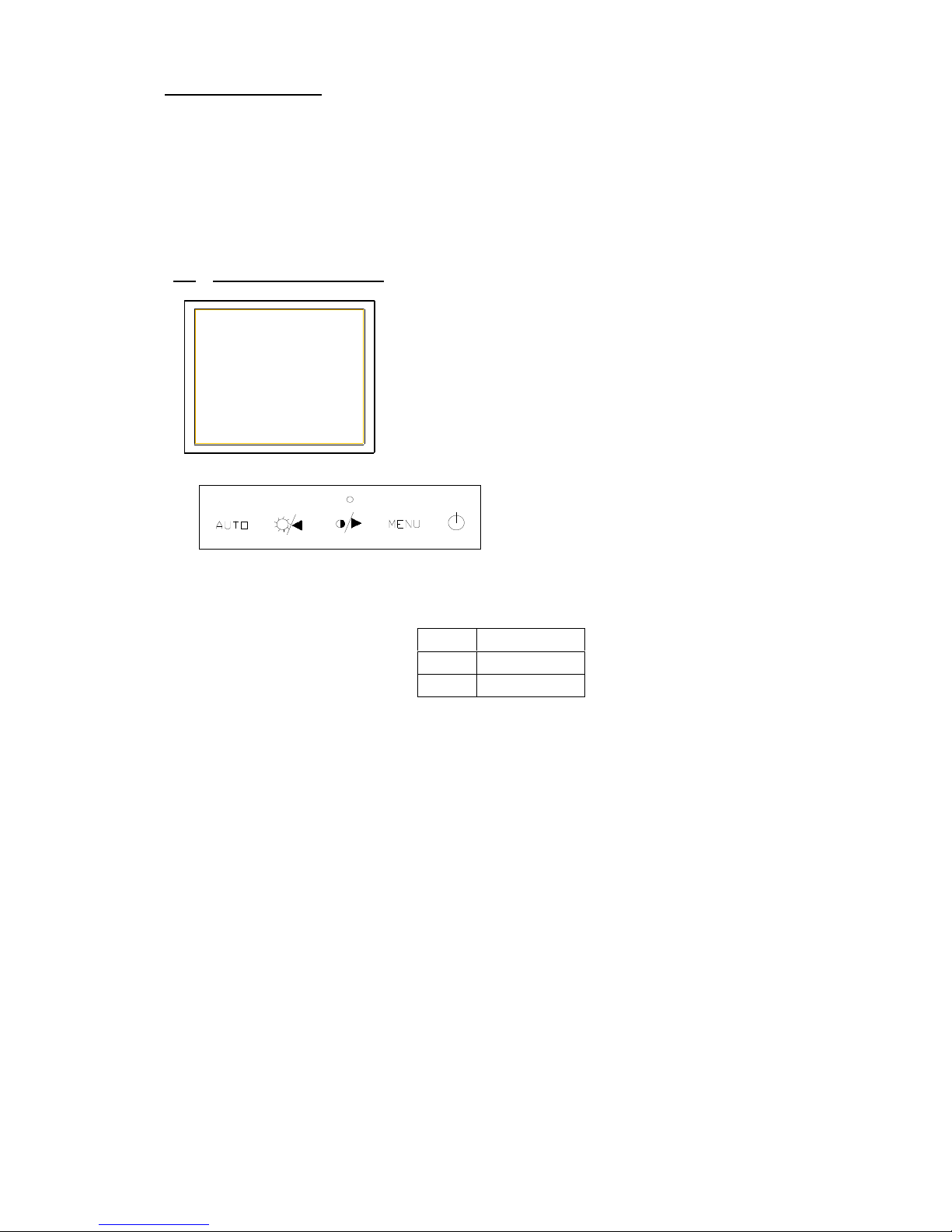

4.1 How to Use OSD Menu
6
1 2 3 4 5
1. Entering the OSD Menu
Press the MENU Button once to display the OSD Menu.
2. Making Adjustments and Settings
a. Select the desired sub menu icon using the Control buttons and press the MENU button. The sub menu
appears.
b. Use the Control buttons to select the desired setting icon and press the MENU button. The setting menu
appears.
c. Use the Control buttons to make all required adjustments and press the MENU button to save the settings.
3. Exiting the OSD MENU
- To return to the main menu, select the <Return> icon and press the MENU button.
- To exit the OSD menu, select <Exit> icon .
(1) Auto Button
(2) Control Button (Increasing)
(3) Control Button (Reduce)
(4) Menu/Enter Button
(5) Power On//Off Button
(6) Power Indicator
Power Indicator
Green Operation
Orange Closed
Off Power Off

9

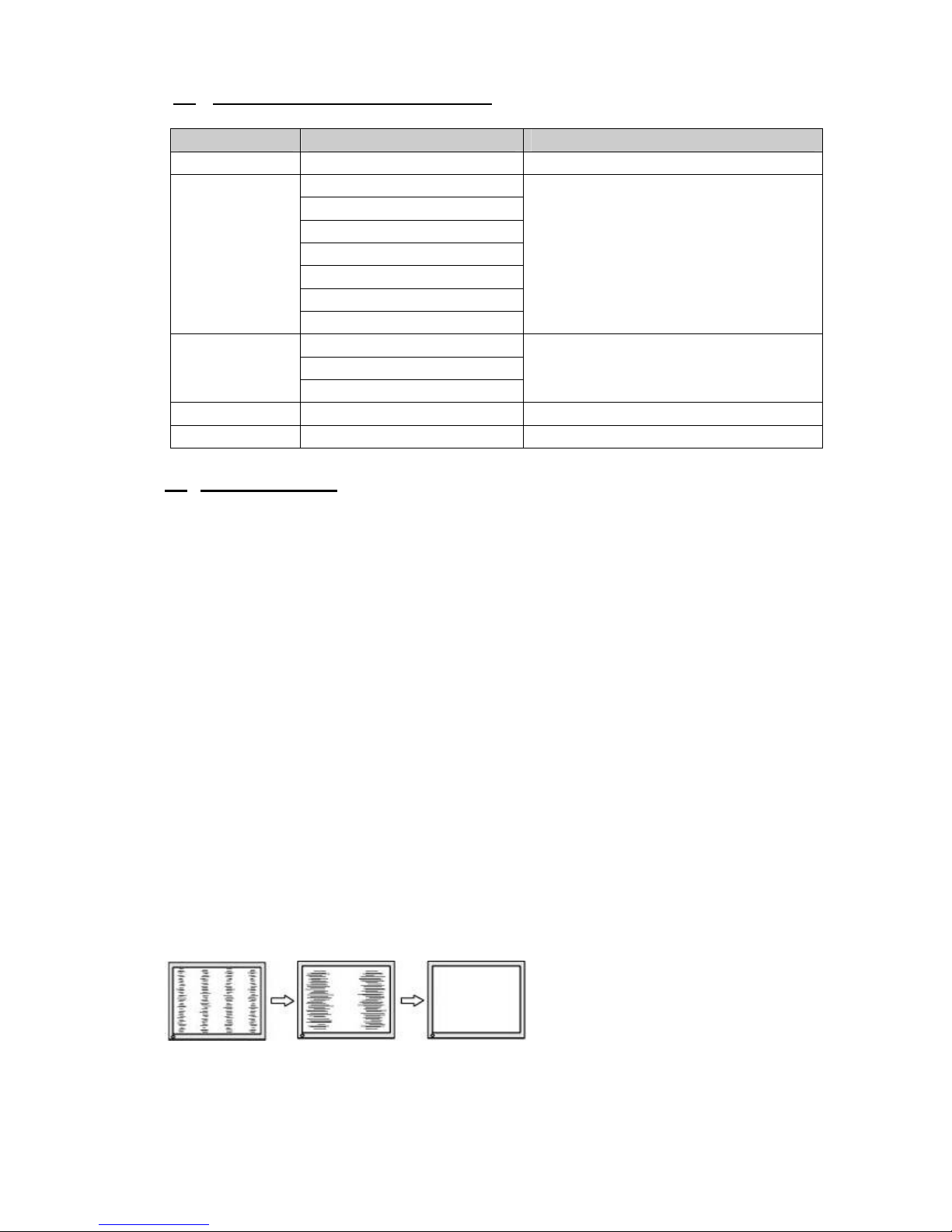

4.2 OSD MENU Adjustments and Settings
The following table shows all adjustment and setting menus.
Main Menu Sub Menu Reference
Auto Adjust
Adjust the picture automatically
Gamma 1
Gamma 2
Gamma 3
Gamma 4
Gamma 5
Gamma 6
Gamma
Gamma 7
Choose suitable mode according to different
application
LOW
High
Collrte MP
Me dium
Choose suitable color temp according to
different application
Default Return to the default
Exit
Close the OSD menu
4.3 Screen Adjustment
Screen adjustments for the monitor should be used in suppressing screen flickering and also for adjusting the
screen to its proper position. There is only one correct position for each display mode. It is also recommended to
use the OSD Menu function when first installing the display or whenever changing the system.
Note: Allow the monitor to stabilize for at least 20 minutes before making image adjustments.
Adjustment Procedure
1. Adjust by <Auto Adjust> menu in the OSD Menu.
To automatically adjust the clock, phase, screen position and resolution.
Note:
The Auto sizing function is intended for use on the computer running Windows. It may not work properly when
the computer is running on MS-DOS (Not windows) or the background color for the "wall paper" or "desktop"
pattern is set to black.
If the appropriate screen cannot be made by using the Auto adjustment button, adjust the screen through the
following procedures.
2. Adjust by using <Image Setting> menu in the OSD Menu.
(1) Vertical bars appear on the screen
→Use the <Clock> adjustment.
Select the <Clock> and eliminate the vertical bars by using the UP and Down of the Control buttons.
Do not continuously press the Control buttons, as the adjustment value will change quickly and make it difficult
to locate the most suitable adjustment point. If the horizontal flickering, blur or bars appear, proceed to <Phase>
adjustment as follows.
(2) Horizontal bars appear on the screen.
→Use the <Phase> adjustment.
Select the <Phase> and eliminate the horizontal flickering, blurring or bars by using the Right and Left buttons.

10
Note: Horizontal bars may not completely disappear from the screen depending on the computer.
(3) The screen position is incorrect.
→Use the <Position> adjustment.
The <Position> adjustment moves the image to the correct position. Select <Position> and adjust the position by
using the Up and Down buttons.
If vertical bars of distortion appear after finishing the <Position> adjustment, return to <Clock> adjustment and
repeat the previously explained adjustment procedure. (Clock →Phase →Position)

11

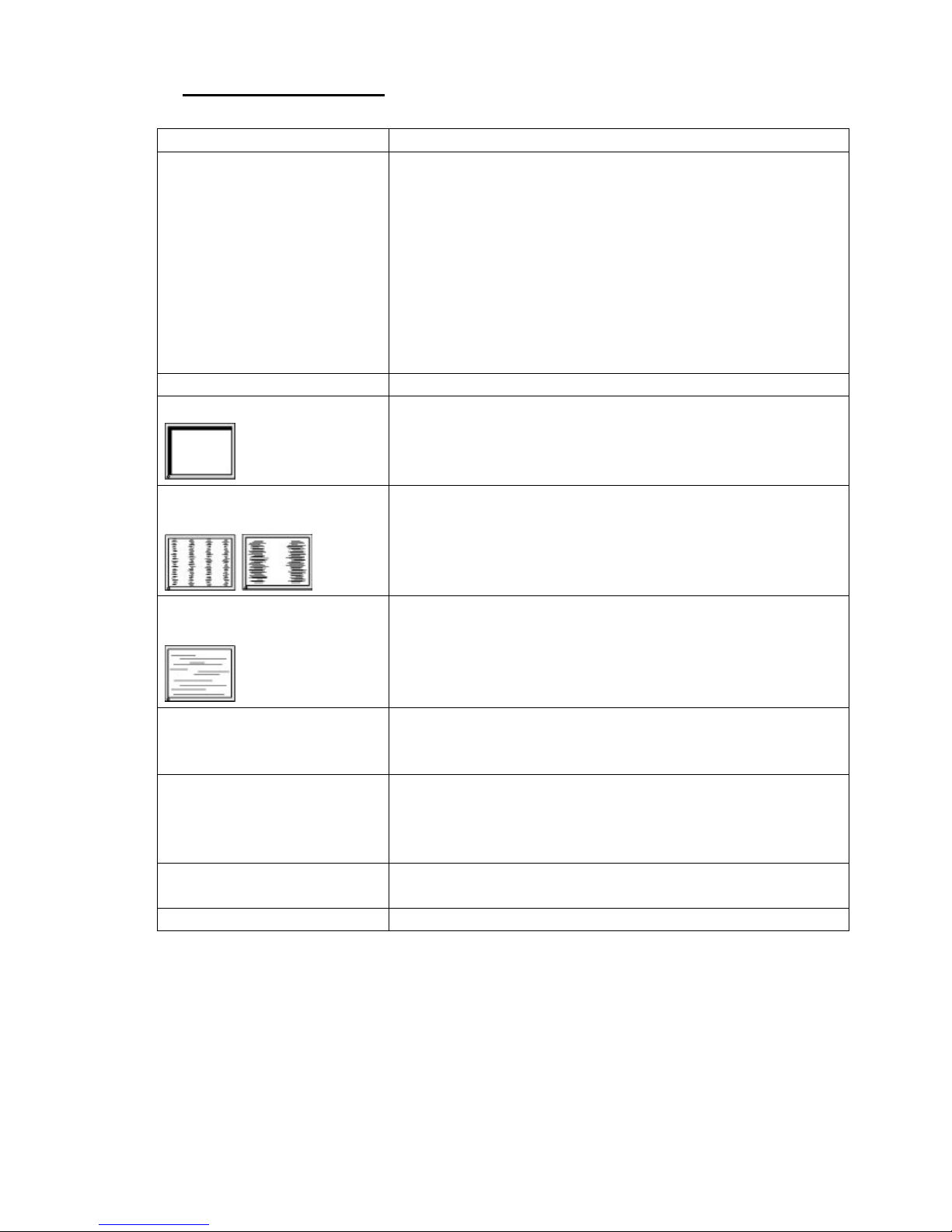

5 . TROUBLESHOOTING
If a problem persists even after applying the suggested remedies, contact a dealer.
Problems Points to check with Possible Solutions
1. No picture
Indicator status: Off
Check that the power cord is correctly connected. If the problem persists,
turn off the monitor power for a few minutes, then turn it back on and try
again.
- when the signal is not inputted correctly, even if the monitor functions
properly.
- When the image is displayed correctly after a short time, there is no
problem with the monitor. (Some PCs do not output the signal soon after
powering on.)
Check that the signal cable is properly connected to the PC or graphics
board.
Indicator status: Green Check the "Brightness" setting.
2. Display position is incorrect.
Adjust the image position using the <Position>. If the problem persists, use
the graphics board's utility software to change the display position if
available.
3. Vertical bars of distortion
appear.
Decrease the horizontal bars using the <Clock>.
4. Horizontal bars of distortion
appear.
Decrease the horizontal bars using the <Phase>.
5. The screen is too bright or too
dark.
Adjust the <Brightness> (The backlight of the monitor has a fixed life span.
When the screen becomes dark or begins to flicker, please contact your
dealer.)
6. Afterimages appear. - Do you use the screen saver or timer when displaying the same image for
extended periods of time?
- Afterimages are particular to monitors. Avoid displaying the same image
for extended periods of time.
7. The screen has defective pixels
(e.g. slightly light or dark).
This is due to the characteristics of the panel itself, and not the product.
8. Touch doesn’t work. Make sure the touch cable is securely attached at both ends.

12
6. CLEANING
Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime.
Note: Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other
strong solvents, as these may cause damage to the cabinet or LCD panel.
Cabinet
To remove stains, wipe the cabinet with a soft, lightly moistened cloth using a mild detergent. Do not spray wax
or cleaner directly into the cabinet. (For details, refer to the manual of the PC.)
LCD Panel
The LCD surface can be cleaned with a soft cloth, such as cotton or lens paper.
If necessary, stubborn stains can be removed by moistening part of a cloth with water to enhance its cleaning
power.
7. GUARANTEE EXCLUSION / CAVEAT EMPTOR
Claims for defects do not exist in the following cases:
- natural wear and tear, and any damage, errors, reduced output or changes in the condition or function of our
products that are due to external factors (e.g. blows, knocks, vibrations, water, fire), or due to improper storage,
handling, assembly or any other improper use, or due to extreme climatic conditions, or to particular reception or
operating conditions at the location where the item is used;
- defects due to constructional errors or material defects, insofar as the customer has prescribed the construction
or the material;
- burn-in on the LCD panel caused by permanent display and spots forming on the LCD panel

13
8. SPECIFICATION
8.1 Specification
Display characteristics
Size: 31.5″active display
Supported Color : 16,7 colors
Native resolution: 1920 x1080
Pixel pitch: 0.36375 x 0.363753mm
Viewing angle: 178° V/H @ contrast ratio > 10
Brightness: 400cd/m² Typ (w/o touch)
Contrast ratio: 5000:1Typ.
Response time: 8 ms Typ.
External connections
Analog Video Input: 15 pin D-sub
Physical specifications
Dimensions: 860(W)x450(D)x390(H) mm
Weight: 19 Kg
Standard mounting VESA compatible(100 mm spacing)
Power supply: DC 24V
Power consumption: 180W max.
Power saving: EPA, VESA compliant
Operating temperature: 0° to 40°C
Storage temperature: -20° to 65°C
Relative humidity: 5% to 90%, non condensing
MTBF: > 50,000 hours (excluding backlight)
8.2 D-Sub 15pin Connector
Pin Signal Pin Signal Pin Signal
1 Red video 6 Red ground 11 Ground Shorted
2 Green video 7 Green ground 12 Data (SDA)
3 Blue video 8 Blue ground 13 H. Sync
4 Ground 9 No pin 14 V. Sync
5 No pin 10 Ground Shorted 15 Clock (SCL)
8.3 Preset Timing
Signal Polarity Frequency
Timing Dot Clock
MHz H V FH (kHz) FV (Hz)
VGA 640 x 480 25.2 - - 31.5 60.0
VESA 800 x 600 40.0 + + 37.9 60.3
VESA 1024 x 768 65.0 - - 48.4 60.0
VESA 1280 x 1024 108.0 + + 64.0 60.0
VESA 1600 x 1200 130.25 + + 74.006 60.0
VESA 1920 x 1080 138.00 + + 66.587 60.0

14
Vendor:
Europe: Headquarter (North America):
Canvys Canvys
A Division of Richardson Electronics GmbH A Division of Richardson Electronics
GmbH
Raiffeisenstraße 5 40W2 7 Keslinger Road
D-781 Donaueschingen PO Box 393
LaFox IL 0147-0393 USA
Internet: www.canvys.com
Tel.: [phone] – 0
Fax.: [phone] – 80
VAT-No.: DE128240232
WEE-Reg.-Nr.: DE 4 78500
