Caple Di615 User manual

Instruction manual for deluxe electronic dishwasher
Model code: Di615
Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).

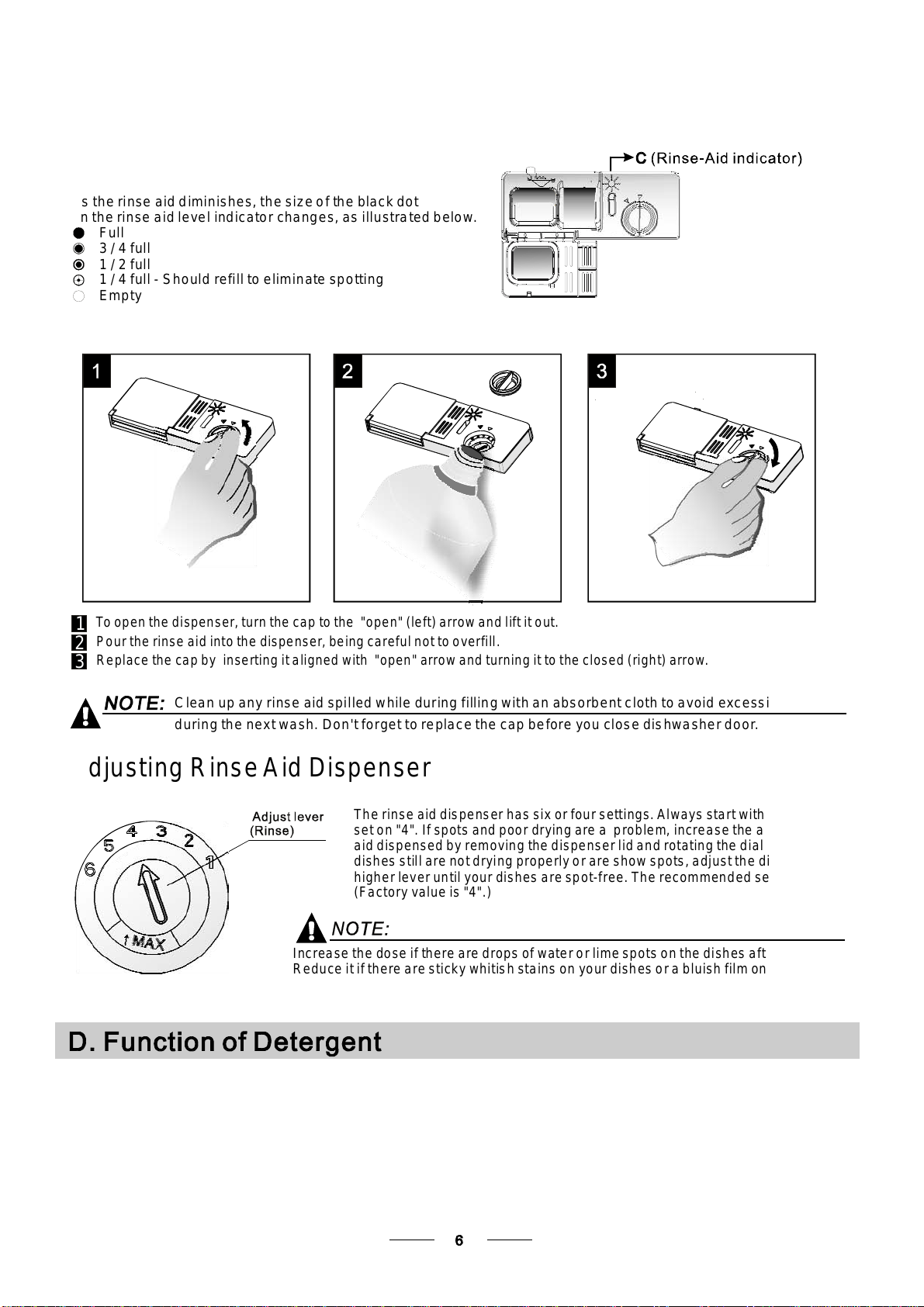

Check the rinse aid level
(On models with water softener system only.)
Electric indicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by the number of cycles the dishwasher has run.
Check the regeneration
salt level
Load the baskets
Select a programme
Close the door, turn on the water tap. The machine will start working after about 10 seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, startingfrom the lower basket.
Changing the programme
Add forgotten dishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the Programme button until the selected programme lights up.
( See the section entitled Operationg instruction )“”
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the ON/OFF button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteammay escape
when thedoorisopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance Press the On/Off button to switch on the appliance, Open the door.
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
For detailed operating method read the corresponding content on the instruction manual.
1.A running cycle can only be modified ifit has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Open the door a little to stop the washing, then press the Program button for more than 3 seconds to
cancel the running programme.
3. Select a new programme, then close the door. The machine will restart after about 10 seconds.

To review the section on troubleshootingTips
will help youto solve some common problems
by yourself .
Dear Customer,
Please carefully read this manual beforeusing the
dishwasher, itwill help you to use and maintain the
dishwasher properly.
Pass it onto any subsequentowner of the appliance.
This manual contains sections on safety Instructions,
OperatingInstructions,InstallationInstructionsand
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
developmentandupdating of the product, may
make modifications without giving prior notice.
Keep it to refer to it at a laterdate.
If you can not solvethe problems by yourself ,
please ask forthe help of professional technicians.
DishwasherFeatures.................................... ...3
A Water Softener..................... ....................4、..
Attention before or after loading the Dishwasher
Baskets..........................................................9

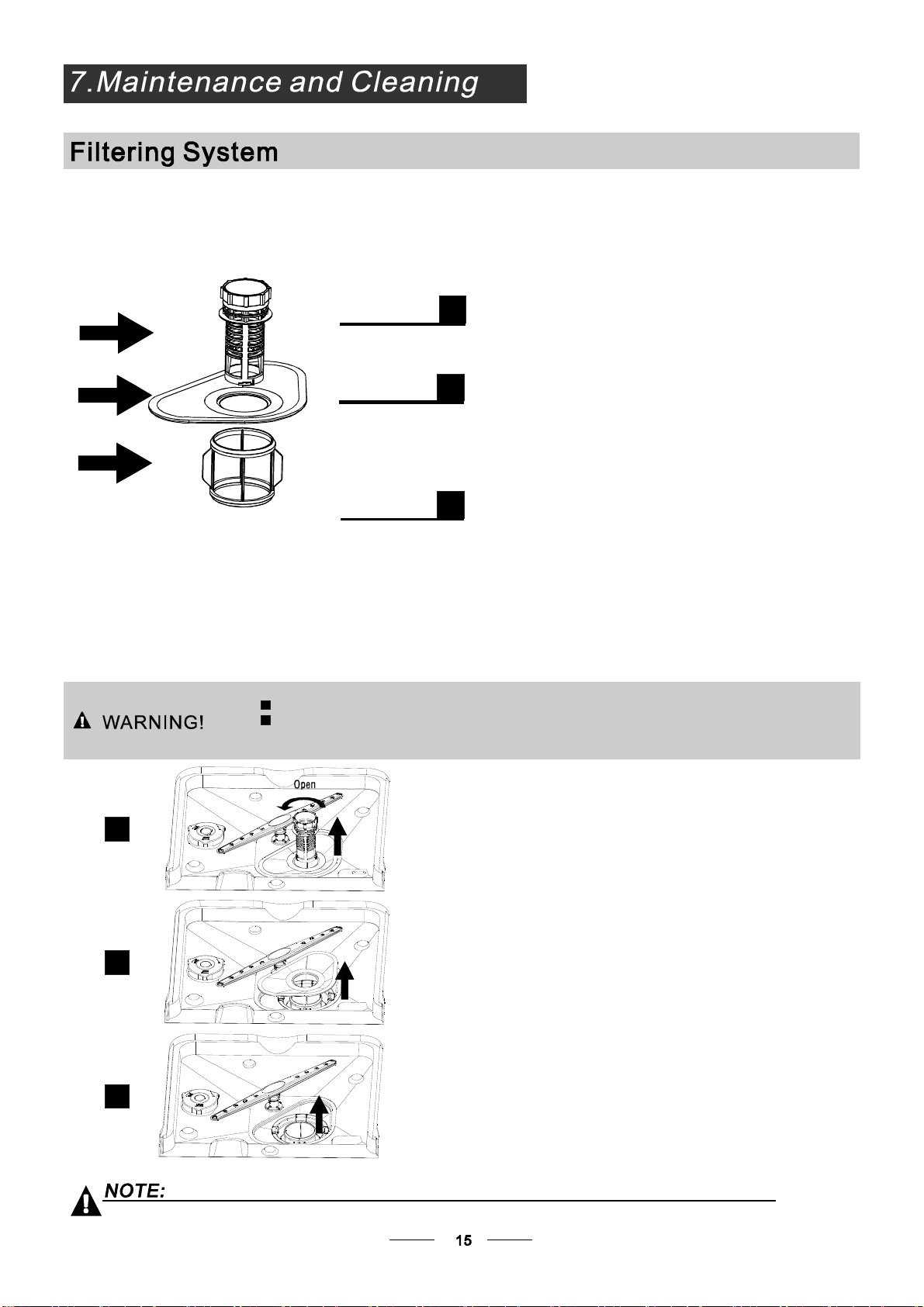

Filtering System.............................................15
Caring for the Dishwasher..................... .........16.

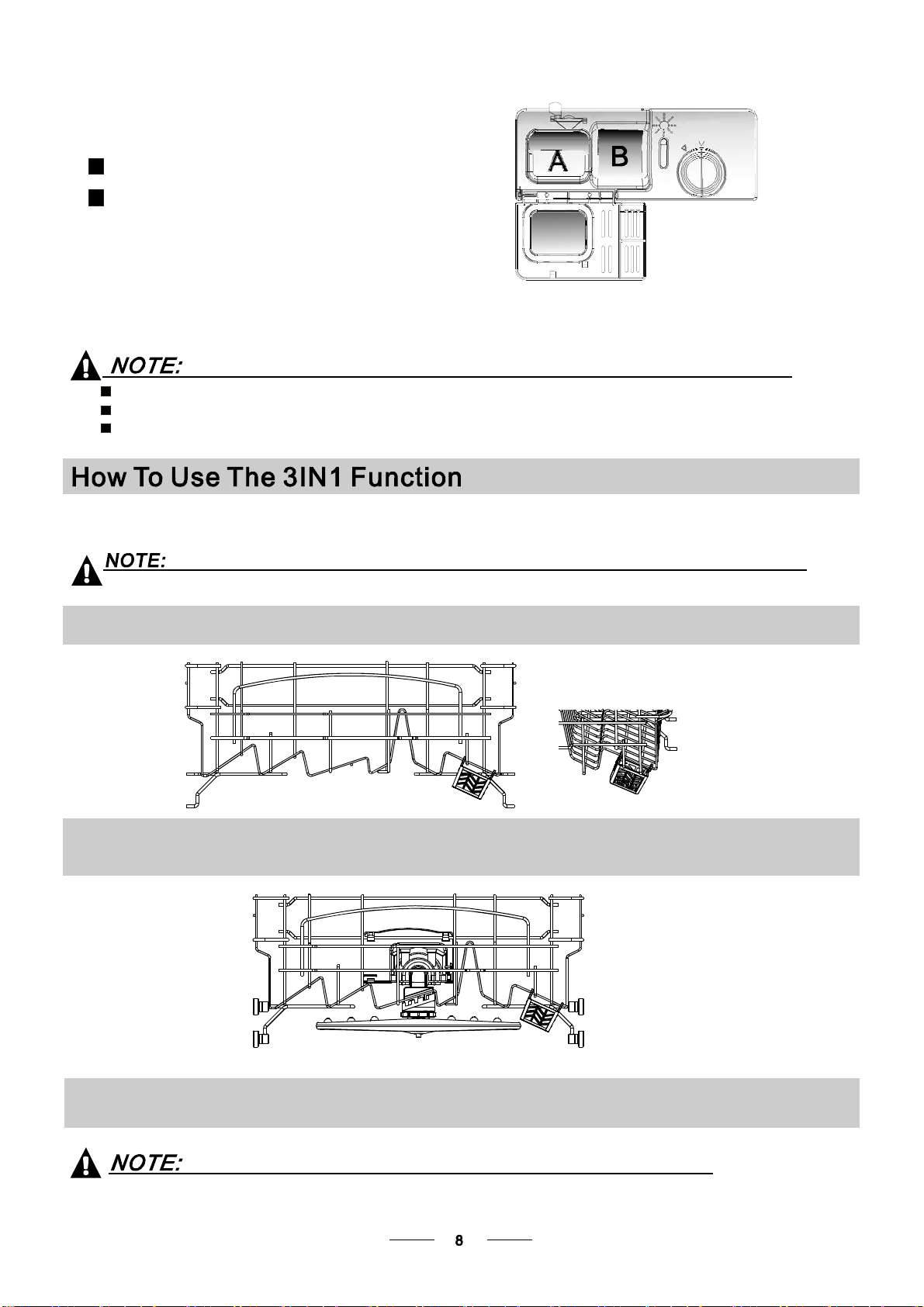

How to use the 3 in 1function............................8
B Loading theSalt into the Softener.................5、
C Fill the RinseAid Dispenser.........................5、
D FunctionofDetergent.................................6 、

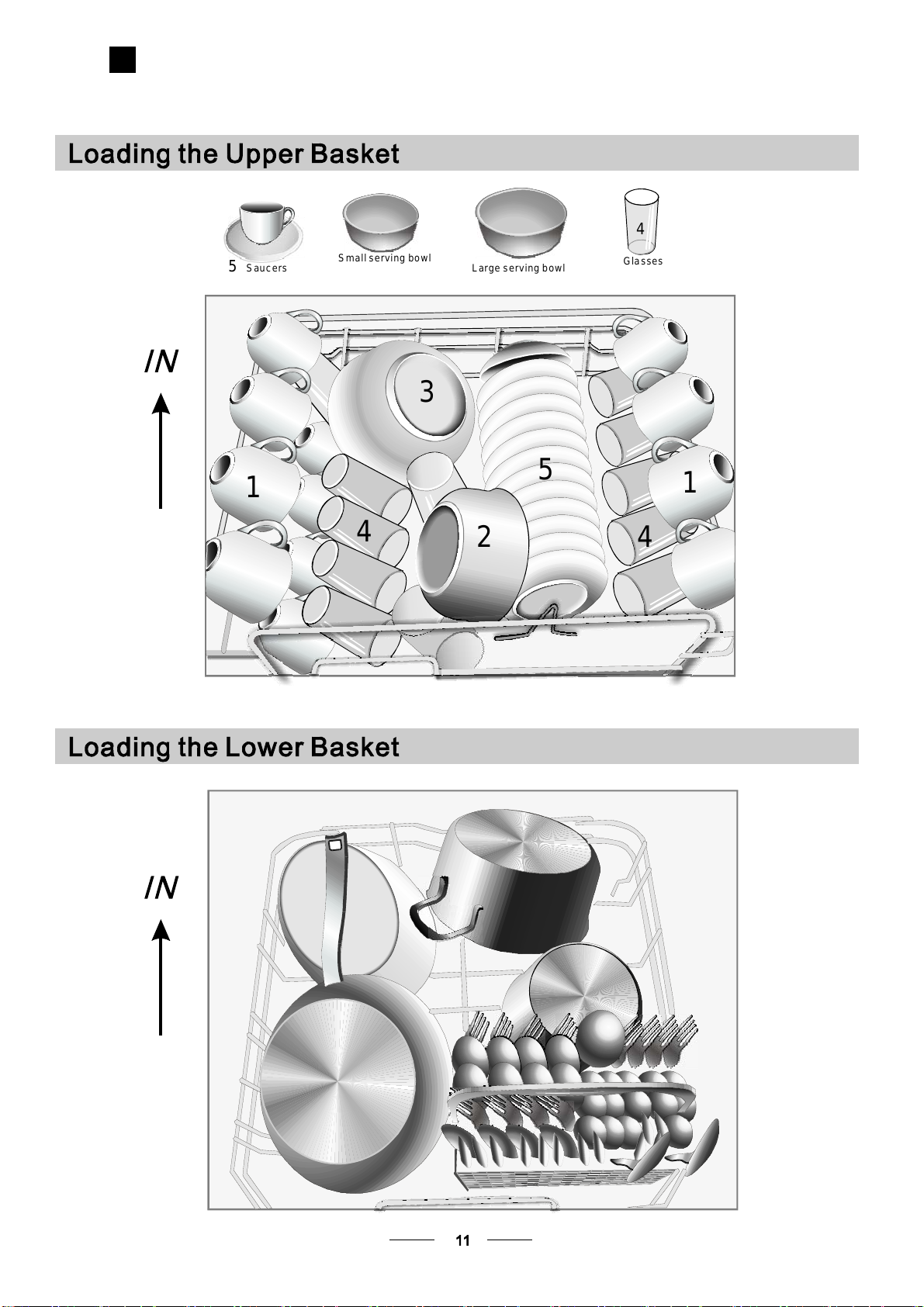

Loadingthe upper ...............................10Basket
LoadingtheLower ...............................10Basket
Cutlery Basket........................................... ...12
Therecommended method loading big
dishware.................................................... ...11
WashCycleTable...........................................13
Turning on theAppliance................................14
Changethe Programme.............. ................14....
At the End of the Wash Cycle...........................14
Before calling forservice........................... .....24.
Errorcodes.................................... ..............25.
Technical information.............................. .....26..
ControlPanel...................................................3
.................................. 17Installation preparation ...18Aesthetic panel's dimensions and installation
..............20Tension adjustment ofthe door spring
.............................. 20Connection of drain hoses ......................... 21Dishwasherinstallation steps
About Electricity Connecting...........................22
Cold Water Connection.................................. 23
Hot ............. 23Water Connection.....................

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Useonly detergent and rinse additives
designed for an automatic dishwasher.
Never usesoap, laundrydetergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation,the powersupply mustnot
beexcessivelyordangerouslybent orflattened.
Do not tamper with controls.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1)Locatesharp itemsso that theyarenot likely
todamagethedoorseal;
2 Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their pointsdown or placedin a
horizontalposition.
)
When using yourdishwasher, you should
preventplastic items from comingintocontact
withtheheating element.(This instruction is only
applicable to machines with a visual heating
element.)
Ifthesupply cord is damaged, it must be replaced
by themanufacturer or itsserviceagent ora
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are stronglyalkaline, they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyesand keep children away
from the dishwasher when the door is open.
Check that the detergent comparmentisempty
after completionof the wash cycle.
The applianceis to be connected to the water
mains using new hosesets and that oldhose-sets
should not be reused.
The maximumnumberof place settings tobe
washed is 12.
The maximumpermissibleinlet water pressureis
1Mpa.
The minimum permissibleinlet water pressureis
0.04Mpa.
Children should besupervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The doorshould not be left open,
since this could increase the risk of tripping.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.

Dispose of the dishwasher packaging material correctly.
All packaging materialscanbe recycled.
Plastic parts are markedwith thestandard international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene,e.g.padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g.Control Panel .
Packaging material couldbe dangerous for children!
Fordisposing ofpackage and theappliance please goto a recycling centre. Therefore cut
off the powersupplycable and makethe doorclosing device unusable.
Cardboard packaging is manufactured fromrecycled paperand shouldbe disposedin the
waste papercollection for recycling.
By ensuringthis product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health,which could otherwise be caused
by inappropriatewaste handling of thisproduct.
Formoredetailed informationabout recycling of this product, please contact your local
city office and your household wastedisposal service.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.






Di615
11 12
Back View
1
2
3
4
5
6
7
8
9
10
on
Of f
Front view
MainFilter
Detergent Dispenser
CupShelf
CutleryBasket
CoarseFilter
RinseAidDispenser
Inlet pipe connector
Drain pipe connector
Lower Basket
SprayArms
UpperBasket
1
Salt Container
beforeusing it for the first time.
To getthe best performance from yourdishwasher,read all operating instructions
5
6
7
8
9
10
12
11
3
24
2
3
4
5
6
7
8
Delayed start indicator lights:Toindicatethe delayedhours as 3h, 6h,9h and 12h for the washing.
Program indicator lights: Show the washing program.
Saltandrinse aid warning lights: To showwhen thesalt container or dispenser need to be refilled.
3in1 indicatorlight:Toshow 3in1 functions.
Delayed Start Button: To preset the wash timer and delay the starting timeto 3hours,6 hours,9 hours
or 12 hours. Every press of this button changethe delay time, andcanbeshown by thedelaystart
indicator lights. .
3in1 button: Toselect 3in1functions.
Program button: To selectone of the sixprograms.
Powerindicatorlight and switch:To turn on/off andshow the powersupply.
Program button: To selectone of the sixprograms. .
5678
234

Before using yourdishwasherfor the first time:
The water softener must be set manually, usingthewater hardness dial.
The water softeneris designed to remove minerals and salts from the water, which wouldhave
a detrimentalor adverse effect on the operation of the appliance. The higher the
content of these mineralsand salts,the harder your water is. The softener should be
adjusted accordingtothe hardness ofthe water in yourarea. Your localWaterAuthority
can advise you onthehardnessofthewaterinyourarea.
Adjusting Salt Consumption
The dishwasher isdesigned toallow for adjustment in the amount ofsalt consumed based onthe hardness of
the waterused. Thisis intended tooptimiseandcustomisethelevel of salt consumption.
1. Unscrew the cap fromthesalt container.
2. There is aringon the container with an arrow on it (see figure
ontheside),ifnecessary, rotate thering intheanticlockwise
direction fromthe "-" Setting toward the"+"sign, based on the
hardnessof the water being used.
It is recommendedthat adjustments should be made in
accordance withthe following scheme:
WATER SOFTENER
Thehardness ofthe watervariesfrom place to place.If hardwater isused inthe dishwasher, deposits will
form on the dishesand utensils.
Theappliance is equipped with aspecial softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
Contact your local water board for information on the hardnessof your water supply.
dH mmol/l
0~140~8 0~1.4 /0/
14~398~22 1.4~3.9 - 20 50
39~8022~45 3.9~8 Mid 40 25
+60 16
fH
0~10
10~28
28~56
Clarke
WATER HARDNESS
SelectorPosition Salt consumption
(gram/cycle) Auto nomy
(cycles/1kgs)
Please follow the steps below for adjustment in salt consumption.
""/
"-"
"+"
"Mid"
Settingtowardthe"+"sign
Settingtowardthe"-"sign
Settingtowardbetween
the "-" sign and "+" sign
No salt need added
45~60 80~107 56~75 8~11
If your model does not have any water softener, you mayskip this section.
A. Set the watersoftener
B. Pour 1 2 litre ofwaterinsidethesaltcontainer andthen fillwithdishwasher salt
／
C. Filltherinseaiddispenser
D. Fill in detergent
°Clark: British degree
°fH: French degree
°DH: German degree
dH=1.25Clarke=1.78fH=0.178mmol/l
°°°
1

normal for a small amount of water to come out of the salt container.Itis
1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how well thesalt dissolves, thesalt warning light may still be on even though the
salt container is filled.
If there is no salt warning light in the control panel (forsome Models),you can estimate when to fill
the salt into the softener by the cycles thatthe dishwasher has run.
2. If there are spills ofthe salt,a soak or a rapid program should be runto remove the excessive salt.
Always use the salt intended for use with dishwasher.
The salt container is located beneath the lower basket and should be filled as explained
inthe following:
Attention!
Only use salt specifically designed forthe use indishwashers! Every other type of
salt not specifically designed for theuse in adishwasher, especially table salt, will
damage thewater softener. In case of damages caused by the use of unsuitable
salt the manufacturerdoes not give any warranty nor is liable for any damagescaused.
Only fillwithsaltjust before starting one of thecomplete washingprograms.
This will prevent anygrains of salt or salty water, which may have been spilled,
remaining on the bottom ofthe machinefor any periodof time, which may cause
corrosion.
Therinse aid isreleasedduring the final rinseto prevent water from forming droplets on your dishes, which can
leave spots andstreaks. Italso improvesdryingby allowing water toroll offthe dishes. Your dishwasheris
designed touseliquidrinseaids.The rinseaid dispenser islocated inside thedoornext to the detergentdispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. Thevolume ofthe rinseaidcontaineris about 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automaticallyadded during thelast rinse, ensuring thorough rinsing, and spotand streak free drying.
Attention!
Only use branded rinse aidfor dishwasher. Neverfill therinse aid dispenserwithanyothersubstances
(e.g. Dishwasher cleaning agent, liquid detergent).This would damage the appliance.
ARemove the lower basket and then unscrew andremovethe capfromthesalt container.
BBefore thefirst wash, fill 1lt. of water inthe salt container of your machine.
CPlace theend of thefunnel (supplied) into the hole and introduce about 1kg of salt.
DAfter filling the container, screw the cap tightly back clockwise.
EUsually, the salt warning light will stop being illuminated within 2-6 days afterthesalt container hasbeen filled with
salt.
FImmediately after filling the salt into the salt container, a washing program should be started
program Otherwise the filter system, pump or other important parts of the machine may be damaged
bysalty water.This isoutof warranty.
(Wesuggest to use the
soak orrapid ).

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pourthe rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting italigned with "open" arrow and turningit tothe closed (right) arrow.
Adjusting RinseAid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser
set on"4". If spots and poor dryingare a problem, increase the amount of rinse
aid dispensedby removing the dispenser lid and rotatingthe dial to "5". If the
dishes still are not drying properly or are showspots,adjustthe dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increasethedose if thereare drops of wateror limespotsonthe dishesafterwashing.
Reduce it ifthere are sticky whitish stains on your dishes ora bluish film on glassware or
knife blades.
1
2
3
As the rinse aid diminishes, the sizeof the black dot
ontherinse aidlevel indicator changes, as illustratedbelow.
Full
3/4full
1/2full
1/ 4full- Should refill to eliminate spotting
Empty
When to Refill the RinseAid Dispenser
Ifthereis no rinse-aid warning light in thecontrolpanel, youcan estimatethe amount from the colour
of the optical level indicator C located next to the cap. When therinse-aid container isfull, the whole
indicator will be dark .As the rinse-aid diminishes, thesize of the dark dot decreases. You should never let
the rinse aid level fall 1 / 4 full.
duringthe nextwash. Don'tforget to replacethe cap before you closedishwasher door.
Clean up any rinse aid spilled while during fillingwith an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients arenecessary to remove dirt,crushdirt andtransport it outof the dishwasher.
Mostofthecommercialqualitydetergents are suitablefor thispurpose.
Detergents
There are 3 sorts of detergents
1.Withphosphate andwithchlorine
2.With phosphate andwithout chlorine
3.Withoutphosphate and without chlorine
""

Amount ofDetergenttoUse
Proper Use ofDetergent
Use only detergentspecificallymade for theusein dishwashers.Keep your detergent fresh and dry.
Don'tputpowdereddetergentinto the dispenseruntilyou'reready towash dishes.
Dishwasher detergent iscorrosive! Take care to keepit out of reach of children.
Based ontheir chemical composition, detergentscan besplitintwo basic types:
The use of normal washingprograms in combinationwith concentrated detergents
reduces pollution and is good for your dishes; these wash programs are specifically matched
to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
normal wash programsin whichconcentrated detergents areused canachievethe same
results that canotherwise onlybe achievedusing intensive programs.
“”
“”
“”
Detergent tablets ofdifferent brandsdissolve atdifferentspeeds. For thisreasonsome
detergenttablets cannot dissolve and develop theirfull cleaning power during short
programs. Therefore please use long programswhen usingdetergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser mustbe refilledbefore the start of each washcycle following the instructions
provided in the wash cycle table . Your dishwasher usesless detergent and rinseaid than
Conventionaldishwasher.Generally, only one tablespoon of detergent is neededfor
anormal washload. Moreheavily soileditems needmore detergent.Alwaysaddthe
detergentjustbefore starting the dishwasher, otherwiseit couldget damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
Detergent Dispenser
Always add the detergent just before starting each wash cycle.
Only use branded detergentaidfordishwasher.
If the lid isclosed: press release button.The lid will spring open.
conventional, alkaline detergentswith caustic components
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate.Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water
often white spots appear on dishesand glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. Inthiscase please choosea program with a higher temperature.
°
Detergent tablet
Detergent powder

Ifyou use 3in1 tablets in other programs,the appliance will not achieve a good performance.
Only the 3in1 function(for the program:intensive/Normal/Eco.) Can be used with3in1tablets.
Fill the detergent dispenserwith detergent.
The marking indicates the dosing levels , as
illustrated on the right:
Theplace of main wash cycle detergent placed,
MIN means approximately20gof detergent.“”
Theplaceof pre-wash cycle detergent placed,
approximately 5gof detergent
Please observethe manufacturers dosing and storage
Recommendationsas statedonthedetergent packaging.
Closethelid and press untilit locksin place.
If the dishes are heavily soiled, place an additional
detergent dosein the pre-wash detergent chamber.Thisdetergent will take effectduring the pre-washphase.
A
B
Fill in Detergent
You findinformation about the amount ofdetergent for thesingle programme onthe last page.
Pleaseaware, that according tothe levelsoiling and the specific hardnessof water differencesarepossible.
Pleaseobserve themanufacturer's recommendationsonthe detergentpackaging.
When using 3in1 combination / compact Detergents ,pleasepay attentionto make sure that
the size of the combination detergents fits to the dispenser so that combination
detergentscan be easily put into the dispenser, and thedispenser would not be broken.
，
Your dishwasher has a 3in1 functionwhich needs no salt and rinse aid but a 3In1 tablet.
This dishwasher comeswith a 3in1 tablet container as an accessory.
1.The figure below shows how to hangthe 3in1 tablet container on the upper basket.
2. Rotate the upper sprayer andchange the location of the container to ensure the uppersprayer isnot
obstructedby the 3in1 tabletcontainer.Refertothe figurebelow for reference.
3. Put the 3in1 tablet intothe container ,then start the 3in1 program.

Cutlery withwooden,horn china or
mother-of-pearl handles
Plasticitemsthat are not heat resistant
Older cutlerywith glued parts that arenot
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items madefromsyntheticfibres
Some types of glasses canbecome
dull aftera large number of washes
Silver and aluminum parts have a
tendencyto discolourduringwashing
Glazed patterns may fade ifmachine
washed frequently
Are not suitable Are oflimited suitability
Dishesand itemsof cutlery mustnot lie insideoneanother, orcover each other.
To avoiddamage to glasses, theymust not touch.
Load large itemswhich are most difficult to cleaninto the lower basket.
The upper basket isdesigned to holdmoredelicate and lighterdishware suchas glasses,coffee
andteacups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontallyin the upperbasket.
Please do not overload yourdishwasher. This is importantfor good resultsandfor
reasonable consumptionof energy.
Load hollow items suchas cups, glasses, pans etc. With the opening facing downwardsso that
water cannot collect in the container or a deep base.
Usea mild detergentthatis describedas 'kind todishes'. If necessary, seek further
information from thedetergent manufacturers.
For particular items,select aprogramwithas low a temperature aspossible.
Consider buyingutensils which are identified asdishwasher-proof.
To prevent damage, do not take glassandcutlery out of the dishwasher immediately
after the programmehas ended.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlerybaskets may vary from your model.)
Scrape off any largeamountsofleftover food. Soften remnants ofburnt food in pans.
It is not necessary to rinse thedishes under running water.
Place objects in the dishwasherin following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way that the spray armscan rotatefreely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend thatyou
empty the lower basket first andthenthe upper basket.

The upperbasket isdesigned tohold more delicate andlighter dishwaresuch as glasses,coffee
and tea cups and saucers, as well as plates, small bowls and shallowpans (as long as theyare
not toodirty).
Position the dishes and cookware so that they will not get moved by the spray of water.
Wesuggest that you place largeitems and the most difficult to clean items are tobe placed into thelower basket:
such as pots, pans,lids, serving dishesandbowls, as shown in the figurebelow.
It is preferableto place serving dishes and lids onthe side of theracks inorder toavoid blocking the rotation ofthe
topspray arm.
Pots, serving bowls,etc, must alwaysbe placed top down.
Deep pots should be slantedto allow water to flowout.
Please be reminded that:
The Bottom Basketfeatures folding spikesso thatlarger or more pots and panscanbe loaded.
1
Cups
2
Small serving bowl
3
Large serving bowl
4
Glasses
Saucers
5
6
Dish
Dessert dishes
7
1
1
4
1
7
2
3
5
6
1
4
1
4
1
8
Oval platter
10
Soup plates
Dessert dishes
7
9
Dinner plates
11
Silverware basket
1010
8
99
77
7

The recommended method loading big dishware
(applicable tothe specialdishware e.g.bigpan plate)：、
2
3
1
4
1
4
5
1
Cups
Saucers
5
2
Small serving bowl
3
Large serving bowl
4
Glasses
1cups

Cutlery should be placed in the cutlery basket with the handles at the bottom.If the rack has side baskets,the
spoons should be loaded separately into the appropriate slots,especially long utensils shouldbe placed in the
horizontal position atthe frontof the upperbasket as shown in the picture.
Folding Spikes of Lower Basket
For better stacking ofpots and pans,
the spikes can be folded down as
show in the picture right.
Adjusting the Upper Basket
The heightof the upper basketcan be adjusted in orderto create more space forlarge utensils
both for the upper/lower basket. The height of the upper basket canbe adjusted by placing the
wheels on different height of the rails. Long items, serving cutlery, salad servers and knives
should be placed on the shelfso that they do not obstruct the rotation ofthe sprayarms.
The shelf can be folded back or be removed when not required for use.
For personal safety and a top quality cleaning, place the silverware in the basket
making sure that:
They do not nest together.
Silverware is placed with the handles-down.
But placeknivesandotherpotentially dangerous utensils are placedhandles-up.
Teaspoons
4
Soup spoons
2
Forks
1
Serving forks
8
Serving spoons
6
Knives
5
3
Dessert spoons
7
Gravy ladles
Do not let any item extend
through bottom.
2
452
5
32
3
2
1
1
1
1
1
5554
555
4
632367 3
2
3
4555
1
1
1
1
1
5
4
2
2
3
33
332
2
3
2
2
1
4
4
4
4
8
4
4
4
1

Means:need to fill rinse into the Rinse-Aid Dispenser.
()
*EN 50242 : This programme is the test cycle. The information for comparability test
in accordance with EN 50242, as follows:
Capacity: 12 setting
PositionUpper basket: upper wheels onrails
Rinse aid setting: 6
Eco.
Intensive
Normal
(*EN 50242)
For normally soiled loads,
such as , plates,glasses
andlightly soiled pans.
standard daily cycle.
pots
Forlightlysoiledloads,such
as plates,glasses,bowls and
lightlysoiledpans.
For the heaviestsoiled
loads, such aspots, pans,
casserole dishes anddishes
thathave beensittingwith
dried food onthemfor a
while.
Ashorter wash forlightly
soiledloadsthat donot
need drying.
For dishes that need to be
rinsed anddriedonly.
Rapid
Rinse
Forlightlysoiledloads,
such as glasses, crystal and
finechina.
Glass
Pre-wash(50 )
Pre-wash
Wash (65 )
Rinse
Rinse
Rinse (55 )
Drying
℃
℃
℃
Wash (40 )
Rinse
Rinse (60 )
Drying
℃
℃
Pre-wash
Pre-wash(50 )
Wash (50 )
Rinse
Rinse(65 )
Drying
℃
℃
℃
Pre-wash
Wash (50 )
Rinse (65 )
Drying
Pre-wash℃
℃
Wash (40 )℃
Rinse
Rinse (45 )℃
Wash(40 )℃
Rinse (70 )
Drying ℃
80
130 1.4
22
(or )3in1
5/25g
(or )3in1
5/25g
160 1.2 16
(Or )3in1
5/25g
155 1.05 16
0.8 8
20 g. 95 0.8
15
20 g. 30 0.45 12

It is dangerousto open the door when washing, because the hot water may scald you.
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop.Turn off
the appliance using the ON/OFF button, shut off thewater supply and open the door of the dishwasher.
Wait for a few minutesbefore unloading thedishwasherto avoidhandlingthe dishes and utensils while they
are still hot and more susceptible to breakage. Theywill alsodry better.
Switch Off the Dishwasher
The program has ended, only if theprogramme light stop glinting.
1.Switch off the dishwasher bypressingthe ON/OFF button.
2.Turnoffthewatertap!
Open thedoor carefully.
Hot dishes are sensitive to knocks. The dishes should thereforebe allowedto cool down around 15 minutes
before removingfromthe appliance.
Open thedishwasher's door, leave it ajar and wait afew minutes before removing the dishes. In this way they
will be cooler andthe drying will be improved.
Unloadingthedishwasher
It is normal that the dishwasher is wet inside.
Empty thelower basket first and then the upperone. This will avoid water dripping fromthe upperBasket onto
the dishes in the lower one.
the machine will working after 10 seconds.continue
Ifyou openthe door , the machine will pause. When you close thedoor ,during a wash cycle
1 Draw out the lowerand upper basket, load the dishes and pushthem back.
It iscommendedtoloadthelowerbasketfirst,thentheupperone(seethe sectionentitled
Loading the Dishwasher ).
2 Pour in the detergent (see the section entitled Salt, Detergent and RinseAid ).
3 Insert the plug intothe socket. The power supplyis 220-240 VAC /50 HZ, the specification of the
socketis 10A 250VAC. Make sure thatthe water supply is turnedon to full pressure.
4 Press the ON/OFF button, and the ON/OFF light or the display willturn on. Press the program
button to select a desired wash cycle. fter 10 seconds, the machine will work.
“”
“”
Closethe door,a
1 Acycle that is underway can only be modified if ithas only been running for a short
time. Otherwise, thedetergent mayhave alreadybeen released, and theappliancemay
have already drained the wash water. If this is the case, the detergent dispenser must
be refilled (see the section entitled " Loading the Detergent " ).
2 Open the door alittleto stopthe washing. Press the programme button more than3 seconds to cancel therunning
programme. Then you can select otherprogrammes(see the section entitled " Startinga wash cycle.. . " ).
3 Whenyou select Intensive/Normal/Eco.Programmes,you can select the 3in1 function.
Aforgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working,you can open the door
completely.
2
3
Open the door a little to stop the washing.
14
5
The dishwasher will run after 10 seconds.
Premise

The filter prevents larger remnantsof food or other objects from getting inside thepum.
Theresidues may blockthefilter, inthiscasethey must be removed.
The filter system consists of a coarse filter,a flat (Main filter)
And a microfilter(Fine filter).
Food and soil particles trapped in thisfilter arepulverizedby a
special jet on the lower spray armand washeddown to drain.
Larger items, such as piecesof bonesor glass, that couldblock
the drainaretrappedin the coarse filter. To remove the items
caught by the filter, gently squeeze the tap on the top of this
filterandliftout.
Thisfilter holds soiland food residuesin the sumpareaand
preventsitfrom being redepositon the dishes during washcycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. thisreason, it is a goodidea to
remove the larger food particlestrappedin the filter aftereach washcyclebyrinsing the semicircular filterand
cup under runningwater. To remove thefilter device,pull thecup handle in the upwarddirection.
removes food particles from thewash water, allowing it to be recycledduring the cycle.
For
The dishwasher must never be used without the filters.
Improper replacementof the filter may reduce the performancelevel of the appliance
and damage dishesand utensils.
Step 1 Turn the filter in anti-clockwisedirection,
then lift it up.
：
Step 2 lift the Main filter up：
Step 3 lift theFinefilter up：
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
1
2
3

The control panelcan be cleaned by using a lightly dampenedcloth.
Aftercleaning, make sure to dry it thoroughly.
For the exterior, use agood appliance polish wax.
Neverusesharp objects,scouring pads or harsh cleaners onany part of the dishwasher.
ProtectAgainst Freezing
1.Cutoffthe electricalpower tothe dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain thewater fromthe inletpipe andwater valve. (Use apan to catch thewater)
4.Reconnect the water inlet pipe to the watervalve.
5.Remove the filter at the bottomof the tub and use a spongeto soak up water in the sump.
please take frost protection measures onthe dishwasher in winter.Every fter washingcycles,
please operate as follows time a
：
- Inspect the filtersfor blockingafter everytime thedishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system.Removeanyfoodremnants and
cleanthefilters underrunningwater.
Remarks:
Cleaning the Filter
CleaningThe Door
To clean the coarsefilter and the fine filter, use acleaning brush.Reassemble thefilter parts as shown in the figures
on thelastpage and reinsert the entire assembly in the dishwasher, positioning itin itsseat and pressing downwards.
The entire filter assembly shouldbe cleanedonce a week.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted andtheperformance ofthe dishwashercouldbe decreased.
To clean theedge around the door, you shoulduseonly a soft warm, dampcloth.
To avoid penetrationof water into the door lock and electrical components,do not
use a spray cleaner of any kind.
Never use a spray cleaner toclean the door panel as it may damage the door lock
and electricalcomponents.
Abrasive agentsor some paper towels should not be used because of theriskof
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
water chemicalswillclogthesprayarmjetsandbearings.
To remove the sprayarms, screw off the nut clockwise to
take out the washer on top of the spray arm andremove
thearm.
Wash the arms in soapyand warmwater and use a soft
brush tocleanthe jets. Replace them afterrinsing them
thoroughly.

Itisrecommend thatyourun awashcycle withthe
dishwasher emptyand thenremove the plugfrom the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealsto lastlongerandpreventodoursfromforming
withintheappliance.
If the appliance must be moved, tryto keep it in the
verticalposition.Ifabsolutelynecessary,itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remainstrapped in the seals.
Periodic cleaning with adamp sponge will preventthis
from occurring.
After everywash, turn off the water supply to the
appliance and leave the doorslightlyopen so that
moisture and odours arenot trapped inside.
Before cleaning orperforming maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberparts ofthedishwasher,
donot use solventsor abrasivecleaningproducts.
Only use acloth with warm soapy water.
To remove spots or stains from the surface of the
interior,usea clothdampened withwaterana little
vinegar, ora cleaning product madespecificallyfor
dishwashers.
After EveryWash
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Seals
When not inUse for aLongTime
Theinstallation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard
Disconnect electrical power
before
installingdishwasher.
Failureto do so can result in
death or electrical shock.
The installation position of dishwasher should be near the existing inlet and drainhoses and
powercord.
One side of thecabinetsinkshouldbe chosen tofacilitatethe connectionof drainhoses of
the dishwasher.
Installation preparation
Note: please checkthe accompanying installation accessories(hook for aesthetic panel,screw)
●
