Caple Di628 User manual

Model code: Di628
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
(On models with water softener system only.)
Electric indicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by the number of cycles the dishwasher has run.
Check the regeneration
salt level
Load the baskets
Select a programme
Turnonthewatertap,closethedoor.Themachinewillstartworkingafterabout10seconds.
Running the dishwasher
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, starting from the lower basket.
Changing the programme
Add forgotten dishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the Menue Button, then press + or - Button select one programme, at last press
OK button( See the section entitled Operation instruction )
“” “”
“”
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteammay escape
when thedoorisopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance Open the door,press the On/Off button to switch on the appliance .
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
For detailed operating method read the corresponding content onthe instruction manual.
1. Arunning cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Open the door,Press the Menue .
3. Press + or - button select a new programme.
4. Press OK button ,close the door Restart the dishwasher.
button
“” “”
Switch off the appliance When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, dishwasher reverting automatically to
off-mode after the end of the programme

To review the section on troubleshooting tips
will help youto solve some common problems
by yourself .
Dear Customer,
Please carefully readthismanualbefore usingthe
dishwasher,it will help you to use and maintain the
dishwasher properly.
Pass it on to anysubsequent owner of the appliance.
Thismanual contains sections on safety Instructions,
Operating Instructions, InstallationInstructionsand
Troubleshooting Tips, etc.
If you can not solvethe problems by yourself ,
please ask for the help of professional technicians.
This appliance is intended tobe usedin household
and similar applications such as:
-staffkitchen areasin shops,officesand other
working environments;
-farm houses;
-by clients in hotels, motels and other residential
type environments;
-bed and breakfast type environments.
The manufacturer, following a policy of constant
product development may make modifications
withoutgivingpriornotice.
Keep for future reference.
Dishwasherfeatures.................................... ...3
A Water softener...........................................4、
Before or after loadingthe dishwasher baskets .....9
Filtering system.............................................13

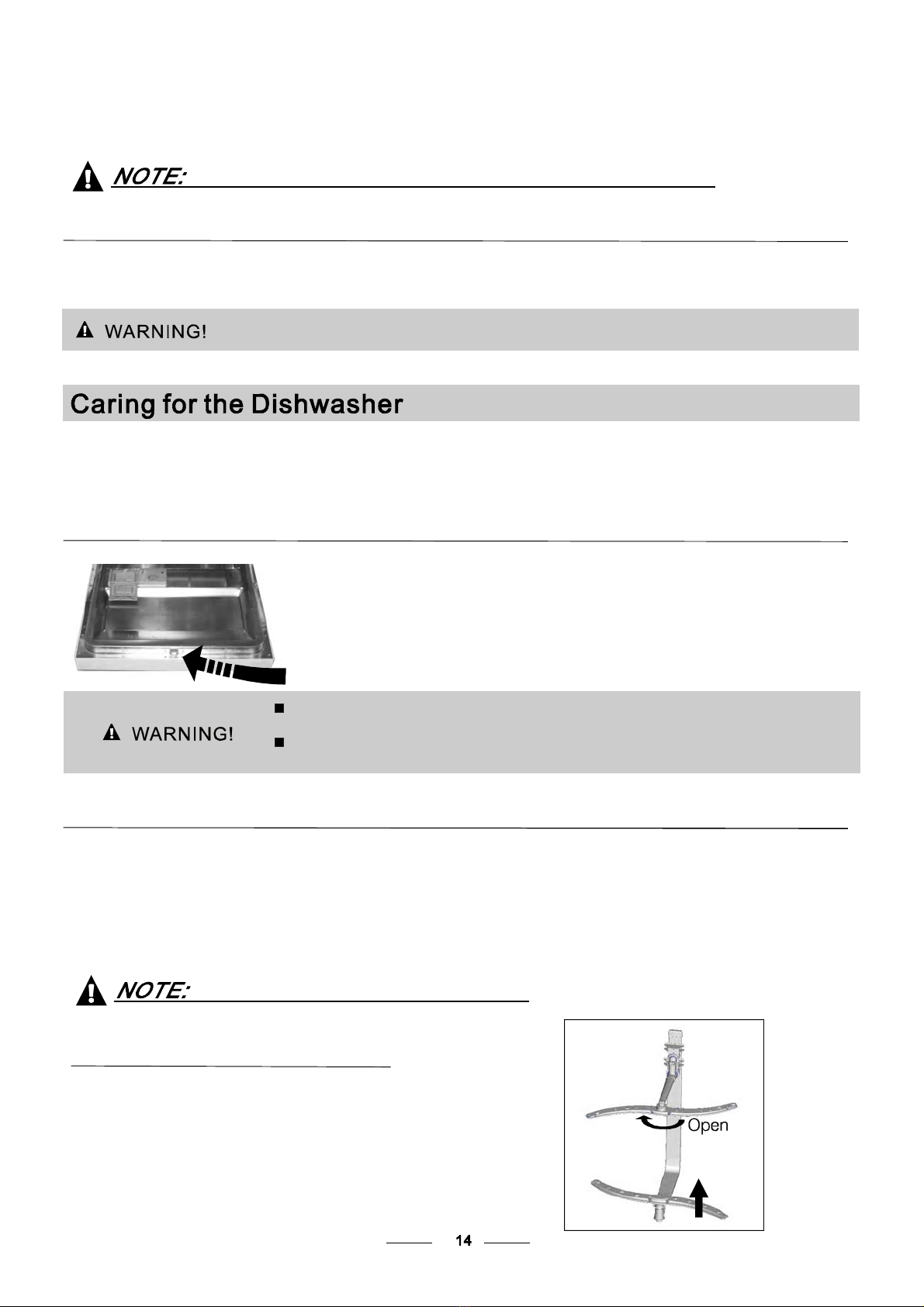

Caring for the dishwasher..................... .........14.

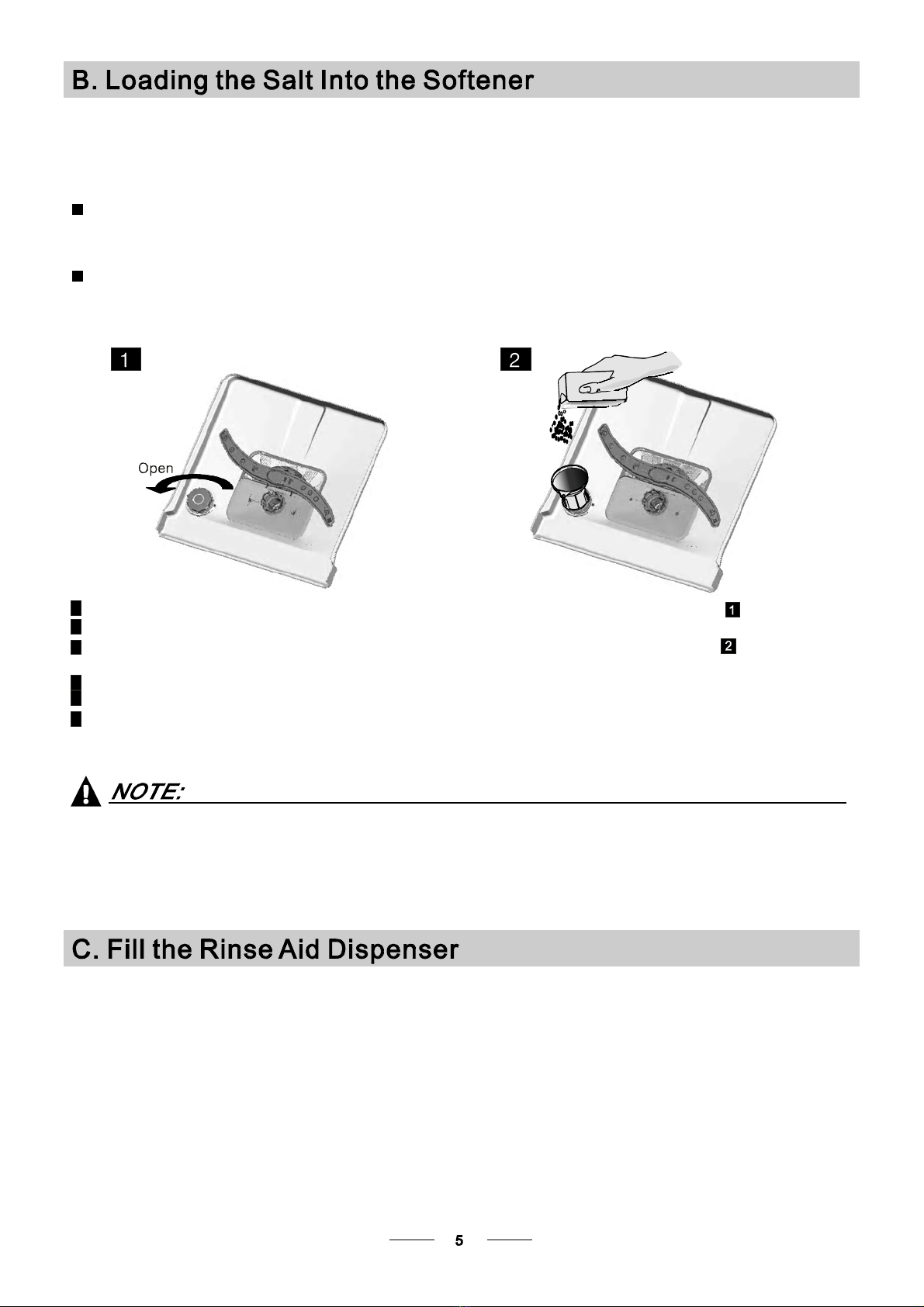

B Loading the salt into the softener.................5、
C Fill the rinse aid dispenser..........................5、
D Function ofdetergent .................................6 、

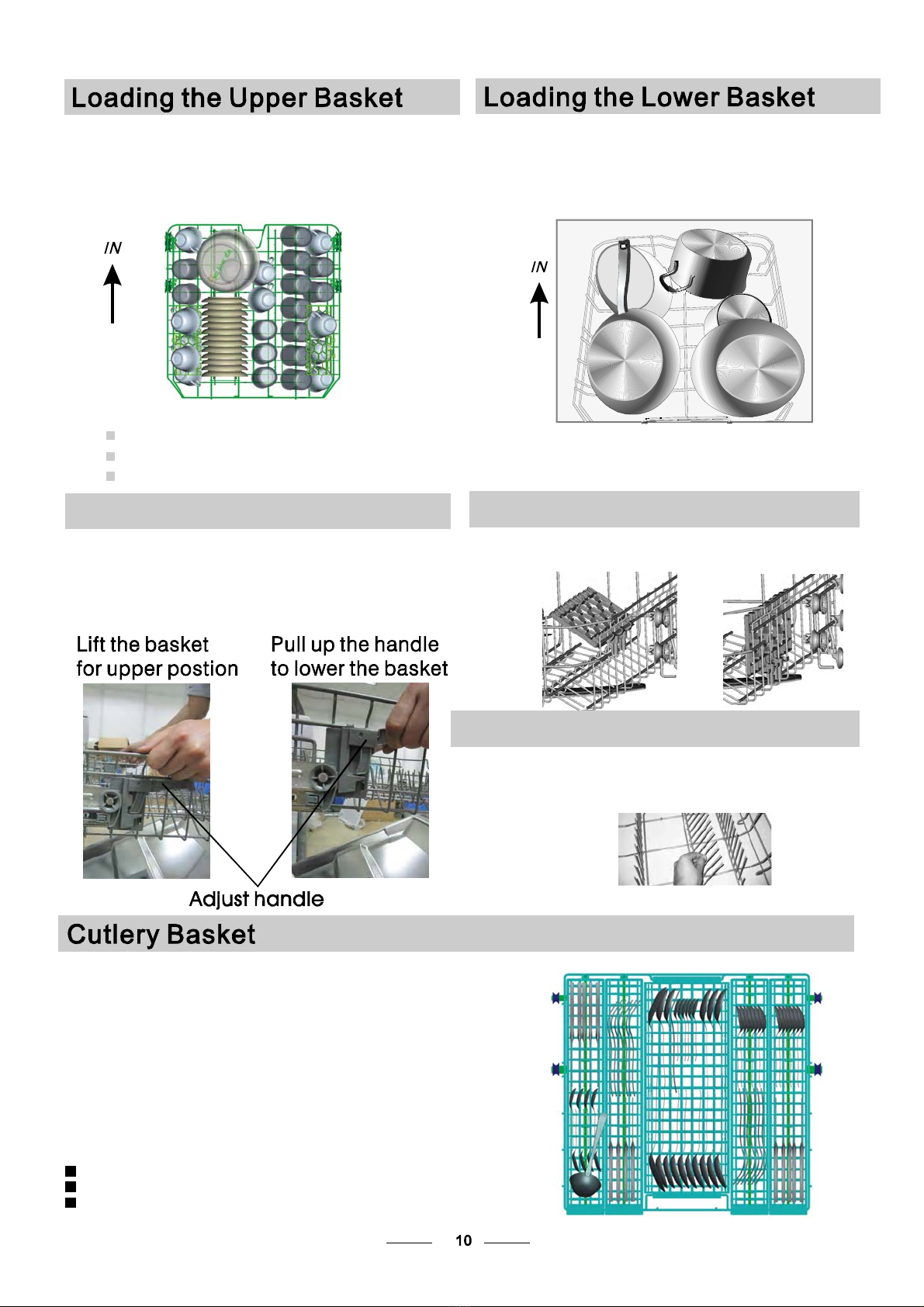

Loadingthe upper b ...............................10asket
Loading the Lower b ...............................10asket
Washcycletable...........................................11
Turning on the appliance................................11
Change the programme.............. ................12....
At the endof the wash cycle...........................12
Before callingfor service........................... .....22.
Errorcodes.................................... ..............23.
Technical information.............................. .....24..
Control panel...................................................3
.................................. 15Installationpreparation ...16Furniture door dimensions and installation....
..............18Tensionadjustment of the door spring
.............................. 18Connectionof drain hoses ......................... 19Dishwasher installation steps
...........................20Electrical connection..........
Coldwaterconnection.................................. .21

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Donotabuse,siton,orstandonthedoorordish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2 Warning: Knives and other utensils with
sharp points must be loadedinthe basket
with their points down orplaced in a
horizontalposition.
)
When using your dishwasher, youshould
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicable to machines witha visual heating
element.)
Ifthesupply cordis damaged, it mustbe replaced
bythemanufactureroritsserviceagentora
similarly qualified person in order to avoid a
hazard.
Pleasedispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment isempty
after completion of the wash cycle.
The applianceis to be connected to the water
mains using new hose sets and that old hose-sets
should not be reused.
The maximum number of place settings to be
washed is 14.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increase the risk of tripping.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.

Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene,e.g.paddingmaterial
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .
Packaging material couldbedangerous for children!
Fordisposing ofpackageand theappliance please go to arecycling centre. Therefore cut
off the powersupplycable and make the doorclosingdevice unusable.
Cardboard packaging ismanufactured from recycled paperand shouldbe disposedin the
waste papercollection for recycling.
By ensuring thisproduct is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriatewaste handling of this product.
For moredetailed informationabout recycling of this product, please contact your local
city office and your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.






Men u OK
beforeusingit forthe first time.
To get the best performance fromyour dishwasher,read all operatinginstructions
11 12
Back View
1
2
3
4
5
7
8
910
Front view
Lower basket
Saltcontainer
Dispenser
Cup shelf
Spray arms
Filter assembly
Inlet pipe connector
Drainpipe
Upper basket
Cutlery tray
Top spray arm
1
Inner pipe
5
6
7
8
9
10
12
11
3
24
6
13
Adjuster
13
1.On/Off Button: To turn on/off the power supply.
2.Menu Button: Press to select a menu option in the
following cycle:
Pressing Menu, you can choose optional functions and
programmes.
programme selection delay time setting
option setting alternative wash function selection
add Salt Consumption setting language setting
→
→→
→→
3.OK Button: Confirms the menu selected after pressing
the button.
5. + Button: Move to the right. Press once
and the menu moves to the next item on the right
6.Display Screen : Shows the delay time , running
indicator , error codes , programmes, Language and etc.
4. - Button: Move to the left. Press once and the
menu moves to the next item on the left.
NOTE:
1.When a selected programme has finished, all of the settings will be recorded by the system, but for the language
setting, it will be recorded immediately after you press the OK button.
2.The display will show add rinse or add salt information if you press power button, reminding you to refill the rinse
aid or salt. However you can still keep using the machine following the same operations as mentioned above after
pressing the MENU button once.
“”
“”
Di628

The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from thewater, which wouldhave
a detrimentalor adverse effect on the operation of the appliance.
The higher the content of these minerals and salts, the harder your wateris.
The softener should be adjusted according to the hardness of the water in your area. Yourlocal WaterAuthority
can advise you onthehardnessofthewaterinyour area.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based onthe hardness of
the water used. This is intended to optimise and customise the level of salt consumption.
1. Open the door ,Switch on the appliance;
2. Press the menu button to select Salt Consumption setting to start the water softener;
3. Press the + or - button to select the correct setting according to yourwater hardness,
the settings will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the OK button to end the set up mode.
“” “”
WATER SOFTENER
Thehardness ofthe watervariesfrom place to place.If hard water is used inthe dishwasher, deposits will
form on the dishesand utensils.
The applianceis equipped with a special softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
Contact your local water board for information on the hardness of your water supply.
Please follow the steps belowfor adjustment insaltconsumption.
4
If your model does not have any water softener, you mayskip this section.
Clark:Britishdegree
fH: French degree
DH: German degree
dH=1.25Clarke=1.78fH=0.178mmol/l
1
The factory setting is: H4 (EN 50242)
Before using your dishwasher for the first time:
A. Set the water softener
B. Add 1.5Kg dishwasher salt and then fill the salt container with water
C. Filltherinseaiddispenser
D. Add detergent
dH mmol/l
0~90~5 0~0.94 H1 0
10-20
6-11 1.0-2.0 H2 9
21-30
12-17 2.1-3.0
H3
12
H4 20
fH
0~6
7-14
15-21
Clarke
WATER HARDNESS
Softener setting Salt consumption
(gram/cycle)
18-22 31-40 22-28 3.1-4.0
41-60
23-34 4.1-6.0 H5 30
H6 60
29-42
35-55 61-98 43-69 6.1-9.8

1. The salt container must only be refilledwhen the salt warning light in the control panel comes on.
Depending on how well the salt dissolves, the salt warning light may still be on even thoughthe
salt container is filled.
2. If there are spills of the salt, a soakor arapid programme should be run to removethe excessive salt.
Always use the salt intended for use with dishwashers.
The salt container is located beneath the lower basket and should be filledas explained
inthe following:
Attention!
Only use salt specifically designed forthe use indishwashers! Every other type of
salt not specifically designed for theuse in adishwasher, especially table salt, will
damage the water softener. In case of damages caused by the use of unsuitable
salt the manufacturer does notgive any warranty nor is liable for any damages caused.
Only fillwithsalt justbefore starting one of thecomplete washingprogrammes.
This will prevent any grains of salt or salty water, which may have been spilled,
remaining on the bottom of the machine for any period of time, which may cause
corrosion.
Therinse aid isreleasedduring the final rinse to prevent water from forming droplets onyour dishes, which can
leave spots and streaks. It also improvesdryingby allowing water toroll offthe dishes. Your dishwasheris
designed to use liquid rinseaids.The rinseaiddispenser islocated inside thedoor next to the detergentdispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume ofthe rinse aidcontaineris about 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during thelast rinse, ensuring thorough rinsing, and spotand streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill therinse aid dispenserwithanyother substances
(e.g. Dishwasher cleaning agent, liquid detergent).This would damage the appliance.
Full fill the salt container with water,It is normal for a small amount of water to come out of the
saltcontainer.
AAfter the lowerbasket has been removed, unscrew and remove the cap from the salt container.
BPlace the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C
DAfter filling the container , screw the cap tightly back clockwise.
EThe salt warning lightwill stop illuminating after the salt containerhas been filled with salt.
FImmediately after filling the salt into the salt container, a washing programme should be started
programme Otherwisethefilter system,pump orotherimportantparts ofthemachinemay be damaged
bysalty water.This isoutofwarranty.
(Wesuggest to
useashort ).

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it tothe closed (right) arrow.
Adjusting RinseAid Dispenser
The rinse aid dispenser has six or four settings.Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensed by removing thedispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are show spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase thedose if there aredrops of waterorlimespots on the dishes after washing.
Reduce itif there aresticky whitish stains on your dishes ora bluish film on glassware or
knife blades.
1
2
3
As the rinse aid diminishes, the size of the black dot
onthe rinse aidlevel indicator changes, as illustratedbelow.
Full
3/4full
1/2full
1/ 4full- Should refilltoeliminate spotting
Empty
When to Refill the RinseAid Dispenser
Ifthereis no rinse-aid warning light in thecontrol panel, you can estimate the amount from the colour
of the optical level indicator C located next to the cap. When the rinse-aid container is full, the whole
indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let
the rinse aid level fall 1 / 4 full.
during the nextwash. Don'tforget toreplace the cap before you closedishwasherdoor.
Clean up any rinse aid spilled while fillingwith an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients are necessary to remove dirt,crush dirt and transport it out of the dishwasher.
Mostof the commercialqualitydetergents are suitablefor this purpose.
""
ProperUse ofDetergent
Useonly detergent specificallymade for the use in dishwashers. Keep your detergent fresh and dry.
Don't putpowdered detergentinto thedispenser untilyou're ready to wash dishes.
Attention!

Amount ofDetergent toUse
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
Based ontheir chemicalcomposition, detergentscan besplit in two basic types:
Detergent tabletsofdifferent brands dissolve at differentspeeds. For this reason some
detergent tablets cannot dissolve and develop theirfullcleaning power during short
programmes.Therefore please use long programmes whenusingdetergenttablets,to
ensure the complete removal of detergent residuals.
The dispensermust be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
conventional dishwashers. Generally, onlyone tablespoon of detergentis needed for
anormal washload. Moreheavily soileditems needmore detergent.Alwaysaddthe
detergent just before starting the dishwasher, otherwise it couldget damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
Detergent Dispenser
conventional, alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes
Normally new powdered detergent is without phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardnessof wateris only 6 dH. If detergents without phosphateare used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. Inthiscase pleasechoosea programme witha higher temperature.
°
Detergents
There are 3 sorts of detergents
1.Withphosphate and withchlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine
Always add the detergent just before starting each wash cycle.
Only use branded detergent aidfordishwasher.

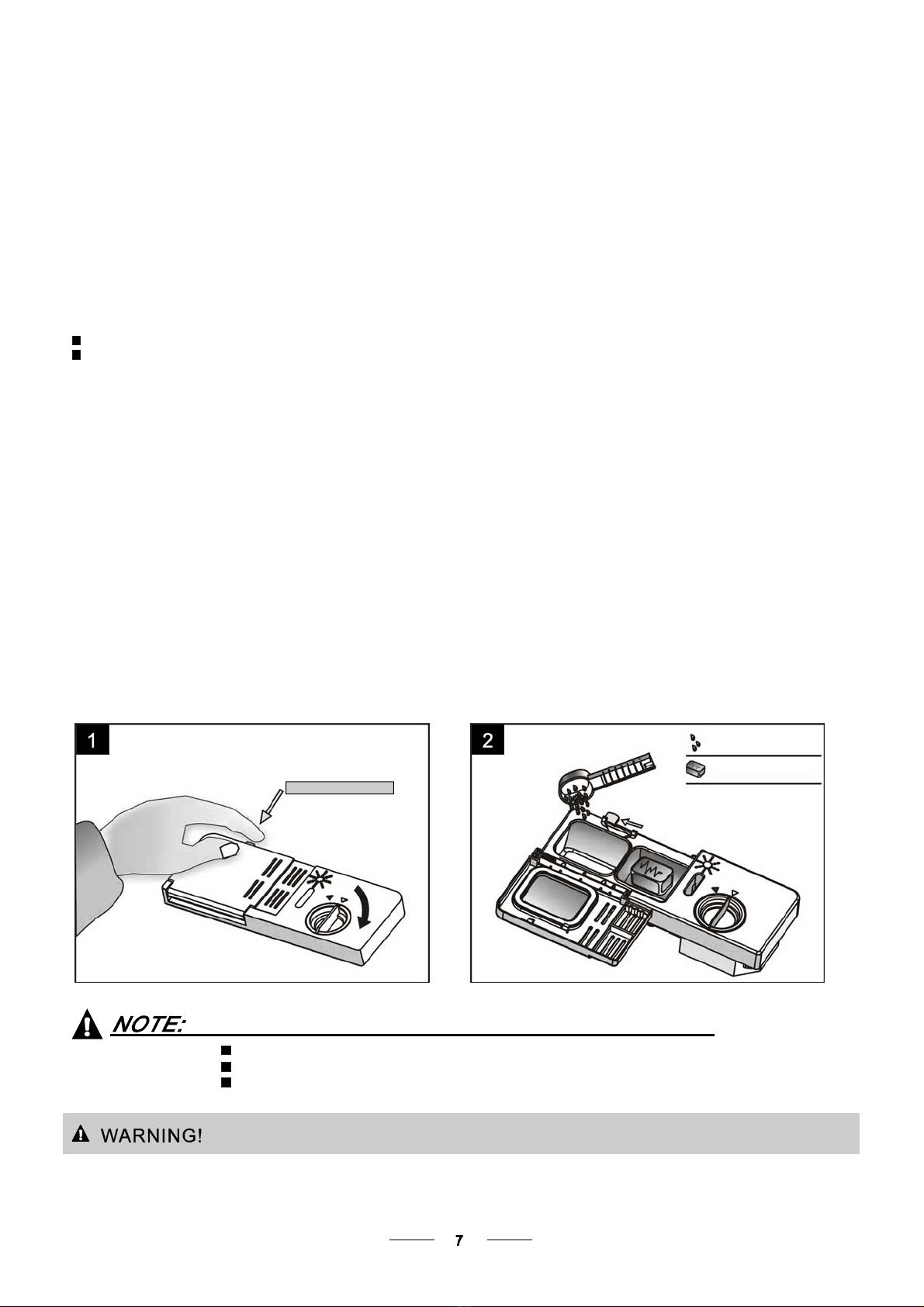

If the lid is closed: press release button.The lid will spring open.
Push latch to open
Detergent tablet
Detergent powder

Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
Forthemainwash cycledetergent.
For the pre-wash cycle detergent.
Please observe the manufacturers dosing and storage
Recommendations asstated onthedetergent packaging.
Close the lid and press untilit locks in place.
If the dishes are heavily soiled, place an additional
detergent dosein the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
You will find information about the amount of detergent for the single programme on the last page.
Please be aware, that according to the level soiling and the specific hardness of water differences are possible.
Pleaseobserve themanufacturer's recommendations onthe detergent packaging.
Express
For lighter loads the Express function by raising the temperature when used with the programmes: intensive, normal,
economy and glasscan shorten the washing time byup to 40 minutes.
Extra drying
To increase the efficiency of normal drying this feature increases the temperature at the end of the wash programme.
This works withIntensive, Normal, Eco, Glass, and 1Hour Express programmes.
Auto wash programme
Sensors intelligently check the level of cleanliness of your crockery to make maximum savings of time, energy and
water. Here at Caple we wantto do all that we can to save water for both ecological and financial reasons, an
astonishingly low 8.4L can be used the Auto wash programme.
Cutlery tray
The clever cutlerytrays sits at the top of your dishwasher andfrees up much more space in the lower basket.
The centre tray is easily removed to speed the delivery of your perfectly clean cutlery to your drawer.
Delay timer
The Delay timerallows the user to select the start time from 1 to 24 hours to most efficiently take
advantage of convenienttimes and energy saving windows.
'Easy' adjustable upper basket
This feature allows the height of the upper basket to be changed (even with full loads) with the simple release of 2
conveniently placed levers.
Internal light
A wellplaced light helps internal illumination, and looks great too!
Aqua Stop
This system will at the first sign of any leak automatically cut off the water supply helping to avoid costly water damaged.
Alternative wash function.
This flexible systemworks like the Half load function, but also allowsyou to select either the upper or lower baskets
for the load.Providing further water and energy savings for those smallerloads.
wash
When this PowerWash is used with five programmes (intensive, normal, economy, glass and 1 Hour Express),
it can help break through very heavily soiled loads by increasing washing temperature and duration.
Power
5.Features5.Features

Cutlery withwooden,horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that arenot
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items madefromsynthetic fibres
Some types of glasses can become
dull aftera large number of washes
Silver and aluminum parts have a
tendencyto discolourduring washing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are oflimited suitability
Dishesand itemsof cutlery mustnot lie insideoneanother, or cover each other.
To avoid damage to glasses, they must not touch.
Load large itemswhich are most difficult to clean into the lower basket.
The upper basket is designed to holdmore delicate and lighterdishware such as glasses, coffee
andteacups
Long bladed knives stored in an upright positionare a potential hazard!
Long and/or sharp itemsof cutlery such as carving knives must be positioned
horizontallyin the upperbasket.
Please do not overload your dishwasher. This is important forgood results and for
reasonable consumption of energy.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwardsso that
water cannot collect in the container or a deep base.
Consider buyingutensilswhich are identified asdishwasher-proof.
Usea mild detergentthatis described as'kind todishes'.If necessary, seek further
information from the detergent manufacturers.
For particular items, select a programme withas low a temperatureas possible.
To prevent damage, do not take glass andcutlery out of the dishwasher immediately
after the programme has ended.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlerybasketsmay vary from yourmodel.)
Scrape off any largeamounts ofleftover food. Soften remnants ofburnt food in pans.
It is not necessary to rinse thedishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way that the spray arms can rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.

The upper basket is designed to holdmore delicate
and lighter dishware such as glasses, coffee and
teacups and saucers, as wellas plates,small bowls
andshallowpans (as long astheyarenot toodirty).
Positionthe dishes andcookwareso thatthey will
notgetmoved bythespray ofwater.
We suggest that you place large items and the most
difficult to cleanitemsaretobe placedintothelower
basket: suchas pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Pots,servingbowls,etc,mustalwaysbeplacedtopdown.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
For a top quality cleaning, place the silverware in the basket
makingsurethat:
They do not nest together.
Long utensils in the middle.
Silverware is positioned not to hold water.
Cutleryshouldbe placed inthecutlery rackseparately
from each other in the appropriate positions, and do
make sure theutensils do not nest together,this may
reduce the cleaning performance.
Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikes can be folded down as
showninthepicturetotheright.
Folding back the cup shelves
For better stacking of pots and pans,
the shelves can be folded down as
show in the picture right.
The height of the upper basketcan be adjusted in order to
create more space for large utensils both for the upper
/lowerbasket.Theheight of the upperbasket can be
adjusted to theupper position by lifting the basket upuntil
it clicks into place. Pull upwards on the handle to lower the
upper basket, seethe picture below:
Adjusting the Upper Basket

NOTE:NOTE:
*EN 50242 : This programme is thetest cycle. The information for comparability test
in accordance withEN 50242, as follows:
Capacity: 14 setting
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
Pl:0.49w; Po:0.45w(dishwasher is equipped with a power management system) .
7.Starting a washing program7.Starting a washing program
Wash Cycle TableWash Cycle Table
NOTE:NOTE:
Water comsumption doesn t include regeneration water.Water comsumption doesn t include regeneration water.
,,
Detergent
pre/main
Detergent
pre/main
Cycle Selection
Information
Cycle Selection
Information
ProgramProgram
(*EN5 242)
Running
time(min)
Running
time(min)
Water
(L)
Water
(L)
Energy
(Kwh)
Energy
(Kwh)
Rinse
Aid
Rinse
Aid
For normally soiled loads,
such as pots plates
glasses and lightly
soiled pans.
For heaviest soiled crockery,
and normally soiled pots
pans dishes etc with dried
on soiling.
A shorter wash for lightly
soiled loads and quick
wash.
Pre-wash(50 )
Wash (65 )
Rinse
Rinse
Rinse(55 )
Drying
Pre-wash(45 )
Wash (55 )
Rinse
Rinse (65 )
Drying
Pre-wash
Wash (50 )
Rinse
Rinse(65 )
Drying
Wash (45 )
Rinse
Rinse (45 )
180
179
165
40
1.2
0.8
1.3
0.6
17
13
10
11
Description
of Cycle
Description
of Cycle
Pre-wash(50 )
Wash(60 )
Rinse (60 )
Drying
60 101.05
5/30g
20g
For lightly soiled loads that
do not need excellent
drying efficiency.
To rinse dishes that you plan
to wash later that day.
Pre-wash
80.01 4
5/30g
For lightly soiled crockery
and glass.
115 0.82 13
Pre-wash
Wash (40 )
Rinse
Rinse(60 )
Drying
8.4~12.7
0.9~1.3
120~180
Pre-wash (45 )
Autowash(45-55 )
Rinse
Rinse (62 )
Drying
Auto sensing wash, lightly,
normally or heavily soiled
crockery, with or with out
dried-on food
AutoAuto
Turning On the ApplianceTurning On the Appliance
Starting a cyclewash
1 Draw out the lower and upper basket, load the dishes and push them back.
It is recommended to load the lower basket first, then the upper one (see the section entitled
Loading the Dishwasher ).
2 Pour in the detergent (see the section entitled Salt, Detergent and Rinse Aid ).
3 Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4 Open the door, press the ON/OFF Button.
Means: need to add rinse aid into the Rinse-Aid Dispenser.
( )
This is Standard programme,
it is suitable to clean normally
soiled tableware and it is the
most efficient programme in
terms of its combined energy
and water consumption for
that type of tableware.
5/30g
(or3in1)
5/30g
(or3in1)
5/30g
(or3in1)
5/30g
(or3in1) 3
0

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then the dishwasher
reverts automatically to off-mode after the end of the programme.(If you open the door while the buzzer is sounding
you must press the on/off button to switch off the dishwasher). ,Shut off the water supply and open the door of the
dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while
they are still hot and more susceptible to breakage. They will also dry better.
Switch off the dishwasher
1.The buzzer of the dishwasher will sound for 8 seconds, then the dishwasher .will revert automatically to off-mode
2.Turnoffthewater tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removingfrom the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. This way they
will be cooler and the drying will be improved.
Unloadingthe dishwasher
It is normal that the dishwasher is wet inside.
Empty thelower basket first and then the upper one.This will avoid water dripping from the upper basket onto
the dishes in the lower one.
If you open the door during a wash cycle, the machine will pause. The programme light will
stopflashing and the buzzerwill sound everyminuteunlessyou close the door.After
you closethe door ,the machine will startagain after 10 seconds.
Acycle that is underway can only be modified if it has been running for a short time. Otherwise, the
detergent may have alreadybeen released,and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the
Detergent " ).
Open the door , press the menu button ,then press + or - button,
you can change the programme to the desired setting (see the sectionentitled " Starting a
wash cycle. . ." ).
“” “”
1
2
Aforgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
14
5
The dishwasher will run after 10 seconds.
Wash the arms in soapy and warm water and use a soft brush to
cleanthejets. Replace them afterrinsing them thoroughly.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
It is dangerous to open the door when washing, because the hot water may scald you.
5 Press the , then press - or + button change the programme as follows
direction:
If a programme is selected, the display screen will show it.Press the OK button,Close the door,
the dishwasher will thenstart.
“” “ ” menu button
Auto->Intensive->Normal->ECO->Glass->60 Min->Rapid->Soak;

The filter preventslarger remnantsof food or other objects from getting inside the pump.
Theresidues may block thefilter, in this casethey must be removed.
The filter system consists of a coarse filter,a flat (Main filter)
Anda microfilter(Fine filter).
Food and soil particles trapped in thisfilter arepulverizedby a
special jet on the lower spray arm and washed down to drain.
Larger items, such as pieces of bones or glass, that could block
the drainaretrappedin the coarse filter. To remove theitems
caught by the filter, gently squeeze the tap on the top of this
filterandliftout.
Thisfilter holds soil and food residues in the sumpareaand
prevents itfrom beingredeposit on the dishes during wash cycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. thisreason, it isa good idea to
remove thelarger food particlestrapped in the filter after each wash cycleby rinsing the semicircular filterand
cup under running water. To remove the filter device, pull the cup handle in the upward direction.
removes food particles from the wash water,allowing it to be recycledduring the cycle.
For
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level ofthe appliance
and damage dishes and utensils.
1
2
Step 1 Turn the filter in anti-clockwisedirection,：
Step 2 lift the filter assy up：
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.

The control panelcan be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Neveruse sharp objects, scouring pads orharsh cleaners onany part of the dishwasher.
ProtectAgainst Freezing
1.Cut off the electricalpower to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottomof the tub and use a sponge to soak up water in the sump.
Please take frost protection measures on the dishwasher in winter. Every fter washing cycles,
please operate as follows time a
：
Cleaning the Filter
CleaningThe Door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble thefilter parts as shown in the figures
on thelast page and reinsert the entire assembly in the dishwasher, positioning itin itsseat and pressing downwards.
When cleaning the filters, don't knock them. Otherwise, the filters could be
contorted and theperformance ofthe dishwashercouldbe decreased.
To clean theedge around the door, you should use only a soft warm, damp cloth.
To avoid penetrationof water into the door lock and electrical components,do not
use a spray cleaner of any kind.
Never usea spray cleaner toclean the door panel as it may damage the door lock
and electricalcomponents.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
water chemicalswillclogthesprayarmjetsandbearings.
- Inspect the filters for blockingafter every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Removeanyfoodremnants and
cleanthefilters underrunningwater.
Remarks:
The entirefilter assemblyshouldbe cleaned once a week.
Toremovethelower spray arm,pull out the spray armupward.
To remove the upper spray arm, hold the nut, rotate the arm
clockwise toremoveit.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.

Itis recommend thatyourun awashcycle with the
dishwasher empty andthen remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealstolastlongerandprevent odoursfromforming
withintheappliance.
If the appliance must be moved, try to keep it in the
verticalposition.Ifabsolutelynecessary,itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge willpreventthis
from occurring.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberparts ofthedishwasher,
donot use solventsor abrasivecleaningproducts.
Only use acloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water and alittle
vinegar, ora cleaning product madespecificallyfor
dishwashers.
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Seals
After every wash, turn off the water supply to the
appliance and leave the doorslightlyopen sothat
moisture and odours are not trapped inside.
After EveryWash
When not inUse for aLongTime
The installation of the pipes
and electrical equipment
should be done by professionals.
Electrical Shock Hazard
Disconnect electrical power before
installingdishwasher.
Failuretodosocanresultindeathor
electrical shock.
The installation position of dishwasher should be near the existing inlet and drain hoses and
powercord.
One side of the cabinet sink should be chosento facilitate the connection of drain hoses of
the dishwasher.
Installation preparation
Note: please check the accompanying installation accessories(hook for the furniture door,
screw)
●

Please carefully read theinstallation instruction.

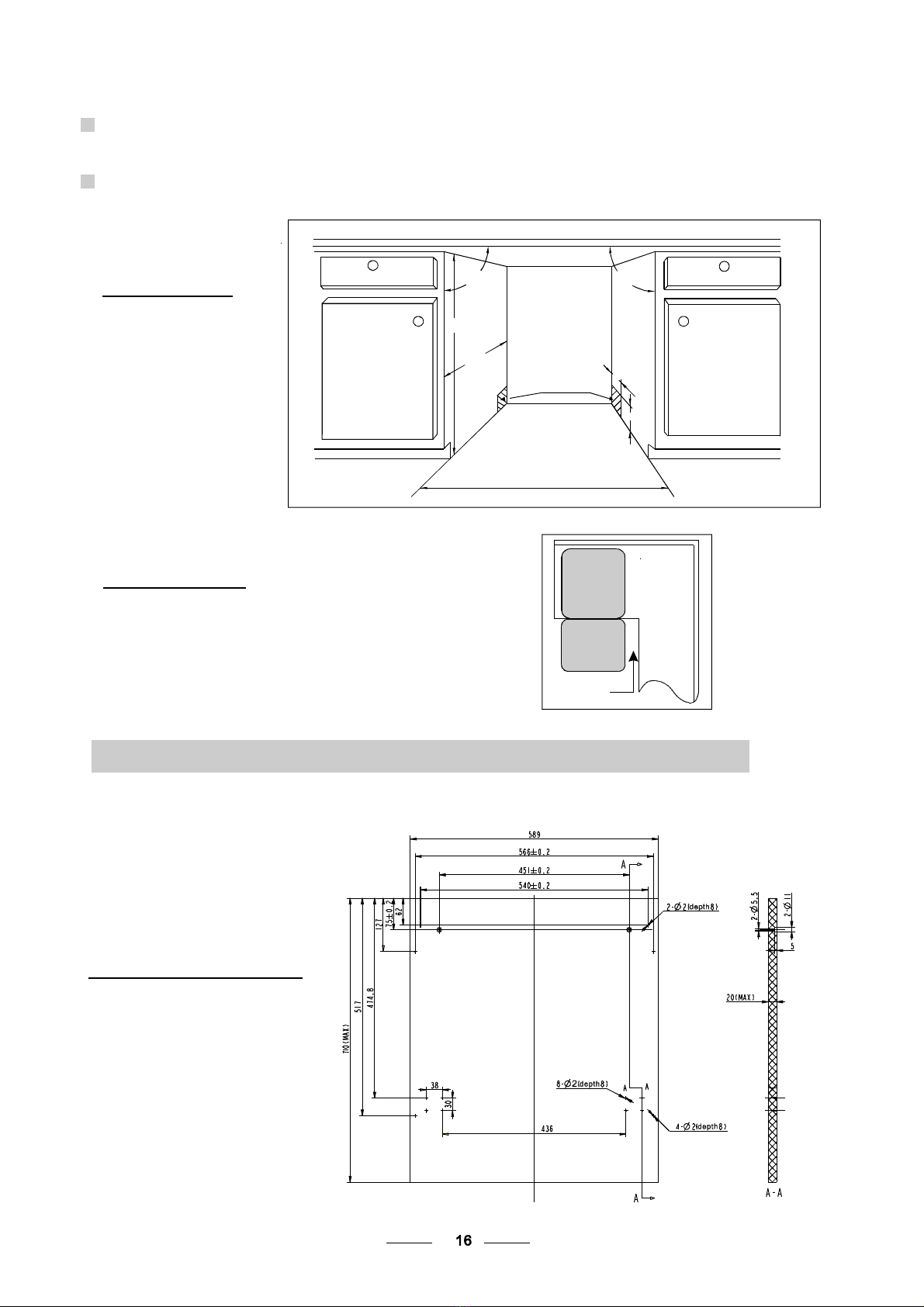

● Illustrations of cabinet dimensions and installation position of the dishwasher
2
1
Minimum space when
the door is opened
【】Figure2
Cabinet dimensions
【】Figure1
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
【】Figure3
Less than 5mm
between the top
ofdishwasher and
cabinet and the
outer door aligned
tocabinet.
90 °
90 °
600 mm
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
(Unit: mm)
Preparationsshould be made before moving thedishwasherto the final location.
Choose aplace near the sink tofacilitate the installation of inlet and drain hoses
(seefigure 1).
If dishwasher is installed at thecorner of the cabinet, allow for some space
(illustrated infigure 2) when the door isopened.
The furniture door should be
installedin accordance
with the illustrated dimensions
●
dimensions and installationFurniture door

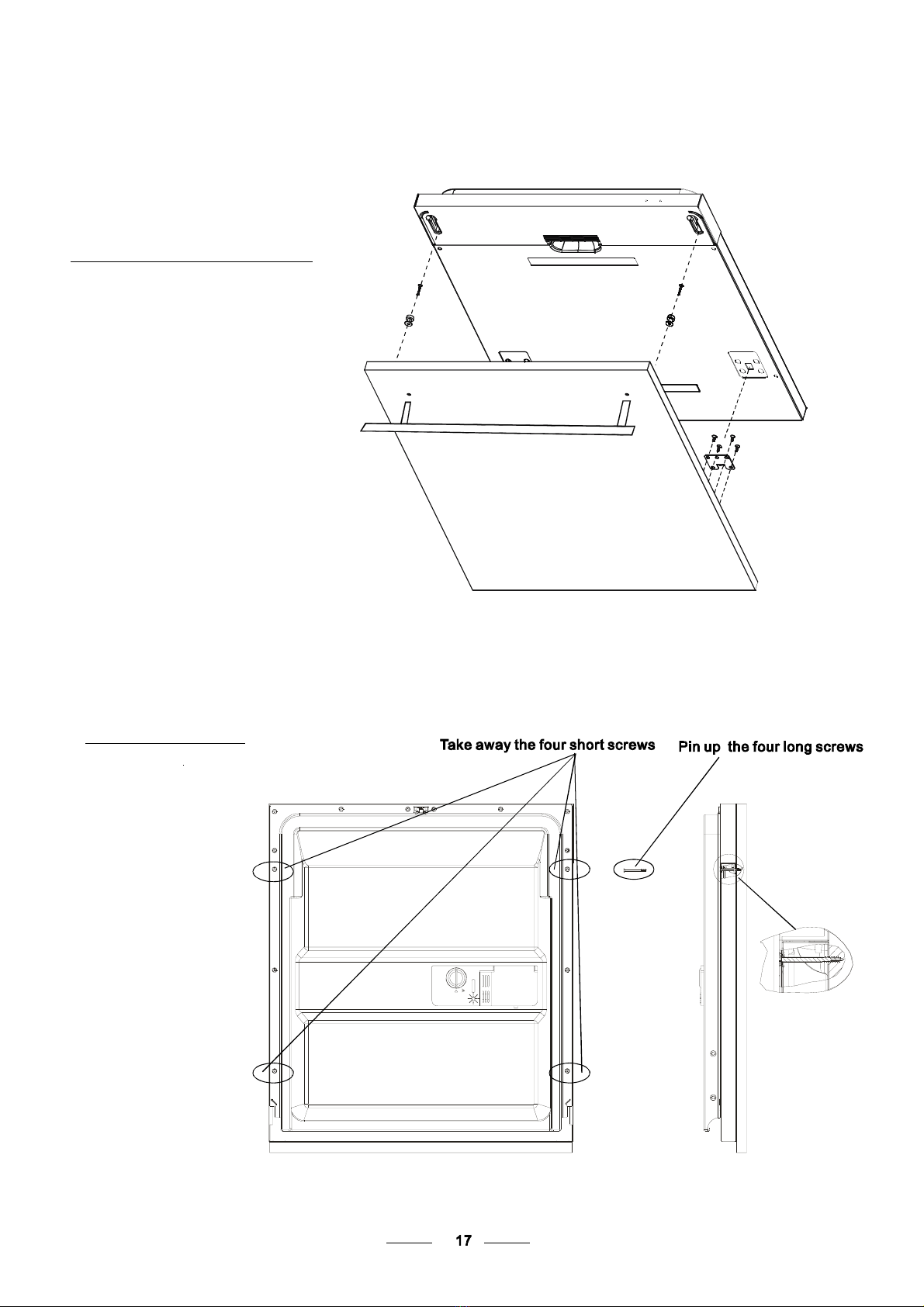

1 The furniture door should be installed according to the Figure3.

【Figure4a】
【Figure4b】
.takeawaythefour
short screws
. pin up the four long
screws
1
2
Installation of furniture door
NOTE: The max. door weight is 7kg
2 Install the hook on the furniture door and put the hook into the slot of the outer door of
dishwasher(see figure 4a).After positioning of the panel , fix the panel onto theouter door by
screws and bolts(See figure 4b) .
Installation of
the furniture door
