Dishwasher
Instruction Manual
DI641

Instruction manual DI641 Instruction manual DI6412 3
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
SAFETY INSTRUCTIONS
-This product is not designed for commercial use, it is a
household appliance only. It is not intended to be
used in:
• Staff kitchen areas in shops, offices and other
working environments.
• Bed and breakfast type environments.
• By clients in hotels, motels and other residential
type environments.
-This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
-This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
-This appliance is for indoor household use only.
-To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
-Please unplug before cleaning or performing
maintenance on the appliance.
CONTENTS
Warnings 3
Environmental Protection 8
Control Panel 9
Product Overview 11
Water Softener 12
Rinse Aid and Detergent Dispenser 15
Loading the Baskets 18
Programming the Dishwasher 25
Cleaning and Maintenance 27
Caring for the Dishwasher 30
Installation Instruction 31
Built-In Installation Instruction 35
Troubleshooting 40
Technical Information 44
Caple Contact Details 48

Instruction manual DI641 Instruction manual DI6414 5
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
-Use a slightly moistened soft cloth with mild soap, and
then use a dry cloth to wipe it again.
-This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the risk
of an electric shock by providing a path of less resistance
of electric current. This appliance is equipped with a
cord having an equipment-earthing conductor and a
grounding plug.
-The plug must be plugged into an appropriate outlet
that is installed and earthed in accordance with all local
codes and regulations.
-Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
-Check with a qualified electrician or Caple service
representative if you are in doubt whether the appliance
is properly grounded.
-Do not modify the plug provided with the appliance.
-If it does not fit the outlet, have a proper outlet installed
by a qualified electrician.
-Do not abuse, sit on, or stand on the door or dish rack of
the dishwasher.
-Do not operate your dishwasher unless all enclosure
panels are properly in place.
-Open the door very carefully when the dishwasher is
operating, there is a risk of water squirting out.
-Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
-When loading items to be washed:
• Locate sharp items so that they are not likely to
damage the door seal.
• Warning: Knives and other utensils with sharp points
must be loaded in the basket with their points down or
placed in a horizontal position.
-Check that the detergent powder is empty after
completion of the wash cycle.
-Do not wash plastic items unless they are marked
dishwasher safe or the equivalent.
-For plastic items not marked, check the manufacturer’s
recommendations.
-Use only detergent and rinse additives designed for an
automatic dishwasher.
-Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
-Children should be supervised to ensure that they do not
play with the appliance.
-The door should not be left open, since this could
increase the risk of tripping.
-The appliance may only be used with correctly adjusted
door springs.
-If the supply cord is damaged, it must be replaced by
Caple, its service agent or a similarly qualified person in
order to avoid a hazard.
-During installation, the power supply must not be
excessively or dangerously bent or flattened.
-The dishwasher must not be installed under a hob.
-Do not tamper with controls.

Instruction manual DI641 Instruction manual DI6416 7
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
-The appliance is to be connected to the water mains
using new hose sets and that old hose-sets should not
be reused.
-To save energy, in stand by mode, the appliance will
switch off automatically while there is no any
operation in 30 minutes.
ELECTRICAL CONNECTION
WARNINGS
-For personal safety:
-Do not use an extension cord or an adapter plug with
this appliance.
-Do not, under any circumstances, cut or remove the
earthing connection from the power cord.
ELECTRICAL REQUIREMENTS
-Please look at the rating label to know the rating voltage
and connect the dishwasher to the appropriate power
supply. Use the required 10 amp fuse, time delay fuse
or circuit breaker recommended and provide separate
circuit serving only this appliance.
ELECTRICAL CONNECTION
-Ensure the voltage and frequency of the power being
corresponds to those on the rating label. Only insert the
plug into an electrical socket which is earthed properly.
If the electrical socket to which the appliance must be
connected is not appropriate for the plug, replace the
socket, rather than using a adapter as they could cause
overheating and burns.
GROUNDING INSTRUCTIONS
-This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the risk
of electric shock by providing a path of least resistance
for the electric current. This appliance is equipped
with a cord having an equipment-earthing conductor
and an earthing plug. The plug must be plugged into
an appropriate outlet that is installed and earthed in
accordance with all local standards and requirements.
WARNING:
-Improper connection of the equipment grounding
conductor can result in the risk of an electric
shock. Check with a qualified electrician or service
representative if you are in doubt whether the appliance
is properly grounded. Do not modify the plug provided
with the appliance; If it is not fit for the outlet. Have a
proper outlet installed by a qualified electrician.

Instruction manual DI641 Instruction manual DI6418 9
Please keep this instruction manual for future reference Please keep this instruction manual for future reference

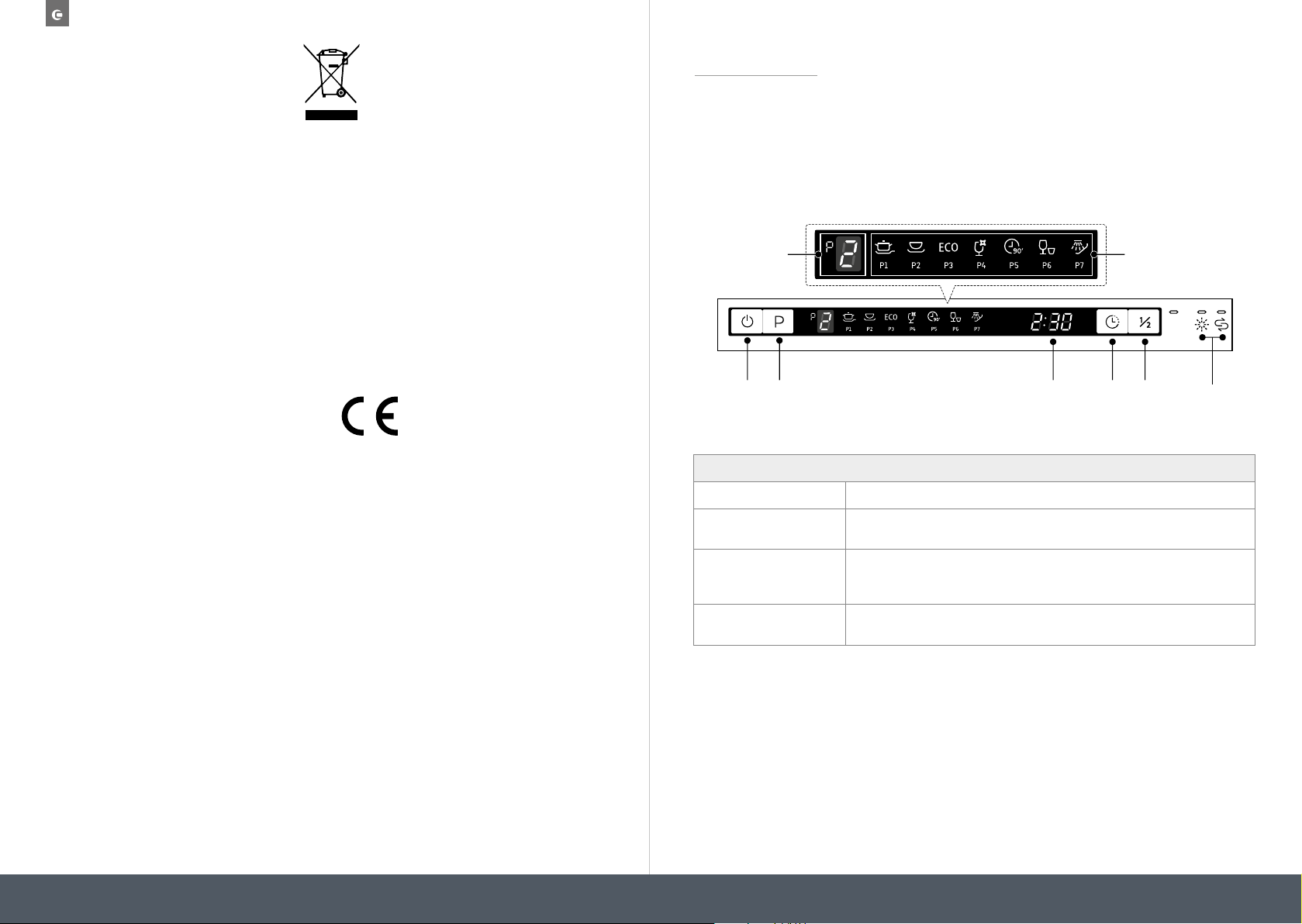

CONTROL PANEL
For detailed operating method read the corresponding content on the instruction manual.
IMPORTANT:
To get the best performance from your dishwasher, read all operating instructions before using it
for the first time.
OPERATION (BUTTON)
1 - POWER Press this button to turn on your dishwasher, the screen lights up.
2 - PROGRAM Press this button to toggle through and select the appropriate washing program. The
corresponding indicator will be lit.
3 - DELAY
Press this button to set the delayed hours for washing. You can delay the start of
washing up to 24 hours. One press on this button delays the start of washing by
one hour.
4 - HALF-LOAD For small loads, you may use just the upper or lower rack to save energy. Each press
of the Half Load button cycles between upper rack only and lower rack only.
56
4 735
21
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is
marked according to the European Directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all applicable
legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
WARRANTY:
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date
of purchase, model and serial number (placed on the inside of the appliance storage drawer).
Registration can also be completed online by visiting www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together with
proof of purchase.
If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.

Instruction manual DI641 Instruction manual DI64110 11
Please keep this instruction manual for future reference Please keep this instruction manual for future reference

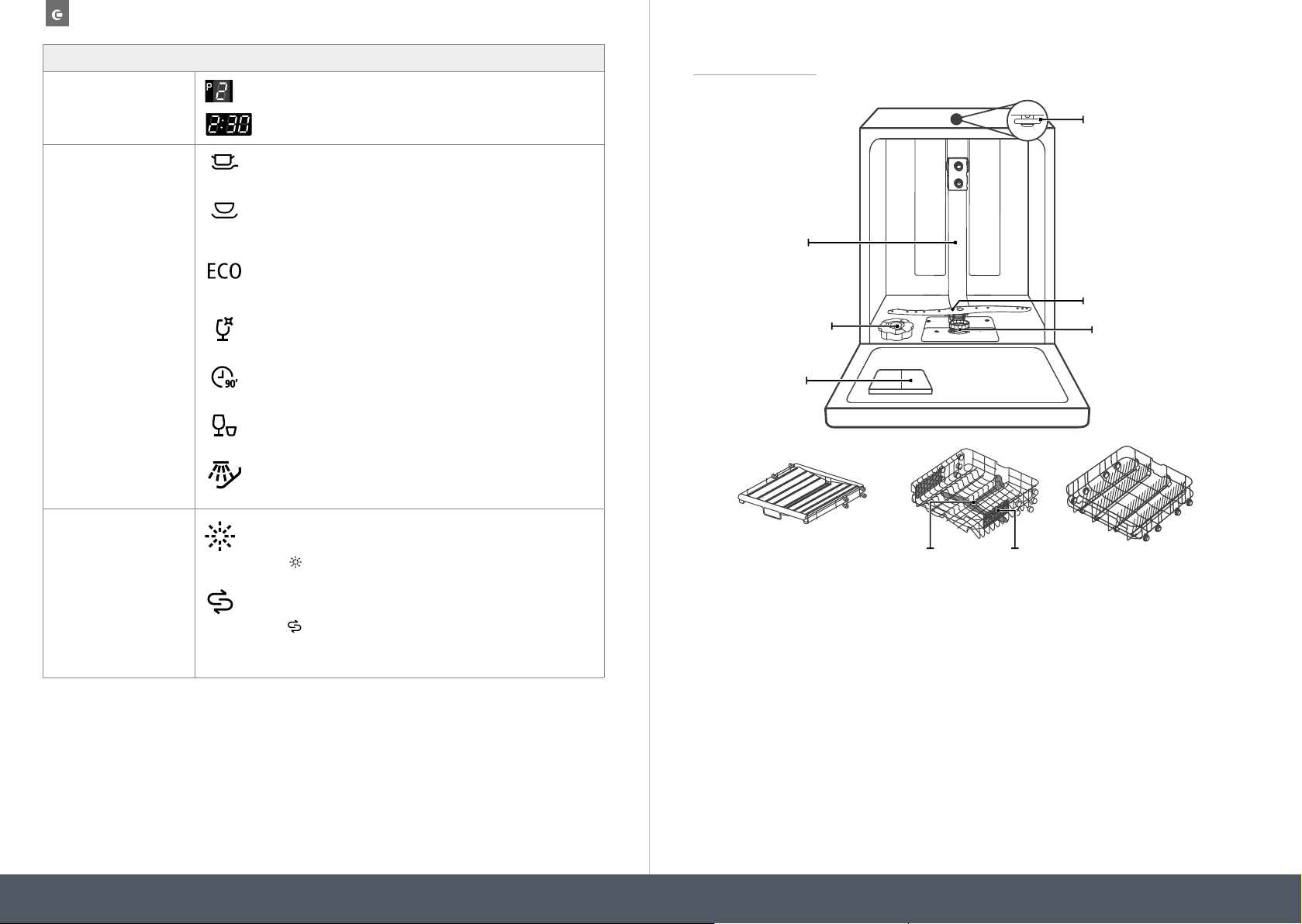

DISPLAY
5 - DISPLAY SCREEN To show the selected program.
To show the remaining time, delay time and error codes etc.
6 - PROGRAM
SCREEN
INTENSIVE
Heavily soiled items include pots and pans. With dried on food.
NORMAL
For normally soiled loads, such as pots, plates, glasses and lightly
soiled pans.
ECO
This is the standard program suitable for normally soiled loads, such as
pots, plates, glasses and lightly soiled pans.
GLASS
For lightly soiled crockery and glass.
90 MIN
For normally soiled loads that need a quick wash.
RAPID
A shorter wash for lightly soiled loads that do not need drying.
PREWASH
To rinse dishes that you plan to wash later that day.
7 - WARNING
INDICATOR
RINSE AID
If the “ ” indicator is lit, it means the dishwasher islow on dishwasher
rinse aid and requires a refill.
SALT
If the “ ” indicator is lit, it means the dishwasher is low on dishwasher
salt and needs to be refilled.
PRODUCT OVERVIEW
Top spray arm
Dispenser
Salt container Filter assembly
Lower spray arm
Inner pipe
Upper spray arm
Upper basket Lower basket
Cup rack
Cutlery rack
PRIOR TO USING FOR THE FIRST TIME
Before using your dishwasher for the first time:
»Set the water softener.
»Add 1.5Kg dishwasher salt and then fill the salt container with water.
»Fill the Rinse Aid dispenser.
»Fill in detergent.

Instruction manual DI641 Instruction manual DI64112 13
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
LOADING THE SALT INTO THE SOFTENER
NOTE:
The salt container is located beneath the lower basket and should be filled as explained in
the following:
WARNING
ONLY USE SALT SPECIFICALLY DESIGNED FOR DISHWASHERS USE:
Every other type of salt not specifically designed for dishwasher use, especially table salt,
will damage the water softener. In case of damages caused by the use of unsuitable salt the
manufacturer does not give any warranty nor is liable for any damages caused.
ONLY FILL WITH SALT BEFORE RUNNING A CYCLE.
This will prevent any grains of salt or salty water, which may have been spilled, remaining on the
bottom of the machine for any period of time, which may cause corrosion.
WATER SOFTENER
The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which would have a
detrimental or adverse effect on the operation of the appliance.
The more minerals there are, the harder your water is. The softener should be adjusted according
to the hardness of the water in your area. Your local Water Authority can advise you on the
hardness of the water in your area.
ADJUSTING SALT CONSUMPTION
The dishwasher is designed to allow for adjustment in the amount of salt consumed based on
the hardness of the water used. This is intended to optimise and customise the level of salt
consumption.
Please follow the steps below for adjustment in salt consumption.
1. Switch on the appliance;
2. Press the Program button for more than 5 seconds to start the water softener set model within
60seconds after the appliance was switched on;
3. Press the Program button to select the proper set according to your local environment, the sets
will change in the following sequence:
H1->H2->H3->H4->H5->H6;
4. Press the Power button to end the set up model.
WATER HARDNESS
Water
softener level
Salt consumption
(gram/cycle)
GERMAN
°DH
FRENCH
°FH
BRITISH
°CLARKE MMOL/L
0~5 0~9 0~6 0~0.94 H1 0
6-11 10-20 7-14 1.0-2.0 H2 9
12-17 21-30 15-21 2.1-3.0 H3 12
18-22 31-40 22-28 3.1-4.0 H4 20
23-34 41-60 29-42 4.1-6.0 H5 30
35-55 61-98 43-69 6.1-9.8 H6 60
1°dH=1.25°Clarke=1.78 °fH=0.178mmol/l
The manufactory setting: H3
Contact your local water board for information on the hardness of your water supply.

Instruction manual DI641 Instruction manual DI64114 15
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
Please follow the steps below for adding dishwasher salt:
1. Remove the lower basket and unscrew the reservoir cap.
2. Place the end of the funnel (supplied) into the hole and pour in about 1.5kg of
dishwasher salt.
3. Fill the salt container to its maximum limit with water, It is normal for a small amount of water
to come out of the salt container.
4. After filling the container, screw back the cap tightly.
5. The salt warning light will turn off after the salt container has been filled
with salt.
6. Immediately after filling the salt into the salt container, a washing program should be started
(We suggest to use a short program). Otherwise the filter system, pump or other important
parts of the machine may be damaged by salty water.
NOTE:
The salt container must only be refilled when the salt warning light ( ) in the control panel
comes on. Depending on how well the salt dissolves, the salt warning light may still be on even
though the salt container is filled.
If salt has spilled, run a soak or quick program to remove it.
RINSE AID AND DETERGENT DISPENSER
The rinse aid is released during the final rinse to prevent water from forming droplets on your
dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the
dishes. Your dishwasher is designed to use liquid rinse aids.
WARNING
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other
substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
WHEN TO REFILL THE RINSE AID DISPENSER
Unless the rinse-aid warning light ( ) on the control panel is on, you can always estimate the
amount from the colour of the optical level indicator located next to the cap. When the rinse-aid
container is full, the indicator will be fully dark. The size of the dark dot decreases as the rinse-aid
diminishes. You should never let the rinse aid level be less than 1/4 full.
As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as
illustrated below.
Full
¾ full
½ full
¼ full - Should refill to eliminate spotting
Empty
FUNCTION OF DETERGENT
The chemical ingredients that compose the detergent are necessary to remove, crush and dispense
all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for
this purpose.
WARNING
Proper Use of Detergent. Use only detergent specifically made for dishwashers use. Keep your
detergent fresh and dry. Don’t put powdered detergent into the dispenser until you are ready to
wash dishes.
Dishwasher detergent is corrosive. Keep dishwasher detergent out of the reach of children.

Instruction manual DI641 Instruction manual DI64116 17
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
FILLING THE RINSE AID RESERVOIR
ADJUSTING THE RINSE AID RESERVOIR
Rinse-Aid indicator
Adjust lever(Rinse)
MAX
1
6
2
5
3
4
Rinse-Aid indicator
Adjust lever(Rinse)
MAX
1
6
2
5
3
4
Rinse-Aid indicator
Adjust lever(Rinse)
MAX
1
6
2
5
3
4
Rinse-Aid indicator
Adjust lever(Rinse)
MAX
1
6
2
5
3
4
1. Remove the rinse aid reservoir cap by
rotating it counterclockwise.
2. Pour the rinse aid into the dispenser,
being careful not to overfill.
3. Close the rinse aid reservoir cap by
rotating it clockwise.
Turn the rinse aid indicator dial to a number between
1 and 6. The higher the number, the more rinse aid
the dishwasher uses. If the dishes are not drying
properly or are spotted, adjust the dial to the next
higher number until your dishes are spot-free. Reduce
it if there are sticky whitish stains on your dishes or a
bluish film on glassware or knife blades.
NOTE:
Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the
next wash.
FILLING THE DETERGENT DISPENSER
A
B
A
B
A
B
1. Open the detergent dispenser flap by
pushing the detergent dispenser
release catch.
2. Add detergent into the larger cavity
(A) for the main wash cycle . For better
cleaning result, especially if you have
heavily soiled items, pour a small
amount of detergent onto the door. The
additional detergent will activate during
the pre-wash phase.
3. Close the flap by sliding it to the left and
then pressing it down.
NOTE:
Please observe the manufacturer’s recommendations on the detergent packaging.

Instruction manual DI641 Instruction manual DI64118 19
Please keep this instruction manual for future reference Please keep this instruction manual for future reference
LOADING THE BASKETS
PREPARING AND LOADING DISHES
»Consider buying utensils which are identified as dishwasher-proof.
»For particular items, select a program with the lowest possible temperature.
»To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the
program has ended.
FOR WASHING THE FOLLOWING CUTLERY/DISHES
ARE NOT SUITABLE:
»Cutlery with wooden, horn china or mother-of-pearl handles
»Plastic items that are not heat resistant
»Older cutlery with glued parts that are not temperature resistant
»Bonded cutlery items or dishes
»Pewter or copper items
»Crystal glass
»Steel items subject to rusting
»Wooden platters
»Items made from synthetic fibres
ARE OF LIMITED SUITABILITY:
»Some types of glasses can become dull after a large number of washes
»Silver and aluminium parts have a tendency to discolour during washing
»Glazed patterns may fade if machine washed frequently
RECOMMENDATIONS FOR LOADING THE DISHWASHER
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not
necessary to rinse the dishes under running water. For best performance of the dishwasher, follow
these loading guidelines.
Place objects in the dishwasher in the following way:
»Items such as cups, glasses, pots/pans, etc. are faced downwards.
»Curved items, or ones with recesses, should be loaded aslant so that water can run off.
»All utensils are stacked securely and cannot tip over.
»All utensils are placed in the way that the spray arms can rotate freely during washing.
»Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that
water cannot collect in the container or a deep base.
»Dishes and items of cutlery must not lie inside one another, or cover each other.
»To avoid damage, glasses should not touch one another.
»The upper basket is designed to hold more delicate and lighter dishware such as glasses,
coffee and tea cups.
»Long bladed knives stored in an upright position are a potential hazard!
»Long and / or sharp items of cutlery such as carving knives must be positioned horizontally in
the upper basket.
»Please do not overload your dishwasher. This is important for good results and for reasonable
consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall out of
the basket.
