Caple Di627 User manual

Di627
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

Review the section on troubleshooting tips to help you
solve some common problems.
Dear Customer,
Pass it on to any subsequentowner of the appliance.
This manual contains sections on safety instructions,
operating instructions, installation instructions
and troubleshooting tips, etc.
The manufacturer, following a policy of constant
development and product upgrades, may
make modifications without giving prior notice.
A copy of this user manual can also be sourced
directly from Caple.
Please carefully read this manual before using the
dishwasher, it will help you to use and maintain your
Caple dishwasher properly.
Keep it to refer to it at a later date.
If you can not solve the problems by yourself,
please contact Caple Service on 0844 800 3830.
Dishwasher Features.................................... ...3
A Water Softener..............................................4
Attention before or after loading the dishwasher
baskets........................................................9
Filtering system.............................................13
Caring for the dishwasher...................................14
B Loading the salt into the softener.................5
C Fill the rinse aid dispenser..............................5
D
Function of Detergent .....................................6
Loading the upper basket.................................10
Loading the lower basket...............................10
Wash cycle table...........................................11
Turning on the appliance...................................11
Changing the programme...............................12
At the end of the Wash Cycle..........................12
Before calling Caple Service..........................22
Errorcodes.................................... ..............23.
Technical information.............................. .....24..
Control Panel...................................................3
.................................. 15Installation preparation
Furntiure door dimensions and installation.........16
..............18Tension adjustment of the door spring
.............................. 18Connectionof drain hoses ......................... 19Dishwasher installation steps
Electrical connection....................................20
Cold water connection.................................. 21

Thisapplianceisintendedtobeusedinhouseholdandsimilar
applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.
This appliance can be used by childrenagedfrom8yearsand above and
persons with reduced physical, sensory or mental capabilities or lack of
experience andknowledgeiftheyhave beengivensupervisionor
instruction concerning use of the appliance in a safeway and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
For EN60335-1
This appliance is not intended for use by persons(includingchildren )with
reduced physical, sensory or mental capabilities, orlack of experience and
knowledge ,unless they have been given supervision or instruction
concerning use of the applianceby a person responsible for their safety.
For IEC60335-1
This appliance is forindoor use only,forhouseholduse only. Toprotect
againstthe risk of electrical shock,do notimmersethe unit,cordor plug in
water orotherliquid.
Please unplugbefore cleaning and maintenance the appliance .Use a soft
cloth moistenwith mild soap, andthen use a dry cloth to wipe itagain .
()
()
When using your dishwasher,
follow the precautions listed below:
This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of anelectric shock by providing a path of least
resistance of electric current. This appliance is equipped with a cord having
an equipment-earthing conductor and a earthing plug.
The plug must be plugged into an appropriate outlet that is installed and
earthed in accordance with all local codes and ordinances.
Improper connection of the equipment-earthing conductor can result
in the risk of an electric shock. Check with a qualified electrician or service
representative if you are in doubt whether the appliance is properly earthed.
Do not modify the plug provided with the appliance; If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.

Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out.
Do not place any heavy objects on or stand on the door when it is open. The
appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the
basket with their points down or placed in a horizontal position.
Check that the detergent powder is empty after completion of the wash cycle.
Do not wash plastic items unless they are markeddishwasher safe or the
equivalent. For plastic items not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
Children should be supervised to ensure that they do not play with the appliance.
The door should not be left open, since this could increase the risk of tripping.
Do not tamper with controls.
The appliance is to be connected to the water mains using new hose sets and
that old hose-sets should not be reused.
The maximum number of place settings to be washed is 14.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is 0.04MPa.
If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.
During installation, the power supply must not be excessively or dangerously
bent or flattened.

Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international
abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control panel .
Packaging material could be dangerous for children!
For disposing of the packaging and the appliance please
go to a recycling centre. Please cut off the power supply
cable and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper
and should be disposed in the waste paper collection for
recycling.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the
environment and human health, which could otherwise be
causedby inappropriatewaste handling ofthisproduct.
For more detailed information about recycling of this
product, please contact your local city office or your
household waste disposal service.
DISPOSAL:Do notdisposethis product as unsorted
municipal waste. Collection of such waste separately for
special treatment is necessary.

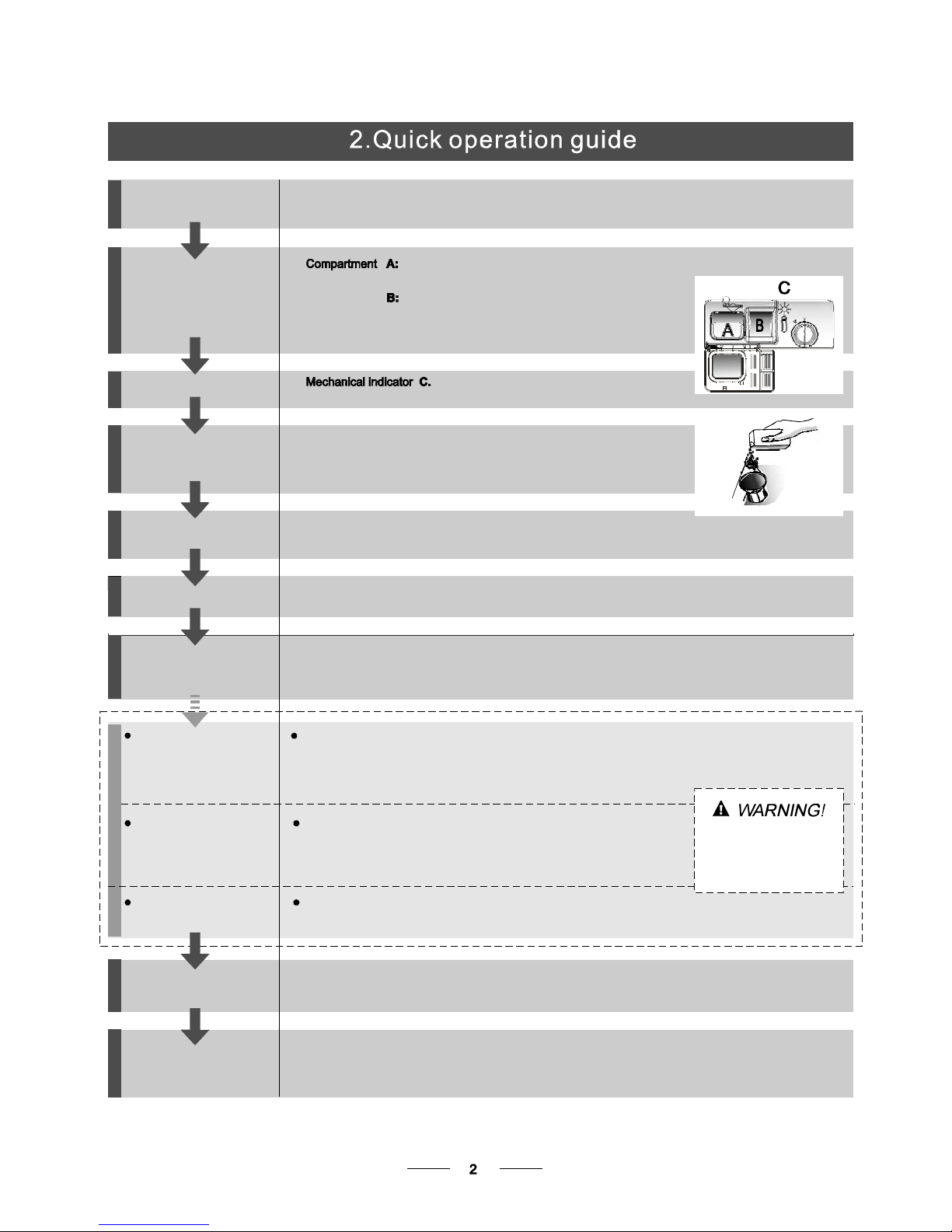

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
(On models with water softener system only.)
Electric indicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into the
softener by the number of cycles the dishwasher has run.
Check the regeneration
salt level
Load the baskets
Select a programme
Turnonthewatertap,closethedoor.Themachinewillstartworkingafterabout10seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, starting from the lower basket.
Changing theprogramme
Add forgottendishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loadinginstructions.
Press the Programme Button until the selected programme lights up.
( See the section entitled Operationinstruction )“”
When the working cycle has finished, the buzzer will sound 8
times, then stop.
Turn off the appliance using the On/Off button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteam may escape
when thedoor isopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original selection ).
For detailed operating methods read the corresponding content on the instruction manual.
Switch on the appliance Open the door,press the On/Off button to switch on the appliance .
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press the for more than 3 seconds tocancel the running programme.
3. Select a new programme.
4. Restart the dishwasher.
programme button

beforeusing it for the first time.
To get the best performance from yourdishwasher, read all operating instructions
11 12
Back View
1
2
3
4
5
7
8
910
Front view
Lower basket
Saltcontainer
Dispenser
Cup shelf
Spray arms
Filter assembly
Inlet pipe connector
Drainpipe
Upper basket
Cutlery tray
Top spray arm
1
Inner pipe
5
6
7
8
9
10
12
11
3
24
6
13
Adjuster
13

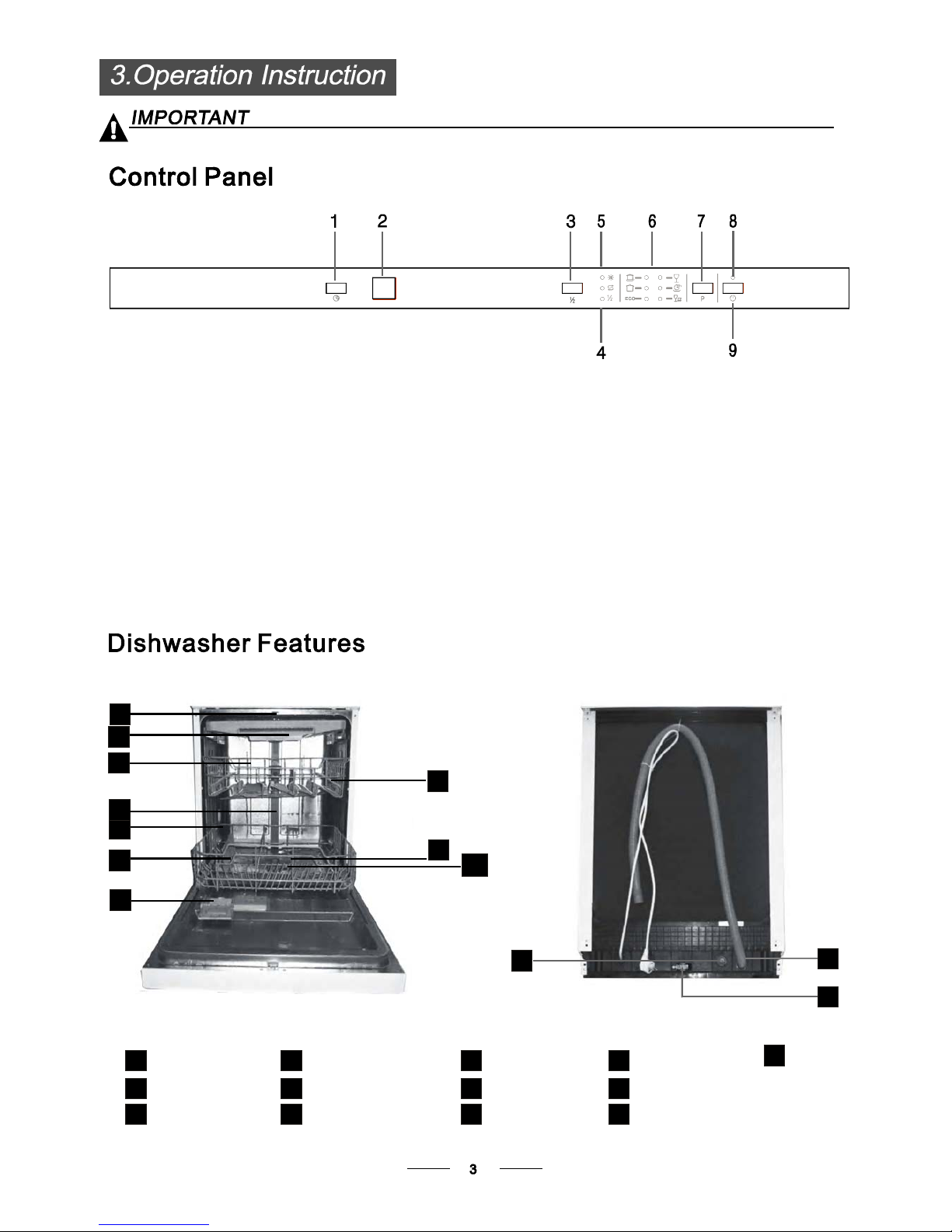

9.On/Off Button:To turn on/off the power supply.
1.Delay button : Press the button to select delay.
7.
Program Button : Press this button to select a
wash program.
5.Salt and rinse aid warninglights:Toshow
when the salt container or dispenser need to be
refilled
4.Half load indicator : To show when you select the
half load function .
3.
Half load functions button: To select Half load
functions. (With this half load function you can
only use it when you have less than 7 place
settings of dish wave, and you will see less water
and energy consumption. To only be used with
Intensive, Normal, ECO, Glass and 60 min .)
6.Program indicators: to show which program
you have selected.
8.Power indicator: Toshow whenthepower on.
2. Display window: To show the fault codes
and etc delay time,

The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which would have a detrimental
or adverse effect on the operation of the appliance.
The higher the content of these minerals and salts, the harder your water is.
The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority
can advise you on the hardness of the water in your area.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness
of the water used. This is intended to optimise and customise the level of salt consumption.
WATER SOFTENER
Thehardness ofthe watervariesfrom place to place.If hard water is used inthe dishwasher, deposits will
form on the dishes and utensils.
The applianceis equipped with aspecial softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
The factory setting is: H4 (EN 50242)
Contact your local water board for information on the hardness of your water supply.
Clark: British degree
fH: French degree
dH: German degree
dH=1.25Clarke=1.78fH=0.178mmol/l
1
Before using your dishwasher for the first time:
A. Set the water softener
B. Add 1.5Kg dishwasher salt and then full the salt container with water
C. Filltherinse aiddispenser
D. Fill in detergent
dH mmol/l
0~90~5 0~0.94 H1 0
10-20
6-11
1.0-2.0 H2 9
21-30
12-17 2.1-3.0
H3
12
H4 20
fH
0~6
7-14
15-21
Clarke
WATER HARDNESS
SelectorPosition Salt consumption
(gram/cycle)
18-22 31-40 22-28 3.1-4.0
41-60
23-34 4.1-6.0 H5 30
H6 60
29-42
35-55 61-98 43-69 6.1-9.8
1. Open the door ,switch on the appliance;
2. Press the Program button formore than 5seconds to start the water softener
set model within 60seconds after the appliance was switched on( The salt and
rinse aid warning lights will be on periodically while it gets into set mode);
3. Press the program button to select the proper set according to your local environment,
the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the power button to end the set up mode.
Please follow thesteps belowfor adjustment in saltconsumption.

1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how well the salt dissolves, the salt warning light may still be on even though the
salt container is filled.
If there is no salt warning light in the control panel (for some models),you can estimate when to
fill the salt into the softener by the cycles that the dishwasher has run.
2.
If there are salt spills, a soak or a rapid program should be run to remove the excessive salt.
Always use the salt intended for use with dishwasher.
The salt container is located beneath the lower basket and should be filled as explained
inthe following:
Attention!
Only use salt specifically designed for the use in dishwashers! Every other type of
salt not specifically designed for theuse in a dishwasher, especially table salt, will
damage the water softener. In case of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable for any damages caused.
Only fill withsalt just before starting one of thecomplete washingprograms.
This will prevent any grains of salt or salty water, which may have been spilled,
remaining on the bottom of the machine for any period of time, which may cause
corrosion.
The rinse aid isreleasedduring the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. Italso improves dryingby allowing water toroll offthe dishes. Your dishwasheris
designed touseliquidrinseaids.The rinseaiddispenser is located inside the door next to the detergentdispenser.
To fill the dispenser,open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume ofthe rinse aidcontaineris about 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwashers. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Fill the salt container with water,It is normal for a small amount of water to come out of the
saltcontainer.
AAfter the lower basket has been removed, unscrew and remove the cap from the salt container.
BPlace the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C
D After filling the container , screw the cap tightly back clockwise.
E The salt warning light will switch offafter the salt container has been filled with salt.
FImmediately after filling the salt into the salt container, a washing program should be started
program Otherwise the filter system, pump or other important parts of the machine may be damaged
by salty water. This would not be covered by the warranty.
(We suggest a short
).

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it tothe closed (right) arrow.

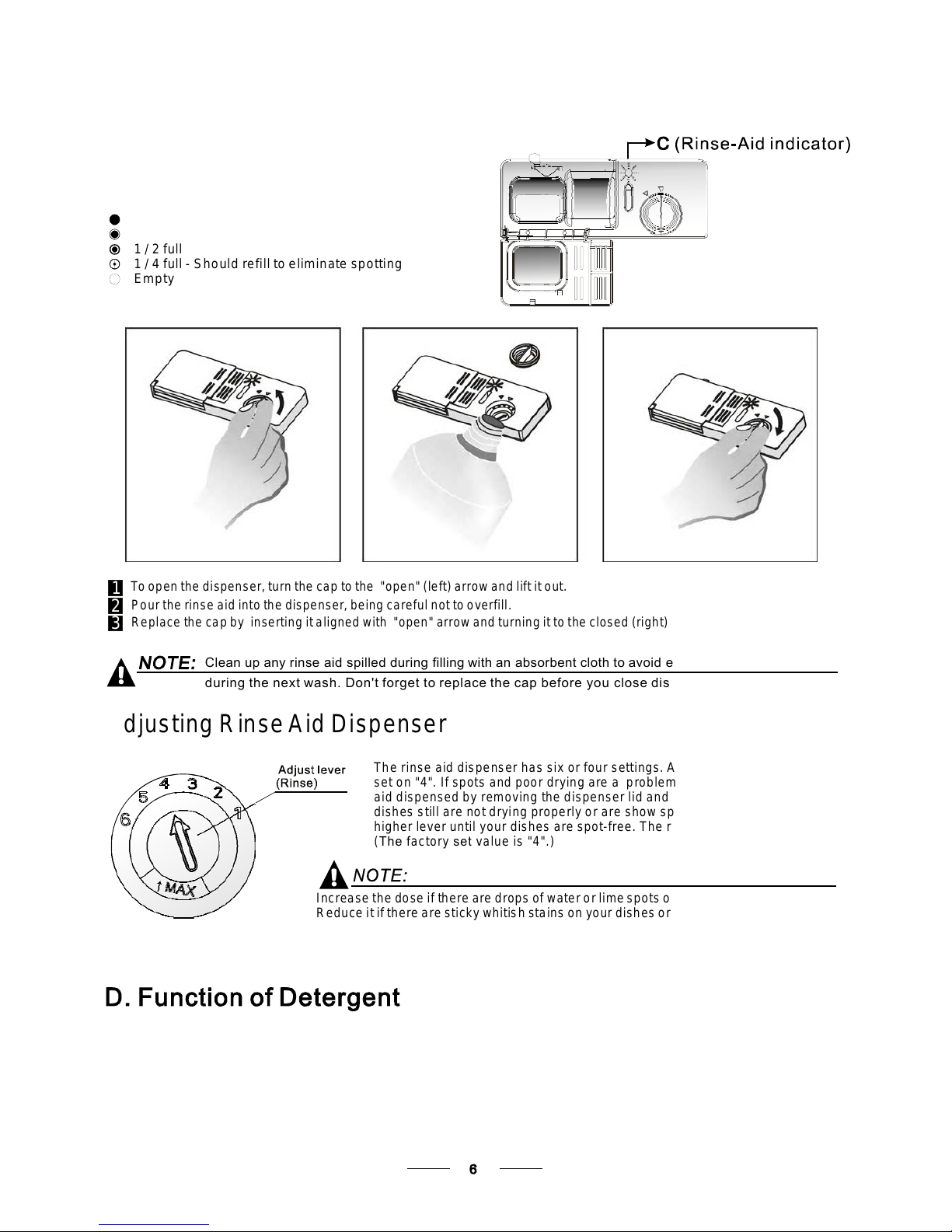

Adjusting RinseAid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are show spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(The factory set value is "4".)
Increasethe dose if there aredrops of waterorlimespotsonthe dishes after washing.
Reduce itif there aresticky whitish stains on your dishesora bluish film on glassware or
knife blades.
1
2
3
As the rinse aid diminishes, the size of the black dot
onthe rinse aid level indicator changes,as illustrated below.
Full
3/4full
1/2full
1/ 4full- Should refilltoeliminate spotting
Empty
When to Refill the RinseAid Dispenser
Ifthereis no rinse-aid warning light in thecontrol panel, youcan estimate the amount from the colour
of the optical level indicator C
""
located next to the cap. When the rinse-aid container is full, the whole
indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never
let the rinse aid level fall below 1 / 4 full.
during the next wash.
Don't forget to replace the cap before you close dishwasher door.
Clean up any rinse aid spilled during filling with an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients are necessary to remove dirt,crushdirt and transport it out of the dishwasher.
Most ofthe commercial qualitydetergentsare suitable for this purpose.
Proper Use of Detergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and
dry. Don't put powdered detergent into the dispenser until you are ready to wash dishes.
Attention!

Amount ofDetergentto Use
Based ontheir chemicalcomposition, detergentscanbesplitintwo basic types:
Detergenttablets of different brands dissolve at different speeds. For thisreason some
detergenttablets cannot dissolve and develop theirfullcleaning power during short
programs. Therefore please use long programs whenusingdetergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
Conventional dishwasher.Generally, only one tablespoon of detergent is needed for
anormalwashload. More heavily soileditemsneed more detergent.Alwaysaddthe
detergent just before starting the dishwasher, otherwise it couldget damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
Detergent Dispenser
conventional, alkaline detergentswith caustic components
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate.Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. In thiscase please choosea program with a higher temperature.
°
Detergents
There are 3 sorts of detergents
1.With phosphate andwithchlorine
2.With phosphate and without chlorine
3.Withoutphosphate and without chlorine
If the lid is closed: press the release button. The lid will spring open.
Always add the detergent just before starting each wash cycle. Only use
branded detergent aid for dishwashers.
Detergent tablet
Detergent powder
Dishwasher detergent is corrosive!
Take care to keepit out of reach of children.

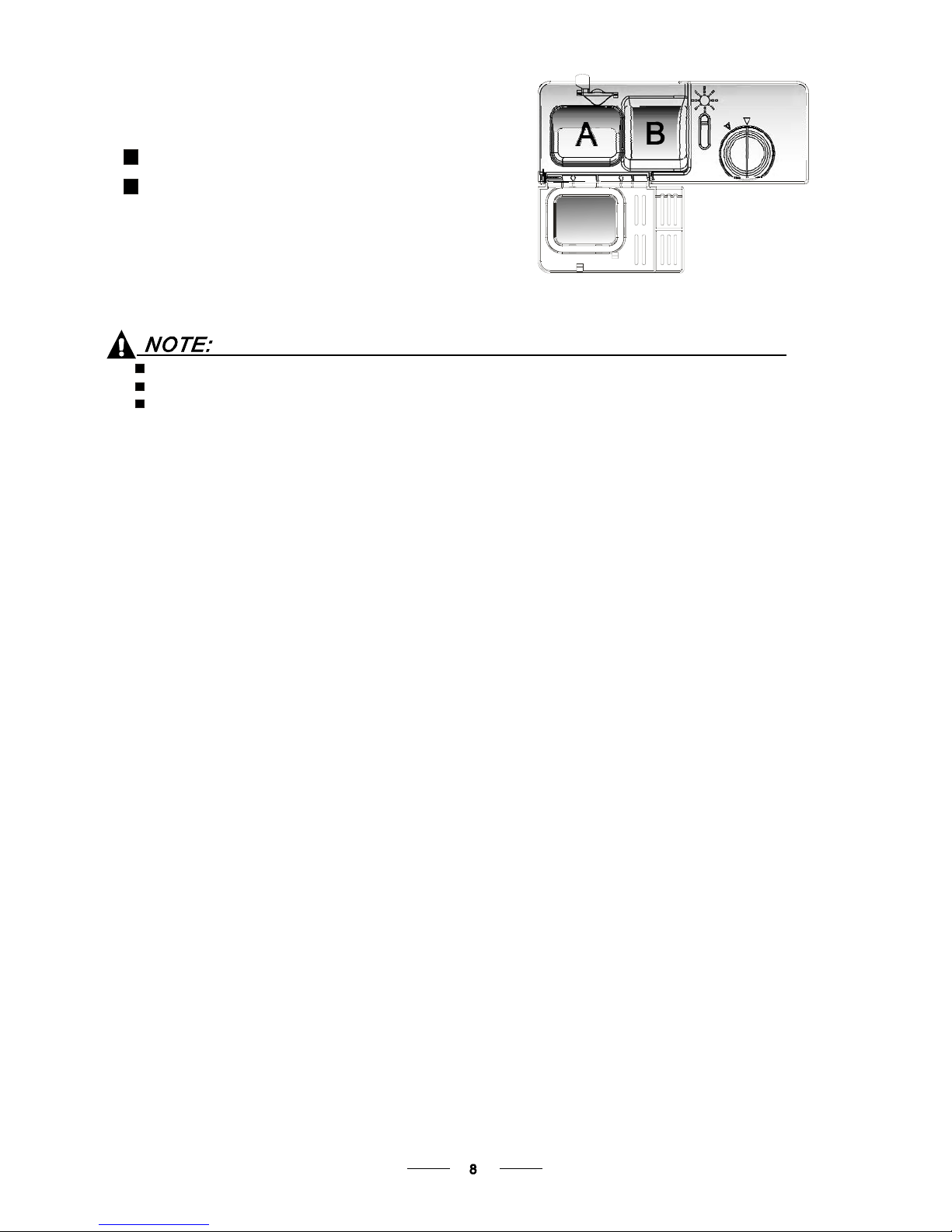

Fill the detergent dispenser with detergent. The
marking indicates the dosing levels , as illustrated on
the right:
The place of main wash cycle detergent placed. The place of
pre-wash cycle detergent placed or 3in1 tablets if used.
Please observe the manufacturers dosing and storage
Recommendations asstatedonthedetergent packaging.
Close the lid and press untilit locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
You find information about the amount of detergent for the single program on the last page.
Please aware, that according to the level soiling and the specific hardness of water differences are possible.
Please observe the manufacturer's recommendations on the detergent packaging.
Cutlery tray
The clever cutlery trays sit at the top of your dishwasher and frees up much more space in the lower basket.
The centretray is easily removed to speed the delivery of your perfectly clean cutlery to your drawer.
Delay timer
On some models the Delay timer allows the user to select the start time from 1 to 24 hours to most efficiently take
advantage of convenient times and energy saving windows.
'Easy' adjustable upper basket
This feature allows the height of theupper basket tobe changed(even with full loads) with the simple release of 2
conveniently placed levers.
Aqua Stop
This system will at the first sign of any leak automatically cut off the water supply helping to avoid costly water damaged.
Half load
The Half load function is ideallysuited to smalls loads, unlike traditionalhalfload programmes (which usually only
utiliseone basket)thisuses both upper and lower spay arms, therefore allowing you to load dishware in both baskets
- with the benefit of reduced water and energy usage.
Features

Cutlery withwooden,horn china or
mother-of-pearl handles
Plastic items that arenot heat resistant
Older cutlery with glued parts that arenot
temperatureresistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items madefromsyntheticfibres
Some types of glasses can become
dull aftera large number of washes
Silver and aluminum parts have a
tendencyto discolourduring washing
Glazed patterns may fadeifmachine
washed frequently
Are not suitable Are oflimited suitability
Dishesand itemsof cutlery mustnot lie insideoneanother, or cover each other.
To avoiddamage to glasses, they must not touch.
Load large items which are most difficult to clean into the lower basket.
The upper basket is designed to holdmoredelicate and lighter dishware such as glasses, coffee
andteacups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp itemsof cutlery such as carving knives must be positioned
horizontallyin the upperbasket.
Please do not overload your dishwasher. This is important forgood results and for
reasonable consumption of energy.
Load items such as cups, glasses, pans etc. With the opening facing downwards so that water
cannot collect in the container or a deep base.
Consider buyingutensils which are identified asdishwasher-proof.
Usea mild detergentthatis described as'kind todishes'.If necessary, seek further
information fromthedetergent manufacturers.
Forparticular items, select aprogramwithas lowa temperature aspossible.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the programme has ended.

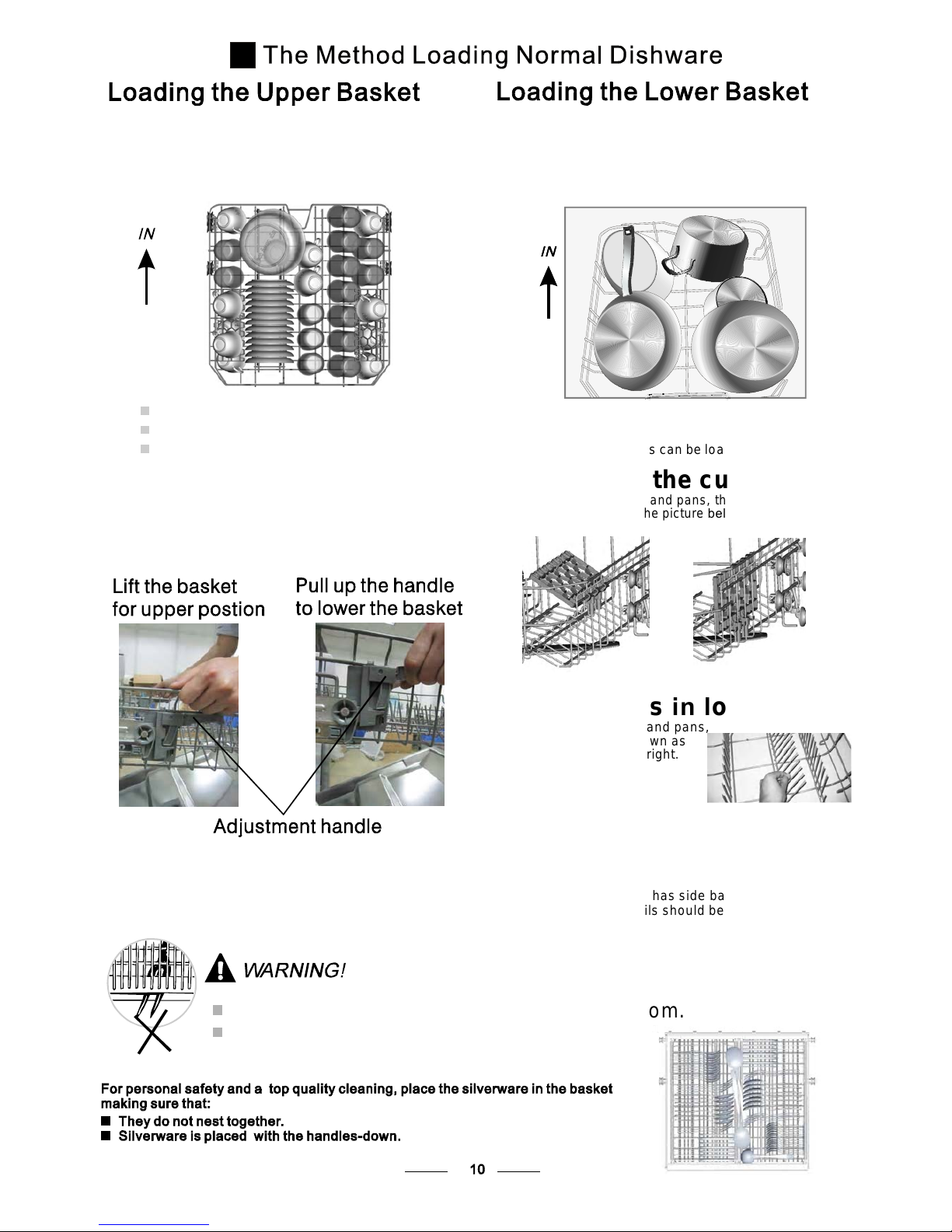

(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlerybasketsmay vary from your model.)
Scrape off any largeamounts of leftover food. Soften remnants of burnt food in pans.
It is not necessary to rinse thedishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way thatthe spray arms can rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.

The upper basket is designed to holdmore delicate
and lighter dishware such as glasses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they will
not be moved by the spray of water.
We suggest that you place large items and the most
difficultto cleanitemsareto be placedintothelower
basket: such aspots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Pots,servingbowls,etc,mustalwaysbeplacedtopdown.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
Folding spikes in lower basket
For better stacking of pots and pans,
the spikes can be folded down as
shown in the picture to the right.
Folding back the cup shelves
For better stacking of pots and pans, the shelves can be
folded down as shown in the picture below right.
Cutlery should be placed in the cutlery tray with the handles at the bottom. If the rack has side baskets, the
spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in
the horizontal position at the front of the upper basket as shown in the picture.
Do not let any item extend through the bottom.
Always load sharp utensils with the sharp
point down!
The height of the upper basket can be adjusted in order to
create more space for large utensils both for the upper
/lowerbasket.Theheight of theupperbasket can be
adjusted to the upper position by lifting the basket up until
it clicks into place. Pull upwards on the handle to lower the
upper basket, see the picture below:
Adjusting the upper basket
Cutlery Tray

*EN 50242 : This programme is the test cycle. The information for comparability test
in accordance with EN 50242, as follows:
Capacity: 14 setting
Position Upper basket: upper wheels onrails
Rinse aid setting: 6
Pl:0.49w; Po:0.45w.
Starting a cycle wash
Means: need to fill rinse into
the rinse aid dispenser.
()
(or )3in1
5/30g
(or )3in1
5/30g
5/30g
Wash (40 )
Rinse
Rinse(45 )
℃
℃
160
185
145
40
1.35
0.93
1.60
0.6
19
15
1
11.5
(50 )
Wash(60 )
Rinse (55 )
Drying
Pre-wash
℃
℃
℃
60 101.0
30g
For normally soiled loads,
such as , plates,glasses
and lightly soiled pans.
pots
For heaviest soiled crockery,
and normally soiled pots,
pans,dishes etc with dried
onsoiling.
For lightly soiled loads that
do not need excellent drying
efficiency.
Ashorter wash for lightly
soiled loadsthat do not
need drying.
For lightly soiled loads,
such as glasses,
crystal and fine china.
5/30g
Pre-wash
wash(40 )
Rinse
Rinse(60 )
Drying
℃
℃
120
0.85 15
5/30g
Prewash 50
Wash 65
Rinse
Rinse
Rinse 65
Drying
(℃)
(℃)
(℃)
Prewash(45 )
Wash (55 )
Rinse
Rinse (65 )
Drying
℃
℃
℃
Prewash
Wash (45 )
Rinse(65 )
Drying
℃
℃
Draw out the lower and upper basket, load the dishes and push them back into place.
It is recommended to load the lower basket first, then the upper one (see the section
entitled loading the dishwasher).
Pour in the detergent (see the section entitled Salt, Detergent and Rinse Aid
“”
).
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is
10A 250VAC. Make sure that the water supply is turned on to full pressure.
Open the door, press the ON/OFF Button, and the display windows will illuminate.
Press the program button, the wash program will be selected in the below sequence:
Intensive->Normal->ECO->Glass->1Hour->Rapid;
If a program is selected, the response light will illuminate. Then close the door to start the wash cycle.
1
2
3
4
5
This is standard program, it is
suitable to clean normally soiled
tableware and it is the most
efficient programme in terms
of its combined energy and water
consumption for that type of
tableware.
ECO
(*EN 50242)
Intensive
Normal
Glass
1Hour
Rapid
0
Turning on the dishwasher

It is dangerous to open the door when washing,
because the hot water may scald you.
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher.
Wait for afew minutes before unloading thedishwashertoavoidhandlingthe dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch off the dishwasher
The program light is on but is not blinking, only in this case has the program ended.
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap.
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishesBy doing this
the contents will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper basket
onto the dishes in the lower one.
Aforgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
14
5
The dishwasher will run after 10 seconds.
If you open the door , the machine will pause. The program lightwill
stop flashing and the buzzer will sound every minute unless you close the door .
After you close the door, the machine will continue working after 10 seconds.
during awash cycle
A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Open the door ,press and hold the program button more than 3 seconds , the machine will be in standby
state, then you can change the program to the desired cycle setting (see the section entitled " Starting a
wash cycle. . ." ).
1
2
Changing the program
Forgot to add a dish?
At the end of the wash cycle

The filter preventslarger remnants of food or other objects from getting inside the pump.
Theresidues may block the filter, inthis case they must be removed.
The filter system consists of a coarse filter,a flat (Main
filter) and a microfilter(Fine filter).
Food and soil particles trapped inthisfilter arepulverizedbya
special jet on the lower spray arm and washed down to drain.
Larger items, such as pieces of bones or glass, that could block
the drain aretrappedin the coarse filter. To remove theitems
caught by the filter, gently squeeze the tap on thetop of this
filterandliftout.
Thisfilter holds soiland food residuesin the sumpareaand
prevents itfrom being depositedon the dishes duringwash cycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1

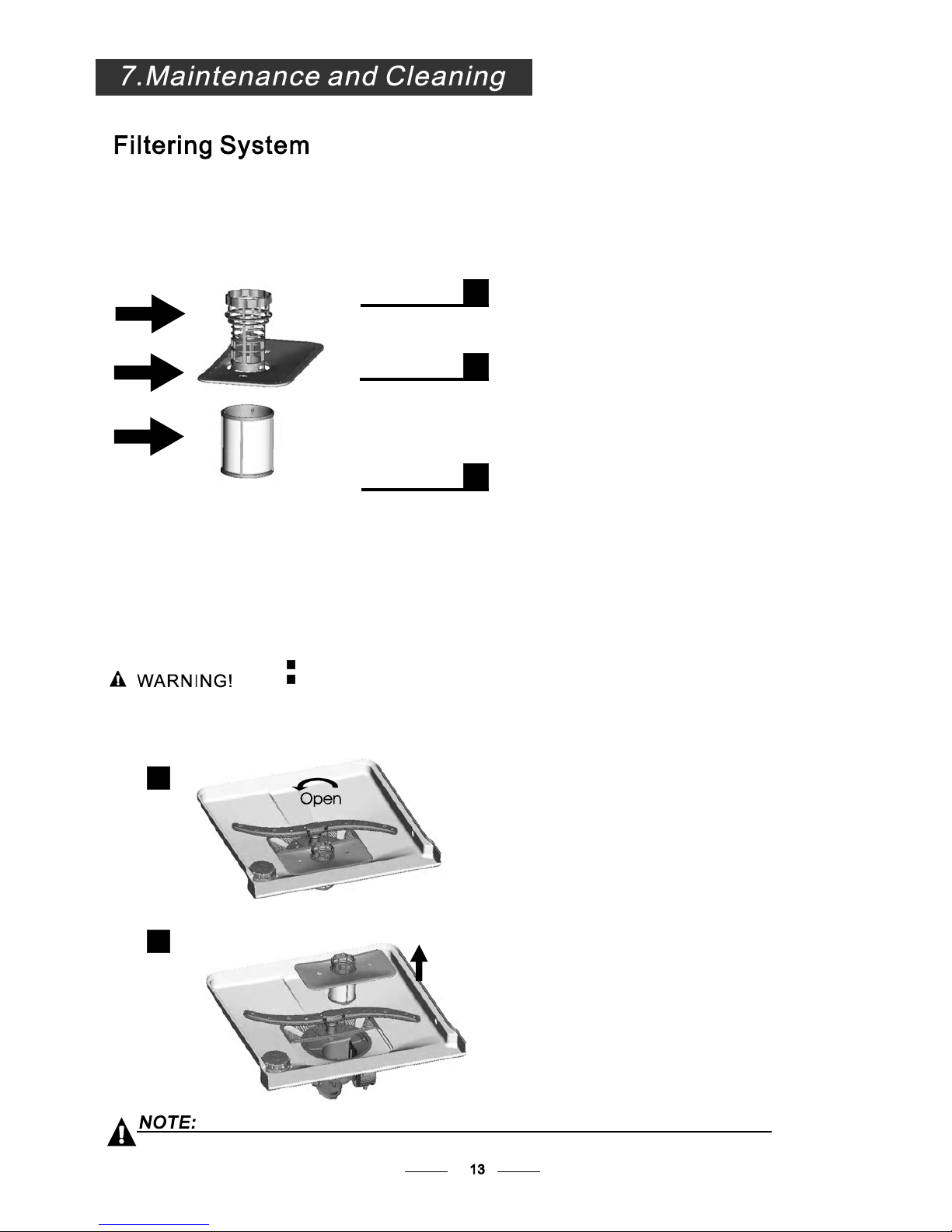

Filter assembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it isa good idea to
remove the larger food particlestrapped in the filter after each wash cycle by rinsing the semicircular filter and
cup under running water. To remove the filter device, pull the cup handle in the upwarddirection.
removes food particles from the wash water, allowing it to be recycled during the cycle.
For
The dishwasher must never be used without the filters.
Improper replacementof the filter may reduce the performancelevel ofthe appliance
and damage dishesand utensils.
1
2
Step 1 Turn the filter in anti-clockwise direction,:
Step 2:lift the filter assembly up
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.

The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Neveruse sharp objects, scouring pads or harsh cleaners onany part ofthe dishwasher.
Protect against freezing
1.Cutoff the electricalpower to thedishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather thewater)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottomof the tub and use a sponge to soak up water in the sump.
please take frost protection measures onthe dishwasher in winter. Every fter washing cycles,
please operate as follows time a
:
Cleaning the filter
Cleaning the door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
on the last page and reinsert the entire assembly in the dishwasher,positioning it in its seat and pressing downwards.
When cleaning the filters, don't knock or bang them. Otherwise, the filters
could be contorted and the performance of the dishwasher could be
decreased.
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetrationof water into the door lock and electrical components, do not
use a spray cleaner of any kind.
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
Cleaning the spray arms
If your dishwasher cannot work because of the ice,
please contact Caple service.
It is necessary to clean the spray arms regularly for hard
waterchemicalswillclogthesprayarmjetsandbearings.
- Inspect the filters for blockages after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and
cleanthefilters underrunningwater.
Remarks:
The entirefilter assembly should be cleanedonce a week.
To removethelower spray arm, pull out thespray arm upward.
To remove the upper sprayarm, hold the nut, rotate the arm
clockwisetoremoveit.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
Caring for your dishwasher

When not in use for long time
It is recommend that you run a wash cycle with the
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
seals to last longer and prevent odours from forming
within the appliance.
If the appliance must be moved, try to keep it in the
verticalposition.Ifabsolutely necessary, itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remains trappedin the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberpartsofthedishwasher,
donot use solventsor abrasivecleaning products.
Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened withwaterana little
vinegar, ora cleaning product madespecifically for
dishwashers.
Remove the plug
No solvents or abrasive cleaning Moving the appliance
Seals
After every wash, turn off the water supply to the
appliance and leave the doorslightly open so that
moisture and odours are not trapped inside.
After every wash
The installation of the pipes
and electrical equipments
should be done by
professionals.
The installation position of dishwasher should be near the existing inlet and
drain hoses and power cord.
One side of the cabinet a sink should be chosen to facilitate the connection of
the drainer hoses of the dishwasher.
Installation preparation
Note: please check the accompanying installation accessories (hook for furniture door
screw)
●
Electrical Shock Hazard
Disconnect electrical power
beforeinstalling dishwasher.
Failure to do so can result in
death or electrical shock.
How to keep your dishwasher in good shape

Please carefully read the installation instruction.
●Illustrations of cabinet dimensions and installation position of the dishwasher
Preparations should be made before moving the dishwasher to the installation place.
Choose a place near the sink to facilitate the installation of inlet and drain hoses
(see figure 1).
If the dishwasher is installed at the corner of the cabinet, there should be some space
(illustrated in figure 2) when the door is opened.
2
1
16
Minimum space
when the door is
opened
【Figure2】
Cabinet dimensions
【Figure1】
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
1
The furniture door panel should be fitted according to the Figure 3.
The furniture door should
be processed in
accordance with the
illustrated dimensions
【Figure3】
●Furniture door dimensions and installation
Less than 5mm
between the top
of dishwasher
and cabinet and
the outer door
aligned to
cabinet.
90 °
90 °
600 mm
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
(Unit: mm)
Table of contents
Other Caple Dishwasher manuals
