Caple di476 User manual

Di476
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

Review the section on troubleshooting tips to
help you to solve some common problems.
Dear Customer,
Pass it onto any subsequent owner of the appliance.
This manual contains sections on safety instructions,
operating instructions, installation instructions
and troubleshooting tips, etc.
As we follow a policy of constant development
and product improvement, we may make
modifications without giving prior notice.
An electronic version of this manual is
available from www.caple.co.uk.
Please carefully read this manual before using
the dishwasher, it will help you to use and
maintain your Caple dishwasher correctly.
Keep it to refer to it at a later date.
If you cannot solve the problems by yourself,
please contact the Caple Service department
either by telephone [phone] or email
[email protected].
Dishwasher features.......................................3
A Water softener..............................................4
Before or after loading the dishwasher
baskets........................................................9

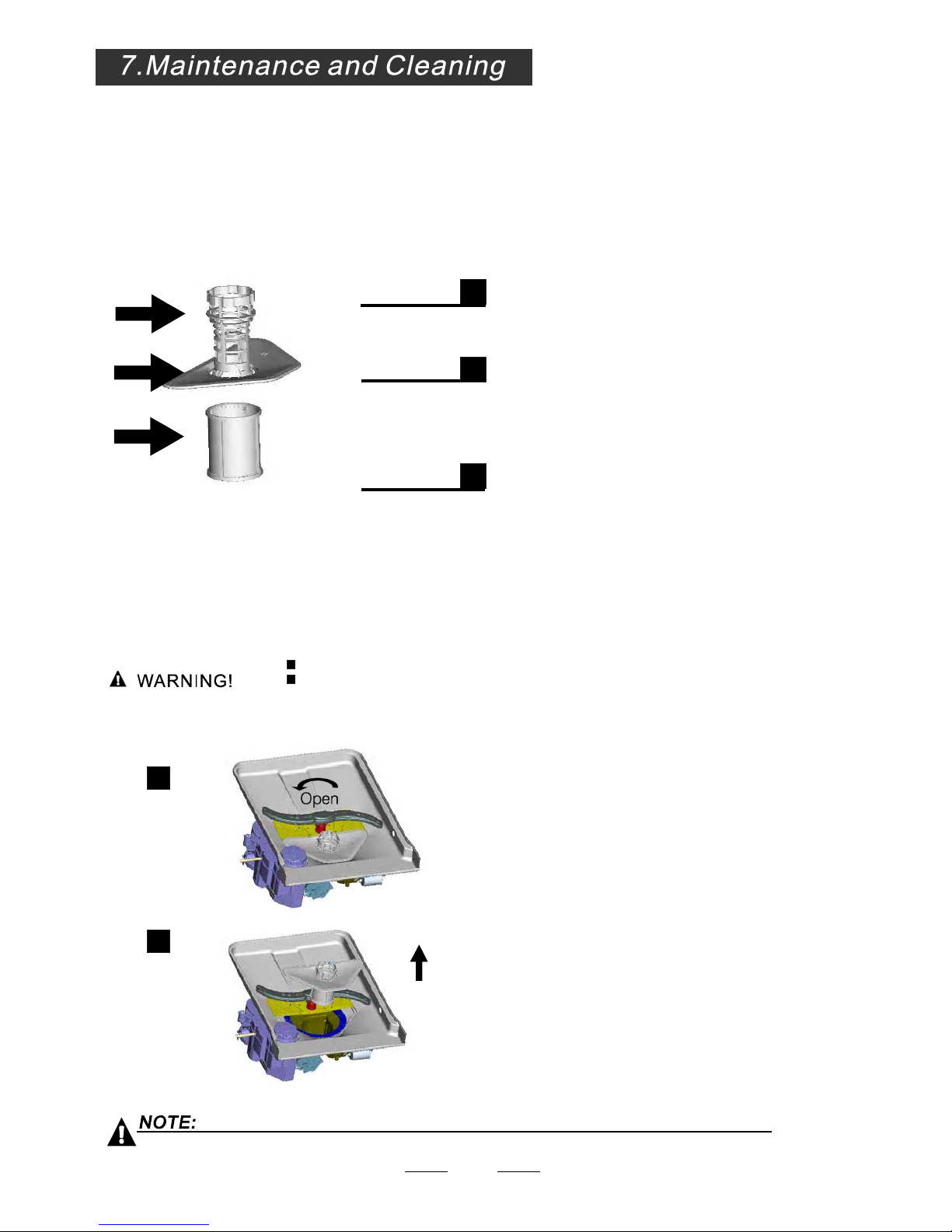

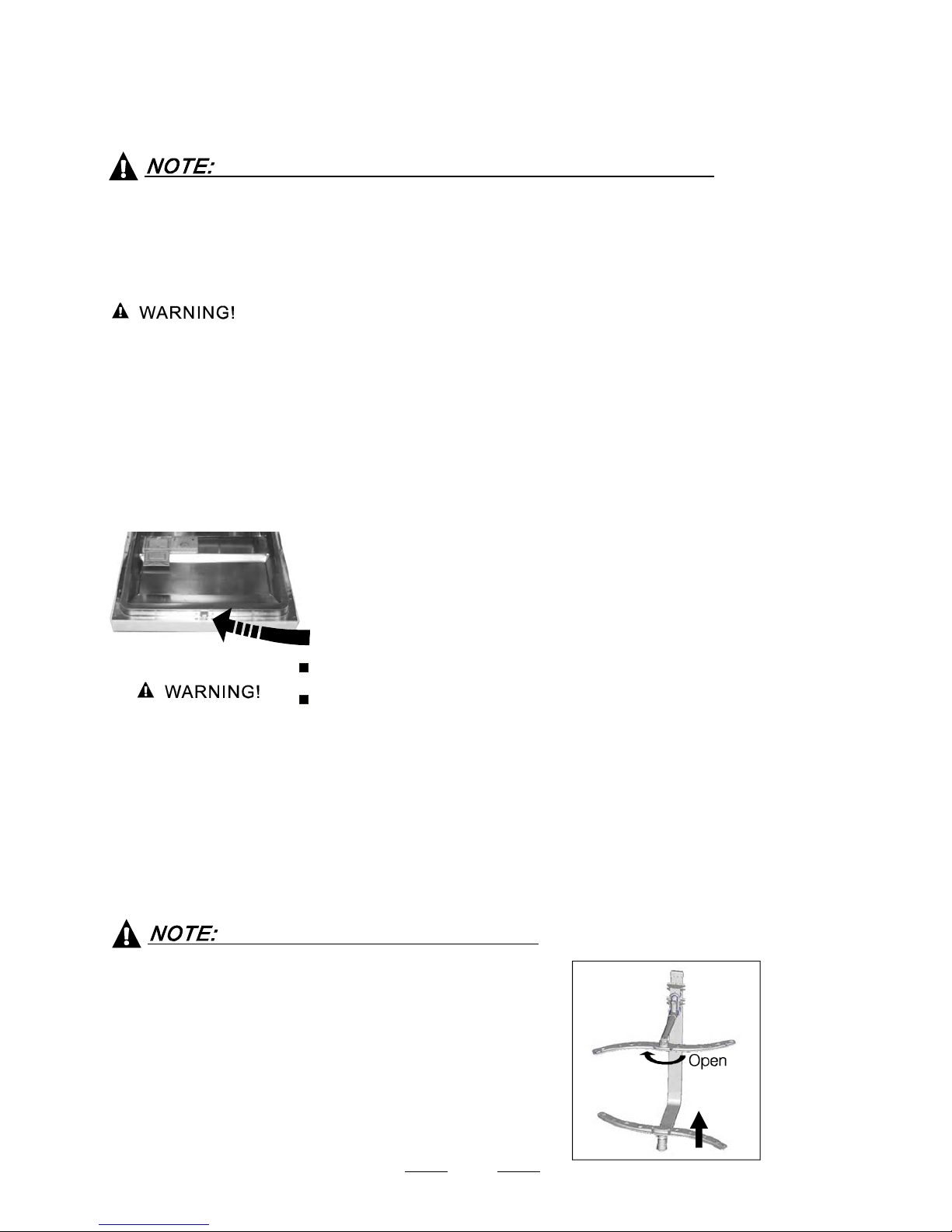

Filtering system.............................................13
Caring for the dishwasher...................................14

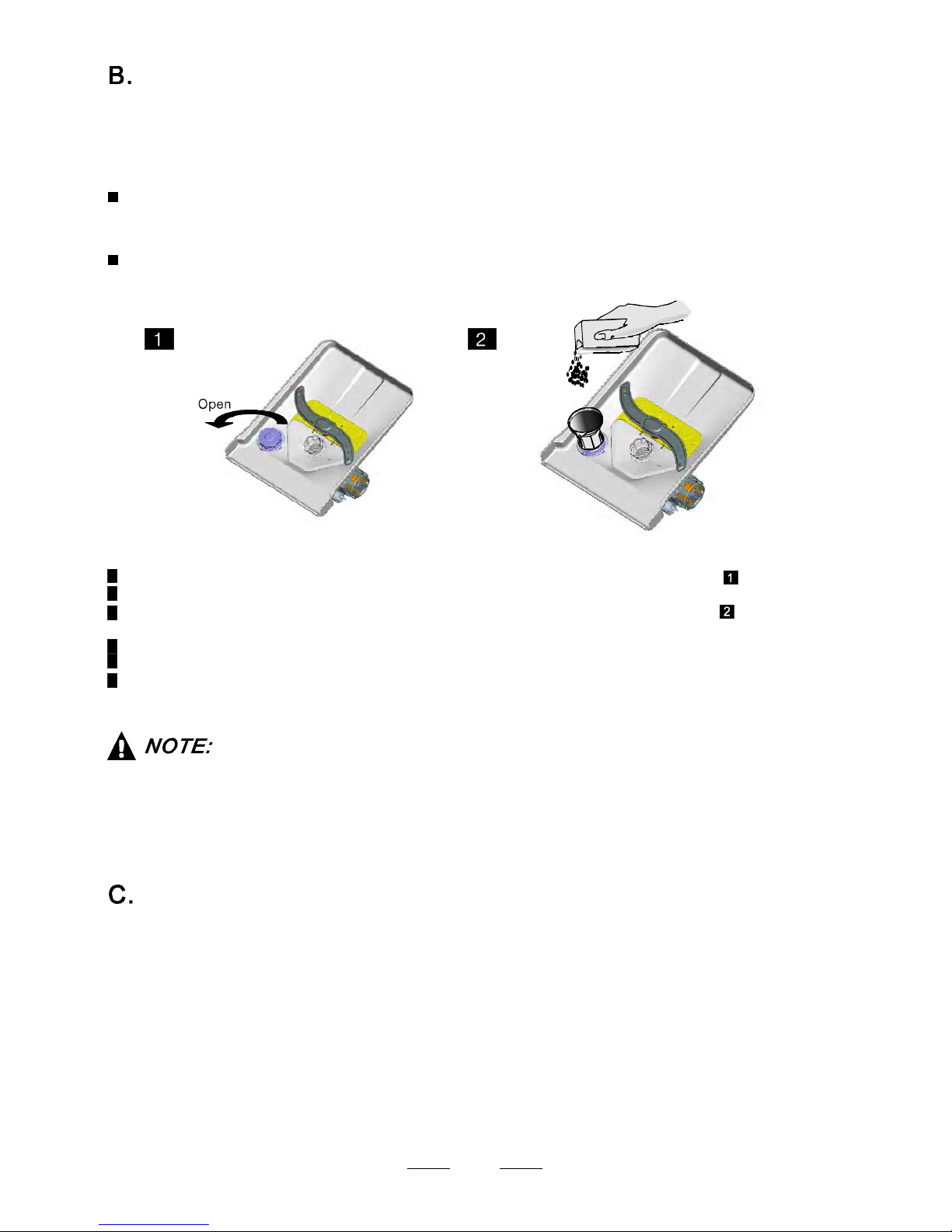

B Loading the salt into the softener.................5

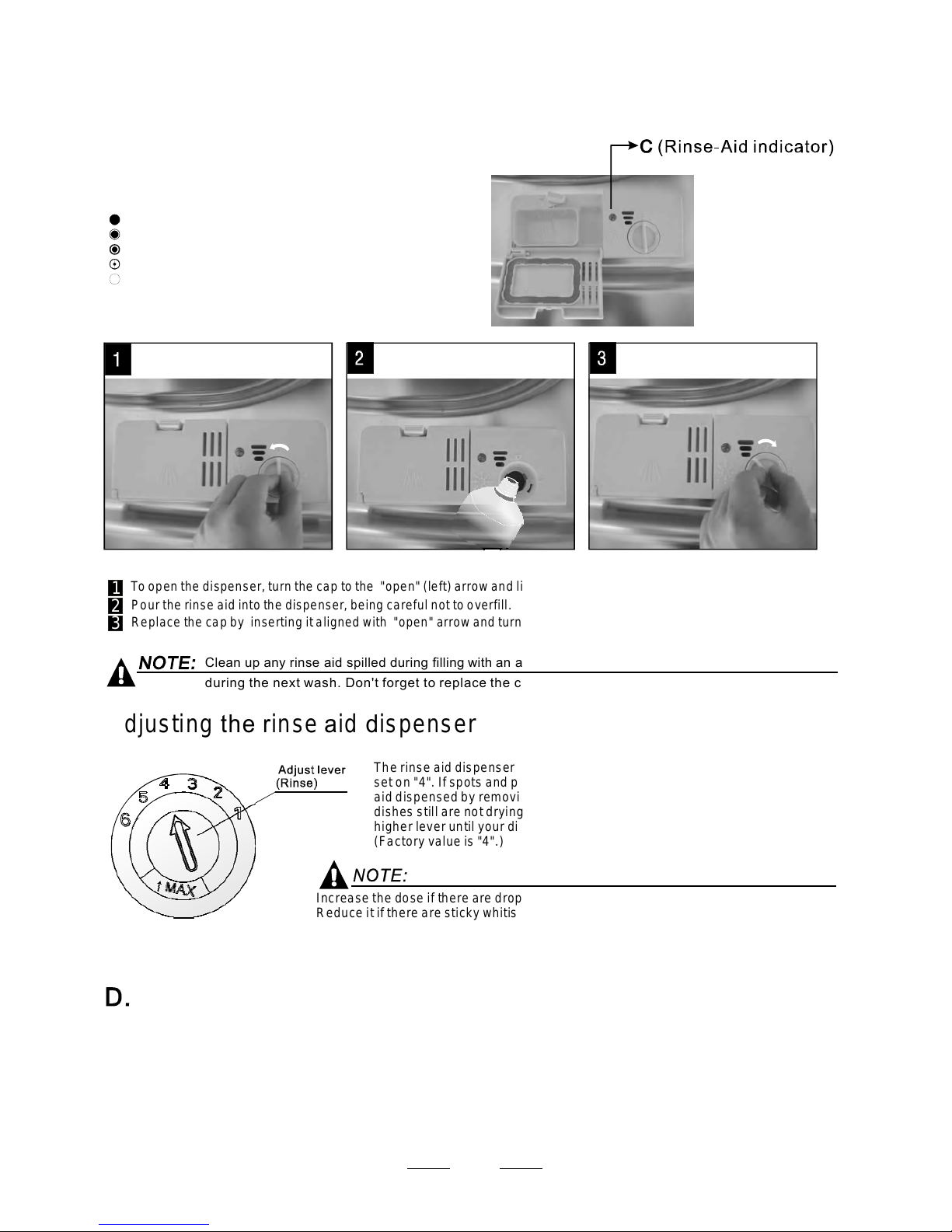

C Filling the rinse aid dispenser.........................5
D The function of detergent................................6
Loading the upper basket.................................10
Loading the lower basket...............................10
Wash cycle table...........................................11
Turning on the appliance...................................11
Change the programme.................................12
At the end of the wash cycle...........................12
Before contacting Caple Service....................22
Errorcodes.................................... ..............23.
Technical information.............................. .....24..
Control panel..................................................3
..................................15Installationpreparation
Furniture door dimensions and installation.........16
..............18Tension adjustment of the door spring
Drain hose connection................................. 18
......................... 19Dishwasher installation steps
Electrical connection....................................20
Cold water connection.................................. 21
Before contacting Caple Service
Read this manual before use
Note

Thisapplianceis intended tobeused in household
and similar applicationssuch as:
-staff kitchen areas in shops, offices and other
working environments;
-farm houses;
-by clientsin hotels, motels and other residentialtype
environments;
-bedand breakfast typeenvironments.
This appliance can be used by children aged from 8
years and above andpersons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledgeif theyhave beengiven supervision
or instruction concerning use of the appliance ina
safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
withoutsupervision. For EN60335-1
This appliance is not intended for use by persons
(including children )with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use ofthe appliancebya
personresponsiblefortheir safety. ForIEC60335-1
This applianceis for indoor useonly, for household
useonly.
To protect against the risk of electrical shock, do not
immerse the unit, cordor plug inwater orother liquid.
Pleaseunplugbefore cleaningand maintenancethe
appliance.
Use a soft clothmoistenwith mild soap, and then use
adryclothtowipeitagain.
（）
（）
When using your dishwasher,
follow the precautions listed below:

This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the risk
of anelectric shock by providing a path of least
resistance of electric current. This appliance is equipped
with a cord having an equipment-earthing conductor
and a grounding plug.
The plug must be plugged into an appropriate outlet that
is installed and earthed in accordance with all local
codes and ordinances.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the appliance
is properly grounded.
Do not modify the plug provided with the appliance;
If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
Do not abuse, sit on, or stand on the door or dish rack of
the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;

2) Warning: Knives and other utensils with sharp points
must be loaded in the basket with their points down or
placed in a horizontal position.
Check that the detergent powder is empty after
completion of the wash cycle.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent.
For plastic items not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives designed for
an automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
Children should be supervised to ensure that they do not
play with the appliance.
The door should not be left open, since this could increase
the risk of tripping.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using
new hose sets and that old hose-sets should not be reused.
The maximum number of place settings to be washed
is 9.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is 0.04MPa.

Dispose of the dishwasher packaging material
correctly.
All packaging materialscan be recycled.
Plasticparts are markedwith thestandard
international abbreviations:
PE for polyethylene,e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control
Panel .
Packaging material could be dangerous for children!
For disposal of the packaging and of the appliance
please go to a recycling centre. Also cut off the
power supply cable and make the door closing device
unusable.
Cardboard packaging is manufactured from recycled
paper and should be disposed in the waste paper
collection for recycling.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences
for the environment and human health, which could
otherwise be caused by inappropriate waste handling
of this product.
For more detailed information about recycling of this
product, please contact your local city office and your
household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste separately
for special treatment is necessary.

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
Use the electric indicator on control panel.
Add salt if required.
Check the regeneration
salt level
Load the baskets
Select a programme
Turnonthewatertap,closethedoor.Themachinewillstartworkingafterabout10seconds.
Running the dishwasher
Switch off the appliance
Turn off the water
supply and unload the
baskets

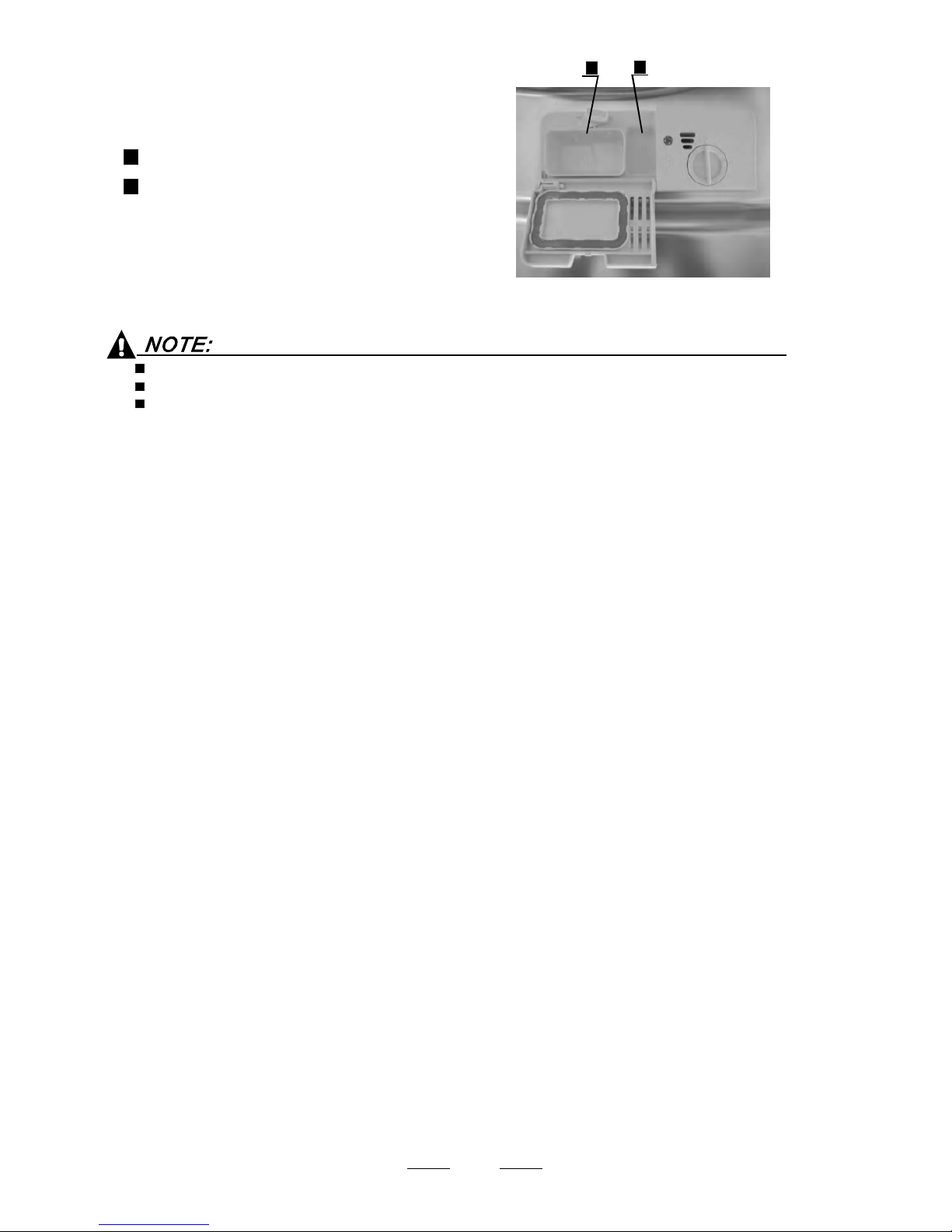

Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to breaking.
They will also dry better.Unload the appliance, starting from the lower basket.
Changing theprogramme
Add forgottendishes in the
dishwasher.
Scrape off any large amounts of leftover food. Soften remnants of burnt food in
pans, then load the baskets. Refer to the dishwasher loading instructions.
Press the programme button until the required programme indicator lights up.
( See the section entitled "Operation instructions")
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteam may escape
when thedoorisopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original programme selection).
For detailed operating method read the corresponding content on the instruction manual.
Switch on the appliance Open the door, press the On/Off button to switch on the appliance .
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
1.Arunning cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2.
Press and hold the programme button
for more than 3 seconds to cancel the running programme.
3. Select a new programme.
4. Restart the dishwasher.
AB

3
beforeusingit forthe first time.
To get the best performance from yourdishwasher, read all operating instructions
2.
Delay button : To press the button to delay.
3.
Programme button : To press the button to select a
wash programme.
4.On/off Button:
To turn on/off the power supply.
1. indicators:Display to show the error code,
Programme indicators:
Delay time:3/6/9 hours option
delay time etc.
Rinse aid indicator:
Indicates when the dispenser needs to be refilled.
Add salt indicator:
Indicates when the salt needs to be added.
9
Back View
1
2
3
4
5
6
7
8
Front view
Dispenser
Cup Shelf
Spray arms
Filter assembly
Inletpipe connector
Drain pipe
Lower Basket
Inner pipe
UpperBasket
1
Salt Container
5
6
7
8
9
10
3
24
10
Delay timer
The Delay timer allows the user to select the start time by 3, 6 or 9 hours to most efficiently take advantage of convenient times and
energy saving windows.

The water softener must be set manually, using the water hardness table below.
The water softener is designed to remove minerals and salts from the water, which would have
a detrimental or adverse effect on the operation of the appliance.
The higher the content of these minerals and salts, the harder your water is.
The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority
can advise you on the hardness of the water in your area.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness
of the water used. This is intended to optimise and customise the level of salt consumption.
What is a water softener for?
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will
form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt container specifically designed to
eliminate lime and minerals from the water.
The factory setting is: H4 (EN 50242)
Contact your local water board for information on the hardness of your water supply.
4
°
Clark:Britishdegree
°
fH: French degree
°
dH: German degree
dH=1.25Clark=1.78 fH=0.178mmol/l
°° °
1
Before using your dishwasher for the first time:
A. Set the water softener
B. Add 1.5Kg dishwasher salt and then fill the salt container with water
C. Fill the rinse aid dispenser
D. Add the detergent
dH mmol/l
0~90~5 0~0.94 H1(Rapid）0
10-20
6-11 1.0-2.0 H2 1hour)（9
21-30
12-17 2.1-3.0
H3(Rapid+1hour)
12
H4(ECO) 20
FH
0~6
7-14
15-21
Clark
WATER HARDNESS
Selector Position Salt consumption
(gram/cycle)
18-22 31-40 22-28 3.1-4.0
41-60
23-34 4.1-6.0
H5(rapid+ECO)
30
H6(1hour+ECO) 60
29-42
35-55 61-98 43-69 6.1-9.8
1. Open the door and switch on the appliance;
2. Press the programme button for more than 5 seconds to start the water softener
setting mode within 60 seconds after the appliance was switched on (The salt and rinse
aid warning lights will be on periodically when it gets into the setting mode );
3. Press the programme button to select the correct setting according to your local environment,
the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the power button to end the set up model.
Please follow thesteps belowforadjustment insaltconsumption.

1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how well the salt dissolves, thesalt warning light may still be on even though the
salt container is filled.
If there is no salt warning light in the control panel (forsome Models),you can estimate when to fill
the salt into the softener by the cycles that the dishwasher has run.
2.
If there are spills of the salt, a soak or a rapid programme should be run to remove the excessive salt.
Always use the salt intended for use with dishwasher.
The salt container islocated beneath the lower basket and should be filled as explained
inthe following:
Important!
Only use salt s
pecifically designed for the use in dishwashers! Every other type of
salt not specifically designed for the use in a dishwasher, especially table salt, will
damage the water softener. In case of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable for any damages caused.
Only fill withsalt justbefore starting one of the complete washingprograms.
This will prevent any grains of salt or salty water, which may have been spilled,
remaining on the bottom of the machine for any periodof time, which may cause
corrosion.
5
The rinse aid dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume of the rinse aid container is about 110ml.
The function of rinse aid
Rinse aid is automatically added to the wash during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Important!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent).This would damage the appliance.
Fill the salt container with water,It is normal for a small amount of water to come out of the
saltcontainer.
A After the lower basket has been removed, unscrew and remove the cap from the salt container.
B Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C
DAfter filling the container , screw the cap tightly back clockwise.
EThesaltwarning lightwill stopbeing after thesalt containerhasbeenfilled withsalt.
F Immediately a fter filling the salt into the salt container, a washing programme should be started
programme). Otherwise the filter system, pump or other important parts of the machine may be damaged
bysalty water.This isoutofwarranty.
(We suggest a short
Loading salt into the softener
Fill the rinse aid dispenser
