Caple Di629 User manual

Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk
Model code: Di629
Instruction manual for integrated dishwasherInstruction manual for integrated dishwasher

Dishwasher Features.......................................3
A Water Softener...........................................4、
Attention before or after loading the Dishwasher
Baskets..........................................................9
Filtering System.............................................13
Caring for the Dishwasher..................... .........14.
B LoadingtheSalt into the Softener.................5、
C Fill theRinseAid Dispenser.........................5、
D Function of Detergent.................................6 、
Wash Cycle Table...........................................11
Turning on the ppliance................................12
ChangetheProgramme.............. ................12....
At the endof theWash Cycle...........................12
Positioning the Appliance................... ..........15..
Water Connection.................................. .......16.
Electrical connection.......................................15
Startof dishwasher................................ ......17..
Before calling forservice........................... .....18.
Errorcodes.................................... ..............19.
Technical information.............................. .....20..
ControlPanel...................................................3
The Method Loading Normal Dishware.............10
To review the section on troubleshooting tips will help
you to solve some common problems without the
need to contact Caple Service .
Dear Customer,
Pass it on to any subsequent owners of the appliance.
This manual contains sections on safety instructions,
operating instructions, installation instructions
and troubleshooting tips.
Caple, following a policy of constant development and
updating of the product, may make modifications
without giving prior notice.
This manual is also available on the Caple website
www.caple.co.uk
Please carefully read this manual before using the
dishwasher, it will help you to use and maintain the
dishwasher properly.
Keep it to refer to at a later date.
If you cannot solve the problems by yourself,
please contact Caple Service on 0117 938 7420

Thisappliance is intended tobeused in household
and similarapplicationssuch as:
-staff kitchen areas in shops, offices andother
working environments;
-farm houses;
-by clients in hotels, motels and other residentialtype
environments;
-bedand breakfast type environments.
This appliance can be used by children aged from8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledgeif they have been givensupervision
or instruction concerning use of the appliancein a
safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be madeby children
withoutsupervision. For EN60335-1
This appliance is not intended for use by persons
(including children )with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge ,unless they have been givensupervision
or instruction concerning use of the appliancebya
personresponsible for their safety. ForIEC60335-1
This applianceis for indoor useonly, for household
useonly.
To protect against the risk of electrical shock, do not
immerse the unit, cordor plug inwater orother liquid.
Please unplug before cleaning and maintenancethe
appliance .
Use a soft cloth moistenwith mild soap, and thenuse
adryclothtowipeitagain.
（）
（）
When using your dishwasher,
follow the precautions listed below:

This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the risk
of anelectric shock by providing a path of least
resistance of electric current. This appliance is equipped
with a cord having an equipment-earthing conductor
and a grounding plug.
The plug must be plugged into an appropriate outlet that
is installed and earthed in accordance with all local
codes and ordinances.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the appliance
is properly grounded.
Do not modify the plug provided with the appliance;
If it does not fit the outlet.
Have a proper outlet installed by a qualified electrician.
Do not abuse, sit on, or stand on the door or dish rack of
the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;

2) Warning: Knives and other utensils with sharp points
must be loaded in the basket with their points down or
placed in a horizontal position.
Check that the detergent powder is empty after
completion of the wash cycle.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent.
For plastic items not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives designed for
an automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
Children should be supervised to ensure that they do not
play with the appliance.
The door should not be left open, since this could increase
the risk of tripping.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using
new hose sets and that old hose-sets should not be reused.
The maximum number of place settings to be washed
is 14.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is 0.04MPa.

Dispose of the dishwasher packaging material
correctly.
All packaging materials can be recycled.
Plasticparts are markedwith thestandard
international abbreviations:
PE for polyethylene,e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control
Panel .
Packaging material could be dangerous for children!
For disposing of packageand theappliance please
go to a recycling centre.Therefore cut off the power
supply cableand make the door closing device
unusable.
Cardboard packaging ismanufactured from recycled
paper and should be disposed in the waste paper
collection for recycling.
By ensuringthis productis disposed of correctly, you
will help prevent potential negative consequences
for the environment andhuman health, which could
otherwise be caused by inappropriate waste handling
of this product.
For more detailed information aboutrecycling ofthis
product, please contact your local city office and your
household waste disposal service.
DISPOSAL:Do not dispose this product as unsorted
municipal waste. Collection of such waste separately
for special treatment is necessary.

Witheachwashcycle.

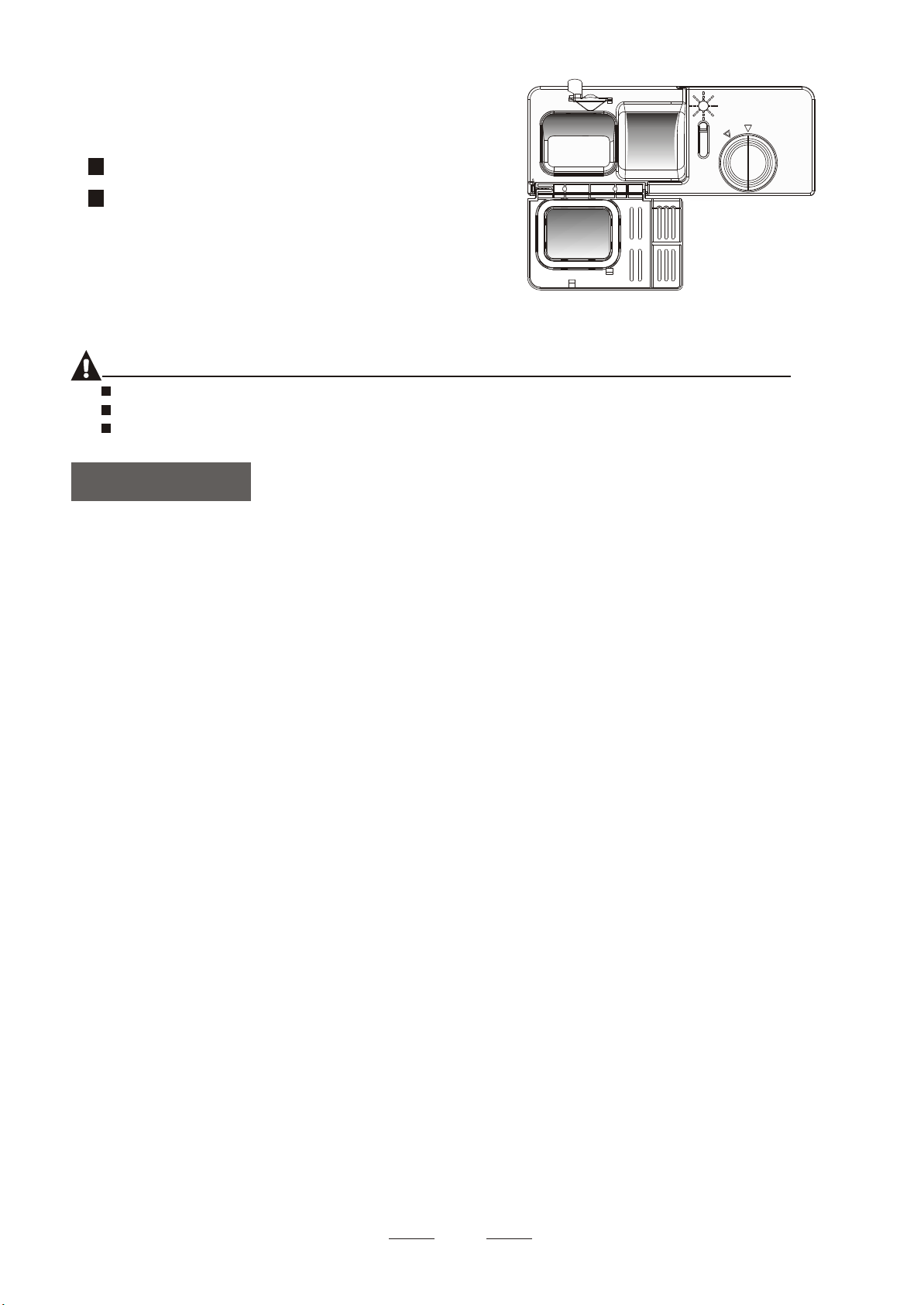

Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
(On models with water softener system only.)
Electric indicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by the number of cycles the dishwasher has run.
Check the regeneration
salt level
Load the baskets
Select a programme
Turnon thewatertap ,closethedoor.The machinewill startworkingafterabout10 seconds.
Running the dishwasher
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, starting from the lower basket.
Changing theprogramme
Add forgottendishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the Menue Button, then press +“”or “-”Button select one programme, at
last press OK button( See the section entitled "Operation instructions")
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteammay escape
when thedoorisopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance Open the door,press the On/Off button to switch on the appliance .
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door, the dishwasher will start running again after 10 seconds.
For detailed operating method read the corresponding content on the instruction manual.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Open the door,Press the Menue .
3. Press + or - button select a new programe.
4. Press OK button ,close the door Restart the dishwasher.
button
“” “”
Switch off the appliance
When the working cycle has finished, the buzzer of the dishwasher will sound 8 times and the
status light will switch off, the dishwasher will revert automatically to off-mode after the end of the
programme
Once running the status light will illuminate on the floor, at the end of the cylce a alarm will sound and
the status light will switch off to indicate the programme has ended

33
3.Operation Instruction3.Operation Instruction
Control PanelControl Panel
before usingit forthe first time.
Toget thebest performancefrom yourdishwasher,read alloperating instructions
IMPORTANTIMPORTANT
Dishwasher FeaturesDishwasher FeaturesDishwasher FeaturesDishwasher Features
11 12
Back View
1
2
3
4
5
7
8
910
Front view
Lower basket
Salt container
Dispenser
Cup shelf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Upper basket
Cutlery rack
Top spray arm
1Inner pipe
5
6
7
8
9
10
12
11
3
2
4
6
13
Adjuster
13
1.On/Off Button: To turn on/off the power supply.
2.Menu Button: Menu interface switch .Cycle selection:
program selection delay time setting
option setting alternative wash function selection
add Salt Consumption setting language setting
Pressing Menu, you can choose optional function and
program
3.OK Button: Confirm the menu selected after pressing
the button.
5. + Button: Move to the right. Press once
the menu moves to the next item on the right
6.Display Screen : To display delay time , running
indicator , error codes , programs, Language and etc.
4. - Button: Move to the left. Press once the
menu moves to the next item on the left.
Quick operation guideline:Quick operation guideline:
NOTE: NOTE:
1.when a selected programe (no matter defined with a function or not) finished, all of the sets will be recorded by
the system, but for the language set, it will be recorded immediately after you press the OK button.
2.The display will show add rinse or add salt information if you press power button, Remind you to refill rinse
or salt. however you can still keep using the machine following the same operations as above-mentioned after
pressing MENU button once.
Menu OK
112233445566
Di629

The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which wouldhave
a detrimentalor adverse effect on the operation of the appliance.
The higher the content of these minerals and salts,theharder your wateris.
The softener should be adjusted according to the hardness ofthe water in your area. Your local WaterAuthority
can advise you onthehardnessofthewater inyour area.
Adjusting Salt Consumption
The dishwasher is designed toallow for adjustment in the amount of salt consumed based onthe hardness of
the water used.Thisis intended tooptimiseandcustomisethe level of salt consumption.
WATER SOFTENER
Thehardness ofthe water variesfrom place to place.If hard water is used inthe dishwasher, deposits will
form on the dishesand utensils.
Theapplianceisequipped with aspecial softener that uses a salt container specifically designed to eliminate
lime and minerals from the water.
The factory setting is: H4 (EN 50242)
Contact your local water board for information on the hardness of your water supply.
If your model does not have any water softener, you mayskip this section.
Clark:Britishdegree
fH: French degree
dH: German degree
dH=1.25Clarke=1.78fH=0.178mmol/l
1
Before using your dishwasher for the first time:
A. Set the water softener
B. Add 1.5Kg dishwasher salt and then fill the salt container with water
C. Fill the rinse aid dispenser
D. Add the detergent
1. Open the door ,Switch on the appliance;
2. Press the Menue buttonto select add Salt Consumption setting to start the water softener;
3. Press the to select the proper set according to your local environment,
the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the OK button to end the set up model.
“” “”+or -button
Please followthesteps belowfor adjustment insaltconsumption.
dH mmol/l
0~90~5 0~0.94 H1 0
10-20
6-11 1.0-2.0 H2 9
21-30
12-17 2.1-3.0
H3
12
H4 20
fH
0~6
7-14
15-21
Clarke
WATER HARDNESS
Selector Position Salt consumption
(gram/cycle)
18-22 31-40 22-28 3.1-4.0
41-60
23-34 4.1-6.0 H5 30
H6 60
29-42
35-55 61-98 43-69 6.1-9.8

1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how well the salt dissolves, the salt warning light may still be on even though the
salt container is filled.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.
Always use the salt intended for use with dishwasher.
The salt container is located beneath the lower basket and should be filled as explained
inthe following:
Attention!
Only use salt specifically designed for the use in dishwashers! Every other type of
salt not specifically designed for theuse in adishwasher, especially table salt, will
damage the water softener. In case of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable forany damages caused.
Only fillwithsalt justbefore starting one of thecomplete washingprograms.
This will prevent any grains of salt or salty water, which may have been spilled,
remaining on the bottom of the machine for any period oftime, which may cause
corrosion.
Therinse aid isreleasedduring the final rinse to prevent water from forming droplets onyour dishes, which can
leave spots andstreaks. Italso improvesdryingby allowing water toroll offthe dishes. Your dishwasheris
designed touseliquid rinseaids. The rinseaiddispenser islocated inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. Thevolume ofthe rinse aidcontaineris about 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only usebranded rinse aid for dishwasher. Neverfill therinseaid dispenser withanyothersubstances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Full fill the salt container with water,It is normal for a small amount of water to come out of the
saltcontainer.
AAfter the lowerbasket has been removed, unscrew and remove the cap from the salt container.
BPlace the end of the funnel(supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C
DAfter filling the container , screw the cap tightly back clockwise.
EThe salt warning light willstop being after thesalt container has beenfilled withsalt.
FImmediately after filling the salt into the salt container, a washing program should be started
program Otherwise thefilter system, pump or other important parts of the machinemay be damaged
bysalty water.This isoutof warranty.
(Wesuggest to use a short
).

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it tothe closed (right) arrow.
Adjusting RinseAid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are show spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase the dose if thereare drops of waterorlimespots onthe dishes after washing.
Reduce it ifthere are sticky whitishstains on your dishes ora bluish film on glassware or
knife blades.
1
2
3
As the rinse aid diminishes, the sizeof the black dot
ontherinse aidlevel indicator changes, as illustrated below.
Full
3/4full
1/2full
1/ 4full -Should refilltoeliminate spotting
Empty
When to Refill the RinseAid Dispenser
Ifthereis no rinse-aid warning light in thecontrolpanel, you can estimate the amount from the colour
of the optical level indicator C located next to the cap. When the rinse-aidcontainer isfull, the whole
indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let
the rinse aid level fall 1 / 4 full.
during the nextwash. Don'tforget to replacethe cap before you close dishwasherdoor.
Clean up any rinse aid spilled while during fillingwith an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt andtransport it outof the dishwasher.
Most of the commercial qualitydetergents are suitable forthis purpose.
""
Proper Use ofDetergent
Useonly detergent specifically made for the usein dishwashers. Keep yourdetergent fresh and dry.
Don't putpowdered detergentinto the dispenser untilyou'reready to wash dishes.
Attention!

AmountofDetergenttoUse
Based ontheir chemicalcomposition, detergentscan besplitin twobasic types:
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programs. Therefore please use long programmes when using detergent tablets, to
ensure the complete removal of detergent residuals.
The dispensermust be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
Conventional dishwasher.Generally, only one tablespoon of detergent is needed for
anormal washload. More heavily soileditems needmore detergent.Alwaysaddthe
detergent just before starting the dishwasher, otherwise it couldget damp and will not
dissolve properly.
Concentrated Detergent
DetergentDispenser
conventional, alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes
Normally new powdered detergent is without phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be
removed completely. In this case please choose a programme with a higher temperature.
°
Detergents
There are 3 sorts of detergents
1.Withphosphate and withchlorine
2.With phosphate and without chlorine
3.Withoutphosphate and without chlorine
Always add the detergent just before starting each wash cycle.
Only use branded detergent aidfordishwasher.
If the lid is closed: press release button.The lid will spring open.
Detergent tablet
Detergent powder
Dishwasher detergent is corrosive!
Take care tokeep it out of reachof children.

Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
For the main wash cycle detergent.
For the pre-wash cycle detergent or 3in1 tablet.
Please observe the manufacturers dosing and storage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
You find information about the amount of detergent for the single programme on the last page.
Please aware, that according to the level soiling and the specific hardness of water differences are possible.
Please observe the manufacturer's recommendations on the detergent packaging.
NOTE:NOTE:
88
AABB
Express
For lighter loads the Express function by raising the temperature when used with the programmes: intensive, normal,
economy and glass can shorten the washing time by up to 40 minutes.
Extra drying
To increase the efficiency of normal drying this feature increases the temperature at the end of the wash programme.
This works with Intensive, Normal, Eco, Glass, and 90 Min programmes.
Auto wash programme
Sensors intelligently check the level of cleanliness of your crockery to make maximum savings of time, energy and
water. Here at Caple we want to do all that we can to save water for both ecological and financial reasons, an
astonishingly low 8.4L can be used the Auto wash programme.
Cutlery tray
The clever cutlery trays sits at the top of your dishwasher and frees up much more space in the lower basket.
The centre tray is easily removed to speed the delivery of your perfectly clean cutlery to your drawer.
Delay timer
The Delay timer allows the user to select the start time from 1 to 24 hours to most efficiently take
advantage of convenient times and energy saving windows.
'Easy' adjustable upper basket
This feature allows the height of the upper basket to be changed (even with full loads) with the simple release of 2
conveniently placed levers.
Internal light
A well placed light helps internal illumination, and looks great too!
Aqua Stop
This system will at the first sign of any leak automatically cut off the water supply helping to avoid costly water damaged.
Alternative wash function.
This flexible system works like the Half load function, but also allows you to select either the upper or lower baskets
for the load. Providing further water and energy savings for those smaller loads.
Power wash
When this Power Wash is used with five programmes (intensive, normal, economy, glass and 90 Min),
it can help break through very heavily soiled loads by increasing washing temperature and duration.
5.Features5.Features
Floor satus light
A clever light will shine on to the floor when the programme is runnuing, when it comes to a end you will hear the
end of wash alarm and the status light will switch off indicating the programme has come to an end.

Cutlery withwooden,horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that arenot
temperatureresistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items madefromsyntheticfibres
Some types of glasses can become
dull aftera large number of washes
Silver and aluminum parts have a
tendencyto discolourduring washing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are oflimited suitability
Dishesanditemsof cutlerymust notlie insideoneanother, orcover each other.
To avoiddamage to glasses, theymust not touch.
Load large itemswhich are most difficult to clean into the lower basket.
The upper basket is designed to holdmoredelicate and lighter dishware such as glasses, coffee
andteacups
Long bladed knives stored in an upright positionare a potential hazard!
Long and/or sharp itemsof cutlery such as carving knives must be positioned
horizontallyin the upperbasket.
Please do not overload your dishwasher. This is important forgood results and for
reasonable consumption of energy.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwardsso that
water cannot collect in the container or a deep base.
Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from the detergent manufacturers.
For particular items, select a programme with as low a temperature as possible.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the programme has ended.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlerybaskets may vary from your model.)
Scrape off any largeamounts ofleftover food. Soften remnants ofburnt food in pans.
It is not necessary to rinse thedishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way thatthe spray arms can rotate freely duringwashing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend thatyou
empty the lower basket first and then the upper basket.

The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
teacups and saucers, as well asplates,small bowls
andshallowpans (as long as theyarenot too dirty).
Position the dishes andcookware sothatthey will
notgetmoved bythespray ofwater.
We suggest that you place large items and the most
difficultto cleanitemsaretobe placedintothelower
basket: such aspots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Pots,servingbowls,etc,mustalwaysbeplacedtopdown.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The BottomBasket features folding spikes so that larger or more pots and pans can be loaded.
Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Folding back the cup shelives
For better stacking of pots and pans, the spikes can be
folded down as shown in the picture right.
Cutlery should be placed in the cutlery basket with the handlesat the bottom. If the rack has side baskets, the
spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the
horizontal position at the front of the upper basket as shown in the picture.
Donot let anyitem extendthrough thebottom.
Always load sharp utensilswiththe sharp
point down!
The height of the upper basket can be adjusted in order to
create more space for large utensils both for the upper
/lower basket. The height of the upper basket can be
adjusted to the upper position by lifting the basket up until
it clicks into place. Pull upwards on the handle to lower the
upper basket, see the picture below:
Adjusting the Upper Basket

*EN 50242 : This programme is the test cycle. The information for comparability test
in accordance with EN 50242, as follows:
Capacity: 14 setting
Position Upper basket: upper wheels onrails
Rinse aid setting: 6
Pl:0.49w; Po:0.45w(dishwasher is equippedwith a power managementsystem), .
Starting a cyclewash
1 Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled
Loading the Dishwasher ).
2 Pourin the detergent (see the section entitled Salt, Detergent and RinseAid ).
3 Insert the plug intothe socket.The power supply is 220-240 VAC /50HZ,the specification
of the socket is 10A 250VAC. Make sure that the water supply is turnedon to full pressure.
4 Open the door, press the ON/OFF Button.
“”
“”
Means: need tofill rinse intothe Rinse-Aid Dispenser.
()
ECO
Intensive
Normal
(*EN 50242)
5/30g
Rapid
Pre-wash(50 )
Wash (65 )
Rinse
Rinse
Rinse(65 )
Drying
℃
℃
℃
Pre-wash( 45 )
Wash (55 )
Rinse
Rinse (65 )
Drying
℃
℃
℃
Wash (50 )
Drying
Pre-wash
Rinse(60 )
℃
℃
Wash (40 )
Rinse
Rinse (45 )
℃
℃
40 0.5 11
30g
Glass
Rinse
Drying
Pre-wash
wash(40 )
Rinse(60 )
℃
℃
115 0.87 14
5/30g
5/30g
5/30g
For lightly soiled crockery
and glass
For normally soiled loads,
such as , plates,glasses
andlightly soiled pans.
pots
For heaviest soiled crockery,
andnormallysoiledpots
pans dishes etc withdried
onsoiling.
、
、
Ashorter washforlightly
soiled loads that do not
needdrying.
To rinse dishes that you plan
to wash later that day.
Soak
Pre-wash
8 0.01 4
This is standardprogramme, it is
suitable to clean normally soiled
tableware andit is the most
efficient programme in terms of
its combined energy and water
consumption for that type of
tableware.
Auto sensing wash, lightly,
normally or heavily soiled
crockery, with or with out
dried-onfood
Pre-wash (45 )
Autowash(45-55 )
Rinse
Rinse (62 )
Drying
℃
℃
℃
5/30g 150
8.4-12.70.9-1.3
AUTO
W(65)
Rinse
Rinse (65 )
Drying
ash ℃
℃
90 12 1.33
30g
90 Min
For normally soiled loads
that need quick wash.
185
180
175
1.3
0.83
1.6
17
14
10

1212
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then the dishwasher
reverting automatically to off-mode after the end of the programe .(open the door during sound ,you must press
on/off button to off the dishwasher),shut off the water supply and open the door of the dishwasher. Wait for a few
minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and
more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
1.the buzzer of the dishwasher will sound for 8 seconds, then the dishwasher .reverting automatically to off-mode
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
Forgot to Add a Dish?Forgot to Add a Dish?
If youopen thedoor duringa washcycle ,the machinewill pause. The programlight will
stop blinkingand thebuzzer willmooing everyminute unlessyou closethe door. After
you closethe door,the machinewill keepon workingafter 10seconds.
NOTE:NOTE:
At the End of the Wash CycleAt the End of the Wash Cycle
Premise:
A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Open the door , press the Menue button ,then press + or - button,
you can change the program to the desired cycle setting (see the section entitled " Starting a
wash cycle. . ." ).
1
2
A forgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
14
5The dishwasher will run after 10 seconds.
5 Press the menue Button ,then press - or + button change the program as follows
direction:
Auto->Intensive->Normal->ECO->Glass->90 Min->Rapid->Soak;
If a program is selected, the display screen will show. Press the OK button,Close the door,
the dishwasher begins to start.
WARNING! WARNING!
It is dangerous to open the door when washing,
because the hot water may scald you.
Changing the Prgramme

The filter preventslarger remnants of food orother objects from getting inside thepump.
Theresidues may block the filter, inthis casethey mustbe removed.
The filter system consists of a coarse filter,a flat (Main filter)
Anda microfilter(Fine filter).
Food and soil particles trapped inthisfilter arepulverizedby a
special jet on the lower spray arm and washed down to drain.
Larger items, such as piecesof bones or glass, that could block
thedrainaretrappedin the coarse filter.To remove the items
caught by the filter, gently squeeze the tap on thetop of this
filterandliftout.
Thisfilter holds soil and food residues inthe sumpareaand
prevents itfrom being deposited on the dishes duringwash cycle.
Main filter
1
Coarse filter
2
Fine filter
3
2
3
1
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it isa good idea to
remove the larger food particlestrapped in the filter aftereach washcycleby rinsing the semicircular filterand
cup under running water. To remove the filter device, pull the cup handle in the upward direction.
removes food particles from the wash water, allowing it to be recycledduring the cycle.
For
The dishwasher must never be used without the filters.
Improper replacementof the filter may reduce the performance level of the appliance
and damage dishesand utensils.
1
2
Step 1 Turn the filter in anti-clockwise direction,：
Step 2 lift the filter assy up：
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.

The control panelcan be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Neveruse sharp objects, scouring pads orharsh cleaners onany part ofthe dishwasher.
ProtectAgainst Freezing
1.Cutoff the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottomof the tub and use a spongeto soak up water in the sump.
please take frost protection measuresonthe dishwasher in winter.Every fter washing cycles,
please operate as follows time a
：
Cleaning the Filter
Cleaning the Door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
on thelast page and reinsert the entire assembly in the dishwasher, positioning it in itsseat and pressing downwards.
Whencleaning the filters, don't knock on them. Otherwise, thefilters could be
contorted andtheperformance ofthe dishwashercouldbe decreased.
To clean theedge around the door,you should use only a soft warm, damp cloth.
To avoid penetrationof waterinto the door lock and electrical components, do not
use a spray cleaner of any kind.
Never usea spray cleaner toclean the door panel as it may damage the door lock
and electricalcomponents.
Abrasive agentsor some paper towels should not be used because of theriskof
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly for hard
waterchemicalswillclogthe sprayarmjetsandbearings.
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Removeanyfoodremnants and
cleanthefilters underrunningwater.
Remarks:
The entirefilter assembly should be cleanedonce a week.
To removethelower spray arm, pull out the spray arm upward.
To remove the upper sprayarm, hold the nut, rotate the arm
clockwisetoremoveit.
Wash the arms in soapy andwarm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.

Itis recommend that yourun awashcycle with the
dishwasher empty and then remove the plugfrom the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealsto lastlonger andpreventodoursfromforming
withintheappliance.
If the appliance must be moved, try to keep it in the
verticalposition. Ifabsolutelynecessary,itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remains trapped in the seals.
Periodic cleaning with adamp sponge will preventthis
from occurring.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberparts ofthedishwasher,
donot use solventsor abrasivecleaningproducts.
Only use acloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened withwaterana little
vinegar, ora cleaning product madespecifically for
dishwashers.
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Seals
After every wash, turn off the water supply to the
appliance and leave the doorslightly open sothat
moisture and odours are not trapped inside.
After EveryWash
When not inUse for a LongTime
The installation of the pipes
and electrical equipments
should be done by professionals.
The installation position of dishwasher should be near the existing inlet and drain hoses and
power cord.
One side of the cabinet sink should be chosen to facilitate the connection ofdrainhosesof
the dishwasher.
Installation preparation
Note: please check the accompanying installation accessories(hook for aesthetic panel
,screw)
●
Electrical Shock Hazard
Disconnect electrical power
beforeinstalling dishwasher.
Failure to do so can result in
death or electrical shock.
