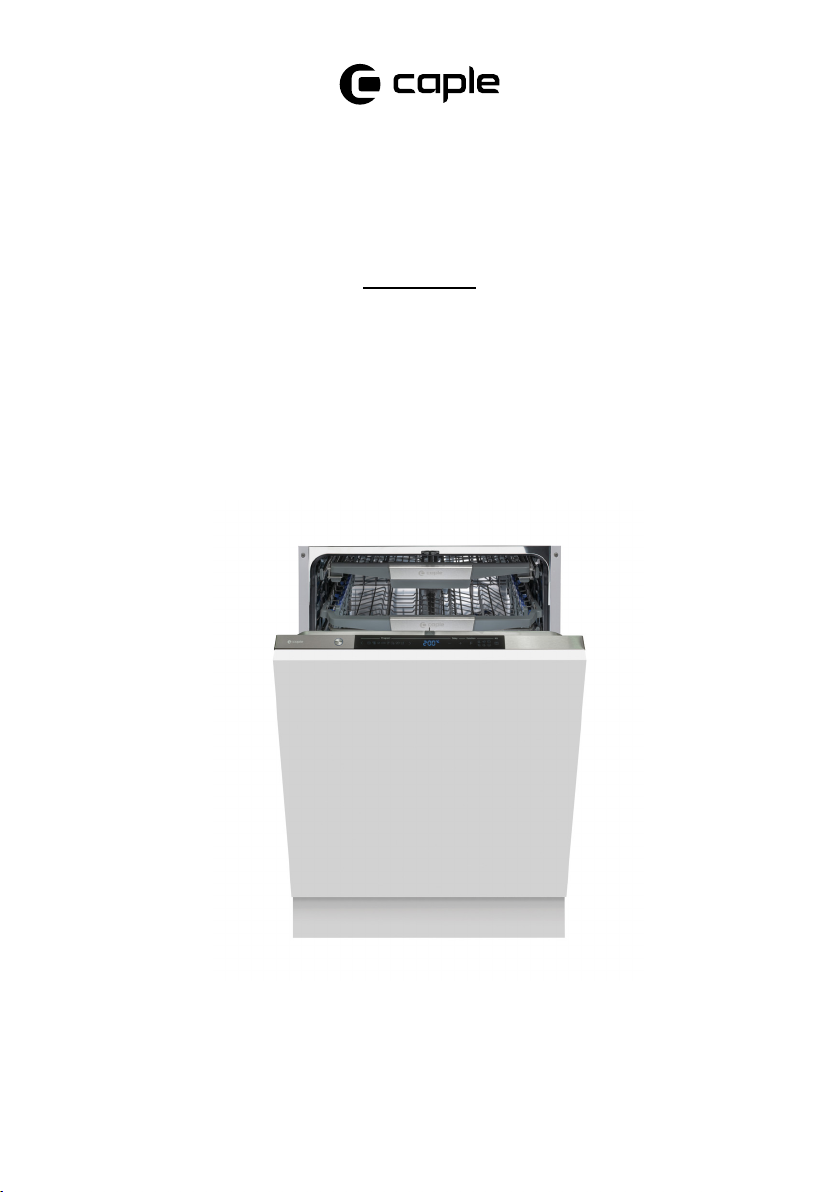

Caple DI653 User manual

Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
Dishwasher
Instruction Manual
DI653

Instruction manual Di6532Please keep this instruction manual for future reference
CONTENTS
Safety Instructions 3
Environmental Protection 9
Warranty 10
Quick Operation Guide 11

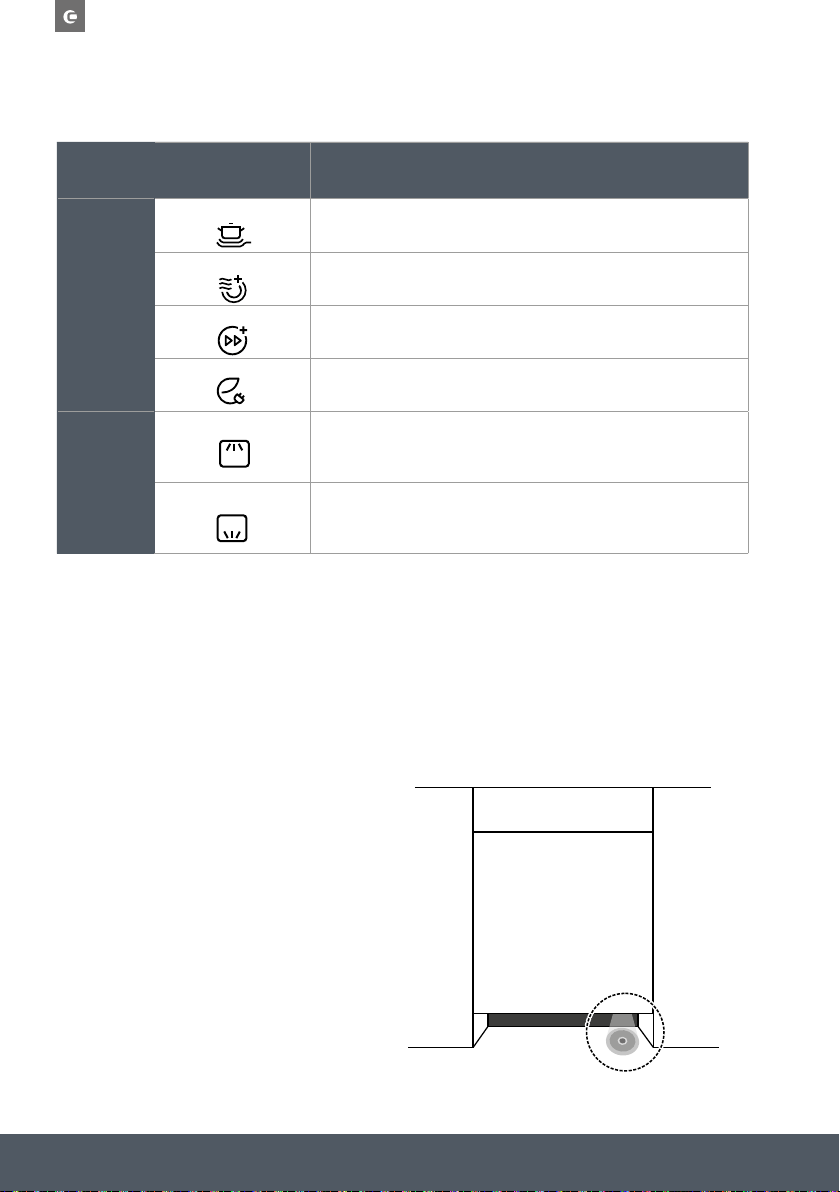

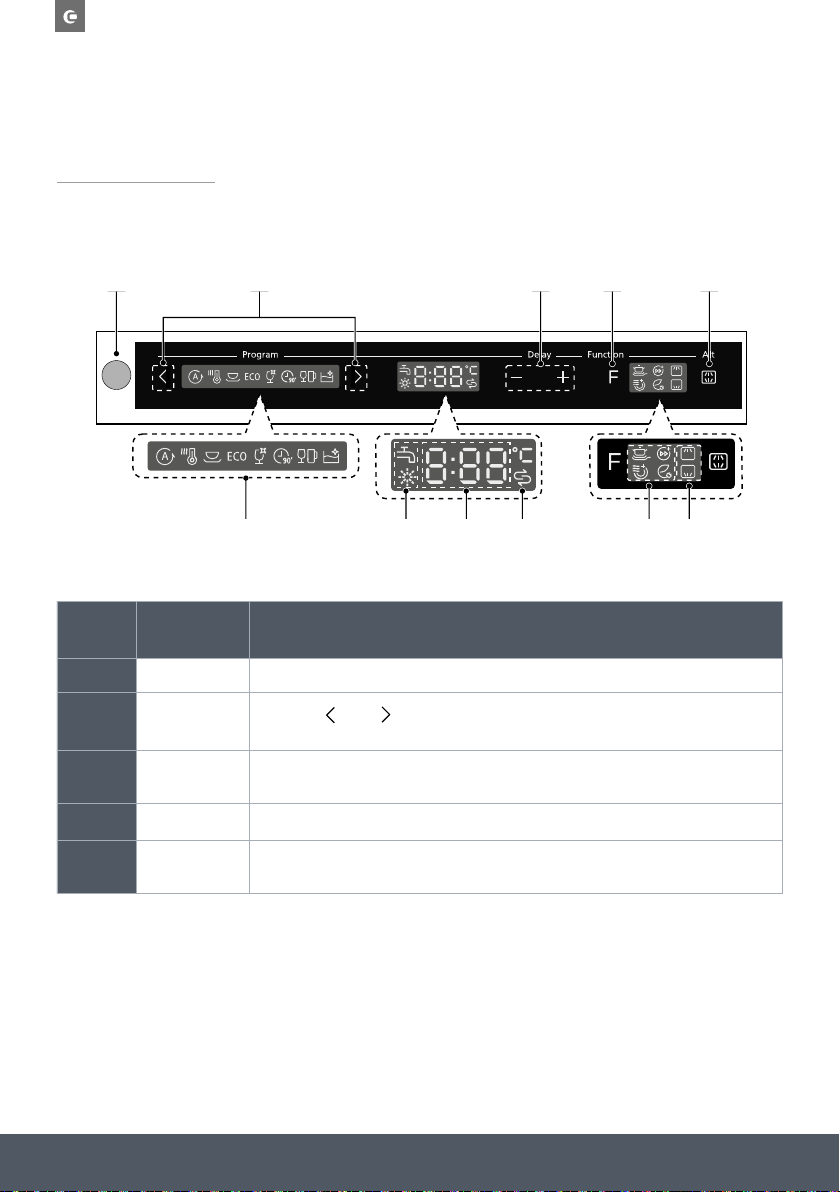

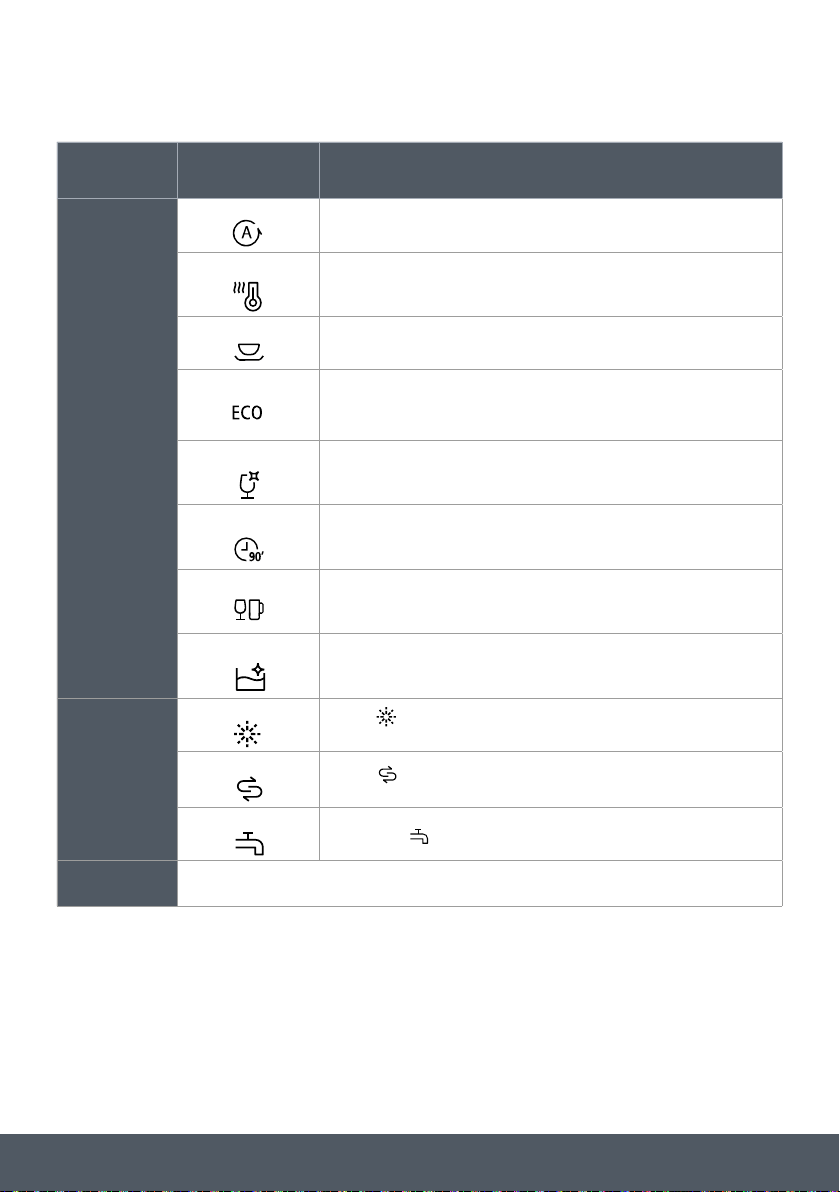

Control Panel 12
Product Overview 15
Water Softener 17
Loading the Salt into the Softener 19
Rinse Aid Dispenser 21
Filling The Detergent Dispenser 23
Loading The Dishwasher Baskets 25
Cutlery Rack Tips 28
Wash Cycle Table 35
Programming the Dishwasher 36
Auto Open 38
Cleaning and Maintenance 39
Installation Instructions 44
Troubleshooting 54
Error Codes 57
Technical Information 58
Caple Contact Details 60

Instruction manual Di653 3
Please keep this instruction manual for future reference
SAFETY INSTRUCTIONS
-This appliance is intended to be used in household and
similar applications such as:
• Staff kitchen areas in shops, offices and other working
environments.
• Farm Houses.
• By clients in hotels, motels and other residential type
environments.
• Bed and breakfast type environments.
-This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
-This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
-This appliance is for indoor household use only.
-To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
-Please unplug before cleaning or performing maintenance
on the appliance.

Instruction manual Di6534Please keep this instruction manual for future reference
-Use a slightly moistened soft cloth with mild soap, and then
use a dry cloth to wipe it again.
-This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the risk
of an electric shock by providing a path of less resistance
of electric current. This appliance is equipped with a cord
having an equipment-earthing conductor and a grounding
plug.
-The plug must be plugged into an appropriate outlet that is
installed and earthed in accordance with all local codes and
regulations.
-Improper connection of the equipment-earthing conductor
can result in the risk of an electric shock.
-Check with a qualified electrician or Caple service
representative if you are in doubt whether the appliance is
properly grounded.
-Do not modify the plug provided with the appliance;
If it does not fit the outlet.
-Have a proper outlet installed by a qualified electrician.
-Do not abuse, sit on, or stand on the door or dish rack of
the dishwasher.
-Do not operate your dishwasher unless all enclosure panels
are properly in place.
-Open the door very carefully when the dishwasher is
operating, there is a risk of water squirting out.

Instruction manual Di653 5
Please keep this instruction manual for future reference
-Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
-When loading items to be washed:
• Locate sharp items so that they are not likely to
damage the door seal.
• Warning: Knives and other utensils with sharp points
must be loaded in the basket with their points down or
placed in a horizontal position.
-Check that the detergent powder is empty after completion
of the wash cycle.
-Do not wash plastic items unless they are marked
dishwasher safe or the equivalent.
-For plastic items not marked, check the manufacturer’s
recommendations.
-Use only detergent and rinse additives designed for an
automatic dishwasher.
-Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
-Children should be supervised to ensure that they do not
play with the appliance.
-The door should not be left open, since this could increase
the risk of tripping.
-The appliance may only be used with correctly adjusted
door springs.

Instruction manual Di6536Please keep this instruction manual for future reference
-If the supply cord is damaged, it must be replaced by Caple,
its service agent or a similarly qualified person in order to
avoid a hazard.
-During installation, the power supply must not be
excessively or dangerously bent or flattened.
-The dishwasher must not be installed under a hob.
-Do not tamper with controls.
-The appliance is to be connected to the water mains using
new hose sets and that old hose-sets should not be reused.
-To save energy, in stand by mode, the appliance will switch
off automatically while there is no any operation in 30
minutes.

Instruction manual Di653 7
Please keep this instruction manual for future reference
ELECTRICAL CONNECTION
WARNINGS:
-For personal safety:
-Do not use an extension cord or an adapter plug with this
appliance.
-Do not, under any circumstances, cut or remove the
earthing connection from the power cord.
ELECTRICAL REQUIREMENTS
-Please look at the rating label to know the rating voltage
and connect the dishwasher to the appropriate power
supply. Use the required 10 amp fuse, time delay fuse or
circuit breaker recommended and provide separate circuit
serving only this appliance.
ELECTRICAL CONNECTION
-Ensure the voltage and frequency of the power being
corresponds to those on the rating label. Only insert the
plug into an electrical socket which is earthed properly.
If the electrical socket to which the appliance must be
connected is not appropriate for the plug, replace the
socket, rather than using a adapter as they could cause
overheating and burns.

Instruction manual Di6538Please keep this instruction manual for future reference
GROUNDING INSTRUCTIONS
-This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the risk
of electric shock by providing a path of least resistance for
the electric current. This appliance is equipped with a cord
having an equipment-earthing conductor and an earthing
plug. The plug must be plugged into an appropriate outlet
that is installed and earthed in accordance with all local
standards and requirements.
WARNING:
-Improper connection of the equipment grounding conductor
can result in the risk of an electric shock. Check with a
qualified electrician or service representative if you are in
doubt whether the appliance is properly grounded. Do not
modify the plug provided with the appliance; If it is not fit
for the outlet. Have a proper outlet installed by a qualified
electrician.

Instruction manual Di653 9
Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is
marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all applicable
legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our website
www.caple.co.uk

Instruction manual Di65310 Please keep this instruction manual for future reference
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date of
purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together with
proof of purchase.
If you fail to show your warranty card you will incur all repair charges. Spare parts are only
available from Caple Service and spare parts authorised centres.
