Integrated Dishwasher
instruction manual
Di641

Instruction manual Di641
Please keep this instruction manual for future reference
2
CONTENTS
WARNINGS 3
ELECTRICAL CONNECTION 7
PRODUCT OVERVIEW 9
USING YOUR DISHWASHER 10
LOADING THE SALT INTO THE SOFTENER 10
BASKET TIPS 12
MAINTENANCE AND CLEANING 14
SPRAY ARMS 16
CARING FOR THE DISHWASHER 17
INSTALLATION INSTRUCTION 18
WATER SUPPLY AND DRAIN 19
CONNECTION OF DRAIN HOSES 20
POSITION THE APPLIANCE 21
BUILT-IN INSTALLATION INSTRUCTIONS 22
CONTROL PANEL 26
WATER SOFTENER 28
LOADING THE BASKETS 29
CUTLERY RACK TIPS 34
RINSE AID AND DETERGENT DISPENSER 35
RINSE AID RESERVOIR 36
FILLING THE DETERGENT DISPENSER 37
WASH CYCLE TABLE 38
ERROR CODES 41
TROUBLE SHOOTING TIPS 42
TECHNICAL INFORMATION 45
TECHNICAL FICHE 46

Instruction manual Di641
Please keep this instruction manual for future reference
3
WARNINGS
-This product is not designed for commercial use, it is a
household appliance only. It is not intended to be
used in:
1) Staff kitchen areas in shops, offices and other working
environments.
2) Bed and breakfast type environments.
3) By clients in hotels, motels and other residential type
environments.
-This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
-This appliance is not intended for use by persons
(including children )with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
-This appliance is for indoor household use only.

Instruction manual Di641
Please keep this instruction manual for future reference
4
-To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
-Please unplug before cleaning or performing
maintenance on the appliance.
-Use a slightly moistened soft cloth with mild soap, and
then use a dry cloth to wipe it again
-This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the risk
of an electric shock by providing a path of less resistance
of electric current. This appliance is equipped with a
cord having an equipment-earthing conductor and a
grounding plug.
-The plug must be plugged into an appropriate outlet
that is installed and earthed in accordance with all local
codes and regulations.
-Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
-Check with a qualified electrician or Caple service
representative if you are in doubt whether the appliance
is properly grounded.
-Do not modify the plug provided with the appliance;
If it does not fit the outlet.
-Have a proper outlet installed by a qualified electrician.

Instruction manual Di641
Please keep this instruction manual for future reference
5
-Do not abuse, sit on, or stand on the door or dish rack of
the dishwasher.
-Do not operate your dishwasher unless all enclosure
panels are properly in place.
-Open the door very carefully when the dishwasher is
operating, there is a risk of water squirting out.
-Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
-When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal
2) Warning: Knives and other utensils with sharp points
must be loaded in the basket with their points down
or placed in a horizontal position.
-Check that the detergent powder is empty after
completion of the wash cycle.
-Do not wash plastic items unless they are marked
dishwasher safe or the equivalent.
-For plastic items not marked, check the manufacturer’s
recommendations.
-Use only detergent and rinse additives designed for an
automatic dishwasher.
-Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.

Instruction manual Di641
Please keep this instruction manual for future reference
6
-Children should be supervised to ensure that they do not
play with the appliance.
-The door should not be left open, since this could
increase the risk of tripping.
-The appliance may only be used with correctly adjusted
door springs.
-If the supply cord is damaged, it must be replaced by
Caple, its service agent or a similarly qualified person in
order to avoid a hazard.
-During installation, the power supply must not be
excessively or dangerously bent or flattened.
-The dishwasher must not be installed under a hob.
-Do not tamper with controls.
-The appliance is to be connected to the water mains
using new hose sets and that old hose-sets should not
be reused.
-To save energy, in stand by mode, the appliance will
switch off automatically while there is no any
operation in 30 minutes.

Instruction manual Di641
Please keep this instruction manual for future reference
7
ELECTRICAL CONNECTION
WARNING:
For personal safety:
-Do not use an extension cord or an adapter plug with this
appliance.
-Do not, under any circumstances, cut or remove the earthing
connection from the power cord.
ELECTRICAL REQUIREMENTS
Please look at the rating label to know the rating voltage and connect the
dishwasher to the appropriate power supply. Use the required 10 amp fuse, time
delay fuse or circuit breaker recommended and provide separate circuit serving only
this appliance.
ELECTRICAL CONNECTION
Ensure the voltage and frequency of the power being corresponds to those on the
rating label. Only insert the plug into an electrical socket which is earthed properly.
If the electrical socket to which the appliance must be connected is not appropriate
for the plug, replace the socket, rather than using a adapter as they could cause
overheating and burns.
GROUNDING INSTRUCTIONS
This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of electric shock by providing a path of least
resistance for the electric current. This appliance is equipped with a cord having an
equipment-earthing conductor and an earthing plug. The plug must be plugged
into an appropriate outlet that is installed and earthed in accordance with all local
standards and requirements.
WARNING:
Improper connection of the equipmentgrounding conductor can result in the risk
of an electric shock. Check with a qualified electrician or service representative if
you are in doubt whether the appliance is properly grounded. Do not modify the
plug provided with the appliance; If it is not fit for the outlet. Have a proper outlet
installed by a qualified electrician.

Instruction manual Di641
Please keep this instruction manual for future reference
8
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice. This appliance is marked according to the European directive 2002/96/EC on
Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The symbol
on the product indicates that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this
product, please contact your local council, your household waste disposal service or
the retailer where you purchased the product
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies
with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic
Compatibility (EMC).

Instruction manual Di641
Please keep this instruction manual for future reference
9

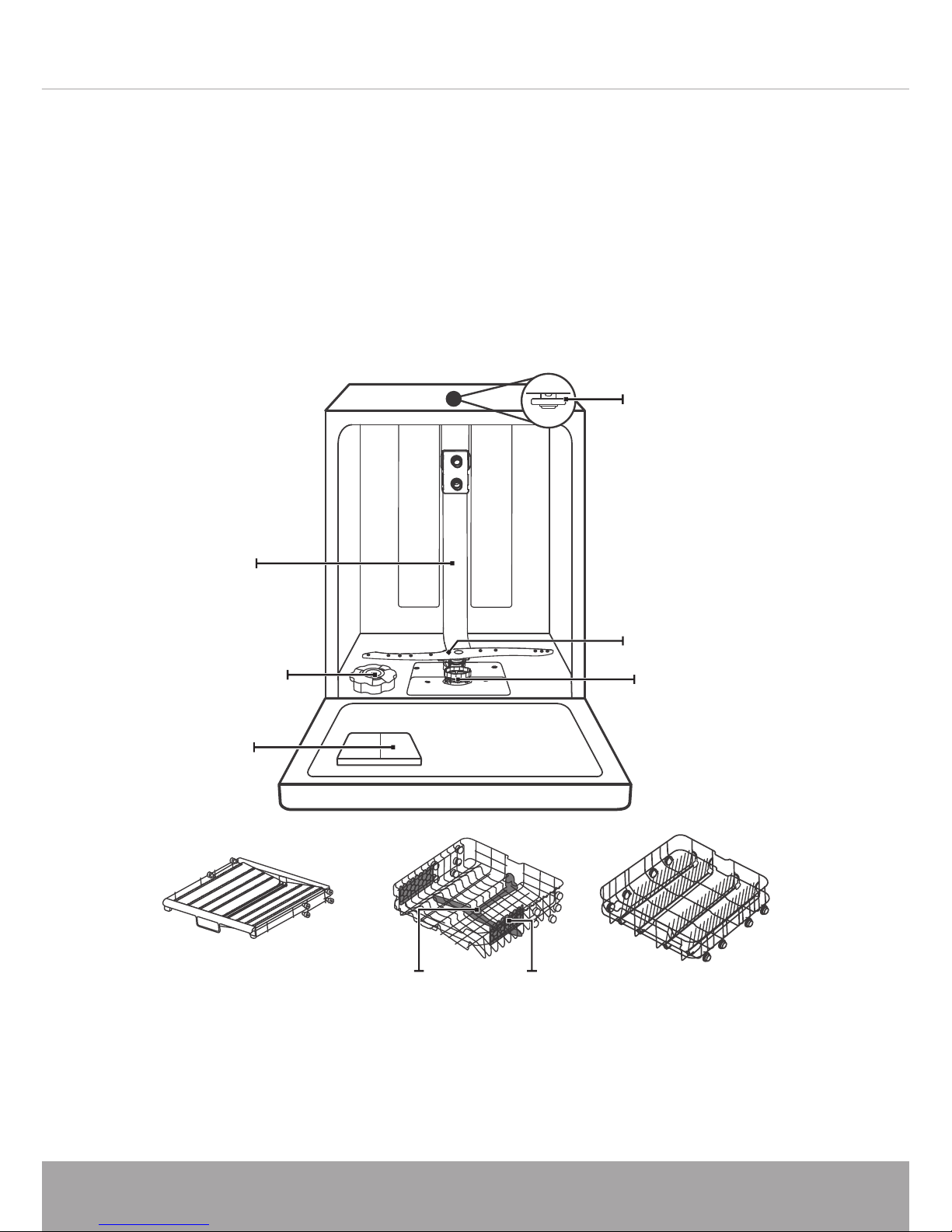

PRODUCT OVERVIEW
For detailed operating method read the corresponding content on the instruction
manual.
IMPORTANT:
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
NOTE:
Pictures are only for reference, different models may be different.
Top spray arm
Dispenser
Salt container Filter assembly
Lower spray arm
Inner pipe
Upper spray arm
Upper basket Lower basket
Cup rack
Cutlery rack

Instruction manual Di641
Please keep this instruction manual for future reference
10
USING YOUR DISHWASHER
Before using your dishwasher :
Inside Outside
1. Set the water softener
2. Load the Salt Into the Softener
3. Load the basket
4. Fill the dispenser
NOTE:
Please check the section 1 “Water Softener” of PART II: Special Version,
If you need to set the water softener.
LOADING THE SALT INTO THE SOFTENER
NOTE:
The salt container is located beneath the lower basket and should be filled as
explained in the following:
WARNING
- Only use salt specifically designed for dishwashers use!
Every other type of salt not specifically designed for dishwasher use, especially
table salt, will damage the water softener. In case of damages caused by the use
of unsuitable salt the manufacturer does not give any warranty nor is liable for
any damages caused.
- Only fill with salt before running a cycle.
This will prevent any grains of salt or salty water, which may have been spilled,
remaining on the bottom of the machine for any period of time, which may
cause corrosion.

Instruction manual Di641
Please keep this instruction manual for future reference
11

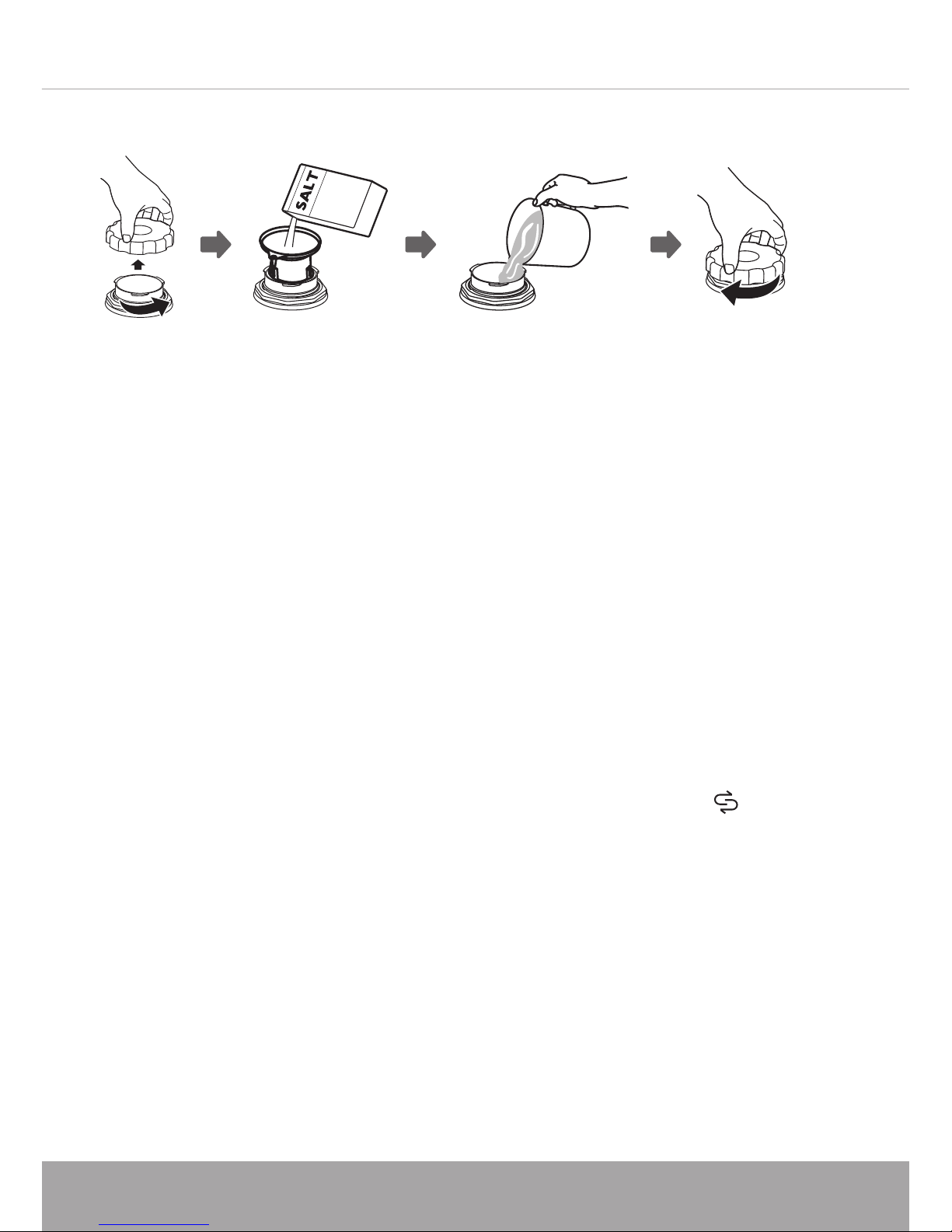

Please follow the steps below for adding dishwasher salt:
1. Remove the lower basket and unscrew the reservoir cap.
2. Place the end of the funnel (supplied) into the hole and pour in about 1.5kg of
dishwasher salt.
3. Fill the salt container to its maximum limit with water, It is normal for a small
amount of water to come out of the salt container.
4. After filling the container, screw back the cap tightly.
5. The salt warning light will sturn off after the salt container has been filled
with salt.
6. Immediately after filling the salt into the salt container, a washing program
should be started (We suggest to use a short program). Otherwise the filter
system, pump or other important parts of the machine may be damaged by
salty water.
NOTE:
The salt container must only be refilled when the salt warning light ( ) in the
control panel comes on. Depending on how well the salt dissolves, the salt warning
light may still be on even though the salt container is filled.
If salt has spilled, run a soak or quick program to remove it.

Instruction manual Di641
Please keep this instruction manual for future reference
12

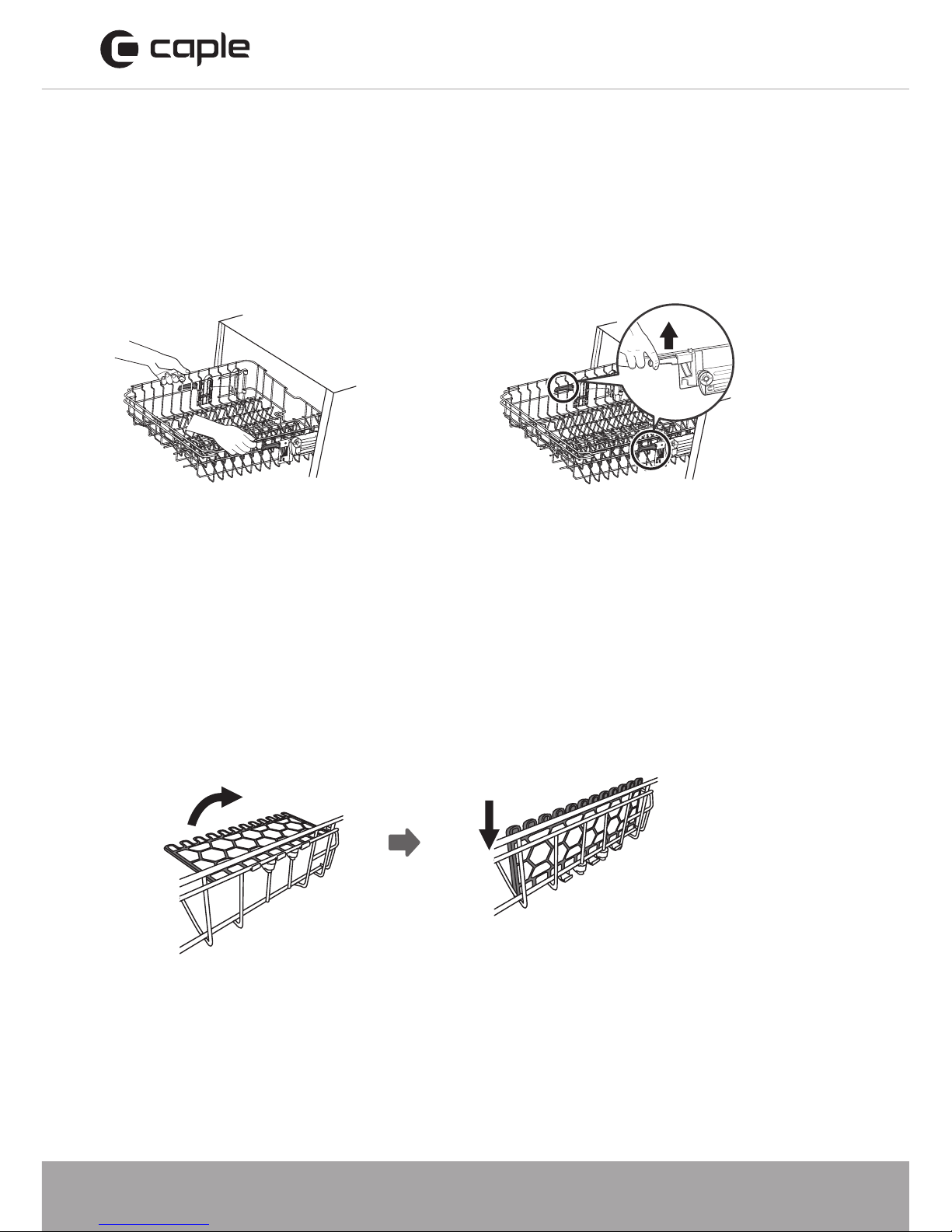

BASKET TIPS
ADJUSTING THE UPPER BASKET
The height of the upper basket can be easily adjusted to accommodate taller dishes
in either the upper or lower basket.
To adjust the height of the upper rack, follow these steps:
11
11
ADJUSTING THE UPPER BASKET
The height of the upper basket can be easily adjusted to accommodate taller dishes
in either the upper or lower basket.
To adjust the height of the upper rack, follow these steps:
11
1. To raise the rack to the upper
position, lift rack until both sides
are at the same height. The rack
will secure into place.
2. To lower the rack, push down on
the handle and release.

Instruction manual Di641
Please keep this instruction manual for future reference
13

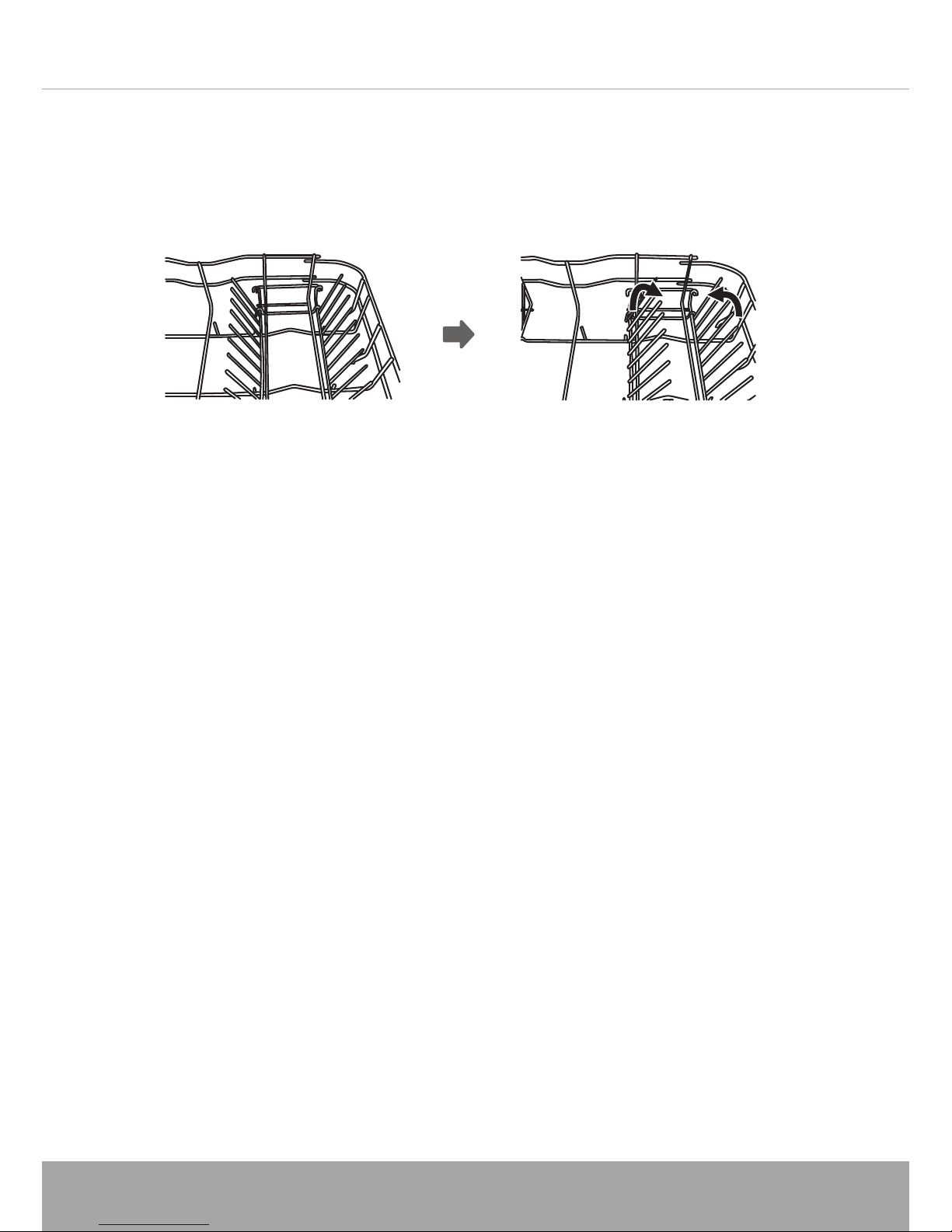

FOLDING BACK THE RACK SHELVES
The spikes are used for holding plates and a platter. They can be lowered to make
more room for large items.
raise upwards fold backwards
12

Instruction manual Di641
Please keep this instruction manual for future reference
14
MAINTENANCE AND CLEANING
EXTERNAL CARE
THE DOOR AND THE DOOR SEAL
Clean the door seals regularly with a soft damp cloth to remove food deposits.
When the dishwasher is being loaded, food and drink residues may drip onto the
sides of the dishwasher door.These surfaces are outside the wash cabinet and are
not accessed by water from the spray arms. Any deposits should be wiped off
before the door is closed.
THE CONTROL PANEL
If cleaning is required, the control panel should be wiped with a soft damp
cloth ONLY.
WARNING
- To avoid penetration of water into the door lock and electrical components, do
not use a spray cleaner of any kind.
- Never use abrasive cleaners or scouring pads on the outer surfaces because they
may scratch the finish. Some paper towels may also scratch or leave marks on
the surface.
INTERNAL CARE
FILTERING SYSTEM
The filtering system in the base of the wash cabinet retains coarse debris from the
washing cycle. The collected coarse debris may cause the filters to clog. Check the
condition of the filters regularly and clean them if necessary under running water.
Follow the steps below to clean the filters in the wash cabinet.
NOTE:
Pictures are only for reference, different models of the filtering system and spray
arms may be different. Please prevail in kind.

Instruction manual Di641
Please keep this instruction manual for future reference
15
Main filter
Coarse filter
Fine filter
OpenOpen
Main filter
Coarse filter
Fine filter
OpenOpen
1. Hold the coarse filter and
rotate it 2 anticlockwise to
unlock the filter. Lift the
filter upwards and out of
the dishwasher.
3. Larger food remnants can
be 4 cleaned by rinsing the
filter under running water.
For a more thorough clean,
use a soft cleaning brush.
2. The fine filter can be pulled off the
bottom of the filter assembly. The
coarse filter can be detached from the
main filter by gently squeezing the
tabs at the top and pulling it away.
4. Reassemble the filters in the reverse
order of the dissasembly, replace the
filter insert, and rotate clockwise to
the close arrow.
WARNING
- Do not over tighten the filters. Put the filters back in sequence securely, otherwise
coarse debris could get into the system and cause a blockage.
- NEVER use the dishwasher without filters in place. Improper replacement of
the filter may reduce the performance level of the appliance and damage dishes
and utensils.

Instruction manual Di641
Please keep this instruction manual for future reference
16
SPRAY ARMS
It is necessary to clean the spray arms regularly as hard water chemicals will clog the
spray arm jets and bearings. To clean the spray arms, follow the instructions below:
1. To remove the upper spray
arm, hold the nut in the
centre still and rotate the
spray arm counterclockwise
to remove it.
3. Wash the arms in soapy warm
water and use a soft brush to
clean the jets. Replace them
after rinsing them thoroughly.
2. To remove the lower spray
arm, pull out the spray arm.

Instruction manual Di641
Please keep this instruction manual for future reference
17
CARING FOR THE DISHWASHER
FROST PRECAUTION
Please take frost protection measures on the dishwasher in the winter. After every
wash cycle, please operate as follows:
1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the
water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather
the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the dishwasher and use a sponge to soak up
water in the sump.
AFTER EVERY WASH
After every wash, turn off the water supply to the appliance and leave the door
slightly open so that moisture and odours are not trapped inside.
REMOVE THE PLUG
Before cleaning or performing maintenance, always remove the plug from
the socket.
NO SOLVENTS OR ABRASIVE CLEANING
To clean the exterior and rubber parts of the dishwasher, do not use solvents or
abrasive cleaning products. Only use a cloth with warm soapy water. To remove
spots or stains from the surface of the interior, use a cloth dampened with water
and a little vinegar, or a cleaning product made specifically for dishwashers.
WHEN NOT IN USE FOR A LONGTIME
It is recommend that you run a wash cycle with the dishwasher empty and then
remove the plug from the socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door seals to last longer and prevent
odours from forming within the appliance.
MOVING THE APPLIANCE
If the appliance must be moved, try to keep it in the vertical position. If absolutely
necessary, it can be positioned on its back.

Instruction manual Di641
Please keep this instruction manual for future reference
18
INSTALLATION INSTRUCTION
WARNING
- Electrical Shock Hazard
Disconnect electrical power before installing dishwasher.
Failure to do so could result in death or electrical shock.
ATTENTION:
The installation of the pipes and electrical equipments should be done by
professionals.
ABOUT POWER CONNECTION
WARNING
- For personal safety:
Do not use an extension cord or an adapter plug with this appliance.
Do not, under any circumstances, cut or remove the earthing connection
from the power cord.
ELECTRICAL REQUIREMENTS
Please look at the rating label to know the rating voltage and connect the
dishwasher to the appropriate power supply. Use the required fuse 10A or 13A,
time delay fuse or circuit breaker recommended and provide a separate circuit
serving only this appliance.
ELECTRICAL CONNECTION
Ensure the voltage and frequency of the power being corresponds to those on the
rating plate. Only insert the plug into an electrical socket which is earthed properly.
If the electrical socket to which the appliance must be connected is not appropriate
for the plug, replace the socket, rather than using a adaptors or the like as they
could cause overheating and burns.
Ensure that proper earthing exists before use

Instruction manual Di641
Please keep this instruction manual for future reference
19
WATER SUPPLY AND DRAIN
COLD WATER CONNECTION
Cold water connection Connect the cold
water supply hose to a threaded 3/4
inch connector and make sure that it is
fastened tightly in place. If the water pipes
are new or have not been used for an
extended period of time, let the water run
to make sure that the water is clear. This
precaution is needed to avoid the risk of
the water inlet to be blocked and damage.
ABOUT THE SAFETY SUPPLY HOSE
The safety supply hose consists of the double walls. The hose’s system guarantees
its intervention by blocking the flow of water in case of the supply hose breaking
and when the air space between the supply hose itself and the outer corrugated
hose is full of water.
WARNING
- A hose that attaches to a sink spray can burst if it is installed on the same water
line as the dishwasher. If your sink has one, it is recommended that the hose be
disconnected and the hole plugged.

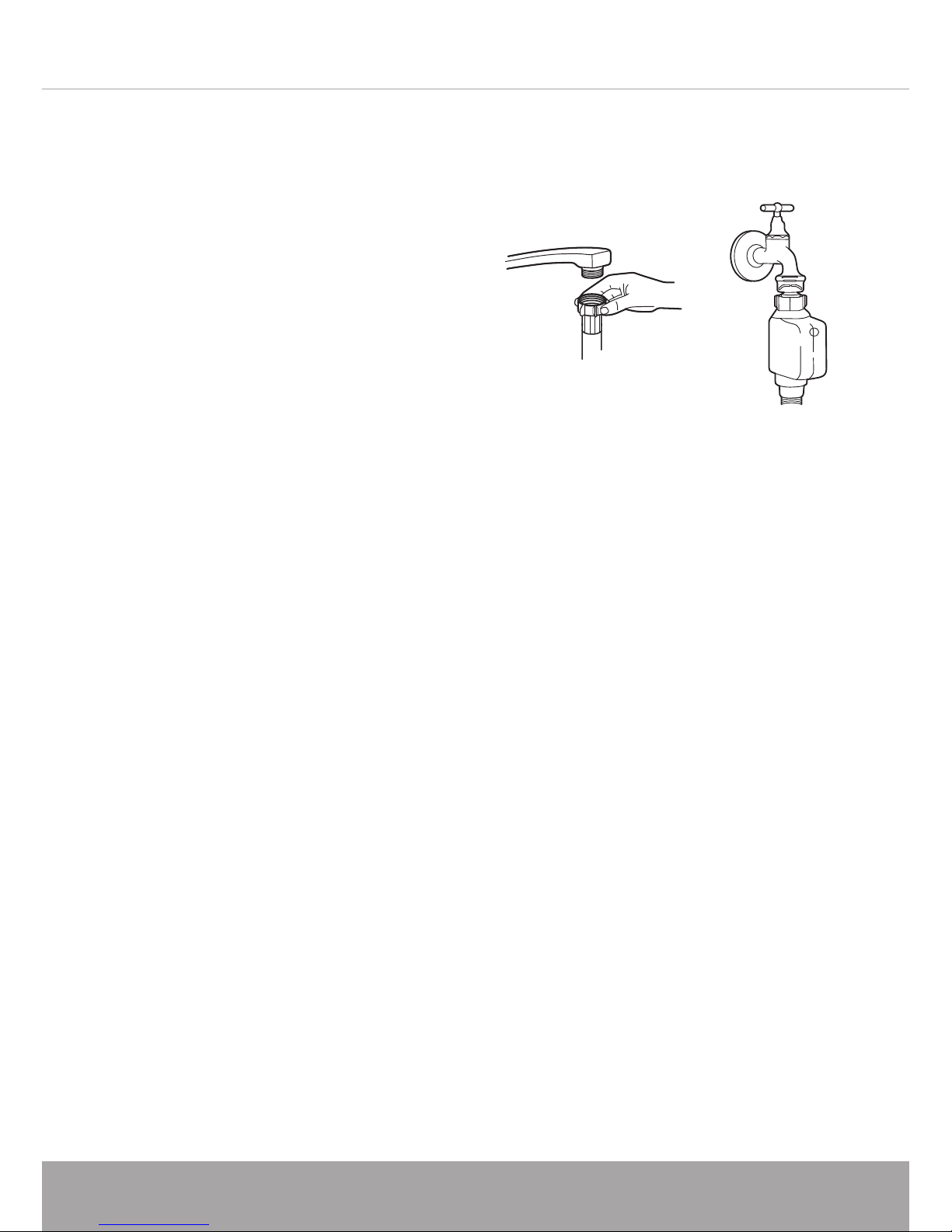

HOW TO CONNECT THE SAFETY SUPPLY HOSE
1. Pull The safety supply hoses completely out from storage compartment located at
rear of dishwasher.
2. Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.
3. Turn water fully on before starting the dishwasher.
HOW TO DISCONNECT THE SAFETY SUPPLY HOSE
1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.
safety supply hose
ordinary supply hose

Instruction manual Di641
Please keep this instruction manual for future reference
20
CONNECTION OF DRAIN HOSES
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it
run into the sink, making sure to avoid bending or crimping it. The height of drain
pipe must be less than 100cm. The free end of the hose must not be immersed in
water to avoid the back flow of it.
B
A
MAX 100cm
Counter
Drain hose
Back of dishwasher
Water Inlet
Drain Pipe
Mains Cable
Please securely fix the drain hose
in either position A or position B
HOW TO DRAIN EXCESS WATER FROM HOSES
If the sink is higher than 100cm from the floor, the excess water in hoses cannot be
drained directly into the sink. It will be necessary to drain excess water from hoses
into a bowl or suitable container that is held outside and lower than the sink.
WATER OUTLET
Connect the water drain hose. The drain hose must be correctly fitted to avoid
water leaks. Ensure that the water drain hose is not kinked or squashed.
EXTENSION HOSE
If you need a drain hose extension, make sure to use a similar drain hose. It must
be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could
be reduced.
