Caple C4245 User manual

Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk
Classic built-under electric double oven
instruction manual
C4245

Instruction manual C4245
Please keep this instruction manual for future reference
2
CONTENTS
Safety instructions 3
Environmental protection 9
Oven installation 11
Using your oven 16
Cooking guidelines 18
Touch control electronic timer 21
Care and maintenance 24
Troubleshooting 30
Caple Service contact details 32

Instruction manual C4245
Please keep this instruction manual for future reference
3
SAFETY INSTRUCTIONS
Read these instructions carefully and completely
before using your appliance, keep it in a convenient
place for reference when necessary.
- This appliance can be used by children aged from
8 years and above.
- Persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge
must be supervised and given appropriate
instruction concerning the use of the appliance in
a safe way and understand the hazards involved.
- Children shall not play with the appliance.
- Cleaning and user maintenance should not be
carried out by children without supervision.
- The appliance is not intended to be operated by
means of an external timer or separate remote
control system.
WARNING:
- The appliance and its accessible parts become
hot during use. Care should be taken to avoid
touching heating elements.
- Children less than 8 years of age should be kept

Instruction manual C4245
Please keep this instruction manual for future reference
4
away unless continuously supervised.
- To prevent fire hazards do not store items on
the cooking surfaces.
- If the surface is cracked, switch off the appliance
to avoid the possibility of electric shock.
WARNING:
- During use, handles can get hot.
- Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass or any other
surface of the appliance as it can scratch the
surface which may result in the glass shattering or
permanent damage to the surface.
- Do not use steam cleaners for cleaning the
appliance.
- Ensure the appliance is switched off before
replacing the lamp to avoid the possibility of
electric shock.
CAUTION:
- Accessible parts may be hot when the cooking or
grilling is in use. Young children should be kept
away.
- Your appliance is produced in accordance with all

Instruction manual C4245
Please keep this instruction manual for future reference
5
applicable local and international standards and
regulations.
- Maintenance and repair work must be made only
by authorised Caple service technicians. Installation
and repair work that is carried out by unauthorised
technicians may endanger you.
- It is dangerous to alter or modify the specifications
of the appliance in any way.
- Prior to installation, ensure that the local
distribution conditions (electricity voltage and
frequency) and the requirements of the appliance
are compatible. The requirements for this
appliance are stated on the rating label.
- This appliance is designed only for cooking food
and is intended for indoor use.
- This product is not designed for commercial use, it
is a household appliance only. It is not intended to
be used in:
- Staff kitchen areas in shops, offices and other
working environments.
- Bed and breakfast type environments
- By clients in hotels, motels and other
residential type environments
- Do not try to lift or move the appliance by pulling
the door handle.

Instruction manual C4245
Please keep this instruction manual for future reference
6
- All possible security measures have been taken
to ensure your safety. Since the glass may break,
you should be careful while cleaning to avoid
scratching.
- Avoid hitting or knocking on the glass with
accessories.
- Ensure that the supply cord is not wedged during
the installation. If the supply cord is damaged, it
must be replaced by a Caple service technician or
similarly qualified persons in order to prevent a
hazard.
- While the oven door is open, do not let children
climb on the door or sit on it.
INSTALLATION WARNINGS
- Do not operate the appliance before it is fully
installed.
- The appliance must be installed by an authorised
technician.
- Caple is not responsible for any damage that may
be caused by defective placement and installation
by unauthorised persons.
- When unpacking the appliance, make sure that
it is not damaged during transportation. In the
case of any defect; do not use the appliance and

Instruction manual C4245
Please keep this instruction manual for future reference
7
contact your retailer or Caple Service immediately.
- Materials used for packaging (nylon, staplers,
styrofoam etc) may cause harmful effects to children
they should be disposed of immediately.
- Protect your appliance against atmospheric effects.
Do not expose it to effects such as sun, rain, snow
etc.
- The surrounding materials of the appliance (i.e.
kitchen cabinet or furniture) must be able to
withstand a minimum temperature of 120°C.
DURING USAGE
- Heat the empty oven at max. temperature for 1 hour before
its first use. This removes any unpleasant smells and smoke
caused by working residues and thermal insulation. Make
sure you do this in a well ventilated area.
- During usage, the outer and inner surfaces of the oven get
hot. While opening the oven door, step back to avoid the
hot steam coming out of the oven as there may be a risk of
burns.
- Do not put flammable or combustible materials in or near
the appliance when it is operating.
- Always use oven gloves to remove and replace food in the
oven.
- Pay attention to the oven while cooking with solid or liquid
oils as they could potentially catch fire when oven is hot.

Instruction manual C4245
Please keep this instruction manual for future reference
8
- Never pour water on flames that are caused by oil. Cover
the saucepan or frying pan with its lid in order to choke
the flame and turn the oven off.
- If you know you will not be using the appliance for a
while switch it off from the main supply and unplug it.
- Make sure the appliance control knobs are always in the
‘0’ (stop) position when it is not used.
- The oven shelves and trays incline when pulled out. Be
careful not to let hot liquid spill over.
- When the door of the oven is open, do not leave anything
on it. It may unbalance your appliance or damage the
door.
- Do not put anything heavy, flammable or ignitable (nylon,
plastic bag, paper or cloth etc) into the oven. This includes
cookware with plastic accessories (e.g. handles).Do not
hang towels or clothes from the appliance or its handles.
INDICATOR LIGHTS
- The indicator lights above the control panel go on/off
when the heating elements are inserted or removed.
During the thermostatic functioning of the oven, the
neon light remains on until the pre-chosen temperature
is reached and when it goes out, this is a sign that the
temperature has been reached. When the oven cools,
the thermostat determines the re-insertion of the heating
elements with consequent re-lighting of the indicator
lights. The internal oven light is always on when any
function is in operation.

Instruction manual C4245
Please keep this instruction manual for future reference
9
DURING CLEANING AND MAINTENANCE
- Always switch off the appliance from the mains isolating
the electrical supply before any cleaning or maintenance.
- Do not remove the control knobs to clean the control
panel.
To maintain the efficiency and safety of your appliance, we
recommend you always use original spare parts and to call
only our authorised Caple Service agents in case of need.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice.
This appliance is marked according to the European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste
handling of this product. The symbol on the product indicates that this product may
not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste
disposal.
For more detailed information about treatment, recovery and recycling of this
product, please contact your local council, your household waste disposal service or
the retailer where you purchased the product.
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is
missing, you must provide the following information to your retailer in order to
receive a replacement: date of purchase, model and serial number (placed on the
inside of the appliance storage drawer). Registration can also be completed online
by visiting www.caple.co.uk.

Instruction manual C4245
Please keep this instruction manual for future reference
10
Ensure you keep your warranty card safe, you may need to show it to Caple Service
together with proof of purchase.
If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.
ATTENTION
- Before use, remove all plastic films protecting some parts of the appliance (fascia -
panel, parts in stainless steel, etc)
- Do not use the appliance to heat a room.
- When the appliance is not in use, we recommend you turn it off, isolate it from
the electrical supply and ensure all gas taps are closed.
CE DECLARATIONS OF CONFORMITY
This appliance has been designed, constructed and marketed in compliance with
safety requirements in force. This appliance has been manufactured to the strictest
standards and complies with all applicable legislation.

Instruction manual C4245
Please keep this instruction manual for future reference
11

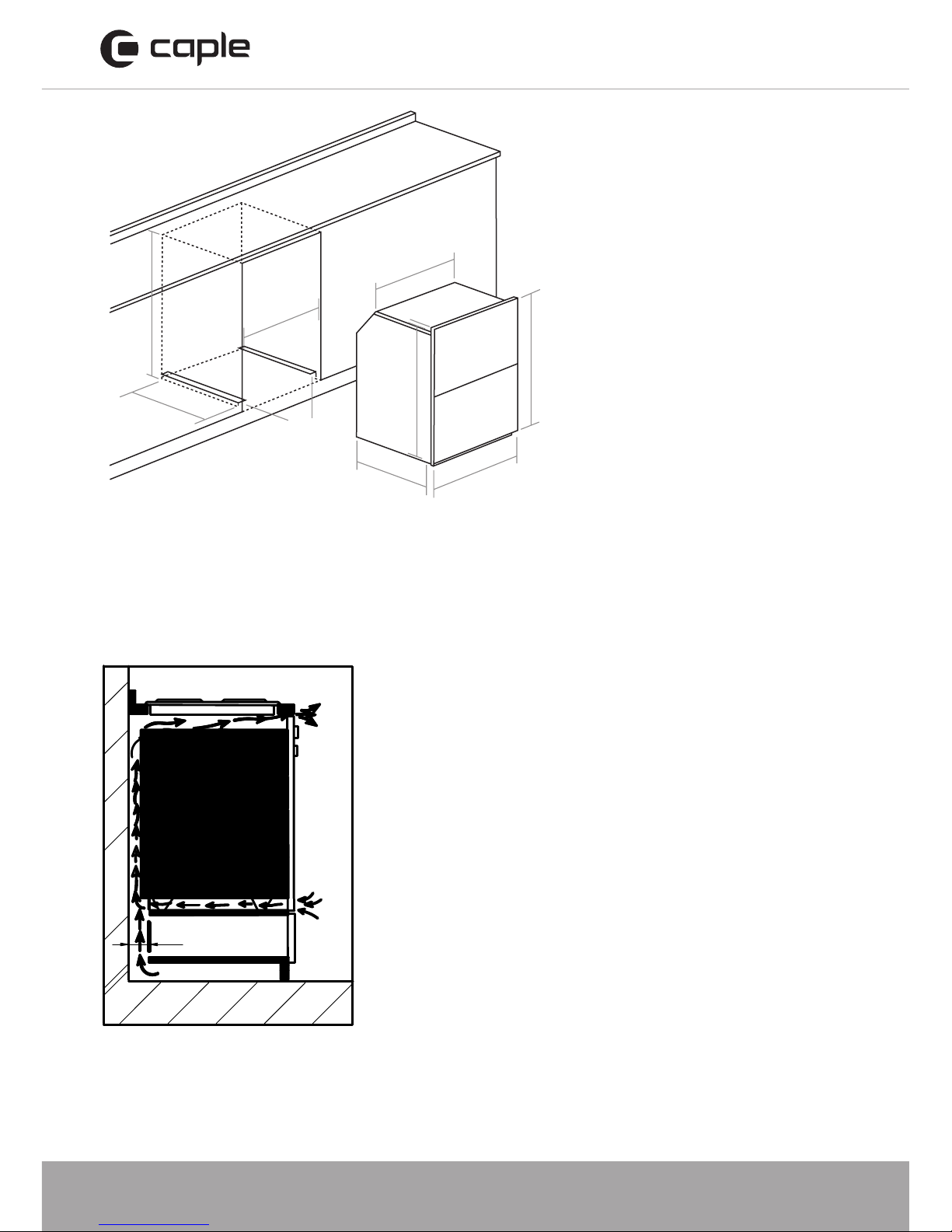

OVEN INSTALLATION
Please check the following before installation:
- The panels of the adjoining furniture should be heat resistant. Particularly when
the adjoining furniture is made of veneered wood, the adhesives should be able
to withstand a temperature of 120˚C. Plastic materials or adhesive which cannot
withstand this temperature will become deformed or unstuck.
- To comply with safety regulations, once the appliance has been fitted it should
not be possible to make contact with the electrical parts.
- All parts which offer protection should be fixed in such a way that they cannot
be removed without the use of a tool.
- Ensure that the appliance is switched off before replacing the lamp to avoid the
possibility of electric shock.
IMPORTANT:
- Ensure the oven is disconnected from the mains prior to installation.
- Installation should be carried out according to the instructions by a professionally
qualified person. Caple cannot accept responsibility for any damage to persons,
animals or other items due to incorrect installation.
- Position and secure the support brackets into the adjacent carcases (see Fig.2).
- Position the oven onto the support brackets supplied.
- Secure the appliance into its surround by inserting screws into the 4 holes that
can be seen in the frame of the oven when the door is open (Fig.1).
A
A
A
Fig.1

Instruction manual C4245
Please keep this instruction manual for future reference
12
546mm
min 550mm
23mm
720mm
595mm
705mm
545mm
560mm
708mm
15mm
Installation
brackets
- For the most efficient air circulation, the oven should be fitted according to the
dimensions shown in Fig.2 and Fig.3
- An opening of atleast 70mm must be cut at the bottom of the unit to ensure
adequate ventilation (see Fig.4).
Fig.4
Fig.5
70
70
70
Fig.2 Fig.3

Instruction manual C4245
Please keep this instruction manual for future reference
13
Connection to the mains supply
WARNING:
This appliance must be earthed
- Check that the power rating of the mains supply and of the sockets are suitable
for the maximum power of the appliance as indicated on the rating plate.
- The plug should be accessible after installation. Fit the plug into a socket fitted
with a third contact which corresponds with the earth connection. This should be
properly connected.
If the appliance is fitted with supply leads but not connected to a plug, you must
permanently connect to fixed wiring as follow:
- The yellow/green earth wire, which must be connected to terminal, has to be
approximately 10mm longer than the other wires; the blue neutral wire has to be
connected to the terminal marked with letter N.
- Black, brown, red live wires have to be connected to terminal L. Mains
connection can also be made by fitting double pole switch with a minimum gap
between the contacts of 3mm, proportionate to the load and complying with the
regulations in force.
- The yellow/green earth wire should not be controlled by the switch.
- The plug or a double pole switch used for mains supply connection should be
easy to get at, once the appliance is in position.

Instruction manual C4245
Please keep this instruction manual for future reference
14
IMPORTANT:
- Position the mains supply cable so that it is never subjected to a temperature
which is more than 50˚C above ambient temperature.
- The electrical safety of the appliance can only be guaranteed when it has been
correctly connected to an efficient earthed power supply, as instructed in the
regulations for electrical safety.
- Caple cannot be held responsible for any damage to persons or objects due to
lack of an earth connection.
Electrical connection
Fitting the power supply cable
- Open the terminal box by inserting a screwdriver into the side tabs of the cover.
Use the screwdriver as a lever by pushing it down to open the cover
- Install the power supply cable by loosening the cable clamp screw and the three
wire contact screws. Connect the wires to the corresponding terminals:
the Blue wire to the terminal marked ‘N’,the Brown wire to the terminal marked
‘L’ and the yellow/green wire to the terminal marked .
- Secure the cable by fastening the clamp screw.
- Close the cover of the terminal box.
- When wiring the terminal box care must be taken to fit and tighten the links on
the live (L) and neutral (N) terminals
L
N

Instruction manual C4245
Please keep this instruction manual for future reference
15
Wiring and safety
The instructions given below MUST be adhered to during wiring:
- This appliance is designed to connect to 220-240V~ and is rated at 20Amps and
as such needs to be hard wired to the electrical supply.
- If the electrical supply is different from the value given above, call Caple Service
immediately.
- Wiring of the appliance must be performed by a qualified installer/electrician.
- The earth cable must be connected via the terminal screw with the earthing
mark. Supply cable connection must be as shown in the diagram. If there is no
earthed outlet conforming to regulations in the installation environment, the
installation cannot go ahead and an Electrician should be consulted immediately.
- The installation must include a suitable isolating switch with a minimum contact
opening of 3mm between the appliance and the mains. The isolating switch
should be sized according to the load on the rating plate “20Amp”and should
comply with current regulations.
- The earthed outlet must be in close vicinity of the appliance. Never use an
extension lead.
- The supply cable should not make contact with the product’s hot surface.
- In case of any damage to the supply cable, please call Caple Service. The cable
must be replaced by a qualified installer/electrician)
- Faulty wiring may damage the appliance. Such damage will not be covered by
the warranty.
- When wiring the terminal box care should be taken to fit and tighten the links on
the live and neutral terminals

Instruction manual C4245
Please keep this instruction manual for future reference
16
USING YOUR OVEN
Control panel
Top oven 4 functions / main oven 8 functions
Top oven functions
CONVENTIONAL HEAT
Both the lower and upper heating elements operate together.
This is the traditional cooking method, perfect for roasting joints, cooking pastry
and baking cakes.
BASE HEAT
This function is good for cooking the underside of food, warming up food or
sterilising glass jars. It is also ideal for slow cooking food, i.e. casseroles. This
function can be used between 50˚C and MAX.
TOP HEAT
This function can be used for warming pre-cooked food when placing the grid on
the second shelf from the top. Or for defrosting pastry, place on grid on the
bottom shelf.
FULL GRILL
This function can be used for grilling and gratinating food. When grilling, the oven
door must be closed.
Bottom oven functions
LIGHT
Internal oven light

Instruction manual C4245
Please keep this instruction manual for future reference
17
CONVENTIONAL HEAT
Both the lower and upper heating elements operate together.
This is the traditional cooking method, perfect for roasting joints, cooking pastry
and baking cakes.
TURBO DEFROST
The air at ambient temperature is distributed inside the oven to speed up defrosting
time.
FAN HEAT
The fan evenly distributes the hot air (between 50˚C and MAX) inside the oven.
This is ideal for cooking several types of food i.e. meat and fish at the same time
without affecting taste and smell. It is also ideal for delicate pastries.
TURBO BASE HEAT
Both the fan and the lower heating element operate together.
The air which is heated by the lower heating element is circulated by the fan
helping to distribute the heat between 50 and 200˚C. This function can be used for
sterilising glass jars.
BASE HEAT
This function is good for cooking the underside of food, warming up food or
sterilising glass jars. It is also ideal for slow cooking food, i.e. casseroles. This
function can be used between 50˚C and MAX.
TOP HEAT
This function can be used for warming pre-cooked food when placing the grid on
the second shelf from the top. Or for defrosting pastry, place on grid on the
bottom shelf.
0
TURBO CONVENTIONAL HEAT
This function is very good for obtaining results in baking pastry. Cooking is
carried out by the lower and upper heating element within the oven and by the
fan providing air circulation, which will give a slight grill effect to the food. It is
recommended to pre-heat the oven about 10 minutes.

Instruction manual C4245
Please keep this instruction manual for future reference
18
COOKING GUIDELINES
- Set the function for the type of cooking required.
- Preheat the oven, setting the thermostat to the required temperature. Once the
oven has heated to the selected temperature, the orange warning light will go
out.
- This same light will appear again automatically during operation of the oven to
indicate that the heating elements are on.
- Remove the drip tray when using the oven for conventional cooking, roasting
etc. The tray should be left in place only when using the grill, as its purpose is
to catch falling droplets of fat. Food should be placed in oven dishes with raised
edges and positioned centrally under the grill.
- If the fan heat operation is selected, different foods can be cooked
simultaneously (e.g. meat and fish), although in this case the respective cooking
time must be observed.
COOKING
FUNCTION
FOOD TYPE SHELF
POSITION
TEMPERATURE
(˚C)
TIME
(mins)
Conventional
cooking
Yorkshire Pudding
Sponge Cake
Small Cakes
Fruit Tart
Scones
Fruit Cake
1
1
2
1
2
1
200
180
190
200
220
140
30-40
25-30
15-20
40-45
10-15
120-180
Grilling
(Top oven) Pork chops (4 pcs)
Sausages (6 pcs)
Toast (6 pcs)
3
3
3
225
225
225
Side 1 Side 2
12
6
1
10
5
1

Instruction manual C4245
Please keep this instruction manual for future reference
19
Temperatures and times for main oven cooking
DISHES TEMPERATURE (˚C) TIME
(mins)
SWEET
Short pastry flan
Fruit pie/tart
Shortcake biscuits
Savoury biscuits
200
200
200
200
190
190
190
190
8-10
25-35
10-15
15-20
MEAT
Slow roast
Quick roast
Meat loaf
175
200
200
170
190
190
12-15
12-15
30-40
POULTRY
Duck 1.5-2kg
Goose 3 kg
Roast chicken
Turkey 5kg
200
200
200
175
170
180
190
150
120-180
150-210
60-90
240
GAME
Hare
Haunch of venison
200
175
180
175
60-90
90-180
- Frozen meat should be thoroughly thawed before cooking. For large joints it is
advisable to thaw overnight.
- Frozen poultry should be thoroughly thawed before cooking, the time required
depends on the size of the bird e.g. a large turkey may take up to 48 hours to
thaw.
- Adjust the shelf position so the meat or poultry will be in the centre of the oven.
- The times given in the roasting guide are only approximate because the size and
age of the bird will influence cooking times as will the shape of a joint and the
proportion of bone.

Instruction manual C4245
Please keep this instruction manual for future reference
20
Roasting guide
COOKING IN OVEN
180˚C FAN HEAT
200˚C CONVENTIONAL HEAT
TIME
Beef
Rare
Medium
Well done
20 minutes per 450g (1lb)
plus 20 minutes
25 minutes per 450g (1lb)
plus 20 minutes
30 minutes per 450g (1lb)
plus 30 minutes
Lamb
Medium
Well done
25 minutes per 450g (1lb)
plus 25 minutes
30 minutes per 450g (1lb)
plus 30 minutes
Pork 35 minutes per 450g (1lb)
plus 35 minutes
Fowl 20 minutes per 450g (1lb)
plus 20 minutes
Note:
- If you are cooking a very large turkey, we recommend that it is turned around
halfway through cooking, so that both legs will be cooked evenly.
- Remove any excess fat from the tin before turning, to prevent any fat splashing.
- When cooking stuffed meat or poultry calculate the cooking time from the total
weight of the meat plus the stuffing.
- For joints cooked in foil and for lidded casseroles, add 5 minutes per 450g (1lb)
to the calculated cooking time.
- Smaller joints weighing less than 1.25 kg (2lb) may require 5 minutes per 450g
(1lb) extra cooking time.
