Caple CE1122SS User manual

Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
Ceiling Hood
Instruction Manual
CE1122SS/
CE1122WH

2Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference
CONTENTS
Warnings 3
Environmental Protection 8
Opening the Panel 10
Installation 11
Remote Control 18
Timing 21
Cleaning and Maintenance 22
Caple Contact Details 24

3Instruction manual CE1122SS/CE1122WHPlease keep this instruction manual for future reference
WARNING
The appliance is not intended for use by young children
or infirm persons without supervision. Young children
should be supervised to ensure they do not play with
the appliance.
The extracted air can’t be conveyed through or into a
duct used to let out fumes from appliances fed by energy
other than electric power (eg. centralized heating,
radiators, water heaters, etc.).
To evacuate the air outlet, please comply with the
pertaining rules given by competent authorities.

4Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference
-Provide the room with an adequate aeration when a
cooker hood and appliances fed by energy other than
electric power (gas, oil, or coal stoves, etc.) are
used simultaneously.
-The cooker hood, when evacuating the extracted air,
could generate a negative pressure in the room which
can’t exceed the limit of 0.04 mbar, in order to avoid
the suck of exhausts deriving from the heat source.
Therefore the room should be provided with air-intakes
to allow a constant flow of fresh air.
-If the rating label in the cooker-hood does show the
symbol the appliance is built in class 11° and it
does not need the earth connection. If the rating label
in the cooker hood does not show the symbol , the
appliance is built in class I° and it needs the
earth connection.
-When performing the electrical connections on the
appliance, please make sure that the current tap is
provided with earth connection and that voltage values
correspond to those indicated on the label placed
inside the appliance itself.
-Before carrying out any cleaning or maintaining
operations, the appliance needs to be removed from
the electric grid.

5Instruction manual CE1122SS/CE1122WHPlease keep this instruction manual for future reference
-If the appliance is not provided with a non-separable
flexible cable and plug, or with another device
ensuring omnipolar disconnections from the grid, with
an opening distance between the contacts of at least 3
mm, then such disconnecting devices must be supplied
within the fixed installation.
-If the appliance is endowed with a supply cord and a
plug, the appliance has to be put in a place where the
plug can be reached easily.
-The use of materials which can burst into flames
should be avoided in close proximity of the appliance
-When frying, please pay particular attention to fire risk
due to oil grease. Being highly inflammable, fried oil is
especially dangerous.
-Do not use uncovered electric grills. In order to avoid
possible fire risk, all instructions for grease filter
cleaning and for removing eventual grease deposits
should be strictly followed.
-This appliance complies with all relevant local and
national safety requirements. Inappropriate use can,
however, lead to personal injury and damage
to property.
-The cooker hood is not intended for outdoor use.
-It must only be used as a domestic appliance to extract
vapours and remove odours from cooking. Any other
usage is not supported by the manufacturer and could
be dangerous.

6Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference
-Where a recirculation cooker hood is fitted above a gas
hob, please ensure that there is an adequate supply of
fresh air into the room in which it is installed. Please
seek the advice of a qualified gas fitter (e.g. GasSafe in
the UK) if necessary.
-Children under 8 years of age must be kept away from
the cooker hood unless they are constantly supervised.
-Children 8 years and older may only use the cooker
hood unsupervised if they have been shown how
to use it safely and recognise and understand the
consequences of incorrect operation.
-The electrical safety of this appliance can only be
guaranteed when correctly earthed. It is essential
that this standard safety requirement is met. If in any
doubt please have the electrical installation tested by a
qualified electrician.
-Do not connect the appliance to the mains electricity
supply by a multi-socket unit or an extension lead.
These are a fire hazard and do not guarantee the
required safety of the appliance.
-The cooker hood can get very hot during cooking due
to heat rising from the hob.
-Do not touch the housing or the grease filters until the
cooker hood has cooled down.

7Instruction manual CE1122SS/CE1122WHPlease keep this instruction manual for future reference
APPROPRIATE USE:
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential
type environments.
› Bed and breakfast type environments.

8Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice. This
appliance is marked according to the European directive on Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The symbol on the product indicates that
this product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.

9Instruction manual CE1122SS/CE1122WHPlease keep this instruction manual for future reference
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date
of purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together
with proof of purchase. If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.
CE DECLARATIONS OF CONFORMITY
Radio Equipment Directive (RED) 2014/53/EU.
This Declaration is issued under the sole responsibility of the manufacturer.
Hereby, Caple declares that the radio equipment included in the product is in compliance with
the RED directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available on our website
www.caple.co.uk.
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our
website www.caple.co.uk

10 Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference
OPENING THE PANEL
NOTE:
Two people are needed for the installation of this product.

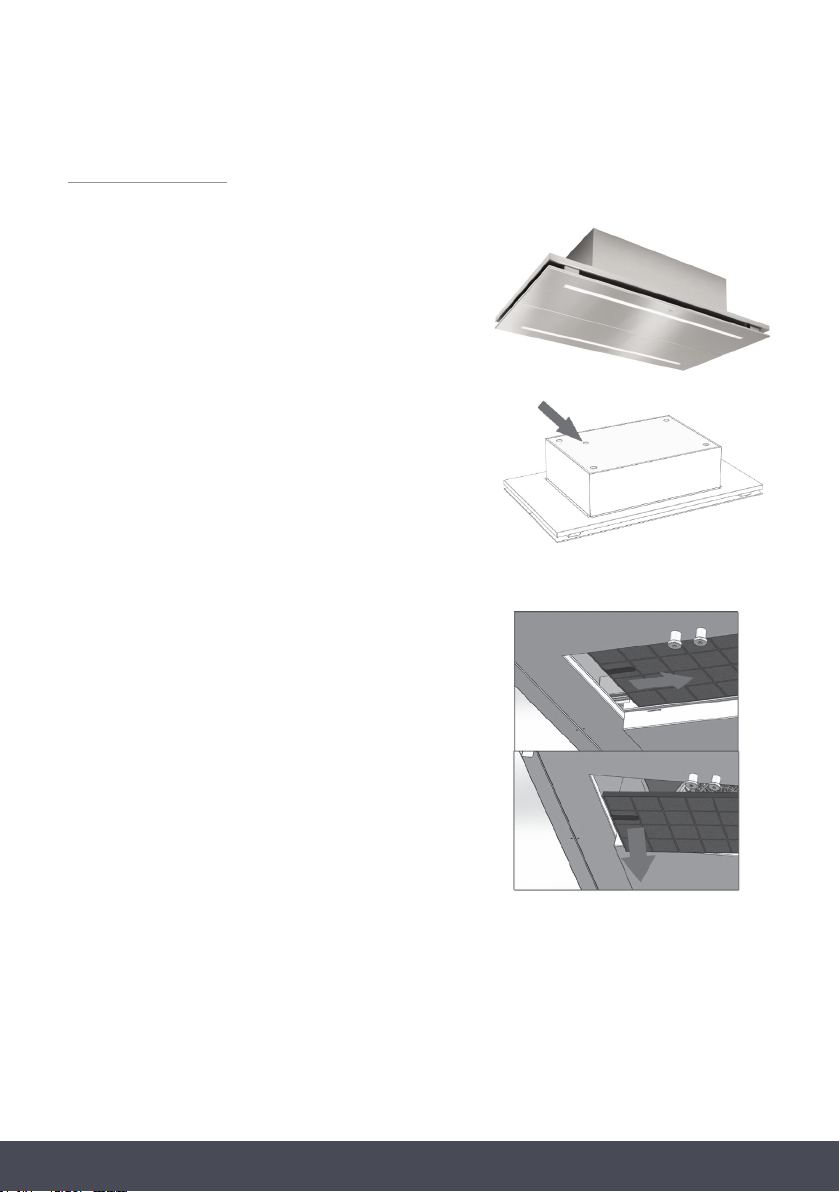

OPENING THE PANEL
It is possible to open the grease filter cover panels
by pulling them gently from the centre, as shown
in Fig.1. They are held in place by magnets.
To work correctly, it is recommended to
install the product at a maximum distance
of 2000-2100mm, from the floor level.
Before proceeding with the installation of the
appliance, check that all the components are not
damaged, otherwise please contact your retailer
and do not continue with the installation.
Use an air outlet pipe with a maximum length of no more than 5 metres. Keep the number of
bends in the duct to a minimum as each bend reduces the suction efficiency equivalent to 1
linear meter. (E.g. If 2 90° bends are used, the length of the duct should not exceed 3 meters
in length).
› Avoid abrupt changes of direction.
› Use a duct with a diameter of 150mm constant over the entire length.
› Use a duct of recognised and approved material.
NOTE:
Ducting is not supplied with the product, this is to be supplied by the installer depending on
the installation requirements.
For more information on venting, please see our ‘Extraction & Ventilation guide’ available at
www.caple.co.uk
FIG.1
