Caple CE1122SS User manual

Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk
ceiling extractor
instruction manual
CE1122SS / CE1122WH
CE1122SS/WH_Instruction manual.indd 1 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
2
CONTENTS
WARNINGS 3
ENVIRONMENTAL PROTECTION 7
INSTALLATION 8
FREESTANDING INSTALLATION 9
BUILT-IN INSTALLATION 11
REMOTE CONTROL 17
TIMING 20
MAINTENANCE 21
CE1122SS/WH_Instruction manual.indd 2 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
3
WARNINGS
-This appliance is not intended to be used by young
children or infirm persons without supervision. Young
children should be supervised to ensure they do not play
with the appliance.
-The air extracted cannot be conveyed through or into a
duct used to let out fumes from appliances fed by energy
other than electric power (eg. central heating, radiators,
water heaters, etc.). To evacuate the air outlet, please
comply with the pertaining rules given by competent
authorities.
-Provide the room with adequate ventilation when a
cooker hood and appliances fed by energy other than
electric power (gas, oil, or coal stoves, etc.) are used
simultaneously.
-The cooker hood, when evacuating the extracted air,
could generate a negative pressure in the room which
must not exceed the limit of 0.04mbar, in order to avoid
the suction of exhausts deriving from the heating source.
Therefore the room should be provided with air intakes
to allow a constant flow of fresh air.
-If the rating label in the cooker hood shows the symbol
, the appliance is built in class II° and it does not
need any earth connection.If the rating label in the
cooker hood does not show the symbol , the appliance
is built in class I° and it needs the earth connection
CE1122SS/WH_Instruction manual.indd 3 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
4
-When performing the electrical connections on the
appliance, please make sure that the current tap is
provided with earth connection and that voltage values
correspond to those indicated on the rating label placed
inside the appliance itself.
-Before carrying out any cleaning or maintaining
operations, the appliance needs to be removed from the
electric grid.
-If the appliance is not provided with a non-separable
flexible cable and plug, or with another device ensuring
unipolar disconnections from the grid, with an opening
distance between the contacts of at least 3 mm, then
such disconnecting devices must be supplied within the
fixed installation.
-If the appliance is fitted with a supply cord and a plug,
the appliance has to be put in a place where the plug
can be reached easily.
-The use of materials which can burst into flames should
be avoided in close proximity of the appliance.
-When frying, please pay particular attention to fire risk
due to oil grease. Being highly inflammable, fried oil is
especially dangerous.
-Do not use uncovered electric grills. In order to avoid
possible fire risk, all instructions for grease filter cleaning
and grease deposits removal should be strictly followed.
CE1122SS/WH_Instruction manual.indd 4 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
5
-This appliance complies with all relevant local and
national safety requirements. Inappropriate use can,
however, lead to personal injury and damage to property.
-The cooker hood is not intended for outdoor use.
-It must only be used as a domestic appliance to extract
vapours and remove odours from cooking. Any other
usage is not supported by the manufacturer and could
be dangerous.
-Where a recirculation cooker hood is fitted above a gas
hob, please ensure that there is an adequate supply of
fresh air into the room in which it is installed. Please
seek the advice of a qualified gas fitter (e.g. GasSafe in
the UK) if necessary.
-Children under 8 years of age must be kept away from
the cooker hood unless they are constantly supervised.
-Children 8 years and older may only use the cooker hood
unsupervised if they have been shown how to use it
safely and recognise and understand the consequences
of incorrect operation.
-The electrical safety of this appliance can only be
guaranteed when correctly earthed. It is essential
that this standard safety requirement is met. If in any
doubt please have the electrical installation tested by a
qualified electrician.
CE1122SS/WH_Instruction manual.indd 5 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
6
-Do not connect the appliance to the mains electricity
supply by a multi-socket unit or an extension lead. These
are a fire hazard and do not guarantee the required
safety of the appliance.
-The cooker hood can get very hot during cooking due to
heat rising from the hob.
-Do not touch the housing or the grease filters until the
cooker hood has cooled down.
CE1122SS/WH_Instruction manual.indd 6 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
7
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice. This appliance is marked according to the European directive 2012/19/EU on
Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The symbol
on the product indicates that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this
product, please contact your local council, your household waste disposal service or
the retailer where you purchased the product
CE DECLARATIONS OF CONFORMITY
Radio Equipment Directive (RED) 2014/53/EU
This Declaration is issued under the sole responsibility of the manufacturer.
Hereby, Caple declares that the radio equipment included in the product is in
compliance with the RED directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available on our website
www.caple.co.uk.
CE1122SS/WH_Instruction manual.indd 7 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
8
INSTALLATION
NOTE: Two people are needed for the installation of this product.
It is possible to open the glass/steel panels, which cover the grease filters, by slightly
pulling the panel on a side, as shown on fig.1 In order to allow the hood to perform
correctly, it is recommended to install the appliance at a distance of 2000 - 2100
mm from the floor. Before starting the appliance installation, please check that
all components are not damaged, in such a case contact your retailer and do not
carry out the installation. Furthermore, please read carefully all of the following
installation instructions.
- For the best performance we recommend an exhausting pipe with a maximum
length not exceeding 5 meters.
- Limit the number of elbows in the piping, since each elbow reduces the air
capacity of 1 linear meter. (Eg. if you use 2 x 90° elbows, the length of piping
should not exceed 3 meters).
- Avoid abrupt direction changes.
- Use a 150 mm constant diameter pipe for the whole length.
- Use ducting approved by the local standards inforce.
NOTE: For more information on venting, please see our ‘Extraction & Ventilation
guide’ available on our website www.caple.co.uk.
CE1122SS/WH_Instruction manual.indd 8 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
9

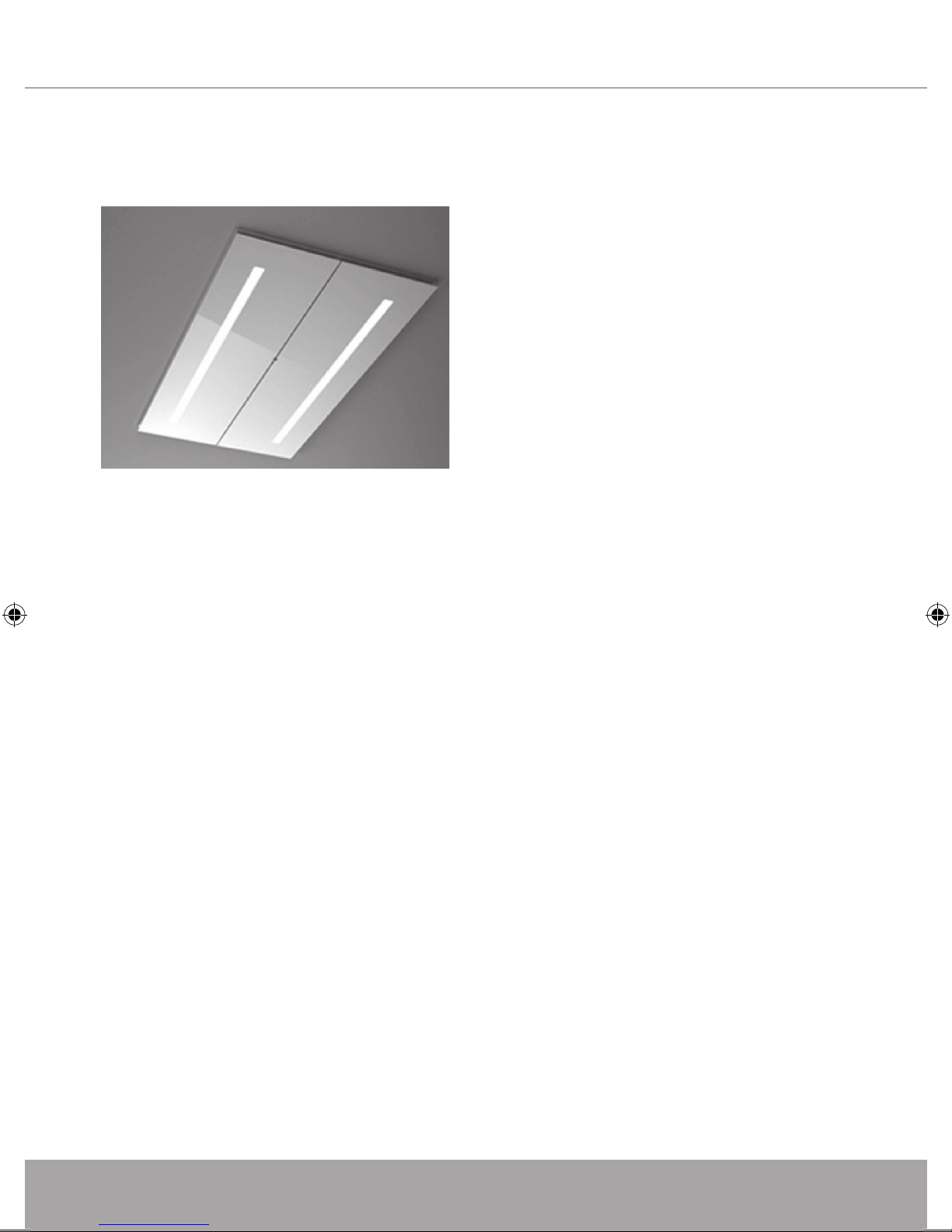

FREESTANDING INSTALLATION
Recirculating version
The product is ready for this version.
Attention:
Let the power cord pass through the hood hole, as shown in fig. 2.
Mark the holes to fix the product to the false ceiling.
Having marked the holes, make them by using a drill bit (diameter 8mm), and place
in the holes the metric fixing plugs provided.
Open the glass panels, following the instructions mentioned in the previous section
and remove the grease filters and carbon filters.
When fixing the hood to the ceiling allow the electric cable to pass through into the
hood (not supplied). Fix the hood to the ceiling using the four screws provided.
Make the electrical connection in to the metal box (fig.18). The power supply metal
box is postioned close to the electrical componets and you can see them after
removing the grease filters.
Please connect the cable as shown in fig. 18. Once done refit the carbon filters and
grease filters, the close the glass panels.
CE1122SS/WH_Instruction manual.indd 9 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
10
Ducted version
Turn the motor to evacuate the air from the upper side of the hood. Open the glass
panels, and remove grease filters and carbon filters.
Remove the four screws shown in picture 4. Remove the lower stainless steel as
shown in picture 5. Then remove the screws holding the motor, as shown in picture
6. Open the hole in the middle of the upper side hood (fig 7.) Fix the plug to the
hole where there was the motor before, using the four screws provided. (fig 9)
Install the motor in the upper side by means of the four screws earlier removed
(picture 10). Prearrange an asir outlet exactly in the middle of the hood. Continue
with the installation as Recirculating version (Free standing).
The use of carbon filters is not necessary in this case.
Installtion of the air outlet with a joint diameter of 200mm.
Connect the internal motor or the external motor’s cable to the terminal board
found inside the plastic box of the wiring. Make sure to respect the colors of cables
when performing the electrical connection (fig.2.1)
Make the opening for the air outlet diameter of 200mm on the upper side of the
product (the opening is already marked on the body of the unit).
Install the joint with a diameter of 200mm supplied with the external motor and fix
it with the 8 screws supplied.
The 200mm diameter joint is moved slightly from the longitudinal axis of the
product by 25mm.
CE1122SS/WH_Instruction manual.indd 10 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
11
BUILT-IN INSTALLATION

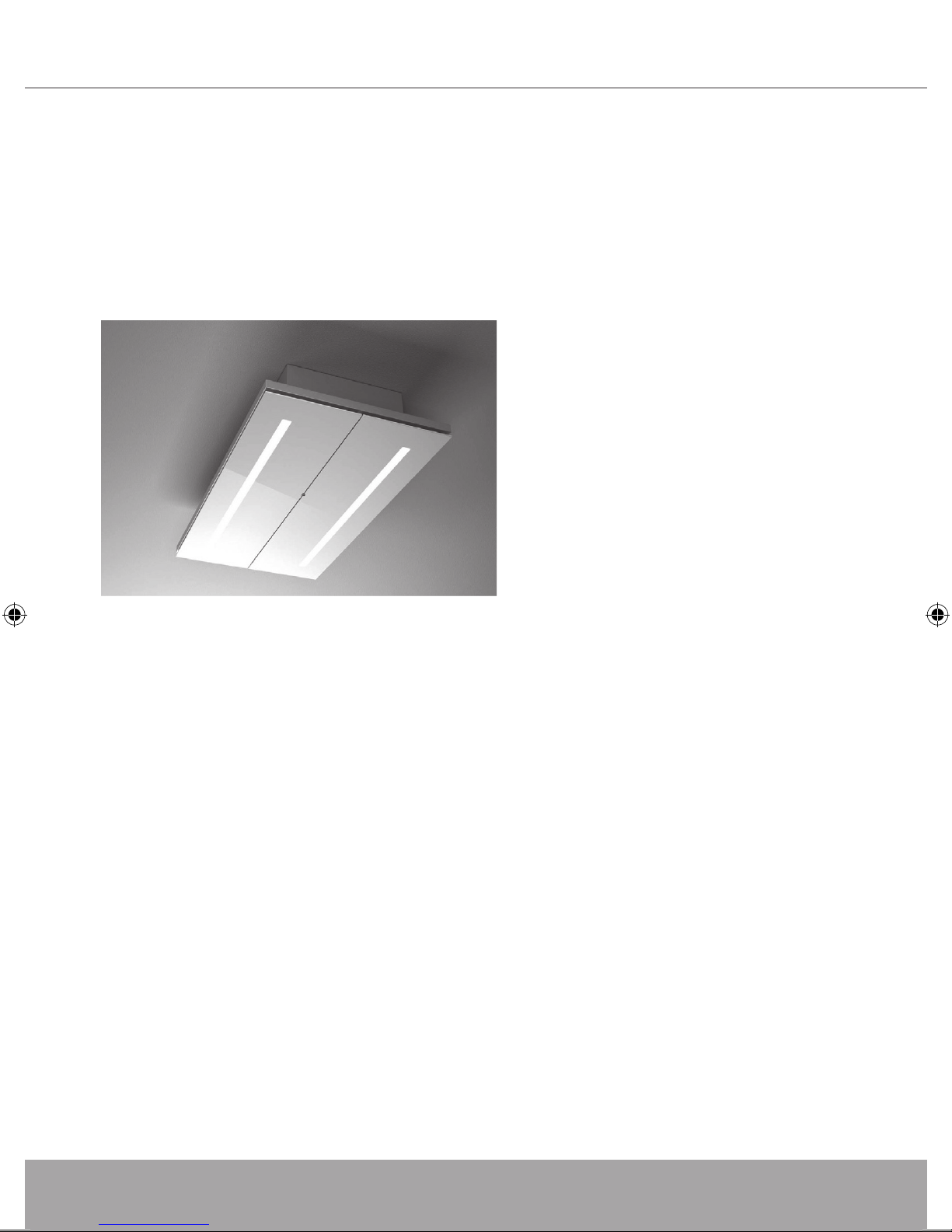

In case of built-in version remove the stainless steel cover (fig.11)
Ducted version
Mark the holes to fix the product into the false ceiling (Fig.3).
Make the the holes marked, by a drill bit diameter 8mm, and place the metric plugs
provided in the holes. In the built-in version it is possible to select the air outlet side.
The product has been assembled with the air outlet of the motor placed on the
short side but it is possible to select the side of the cooker hood where the air
extracted can be discharged, as follows:
open the glass panels and remove the grease filters and carbon filters.
Unscrew the four screws shown in fig. 4.
Remove the lower stainless steel as shown in picture 5.
Now remove the four screws that fix the motor, shown in picture 6.
Open the hole in the middle of the upper side hood (fig.7) or in the long side (fig.
12). Fix the plug to the hole where there was the motor before, by means of the
four screws supplied. (fig. 9)
Install the motor in the upper side or in the long side using the four screws earlier
removed (fig.10).
Fix the long screws into the metric plug, install the hood on the ceiling as shown in
picture 13.
CE1122SS/WH_Instruction manual.indd 11 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
12
Make the electicial connection into the metal box.
The power supply metal box is positioned close to the electrical components and
you can see them after removing the grease filters.
Please connect the cables as you can see in picture 18.
Ducting is not supplied with the product, this is to be supplied by the installer
depending on the installation requirements.
If you have selected the output air from the short side of the hood, it is possible to
facilitate the attachment of the tube by removing the cover shown in Fig. 16.
The use of carbon filters is not necessary in this case.
The false ceiling (plasterboard) must remain above the wider part of the
hood fig.13. Make a structure able to support the weight of the false ceiling
(plasterboard), which must not burden the hood.
Recirculating version
After the installation of the hood as described in the previous chapter, connect a
pipe from the motor to the outer part of the niche. Make the electrical connection
into the metal box. Refit the grease filters, the carbon filters (fig.17) and close the
glass panel.
CE1122SS/WH_Instruction manual.indd 12 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
13
1
3
5
2
4
6
CE1122SS/WH_Instruction manual.indd 13 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
14
7
9
11 12
8
10
CE1122SS/WH_Instruction manual.indd 14 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
15
13
15
17 18
14
16
CE1122SS/WH_Instruction manual.indd 15 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
16
19
21
23
20
22
CE1122SS/WH_Instruction manual.indd 16 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
17
REMOTE CONTROL
At first ignition, keep pressed the lighting button for 5 seconds.
Remote control used for the operation of cooker hoods:
Technical Data
Alkaline battery powered : 12 V mod. 23 A
Operating frequency : 433.92 Mhz
Combinations : 32.768
Max. consumption : 25 mA
Operating temperature: -20 ÷ + 55 °C
Dimensions : 120 x 45 x 15 mm
OPERATING DESCRIPTION
The transmitter is equipped with 5 buttons for cooker hood management, as
specified below:
Light ON/OFF command.
Motor ON (speed level 1) / OFF command.
Reduce speed.
Increase speed.
10-minute timer.
The set extraction speed is indicated by the LED in the extraction perimeter channel.
To each color generated by the LED, it corresponds a specific speed, as shown
below:
First speed WHITE
Second speed BLUE
Third speed DARK BLUE
Fourth speed RED
CE1122SS/WH_Instruction manual.indd 17 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
18
Initial Operating Condition
The manufacturer supplies the remote control unit
ready to be used with codes preset in the Factory
OPERATION MODE
Standard configuration:
Standard configuration requires all “cooker hoods radio control system” to be
provided with the same transmission code. In the event two cooker hoods radio
control system are installed in the same room or nearby, each system may affect the
operation of the another. Therefore, the code of one radio control system must be
changed.
Generating a new transmission code:
The radio control system is provided with preset codes. Should new codes be
required, proceed as follows: Press simultaneously buttons:
for two seconds. When Leds light on, press buttons:
(within 5 seconds). Leds flashing 3 times indicate the procedure is completed.
WARNING:
This operation deletes permanently the preset codes.
Learning the new transmission code:
Once the transmission code is changed in the radio control unit, the electronic
central unit of the cooker hood must be made to set the new code in the following
way:
Press the main power-off button of the hood and then restore power to the
electronic control unit. Within the next 15 seconds, press the Light Button
to synchronise the central unit with the code.
CE1122SS/WH_Instruction manual.indd 18 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
19
Reset of the Factory configuration:
To restore the Factory configuration, follow the procedure described below: press
simultaneously buttons
for 2 seconds. When Leds light on, press buttons
(within 5 seconds). Leds flashing 6 times indicate the procedure is completed.
WARNING:
This operation deletes permanently the preset codes.
Emergency button:
In the event that the radio control does not work, use the emergency button to
switch the appliance off.
After any necessary repairs have been performed, reset the emergency button.
WARNING:
The battery should be replaced every year to guarantee the optimal range of the
transmitter. To replace the exhausted battery, take the plastic lid off, remove the
battery and replace it with a new one, observing the correct battery polarities. Used
batteries should be discarded in special collection bins.
WARNING:
Any adjustments or modifications which have not been expressly approved by the
holder of the legal conformity certificate may invalidate the user’s rights relating to
the operation of the device.
The products are endowed with an electronic device which allows the automatic
switching off after 4 hours working from the last operation.
CE1122SS/WH_Instruction manual.indd 19 22/03/2018 10:53

Instruction manual CE1122
Please keep this instruction manual for future reference
20
TIMING
- As a result of the new EU65 “Energy label” and EU66 “ Ecodesign” regulations
issued by the European Commission, which came into force as from January 1st,
2015 , our products have been adapted to comply with these new requirements.
All of the models complying with the energy label requirements, are equipped
with new electronics including a timer device for extraction speeds control, when
the air capacity exceeds 650m³/h. Internal motor models, with maximum air
capacity higher than 650m³/h, are equipped with a timer device that automatically
switches the extraction speed from 4th to 3rd speed, after 5 minutes operation
- External motor models are equipped with remote motors that , as for internal
motor versions, include a timer device that switches down the extraction speed
when it exceeds 650 m³/h. (See External Motors Instructions ). Remote motors,
whose air capacity exceeds 650m³/h at both 4th and 3rd speed, will have the
following by default timer control functions:
- The extraction speed is automatically switched from 4th to 2nd speed, after 6
minutes operation. If the appliance is working at 3rd speed, it is automatically
switched to 2nd speed, after 7 minutes operation. Operation speeds can also be
changed during operation. The energy consumption of the appliance in standby
mode is lower than 0.5W.
CE1122SS/WH_Instruction manual.indd 20 22/03/2018 10:53
