Car Solutions MASERATI PAS-T 161209 User manual

MASERATI PAS-T
(VIDEO Interface)
MODEL MASERATI PAS-T-161209
DATE 2016.04.20
Car-Solutions.com
www.car-solutions.com
[email protected]

Main Spec.
1. Input Spec. (MULTI VIDEO INTERFACE)
- 2 x A/V Input (External video source).
- 1 x CVBS(REAR CAMERA) Input. (Rear camera source)
- 1 x CVBS(FRONT CAMERA) Input. (Front camera source)
- 1 x Analog RGB Input (Navigation System output)
- 1 x LVDS Input. (Car Command System)
2. Output Spec.
- 2 x CVBS Output (Video out for Installing Headrest Monitor)
- 1 x Audio L/R Output.
- 1 x LVDS Output (LCD Operation)
3. Power Spec.
- Input Power : 8VDC ~ 24VDC
- Consumption Power : 12Watt, Max
4. Switch Input mode
- Possible to switch input mode through original button
- Possible to switch input mode through provided touch film(option)
- Possible to switch input mode through “HOME” button on screen
Car-Solutions.com
www.car-solutions.com
[email protected]

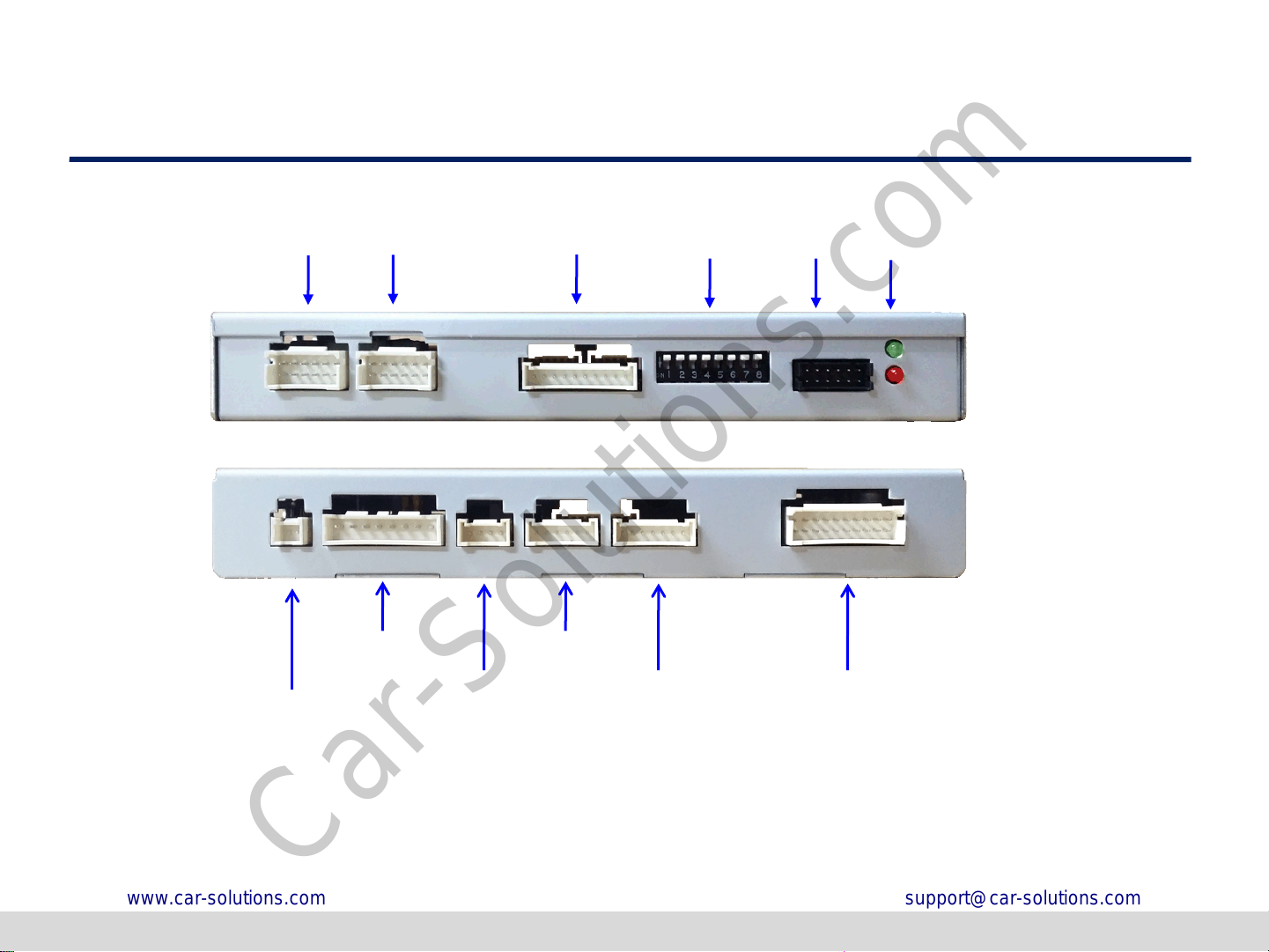

External Appearance
LED
DIP S/W
LVDS IN IMAGE
PROGRAM
LVDS OUT
POWER/IE
A/V
MODE
Capacitive
Touch NAVI
RGB
NAVI
TOUCH
Car-Solutions.com
www.car-solutions.com
[email protected]

Connector Pin Assignment
*NAVI Connect
①R DATA (Red)
②G DATA (Green)
③B DATA (Blue)
④SYNC (White)
⑤GND (Black)
⑥DVB-T IR (Green)
⑦DVD IR (Orange)
①②③④⑤⑥⑦
*POWER Connect
①ACC (Red)
②CAN-H (Orange)
③CAN-L (Green)
④REAR-CAM DETECT (Brown)
⑤FRONT-CAM DETECT (Blue)
⑥REAR VCC (Red)
⑦FRONT VCC (Red)
⑧GND (Black)
①②③④⑤⑥⑦⑧
*Touch Connect
①Y-
②X-
③Y+
④X+
①②③④
Car-Solutions.com
www.car-solutions.com
[email protected]

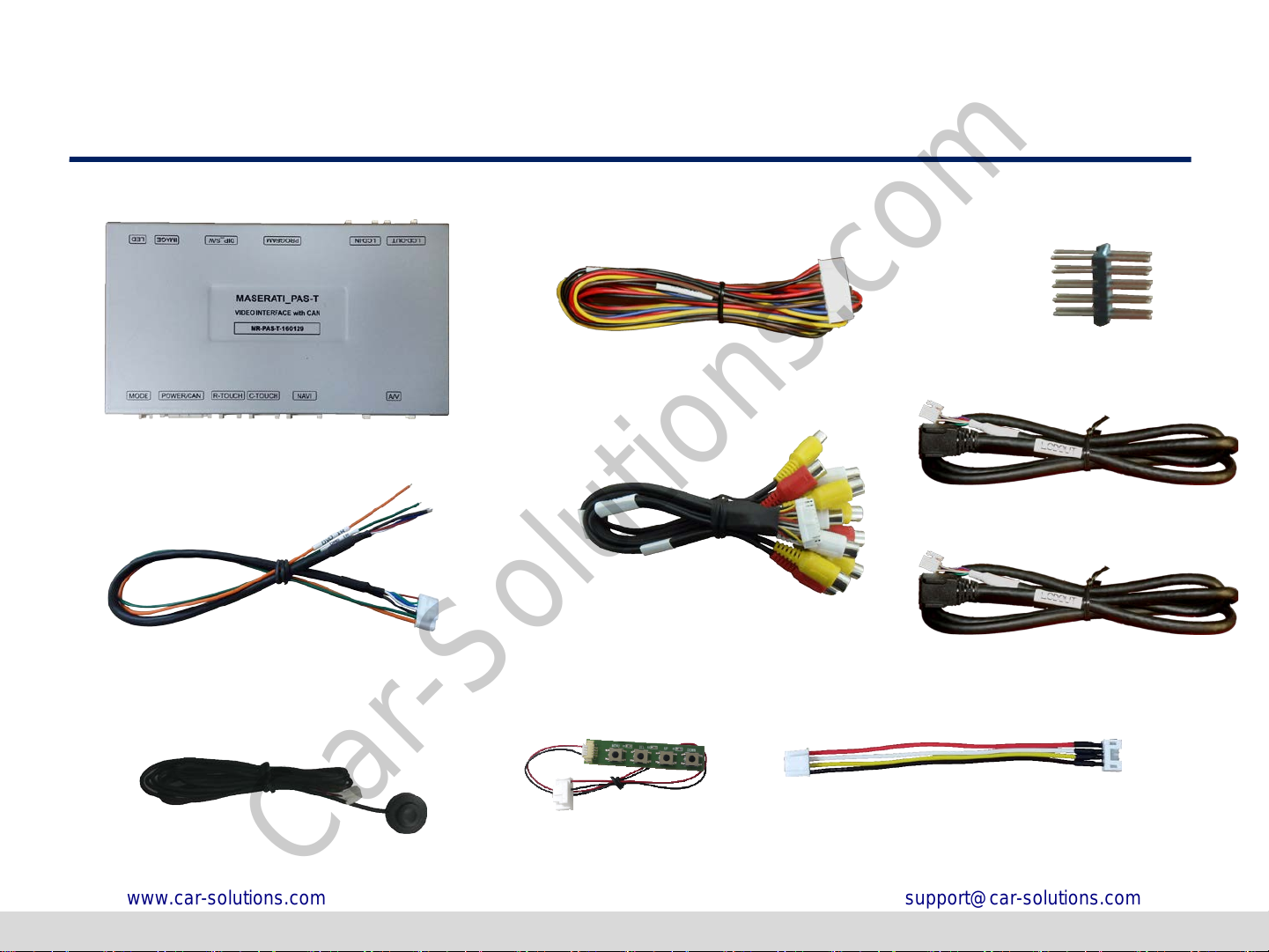

Product Composition
Interface 1 EA
A/V Cable 1 EA
Power Cable(8pin) 1 EA
RGB Navi Cable 1 EA
OSD Board 1 EA
Mode S/W 1 EA
LVDS-OUT Cable 1 EA
LVDS-IN Cable 1 EA
LVDS CONNTOR 1 EA
Touch converter Cable (for KD-900) 1 EA
Car-Solutions.com
www.car-solutions.com
[email protected]

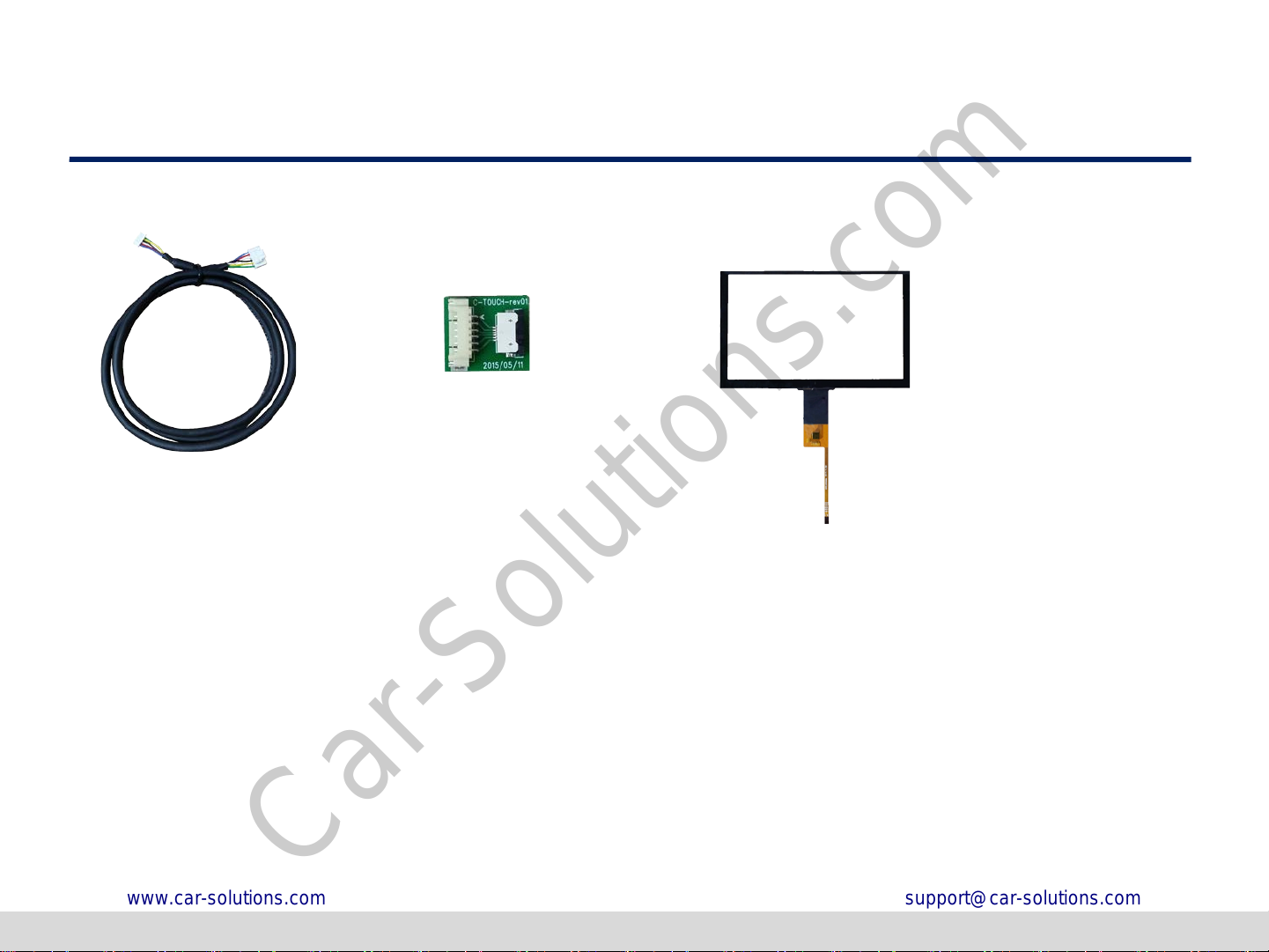

Product Composition
Option : TOUCH Board
Option : Touch Cable
TOUCH Option
Option : 7.0 inch
Capacitive
Touch Screen
Car-Solutions.com
www.car-solutions.com
[email protected]

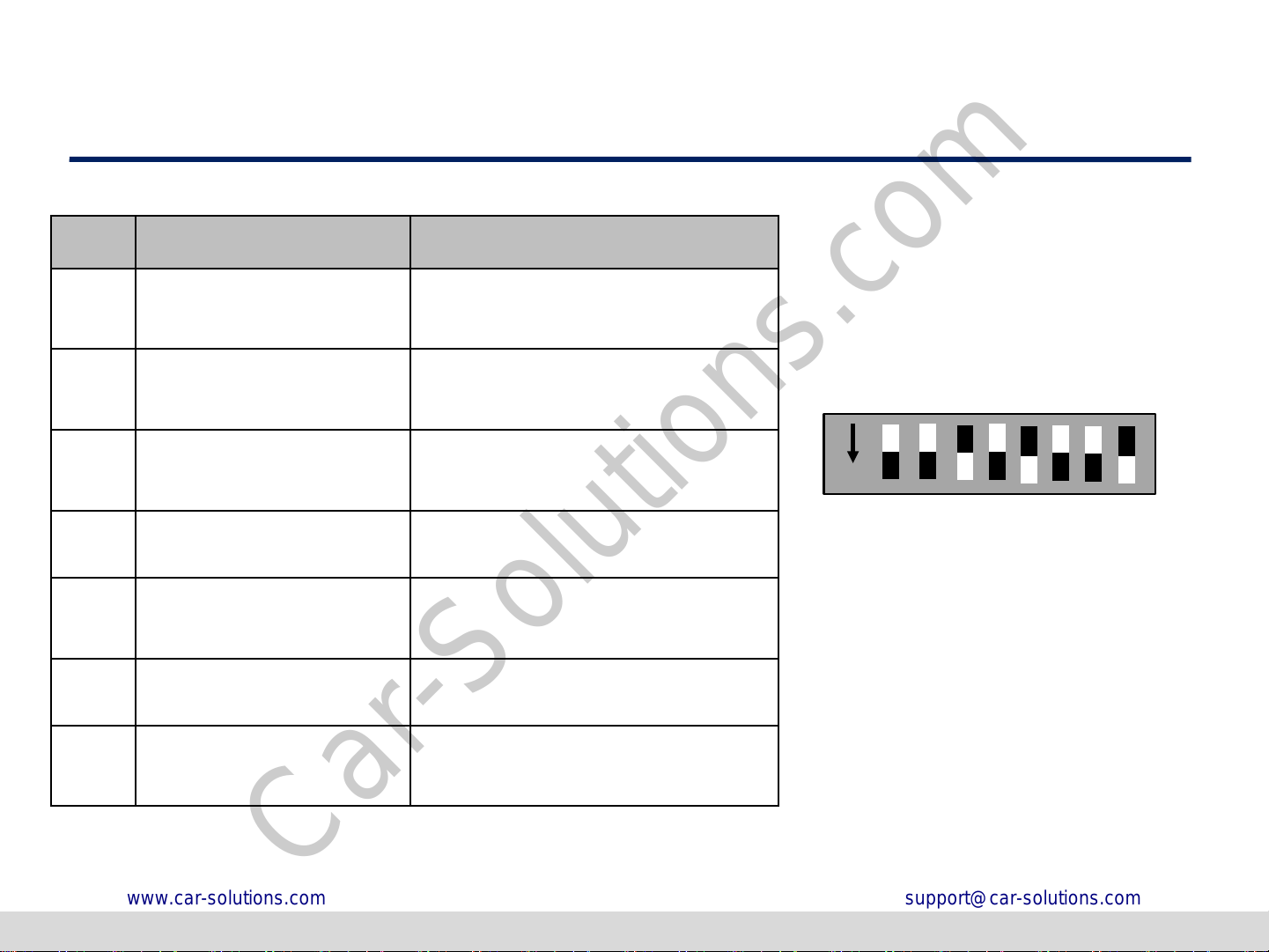

DIP S/W Setting
NO. Function Selection
1 NAVI ON : Skipping NAVI
OFF : Display
2 AV1 (DVB-T) ON : Skipping Video
OFF : Display
3 AV2 (DVD) ON : Skipping Video
OFF : Display
4 N.C
5 Setup of OEM button
use for mode change
ON : using OEM button
OFF : Not used
6,7 N.C
8 Car model ON : GranTurismo MC
OFF : GranTurismo
* Example
-Use input mode : NAVI, AV1
-Mode change : by using OEM button
on steering wheel
-Car : GranTurismo MC
ON
* ON : DOWN , OFF : UP
Car-Solutions.com
www.car-solutions.com
[email protected]

Mode Change
Steering wheel
Not use Steer wheel button.
Use Steer wheel button.
NAVI AV1 AV2
OEM
※The screen is switched in order as the pictures below
Car-Solutions.com
www.car-solutions.com
[email protected]

Mode Change
Touch screen – Switching mode
※ It is necessary to install the provided capacitive touch file on OEM monitor
※ Switching from OEM screen to External screen only
(not possible to switching input mode)
Sliding the screen from left
to right for switching mode
OEM External
Sliding the screen from right
to left for switching mode
OEM External
Car-Solutions.com
www.car-solutions.com
[email protected]

Mode Change
Touch screen – Switching mode
Use Home icon,
OSD menu set ‘ON’
Back to OEM screen
Press long Home icon Or, press return icon
Car-Solutions.com
www.car-solutions.com
[email protected]

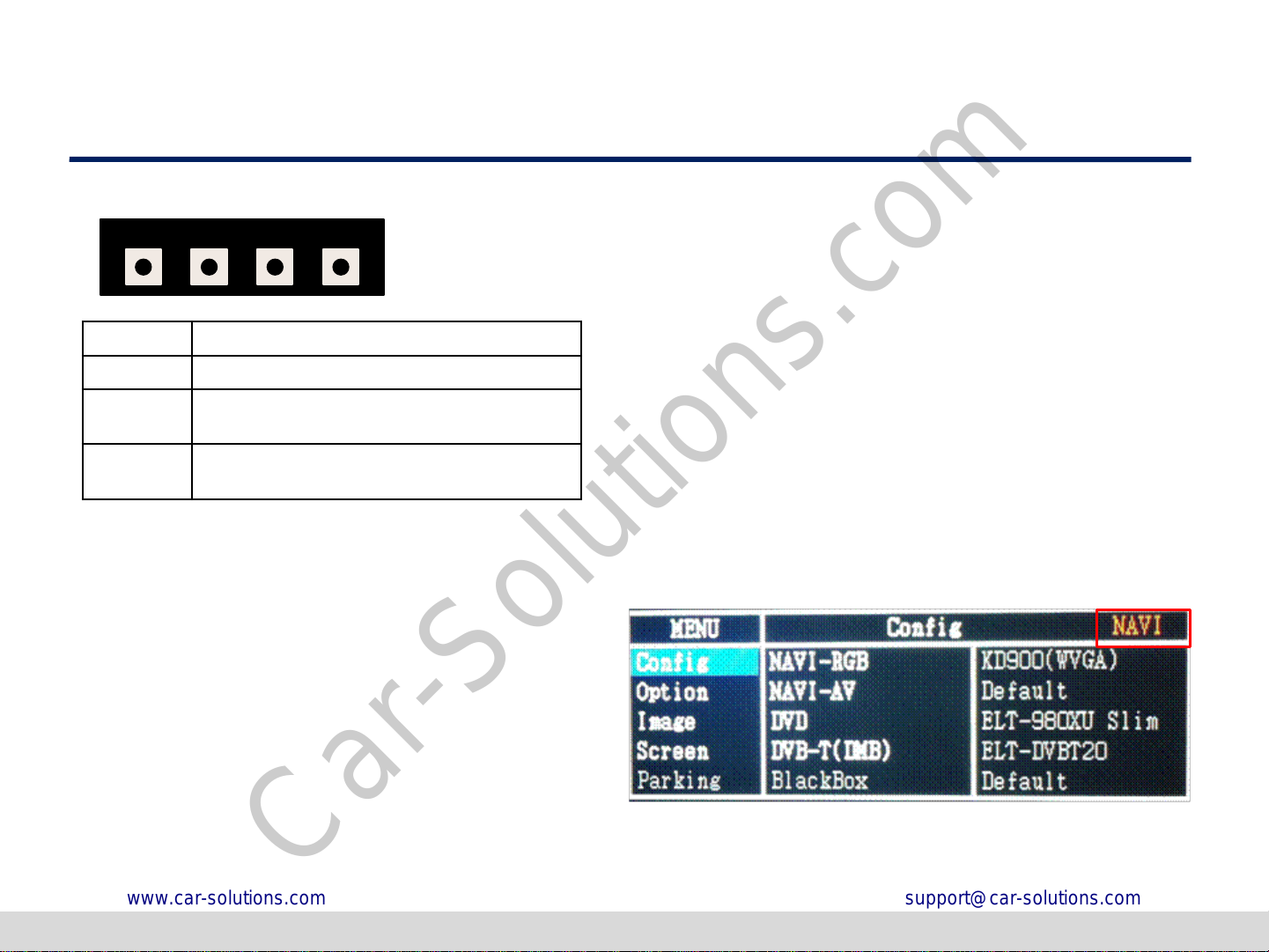

OSD(On Screen Display) Control
MENU Push -> OSD menu On/Off
SEL Item Selection, Value Selection
UP Item up
Increase selected value
DOWN Item down
Decrease selected value
Mode State
First Menu Second Menu Third Menu
OSD Control Board
MENU SEL UP DOWN
Car-Solutions.com
www.car-solutions.com
[email protected]

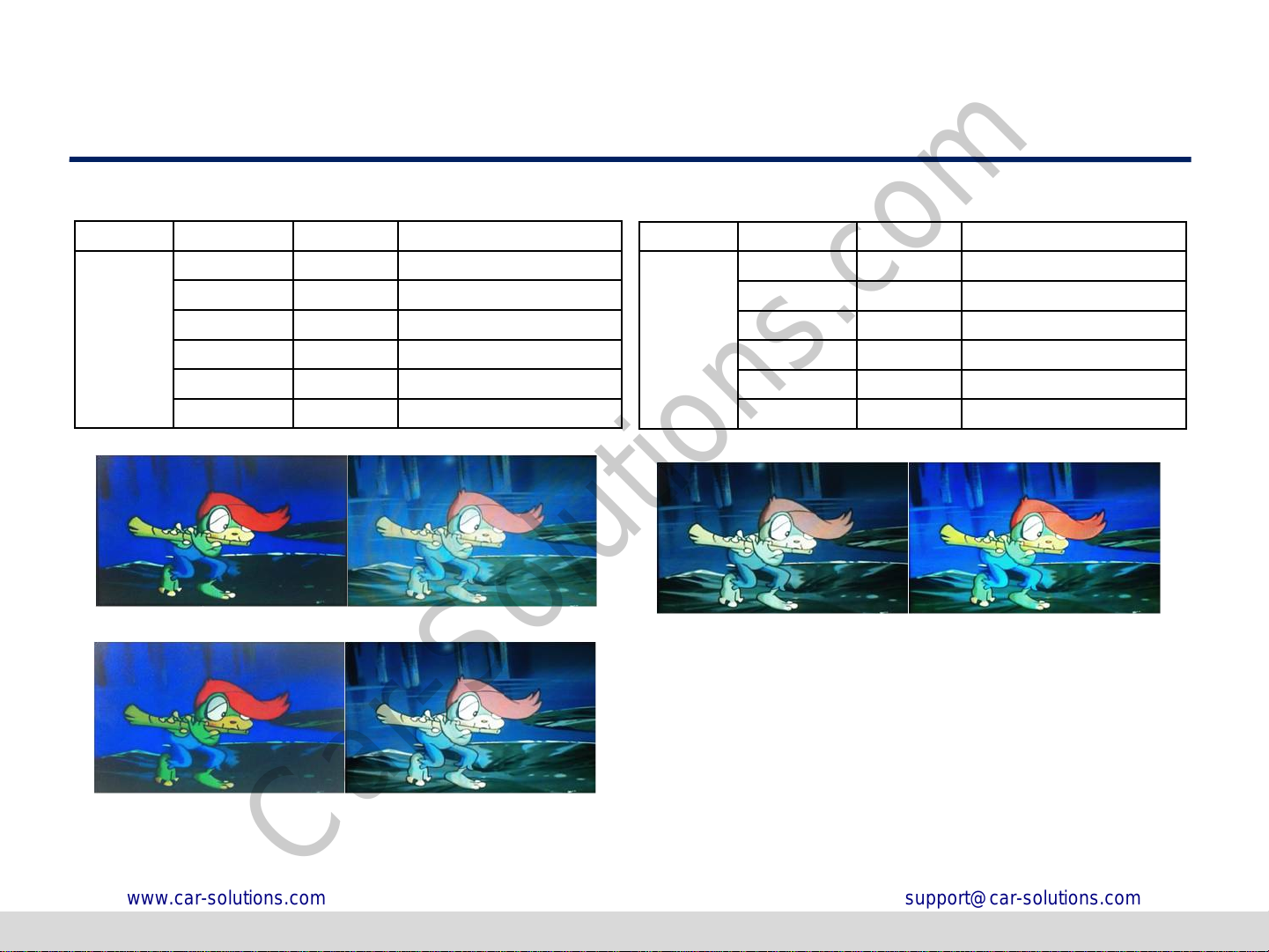

OSD(On Screen Display) Control
First Menu Second Menu Third Menu Action
Option
RearCam-Type OEM Original Camera
ExtDevice Use aftermarket Rear camera
RearCam-Power
ON Rear camera get +12V consistently
AUTO Rear camera get +12V when reverse gear on
OFF Shut out the power supply.
FrontCam-Type OEM Original Camera
ExtDevice Use aftermarket Front camera
FrontCam-Power
ON Front camera get +12V consistently
AUTO Front camera get +12V when reverse gear on
OFF Shut out the power supply.
RearCam-RcvOpt ON Show Frontcam 25sec after rear mode.
OFF Default
Reset Excute Option Menu all Reset
Car-Solutions.com
www.car-solutions.com
[email protected]

OSD(On Screen Display) Control
First Menu Second Menu Third Menu Action
Brightness Adjust the value of brightness
Contrast Adjust the value of contrast
Color-RED Adjust the value of RED
Color-GREEN Adjust the value of GREEN
Color-BLUE Adjust the value of BLUE
Reset Excute Option Menu all Reset
First Menu Second Menu Third Menu Action
Brightness Adjust the value of brightness
Contrast Adjust the value of contrast
Saturation Adjust the value of Saturation
Hue Adjust the value of Hue
Sharpness Adjust the value of Sharpness
Reset Excute Option Menu all Reset
NAVI-RGB menu DVD,DVB-T(DMB),NAVI-AV,REAR,FRONT menu
<< Brightness >>
<< Contrast >>
<< Saturation >>
Car-Solutions.com
www.car-solutions.com
[email protected]

OSD Setting– Screen Mode
- Horizontal
- Vertical
- Scaler X Up
- Scaler X Down
- Scaler Y Up
- Scaler Y Down
OSD(On Screen Display) Control
Car-Solutions.com
www.car-solutions.com
[email protected]

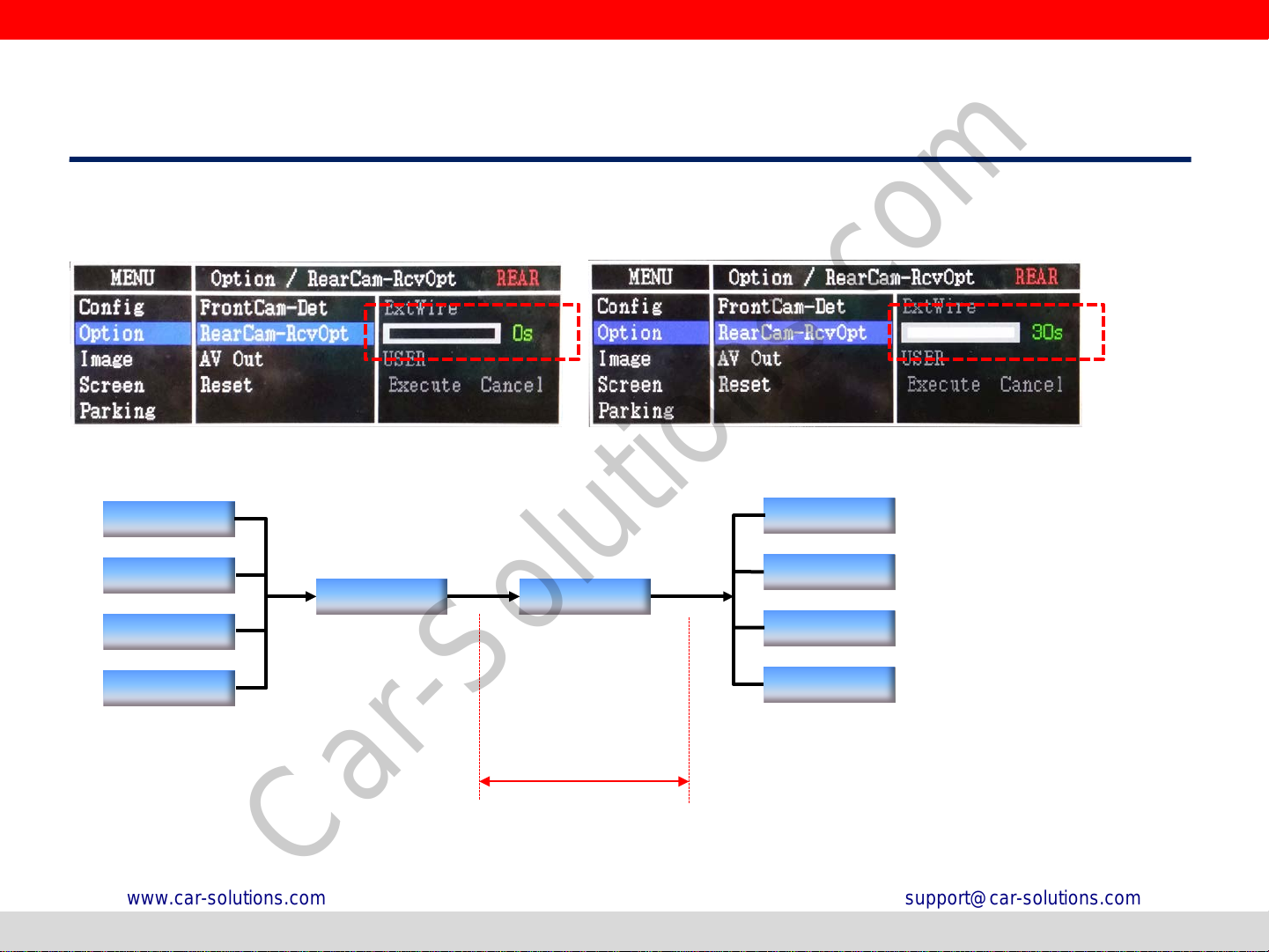

- Option -> RearCam-RcvOpt -> 0 second = RearCam-RcvOpt menu OFF
1~30 second = RearCam-RcvOpt menu ON & time control
OSD(On Screen Display) Control
OSD Setting – Front Camera Auto Mode
OEM
NAVI
AV1(DVB-T)
AV2(DVD)
REAR FRONT
OEM
NAVI
AV1(DVB-T)
AV2(DVD)
1~30 second
Car-Solutions.com
www.car-solutions.com
[email protected]

- Factory Reset : Execute - Reset All (Setting Default)
- Version : FW Version
Finish update FW, check the FW versoin
OSD(On Screen Display) Control
OSD Setting – Utility Mode
Software Version
Software Month
Software Year
Special Version
National : CN=CHINA, KR=KOREA, JP=JAPAN, US=United States
Hardware Version
PIP model : PP=PIP, LV=LVDS
Motor model : BM=BMW, BE=BENZ, MA=MASERATI, LX:LEXUS
Last Source : BEPP06SGX-130950
Car-Solutions.com
www.car-solutions.com
[email protected]

1. Quattroporte
Install Manual
Car-Solutions.com
www.car-solutions.com
[email protected]

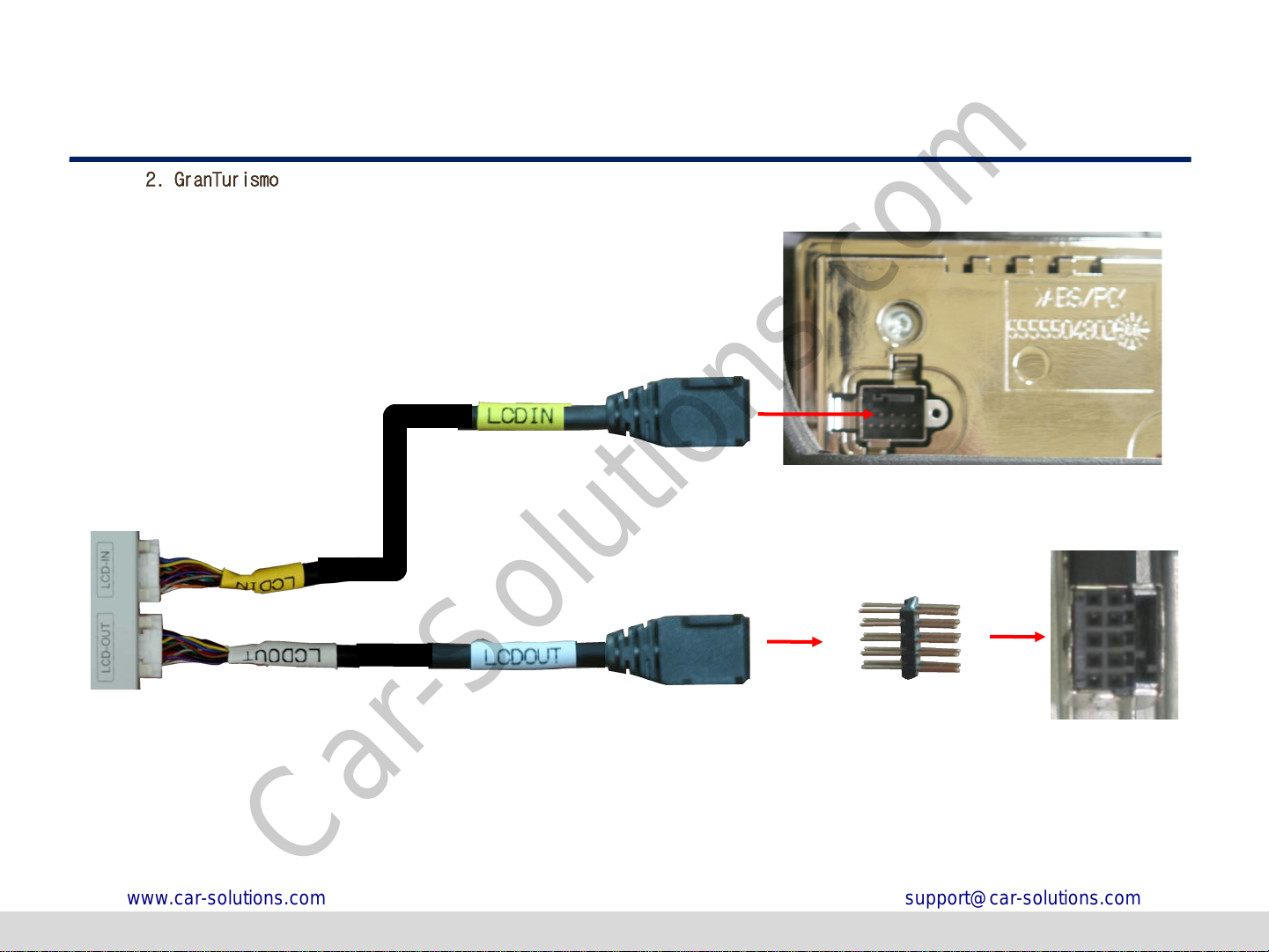

2. GranTurismo
Install Manual
* Quattroporte and GranTurismo LVDS cable are different
LCDIN/OUT change.
Car-Solutions.com
www.car-solutions.com
[email protected]

Q & A
1. If Interface has a problem, Please check LED.
- ACC on (12v), If Interface does not have a problem; GREEN LED is blinking every 1 sec..
- RED LED is turn on (not blinking), Interface has a problem.
- - RED LED is turn off every 1 sec, there is no input.
- - RED LED and GREEN LED both are not turn on, check the CAN or ACC connection.
2. Q : LCD screen blakc
A : LVDS Cable problem or, connection problem.
3. When DTV or DVD mode, cannot control with I-Drive
- Check IR cable, and DTV or DVD device’s ground cable and Interface ground cable join together with
using extra cable.
- Check device in OSD menu
