Car Solutions NB2122T2 User manual

Car Digital TV Box
(DVB-T2)
Car-Solutions.com
[email protected]
www.car-solutions.com

Please read the following instructions carefully.
1.The power input is DC 12V.
2.Do not expose the receiver to rain,moisture,direct sunlight
or do not place it near a heater.
3.Do not use liquid or aerosol cleaners.
Use a light damp cloth for cleaning.
4.The hole on the bottom of receiver must be uncovered to
allow proper airflow to the unit.
5.Do not open or remove cover.
Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2
Standard
- AUTO:16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3
Pan G Scan, 4:3 Full, 16:9 Wide Screen
- Support AV-IN and AV-OUT
- Video format:480i/480p/576i/576p/720p/1080i/1080p
- Support teletext/subtitle/muti-language
- USB2.0 software upgrade
- Powerful and highly effective 7-day EPG function
- Program parameters memorization when power off
- Can store up to 400 TV/radio stations
- Support high-speed mobile signal receiving
This car digital TV box is compatible with the international
standard signal to transmit digital pictures, sound and television
program, so you can get the digital signal easily in your driving.
This product has new interface and menu with different
languages, and full functional remote control, we believe this
product will make your driving interesting.
FRONT AND REAR PANELFEATURES
PRODUCT INTRODUCTION
SAFETY INSTRUCTION
Car-Solutions.com
[email protected]
www.car-solutions.com

RLVI DEO H DMI A NT2 AN T1
AV OUT
DC PO WER IR
VI DEO L R
US B LED
AV IN

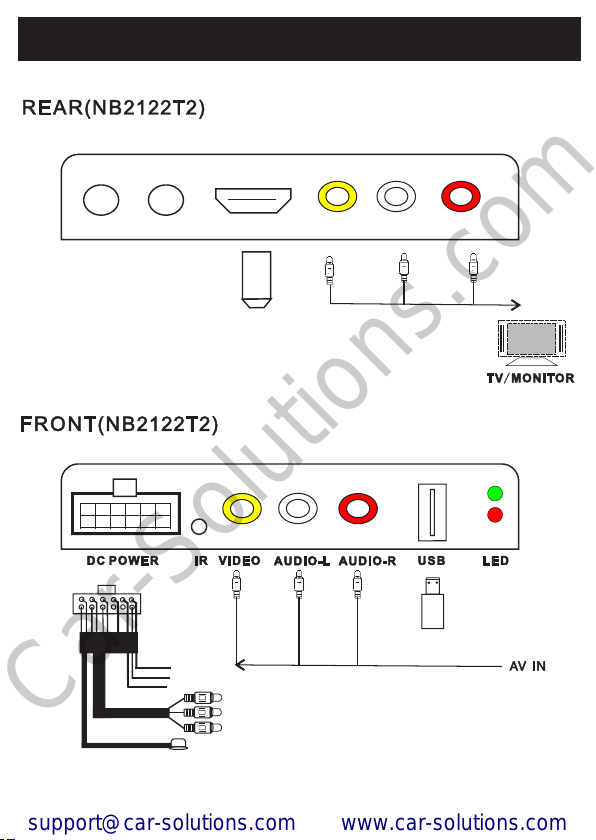

FRONT AND REAR PANEL

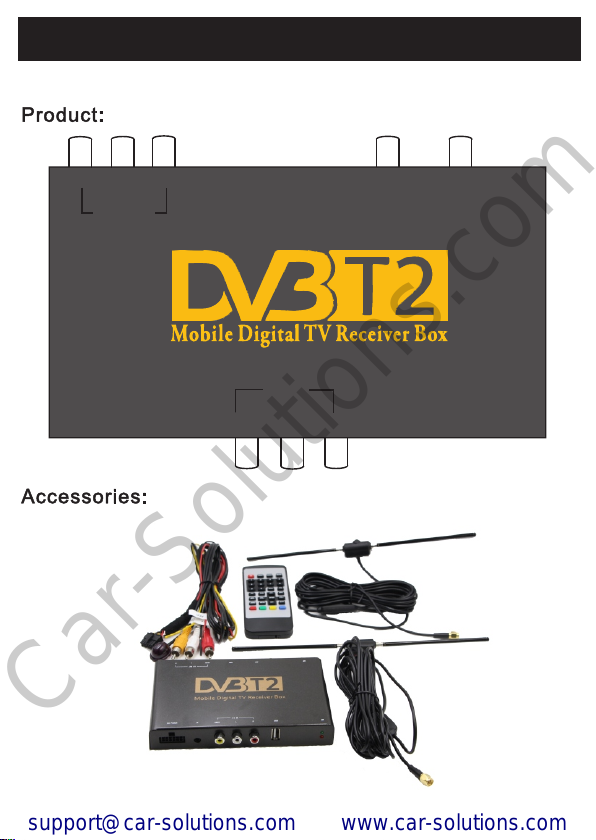

fPRODUCT AND ACCESSORIES
Car-Solutions.com
[email protected]
www.car-solutions.com

AN T1 A NT2 HD MI VI DEO A UDI O-R
AU DIO-L
R(r ed)
L(white)
V(yellow)
ACC (y ellow)
POW E R /B +(red)
GND (b lack)
IR
fFRONT AND REAR PANELFRONT AND REAR PANEL
SIZE: 160(L)×95(W)×25(T) mm
HD MI
YW R
AV OUT
U S B
Car-Solutions.com
[email protected]
www.car-solutions.com

fANT INSTALLATION
1.ANT Structure:
2.ANT Installation:
(1).Front windshield (sunshine shield film)
will cause poor reception as/since it has a
metallic coating.
Please install the antenna on a clear
window position.
(2). Shift antenna to check the signal
strength, then move it to a best position.
(3).The install locations are just for your
reference.
Car-Solutions.com
[email protected]
www.car-solutions.com

fREMOTE CONTROL UNIT (RCU)
3
124
7
568
90
SEARCH
MUTE
RECALL
FAV
TTX
SUB
INFO
VOL-
CH+
ENTER
VOL+
CH-
EPG
EXIT
MENU
AUDIO
-POWER: Power on/off
Switch the receiver between stand-by & on
mode
-TV/RADIO: Select TV and radio mode
-SEARCH: Searching all channels quickly
-MUTE: Mute the audio output
-Numeric Keys (0~9): For direct entry of
channel number or input of alphanumeric
characters
-RECALL: Go back to the previously viewed
channel
-TXT: Display on the teletext contents of the
viewed channel, if teletext is transmitted
-FAV: Select the favorite channels
-SUB: Switch the subtitle on if the subtitle is
transmitted on this channel
-EPG(Electronic Program Guide):Call up the
EPG function
- I N F O : D i s p l a y i n f o r m a t i o n o n v i e w e d
channel
-CH(+/-): Change channels sequentially up or
down in viewing mode and move to the next
higher or lower item in the menu
-VOL(+/-): Alter the Audio output level up or
down in viewing mode or move to the left or
right item in the menu
- E N T E R : S e l e c t a n i t e m o r c o n f i r m a
selection. A list will enter the channel in
viewing mode
- A U D I O : S w it c h t he a ud i o l a n g u a g e i f
transmitting more than one language and
Select different audio modes
-MENU: Access the main menu
-EXIT: To return to previous status or exit
TV/RADIO
Car-Solutions.com
[email protected]
www.car-solutions.com

(picture-1)
(picture-2)
(picture-3)
Digital tv playback function operation

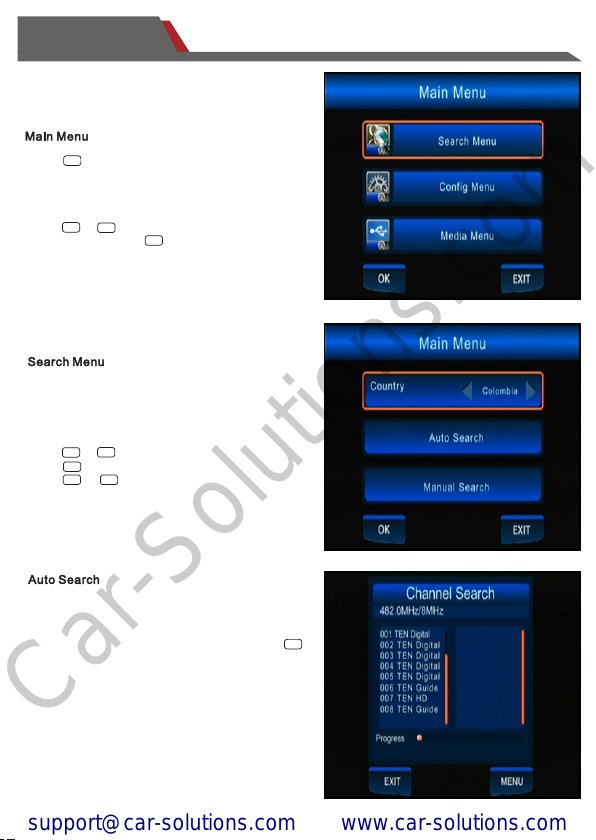

Select “Search Menu”, enter the search menu.
.Country : select country where the device is used.
.Auto Search：begin full-band search；
.Manual Search：enter the manual search menu
Touch it on the screen or
Press or , choose the option that you want.
Press to confirm .
Press or to select country.
CH+
CH-
ENTER
VOL-
VOL+
Select “Auto Search”, it will begin searching all
of the frequences.
When searching,please wait for finish.
If you want to interrupt the search,press the
button.
When it is searching, it will display the current
frequency and the progress of the search.
During the search, if the program is received, it
will be displayed in the display field.
Press on the remote control,or touch
it on the screen. enter the main menu.
.Search Menu：enter search menu；
.Config Menu：enter config menu；
.System Menu：enter system menu.
Press or to choose the option
that you want,press to confirm.
MENU
CH-
ENTER
CH+
EXIT
Car-Solutions.com
[email protected]
www.car-solutions.com

(picture-4)
(picture-5)
(picture-6)
Digital tv playback function operation

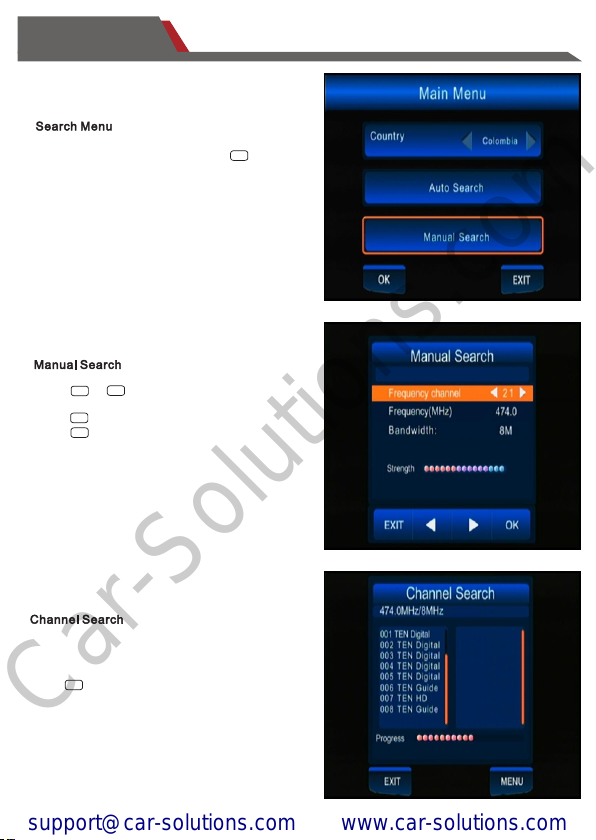

Select " Manual Search",Press on
the remote control or touch it on the screen
to enter the manual search menu.
Press or ,choose the frequency that
you want to search.
Press , confirm and begin to search.
Press , return to the previous menu.
or touch the screen icon.
When you change the frequency，the
"Sterngth"bar will display the signal level.
ENTER
VOL-
VOL+
EXIT
During the search, if the program is
received, it will be displayed in the display
field.
Press to break the search if you don’t
want it to continue.
EXIT
ENTER
Car-Solutions.com
[email protected]
www.car-solutions.com

(picture-7)
(picture-8)
(picture-9)
Digital tv playback function operation

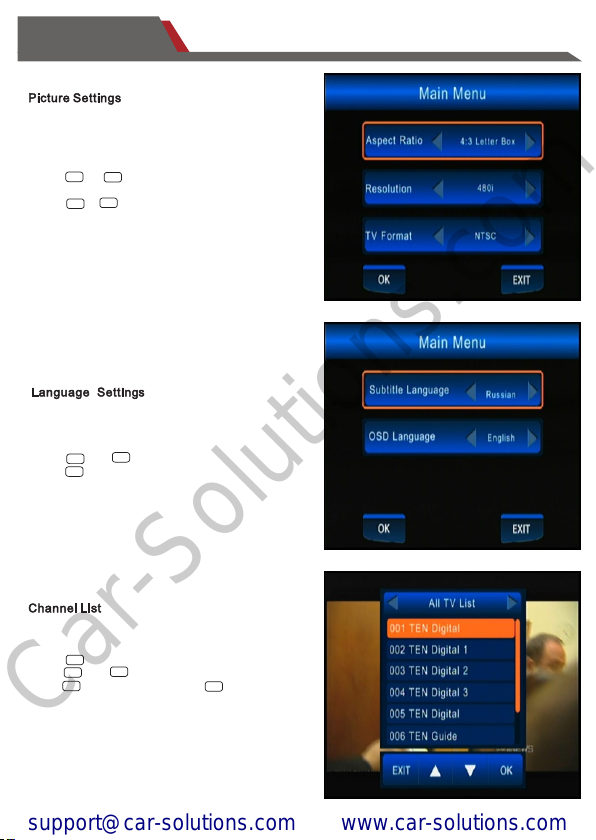

In the "Picture" menu,there are three options:
(1)Aspect Ratio
(2)Resolution
(3)TV Format
Press or ,choose the option that you
want.
Press or so that change the parameters.
CH+
CH-
VOL-
VOL+
Aspect ratio contains multiple 16:9 and 4:3
screen ratio.
Resolution contains 480i, 480p, 720p, 1080i,
1080p.
TV Format contains NTSC and PAL
The device includes multiple language of
many country.
OSD Language is the language of menu.
Press and to choose the language.
Press to return and your setting will auto
save.
VOL-
VOL+
E X I T
When the search is completed, if there is a
program that will automatically play .
Press to check the channel list.
Press and to browse the channel.
Press to choose and press to return.
LIST
CH+ CH-
ENTER
EXIT
Car-Solutions.com
[email protected]
www.car-solutions.com

(picture-10)
(picture-11)
(picture-12)
Digital tv playback function operation
In the play menu,press ,enter the EPG menu.
In the EPG menu,it will display channel name,
date of the program guide, the program schedule
and the program introduction.
Press or , Up or down to switch options;
Press or , Left or right to switch options;
Press , exit the EPG menu.
CH+
CH-
VOL-
VOL+
EXIT
E P G
In the play menu,press ,enter the “INFO”
key to show the information of current programs
when it is in normal playing state. Press again
to show more detail information.
I N F O
You can update the software of the receiver
with New software version
can improve performance or solve the problem.
1. Copy the upgrade file into U SB disk.
2. Get into system item of software update
function.
3.Select up grade process , don't take of the
power supply.
Otherwise the system will fail and can not
power on any more.
Car-Solutions.com
[email protected]
www.car-solutions.com

(picture-14)
(picture-15)
(picture-13)
Digital tv playback function operation

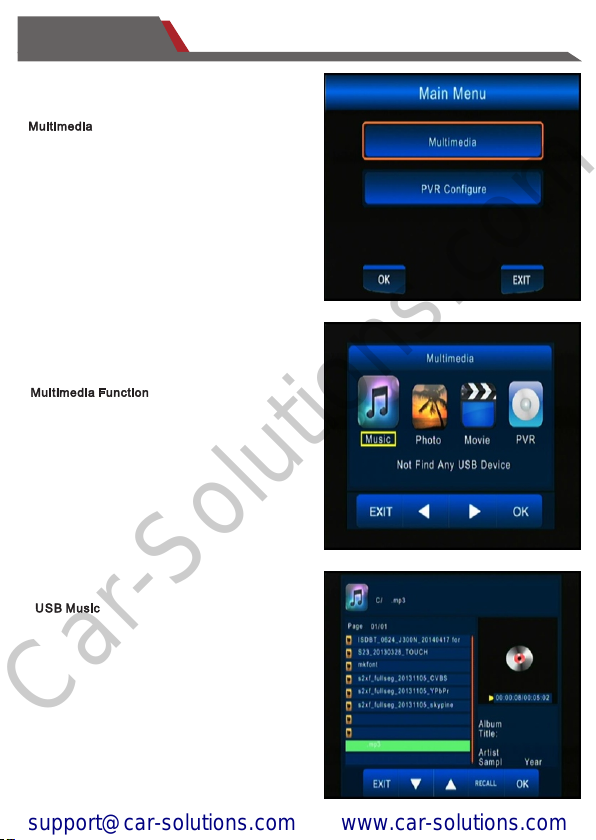

Two options in this Menu.
Multimedia: contains music, photo, movie,
PVR.
PVR Configure: config the PVR parameters.
In Multimedia menu, four options here
Music: play songs.
Photo: browse pictures
Movie: watch movies
PVR : record video
In order to achieve these functions, you
need to access external USB memory.
Select USB Music option , press “OK” key
to confirm.
Press “OK” key to enter next directory.
Follow the bottom key guide to operation.
Car-Solutions.com
[email protected]
www.car-solutions.com

(picture-17)
(picture-18)
(picture-16)
Digital tv playback function operation

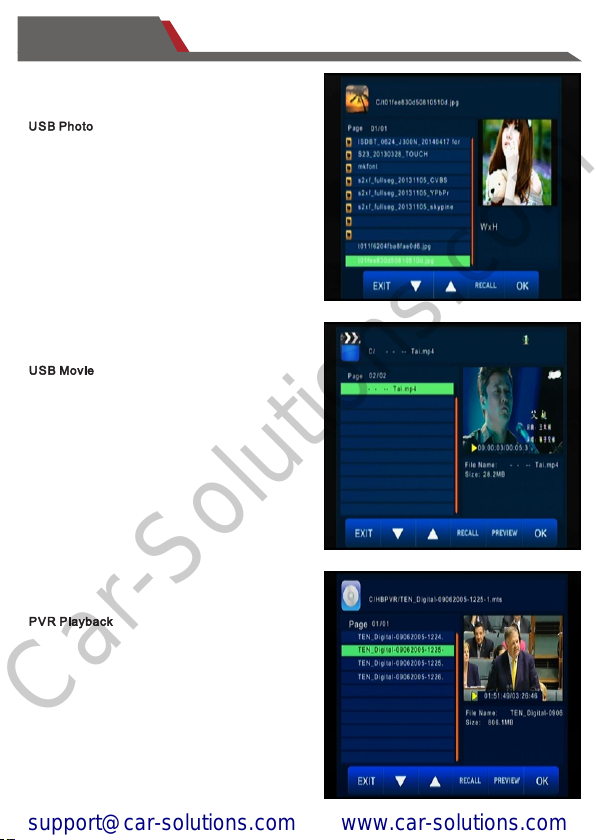

Select USB Photo option, press “OK” key
to confirm .
Press “OK” key to enter next directory.
Follow the bottom key guide to operation.
Select USB Movie option, press “OK”key
to confirm .
Press “OK” key to enter next directory.
Follow the bottom key guide to operation.
if the pre-recorded file in the U SB disk, then
you can select the file and playback.
Only allowed in this machine.
Car-Solutions.com
[email protected]
www.car-solutions.com

(picture-19)
(picture-20)
Digital tv playback function operation

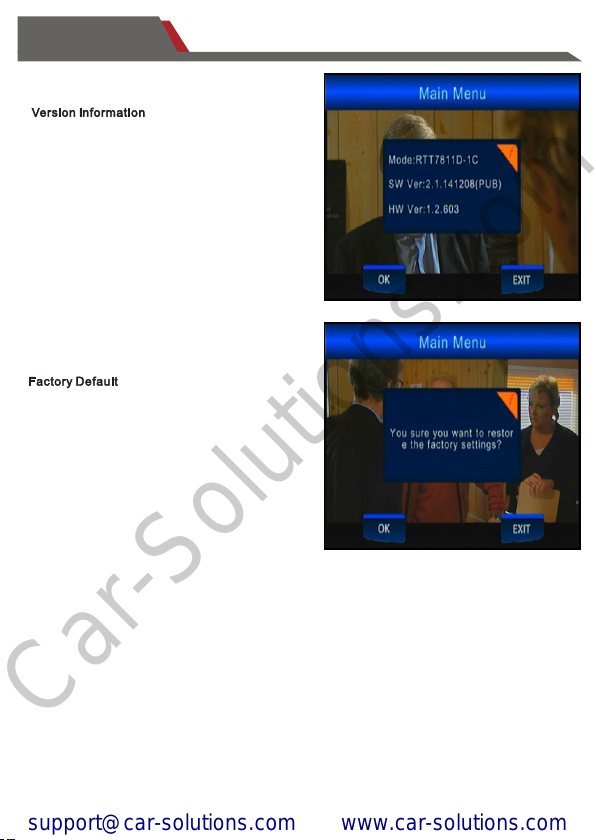

The information included H/W Version,
S/W Version and Model. Press “E XIT ” key
to return previous menu.
Press “OK” to return original factory default
setting.
Car-Solutions.com
[email protected]
www.car-solutions.com

- RF input: 2 SMA-type terminal
- Input Impedance@Antenna: 75ohm
- Frequency range: 48MHz-866MHz
- ANT1 Signal level:-84dBm~0dBm
- ANT2 Signal level:-84dBm~0dBm
- Bandwidth: 6M/7M/8M
- Demodulation: QPSK,16QAM,64QAM, 256QAM
- Guard interval: 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256
- FEC : 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
- Cofdm carrier mode: 1k,2k,4k,8k,16k,32k
-Video Decoder:
MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
-Audio Decoder:
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital),
AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding
HE-AAC 5.1 multi-chhannel decoding
- Video System: PAL/NTSC
- Video input: CVBS
- Video output: CVBS / HDMI
- HDMI Resolution: 1920x1080p/1920x1080i
- Audio Output: Left / Right
- IR remote control
- USB 2.0 for upgrade
- Input Voltage Range: 9V~16V
- Power consumption: <4.5W
- Operation temperature: -20-75℃,
Working limit: -25-80℃
SPECIFICATION
