Carbatec SM-100C User manual

INSTRUCTION MANUAL
Deluxe 10" Meat
Saw/Grinder
Before Using Be Sure To Read This Manual.
This machine is to be used only from 12 C~35 C (53.6 F~95 F)

2
GROUNDING INSTRUCTIONS
1. In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current
to reduce the risk of electric shock. This tool is equipped
with an electric cord having an equipment-grounding
conductor and a grounding plug . The plug must be
plugged into a matching outlet that is properly installed
and grounded in accordance with all local codes and
ordinances.
2. Do not modify the plug if it will not fit the
outlet. Have the proper outlet installed by a qualified
electrician.
3. Improper connection of the equipment grounding cond-
ductor can result in a risk of electric shock. The
conductor (with or without yellow stripe) is the equipment-
grounding conductor. If repair or replacement of the
electric cord or plug is necessary, do not connect the
equipment-grounding conductor to a live terminal.
4. Check with a qualified electrician or serviceman if the
grounding instructions are not completely understood,
or if uncertain whether the tool is properly
grounded.
5. Use only extension cords that have 3-prong
grounding plugs and 3-pole receptacles that accept the
tool's plug.
6. Repair or replace damaged or worn cord immediately.
7. This tool is intended for use on a circuit that has an
outlet that looks like the one illustrated in sketch A.
The tool has a grounding plug that looks like the plug
illustrated in sketch A. A temporary adapter, which
looks like the adapter illustrated in sketches B and C,
may be used to connect the plug to a 1-pole receptacle
as shown in sketch B if a properly grounded outlet is
not available. The temporary adapter should be used
only until a properly grounded outlet can be installed
by a qualified electrician. The green-colored rigid ear,
lug, etc. extending from the adapter must be connected
to a permanent ground such as a properly grounded
outlet box.
Note:
The type of electrical plug and receptacle differs from
country to country.
Caution:
In Canada only the grounding shown in figure (A) is
acceptable. The extension cords should be CSA certified
S.J.T. type or something better.
POWER CONNECTIONS
A separate electrical circuit should be use for the power tools. This circuit should not be less than No.12 wire and
should be protected with a 20 Amp time lag fuse. Never use long extension cords. If an extension cord is used,
use only 3-wire extension cords which have 3-prong grounding type plugs and 3-pole receptacles which accept
the tool plug. Before connecting the motor to the power line, be sure that the electric current is of the same
characteristics as stamped on motor nameplate. All line connections should make good contact. Running on low
voltage will damage the motor.

3
IMPORTANT
As with all power tools there is a certain amount of hazard involved with the operation and use of the tool. Using the tool
with respect and caution will considerably lessen the possibility or personal injury. However, if normal safety precautions are
overlooked or ignored, personal injury to the operator may occur.
SAFETY RULES
1. KEEP GUARDS IN PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND WRENCHES.
Form a habit of checking to see that keys and adjusting
wrenches are removed from tool before turning it on.
3. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite accidents.
4. DON'T USE IN A DANGEROUS ENVIRONMENT.
Don't use power tools in damp or wet locations or expose them
to rain. Keep work areas well lighted.
5. KEEP CHILDREN AWAY.
All visitors should be kept a safe distance from work area.
6. MAKE WORKSHOP KID-PROOF with padlocks, master
switches, or by removing starter keys.
7. DON'T FORCE TOOL. Don't force tool or attachment to do a
job for which it was not designed.
8. USE PROPER TOOL. It will do the job better and safer for the
purpose it was designed.
9. WEAR PROPER APPAREL. No loose clothing, neckties,
rings, bracelets or other jewelry that can get caught in moving
parts. Nonslip footwear is recommended. Wear protective hair
covering to contain long hair.
10. ALWAYS USE SAFETY GLASSES. Also use face mask
when cutting. Everyday eyeglasses only have impact-resistant
lenses and are NOT safety glasses.
11. SECURE WORK. Use clamps or a vise to hold work when
practical. It's safer than using your hand and it frees both hands
to operate tool.
12. DON'T OVERREACH. Keep proper footing and balance at
all times.
13. MAINTAIN TOOLS WITH CARE. Keep tools sharp and
clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
14. DISCONNECT TOOLS before servicing; when changing
accessories such as blades.
15. REDUCE THE RISK OF UNINTENTIONAL
STARTING. Make sure switch is in off position before plugging
in tool.
16. USE RECOMMENDED ACCESSORIES. Consult the
owner's manual for recommended accessorles.
The use of improper accessories may increase risk of injury.
17. NEVER STAND ON TOOL. Serious injury could occur if the
tool is tipped over or if the cutting tool is accidentally contacted.
18. CHECK DAMAGED PARTS. Before further use of the tool,
a guard or other part that is damaged should be carefully
inspected. Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and any other
conditions that may affect its operation. Damaged parts should
be properly repaired or replaced.
19. DIRECTION OF FEED. Feed work into a blade or cutter
against the direction of the blade or cutter only.
20. NEVER LEAVE TOOL RUNNING UNATTENDED.
TURN POWER OFF. Don't leave tool until it comes to a
complete stop.
21. OPERATION SHOULD BE SUPERVISED BY SKILLED
PERSON if user is not experienced in operating this machine.

4
SPECIAL SAFETY RULES FOR BAND SAWS
1. ADJUST the upper guide about 1/8" (3.2mm)
above the material being cut.
2. MAKE SURE that blade tension and blade
tracking are properly adjusted.
3. STOP the machine before removing scrap pieces
from the table.
4. ALWAYS keep hands and fingers away from
blade.
5. CHECK for proper blade size and type.
6. DO NOT attempt to saw stock that does not
have a flat surface unless a suitable support
is used.
7. HOLD material firmly and feed into blade at a steady speed.
8. TURN OFF machine if the material is to be
backed out of an uncompleted cut.
9. MAKE "relief" cuts before cutting long curves.
10. GET HELP so you do not strain yourself.
CL E A NING A ND SA NITIZ ING
1. Before using, clean the inside of main body of the machine.
2. Right after use, clean the inside of machine to prevent meat scraps from spoiling inside the
machine.

5
TROUBLESHOOTING GUIDE
PROBLEM: Motor won’t start
(A) Band saw is not plugged in
(B) Household circuit has fuse or open circuit breaker
(C) Power cord is damaged. Replace
(D) Switch is not in "on" posititon.
(E) Motor requires service.
Band saw blade does not move
although motor is running.
(A) Blade tension knob is not tight. Turn off motor, tighten knob.
(B) Blade has slipped off pulley wheel. Open cover housing and
reposition.
(C) Blade is broken. Replace blade.
Blade will not cut or cuts slowly.
(A) Teeth have been dulled by contact with hardened steels or
prolonged usage. Replace blade.
(B) Blade mounted backwards.
Meat scraps collect inside of band saw.
(A) This is normal - clean out periodically.
(B) Remove cover housing and clean out all meat scraps.
Meat scraps in motor housing.
(A) Use vacuum cleaner nozzle on air intake and exhaust grilles.
(B) Keep workplace clean. Clean up excess meat scraps
frequently.
Unable to get blade to track in
driver of wheel.
(A) Backing bearing not properly adjusted.
(B) Tension wheel not properly adjusted.
(C) Damaged or worn blade. Replace blade.

6
BAND SAW BLADES
A band saw blade is a delicate piece of steel that is subjected to
tremendous strain. You can obtain long use from a band saw
blade if you give it proper treatment. Be sure you use blades of
the proper thickness, width and temper for the type of material to
be cut.
Always use the widest blade possible. Use the narrow blades
only for sawing small pieces, abrupt curves and for fine, delicate
work. This will save blades and will produce better work. Band
saw blades may be purchased welded, set, sharpened and
ready for use.
File and set the cutting blade whenever you find it requires
pressure to make a cut. If a blade is broken, it can be brazed or
welded. However, if it has become work-hardened, it will soon
break in another place. If you are not equipped to file, set and
braze or weld blades, take them to a saw filer for reconditioning.
Under average conditions, blades should be resharpened after 4
hours of operation.
Many conditions may cause a band saw blade to break. Blade
breakage is in some cases unavoidable. However, operator
error often causes blades to break. The most common causes of
blade breakage are: (1) Faulty alignment and adjustment of the
guides, (2) Forcing or twisting a wide blade around a
short-radius curve, (3) Feeding stock too quickly, (4) Dullness of
the teeth or absence of sufficient set, (5) Excessive tightening of
the blade, (6) Top guide set too high above the work being cut,
(7) Using a blade with a lumpy or improperly finished braze or
weld and, (8) Continuous running of the saw blade when not in
use for cutting.
New blades for the standard band saw should be 77 1/2"
(1968mm) length, 5/8" (16mm) width.
OPERATING THE BAND SAW
Before starting the machine, make sure that all adjustments are
properly made and the guards are in place. Turn the pulley by
hand to make sure that everything is correct BEFORE turning on
the power.
Keep the top guide down close to the work at all times. Do not
force the material against the blade too hard. Light contact with
the blade will permit easier following of the line and prevent
undue friction, heating and work-hardening of the blade at its
back edge.
KEEP THE SAW BLADE SHARP and you will find that very little
forward pressure is required for average cutting. Moving the
stock into the blade at a steady speed will provide an easy
cutting movement.
Avoid twisting the blade by trying to turn sharp corners.
Remember you must saw around corners.
CUTTING CURVES
When cutting curves turn the stock carefully so that the blade
can follow without being twisted. If a curve is so abrupt that it
necessary to repeatedly back up and cut a new kerf, either a
narrow blade or a blade with more set is required. The more set
a blade has, the easier it will allow the stock to be turned.
However, the cut is usually rougher than a blade with a medium
amount of set. In order to change the cut, the operator must be
careful that he does not accidentally draw the blade off the
wheels. In most cases it is easier and safer to turn the stock and
saw with a series of cuts to protect the blade.
HOW TO ORDER
REPLACEMENT PARTS
Even this high quality power tool may need occasional
replacement parts to maintain good working condition over the
years. To order replacement parts, contact or write Northern
Tool & Equipment Co.
Please give the following information:
1. Model No. and Serial No. and specifications on the Model
No./Serial No. plate.
2. The number or numbers as shown in the replacement parts
list supplied with your power tool.
3. A brief description of the trouble with the power tool.

7
UNPACKING
Carefully unpack the band saw and check all items. Figure 1~4 illustrates the contents of the carton. Do
not discard any packing material until the band saw is fully assembled and operational.
1. Band saw base unit as shown in (Fig. 1) Stand Pieces (Fig. 2)
2. Stand Hardware Bag
-Knob Screw M6-1 x 12.....................................17
-Special Hex Bolt M10-1.5 x 16...........................3
-Hex Bolt M8-1.25 x 20........................................4
-Carriage Bolt M8-1.25 x 16.............................. 22
-Hex Nut M8-1.25.............................................. 30
-Flat Washer 8mm............................................. 34
-Hex Bolt M6-1 x 20.............................................4
-Hex Bolt M6-1 x 12.............................................4
-Flat Washer 6mm...............................................8
-Tap Screw #6x3/8"............................................12
3. Front Plate.................................................. 1
4. Rear Plate....................................................1
5. Lower Bracket..............................................2
6. Side Cover …..............................................2
7. Face Plate ………........................................1
8. Upper Bracket….….................…..................1
9. Motor Mount Plate........................................1
10. Foot Hardware
-Rubber Pad............................................... 4
-Type set Plate............................................4
Table, fence and grinder pieces (Fig.3) Motor, drive belt and switch pieces (fig.4)
11. Table...........................................................1
12. Guide Sliding Rail....................................... 2 24. Motor with Motor Pulley................................1
13. Large Fence................................................ 1 24-1. Motor Pulley.............................................. 1
14. Small Fence................................................ 1 25. Switch Box.....................................................1
15. Fence Stand Rod........................................ 2 26. Switch............................................................1
16. Fence Supporter......................................... 2 27. Power Cord................................................... 1
17. Table Fixed Plate........................................ 1 28. V-Belt A53 41530………………………………1
18. Grinder Kit................................................... 1
19. Plastic Pusher............................................. 1
20. Plastic Sausage Stuffer............................... 1
21. Blade Guard................................................. 1
22. Blade Cover................................................. 1
23. Table Guard Cover...................................... 1

8

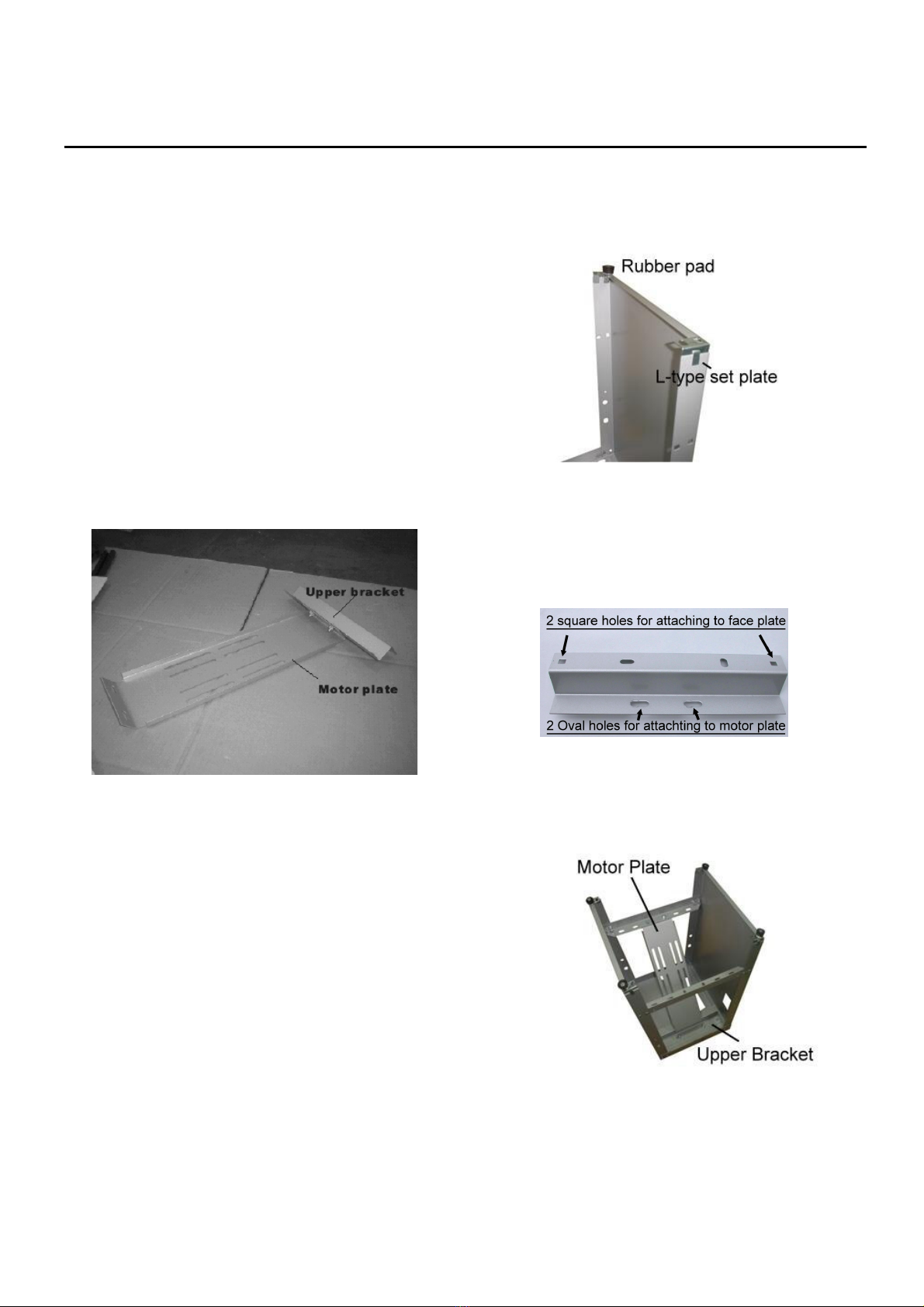

ASSEMBLE STAND
All the following stand pieces except the rubber pad should be assembled with the M8 x 1.25 x 16
mm carriage bolts, 8 mm washers, M8 hex nuts.
1. Place the face plate upside down on a
level surface. Fasten the rear plate
and front plate to face plate using
carriage bolts. Place the 4 L type set
plates on the corner of stand, install the
rubber pad, insert 4 Hex nuts and 4 flat
washers into the rubber pad and attach
the pad to the stand corners. Attach the
lower bracket to the stand sides. (Fig.5)
Fig.5
2. Attach the motor plate to the upper bracket using M8
carriage bolts x2 ,M8 Washer x2 and M8 Nut x2
(Fig.6) Please note below the holes for attachment.
Fig.6
3. Attach the motor plate with the upper
bracket to the inside of the stand as
shown in (Fig.7) using M8 carriage bolts
x2 ,M8 Washer x2 and M8 Nut x2
4. Turn over the stand on its pad to
square out the sides, tightening all
the above loose nuts.
Fig.7

9
ASSEMBLE SWITCH AND MOTOR
1. Mount the switch on the front plate
with 2 Phillips head screws (3/16" x 1/2"),
hex nuts (3/16") and star washers (M5).
(Fig.8)
wiring the on/off switch
Fig.8
2. Place the motor in the motor plate so
the motor pulley is directly under the
pulley slot in the top of the stand. Fasten
the motor, which should be placed on both
sides of the motor plate. (Fig.9)
Fig.9
3. Wiring Dragram
These wiring colors are not specified except for the green ground wire. (Fig.10)
Fig.10

10
ASSEMBLE BAND SAW UNIT
Place the band saw unit on the stand,
fasten the stand to the band saw unit
with 3 set bolts (m1-1.5*16) as shown
in Fig.11
Fig.11
ASSEMBLE V-BELT
1. Loosen the 4 motor mounting bolts, raise the motor up, fitting the V-belt into the pulley grooves, then
let the motor down.
2. Place a slight pressure on the motor to tension the belt, then tighten the 4 motor mount bolts.
3. Make sure the motor does not twist and re-check the pulley alignment. Adjust the positioning
as needed.
ASSEMBLE SIDE COVER
Fit the 2 side covers inside the stand opening and attach
by turning the catch tabs over the edges of the stand as
shown in (Fig. 11-1).
ASSEMBLE TABLE GUARD
COVER AND BLADE COVER
1. Place the table guard around the throat of band saw
unit on the top edge with 2 knob screws of the guard
cover.
2. Place the blade cover around the side of the band
saw, covering the blade with 4 knob screws as shown
in (Fig. 12)

11

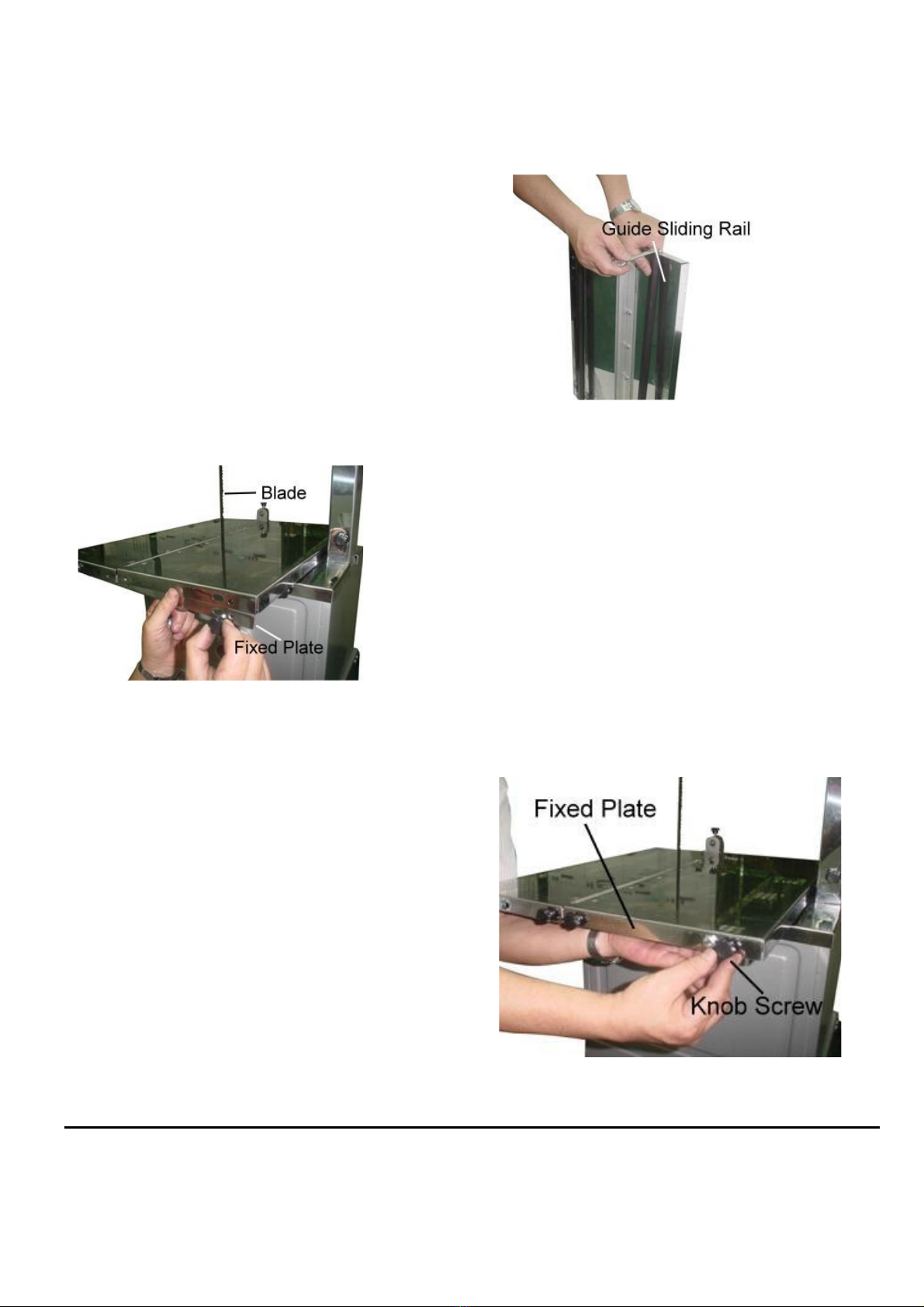

ASSEMBLE TABLE
1.Place and fix one guide sliding rail to the
underside of the sliding table as shown
in (Fig. 13)
Fig.13
2. Slide the blade of band saw through the
slot in the sliding table and place the
sliding table on the rollers. (Note that the
rails should be seated on and put rail hex
corner in the grooves.)
Align the table to
make the blade at the center of the slot
so it won’t hit the blade by adjusting the
position of the screw for the sliding rail.
3. Attach the fixed plate under the open edge of
the table with ( M6-1*12 ) hex bolts as shown
in (Fig. 14)
Fig.14
4. Attach the rails to the table end with knob screws
as shown in (Fig.15)
Fig.15

12
5. Tighten the rails in place, so they can slide
in the roller grooves.
Attention: It is best to position the inside rail so the
Blade is centered in the slot, then squeeze the outer rail into
The roller groove and tighten the screw. Please make sure
The rails are secure in the rollers and the blade does not
Make contact with blade.
6. Make sure the rails are in the roller grooves
and that the table slides smoothly as shown in
(Fig. 15-1).
Fixed plate
Fig.15-1
ASSEMBLE FENCE
1. Attach the fence supporter with hex bolts (M6-1*20) to the table.as shown (Fig. 16-1)
2. Insert the fence rod into the large fence and small fence with knob screws.
3. Attach the large fence into the supporter on the left, and the small fence into the supporter in front with
knob screws as shown in (Fig.16)
Fig.16 Fig.16-1

13
ASSEMBLE BLADE GUARD
Fix the blade with 2 knob screws, and the
star knob one the guide post can used to raise
and lower the blade guard as shown in (Fig. 18)
BLADE TENSION ADJUSTING
Fig.18
1. Turn power off and remove the upper cover.
2. Turn the tension bolt to adjust the tension or
increase the tension as shown in (Fig. 19) &
(Fig.20) (Fig.20-1).
1. Turn power off, open upper wheel cover and
remove the sliding table from the band saw unit.
2. Move the blade guides away from the blade,
so the blade can easily slide out and away
from the blade guide assembly.
Tension bolt
3. Remove the V-belt, and release the tension
from the blade tension bolt.
Fig.19
4. Remove the blades as shown in (Fig. 21)
Fig.20

14
Fig.21

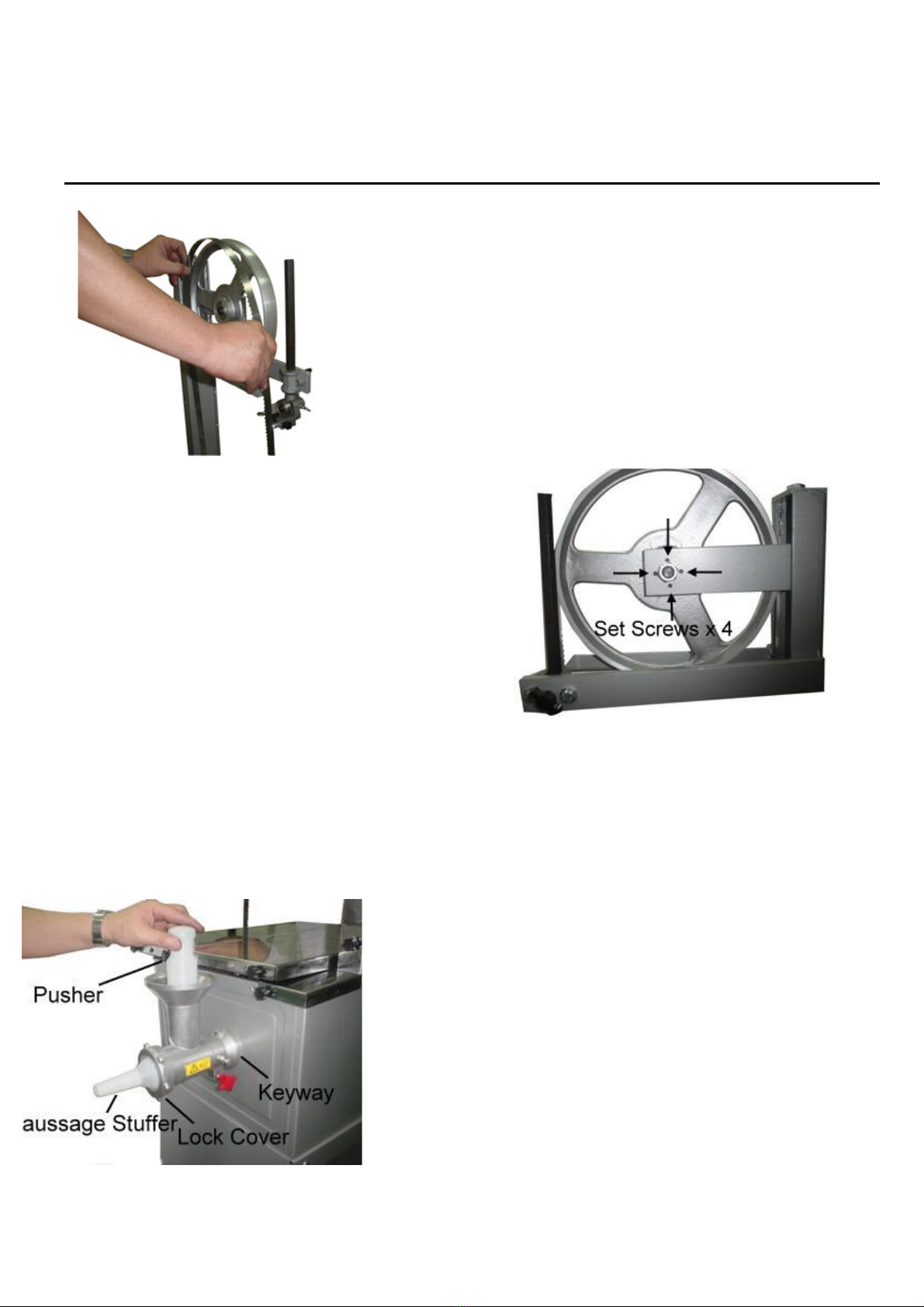

BLADE TRACKING
1. Turn power off and remove the upper wheel
cover.
2. Each setscrew moves portion of wheel in or out
to adjust the upper, lower and left side of the wheel
as shown in (Fig. 22)
Fig.22
ASSEMBLE MEAT GRINDER
1. Turn power off and attach grinder kit to the keyway. Slide the meat grinder into the housing and tighten the lock
cover.
2. To attach a sausage stuffer, remove the lock cover from the end of the meat
grinder housing, fit the collar over the sausage stuffer and put the cover back
on the housing as shown in (Fig. 23)
Fig.23

15

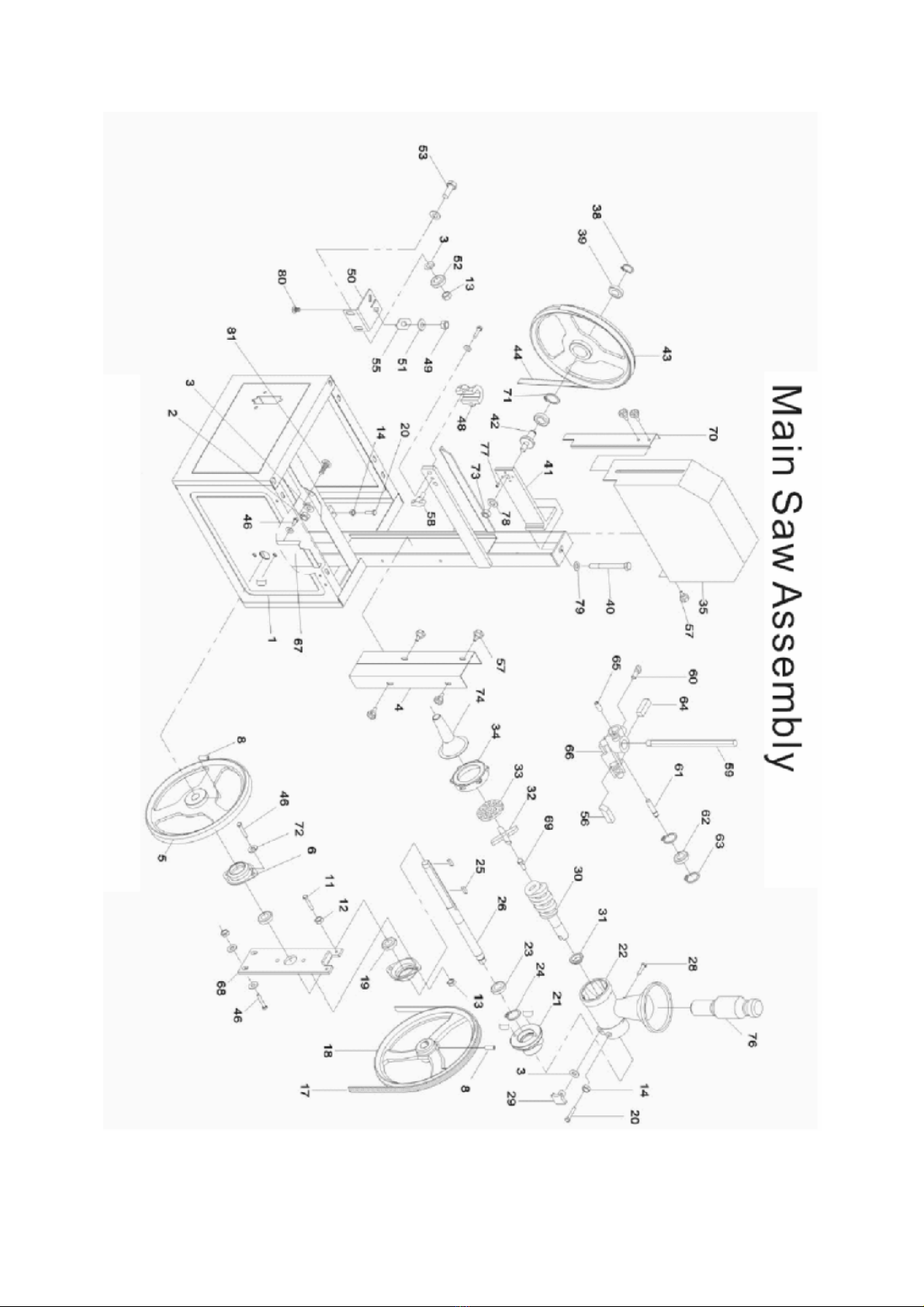

16

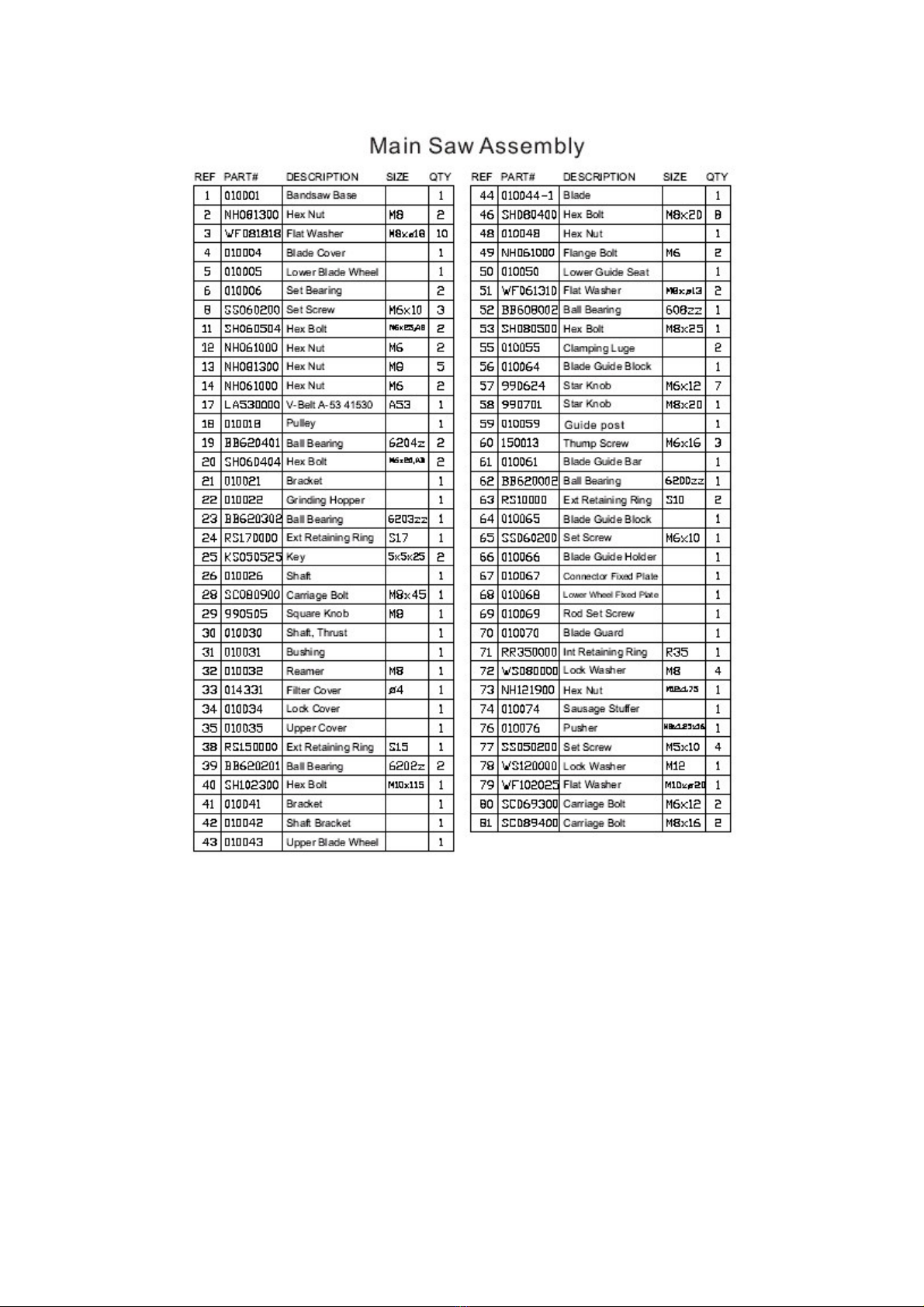

17

18
