CARDIOSTRONG EX90 User manual

Assembly and operating instructions
EllipticalcrosstrainerEX90
Art. No. CST-EX90
CSTEX90.01.02

EX90

2

EX90
3
Dear Customer,
Thank you for deciding for a high-quality training equipment of the brand cardiostrong®, the brand
that makes athlete‘s hearts beat faster. cardiostrong® oers a wide range of home tness equipment
like elliptical cross trainers, ergometers, treadmills and rowing machines. cardiostrong® equipment
is the optimal equipment for all those who want to train at home independent of goals and tness
level. For further information please visit www.sport-tiedje.com or www.cardiostrong.de.
SAFETY INSTRUCTIONS
Please read all of the instructions carefully before assembly and rst use. These
instructions are intended to ensure speedy assembly and explain safe usage. Make
sure that all people exercising with the equipment (in particular children and
persons with limited physical, sensory, mental or motor capabilities) are informed
about these instructions and its content in advance. In case of doubt, a responsible
person must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure to follow the
instructions carefully and that all parts are securely in place. If required, read through the instructions
again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The equipment is only suitable for use at home. The equipment is not suitable for semi-professional
(e. g., hospitals, clubs, hotels, schools, etc.) and commercial or professional use (e. g., health clubs).
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

EX90

4
CONTENTS
1 GENERAL INFORMATION 5
1.1 Technical data 5
1.2 Personal safety 6
1.3 Electrical safety 7
1.4 Set-up place 7
2 ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE 8
2.1 General instructions 8
2.2 Faults and Troubleshooting 9
2.3 Maintenance and service calendar 9
3 ASSEMBLY 10
3.1 Package contents 10
3.2 Assembly instructions 11
4 OPERATING INSTRUCTIONS 18
4.1 Console display 18
4.2 Button functions 20
4.3 Turning on and setting the equipment 21
4.4 Programs 22
4.4.1 MAN. - Manual program 23
4.4.2 PROG – Pre-set programs 23
4.4.3 USER - User dened program 25
4.4.4 H.R.C. - Heart rate oriented programs 26
4.4.5 WATT - Watt controlled program 27
4.4.6 RECOVERY - Fitness test 28
4.5 Heart rate measuring 29
5 WARRANTY INFORMATION 31
6 DISPOSAL 33
7 ORDERING ACCESSORIES 33
8 ORDERING SPARE PARTS 34
8.1 Service hotline 34
8.2 Serial number and model name 34
8.3 Parts list 35
8.4 Exploded drawing 39

EX90
5
1 GENERAL INFORMATION
1.1 Technical data
LCD display of
+speed in km/h
+training time in min
+training distance in km
+cadence (rotations per minute)
+calories burnt in kcal
+heart rate (when using the hand sensors or a chest strap)
+Watt
+resistance level
Resistance system: electronic magnetic brake system
Resistance level: 16
Watt: 10 - 350 Watt (adjustable in 5-Watt increments)
User memory: 4
Total number of training programs: 19
Manual programs: 1
Pre-set programs: 12
Watt-controlled programs: 1
Heart rate controlled programs: 4
User dened programs: 1
Balance mass: 12 kg
Step length: 45 - 65 cm
Step width: 11 cm
Electronic stride length adjustment:
18“ (45 cm), 20“ (50 cm), 22“ (55 cm), 24“ (60 cm), 26“ (65 cm)
Weight and dimensions:
Item weight (gross, incl. packaging): 130.5 kg
Item weight (net, without packaging): 115 kg
Packaging dimensions (L x W x H): approximately 1400 mm x 1160 mm x 510 mm
Set-up dimensions (L x W x H): approximately 1450 mm x 875 mm x 1650 mm
Maximum user weight: 130 kg/286 lbs

EX90

6
1.2 Personal safety
+Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who: have
a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke,
have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
+Please note that working out excessively can seriously damage your health. Please also be aware
that heart rate monitoring systems might be imprecise.
+The equipment may only be used for its intended purpose; that means for whole body workouts
for adults.
+Any other usage is prohibited and potentially dangerous. The contract partner cannot be held
liable for damage resulting from improper use.
+The equipment is strictly for use by one person at a time.
+Children should not be allowed unsupervised access to the equipment.
+Before starting your training, make yourself familiar with all of the equipment‘s functions and
setting options. Have an expert explain the correct usage of the product to you.
+Make sure that nobody is in the range of motion of the equipment while exercising.
+Keep your hands, feet and other body parts, hair, clothing, jewelry and other objects well clear of
moving parts.
+During use, wear suitable sports clothing rather than loose or baggy clothing. When selecting
sports shoes, think about the suitability of the sole – preferably this should be made of rubber or
other non-slip materials. Shoes with heels, leather soles, studs or spikes are not suitable. Never
work out in bare feet.
+It is also important to take note of the information given in the workout instructions for creating
a workout plan.
+At the rst signs of weakness, nausea, dizziness, pain, diculty in breathing or other abnormal
symptoms, stop your workout immediately and, if necessary, consult your physician.
+Without prior agreement from your authorized contract partner, opening the equipment is
prohibited.

EX90
7
1.3 Electrical safety
+The equipment requires a 220 - 230V / 50 Hertz mains power supply.
+The equipment should be connected directly to a grounded plug socket only by means of the
power cable supplied. The use of multi-socket adapters or similar is not recommended. Extension
leads must comply with local electrical safety guidelines. Always fully unwind the power cable.
+The outlet should be secured with a fuse with a minimum value of„16 amperes, slow“.
+In order to reduce the risk of an electric shock, always unplug the equipment from the mains
socket immediately after your workout, before assembly or dismantling, and before maintenance
or cleaning. Do not pull on the cable.
+When plugged in, do not leave the equipment unattended at any time. To avoid use by anyone
unfamiliar with the operating instructions, the power cable should be removed when the
equipment is not in use.
+Keep the power cable away from heat, oil and sharp edges. Do not route the power cable
underneath the equipment or under a carpet or rug, and do not place any objects on top of it.
+Make no modications to either the power cable or the mains plug.
+If the power cable or the plug are damaged or defective, contact your authorized contract
partner. Do not use the equipment in the meantime.
+Do not keep electrical devices (e. g., mobile phones) in close proximity to the console or the
control electronics, otherwise display values (e. g., pulse measuring) could be inaccurate.
1.4 Set-up place
+The equipment should only be used indoors, in a suciently heated and dry area (ambient
temperature between 10°C and 35°C). The equipment should not be used outdoors or in rooms
with high humidity (over 70%) like swimming pools. The equipment should only be stored in
surroundings with an ambient temperature between 5°C and 45°C.
+The training room should be well ventilated during training and not be exposed to any draughts.
+Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment (at least 1.50 m). Furthermore,
the equipment should not be set up in main entrances or on escape routes.
+Always keep the power cable away from hot surfaces and grounds and make sure that the cable
is not stuck somewhere or becomes a„trip hazard“.
+No objects of any type should be inserted into the openings of the equipment.
+The equipment should be placed on a level and solid surface, any unevenness in the oor should
be leveled out.
+A oor protective mat / equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

EX90

8
2 ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE
2.1 General instructions
+Please check if all parts and tools belonging to the equipment are included in the delivery and if
there is any transport damage. If there are any complaints, please contact your contract partner
directly.
+Some of the nuts and bolts to be used in assembly are already pre-mounted in order to make
set-up as easy as possible.
+The equipment must be assembled by adults. In case of doubt, ask for assistance from another
person with technical skills.
+Keep children away from the equipment during assembly, because small parts are included in
the delivery and may be swallowed.
+Make sure that you have enough space (at least 1.50 m) in every direction during assembly.
+Do not leave any tools and packaging materials like plastic sheeting laying around to avoid
danger of suocation for children.
+Assemble the equipment on an underlay mat or on the cardboard packaging in order to avoid
damage to the equipment and to the oor (scratches).
+Before starting assembly, all individual parts should be placed on the oor next to each other.
+Read the assembly instructions carefully and assemble the equipment according to the
illustrations. Proceed carefully and cautiously.
+First loosen all parts and check for their correct tting. Then tighten the screws using a tool.
+Modications to the design or improper repairs may pose a hazard to the user and should not be
carried out. The product warranty may be void as a result.
+Only authorized service technicians are permitted to carry out all servicing and/or repairs – it
excludes maintenance and care.
+Damaged or worn components may impair your safety and the lifespan of the equipment.
You should therefore immediately replace damaged or worn components. Please contact your
contract partner in such a case. The equipment should no longer be used until it has been
repaired. When needed, only use original cardiostrong® spare parts.
+Check the tightness of all screw connections once a month.
+In order to be able to guarantee the constructively dened safety level of this equipment, we
recommend having the equipment regularly maintained (at least once a year) by specialists
(service technicians of your contract partner).
+The equipment may be cleaned of dust, dirt and sweat using a damp cloth. The use of solvents
should be strictly avoided. Also, make sure that no liquids (e. g. sweat) get into the openings of
the equipment (e. g. console).

EX90
9
2.2 Faults and Troubleshooting
The equipment runs through regular quality controls during production. Nevertheless, errors
or malfunctions on the equipment may occur. Individual parts are often the cause of faults and
replacement is usually sucient. Please use the following overview to see the six most common
errors and how to repair them. If the equipment still does not work properly, please contact your
contract partner.
Problem Cause Solution
Drive discs wobble or
make noises
Drive pulley is loose Tighten nuts
Display does not work No plug connection, power
supply not plugged in
Check all plug connections and see if
the power supply is plugged in
Footplates are creaking Footplates are loose Tighten up the footplate screws
Creaking noises Screws are loose Check screws are properly tightened
Guide rails are
squeaking
Guide rails or rollers are dirty
or the guide rails are dry
Clean the guide rails, then lubricate
with a non greasy silicone
No pulse reading • Sources of interference in the
room
• Using a chest strap:
- Unsuitable chest strap
- Chest strap is incorrectly
positioned
- Batteries are discharged
• Eliminate sources of interference
(e. g. mobile phone, loudspeaker,
etc.)
• Use a suitable chest strap (see
recommended accessories)
• Reposition the chest strap and/or
moisten the electrodes
• Change the batteries
2.3 Maintenance and service calendar
The following routine work must be done in the specied time intervals:
Part Weekly Monthly 2x annually Annually
Display console C I
Lubricate the moving parts I
Plastic cover C I
Screws and cable connections I
Legends: C = cleaning; I = inspect

EX90

10
3 ASSEMBLY
3.1 Package contents
The package contains the parts represented in the illustration, including a power cable with mains
plug. If one of the illustrated parts is missing, please contact your contract partner.

EX90
11
3.2 Assembly instructions
Before starting assembly, look carefully through the individual assembly steps shown and assemble
the equipment in the order indicated.
Caution while unpacking:
First lay the box at so that you can lift the cover. Then take handles, side bars, pedal bars and the user
instructions out of the box.
Remove the upper foam cushion (1) and (2) and leave the main frame (A) and the lower foam cushion
(3) and (4) in the box until you are told to remove these in step 2 of the assembly instructions. After
this, take console, console mast as well as screws and tools out of the box.
Note: For safety reasons, the pedal bars may rst be unlocked with the corresponding turning knob
when you are asked to do so at the end of the instructions.
Foam (1)
Foam (2)

EX90

12
Step 1: Assembly of the main mast (F1)
(1) Loosen two screws (F5) from the main
frame (A) and two screws from the main
mast (F1).
(2) Connect the main mast (F1) with
the main frame (A) with the previously
loosened four screws (F5).
Note: Do not tighten the screws (F5)
completely yet.
Tool: 6mm Allen key
Step 2: Assembly of the right side bar (C2)
(1) Mount the right side bar (C2) on the main frame (A) with a screw (J8) on top (gure A) and two
screws (J2) with the holder (F2) on the bottom (gure B).
Note: Do not tighten the screws (J8 and J2) completely yet.
(2) Raise the main frame (A) with two people and remove the foam.

EX90
13

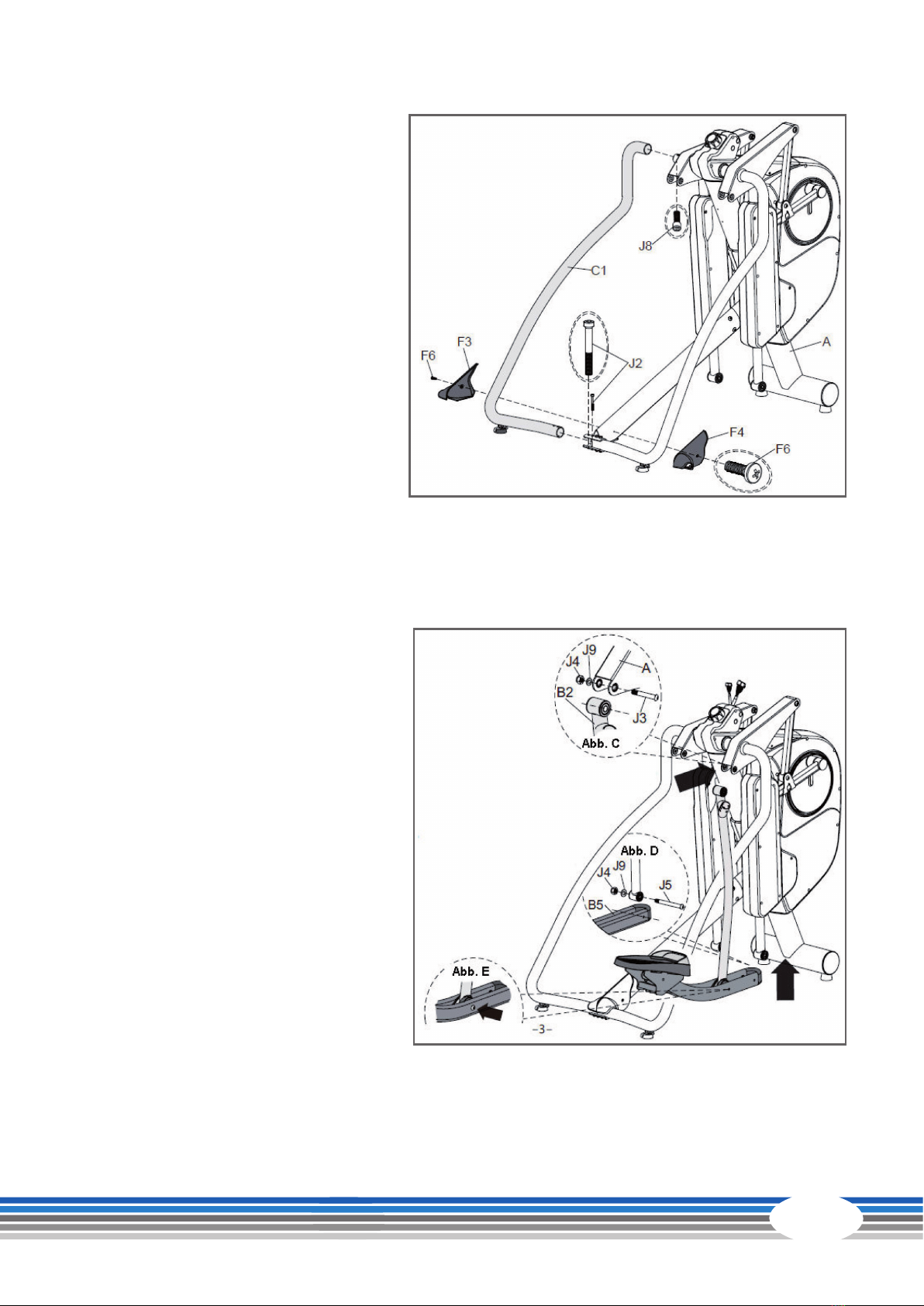

Step 3: Assembly of the left side bar (C1) and covers
(1) Connect the left side bar (C1) on the
main frame (A) with a screw (J8) on top
and two screws (J2) and the holder (F2)
on the bottom (see step 2).
(2) Now you can tighten all of the screws
from the previous steps (F5, J8 and J2).
(3) Loosen the two screws (F6) from the
main mast (F1).
(4) Mount the covers (F3 and F4) on
the main mast (F1) with the previously
loosened screws (F6).
Step 4: Assembly of the pedal bars
(1) Connect the right pedal bar (B2) on
top with the main frame (A) and mount
this with the nuts (J4), washers (J9) and
screws (J3); see gure C.
(2) Mount the pedal bar on the bottom of
the main frame with a bolt (J5), a washer
(J9) and a nut (J4); see gure D.
(3) Tighten the bolt (J5) and the nut (J4);
see gure E.
(4) Repeat the process for the left pedal
bar (B1).

EX90

14
Step 5: Assembly of the handles
(1) Loosen the six pre-mounted screws
(J10 and J11) from the left handle (E1).
(2) Connect the left handle (E1) with the
main frame (A) by tightening all screws
(J10 and J11) with two 6mm Allen keys;
see gure F.
(3) Repeat the process for the right handle
(E2).
Step 6: Assembly of the console mast and the bottle holder
(1) Connect the cables (D1 and D2) from the console
mast (D) with the cables (A1 and A2) from the main
frame (A).
(2) Mount the console mast (D) on the main frame
(A) with two screws (J1) and two pre-mounted
screws; see gure G.
(3) Mount the bottle holder (H) on the main frame (A)
with two screws (J6).

EX90
15

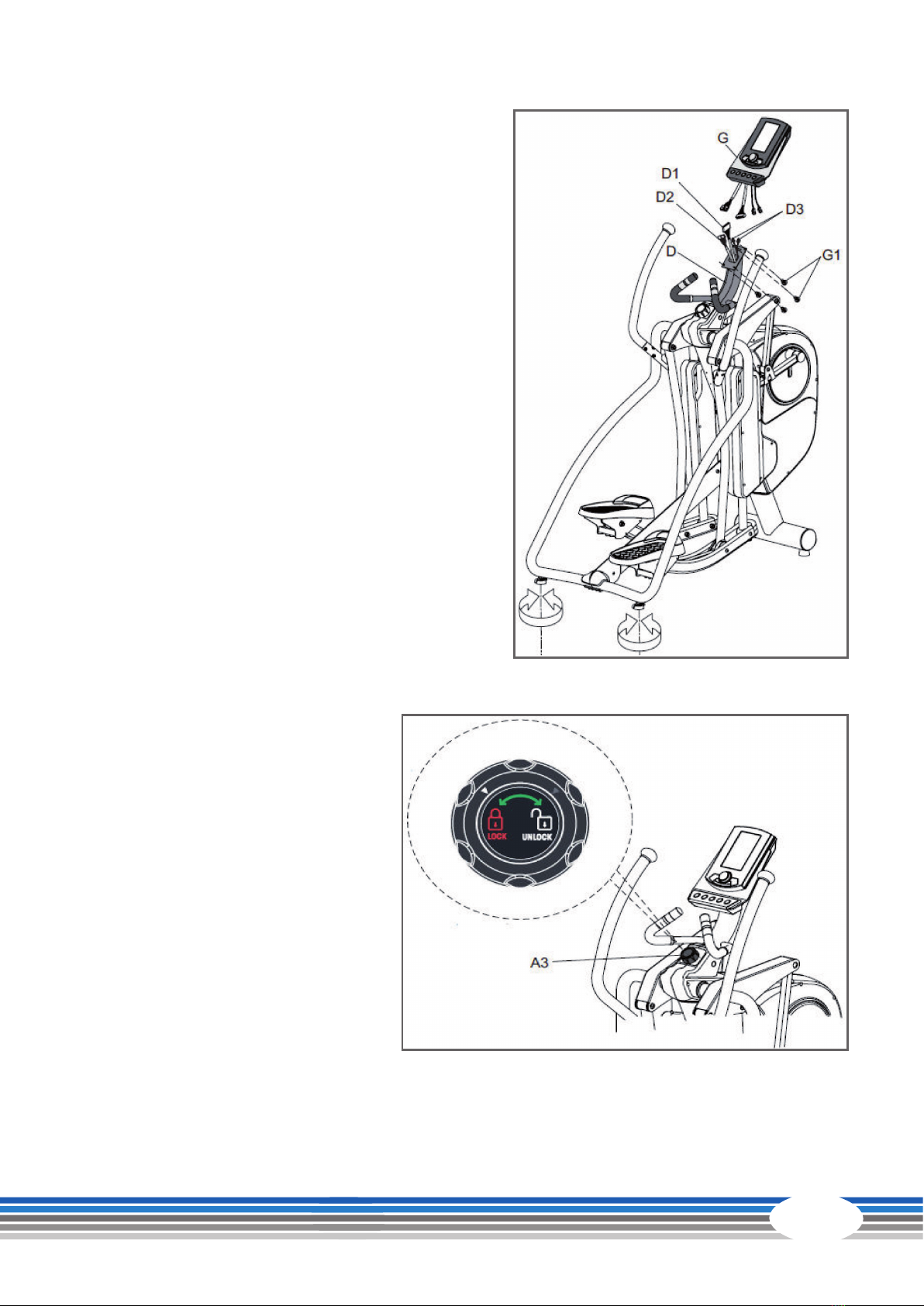

Step 7: Assembly of the console and adjusting the supporting feet
(1) Loosen the four pre-mounted screws (G1) from the
console (G).
(2) Connect the console cables (D1 and D2) and the
heart rate cables (D3) from the console mast with the
console.
Note: Make sure that the cables are properly
connected with each other. Slide the excess cable into
the casing and the console mast (D).
(3) Mount the console (G) on the console mast (D) with
the four screws (G1).
(4) Use the adjusting screws under the side parts in
order to level out the unevenness in the oor.
Step 8: Locking the pedal bars (B1 and B2)
The pedal bars should always be
locked, when the equipment is not
in use.
To do this, turn the knob (A3) to the
“LOCK” position in order to lock the
pedal bars (B1 and B2) and to avoid
possible injuries.
Note: Never lock the pedal bars, when
the equipment is still moving, but only
when the equipment has come to a
complete standstill.

EX90

16
Step 9: Transporting the equipment
While transporting the equipment, make absolutely sure that the pedal bars are locked.
Then lift the equipment on the side bars until the transport wheels touch the oor. Now you can
move the equipment to your desired place. Then lower carefully the equipment.
Step 10: Connecting the power cable
Plug the cable in the connection
on the main frame before you plug
the other end in the outlet.
** The overload switch protects
against short circuits. The knob
will pop out if there is an overload.
Turn the power switch o and then
back on to restart the equipment.
Transport wheels

EX90
17
Step 11: Setting the stride length
This equipment oers ve dierent settings of the stride length. Through the hot keys, you can
choose between 45 cm (18”), 50 cm (20”), 55 cm (22”), 60 cm (24”) and 65 cm (26”). The selected stride
length is displayed on the console and can be adjusted at any time while training.
Certain muscle groups are used dierently through dierent stride lengths. This can also be achieved
by adjusting the resistance or the user bends down while holding on to the handles.
Note: If the stride length motor is activated, you will hear how the motor adjusts the stride length
and then locks.

EX90

18
4 OPERATING INSTRUCTIONS

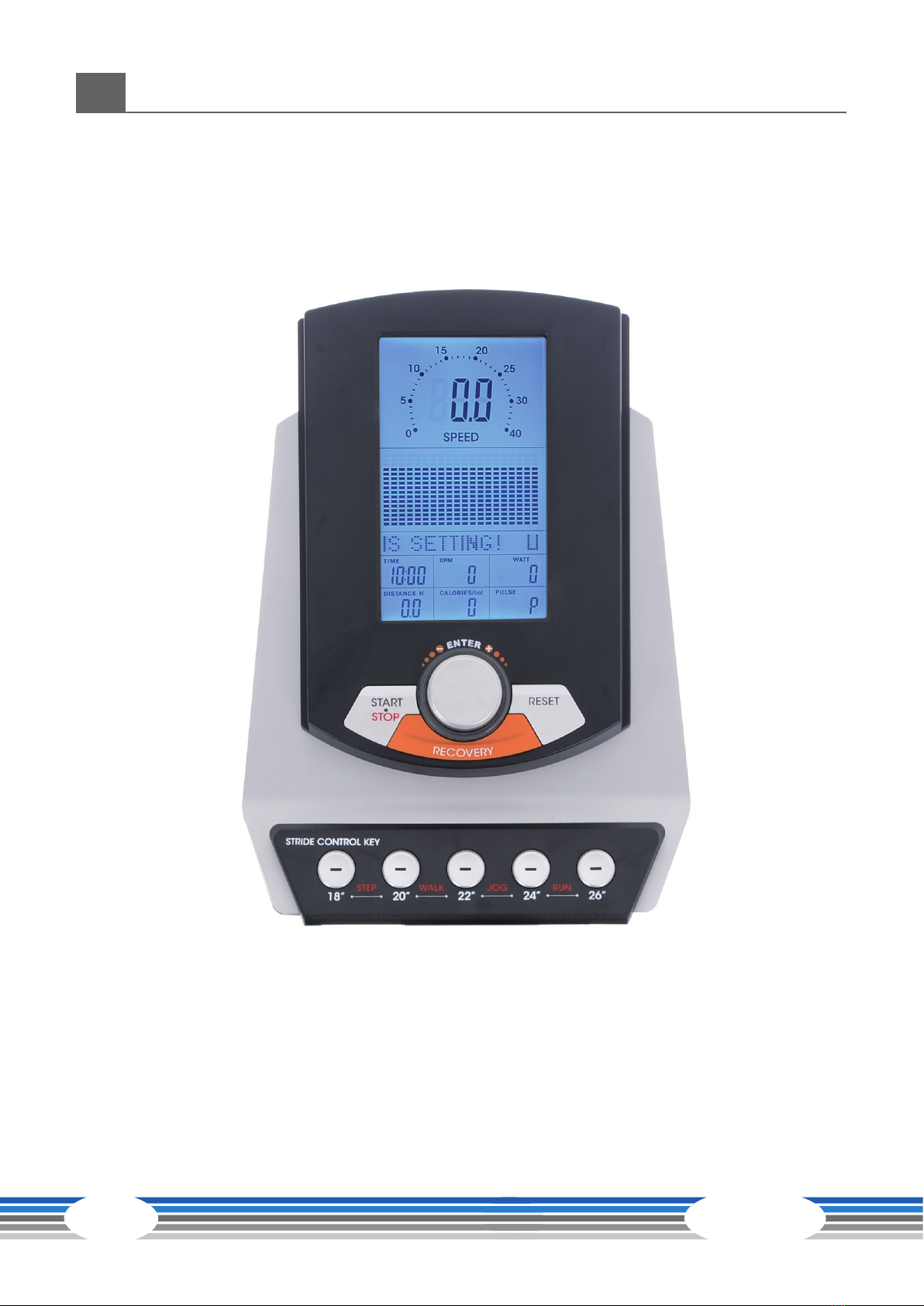

4.1 Console display

EX90
19
Time 0:00 - 99:00 minutes
Speed 0.0 - 99.9 km/h
RPM (cadence; rotations per minute) 0 - 999 RPM
Distance 0.0 - 99.9 km
Calories 0 - 990 Cal
Gender Male/Female (m/f)
Pulse (heart rate; heart beats per minute) 30 - 230 BPM
Heart rate symbol On/o - blinking
Programs P1 - P12
User data U1 - U4
Watt/load (power/resistance) 0 - 999 Watt; Watt control: 10 - 350 Watt
Level 1 - 16
H.R.C. (heart rate control) 55 / 75 / 90% of the max. heart rate; manual
target rate (TAG)
Age 1 - 99 years
Height 100 - 250 cm
Weight 20 - 150 kg (44 – 330 lbs)

EX90

20
4.2 Button functions
TURNING KNOB
RIGHT
With this button, you can change the
settings or increase the resistance.
TURNING KNOB LEFT With this button, you can change the
settings or lower the resistance.
TURNING KNOB
ENTER
With this button, you can conrm all
settings.
START/STOP With this button you can start and stop
the training.
RESET
With this button, you can reset the
current settings and return to the
beginning.
RECOVERY With this button, you can execute the
tness test after training.
