CargoKid Economy Operating instructions

USER AND MAINTENANCE MANUAL
Electric cargo bike Deluxe,
Frontloader, Ekids
Model:
Economy/Premium/ProPlus

CONGRATULATIONS ON YOUR CARGOKID ELECTRIC CARGO BIKE
We hope you will enjoy your new cargo bike for many years to come!
To ensure proper use of your cargo bike, it is important to read through this manual before using the bike. The
manual contains useful advice on safety and general maintenance.
You are always welcome to contact our customer service at tel.: [phone], or [email protected]k who are
always ready to help you if you have any questions about your new cargo bike.
Enjoy!

1: PURCHASE AND SERVICE
1.1: WARRANTY/COMPLAINTS
•Cargokid provides a 10-year warranty against frame breakage caused by manufacturing defects.
•For all other components of the bike, a 2-year warranty is provided in accordance with legislation.
•However, wear parts such as brakes, tires, chains, sprockets, cables, gears, etc. are excluded. (Read
more about this in the accompanying service booklet)
COMPLAINTS WILL BE REJECTED IF
•The cause is incorrect assembly, lack of maintenance, overload, vandalism or damage caused by falls,
etc.
•The complaint is made after the expiration of the warranty period.
RECEIPT/INVOICE
•When you purchased your Cargokid bike, you received an order confirmation and invoice by email,
which should be saved and used in the event of a complaint.
•You are always welcome to contact our customer service at tel.: [phone], who are always ready to
help you if you have any questions about your bike.
1.2: ELECTRIC BIKE BATTERY
•Your electric bike is equipped with the latest battery technology for electric bike batteries.
•A 2-year warranty is provided for electric bike batteries in accordance with Danish legislation.
Cargokid also provides a 3-month warranty on all our batteries.
•An electric bike battery requires maintenance. You should charge your electric bike battery at least
once a month to keep it in good condition. To ensure full battery power, the battery should be fully
charged before use. Optimal charging occurs at +20°C.
•The battery should not be stored in humid environments or exposed to direct contact with water.
After riding in heavy rain, it is recommended to check the battery for moisture and store the battery
at room temperature until it is free of any moisture.

2: BIKE STRUCTURE
2
Benches with room for 4 children
Step-through frame
Spokes
Rim and tire
Hydraulic brake
Pedalarm
Pedal
Motor
250
W
Mudguar
d
Battery
Saddle
Handlebar
Hydraulic brake
Regulator to handlebar
Frontbrake
Bell
Display
Gears shifter
Rear brake
Remote for display
Parking brake
Headlight
Chain
Adjustable seat post

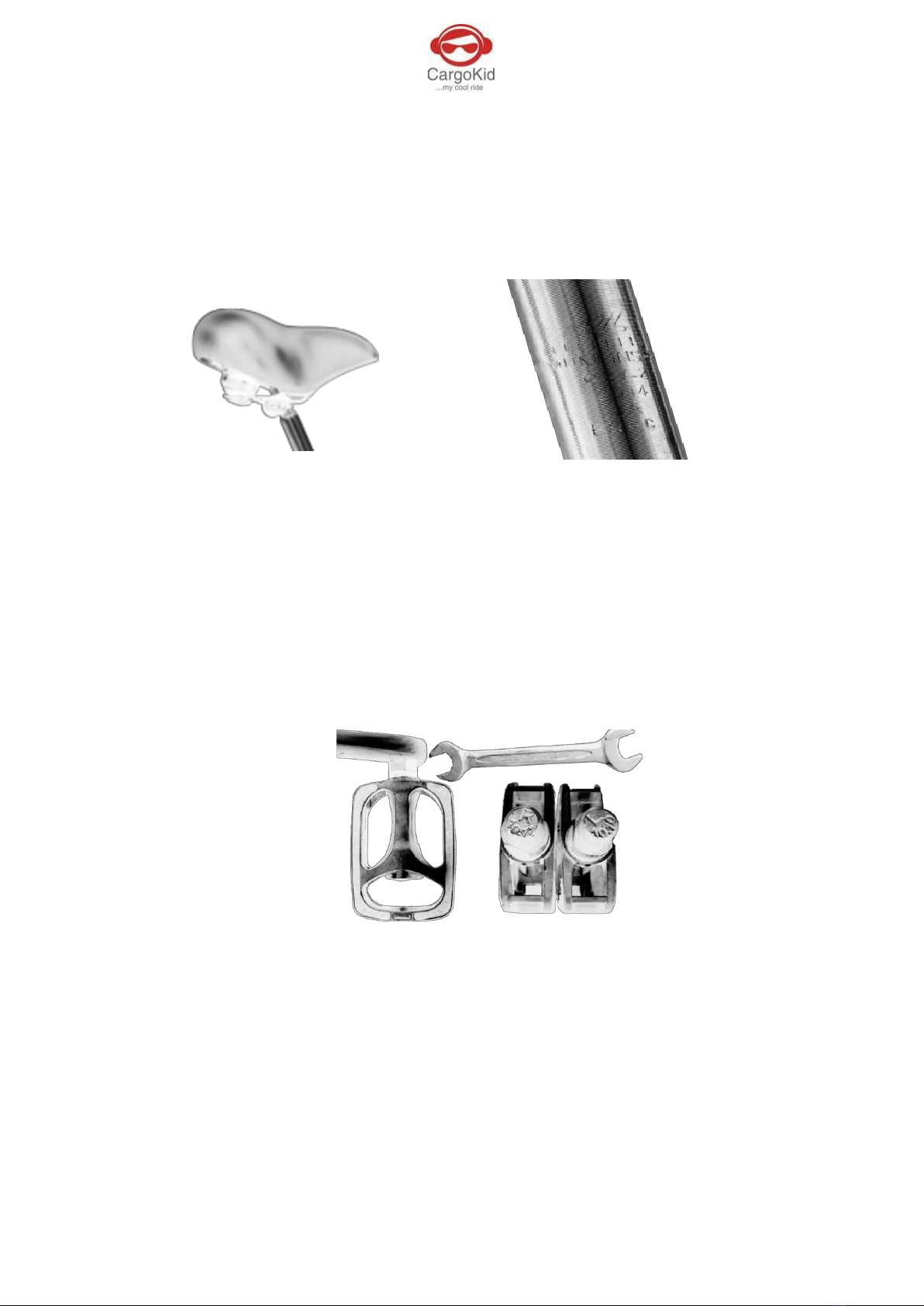

3: SADDLE ADJUSTMENT
•Tip: What is the correct height?
The heel should be able to rest on the pedal with an extended leg. During cycling, the knees should be
slightly bent.
•NOTE! When adjusting the saddle, do not exceed the safety line. The safety line (||||||||||) should
be down in the frame tube.
3.1: REPLACING/MOUNTING PEDALS
•It is important to distinguish between left and right pedals when replacing them. The pedals normally
have "R" (right) and "L" (left) engraved on them.
•Tools: 15 mm fork wrench.
•To replace the right side, turn clockwise to install and counterclockwise to remove the pedal.
•To replace the left side, turn clockwise to remove and counterclockwise to install the pedal.

4: ELEKTRISK UDSTYR
1: Display
LIGHT SETTING
•Hold "+" button to switch display light on or off.
ASSIST LEVEL SETTING
•"+": increase assistance level.
•"-": decrease assistance level.
•The unit has 5 assistance levels.
TOTAL/TRIP METER
• Press "on/off" to switch between trip meter mode and total.
• Press "on/off" and "-" to reset trip meter data.
Adjustment, for example of the
assist/support level.
Adjust down
Lowering, for example of
the assist/support level.
Speedometer
Viser
hvor
mange
km/t
du
kører.
Adjust up
Turn on and off the
system (display and
motor).
On / off
Displays how much the motor
assists you when riding.
Level 1-6.
Assist level
Displays the total distance the
bike has traveled.
Mileage counter
Battery indicator
Displays how much power is left
in the battery.

4.2: ELECTRIC MOTOR
TECHNICAL DATA
Electric motor mode: 36V
Rated voltage: 36V
Rated power: 250W
Maximum speed: 25 km/h
Maximum torque: 60 Nm
Ambient temperature: Room temperature < 37°C
Weight: 4.1 kg
4.3: BATTERY CHARGING
•Connect the provided charger directly to the battery and then turn on the charger. A full charge
typically takes 4-6 hours. Even though the charger will stop charging when the battery is fully charged,
the battery should be taken out of the charger. When the battery is fully charged, the connection plug
should be taken out first and then the output plug from the charger.
•"Charging" indicator light: When charging is in progress, the light will be "red". When the light turns
"green", the battery is fully charged and ready to use.
4.4: BATTERY STORAGE AND ADDITIONAL CHARGING
•The battery will lose power during long-term storage or transportation. Therefore, the battery should
always be recharged before use. See above for charging method.
•The battery should not be stored in damp environments or exposed to direct contact with water.
After riding in heavy rain, it is recommended to check the battery for moisture and store the battery
at room temperature until it is free of any moisture.
4.5: REMOVING AND INSTALLING THE BATTERY
•Removing the battery: Open the battery lock mechanism and pull the battery out of the battery
holder.
•Installing the battery: Follow the battery holder's track and push the battery all the way in and into
place in the holder. Lock the battery after installation.

4.6: BATTERY USE, MAINTENANCE, AND SPECIAL CONSIDERATIONS
•Avoid storing the battery near heat sources with high temperatures.
•The temperature in the charging environment should be below +37°C.
•Avoid charging in direct sunlight.
•Use only a suitable charger for charging the battery.
•Avoid placing the battery in water or humid areas.
•Avoid disassembling the battery or making unauthorized changes.
•Never apply excessive force to the battery and avoid dropping it on the ground.
•When the battery is not in use, it should be charged for 1 hour each month to keep the battery cells
active.
SPECIAL WARNINGS:
•Avoid cleaning the electric bike with a high-pressure cleaner as there is a risk of damaging electrical
parts.
•If smoke or fire rises from the product due to external violence, it should be extinguished with a
powder extinguisher or sand.
•Although the lithium battery is an environmentally friendly product, it contains a variety of chemical
substances. Therefore, it can be polluting if it breaks or becomes too old.

TIPS AND ADVICE FOR SAFE DRIVING
•Always ride with sufficiently inflated tires. Riding with underinflated tires will significantly reduce the
range and decrease control of the bike - especially when carrying heavy loads.
•Never allow children to stand in the cargo area during the ride.
•Always reduce speed during turns.
•The lifespan of your bike will be extended significantly if it is stored in dry conditions.
•Always charge the battery after use - this will extend the lifespan of your battery.
•Never allow children under 15 years old to operate the cargo bike.
•Use only the supplied charger to charge your battery.
•Always be cautious and drive at a reduced speed when transporting children in the cargo bike.
•When carrying heavy loads and driving over 20 km/h, your battery will discharge more quickly. Always
adjust your speed according to the weight you are carrying on the cargo bike.
•Remember that the motor on the cargo bike is an assistive motor. Make it a habit to pedal yourself
when the road is flat since it is not heavy to ride, and only use the motor when going uphill or when it
is raining, and you just want to get home. This way, you will automatically extend the lifespan of your
battery and improve your fitness.
•Always follow the maintenance schedule and make sure your bike mechanic remembers to tighten all
spokes, bolts, and screws at every service.
•The first service should be done after 100 km of riding and then every 500 km thereafter.
•Remember to keep and store the frame number certificate and service booklet in a safe place.
