Carlisle DEVILBISS HAF-505 User manual

DESCRIPTION
The HAF-505, 55 CFM lter is designed to remove
dirt, pipe scale and liquid aerosol. It includes
a 0.01 micron lter element and automatic
mechanical drain.
(Optional)

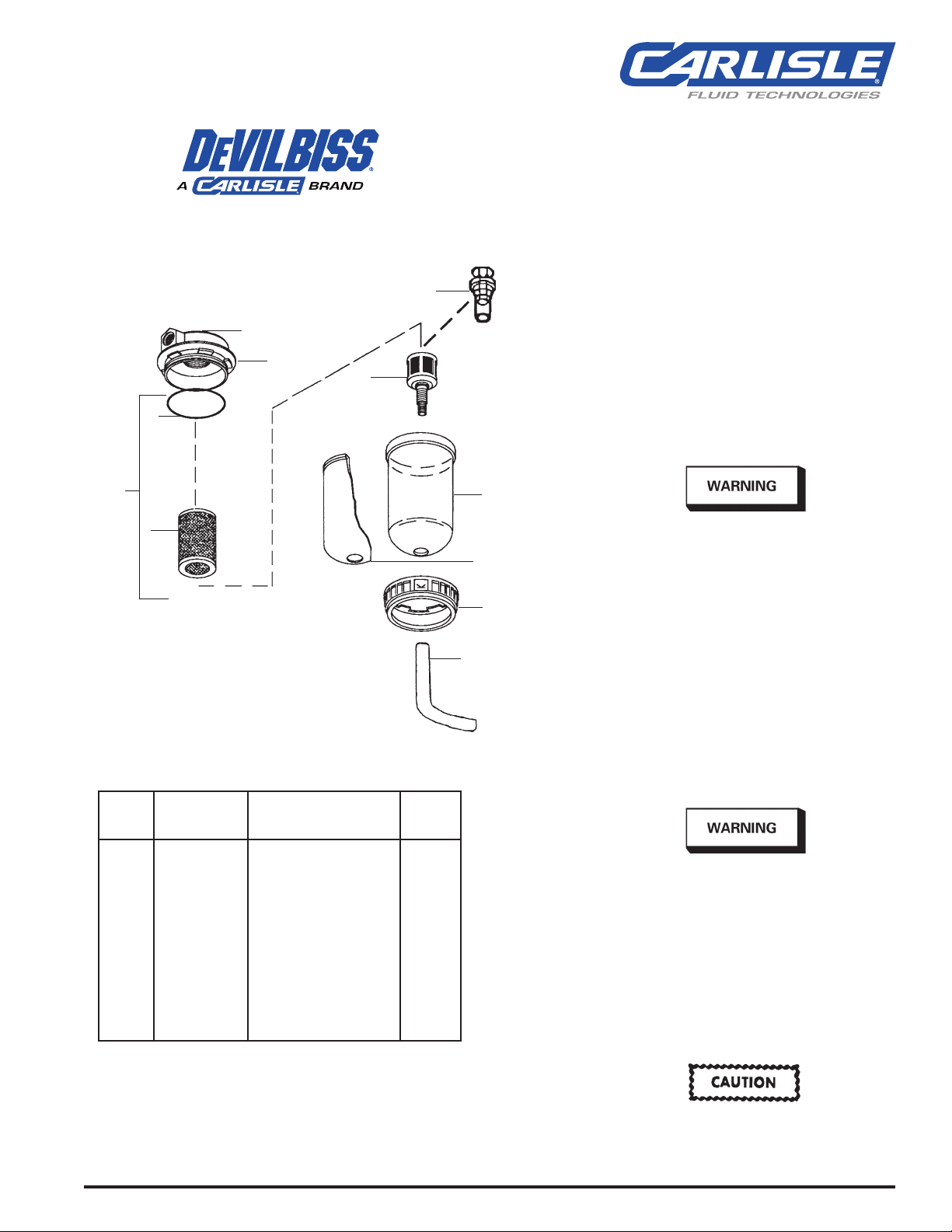

Figure 1 HAF-505 55 CFM Air Filter
PARTS LIST
Ind.
Ref No. Replacement Parts
No. Part No. Description Required
1 HAF-404 Filter Change Indicator 1
(not shown)
1A --- Cover 1
2 --- O-Ring 1
3 HAF-28 Filter and O-Ring Kit 1
4 HAF-18 Automatic Drain 1
(Standard)
5 HAF-8 Plastic Bowl 1
6 HAF-19 Metal Bowl Guard 1
7 HAF-409 Clamp Ring 1
8 --- 1/2 x 3/8 Vinyl Tubing 6' 1
9 HAF-11 Manual Drain (Optional) 1
5
6
8
7
4
3
2
1A
1(not shown)
SPECIFICATIONS
Air Filter:
Air Inlet 1/2" NPT(F)
Air Outlet 1/2" NPT(F)
Air Flow Capacity 55 CFM
Maximum Inlet Pressure 150 PSIG (10.3 Bar)
Maximum Operating Pressure 150 PSIG (10.3 Bar)
Maximum Temperature 150° F (65.6°C)
Filter – Particulates 0.01 Micron
Filter – Oil Content 0.01 mg/m³ max.
Water Vapor Removal -94°F Dew Point
Risk of personal injury.
Risk of property damage.
Except as otherwise specified by the
manufacturer, this product is specifi-
cally designed for compressed air ser-
vice and use with any other fluid
(liquid or gas) is a misapplication. For example,
use with or injection of certain hazardous gases
in the system (such as oxygen or liquid petro-
leum gas) could be harmful to the unit or result
in a combustible condition that may cause
re or explosion. Manufacturer’s warranties
are void in the event of misapplication and
manufacturer assumes no responsibility for
any resulting loss.
INSTALLATION
Risk of injury. Do not place unit in service
without metal bowl guard installed. Filter
units are sold only with metal bowl guards. To
minimize the danger of ying fragments in the
event of plastic bowl failure, guard must not
be removed. If the unit is in service without
the metal bowl guard installed, manufacturer's
warranties are void and the manufacturer
assumes no responsibility for any resulting
loss. If unit has been in service and does not
have a metal bowl guard, order one and install
before placing back in service.
Certain solvents, paints and chemicals may
attack plastic bowl and can cause bowl failure.
Do not use near these materials.
SB-6-152-R3 (10/2020) 1 / 4 www.carlisleft.com
EN
SERVICE MANUAL
HAF-505
55 CFM COALESCING FILTER

INSTALLATION (continued)
1. Be sure to read all "Warnings" and "Cau-
tions" in this manual and on the unit before
installation or using this equipment.
2. Install lter as close as possible to point
where air is being used. Install main air
shut-off valve and standard pipe union
(supplied by user) upstream of lter to
allow maintenance to unit.
3. Install unit with air ow through lter
in direction of arrow on top of unit.
4. Minimum 1/2" piping is recommended.
Avoid using fittings, couplings, etc.
that restrict air ow.
5. Mount lter in a vertical position.
6. Do not install lter in an application
where the pressure drop will exceed
20 psi. For example, a quick opening
valve located upstream from the lter
could cause a momentary pressure
drop in excess of 20 psi.
7. Maximum inlet pressure and operating
temperature is: 150 PSIG (10.3 bar) and
150° F (65.6° C).
8. A 6' length of vinyl tubing is shipped loose
with the unit. Slide over automatic drain
which protrudes from bottom of bowl. Place
other end of vinyl tubing into appropriate
receptable (i.e. below booth grating, can,
etc.). Prevent vinyl tubing from becoming
kinked which would prevent free movement
of liquids discharged from the automatic
drain.
9. An optional manual drain (HAF-11) can be
installed in place of the automatic drain.
OPERATION
After the unit is installed and ready to use;
1. Attach air hose(s) to outlet ball valve(s),
selecting regulated and/or non-regulated
according to the application (not supplied).
2. Open main shut-off valve upstream of lter.
3. Open ball valve(s) (not supplied) to supply
air to spray gun or tool being used.
4. After use, shut off ball valve(s) and bleed
off residual air in hose(s).
Note
The lter change indicator only
operates when air is owing. It
will always be green when there
is no ow.
MAINTENANCE
Certain solvents, paints and
chemicals may attack plastic
bowl and can cause bowl failure.
Do not use near these materials.
When bowl becomes dirty, wipe
only with a clean, dry cloth. Im-
mediately replace any crazed,
cracked, damaged or deteriorated
plastic bowl with a new plastic
bowl. Reinstall metal bowl guard.
Risk of injury. Components under
pressure. Relieve air pressure
before performing maintenance.
1. Before performing maintenance on unit,
close main shut-off valve located upstream
of lter. Bleed off residual air in unit.
2. To open lter, press button located on
clamp ring and rotate ring either clockwise
or counterclockwise while pulling down on
ring. The metal bowl guard and plastic bowl
can then be removed from the lter head.
3. Remove the lter element by loosen-
ing counterclockwise. Clean or replace
the lter element. Frequency of element
replacement will depend upon air quality,
air usage, and condition of the air piping.
It is recommended to check the element
change indicator daily, and replace when
indicator turns red.
4. Inspect o-ring for damage. Replace if
necessary.
5. Inspect plastic bowl for signs of damage
such as cracks, crazing or deterioration.
Replace if necessary. See "Caution" in
column 2.
Risk of injury. Do not place unit
in service without metal bowl
guard installed.
6. Before placing unit back into service, make
sure plastic bowl and metal bowl guard are
properly installed and securely locked in
place.
7. Conrm automatic drain operates properly
after unit is in operation. Refer to Service
Bulletin SB-6-149 which provides automatic
drain service information. Replace if neces-
sary.
ACCESSORIES
HAF-407
CleanAir™ Mounting Bracket
Assembly Kit
EN
SB-6-152-R3 (10/2020)2 / 4www.carlisleft.com

NOTES
EN
SB-6-152-R3 (10/2020) 3 / 4 www.carlisleft.com

EN
SB-6-152-R3 (10/2020)4 / 4www.carlisleft.com
