CARLO GAVAZZI EDM 35 - User manual

ENGLISH
Modular Panel Meter
Series EDM 35
CONTENTS Page
1. Introduction 2
1.1 Getting Started 2
1.2 Overall Description 3
1.3 Features 3
1.4 Block Schematic 4
2. Unit Description 4
2.1 Modules 4
2.2 Main Unit 7
3. Installation & Operations before Use 9
3.1 Procedure 9
3.2 Installation 9
3.3 Rated Operational Voltage 10
3.4 Jumper Setting on Modules 10
3.5 Input Range Selection 15
4. Operation & Programming 16
4.1 Switching On 16
4.2 Operating Modes 16
4.3 Programming 21
5. Application Hints 26
5.1 Applications - DC Ammeters 26
5.2 Applications - AC Ammeters 27
6. Ordering Keys 28
6.1 Modules 28
6.2 System EDM 35 29
7. Specifications 32
7.1 Main Unit Specifications 32
7.2 Module Specifications & Scaling Values 34
7.3 Mechanical Dimensions 43
8. Appendix 44
8.1 Reset of Password 44
8.2 Quick Reference Guide 45

ENGLISH
2
11
11 II IInn nntt ttrr rroo oodd dduu uucc cctt ttii iioo oonn nn
1.1 Getting Started
How to prepare the EDM 35 for use
For convenience you have a check list below to be sure that all prepara-
tions of the EDM are made before the application. Page references are
mentioned so you can easily find the point in question in this manual. If
the EDM is received in modules start at point 1, otherwise start at point 6.
1. Select all modules necessary for the appli-
cation.
2. Set jumpers on the input module and if used
also on the excitation output module and/or
the analogue output module.
3. Insert all modules according to the drawing
printed on the module:
• Power supply first (then from right to left).
• Mount blind covers in non-used slots.
4. Fill out the label on the main unit and the
shipping box with missing information (or-
dering key for system, power supply, input-
and output modules and ranges). Easy ac-
cess to this information might help you later.
5. Insert engineering unit in the front cover and
mount this.
6. The program needs information about the
actual input range. Check input range se-
lection and change if necessary.
7. Program panel meter to suit the application.
6 Ordering Keys
Page 28
3.4 Jumper Setting
on Modules
Page 10
2.1.3 Modules and Slot
Position
Page 6
6.2 Ordering Key for
System EDM 35
Page 29
3.4 Jumper Setting on
Modules
Page 10
3.2 Installation
Page 9
3.5 Input Range
Selection
Page 15
4 Programming
Page 16

ENGLISH
3
1.2 Overall Description
The EDM series 35 is based on a modular
concept consisting of a main unit and plug-in
modules. The concept provides the meter with
high flexibility and versatility. The offer of
input-, output- and power supply modules
makes it possible to configure the meter to
suit most applications.
Furthermore, the modular concept ensures
that the stock costs are minimized.
1.3 Features
The main features of the EDM series 35 are:
- Modularity
- Continuous measurement and monitoring of the analog signal of
the input variable
- Continuous monitoring of the measured value for exceeding the
programmed setpoint values
- Setpoints individually programmable: Value, hysteresis, high/low
alarm, time delay
- Separate programming of each output relay: energized/deener-
gized and status in overflow condition
- Additional software functions: scaling, data hold and peak/valley
- Input modules for measuring voltage (AC or DC), current (AC or
DC), resistance, temperature (Pt 100 or thermocouple J or K),
frequency or revolutions per minute
- Output modules with 1 or 2 relays or with analogue output (4 - 20 mA,
0 - 20 mA, 0 - 10 V)
- Power Supply modules for AC or DC supply as well as excitation
supply for sensor supply
- Interface to Carlo Gavazzi’s Dupline®Field and Installation Bus
The large variety of input signals of both electrical and industrial process
variables make the EDM an extremely versatile instrument suitable for
many applications.
The characteristics of the instrument are complemented by its easy
programming and configuration in accordance with the application.

ENGLISH
4

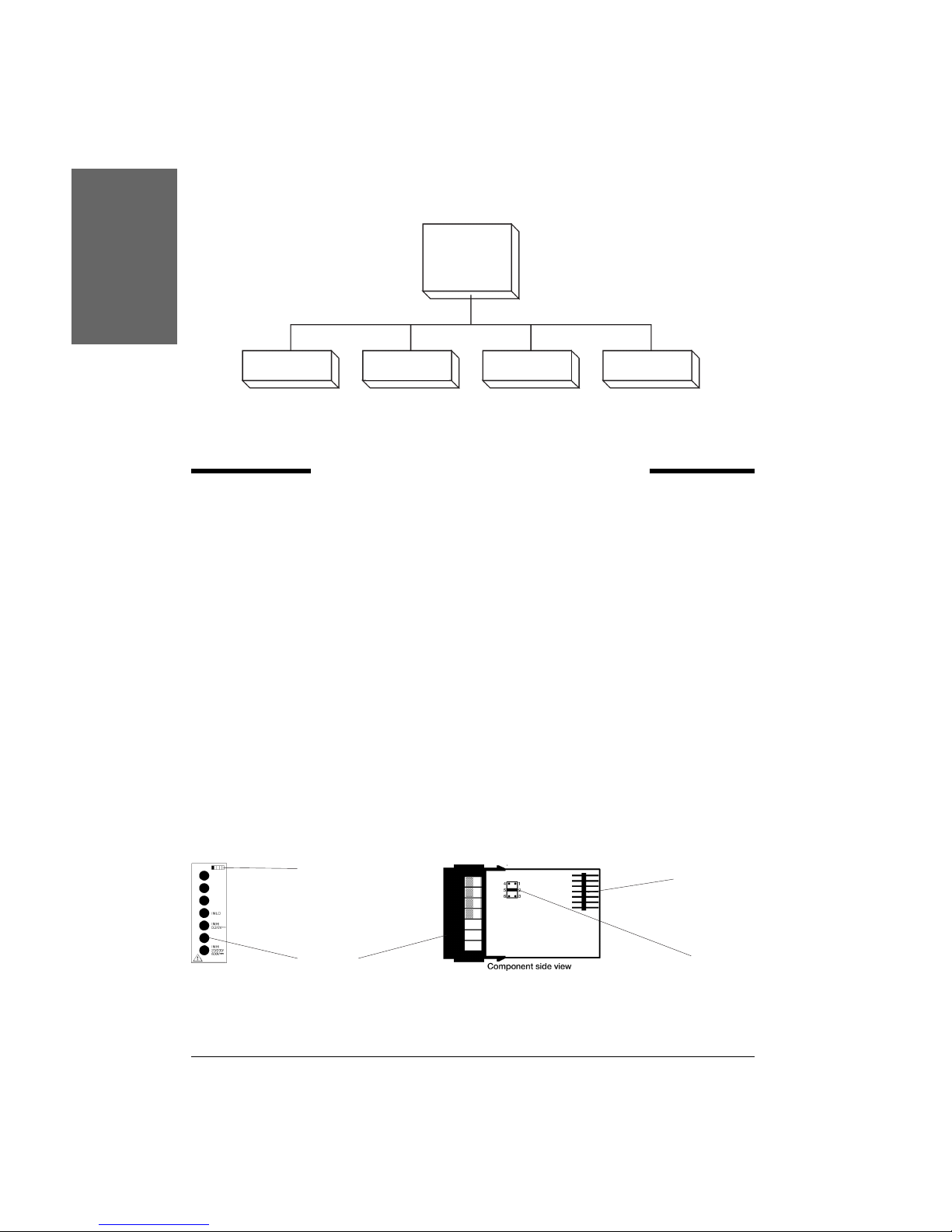

1.4 Block Schematic
22
22 UU UUnn nnii iitt tt DD DDee eess sscc ccrr rrii iipp pptt ttii iioo oonn nn
2.1 Modules
2.1.1 Common description
The modules are parted into 3 categories: Power supply modules, input
modules and output modules. Each module is dedicated to its own
function or input variable.
To minimize the number of modules many input modules are designed
to cover all ranges. If you want to change the input range just press the
locking tabs and pull out the module to change a jumper position, rein-
stall the jumper and reprogram the range selection. If you change the
range from low to high level or vice versa it might be necessary for you
to use other terminal positions as well.
The input modules are available with terminals for program lock to
protect against unauthorized admittance.
All modules are easy to plug in - for your information the slot position is
marked on the drawing on the rear of the module.
Terminals
Slot position
Jumper
Motherboard
connection
Main unit
Display and
control
Input Output
analog/exitation Power supply Relay output

ENGLISH
5
2.1.2 Variants
2.1.2.1 Power Supply Modules
You will always need the power supply module. These are
available for the most common supply voltages. Due to the
size of the transformer the power supply module always
occupies 2 slots.

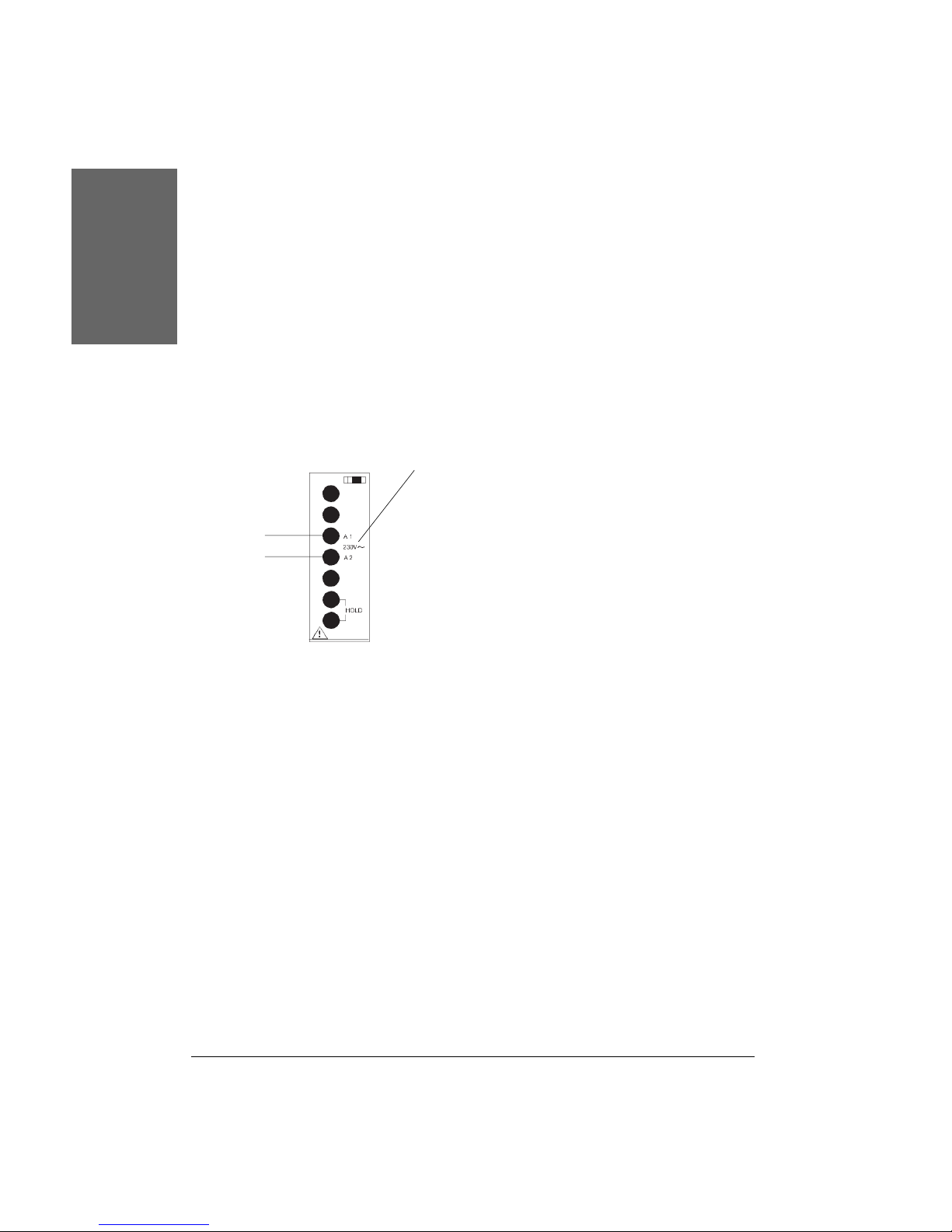

2.1.2.2 Input Modules
The input modules are divided into the following categories:
Voltmeters (AC or DC)
Ammeters (AC, DC or 10A AC/DC)
Ohmmeters
Thermometers (Pt 100, Thermocouple J or K)
Frequency - and Tachometers
Dupline®Analink Interface
For voltmeters, ammeters, ohmmeters, frequency - and tachometers
a jumper in the module determines the actual range for the module.
Switching from one range to another also means that you are switching
from one input circuit to another input circuit.
For ammeters 10 A AC/DC the jumper determines whether you are
measuring AC current or DC current. The thermometers do not include
a jumper - here the range is changed only through the programming.
For the Dupline®Analink interface module only the channel number has
to be coded on two rotary switches.
All input modules occupy 1 slot and they are always placed at left (rear
view of the main unit).
Jumper

ENGLISH
6
2.1.2.3 Output Modules
The output modules are divided into the following categories:
Relay output (1 or 2 relays)
Analogue output (4-20 mA, 0-20 mA and 0-10 V)
Excitation output (for sensor supply)
Depending upon the application you can choose between different out-
put types: An output module with 1 or 2 relays and/or an output module
with analogue output where you are able to select the required type of
analogue output with the jumpers. The relay output module is always
placed at right (rear view of the main unit).
With the excitation output module inserted you are able to supply for
example sensors which are a part of the application. With a jumper you
can select 12 or 24 VDC. This module shares slot #2 with the analogue
output module.
2.1.3 Modules and Slot Position
SLOT
#3
SLOT
#4
SLOT
#2
SLOT
#1
SLOT
#5
Rear view of main unit
Input Module:
VAC
VDC
AAC
ADC
10A AC/DC
Ω
Pt 100
Thermo couple
Frequency
Tachometer
Dupline®Analink Interface
Output Module:
Excitation output
Analogue output
Power Supply module
24 VAC
48 VAC
115 VAC
230 VAC
12-48 VDC
Output Module:
1 Relay output
2 Relay outputs

2.2 Main Unit
2.2.1 Description
The main unit includes a 3 1/2 digit, 7-segment display with alarm indi-
cators, a motherboard for 1 power supply module and 3 input/output
modules, a processing unit and a keyboard.
You can use the main unit as a 3 1/2 digit indicator when inserting only
a power supply module and an input module. If you extend the system
with a relay output module and/or an analogue output module, you
have a 3 1/2 digit controller.
The main unit is delivered with 1 front cover,1 manual, 2 mounting
brackets, 2 gaskets for sealing, 1 set of engineering unit labels and 3
blind covers for unused slots.
2.2.2 Variants
The main unit is available in 3 different variants. The 3 types are:
Standard red display
High bright red display
Green display

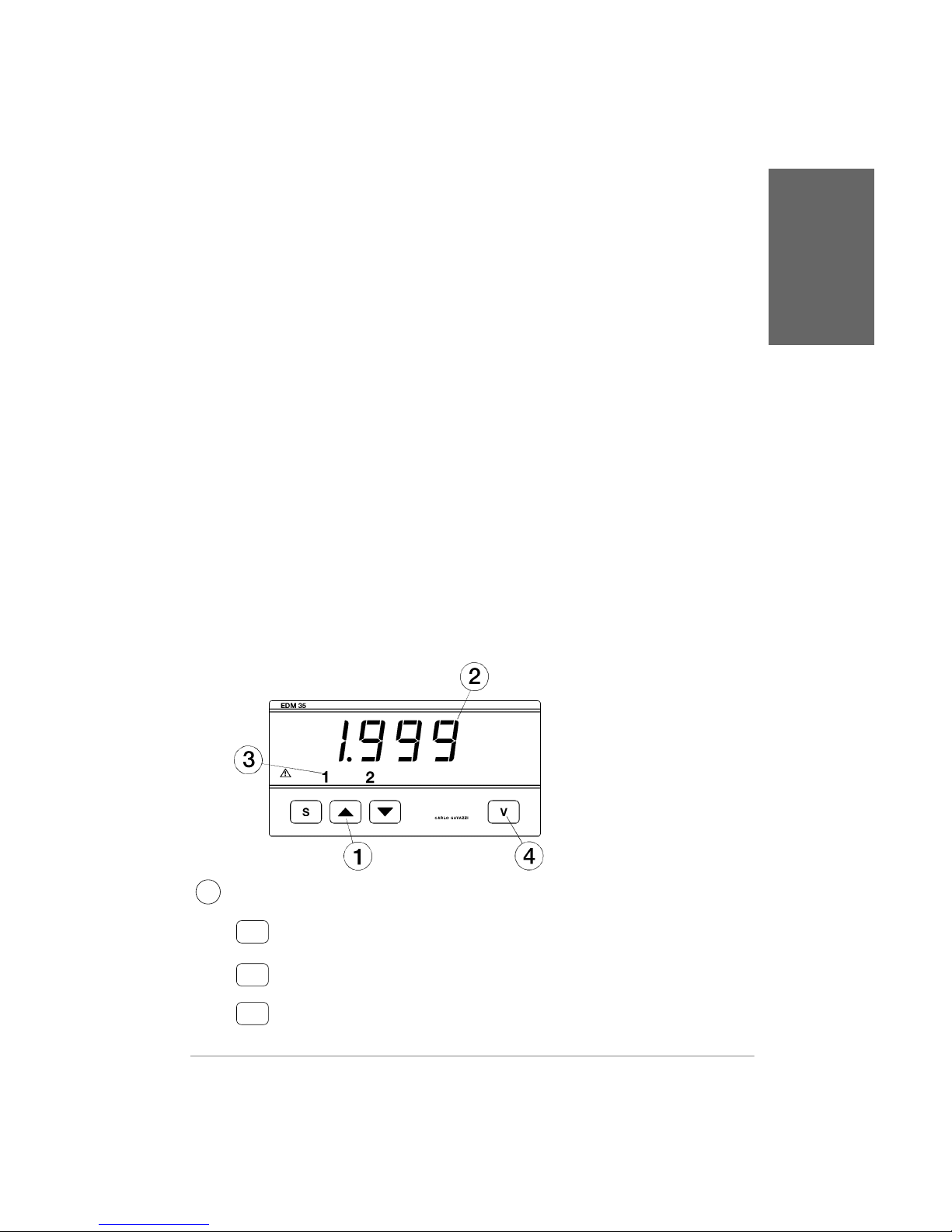

2.2.3 Front Panel Description
1 Keyboard
SSet/Enter: Entry of variables
Selecting programming functions
Up/Down: Up/down keys for display control
Increasing and decreasing programming values
ENGLISH
7
1Keyboard
2Display
3Alarm Indicators
4Engineering Unit
▲
▼

ENGLISH
8
2 Display
3 1/2 digit (max. read-out 1999). Alphanumeric indication of:
- Measured value
- Programming parameters
3 Alarm Indicators
Indicates when an alarm condition occurs.
“1” indicates alarm condition when a 1-relay output module is
used (= 1 set point).
“1” and “2” indicate alarm condition when a 2-relay output
module is used (= 2 set points).
4 Engineering Unit
Interchangeable unit label. A set of engineering unit labels is
supplied with the EDM. The engineering unit has to be inserted
by the customer.

33
33 II IInn nnss sstt ttaa aall llll llaa aatt ttii iioo oonn nn && &&
OO
OOpp ppee eerr rraa aatt ttii iioo oonn nnss ss bb bbee eeff ffoo oorr rree ee UU UUss ssee ee
3.1 Procedure
Before the instrument is ready for use, i.e. before it is ready for the ap-
plication dependent programming, you have to prepare the instrument
physically (engineering unit, modules etc.) - this is described in chapter
3.2 Installation.
Before you are connecting the instrument to the mains or the power
supply you have to be sure that the right power supply module is used.
This is discussed in chapter 3.3 Rated Operational Voltage.
You have to check the jumper settings on some of the modules. The
range selected must be in accordance with your application. The
jumper setting is shown in chapter 3.4 Jumper Setting on Modules.
After you have set the jumpers the processing unit must know which
range you have selected. This “range code” has to be entered in the
software when the instrument is turned on. Further information will be
given to you in chapter 3.5 Input Range Selection.
3.2 Installation
First, if desired, you insert the engineering unit (3). You can choose a
unit from the set of engineering unit labels.
Then you mount the front
panel (2) on the instrument -
remember to seal with the enclosed
gasket (the largest of the two enclosed). Place the remaining gasket
round the body of the instrument and slide instrument into the panel
aperture. To optimize the tightness be sure that the panel cut-out is
completed and deburred. Be also aware that a too thin panel may
distort and not provide sufficiant sealing.
Fasten the instrument with the two brackets (1).
ENGLISH
9
3
▲
▲

ENGLISH
10
If you later want to replace the engineering unit (3), you insert a screw-
driver into the lateral slot in the front panel and turn (be careful!) the
screwdriver as shown until the front panel has been completely
removed. Replace the engineering unit.
You can find the panel cutout and the mechanical dimensions in chapter
7.3 Mechanical Dimensions.
3.3 Rated Operational Voltage
Before you switch on the instrument, make sure that the supply voltage
corresponds to the rated operational voltage indicated on the power
supply module.
3.4 Jumper Setting on Modules
As some modules are designed to cover several ranges it can be neces-
sary for you to select the required range by moving an internal jumper.
The major part of the input modules, the excitation output module and
the analogue output module have this possibility for range selection. On
the following pages the jumper setting is shown for the modules:

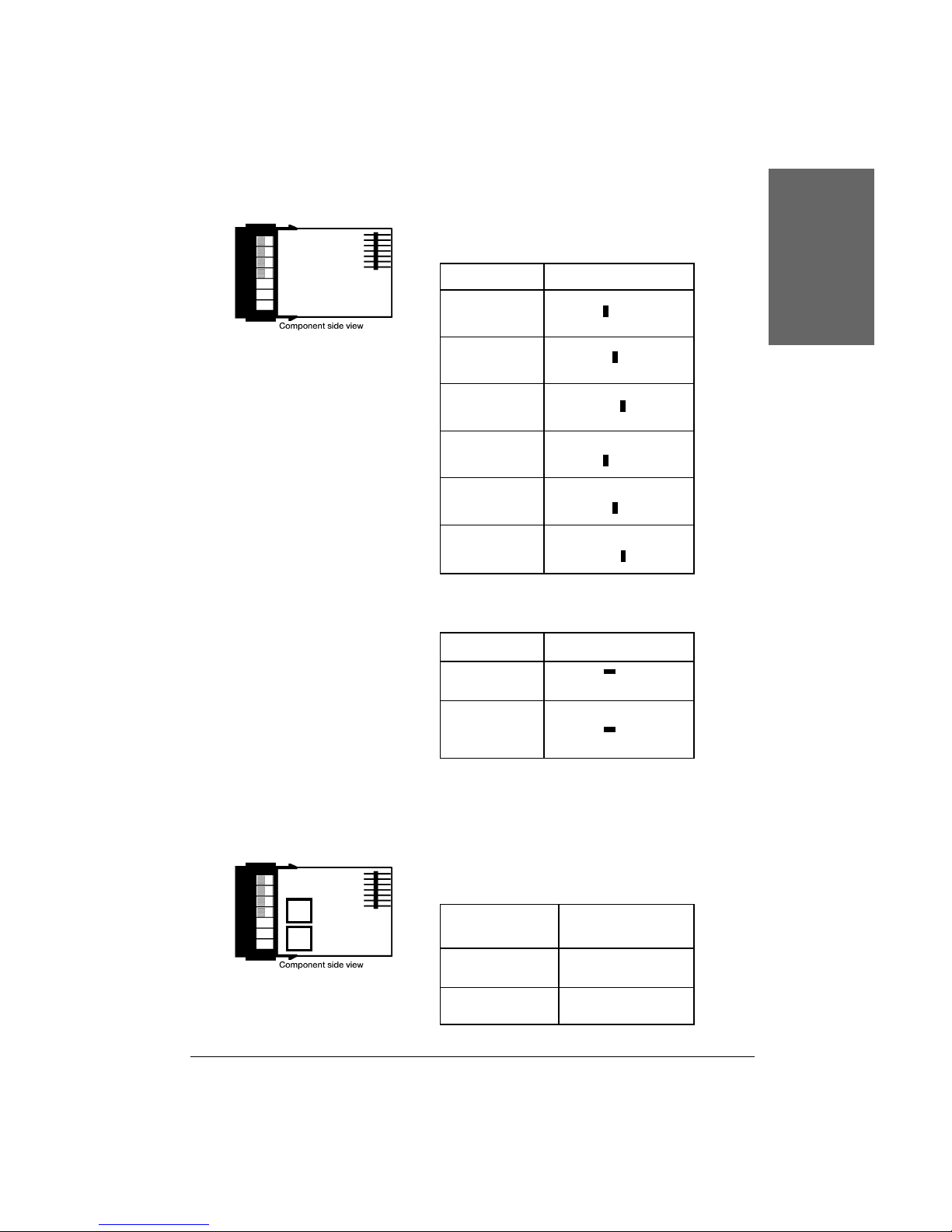

3.4.1 Voltmeters
3.4.2 Ammeters
3.4.3 Ohmmeters
3.4.4 Frequency - and tachometers
3.4.5 Dupline®Analink Interface module
3.4.6 Output modules
Note! Always remember to turn off the power supply before you plug in
or pull out the modules.
Power supply
Rated operational voltage
Caution!!
Since the input circuitry is not galvanically
isolated, the potential of the measured
variable will be present on all connections
to the unit (i.e. “HOLD” input). This is im-
portant specially when you are measuring
line voltage and current.

ENGLISH
11
Voltmeters
VDC input module 5100530/630
VAC input module 5100531/631
Input Jumper
Range position
200 mV
2 V
20 V
200 V
600 V
3.4.1 Voltmeters
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
Ammeters 0 - 5 A
ADC input module 5100532/632
AAC input module 5100533/633
Input Jumper
Range position
200 µA
2 mA
20 mA
200 mA
2 A
5 A
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
1 2 3 Ammeters 10 A
10 A AC/DC input module 5100534/634
Input Jumper
Range position
10 AAC
10 ADC
1 2 3
1 2 3
3.4.2 Ammeters

ENGLISH
12
Ohmmeters
Ohm input module 5100535/635
Input Jumper
Range position
200 Ω
2 kΩ
20 kΩ
200 kΩ
3.4.3 Ohmmeters
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
Frequency Meter
Input module 5100541/641
Range Jumper position
199.9 Hz
1999 Hz
3.4.4 Frequency - and Tachometers
• • J1
• • J2
• • J3
• • J4
• • J5
• • J6
• • J7
• • J8
• • J9 • • J7
• • J8
• • J7
• • J8
Frequency Meter
Input module 5100541/641
Input Jumper position
Namur
NPN, PNP
contact
600 VAC
• • J1
• • J2
• • J3
• • J4
• • J5
• • J6
• • J1
• • J2
• • J3
• • J4
• • J5
• • J6
• • J1
• • J2
• • J3
• • J4
• • J5
• • J6

ENGLISH
13
Tachometer
Input module 5100540/640
Range Jumper position
199.9 rpm
30 ppr
199.9 rpm
60 ppr
199.9 rpm
100 ppr
1999 rpm
30 ppr
1999 rpm
60 ppr
1999 rpm
100 ppr
• • J1
• • J2
• • J3
Tachometer
Input module 5100540/640
Input Jumper position
Namur
NPN, PNP
contact
J4 J5 J6
• • • 1
• • • 2
• • • 3
• • J1
• • J2
• • J3
J4 J5 J6
• • • 1
• • • 2
• • • 3
• • J1
• • J2
• • J3
J4 J5 J6
• • • 1
• • • 2
• • • 3
J4 J5 J6
• • • 1
• • • 2
• • • 3
J4 J5 J6
• • • 1
• • • 2
• • • 3
J4 J5 J6
• • • 1
• • • 2
• • • 3
J4 J5 J6
• • • 1
• • • 2
• • • 3
rpm: Revolutions per minute
ppr: Pulses per revolution
Analink EDM 35 Plug-in Card
Input module G 2139 1139
Channel Switch
number position
S1: Group A - P
S2: Channel 1 - 8
3.4.5 Dupline®Analink Interface Module
S1
S2
3.4.4 Frequency - and Tachometers (cont.)

ENGLISH
14
4 • • 1
5 • • 2
6 • • 3
Excitation Power Supply
Output module 5100526
Output Jumper
Voltage position
12 VDC
24 VDC
4 • • 1
5 • • 2
6 • • 3
4 • • 1
5 • • 2
6 • • 3
3.4.6 Output Modules
•
2•
3•
1 •
2•
3• 1 •
2•
3•
Analogue Output Module
Output module 5100560
Jumper
position
4 - 20 mA
0 - 20 mA
0 - 10 V
•
2•
3•
1 •
2•
3• 1 •
2•
3•
Output
•
2•
3•
1 •
2•
3• 1 •
2•
3•
•
2•
3•
1 •
2•
3• 1 •
2•
3•
Range determined by
jumper only. No software
programming necessary.
Range determined by
jumper only. No software
programming necessary.

ENGLISH
15
3.5 Input Range Selection
When you have selected the range on the input module (according to
3.4 Jumper Setting on Modules) you have to update or check the pro-
gramming to be sure that the programmed range code corresponds to
the range selected with the jumpers on the module. This is accom-
plished in calibration mode. Other functions in calibration mode are dis-
cussed in chapter 8.1 Calibration Mode. To change or check the pro-
grammed range follow the description below.
1. Press and simultaneously and switch on the unit. The
display shows . Release the keys. The display shows
for 2 s and then .
2. Press until ‘66’ is displayed. Press and the display now
shows .
3. Press to accept your entry to selection of range code. Now the
display shows the current range code (a number between 0 and 12).
4. Press or to select a range code between 0 and 12
according to the range selected on the module and the list below.
▲
S▼
S
S
▲▼
0 All
1 0.2 V 0.2 mA
2 2 V 2 mA
3 20 V 20 mA
4 200 V 0.2 A
52A
6 690 V 5 A 10 ADC
7 0.2 V 0.2 mA 200 Ω200 Hz 200 rpm/30 ppr All
8 2 V 2 mA 2 kΩ2 kHz 200 rpm/60 ppr
9 20 V 20 mA 20 kΩ200 rpm/100 ppr
10 200 V 0.2 A 200 kΩ2000 rpm/30 ppr
11 2 A 2000 rpm/60 ppr
12 690 V 5 A 10 AAC 2000 rpm/100 ppr
Range Temp. VDC VAC ADC AAC 10 A Ohm Freq. Tachometer Dup-
code AC/DC line
5. When the desired range code is displayed press . The display
shows for 2 seconds and automatically returns to RUN-mode.
The range selection is now completed, and the panel meter is ready to
use. Now you can go ahead with customizing the program.
S

ENGLISH
16
44
44 OO OOpp ppee eerr rraa aatt ttii iioo oonn nn && && PP PPrr rroo oogg ggrr rraa aamm mmmm mmii iinn nngg gg
Chapter 4 describes the different operating modes for the EDM. The
calibration mode is described in details in chapter 3.5 (Range Input
Selection) and chapter 8 (Appendix).
This chapter includes
4.1 Switching On
4.2 Operating Modes
4.2.1 Measurement and Control
4.2.2 Programming Mode
4.2.2.1 Access to programming
4.3 Programming
4.3.1 New Password
4.3.2 Decimal Point Selection
4.3.3 Electrical Input Range (HiE and LoE)
4.3.4 Display Span (Hi and Lo)
4.3.5 Alarm Setpoint(s) - Controllers
4.3.5.1 Setpoint 1
4.3.5.2 Hysteresis
4.3.5.3 Time Delay
4.3.5.4 High and Low Alarm
4.3.5.5 Relay Normally energized/
de-energized
4.3.5.6 Relay Staus in Overflow Condition
4.3.5.7 Setpoint 2
4.1 Switching On
When you switch on the unit, the display shows for a few seconds,
followed by the input signal value.
4.2 Operating Modes
The EDM can operate in 3 different modes: Measurement and control
mode, programming mode and calibration mode.

ENGLISH
17

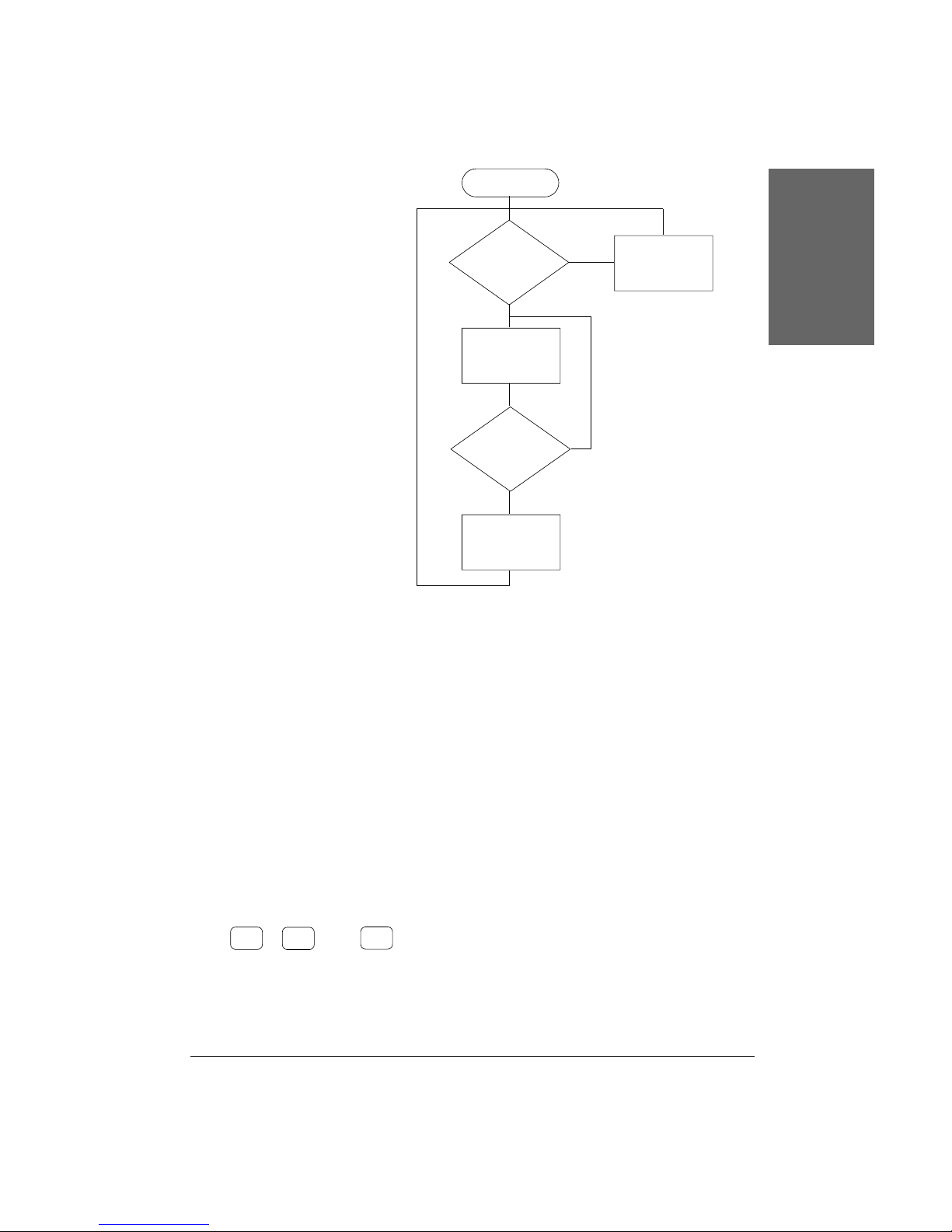

The flowchart shows
how you get access
to the different modes
of operation.
4.2.1 Measurement and Control
In the measuring and control operating mode the instrument has the
following basic functions:
- Measurement of the input variable
- Display of the measured variable in the correct engineering unit
- Setpoint control with activation/deactivation of the alarm LED’s and
relays
- Detects when the input is out of range and indicating this with ±EE
in the display. The relay status will be as the preprogrammed fault
condition
- ‘Hold’ input detection
- Update of peak and valley function
- If analogue output module is present, repetition of the displayed
value in analogue form
The , and control the display. The normal function of
the display is to indicate the measured input variable.
The following lines describe how you can use these for selecting infor-
mation on the display during daily operation.
▲
S▼
Power on
Calibration
mode
Measurement
and control
(normal mode)
Programming
mode
S and ▼
activated?
S and ▲
activated?
Y
Y
N
N
∆
∆∆

ENGLISH
4.2.1.1 Setpoint 1 Value Read-out (SP1)
Press and release.
After displaying the setpoint value for 2 seconds the instrument will re-
turn to display the input variable. Setpoint values are only shown if a
relay output module (1 or 2 relays) is installed.
4.2.1.2 Setpoint 2 Value Read-out (SP2)
Press and release.
4.2.1.3 Peak and Valley Values Read-out
Press and simultaneously and release.
4.2.1.4 Reset of Peak and Valley Values
Press , and simultaneously and release.
The peak and valley values are reset during power-up as well.
4.2.1.5 Programming Mode Access
Press and hold ; then press . Release both immediately after
the display shows .
4.2.1.6 Calibration Mode Access
Press and during power-up. Release both immediately after
the display shows .
4.2.1.7 ‘Hold’ Function
The ‘Hold’ function is standard for all versions and is located on the ter-
minals of the power supply module. By short-circuiting the ‘Hold’ input,
the indication on the display is frozen. When the ‘Hold’ function is ac-
tive, all other functions operate in normal way.
4.2.1.8 Setpoints
The setpoints can operate in four different ways depending on the pro-
gramming. See the following drawing.
18
▼
▲
▼
▲▼
▲▼
S
S
▲
S

ENGLISH
19
Scaling Operation
Setpoint Operation

ENGLISH
20
4.2.2 Programming Mode
The programming mode allows the user to define the instrument para-
meters:
- Password for access to programming
- Decimal point position
- Minimum and maximum values of the electrical input range
- Display span
and for each alarm setpoint:
- Setpoint
- High or low alarm levels
- Hysteresis
- Time delay
- Alarm relay normally energized/de-energized
- State of alarm relay in overflow conditions
Stepping from the programming of one parameter to the programming
of the next happens by pressing .
The normal measurement and control functions are not active in pro-
gramming mode. The alarm outputs are OFF. The analogue output is low.
Termination of the programming mode and return to measurement and
control mode follows automatically after completion of all programming
steps or after 3 minutes without key activation.
The display will show for 2 seconds.
4.2.2.1 Access to Programming Mode
1. Press and hold ; then press . Release both immediately
after the display shows .
During this phase the instrument asks for a password between 0 and
199 - the instrument is delivered with the password “0”.
2. If the password is not set to zero, press and/or until the
value (password) is displayed. Press to enter.
If the entered password matches the stored password, the instrument
automatically proceeds to the next step - otherwise it returns to mea-
surement and control mode.
S▲
▲▼
S
S
