CARLO GAVAZZI WM50 User manual

WM50
Multichannel power analyzer
for single, two and three-phase systems
INSTRUCTION MANUAL
EN

2WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
Contents
WM50 and TCD12 5
Introduction 5
Description 5
Architecture 5
Components 6
Component descriptions 6
Main unit - front 6
Main unit - rear 7
Main unit LED status 7
Accessory modules 8
TCD12 9
TCD12 LED status 9
TCD12WS 10
UCS (Universal Conguration Software) 10
UCS function overview 10
WM50 use 11
Interface 11
Introduction 11
Measurement menu display 11
Settings menu display 11

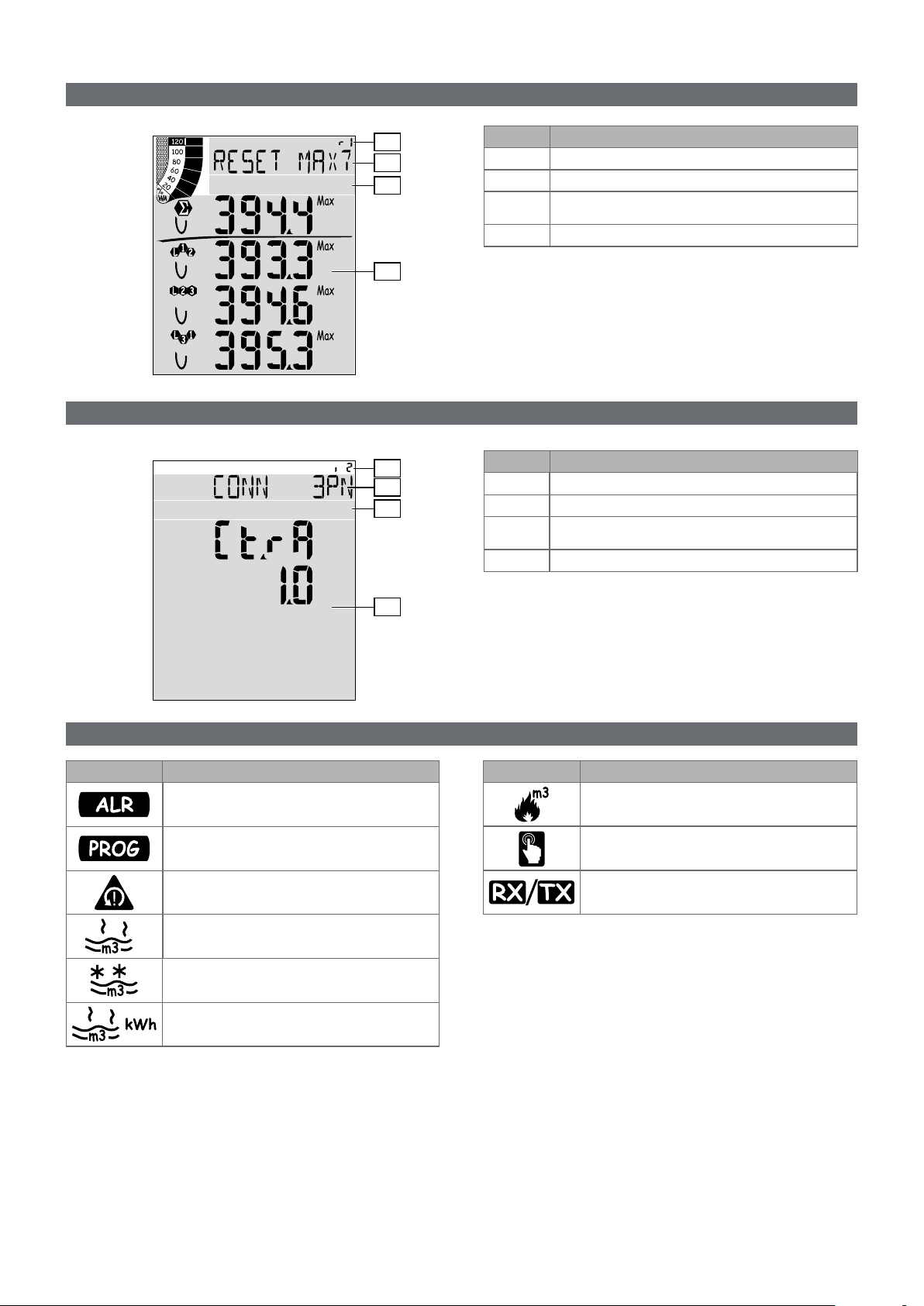

Reset menu display 12
Information menu display 12
Information and warnings 12
Working with WM50 13

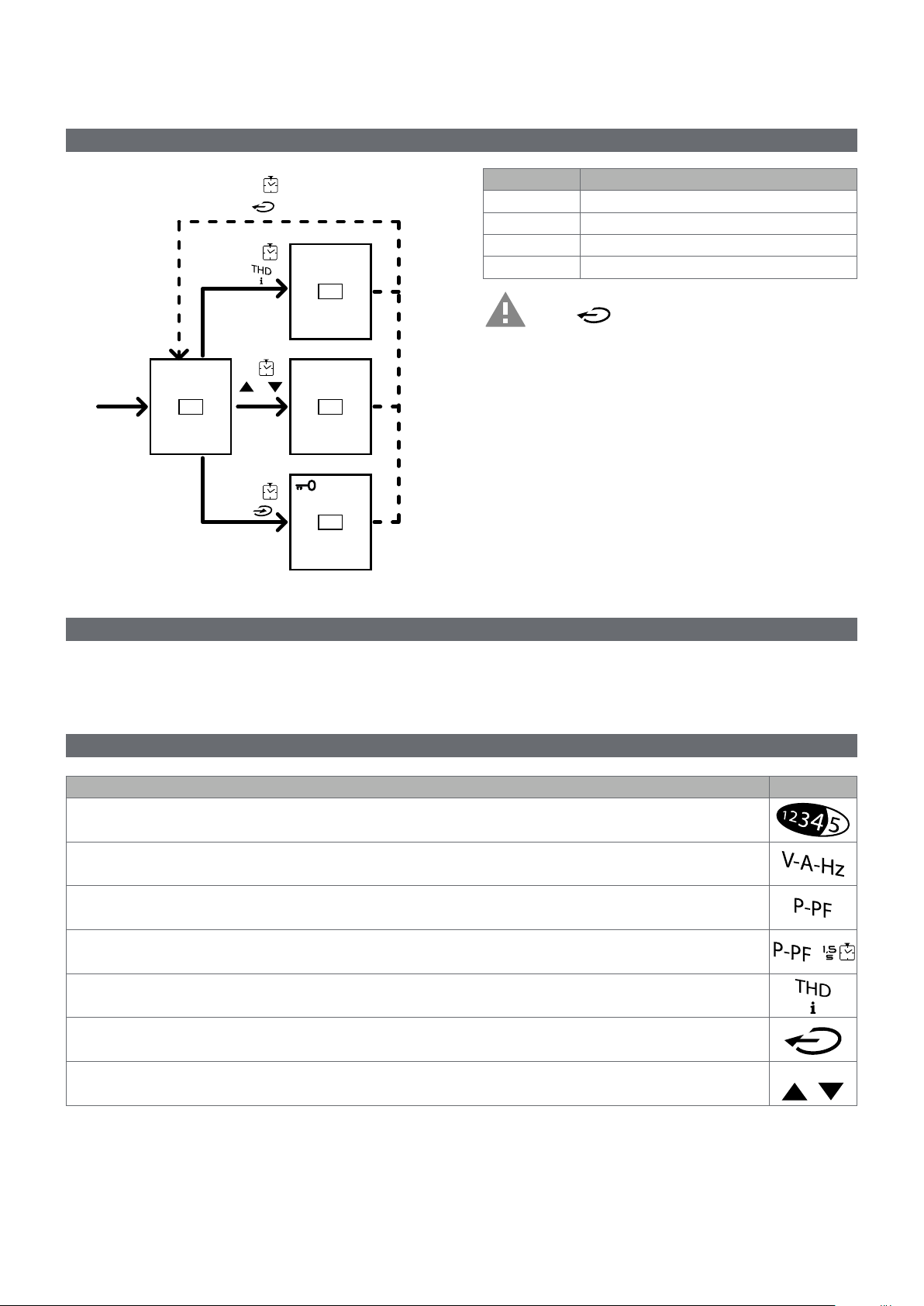

Navigating the menus 13
Navigation features 13
Working with the measurement menu 13
Working with the settings menu 14
Common operations 14
Setting a parameter 15

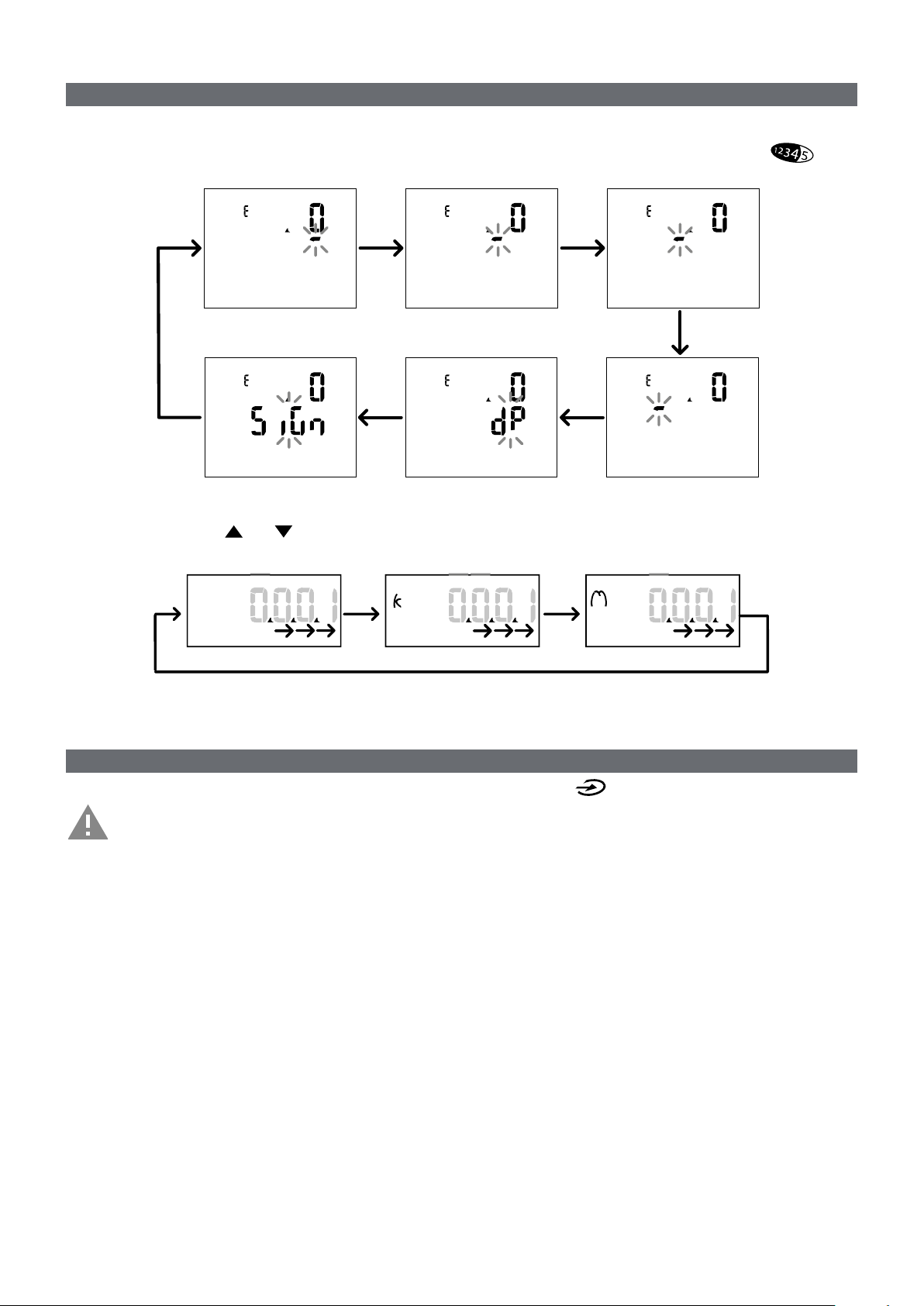

Setting numeric parameters 16
Saving settings 16
Menu description 17
Measurement menu - meters 17
Measurement menu - measurement pages 17
Settings menu 19
Information Menu 20
Essential information 21
Managed measurements 21
Introduction 21
Main line measurements 21
Channel and load measurement (TCD12) 21
Measurement management 22
Measurement error 22
Average value calculation (dmd) 22
Synchronization types 22
Total demand distortion calculation (TDD) 22
Voltage asymmetry calculation 23
Filter 23
Alarms 24
Introduction 24
Alarm settings for main line variables 24
Alarm settings for channel or load variables 24
Alarm types 24
Start-up condition management 25
Latch function 25
Output activation logic 25
Setting alarms 26
Accessory modules 26
Enabling accessory modules 26
Digital inputs 26
Notes on digital inputs 26
Digital outputs 27
Tariff management 27
Tari󰀨 management mode 27
Managing tari󰀨s via Modbus command 27
Managing tari󰀨s via internal calendar and clock 27
Managing tari󰀨s via digital input 27
Disabling tari󰀨 management 28
Database 28
Introduction 28
Database content 28
Date and time 28
Settings 28
Daylight savings time 28
LCD display 29
Back lighting 29
LCD bar graph 29
Home page 29
TCD12 29
TCD12 identication 29
Configure the system 30
Configure WM50 30
Conguration mode 30
Conguration requirements via UCS 30

3WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
Conguring WM50 via touch keypad 30
Conguring WM50 via PC or smartphone 30
Settings from WM50 31
General settings 31
Accessory modules settings 34
Running a pulse transmission test 34
Checking accessory module enabling 34
Configure TCD12s 34
Congure TCD12 layout connected to WM50 34
Moving a TCD12 35
Replacing a TCD12 35
Other operations 36
Manage alarms 36
Reset an alarm via digital input 36
Reset an alarm via UCS 36
Recognize active alarms 36
Reset meters and values 36
Reset energy meters and totalizers 36
Reset minimum, maximum, dmd and max dmd values 36
Communicating with other devices 37
Communicated via M C ETH module 37
Communicated via M C 485 232 module 37
Communicate via OptoProg 37
Maintenance and disposal 38
Troubleshooting 38
Measurement problems 38
Alarms 38
Communication problems 38
Problems during settings 38
LED 39
Cleaning 39
Responsibility for disposal 39
Features 40
WM50 common specifications 40
General features 40
Environmental specications 40
Input and output insulation 40
Main unit specifications 40
Electrical specications 40
Power supply 40
Main line measurement precision (main unit) 41
Channel and load measurement precision (TCD12) 41
Optical port 41
Memory 41
Digital input/output module specifications 41
M F I6 06 module features 41
M F I6 R4 module features 42
Analog input module features 42
M A TPN module input features 42
Communication module features 42
M C 485232 module 42
M C ETH module 43
TCD12 current sensor features 43
General features 43
Environmental specications 43
Electrical specications 43
Conformity 43
Part numbers key 43
Main unit part number (rear of unit) 43
Compatible accessory modules part numbers (rear of
module) 43
TCD12 part number 44
TCD12WS cable part number 44

4WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
Information property
Copyright © 2017, CARLO GAVAZZI Controls SpA
All rights reserved in all countries.
CARLO GAVAZZI Controls SpA reserves the right to apply modifications or make improvements to the relative documentation without the
obligation of advance notice.
Safety messages
The following section describes the warnings related to user and device safety included in this document:
NOTICE: indicates obligations that if not observed may lead to damage to the device.
CAUTION! Indicates a risky situation which, if not avoided, may cause data loss.
IMPORTANT: provides essential information on completing the task that should not be neglected.
General warnings
This manual is an integral part of the product and accompanies it for its entire working life. It should be consulted for all situations
tied to configuration, use and maintenance. For this reason, it should always be accessible to operators.
NOTICE: no one is authorized to open the analyzer or remove the MABC module. This operation is reserved exclusively for CARLO
GAVAZZI technical service personnel.
Protection may be impaired if the instrument is used in a manner not specified by the manufacturer.
Service and warranty
In the event of malfunction, fault, requests for information or to purchase accessory modules, contact the CARLO GAVAZZI branch or
distributor in your country.
Installation and use of analyzers other than those indicated in the provided instructions and removal of the MABC module void the warranty.
Download
This manual www.productselection.net/MANUALS/UK/WM50_im_use.pdf
Installation instruction - WM50 www.productselection.net/MANUALS/UK/WM50_im_inst.pdf
Installation instruction - TCD12 www.productselection.net/MANUALS/UK/TCD12_im.pdf
Accessory module user manual www.productselection.net/MANUALS/UK/WM40MODULES_im.pdf
UCS desktop www.productselection.net/Download/UK/ucs.zip
UCS Mobile Google Play Store
Modbus communication protocol www.productselection.net/Download

5WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
WM50 and TCD12
Introduction
Description
WM50 is a multichannel power analyzer for single, two and three-phase systems. Using TCD12 split core current sensors, it can monitor up
to 96 single-phase loads or any combination of single and three-phase loads or two and single-phase loads for a maximum of 96 channels.
The system can be set up, measurements viewed and up to 16 alarms managed from WM50 and UCS. Main unit functions can be expanded
with a maximum of two of the following available modules: digital input/output module, analog input module and communication module.

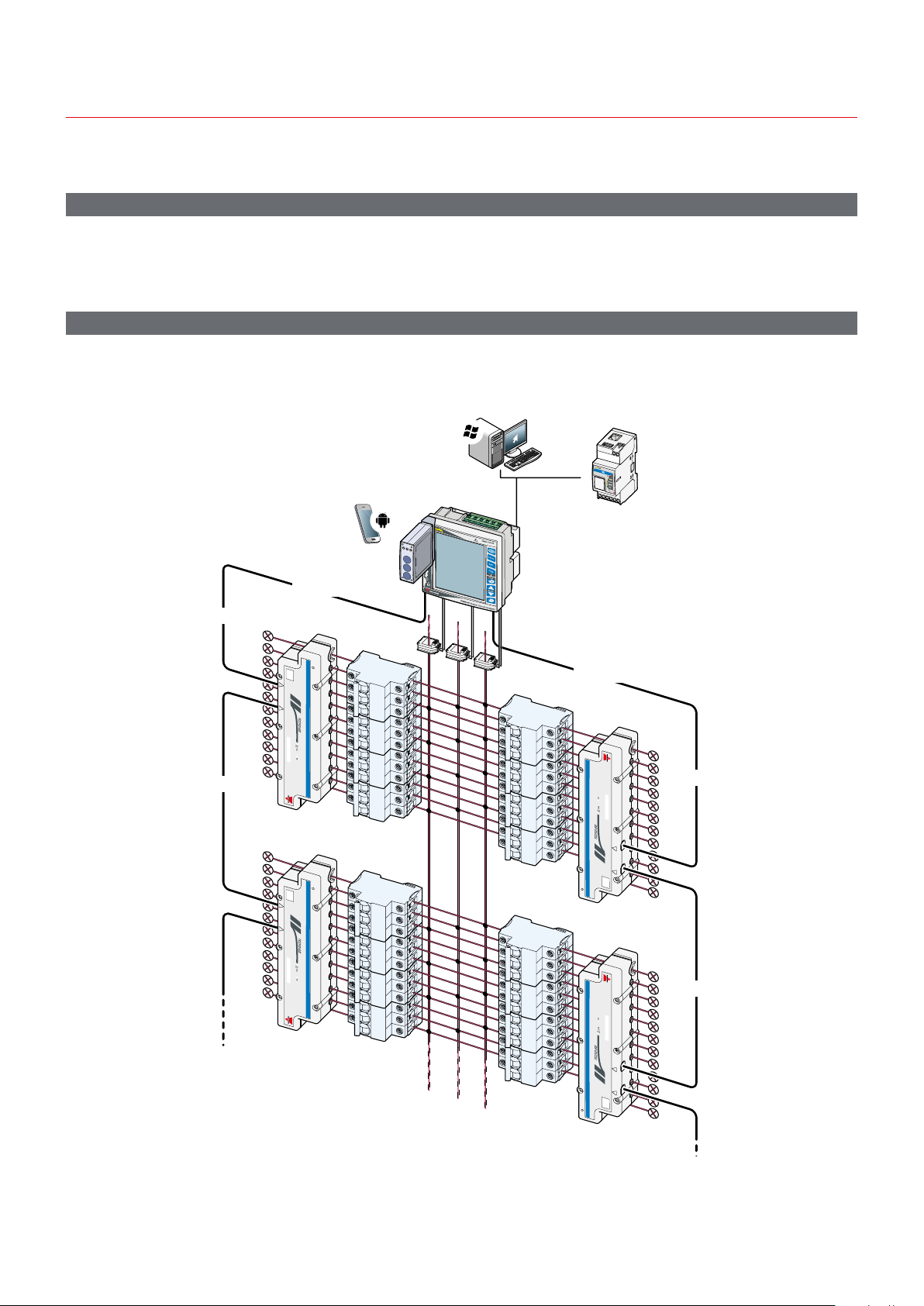

Architecture
UCS Desktop
UCS Mobile RS485 /
Ethernet
WM50
Master Modbus (VMU-C)
OptoProg
TCD12
max 4
max 48
TCD12
TCD12
TCD12WS
TCD12WS TCD12WS
TCD bus B
TCD bus A
TCD12WS
max 4
max 48
TCD12

6WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
WM50 and TCD12
Components
Component Description
WM50 Main unit, measures and displays the main line electrical variables via current sensors. With LCD display and touch keypad, it
lets you set measurements parameters, configure accessory modules and manage up to 16 alarms. It communicates with TCD12
current sensors via pre-installed MABC module to monitor up to 96 channels.
Accessory modules
(optional)
Connected to the main unit via local bus, the following expand WM50 functions:
Type Module description Part number
Digital inputs/outputs Six digital inputs and six static outputs M F I6 O6
Six digital inputs and four relay outputs M F I6 R4
Analog inputs Three analog inputs (neutral current, temperature probe, 20 mA input) M A TPN
Communication Modbus RTU communication on RS485/RS232 M C 485 232
Modbus TCP/IP communication on Ethernet M C ETH
TCD12 12-channel current sensor. Measures main electrical variables on the single channels and loads and transmits them to WM50. A
maximum of eight TCD12s can be connected in series on two TCD buses to each WM50 via TCD12WS cables.
UCS Configuration and diagnostics software. Available for both PC and Android mobile devices.
OptoProg (optional) Optical communication interface to configure the analyzer and TCD12s or to read data in real-time from PC or mobile devices via
UCS.
Master Modbus
(optional)
Supervision system for WM50 data analysis and monitoring.
Component descriptions
Main unit - front
A
E
B
D
C
Part Description
AOptical port and plastic support for OptoProg connection
make sure that the plasc support is removed only during programming by skilled people, and is kept in place during normal working, in
order to avoid risk of electric shock.
BBacklit LCD display. The backlight time, color and behavior in the event of alarm can be set.
CAlarm LEDs, see “Main unit LED status” on page 7
DMABC module status LED
refer to the instructions for use, see “Main unit LED status” on page 7
ETouch keypad

7WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
WM50 and TCD12
Main unit - rear
A
C
D
E
F
I
G
B
H
Part Description
ADetachable power supply terminal block
BDetachable voltage input terminal block
CDetachable functional grounding terminal block
DMABC module (irremovable) for communications with TCD12 current sensors
ELocal bus port for accessory modules
FB port for TCD12 bus
GA port for TCD12 bus
HDetachable current input terminal block
IPower supply status LED, see “Main unit LED status” below
Main unit LED status
G1 Alarm 1, 2, 3, 4 status Off: no active alarm.
On: at least one active alarm.
Note: to identify which alarm is activated, use UCS.
All blinking: TCD12 configuration inconsistent with set electrical system.
Note: for details on the type of inconsistency, see the Warning page in “Settings menu” on page 19.
G2 Alarm 5, 6, 7, 8 status
G3 Alarm 9, 10, 11, 12 status
G4 Alarm 13, 14, 15, 16 status

8WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
WM50 and TCD12
BCM TCD12 monitoring status Off: TCD12 monitoring on.
On: TCD12 monitoring not working.
Blinking: communication error with at least one TCD12 or at least one TCD12 not configured or
inconsistent with the set configuration.
Back Power supply status On: WM50 power on.
Off: WM50 power off.
Note: for problem solutions, see “Troubleshooting” on page 38.
Accessory modules
B
A
B
B
D
B
C
A
Part Description
ADetachable terminal block for inputs/outputs or area specific to communication ports
BFastening pins to main unit or other accessory module
CInternal local bus port for communications with main unit or other accessory module
DExternal local bus port for communication with communication module. Not included in communication modules.

9WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
WM50 and TCD12
TCD12
B
A
C
D
F
H
G
E
D
I
D
Part Description
AIndicator of the channel considered by default as the first one of the managed channel group. The order can be reversed during configuration.
BTop
CDevice identification marking area
DTop and bottom fastening screws
EConnection port with WM50 or other TCD12 via TCD12WS cable
FBottom
GStatus LED, see “TCD12 LED status” below
HRemovable clips for cable fastening
IRemovable adapters for DIN rail mounting
TCD12 LED status
COM Communication status with
WM50
Off: communications correctly working
On: communication error
Blinking: TCD12 not configured or not consistent with the set configuration
ON Power supply status Off: no power supply
On: powered
Blinking: TCD12 identification function on
Note: for problem solutions, see “Troubleshooting” on page 38.

10 WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
WM50 and TCD12
TCD12WS
A
A
B
Part Description
AConnection cables with WM50 or TCD12
BTab for connector removal
UCS (Universal Conguration Software)
UCS is available in desktop and mobile versions.
It can connect to WM50 via accessory communication modules (Modbus TCP/IP or Modbus RTU protocol) or via OptoProg (via USB or
Bluetooth).
The following is possible with UCS:
• configure WM50, including accessory modules and current sensors
• view system status for diagnostics and configuration checks
UCS function overview
Function UCS desktop UCS Mobile
Configure the system with WM50 connected (online configuration) x x
Configure the system with WM50 disconnected (offline configuration) x x
View main measurement * x x
View input and output status * x x
View main unit, channel and load alarm status * x x
Record selected variable measurements * x -
View help to install WM50 and connect with OptoProg - x
Note *: functions only available with WM50 connected.

11WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
WM50 use
Interface
Introduction
WM50 is organized in four menus:
• measurement menu: pages used to display meters and other electrical variables
• settings menu: pages used to set parameters of the main unit and accessory modules
• reset menu: pages to reset minimum, maximum, average (dmd) and maximum among averages values (max dmd) for variables in
measured pages
• information menu: pages that display general and set parameter information
Measurement menu display
AB
C
D
Part Description
AGraph with percentage of active or apparent real-time
power, see “LCD bar graph” on page 29
BMeters, see “Measurement menu - meters” on page 17.
These are displayed independently from the contents
displayed in area D.
CWarning and information area, see “Information and
warnings” on page 12
DMeasurement page area with electric variables
and relevant units of measure (for four rows), see
“Measurement menu - measurement pages” on page
17.
Settings menu display
A
B
C
D
E
Part Description
APage identification number
BPage title, see “Settings menu” on page 19
CWarning and information area, see “Information and
warnings” on page 12
DCurrent value/option
EPossible value/option range

12
WM50 use
WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
Information menu display
Reset menu display
B
A
C
D
Part Description
APage identification number
BPage title with reset object
CWarning and information area, see “Information and
warnings” below
DCurrent values
A
B
C
D
Part Description
APage identification number
BPage title, see “Settings menu” on page 19
CWarning and information area, see “Information and
warnings” below
DCurrent page information
Information and warnings
Symbol Description
Alarm information page
Settings menu page
Voltage connection error (inverted sequence)
Hot water totalizer (m3)
Cold water totalizer (m3)
Hot water energy totalizer (kWh)
Symbol Description
Gas totalizer (m3)
Feedback after pressing a button
Serial or optical communication status (receiving/
transmitting)

13
WM50 use
WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
Working with WM50
Navigating the menus
A
B
C
D
s
1,5
s
1,5
s
1,5
s
1,5
/
Section Function
AMeasurement menu
BInformation menu
CReset menu for displayed measurement page
DSettings menu
CAUTION! If you exit the settings menu by pressing
button per 1.5 s or automatically after 2 minutes
of inactivity, changes will not be saved.
Navigation features
The measurement menu home page is displayed when the device is turned on. The home page appears after 120 s of inactivity.
The information menu, settings menu and relevant reset menu can be opened from any menu page.
Note: the settings menu is password protected.
Working with the measurement menu
Operation Button
Scroll meters. See “Measurement menu - meters” on page 17.
Scroll voltage, current, frequency group pages. See “Voltage, current, frequency group” on page 17.
Scroll power, power factor group pages. See “Power, power factor group” on page 17.
View the temperature and analog input value of the MATPN accessory module. See “M A TPN module page” on page 18.
Scroll THD group pages. See “THD group” on page 18.
View the measurement page set as the Home page.
Scroll minimum, maximum, average (dmd) and maximum among averages values (max dmd) for variables in displayed page.
/

14
WM50 use
WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
Working with the settings menu
Operation Button
Move among value positions *
Exit the sub-menu and view relative title page
Increase a parameter value / View the next value option/ Modify the value in positions dP and Sign*
Decrease a parameter value / View the previous value option/ Modify the value in positions dP and Sign*
Enter the sub-menu/Modify parameter of the page on display
Save changes and exit the menu in the
End page
Exit the menu without saving changes
, then
in the
Exit menu?
page
Note *: for details, see “Setting numeric parameters” on page 16.
Common operations
Operation Button
Confirm operation
View the previous/next page
/
Cancel operation

15
WM50 use
WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
Setting a parameter
When setting a parameter, Eindicates the edited row, the blinking dash the number.
Example procedure: how to set Filter co=25 and save changes.
Note: the initial procedure status is the Filter co page in the settings menu.
x2
x3

16
WM50 use
WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
Setting numeric parameters
Order of positions
The value of a numerical parameter is made up of six positions: four digits, decimal point (dP) and sign (Sign). The button is used
to select the positions in the following order:
Decimal point position (dP)
In the dP position, buttons and can be used to enable decimal point movement and set a multiplier (kx 1000, Mx 1000000) in the
following order:
Sign position (Sign)
The value sign can be set in the position Sign. The value is positive by default.
Saving settings
To save settings, scroll the settings menu pages until the End page is displayed and press .
CAUTION! Changes are not saved if you exit the settings menu in another way.

17
WM50 use
WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
Menu description
Measurement menu - meters
A list of the meters displayed is provided below:
Note:displayed meters depend on whether M F I6 06 and M F I6 R4 module inputs are installed and their settings and whether tariff
management is enabled.
Symbol Description
tot (kWh) Total imported active energy
tot (kvarh) Total imported reactive energy
tot (- kWh) Total exported active energy
tot (- kvarh) Total exported reactive energy
PAr (kWh) Partial imported active energy
PAr (kvarh) Partial imported reactive energy
PAr (- kWh) Partial exported active energy
PAr (- kvarh) Partial exported reactive energy
t0x (kWh) Active energy per tariff x
t0x (kvarh) Reactive energy per tariff x
Symbol Description
t0x (- kWh) Active energy per tariff x
t0x (- kvarh) Reactive energy per tariff x
C1 Pulse totalizer 1, associated with digital input 4
C2 Pulse totalizer 2, associated with digital input 5
C3 Pulse totalizer 3, associated with digital input 6
HrS Total load operating hours
d t Date and time
Measurement menu - measurement pages
The minimum, maximum, average (dmd) and maximum among average values (max dmd) for each displayed variable can be viewed for each
measurement, touching keys / .
Note:the available measurements depend on the type of system set.
Voltage, current, frequency group
Displayed
measurements Description
VLN∑
VL1
VL2
VL3
System phase-neutral voltage
Phase 1 voltage
Phase 2 voltage
Phase 3 voltage
VLL∑
VL12
VL23
VL31
System phase-phase voltage
Phase 1-phase 2 voltage
Phase 2-phase 3 voltage
Phase 3-phase 1 voltage
AN
AL1
AL2
AL3
Neutral current
Phase 1 current
Phase 2 current
Phase 3 current
Displayed
measurements Description
Hz
ASY
VLL%
VLN%
Frequency
-
Phase-phase voltage asymmetry
Phase-neutral voltage asymmetry
A∑
AL1
AL2
AL3
System current
Phase 1 current
Phase 2 current
Phase 3 current
Power, power factor group
Displayed
measurements Description
VA∑
VAL1
VAL2
VAL3
System apparent power
Phase 1 apparent power
Phase 2 apparent power
Phase 3 apparent power
VAr∑
VArL1
VArL2
VArL3
System reactive power
Phase 1 reactive power
Phase 2 reactive power
Phase 3 reactive power
Displayed
measurements Description
W∑
WL1
WL2
WL3
System active power
Phase 1 active power
Phase 2 active power
Phase 3 active power
PF∑
PFL1
PFL2
PFL3
System power factor
Phase 1 power factor
Phase 2 power factor
Phase 3 power factor

18
WM50 use
WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
THD group
Note: single harmonic values can also be viewed from UCS.
Displayed
measurements Description
V1 THD %
V2 THD %
V3 THD %
THD of phase 1 voltage
THD of phase 2 voltage
THD of phase 3 voltage
VL12 THD %
VL23 THD %
VL31 THD %
THD of phase 1-phase2 voltage
THD of phase2-phase3 voltage
THD of phase3-phase1 voltage
AL1 THD %
AL2 THD %
AL3 THD %
THD of phase 1 current
THD of phase 2 current
THD of phase 3 current
EVEn
V1 THD %
V2 THD %
V3 THD %
Even THD of phase 1 voltage
Even THD of phase 2 voltage
Even THD of phase 3 voltage
EVEn
VL12 THD %
VL23 THD %
VL31 THD %
Even THD of phase 1-phase2 voltage
Even THD of phase2-phase3 voltage
Even THD of phase3-phase1 voltage
EVEn
AL1 THD %
AL2 THD %
AL3 THD %
Even THD of phase 1 current
Even THD of phase 2 current
Even THD of phase 3 current
Displayed
measurements Description
odd
V1 THD %
V2 THD %
V3 THD %
Odd THD of phase 1 voltage
Odd THD of phase 2 voltage
Odd THD of phase 3 voltage
odd
VL12 THD %
VL23 THD %
VL31 THD %
Odd THD of phase 1-phase2 voltage
Odd THD of phase2-phase3 voltage
Odd THD of phase3-phase1 voltage
odd
AL1 THD %
AL2 THD %
AL3 THD %
Odd THD of phase 1 current
Odd THD of phase 2 current
Odd THD of phase 3 current
AL1 TDD %
AL2 TDD %
AL3 TDD %
TDD of phase 1 current
TDD of phase 2 current
TDD of phase 3 current
M A TPN module page
Displayed
measurements Description
Matp
°C/°F
Analog input
Temperature

19
WM50 use
WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
Settings menu
Change pass
Backlight
Colour
Modules
System
Ct rao
Ctnrao
Time
Type
Value
Baudrate
Parity
Filter s
Filter co
Type
Page
Sync
Dmd
Set power
Home page
Filter
Opcal
RS485232
Ethernet
Virt al 1
Virt al 16
Dig out 1
Dig out 6
Tariff
Dig in 1
Dig in 6
Process
Line 2
Line 3
Line 4
Line 5
Enable
Variables
Type
Latch
Start cond
ON delay
Set 1
Set 2
Out link
Out logic
Funcon
Pulse type
Pulse weig
Al status
Out test
Power test Unit
Probe
Min elect
Max elect
Min displ
Max displ
Funcon
Pulse type
Pulse weig
Address
Baudrate
Parity
IP add
Subnet
Gateway
Total
Paral
Total +
Total -
Paral +
Paral -
Tariff
Heang
Format
Month
Hour
Minute
Second
Year
Day
End
Meters
Reset
Clock
Trip
ResetMax
ResetDMD
Reset DMax
ResetMIN
Funcon= puls
Funcon= alar
1= Only for M A TPN module
2= Only for M C 485 232 module
3= Only for M C ETH module
4= Only for M F I6 O6/M F I6 R4 module
Type= PAGE
Type= VArS
Funcon= puls
1
2
3
4
4
4
4
4
4
1
Note: for the description of all settings, possible and default values, see “Settings from WM50” on page 31.

20
WM50 use
WM50 - Instruction manual | 2017-10 | © 2017 | CARLO GAVAZZI Controls SpA
Information Menu
Note: in general, presence of the pages depends on the installed accessory modules. The Data events page is only included if the relevant
database is enabled.
Page title Information displayed
12345678 • Serial number (page title)
• Year of manufacture
• Firmware revision
• Average value calculation interval (dmd)
Conn • System type (in title)
• Current transformer ratio (Ct)
Note: any neutral current transformer ratio is not displayed.
Pulse out x • x = output number (in title)
• none: output not set as pulse output
• If the output is set as pulse output, it displays:
• Associated energy meter
• Pulse weight
Remot out (3
pages)
Outputs set as remote control and relevant status
Warning TCD12 warnings:
• none: no warnings
• E001: channels associated to a phase not foreseen by the set electrical system
• E002: two-phase or three-phase load set with two channels associated with the same phase
• E003: set load inconsistent with the set electrical system (i.e.: three-phase load, two-phase electrical system)
Al x • x = alarm number (in title)
• Alarm data x (in title):
• None: alarm disabled
• Virt: alarm enabled but not associated with any output
• Out x YY: alarm enabled, associated with digital output x with normal YY output status (ND = normally open or NE = normally
closed)
• Controlled variable
• Alarm activation threshold (Set 1)
• Alarm deactivation threshold (Set 2)
• Alarm type:
Symbol Description
Up
Down
Symbol Description
Out of window
In window
Optical Baud rate of optical port
Com port Modbus address
Baud rate of RS485/RS232 port
IP address IP address
Date
time
Date
Hour
Data events Number of events recorded in the main unit event database.
