Terrain Command III User Manual
v1.4
SPECIAL MODEL FOR FANTIC XEF Rally MY23
Model No. TCMDF0011
1. Description
1.1. Terrain Command III is a Bluetooth Low Energy remote controller designed to be mounted
on a motorcycle.
1.2. The specific model of Terrain Command III marked above (“TCMD3”) is specifically designed
for installation on Fantic XEF Rally, MY2023 (“Fantic XEF Rally”) as part of a complete kit,
which comprises the following Carpe Iter equipment:
1.2.1. Terrain Command III,
1.2.2. non-charging Lightweight Holder,
1.2.3. CI Pad v4b,
1.2.4. Power source for CI Pad v4b (specific power source for Fantic XEF Rally –this version
of the power source will only work as part of the kit),
1.2.5. M8 charging cable.
1.3. TCMD3 includes specific connectors to mate with the Fantic XEF Rally without the need for
any modifications and is designed to mate with specific version of Carpe Iter power source
for CI Pad v4b.
1.4. TCMD3 comprises of the following main parts:
1.4.1. Two button sections to be mounted on motorcycle handlebars. The button sections
are interchangeable (“Button Section”);
1.4.2. Main hub, which contains electronics required for TCMD3 operation;

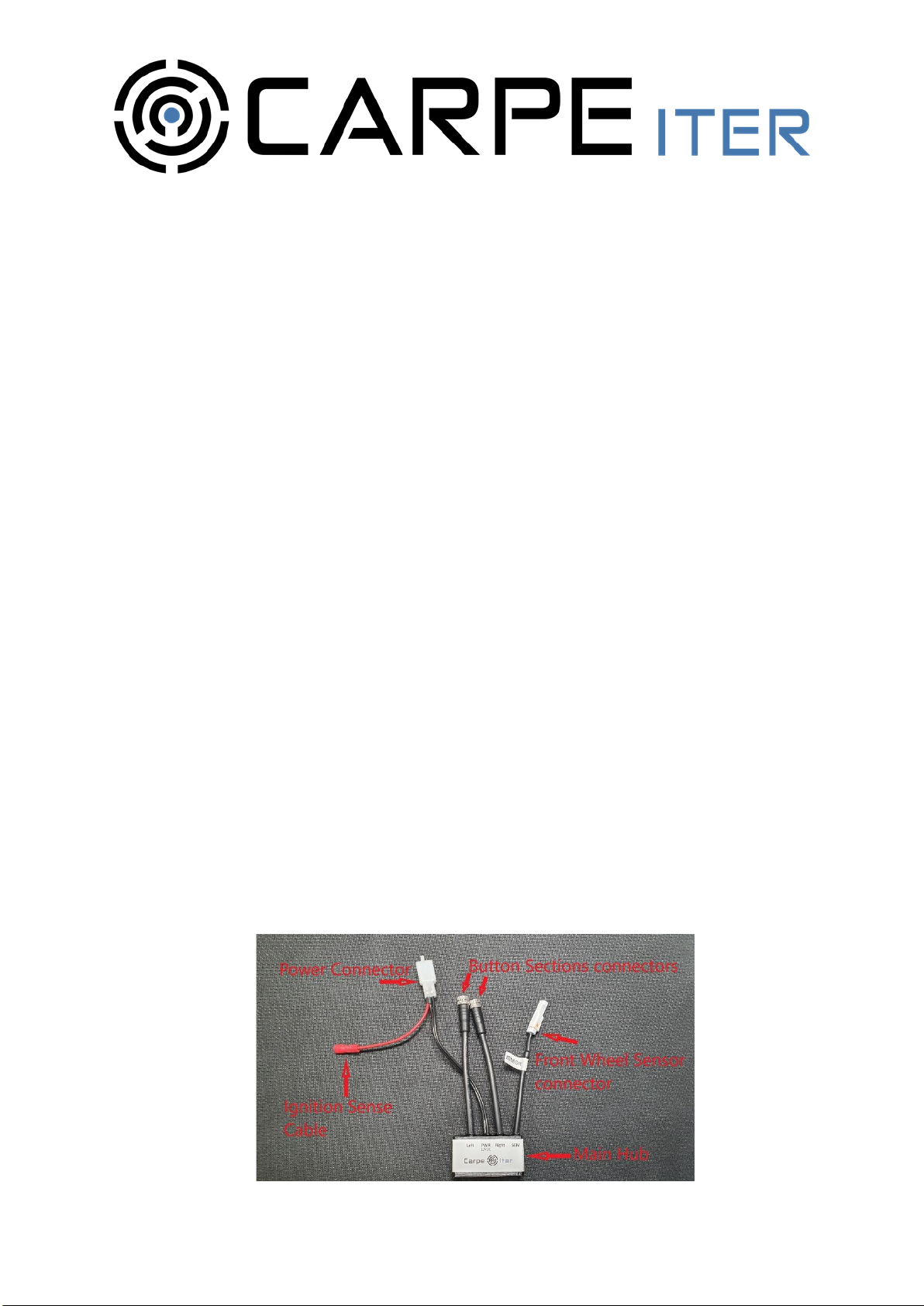

1.4.3. Please refer to the graphics for details:

ULW Czech, s.r.o.
V Ráji 34, Praha 9 - Hostavice, 198 00, CZ, IČO: 28256212, DIČ: CZ28256212
1.4.4. Functions:
2. Installation
2.1. Button Sections:
2.1.1. Buttons Sections are designed for permanent installation on 22mm diameter
handlebar via the provided mounting brackets and screws.
2.1.2. In stock configuration, the Button Sections are on opposite sides of the handlebars.

ULW Czech, s.r.o.
V Ráji 34, Praha 9 - Hostavice, 198 00, CZ, IČO: 28256212, DIČ: CZ28256212
2.1.3. Alternatively, the Button Sections can be mounted on one side of the handlebars,
next to each other. In case of after-marked TCMD3 installation or side-by-side Button
Section installation, create adequate space on handlebar by moving stock control
elements. Ideal location is between handlebar grip and stock instrument cluster.
Make sure the stock control elements, especially brake and clutch levers, turn-signal
and lights switches are still withing reach.
2.1.4. Depending on your riding style (mostly on the foot pegs / sitting down) rotate Button
Sections to find appropriate angle to have its control elements within reach of your
thumb.
2.1.5. Use the provided bracket and M4 screws to secure the Button Sections on the
handlebar. Required tool (not provided): 2,5mm HEX key.
2.1.6. Route cables close to the handlebar and secure them with zip ties.
2.1.7. Make sure that neither the Button Sections, nor the cables are obstructing normal
operation of your motorcycle instruments, including especially clutch and brake
levers. In case you detect any such obstruction, relocate the Button Sections and/or
the cables.
2.2. Main Hub
2.2.1. Place the Main Hub behind your motorcycle faring, ideally behind the front mask.
2.2.2. Route Button Sections cables to the Main Hub and connect to the appropriate socket
marked as “Left” and “Right”to the respective Button Section. The marking on the
sockets represents that side of the handlebar from rider perspective, on which the
Button Sections should be mounted or (if Button Sections are mounted side-by-side)
location of Button Sections relative to one another.
2.2.3. Ensure correct Button Section connectors orientation when mating the Button
Sections with the Main Hub –mind the locking elements:

ULW Czech, s.r.o.
V Ráji 34, Praha 9 - Hostavice, 198 00, CZ, IČO: 28256212, DIČ: CZ28256212
2.2.4. Tighten the Button Sections connectors firmly by hand –the mating pairs screw into
each other (it is not sufficient to plug the connectors. They will get undone due to
vibrations). Do NOT use tools to torque the connectors or you will damage them.
2.2.5. Connect the Main Hub input power leads to auxiliary power outlet on your
motorcycle. The Main Hub is equipped with connector that mates with auxiliary
power outlet on Fantic XEF Rally motorcycles –DO NOT modify the connector and
wiring. DO NOT connect the Main Hub to motorcycle battery. Hint: apply dielectric
grease (battery contacts fat) on the terminals prior to installation to ensure good
contact and prevent oxidation.
2.2.6. Connect Ignition Sense Cable to Carpe Iter power source –this step is mandatory, or
your Carpe Iter Pad will not charge.
2.2.7. Installation on other motorcycle than Fantic XEF Rally:
12VDC nominal voltage and 15W power limitation on the power source for Main Hub
is required. The power limitation is satisfied on Fantic XEF Rally motorcycles without
user intervention (no user action is required) (subject to adhering to Section 2.2.5).
Input polarity is marked by color code on input leads -Black/Red marks the positive
lead and Black negative lead. In case of installation on other motorcycle than Fantic
XEF Rally and it provides more power than 15W on the auxiliary power outlet or you
are connecting Main Hub to the vehicle battery, a slow-blow fuse rated for 32VDC
voltage and 0,5A current must be implemented between Main Hub input power
leads and your motorcycle. On other motorcycles than Fantic XEF Rally It is
recommended to connect the Main Hub to the ignition switched auxiliary power
outlet to prevent motorcycle battery drain when stationary for extended periods of
time.

ULW Czech, s.r.o.
V Ráji 34, Praha 9 - Hostavice, 198 00, CZ, IČO: 28256212, DIČ: CZ28256212
2.2.8. The total length of input power leads connected to the Main Hub must not exceed
2,5m.
2.2.9. TCMD3 has on board auxiliary power source, which can sustain normal TCMD
operation for up to 30 minutes even after it is cut from power (motorcycle ignition
OFF).
2.2.10.Optional: Should you choose to use TCMD3 magnetic sensor reading capability,
connect standard magnetic 2 wire reed sensor to the connector marked as
„SENSOR“. Connecting SENSOR is only needed, in case you plan to use front wheel
revolutions readings and it is not required for normal TCMD3 operation. The
SENSOR connection is polarity ignorant. DO NOT connect the SENSOR with stock
front wheel sensor on your motorcycle or TCMD3 will be destroyed (different
voltage levels). In other words, except connecting the 12VDC and GND terminals,
TCMD3 MUST NOT be connected to your motorcycle electrical system/electronics
through the SENSOR.
2.2.11.Secure the Main Hub and associated cable assemblies with zip ties.
3. Use
3.1. TCMD3 is not operational as a self-standing device. It requires installation of the companion
software –Carpe Control app and enabling certain services to run on your Android powered
smart device.
3.2. In order to work properly, TCMD3 MUST be connected to your Android powered smart
device via the companion software –Carpe Control app or the controller will not work
properly (it is not enough to make manual Bluetooth pairing via stock Bluetooth manager on
your device).
3.3. First connection
3.3.1. Download and install Carpe Control app from Play Store (pre-installed on CI Pad). If
already installed, update it to the latest version (check for updates on Play Store in
case of other than CI Pad device / check for updates in Carpe Manager in case of CI
Pad). DO NOT install Play Store version of Carpe Control app on CI Pad.
3.3.2. Grant all permissions requested by Carpe Control app during installation. If you deny
any of the requested permissions, Carpe Control app (and consequently TCMD3) will
not work.
3.3.3. Ensure TCMD3 is connected to power (if connected to ignition switched power outlet
on your bike, put ignition into ON position). Then open Carpe Control app on your
Android powered device and follow on-screen instructions. Your Android powered
device must be within Bluetooth range, to complete the process.
3.3.4. Carpe Control app will try to bond (pair) TCMD3 with your Android device
automatically. Should the automatic connection fail for any reason (the connection
page in the Control app will hang for more than 1 minute), pair TCMD3 manually in
the device Bluetooth manager and restart the Control app. When asked by the
Control app if you want to connect previously paired controller, confirm (click “Yes”).

ULW Czech, s.r.o.
V Ráji 34, Praha 9 - Hostavice, 198 00, CZ, IČO: 28256212, DIČ: CZ28256212
3.3.5. Once the first connection is completed, a bond is created between your Android
powered device and TCMD3 and you can start using TCMD3 to control supported
applications (see Carpe website for details).
3.3.6. TCMD3 may be bonded to more than 1 Android powered device. WARNING –make
sure only one of the previously bonded devices has active Bluetooth, when both are
within range of TCMD3 –it is not possible to control to which device TCMD3 would
connect (first come first serve in terms of Bluetooth connection routine). If you must
keep Bluetooth active on both previously bonded devices for any reason, you will
need to delete connection to TCMD3 on the one, that you presently do not intent to
use together with TCMD3 (please see Section 3.5).
3.4. Subsequent connections
3.4.1. Following the first connection described in Section 3.3, TCMD3 will connect
automatically when a bonded device is detected. The connection is almost
instantaneous under normal conditions.
3.4.2. In order to detect the presence of a bonded device: (A) TCMD3 must be powered (in
case you connected it to your motorcycle ignition operated auxiliary power outlet,
this requires putting the ignition to ON position), (B) Bluetooth must be enabled and
within range on the bonded device.
3.5. Unpairing
3.5.1. Pairing relationship between your Android powered device and TCMD3 can be
deleted either manually in the device Bluetooth manager or directly via the function
in Carpe Control app –Configuration –Delete controller.
3.6. Initialization routine explained (automatic)
3.6.1. Active mode is indicated by blue LED blink on the Main Hub. Any LED color indicates
that TCMD3 is powered.
3.6.2. Rapid flash of blue LED indicates advertising for Bluetooth pairing.
3.6.3. Slow flash of blue LED indicates successful Bluetooth connection to a bonded
(previously paired) device and TCMD3 being ready for normal operation.
4. Operating considerations
4.1. Never exceed operating parameters stated in Section 5 or TCMD3 will get damaged or
destroyed.
4.2. Ensure correct polarity of the TCMD3 input leads.
4.3. Do not pull on any cables/wires.
4.4. When disconnecting the TCMD3 cable assembly from your motorcycle or when
disconnecting the magnetic sensor, never pull wires:

ULW Czech, s.r.o.
V Ráji 34, Praha 9 - Hostavice, 198 00, CZ, IČO: 28256212, DIČ: CZ28256212
4.5. Exceeding upper operating temperature range will result in overheating. When overheating
occurs, TCMD3 will resume its normal operation after it cools down to normal operating
temperature (unless the heat exceeded the operating parameters to such degree to inflict
permanent damage).
4.6. It is recommended not to leave TCMD3 exposed to direct sunshine in high-temperature
locations. When parking motorcycle in shade is not an option and in case TCMD3 is not
shaded by your motorcycle fairings, cover TCMD3 with a piece of cloth to prevent
overheating.
4.7. DO NOT apply jet water on TCMD3, especially the Button Sections (e.g. when cleaning your
motorcycle, avoid hitting TCMD3 with direct stream from WAP or other jet water system).
4.8. DO NOT use button combos (pressing more than one button at the same time) during
normal operation –it may lead to unexpected behavior.
5. Specifications
•Operating voltage: 10-16V DC. Power provided by the power source must be limited to
15W or a fuse with the following specifications must be implemented by the user: slow-blow
fuse rated for 32VDC voltage and 0,5A current. Subject to adhering to this manual, the
power limitation is satisfied on Fantic XEF Rally motorcycles without user intervention (no
user action is required).
•Average power consumption when in use: 5mA@12V (BT Connected, Wheel Sensor being
used).
•Onboard auxiliary power supply (super capacitors) that will ensure up to 30 minutes of self-
standing operation after disconnecting from power, when fully charged.
•Water and dust resistant. Official IP rating has not been done, but TCMD3 is designed to
survive on a motorcycle in any weather conditions (subject to operating limitations stated in
Section 4).
•Operating temperature: minus 15 to 60 C° (the upper range includes heat accumulated in the
TCMD3 enclosure by external sources, such as the Sun).
•Storage temperature: minus 15 to 80C° (the upper range includes heat accumulated in the
TCMD3 enclosure by external sources, such as the Sun).
•Operating humidity: 0-95%
•Storage humidity: 0-70%

ULW Czech, s.r.o.
V Ráji 34, Praha 9 - Hostavice, 198 00, CZ, IČO: 28256212, DIČ: CZ28256212
•Control elements:
•8x mechanical pushbutton.
•Maximum operating force on control elements: 2kgf.
•Normal operating force on control elements: 0,5kgf.
•User feedback system: 1xRGB LED on Main Hub.
•Maximum SENSOR frequency: 40Hz (that equals to more than 300km/h with 21-inch wheel).
Subject to correct function of the reed switch.
•Radio:
•Operating frequency: 2,402 –2,480 GHz
•TX power: < 10dBm e.i.r.p.
•Modulation type: wide band modulation
•BT 5.0 compliant
•Connectors:
•6,3mm Faston tab on power input;
•JST 02R-JWPF-VSLE style connector for SENSOR.
•TCMD3 is not designed to be worn on human body while in operation. Minimum distance
between human body and the Main Hub is 40cm.
•Dimensions:
•Button Section WxLxH: 19x72x29 (height above handlebar)
•Main Hub WxLxH: 21x56x31 mm (excluding cables)
6. Disclaimer
6.1. Unless explicitly stated for a specific Carpe Iter item (TCMD3, CI Pad, Holder, their
accessories, brackets and other Carpe Iter equipment) (“Item”) otherwise, no testing or
homologation procedures were taken to ensure compliance with regulations associated
with using the Items in regular traffic –on the streets. Use at your own risk.
6.2. Make sure that Items with sharp edges are positioned so that the sharp edge does not face
the rider. Always dismount Items, which you are not currently using –especially empty
holders and brackets (which may form a sharp edge when empty).
6.3. Even if the Items are mounted to your vehicle properly, you might suffer an injury to your
body (bruises, tearing, fractures, etc.) or damage to your gear (tearing, breakage, etc.)
especially in case of an accident (e.g. dismounting your vehicle in other than standard way).
6.4. Manuals and use instructions are only provided in electronic form and can be viewed and/or
downloaded on our website. Manuals and instructions for use shall not be provided in
printed form.

ULW Czech, s.r.o.
V Ráji 34, Praha 9 - Hostavice, 198 00, CZ, IČO: 28256212, DIČ: CZ28256212
6.5. Our manuals and instructions for use assume casual experience with smart devices (such as
smartphones) and basic manual dexterity. I case of doubt, installation of Items on a vehicle
must be performed by a specialized workshop.
6.6. Manuals and instructions for use, as well as technical support are only provided in English.
7. Warranty
7.1. Carpe provides world-wide warranty in the scope set forth below for defects, which exist
upon delivery of an Item to the shipping address provided by you upon purchase and which
shall manifest within the period of 2 year as of the date of the original purchase, if you are a
consumer, and 1 year as of the date of the original purchase, if you are a business (you
provided business identification number or VAT number upon purchase). This warranty does
not apply to software and batteries (see below). The date of dispatch of an Item to your
shipping address is deemed to represent the date of original purchase.
7.2. Limited 6 months warranty is provided for batteries included in an Item or, as the case may
be, sold separately. In the course of this limited battery warranty, we guarantee that the
battery will retain at least 60% of its nominal capacity. No warranty is provided for batteries
beyond the period of 6 months following the date of original purchase. Warranty for
batteries is subject to adhering to the use instructions set forth above.
7.3. Our warranty only covers defects that preclude the use of an Item for its purpose. In view of
the intended purpose of use of the Items, our warranty does not cover in particular: defects
of cosmetic nature, such as discoloration, paint fading, rusting that does not hinder the use,
etc.
7.4. Our warranty is subject to adhering to manuals and use instructions published on our
website or stated above in this manual for individual Items. Our warranty does not cover
defects occurring due to misuse of Items and lack of their maintenance. Our warranty does
not cover usual wear and tear.
7.5. No warranty is provided for software.
7.6. No warranty is provided for defects occurring as a result of outside forces (abrasion, shock,
water, pressure, vibration, UV light, etc.).
7.7. Plastic and rubber parts of Items are considered expendable material.
7.8. Item, in respect of which our defect warranty is claimed, including a detailed written
description of the defect, must be delivered for inspection to the address published for that
purpose on our website. Any and all cost associated with the delivery, including without
limitation fees and other duties incurred by us in association with re-importing the Items
into EU, will be borne by you and we will be entitled to request the respective
reimbursement to be credited to our bank account before your warranty claim is processed.
7.9. We shall be free to choose any of the following actions to satisfy your warranty claim:
7.9.1. repair, if repair is economical;
7.9.2. adequate monetary compensation;
7.9.3. replacement of the defective Item. We may choose to replace the defective Item
with newer generation or, if the Item was discontinued, with an Item offering similar
features.

ULW Czech, s.r.o.
V Ráji 34, Praha 9 - Hostavice, 198 00, CZ, IČO: 28256212, DIČ: CZ28256212
7.10. We may always choose to replace a defective Item instead of carrying out a repair or
providing monetary compensation.
7.11. Your warranty claim shall be reviewed and responded to within 30 days following the
delivery of the defective Items our address provided by us for that purpose.
7.12. It is strongly recommended that you contact us by email before dispatching an Item,
in respect of which you plan to claim warranty. We might choose to satisfy your claim
without the need to return the defective Item, which will save time and shipping cost.
