OWNER’SMANUAL
53 KNL / 53 QNL
ON/OFF SLEEP
TEMP

ENGLISH
GB - 3
Contents
Page
Precautions......................................................................................................... 2
Unit description.................................................................................................. 4
Remote controller description .......................................................................... 6
Remote controller preparation.......................................................................... 8
Unit operation..................................................................................................... 9
General operation ............................................................................................ 9
Automatic operation ......................................................................................... 9
Timer operation................................................................................................ 10
Discharge air louver control ............................................................................. 12
Emergency, test and air cleaning operation..................................................... 13
Care and maintenance....................................................................................... 14
Points to note ................................................................................................... 14
Cleaning the filters ........................................................................................... 15
Cleaning the main unit ..................................................................................... 16
After-season care............................................................................................. 16
Troubleshooting ................................................................................................. 17
53KLN009/012 -53QNL009/012
Split system air conditioner

53KLN009/012 -53QNL009/012
GB - 4
Precautions
Installing and servicing air conditioning equipment can be hazardous due to system pressure and
electrical components. Only trained and qualified service personnel should install or service this
equipment.
Untrained personnel can perform basic maintenance functions such as cleaning coil and filters and
replacing filters. All other operations should be performed by trained service personnel. When working
on air conditioning equipment, observe precautions in the literature and on tags and labels attached to
the unit.
WARNING:
Before performing service or maintenance operations on system, turn off main power to the unit. Electrical shock can
cause personal injury.
Warning
Use the correct voltage.
Using voltage other than that specified will damage the unit.
Warning
Check the power plug. If the power plug is not inserted tightly, or if
there is any damage to the power cord, it could result in leakage or
electrical shock.
Warning
Do not use the power cord as the means of turning off the unit. Danger Do not use flammable sprays near the unit.
The unit can be damaged by gasolin, benzene, thinners,
insecticides and other chemical agents.
Danger
When unplugging the power plug, do not pull it by power cord.
The power cord will be damaged and it can cause electrical shock.
Danger
To avoid the risk of serious electrical shock, never splash the indoor
and the outdoor unit with water.
SHU

53KLN009/012 -53QNL009/012
GB - 5
ENGLISH
27°C
18°C
Precautions
Caution
Do not obstruct the front of discharge grille
of both units.
This will block air flow, reduce the cooling
effect, and may result in unit malfunction.
Danger
Do not put hands or objects into the
discharge grille of outdoor unit.
These units have a fan running at high
speed. It is very dangerous to touch the fan.
Caution
Ventilate the room air when the room
becomes stuffy or filled with undesirable
odors.
Danger
Use only fuses of the proper amperage.
If using rewirable fuse, use only the correct
fuse wire as fire or electrical hazard may
occur.
Caution
Keep heat sources away from the unit; High
temperature can cause damage.
Caution
Be careful to keep room temperature
comfortable.
Avoid continuous direct air flow on to the
occupant, especially in case of those
sleeping or a patient.
Caution
Set a comfortable temperature.
Very low or very high temperature setting
considerably increase power consumption.
Caution
If you want to only circulate the room air,
operate FAN mode.
Caution
In summer, if possible, prevent direct
sunlight from entering the room; draw
curtains or blinds.
Caution
Use the timer correctly to maintain comfort conditons. Caution Please read this owner’s manual carefully before operating the unit.
It contains further important instructions for proper operation.
Summer
OFF
ON
Winter
(heat pump)

53KLN009/012 -53QNL009/012
GB - 6
1Room air inlet
2Option filter (electric air cleaner or active carbon filter/electro
static filter)
3Remote control signal receiver
4Airswing flap
5Vertical louver
6Room air outlet
7Power plug (if supplied)
8LCD remote controller
9Outdoor air outlet
10 Outdoor air inlet
11 Indoor and outdoor connection
12 Drain hose
Unit description
1
2
3
4
5
6
7
8
9
10
11
12
Indoor unit
Outdoor unit

53KLN009/012 -53QNL009/012
GB - 7
ENGLISH
Indoor Unit Display
•UNIT ON (Green) : Lights whentheoperationisgoing on
•TIMER (Yellow) : Lights during reservation mode
•CHECK (Red) : Lights when the optional electric air
cleaner needs checking
•AIR CLEAN (Green) : Lights when the optional electric air
cleaner is operating
NOTA:
The CHECK and the AIR CLEAN lamp are only installed on
units with opional electric air cleaner.
Unit description
Switch Panel
•EMERGENCY switch: Can be used when the remote controller
is lost or inoperative.
•TEST switch: Is used only by service man to test the unit
operation.
•AIR CLEAN RESET button: Press this button when the
“CHECK” lamp on the indoor unit display lights on.
• For the usage of EMERGENCY, TEST and AIR CLEAN
switches, refer to EMERGENCY, ESTAND AIR CLEANING
OPERATION, p. 13.
Installed on standard units and units
with optional active carbon filter/
electro static filter.
Installed on units with optional
electric air cleaner.
REMOTETEST EMER.
REMOTE
TEST EMER.
AIR
CLEAN
RESET
Switch Panel
Indoor Unit Display

53KLN009/012 -53QNL009/012
GB - 8
RST TA
LR03(AM4)1.5V
LR03(AM4)1.5V
11
10

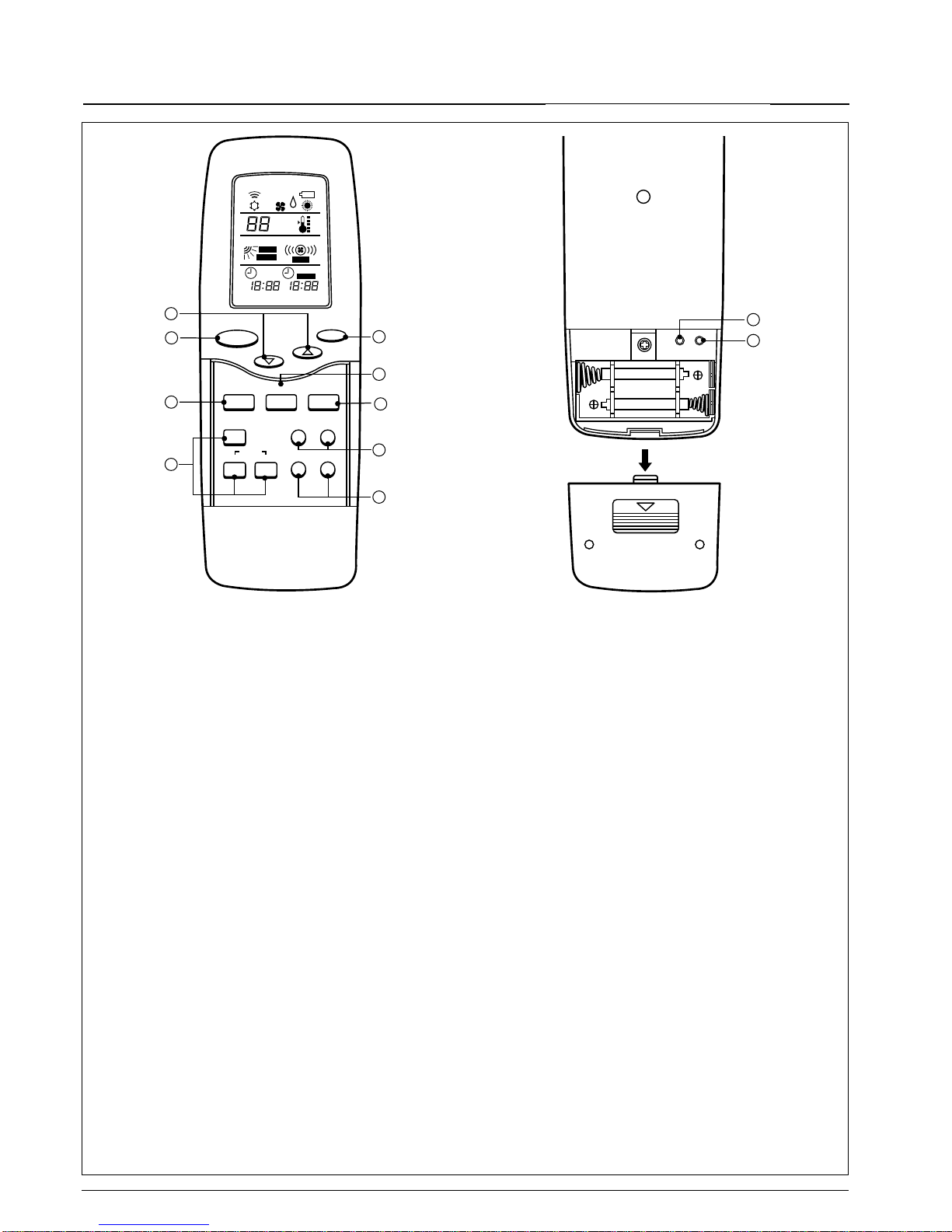

Remote controller description
1ON/OFF BUTTON
If you press this button, the unit starts operation and press
again, stops operation. (You can hear receiving beep.) If
you press this button immediately after turning off the unit,
the compressor will not operate for 3 minutes to keep itself
from overloading.
2TEMPERATURE SETTING BUTTONS
Ifyousetthedesired room temperature, thentheunitwillkeep
the room temperature to the set temperature. In COOL mode,
when the room temperature is higher than the setting, the
compressorisautomatically turnedontoprovide coolingeffect.
When the room temperature is lower than the setting, the
compressor is automatically tumed off to stop cooling
operation. Units with HEAT pump: In HEAT mode, when the
room temperature is lower than the setting, the compressor is
automatically turned on to provide heating effect. When the
room temperature is higher than the setting, the compressor
is automatically turned off to stop heating operation. However
the indoor fan will run to circulate the indoor air even during
the compressor is turned off.
3SLEEP TIMER BUTTON
Press this button to set the sleep timer. (Refer to P. 11)
4OPERATION MODE SELECTING BUTTON
Press this button to select the desired mode. In DRY mode,
the microcomputer of the unit controls the indoor fan motor
and makes the outdoor unit automatically turn on and off
according to the room temperature, and the moisture will be
removed more effectively. InCOOL mode, the unit will run the
normal cooling mode. In FAN mode, only the indoor fan will
operateattheselectedspeedand circulate the roomair.Units
Names and Functions of the Buttons
with heat pump: In HEAT mode, the unit will run the normal
heating mode.
5FAN SPEED SELECTING BUTTON
Press the button to select the desired fan speed out ofAUTO,
LOW, MED, HIGH, and the indoor fan will operate at the
selected fan speed. If you select “AUTO”, the fan speed is
controlled by microcomputer of the unit.
6FLAP CONTROL BUTTON
Controls the discharge air flow direction up and down. (Refer
to p. 12) At the beginning, the flaps open properly according
to operating mode. If you press this button, the flap will move
stepwise and the position will be displayed. If you press this
button again, the flap will swing up and down continuously.
7ON/OFF TIMER AND CURRENT TIME BUTTONS
If you set ON and OFF time, the unit will be automatically
turned on and off at set time. (Refer to p. 10) If you press the
CLOCKbuttonduringTimeroperation,you can seethecurrent
time for 5 seconds.
8HOUR/MINUTE SETTING BUTTONS
Adjust current time and on/off time with these buttons.
9RESERVATION AND CANCEL BUTTONS
Press RESERV, button to reserve ON/OFF Timer and press
CANCEL button to cancel the reserved ON/OFFtime. (Refer
to p. 10-11.).
10 CURRENT TIME ADJUSTING BUTTON
Press this button when you adjust current time. (Refer to p.
8.)
11 RESET BUTTON
Press this button when the remote controller is not operated
properly or after replacing batteries (Refer to p. 8.)
MODE
ON/OFF
FAN FLAP
CLOCK HOUR MINUTE
ON OFF
TIMER
RESERV CANCEL
TEMP
SLEEP
SET
H
L
AUTO
SWING
FLAP FAN
AUTO
SLEEP
ON OFF
ON
A
AM
PM AM PM
°C
°F
7
3
5
6
9
8
2
1
4

53KLN009/012 -53QNL009/012
GB - 9
ENGLISH
Remote controller description
Signal Receiving
• Use the remote controller where its signals can reach the receiver
of the air conditioner. (a distance of 7m is allowed)
• You can hear a beeping sound from the unit in the following
cases, which indicates the signal is received.
- when starting operation
- when stopping operation
- when changing the operation mode
- when reserving the ON/OFF timer
SET
H
L
AUTO
SWING
FLAP FAN
AUTO
SLEEP
ON OFF
ON
A
AM
PM AM PM
°C
°F
5
6
8
3
2
4
7
9
1
1Lights when the signal from the remote controller is transmitted.
A receiving beep is heard from the unit.
2Lights when the batteries should be replaced with
new ones. When this mark is appeared, replace the batteries
within a week.
3Lights when the unit is being operated.
4Indıcates the selected operating mode.
Remote Controller
Display
5Indicates the selected temperature.
6Indicates flap modes
Automatic position
User selected position
Swing up and down
7Indicates the selected fan speed.
8Indicates the reservation time of ON timer or current time.
9Indicates the reservation time of OFF timer or SLEEP timer.
Cool
Dry Fan
Automatic changeover
AUTO
SWING
AUTO
AUTO
MED
LOW
HIGH
Auto Low
Med High
For heat pump only
A
Heat
ON/OFF
TEMP
SLEEP
max 7m

53KLN009/012 -53QNL009/012
GB - 10
Remote controller preparation - Precautions

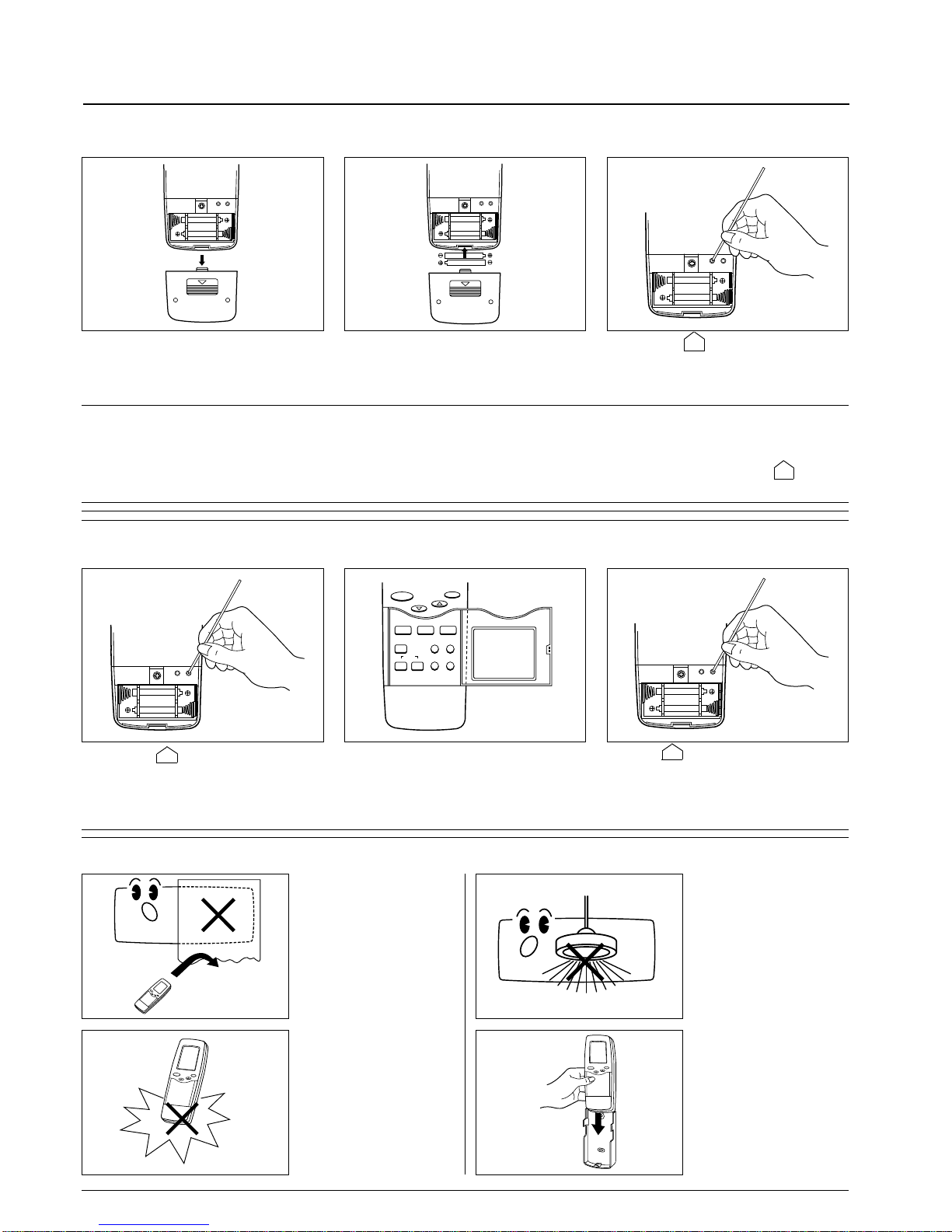

1Remove the cover of the battery
compartment at the back of the remote
controller by sliding it out in the direction
of the arrow.
2Remove the used batteries and insert
new batteries. The remote controller
uses two alkaline batteries. (1.5V,
LRO3x2)
3Press the button with a sharp
object before closing the cover of the
battery compartment to reset remote
controller.
Replacing Batteries
RST
NOTE:
• Do not use the used batteries or batteries of a different type. Such use may cause the unit to malfunction.
• Changing batteries should be done after turning off the unit.
• The average battery life during normal use is approximately one year.
• When the air conditioner does not operate normally after replacing the batteries, remove them, refit and repress the
button after 5 seconds. RST
Setting Current Time
1Press the button with a sharp object
and the current time indication symbol
flashes. At the beginning, 6:00A.M. is
flashing.
2Set the current time with the hour and
the minute buttons during the current
time indication is flashing.
3Press button again. The flashing
will stop and the current time will be set.
TA TA
Caution • The air conditioner will
not operate if curtains,
doors or other materials
block the signals from
the remote controller to
unit.
• Avoid liquid spilling onto
the remote controller or
dropping it. This can
cause deformation,
discoloration and
malfunction.
• If the infrared signal
receiver on the unit is
exposed to direct
sunlight, the air
conditioner may not
work properly. Draw the
curtains to avoid direct
sunlight.
• A mounting bracket for
the remote controller is
supplied with the unit.
Install the mounting
bracket on the wall 30
cm below the receiver of
the unit.
RST TA
LR03(AM4)1.5V
LR03(AM4)1.5V
RST TA
LR03(AM4)1.5V
LR03(AM4)1.5V
RST TA
LR03(AM4)1.5V
LR03(AM4)1.5V
RST TA
LR03(AM4)1.5V
LR03(AM4)1.5V
MODE
ON/OFF
FAN FLAP
CLOCK HOUR MINUTE
ON OFF
TIMER
RESERY CANCEL
TEMP
SLEEP
ON/OFF
TEMP
SLEEP
RST TA
LR03(AM4)1.5V
LR03(AM4)1.5V
ON/OFF
TEMP
SLEEP
ON/OFF
TEMP
SLEEP

53KLN009/012 -53QNL009/012
GB - 11
ENGLISH
Unit operation
It means that the air conditioner operates automatically by selecting
COOL or HEAT mode and automatically changes the fan speed
according to the indoor condition to keep the room temperature
comfortably.
Procedure
1ON/OFF button
Press this button and the unit startsAUTO operation.
2MODE button
If the unit is operating in another mode, press MODE button to
select AUTO.
• When the room temperature is within 21°C-29°C.
- If the room temperature is lower 1°C or more than the set
temperature: HEAT mode
- If the room temperature is higher 1°C or more than the
set temperature: COOL mode
• When the room temperature is lower than 21°C or higher
than 29°C, the unit will operate heating or cooling mode
regardless of the set temperature.
3TEMP ( ▲▼ ) buttons
Set the temperature appropriately according to effective
temperature. At the beginning of AUTO operation, the tempe-
rature is set at 25°C and it will be controlled within full range.
4FLAP button
Press this button to control the desired air flow direction.
5FAN SPEED button
Set the desired fan speed.At the beginning, it is set at AUTO.
6ON/0FF button
Press this button again to stop operation.
NOTE:
• Before starting operation, set the switch of switch panel to
the REMOTE position.
Automatic operation
(for heat pump only)
Procedure
1ON/OFF button
Press this button and COOL operation is indicated.
• A receiving beep is heard.
• The UNIT ON lamp of the indoor unit display lights on.
2MODE button
Press this button to select the desired operation mode.
AUTO →DRY →COOL →FAN →HEAT
(Auto and heat for heat pump units only)
3FAN SPEED button
Press this button to select the desired fan speed.
AUTO →LOW →MED →HIGH
4TEMP. ( ▲▼ ) buttons
Press these buttons to set the desired temperature.
5FLAP button
Press this button to control the desired air flow direction.
6ON/OFF button
Press this button to stop the unit operation
• A receiving beep is heard.
• The UNIT ON lamp of the indoor unit display lights off.
DRY OPERATION
This operation eliminates moisture economically by
operating the compressor, indoor and outdoor fan motor
intermittently, so that the room temperature is maintained at
set temperature.
General operation
3
MODE
ON/OFF
FAN FLAP
CLOCK HOUR MINUTE
ON OFF
TIMER
RESERV CANCEL
TEMP
SLEEP
SET
AUTO
FLAP FAN
AUTO
ON
A
AM
1
5
4
6
2
MODE
ON/OFF
FAN FLAP
CLOCK HOUR MINUTE
ON OFF
TIMER
RESERV CANCEL
TEMP
SLEEP
SET
AUTO
FLAP FAN
AUTO
ON
AM
°C
1
2
6
4
3
5

53KLN009/012 -53QNL009/012
GB - 12
Unit operation
Procedure
1ON TIMER button
Press this button.
At the beginning, time is set at 6:00A.M.
• When the ON Timer is set, unit monitors the room tempera-
ture 1 hour before from set time to make the room as set
condition at reserved on time.
• The actual on time of unit is decided at 0 to 40 minutes
earlier than reserved on time according to the room
temperature and size.
2HOUR, MINUTE buttons
Press these buttons to set the operation start-up time you
want during the ON Timer symbol is flashing.
3RESERV. button
Press this button pointing the remote controller towards the
receiver of the indoor unit.
• A receiving beep is heard.
• TIMER lamp of the indoor unit lights on.
4FAN SPEED, MODE buttons
Set the desired operation mode with these buttons.
Timer operation
Procedure
1OFF TIMER button
Press this button.
At the beginning, the time is set at 2:00 A.M.
2HOUR, MINUTE buttons
Press these buttons to set the operation stop time you want
during the OFF Timer symbol is flashing.
3RESERV. button
Press this button pointing the remote controller towards the
receiver of the indoor unit.
• A receiving beep is heard.
• TIMER lamp of the indoor unit lights on.
ON timer OFF timer
NOTE:
• The current time is not indicated during the reservation of ON/OFF Timer.
• When you want to know the current time, press the CLOCK button and you can see the current time for 5 seconds.
• If you reserve the ON Timer during operation, the unit will stop operation. Please cancel the on timer to operate continuously.
(Referto p. 11)
4
MODE
ON/OFF
FAN FLAP
CLOCK HOUR MINUTE
ON OFF
TIMER
RESERV CANCEL
TEMP
SLEEP
SET
AUTO
FLAP FAN
AUTO
ON
ON
AM
°C
1
2
3
MODE
ON/OFF
FAN FLAP
CLOCK HOUR MINUTE
ON OFF
TIMER
RESERV CANCEL
TEMP
SLEEP
SET
AUTO
FLAP FAN
AUTO
OFF
ON
AM
°C
2
3
1

53KLN009/012 -53QNL009/012
GB - 13
ENGLISH
Unit operation

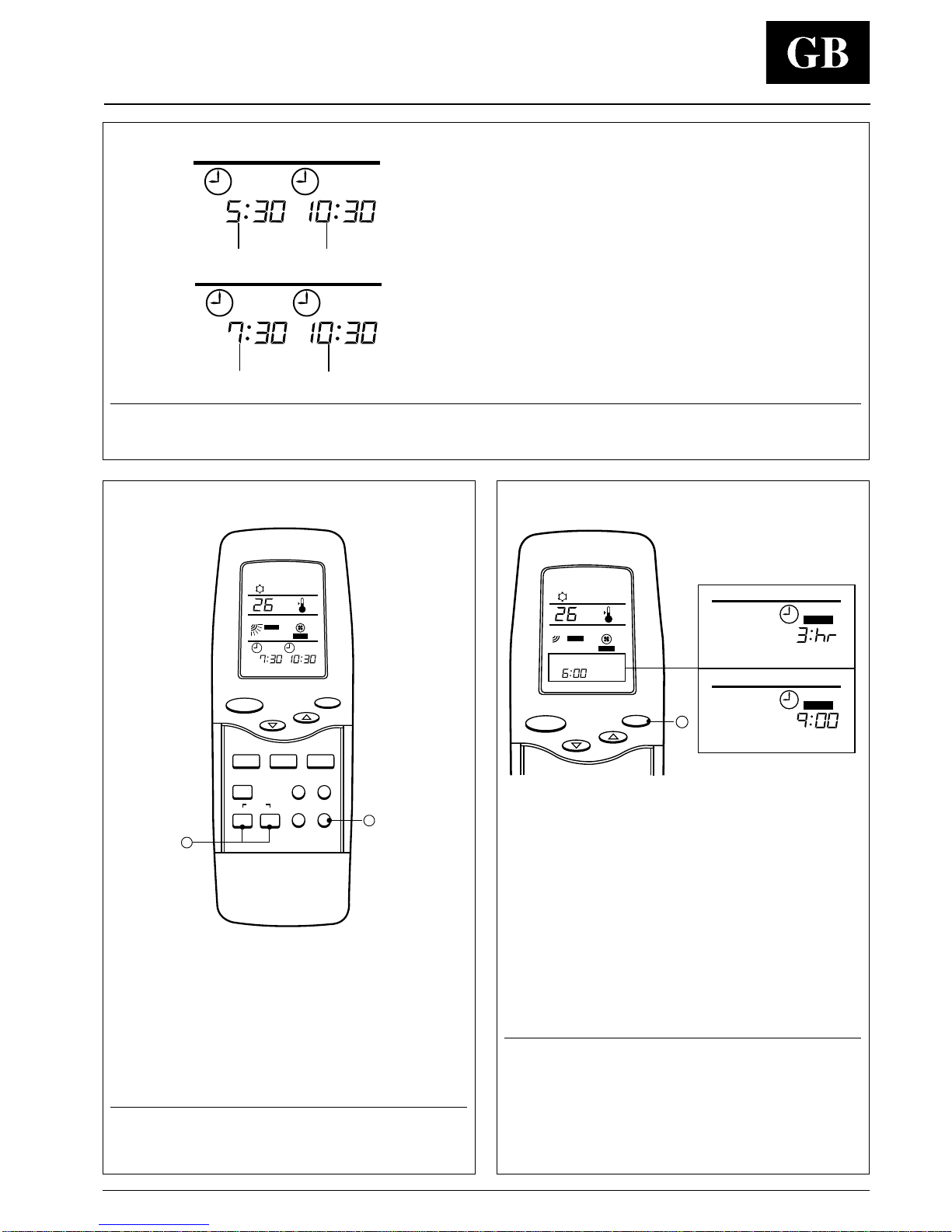

Combination of ON and OFF Timer Procedure
When you want the operation to start at 5:30 P.M. and stop at
10:30 P.M.
1Reserve ON Timer at 5:30 P.M.
2Reserve OFF Timer at 10:30 P.M.
3Set the operation mode as you want.
When you want to stop the operation at 10:30 P.M. and start again
at 7:30 A.M. with the same condition.
1Reserve the OFF Timer at 10:30 P.M during operation.
2Reserve ON Timer at 7:30 A.M.
NOTE:
• Refer to p. 9-10 for the setting method and refer to p. 11 for the cancelling method of ON and OFF Timer.
• In ON and OFF Timer operation, the earlier setting compared to current time will operate first.
Cancellation of ON/OFF Timer
Procedure
1Press ON TIMER button in case of ON Timer cancellation,
and press OFF TIMER button in case of OFF Timer
cancellation.
2Press CANCEL button pointing the remote controller towards
the receiver of the indoor unit.
• A receiving beep is heard.
• TIMER lamp of the indoor unit lights off.
NOTE:
The current time will not be indicated and the TIMER lamp
of the indoor unit will be on if either ON Timer or OFF Timer
is reserved.
SLEEP Timer
It can be set more easily to stop the operation and the unit
operates as sleep mode.
Procedure
When you want to stop the operation after 3 hours from now
1Press this button 3 times
• 3:hr will be displayed and the SLEEP
signal will be flashing
• After 5 seconds, the stopping time will be displayed.
• Unit operates as sleep mode during 3 hours and stop the
operation.
• When you want to change the reserved time or cancel,
press the SLEEP Button again.
1:hr →2:hr →3:hr →7:hr →Cancel
NOTE
• When the SLEEP timer is set, the unit will control the
setting temperature to avoid overcooling in COOL
oparation or overheating in Heat operation.
• When the SLEEP Timer is set, the luminosity of unit lamps
will be dimly not to interupt the sleeping.
• The SLEEP timer can be combined with ON timer.
ON OFF
PM PM
12
ON OFF
AM PM
21
MODE
ON/OFF
FAN FLAP
CLOCK HOUR MINUTE
ON OFF
TIMER
CANCEL
TEMP
SLEEP
SET
AUTO
FLAP FAN
AUTO
ON OFF
ON
AM AM
°C
1
2
ON/OFF
TEMP
SLEEP
SET
AUTO
FLAP FAN
AUTO
ON
AM
°C
1
SLEEP
SLEEP
AM

53KLN009/012 -53QNL009/012
GB - 14
Discharge air louver control
Up and Down Control
The air discharge direction can be controlled to swing up and down and can be fixed at preferred position or Automatic position by the
remote controller.
Unit operation
• If you select the Flap position using FLAP button in the remote
controller, the flap in the unit will move to that position
automatically. Once you select the position, unit remembers that
position and whenever you turn on the unit, the flap will be
positioned to that position.
• If you select SWING, the flap will swing up and down. In the
COOL, DRY, FAN mode, the flap will swing in the cool range. In
the HEAT mode, the flap will swing in the heat range.
• If you select AUTO, the flap will position to the preset position
according to the operation mode.
NOTE:
1. Always use the remote controller to adjust the flap position,
otherwise it may cause abnormal operation. Please turn off
the unit and turn on again when you adjust the flap out of
range manually.
2. When you adjust the flap manually, follow the indicating
label in the left side of flap. The blue zone is for COOL and
DRY modes, the red zone is for HEAT mode.
3. The unit can have maximum capacity when the flap locate at
dposition or black line in the label of unit.
Left and Right Control
If you want to adjust the direction of discharge air left and right,
adjust the vertical louver with the handle after opening the flap. NOTE:
• Please do not fix the flap vertically for a long time.
• Please avoid the discharge air being directed towards the
occupants for a long time.
• Do not adjust the flap by the hand during AUTO SWING
operation because it may damage the air swing function.
6
2
30°
60°
AUTO
SWING
FLAP
12345
6
1
2
3
4
5
6
1
2
3
4
5
6
Remole controller Fixed Swing Range Auto Position
CLOSE
COOL
HEAT
COOL
HEAT
HANDLE

53KLN009/012 -53QNL009/012
GB - 15
ENGLISH
Emergency, test and air cleaning operation
Emergency
When the remote controller is lost, damaged or the battery is
discharged, the EMERGENCY switch can be used to run the unit.
• Change the switch from REMOTE to EMER position.
- The unit is operated automatically according to the room
temperature by selecting cooling heating operation.
• The setting conditions of emergency operation are as follows.
- Operation mode: AUTO
- Preset temperature: 25°C
- Fan speed: AUTO
- Timer mode: Continuous
- Discharge air direction: Set automatically according to operation
mode. (See p. 12.)
Test Operation
This operation is used when checking after installing the unit.
• Change the switch to TEST position.
• Change the switch to REMOTE position after checking.
• Changing the operation by the remote controller during the test
operation is impossible.
• Don’t use the TEST switch in normal operation.
• The setting conditions of test operation are as follows.
- Operation mode: COOL
- Fan speed: HIGH
- Timer mode: Continuous
- Discharge air direction: AUTO SWING
Air Cleaning Operation
Whenever indoor fan is on, the optional electric air cleaner is on
and the AIR CLEAN lamp in the unit is on.
• If the Front Grille of unit is opened, the air cleaner is off and
CHECK lamp in the unit is on.
- Press RESET button in the unit before you close
the Front Grille.
Information for option filters
• Option filters Electric air cleaner (53QNL012 only)
Active carbon filter/Electro static filter
• Thesefilterseliminate microscopicdust,virusand smokeandprevent
growth of mold and virus to clean the room air more effectively than
the air filters.
TEST REMOTE
EMER. TEST REMOTE EMER.
AIR
CLEAN
RESET
Electric air cleaner
(option filter) Electro static filter
(option filter)
Active carbon filter
(option filter)
Installed on standard units and units with
optional active carbon filter/electro static
filter.
Installed on units with optional electric air
cleaner.

53KLN009/012 -53QNL009/012
GB - 16
Care and maintenace
Points to note
Operating Condition
• Temperature ranges which are suitable for unit operation are as follows.
• When the unit is operated above or below these conditions for a long time, system diagnostics may detect a malfunction and the unit will
not operate properly.
• If the unit is operated for a long time under abnormal situation of extreme high humidity, condensate water may drip from the unit.
Time Delay
• If the operating mode is changed during operation from COOL or DRY to HEAT, or from HEAT to COOL or DRY, there will be a 3 minute
time delay (heat pump only).
• If you start operation after power is turned off, there will be a 3 minute time delay also.
• When the heating operation is started, hot air delivery might be delayed due to warm up period. This period may be 2~5 minutes (heat
pump only).
Heating Features (Heat pump only)
• When the unit is started in heating mode, there will be a preheating period of 2~5 minutes before the unit is ready to deliver warm air.
• When the outdoor temperature is low, the heating capacity will be reduced. If the room air is not warm enough during severe winter
condition, use additional heating devices.
Defrost Operation (Heat pump only)
• In heating mode, when the outdoor coil is frosted, the indoor fan and outdoor fan are turned off while the compressor is being turned on to
remove the frost of the outdoor coil.
• The defrost mode stops after 10 minutes or when the outdoor coil temperature is greater than or equal to 17°C.
Auto Recovery
• When the electricity is failure during the unit is operating, the unit memorizes the operating condition, and the unit starts operation
automatically after the electricity is recovered.
• When you leave home after the electricity is failure, please unplug the power cord.
Frost Prevention of Indoor Unit
When the unit is operated at low ambient temperature, frost may be appeared on the indoor coil. When the indoor coil temperature is below
0°C, the microcomputer makes the compressor stop to protect the unit from the frost.
Normal Operation
Any of the followings can occur during normal operation.
• A sound like a "GURGLE" can sometimes be heard during operation or when the unit stops.
- It is the sound of refrigerant flowing through the unit.
• The bad smells come from the unit.
- Smells such as smoke or cosmetics can accumulate while room air circulates through the unit.
- Cleaning filters will reduce this problem.
Heat pump only:
• Outdoor fan does not rotate during heating operation.
- The unit is in defrost mode.
• UNIT ON lamp on the indoor unit display flash and wind not comes from the unit.
- It indicates malfunction of the unit and makes the compressor be turned off.
• A “BAK-BAK” sounding noise can be sometimes heard during operation or when the unit turns on.
- It is the sound of plastic expansion due to abrupt heat change.
MODE INDOOR OUTDOOR
Cool 21-32°C 21-43°C
Heat (HEAT pump only) Below 27°C Below 21°C
Dry 17-32°C 12-43°C

53KLN009/012 -53QNL009/012
GB - 17
ENGLISH

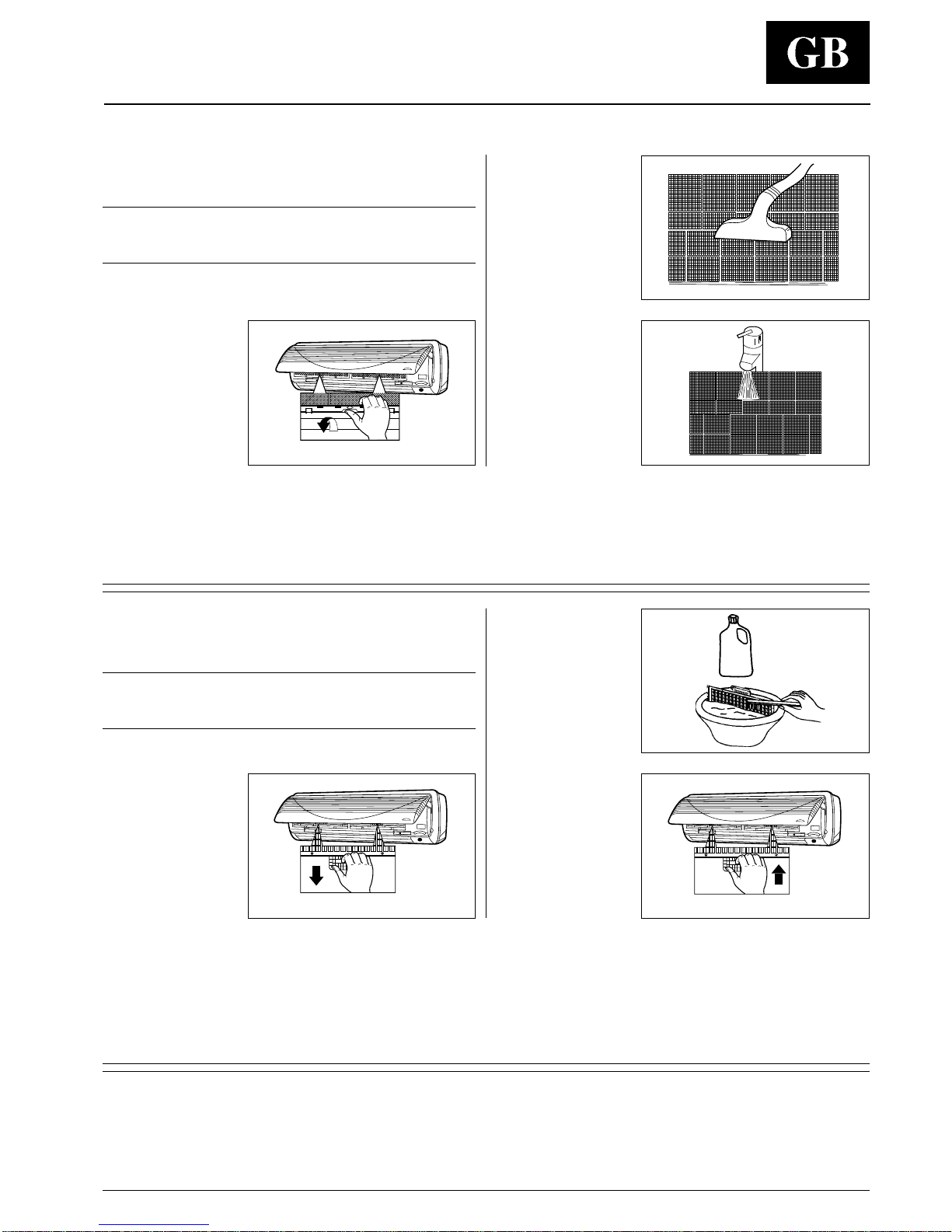

Care and maintenace
Cleaning the filters
Cleaning the Air Filters
NOTE:
• Turn off the unit and pull out the power plug.
• Clean the air filters once a month.
1Lift the front panel
and pull out the air
filters downward.
2Clean it with
vacuum cleaner.
3Rinse it under the
running water, and
dry it completely,
and then refit
correctly into its
guides.
Active Carbon Filter/Electro Static Filter Replacement
• Whan these filters are dirty, they should be replaced with new
ones because they can not be cleaned.
• The life of these filters is about 3 months, but it may be different
according to the amount of cigarette smoke, room size and the
operating time. (Refer to color sample attached to the indoor unit
indicating pollution level of electro static filter.)
Cleaning the Electric Air Filter
(option)
NOTE:
• Turn off the unit and pull out the power plug.
• Clean the electric air cleaner once a month.
1Lift the front panel
and pull the
cleaner downward
with lifting the
handle upward
slightly.
2Dip into 40°C
neutral detergent
water for 20
minutes and
brush.
3Rinse out with
clean water and
refit the cleaner
after drying
completely in the
shade.
Detergent

53KLN009/012 -53QNL009/012
GB - 18

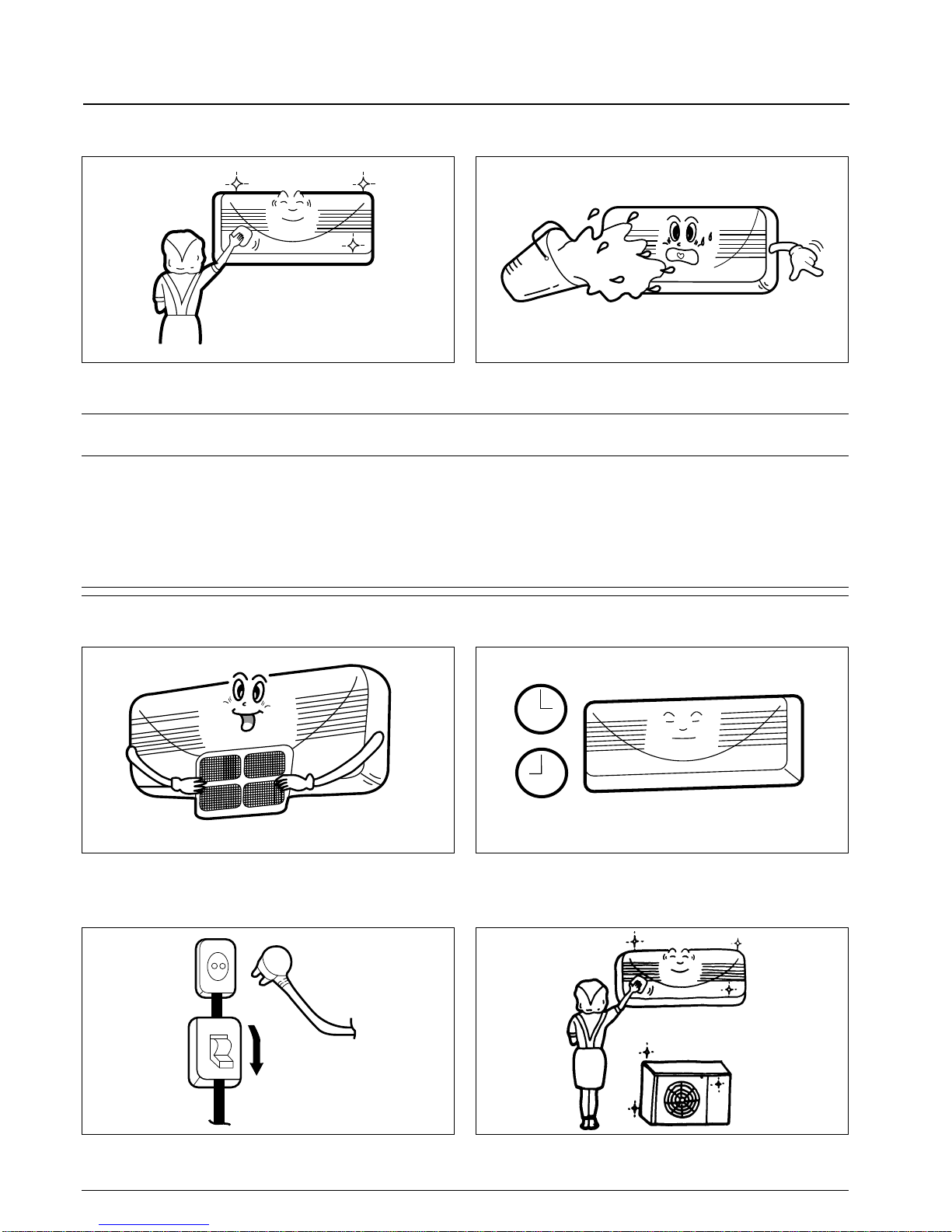

Care and maintenace
Cleaning the main unit
• Use only a damp soapy towel. • Do not pour water onto the unit, and do not use petrol, solvents or
abrasive power resulting in damage of the unit.
NOTE:
When cleaning the unit, first turn it off and pull out the power plug.
After-season care
1Clean the filters and refit into the unit. 2If the unit is to be switched off for an extended period, run the unit
on FAN only for a half a day to dry the inside of the unit.
3Disconnect the power cord. When you are using a power circuit
solely for the air conditioner, turn off the power on that circuit. 4Clean the indoor and outdoor unit, and wrap the outdoor unit with protection cover.
ON
OFF

53KLN009/012 -53QNL009/012
GB - 19
ENGLISH
Troubleshooting
Trouble
Unit does not operate.
Cooling is abnormally below.
Heating is abnormally low
(heat pump only).
Unit stops during operation.
Air cleaning does not operate.
Check Points
• Check that the power cord is plugged into
the wall outlet.
• Has the circuit breaker tripped or the fuse
blown?
• Has there been a power failure?
• If the “UNIT ON” lamp flashes
on and off?
• Is the voltage too low?
• Is the filter blocked with dust?
• Has the temperature been
set properly?
• Are the windows and doors open?
• Is anything obstructing the outdoor unit?
• Is the fan speed too low?
• Is the operation mode FAN orAUTO?
• Is the filter blocked with dust?
• Has the temperature been
set too low?
• Are the windows or doors open?
• Is anything obstructing the outdoor unit?
• Has the OFF time operated?
• Has the room temperature reached the
set temperature?
• On the indoor unit display, is the air
cleaning lamp turned off and the checking
lamp turned on?
Action
• Insert the power cord into the wall outlet.
• Reset the circuit breaker or replace the
fuse with the specified replacement fuse.
• Restart operation when power
is resumed.
• Call your service representative.
• Confirm the available voltage.
• Clean the air filter.
• Check and reset it if necessary.
• Close the windows and doors.
• Remove the obstruction.
• Change the fan speed
selection.
• Change to cooling operation or reset
temperaure.
• Clean the air filter.
• Check and reset it if necessary.
• Close the windows and doors.
• Remove the obstruction.
• Switch OFF timer function.
• Normal operation.
• Press the RESET button.
Air cleaning lamp is turned on after a
minute.
If not, call service representative.
If the above actions do not correct the operation, consult the dealer from whom you bought the unit.

Via R. Sanzio, 9 - 20058 Villasanta (MI) Italy - Tel. [phone]
The manufacturer reserves the right to change any product specifications without notice.
Order No. 0KN-14-598GB, May 1998. Supersedes Order No. (new). Printed in Italy
