SA-430-10
REMOTE SIREN AMPLIFIER
INSTALLATION AND OPERATING
INSTRUCTIONS
Carson is a trademark of Carson Manufacturing Company, Inc.
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
RADIO
HORN
MAN
WAIL
YELP
PHASER
SIREN PA
VOL
POWER
ON
SA-430

Page 2 of 16 SA-430-10 Installation and Operating Instructions
CP4854E 03/31/10
TABLE OF CONTENTS
TABLE OF CONTENTS ............................................................................................................. 2
SPECIFICATIONS ..................................................................................................................... 3
NOTICE ..................................................................................................................................... 3
GENERAL DESCRIPTION ........................................................................................................ 4
INSTALLATION ......................................................................................................................... 5
SAFETY PRECAUTIONS....................................................................................................... 5
UNPACKING .......................................................................................................................... 5
OPTION SWITCHES.............................................................................................................. 6
MOUNTING – Amplifier.......................................................................................................... 7
MOUNTING – Control Head................................................................................................... 7
ELECTRICAL CONNECTIONS - Amplifier............................................................................. 8
ELECTRICAL CONNECTIONS – Control Head..................................................................... 8
ELECTRICAL CONNECTIONS CONTINUED........................................................................ 9
OPERATION............................................................................................................................ 10
GENERAL ............................................................................................................................ 10
SELECTOR SWITCH........................................................................................................... 10
SIREN SWITCH ................................................................................................................... 10
MICROPHONE (PA Override).............................................................................................. 11
PA VOL ................................................................................................................................ 11
AUXILIARY INPUT............................................................................................................... 11
HORN RING CYCLER 2 (HRC2) ........................................................................................ 11
RADIO VOLUME ADJUST................................................................................................... 11
CUTOUT INPUT................................................................................................................... 11
SERVICE ................................................................................................................................. 12
PROBLEMS ......................................................................................................................... 12
PARTS and ACCESSORIES................................................................................................ 13
RETURN .............................................................................................................................. 14
LIMITED WARRANTY.......................................................................................................... 14
CONTROL HEAD INSTALLATION TEMPLATE ...................................................................... 15

SA-430-10 Installation and Operating Instructions Page 3 of 16
03/31/10 CP4854E
SPECIFICATIONS
Input Voltage 11 - 16 VDC (negative ground)
Input Current 8 AMPS (@14 VDC - single 100W speaker)
16 AMPS (@14 VDC - dual 100W speakers)
Standby Current Less than 250 mA
Audio Frequency 200Hz - 10 kHz + 3db
Audio Distortion Less than 3% (@1 kHz - single 100W speaker)
Audio Output 40 watts (@14 VDC - single 100W speaker)
Audio Input 400 ohms + 10%
Output Power 105 WATTS RMS MAX. (15 VDC - single 100W speaker)
180 WATTS RMS MAX. (15 VDC - dual 100W speakers)
Siren Frequency 700Hz - 1500Hz (Two-Tone and Horn = 435Hz & 585Hz)
Tones / Cycle Rates Horn Wail Yelp Phaser Two-Tone
109 CPS 13 CPM 190 CPM 15 CPS 60 CPM
High Voltage
Protection
16 - 18 VDC will cause siren output to cease, resume at normal
Short Circuit Current 50 AMPS (supply circuit must be capable of supplying this for 1 second)
Operating
Temperature
-15° F to +140°F
Controls 6-position rotary selector switch (Radio, Horn, Manual, Wail, Yelp, and
Phaser).
Momentary push-button Siren switch.
Front panel mounted PA volume control, Radio adjust on amplifier
Auxiliary input for positive or negative connection.
Cutout input connection programmable for positive or negative latching
cutout operation.
8-position DIP switch option selector.
Connections
(10-Pin Conn)
(2) Positive, (2) Negative, (2) Speaker, (2) Radio, Control, Cutout
Size Control Head: 6-1/4" W x 2-7/8" H x 1" D
Amplifier: 8” L x 6-3/4” W x 2-1/8” H
Weight 5 LBS.
NOTICE
Due to continuous product improvements, we must reserve the right to change any specifications and
information, contained in this manual at any time without notice.
Carson Manufacturing Co., Inc. makes no warranty of any kind with regard to this manual, including, but not
limited to, the implied warranties of merchantability and fitness for a particular purpose.
Carson Manufacturing Co., Inc. shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this manual.
See www.carsonsirens.com for latest information.

Page 4 of 16 SA-430-10 Installation and Operating Instructions
CP4854E 03/31/10
GENERAL DESCRIPTION
The SA-430 Remote Siren Amplifier with is a premium unit designed for single or dual 100W
speaker use. The control head is only 1 inch deep and can be installed in minimum clearance
areas. Connection between the control head and amplifier is via a single lead wire with
common ground.
A 6-position rotary selector switch controls the primary operating modes of Radio, Horn,
Manual, Wail, Yelp, and Phaser. Two-Tone may optionally replace Phaser. A Siren push-
button switch is provided for Manual control of the output tone or Horn or Yelp override,
depending on the selector switch setting. An independent toggle switch controls power. A
hole is provided in the amplifier to adjust Radio volume.
Depending upon the version, the microphone may or may not be directly mounted to the
control head. Units with an “F” suffix have the microphone permanently mounted to the
faceplate. Units with an “FX” suffix are provided with an extension harness and connectors for
remote mounting of the microphone.
An auxiliary input is provided for connection to a positive or negative horn ring circuit or switch,
performing the same function as the Siren push-button. A latching siren cutout input is
provided for connection to a door switch, etc. to disable the siren when exiting the vehicle.
An 8-position DIP switch on the amplifier allows selection of various options: Two-Tone to
replace Phaser, Phaser disable, Horn disable, and Horn Ring Cycler 2 (HRC2), which allows
cycling through Wail, Yelp, and Phaser by tapping the horn ring when the selector switch is in
the Horn position. The front panel is backlighted with LED's for night visibility.
This durable unit utilizes short circuit, high voltage, and reverse polarity protection systems for
maximum service life over a wide temperature range.

SA-430-10 Installation and Operating Instructions Page 5 of 16
03/31/10 CP4854E
INSTALLATION
Proper installation of the unit is essential for years of safe, reliable operation. Please read all
instruction before installing the unit. Failure to follow these instructions can cause serious
damage to the unit or vehicle and may void warranties.
SAFETY PRECAUTIONS
For the safety of the installer, vehicle operator, passengers and the community please observe
the following safety precautions. Failure to follow all safety precautions and instructions
may result in property damage, injury or death.
Qualifications - The installer must have a firm knowledge of basic electricity, vehicle electrical
systems and emergency equipment.
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
Mounting - Mount the control head for easy access by the vehicle operator. DO NOT mount
in air bag deployment area. Assure clearances before drilling in vehicle.
Wiring - Use wiring capable of handling the current required. Make sure all connections are
tight. Route wiring to prevent wear, overheating and interference with air bag deployment.
Install and check all wiring before connection to vehicle battery.
Testing - Test all siren functions after installation to assure proper operation. Test vehicle
operation to assure no damage to vehicle.
Keep These Instructions - Keep these instructions in the vehicle or other safe place for future
reference. Advise the vehicle operator of the location.
UNPACKING
Inspect contents for shipping damage. If found alert carrier immediately.
Contact supplier immediately if any components are missing.
Contents should include the following items:
Complete Unit
Qty Item -10F -10FX
1 Amplifier, Remote (SA-430-10F or FX) X X
1 Bracket, Microphone Clip with mounting screws (CP3633) X X
1 Connector, 10-P Terminal Block Plug for Amplifier (CP4833-10) X X
1 Cable Assembly for Control Head, 5-P (CP3040) X X
1 Control Head with attached Microphone (SA-430-10CH) X
1 Control Head without Microphone (SA-430-10CHX) X
1 Cable, Microphone Extension 18FT (CP3850) X
1 Microphone, Detachable Noise Cancelling (ES00028-10) X
1 Instruction Manual (CP5010 This Manual) X X
Amplifier Only
Qty Item
1 Amplifier, Remote Only (SA-430-10AMP)
1 Connector, 10-P Terminal Block Plug for Amplifier (CP4833-10)
1 Instruction Manual (CP4854 This Manual)

Page 6 of 16 SA-430-10 Installation and Operating Instructions
CP4854E 03/31/10
OPTION SWITCHES
An 8-position DIP switch on the remote amplifier may be changed to select various options.
SW-1 Two-Tone - Turn this switch on to replace Phaser tone with Two-Tone.
SW-1 and 2 Phaser Disable - Turn on both switches to disable Phaser tone.
SW-3 Horn Disable - Turn this switch on to disable Horn tone.
SW-4 Horn Ring Cycler 2 (HRC2) - Turn on this switch to enable this feature. Also connect
the auxiliary input to the horn ring or other switch. While the siren is in standby, tap the horn
ring to bring the unit out of standby into Wail tone. Repeatedly tapping the horn ring will cycle
through Wail, Yelp, and Phaser tones. Tapping the horn ring twice quickly will stop the siren
tones and return the unit to standby. Pressing and holding the horn ring will produce Horn tone
until released. Then the siren will return to its previous siren tone or standby.
NOTE: Earlier units with S/N lower than 04190000 have a different version of HRC. In this
case the siren tones cycle through Standby, Wail, Yelp, and Phaser. The tone is stopped by
cycling to Standby.
SW-5 - Not Used… Leave Off.
SW-6 and SW-7 Cutout Input Polarity - The cutout input is normally disabled. Set the
activation polarity as follows:
Positive Activation - SW-6 and SW-7 OFF.
Negative Activation - SW-6 and SW-7 ON.
Disabled - SW-6 ON and SW-7 OFF.
SW-8 - Not Used… Leave Off.
Option Switches
On Remote Amp
ON 12345678
Option Switches
Default Setting Shown (Switch 6 is ON)

SA-430-10 Installation and Operating Instructions Page 7 of 16
03/31/10 CP4854E
MOUNTING – Amplifier
Select a location for the amplifier in an area such as the driver compartment firewall, under a
seat, etc. Mounting the amplifier in the engine compartment or in an area directly exposed to
weather is not recommended. Assure adequate ventilation to prevent overheating. Allow
clearance for wiring and radio adjustment. Inspect behind mounting area for clearance. Mark
the location of the mounting holes to be drilled.
Drill 4 holes (up to 1/4" diameter) to mount the amplifier to the vehicle. Install the terminal
block plug and make all electrical connections before final mounting (See ELECTRICAL
CONNECTIONS – Amplifier). The plug is secured with the two locking screws. Then mount
the amplifier to the vehicle using appropriate hardware (not supplied).
MOUNTING – Control Head
Select a mounting location in an area such as the dash or overhead console. Choose a
mounting location convenient to the operator and away from any air bag deployment areas.
Inspect behind mounting area for clearance. Allow 1¾” of depth to accommodate the control
head and cable(s). Consider wire routing and access to connections, as well as microphone
bracket placement.
Use template (back page) for marking hole and cutout locations. Connect control head cable
to back of unit and route leads through cutout. Make all electrical connections (See
ELECTRICAL CONNECTIONS – Control Head), and then use #6 screws for mounting the
control head (not supplied).

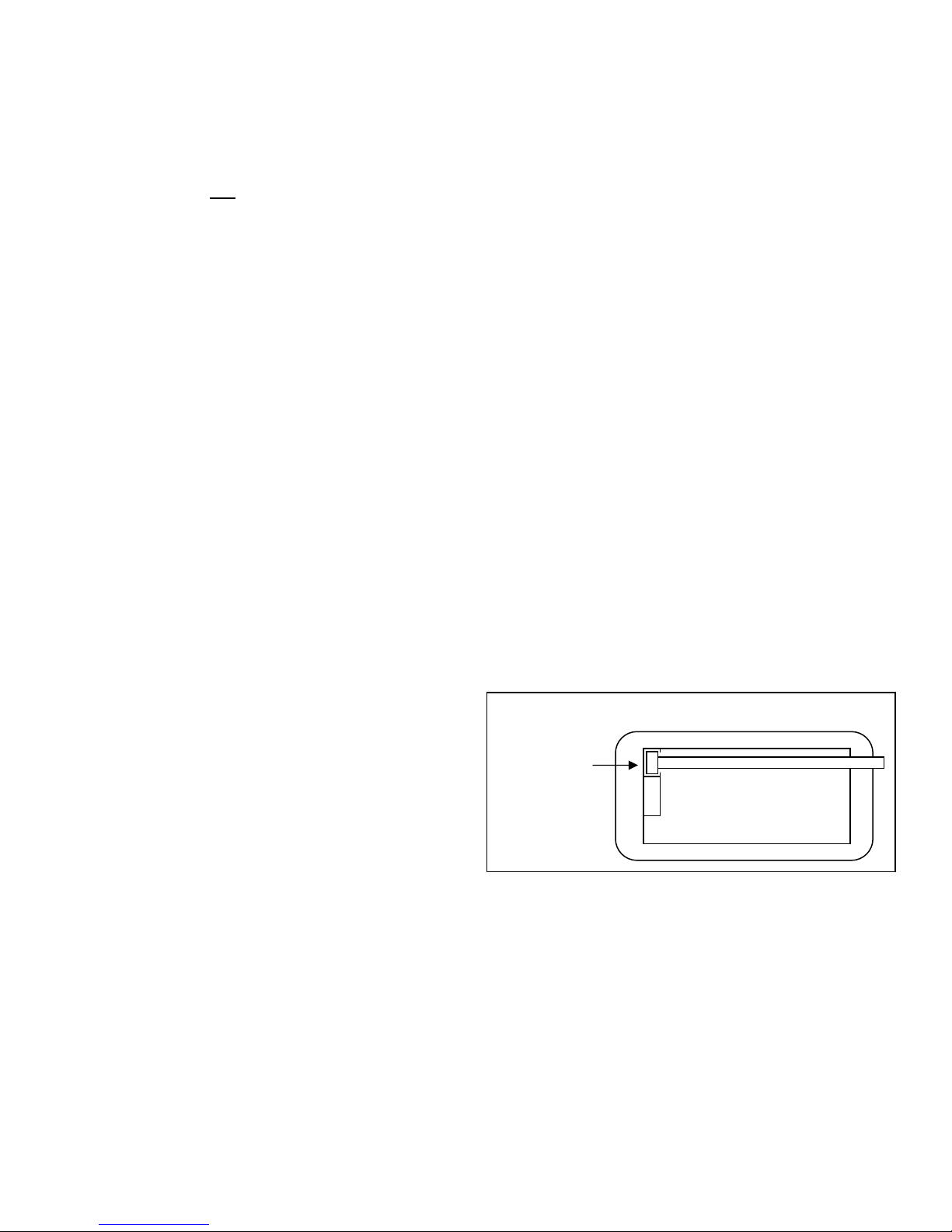

MOUNTING - Microphone Extension Harness (“FX” model only)
Select a mounting location for the
microphone connector, verifying adequate
cable length. Allow 1-3/4" clearance
behind connector to prevent sharp bends in
the harness. Drill or punch a 5/8" diameter
hole for mounting. Remove mounting nut
and washer from connector. Insert the
connector into the hole and secure it using
a 3/4" socket to tighten the nut. Connect
harness to the control head as shown prior
to final installation of head.
Control Head – Rear View
Microphone
Extension
Cable

Page 8 of 16 SA-430-10 Installation and Operating Instructions
CP4854E 03/31/10
ELECTRICAL CONNECTIONS - Amplifier
Electrical connections to the amplifier are made using a terminal block plug located on the
amplifier. A label on the unit identifies each terminal function. You should install the plug on
the unit before wiring. If the unit needs service the plug can be easily removed without
unwiring. The power supply of the unit must be capable of delivering peak currents up to 50
amps for adequate short circuit protection and reliable operation. The preferred source is
directly at the vehicle battery. The amplifier is fused near connector.
Attach leads by stripping 3/8", inserting into connector and clamp by tightening screw. Make
sure the screw is tight and the wire can't be pulled out.
Failure to adequately tighten the screw can result in improper operation or burning the
connector and wire.
Wire Size and Termination - The diagram shows the minimum wire size used for each
connection, along with recommended lead color. If the wire is longer than 10 ft. use the next
larger wire size. The power lead pairs can be extended with single #10 AWG lead wire. Use
only high quality crimp connectors for installation on the vehicle.
Optional Radio Input Connection - Connect one lead to each terminal of the radio speaker
or output connector. The input is isolated and polarity is not important. May need to set
RADIO VOLUME ADJUST on side of amplifier.
Optional Cutout Input Connection - The Cutout Input turns off any siren tone output when
activated, and remains off until a control is activated or changed. May need to set polarity.
See OPTION SWITCHES section for programming details.
ELECTRICAL CONNECTIONS – Control Head
All control head leads can be extended with #22 AWG or larger lead wire.
Black: Negative - Connect to same ground or negative supply as amplifier.
Red: Positive - May be connected to +VDC supply. It is recommended that the lead be
connected to the accessory output of the fuse block. This provides additional protection of a
fused input to the control head.
Yellow: Lights - This lead may be connected to the dash lights or to the red power lead.
Connecting to the dash lights will turn on the panel lights whenever the dash lights are on.
When connected to the red lead, make sure that the ignition switch controls the power to that
connection. This prevents the panel lights from being continuously on.
White: Control - Connect white leads from amplifier and control head. Route this lead away
from the transmitter antenna lead to prevent R.F. interference being fed to the siren amplifier.
Green: Auxiliary Input - Used for Siren control. Performs same function as Siren button.
Connect to a normally open switch or to horn ring circuit. Circuit may connect to either positive
or negative. When connected to horn ring circuit, use a SPDT switch to connect horn ring to
either vehicle horn or to manual control circuit.
NOTE: Permanent disconnection of the vehicle horn is NOT recommended.
NOTE: Be sure to cut lead short if not used and insulate with electrical tape.

SA-430-10 Installation and Operating Instructions Page 9 of 16
03/31/10 CP4854E

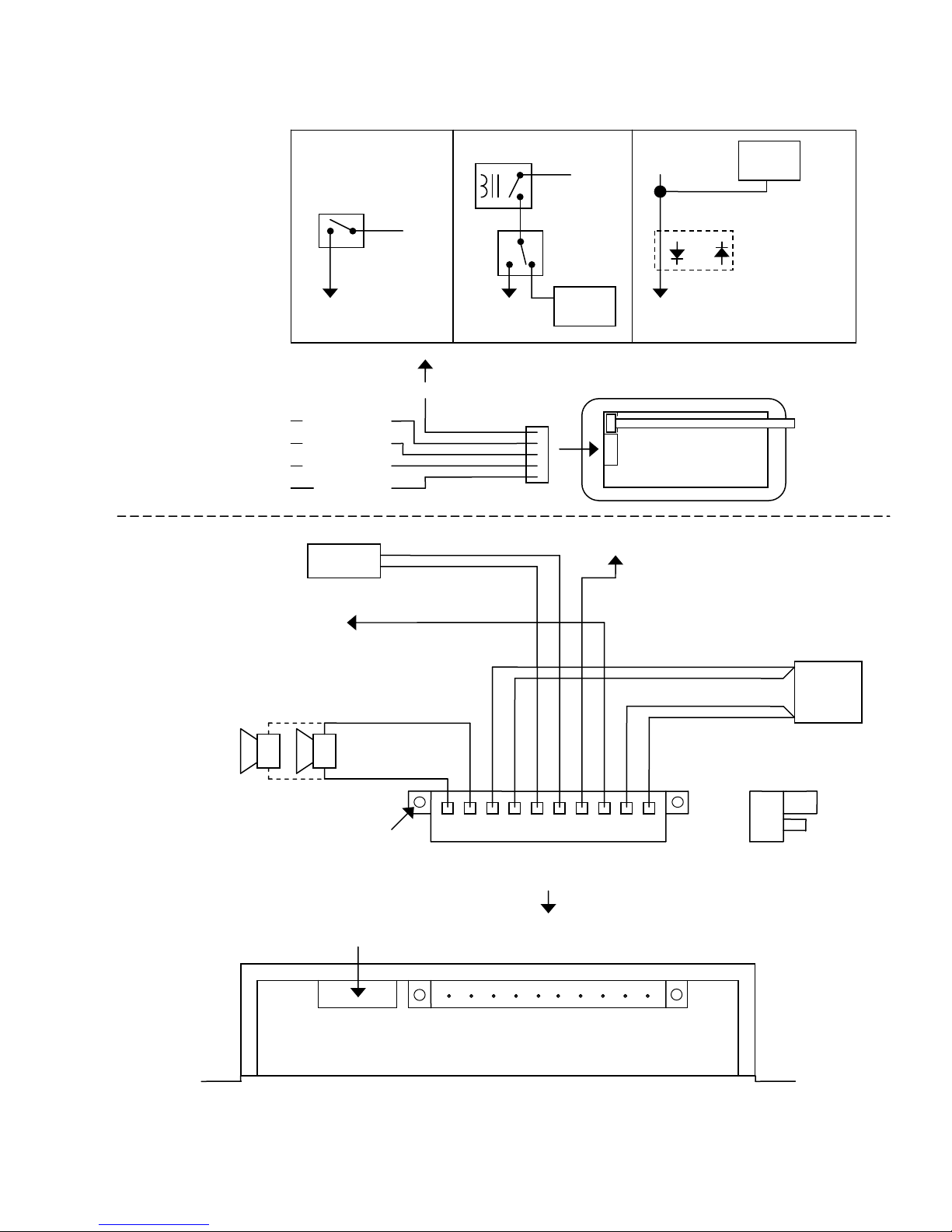

ELECTRICAL CONNECTIONS CONTINUED
Plug into unit first for
terminal identification
Plug secured with mounting screws
10-P Terminal Block Plug
(
CP4833-10
)
Plug installed
this orientation
+
-
#16 AWG BRN
(
2 LEADS
)
+
-
BAT
#14 AWG BLK
(2 LEADS)
#14 AWG RED
(2 LEADS)
(CUT) Cutout Input
RADIO
100W
11 ohm
Speaker(s)
Splice to door switch circuit or
attach to other switched circuit
Activation:
+VDC - DIP SW-6 and SW-7 OFF
-VDC - DIP SW-6 and SW-7 ON
Disabled - SW-6 ON and SW-7 OFF
#22 AWG BLU (2 LEADS)
SPKRÆ SPKRÆ
POSÆ POSÆ
RADÆ RADÆ
CTRLÆ
CUTÆ
NEGÆ NEGÆ
Control Head
Rear View
Optional
Microphone
Extension
Cable
Auxiliary Input
Connection
Examples
Aux input is
activated with
+VDC AND -VDC
Remote
A
m
p
lifier
HORN RLY +VDC
or
-VDC
Added
SPDT
Switch
To
A
UX
Vehicle
Horn
Horn
Circuit
Note:
Vehicle horn will also
sound with siren
May need to
add diode
(10mA current)
To
A
UX
Vehicle
Horn
S
p
lice
or
+VDC
or
-VDC
Momentary
SPST
Switch
To
A
UX
Connect to
output jack, terminals
or speaker of radio
#22 AWG WHT
To Control Head White Wire
Red Wire
Black Wire
White Wire
Yellow Wire
Control Head
Cable (CP3040)
Green Wire
(AUX) Auxiliary Input
Backlighting
Control Line to Amplifie
r
-VDC
Customer Fused +VDC
Control Head Cable may be
extended with #22AWG Wire
20
A
Automotive T
yp
e Fuse
+
-
#22 AWG GRN

Page 10 of 16 SA-430-10 Installation and Operating Instructions
CP4854E 03/31/10
OPERATION
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
GENERAL
This unit is designed for easy operation under the stress associated with high-speed pursuit.
Most siren functions are accessible with one simple motion without repetitive activation of
switches or automatic timed switching that can interfere with desired operation.
SELECTOR SWITCH
The 6-position rotary selector switch controls the primary
operating mode of the siren.
Radio - Also known as Radio Repeat, this function amplifies
a radio speaker input for re-broadcast outside the vehicle.
The radio must be connected and RADIO VOLUME
ADJUSTed for this mode to function.
Horn - A standby (silent) mode that may be overridden
anytime with the Siren push-button to produce a simulated
Air-horn tone. Horn tone may be disabled.
See OPTION SWITCHES section.
Manual – The siren tone rise and fall is manually controlled
with Siren push-button.
Wail - A slower changing tone used on highways.
Yelp - A rapidly changing tone used in congested areas.
Phaser - A very rapidly changing tone used at intersections or in highly congested areas. May
be disabled or optionally replaced with Two-Tone which is two alternating frequencies like a
European HI-LO. See OPTION SWITCHES section.
SIREN SWITCH
This momentary push-button switch provides Manual tone control and
various tone overrides depending on the Selector switch setting. It can
optionally control Horn Ring Cycler 2 operation in the Horn position if the
HRC2 option is selected. See OPTION SWITCHES section.
Selector
Switch
Operating
Mode
Activate Siren push-button or Auxiliary Input Override
Radio Radio No Change
Horn Silent Horn (Default) or HRC2 (See OPTION SWITCHES section)
Manual Silent Manual siren tone
Wail Wail Toggle between Wail and Yelp
Yelp Yelp Horn
Phaser Phaser Horn
SELECTOR SWITCH
RADIO
HORN
MAN
WAIL
YELP
PHASER
SIREN

SA-430-10 Installation and Operating Instructions Page 11 of 16
03/31/10 CP4854E
MICROPHONE (PA Override)
The noise-canceling microphone is used for public address operation and overrides any
function when the push-to-talk button on the side of the microphone is pressed.
PA VOL
This control adjusts the PA volume. With the vehicle parked, set the PA
volume to the maximum level with no feedback (squeal).
AUXILIARY INPUT
During installation an auxiliary input may be connected to the horn ring or other switching
device. It provides the same operation as pressing the Siren push-button.
HORN RING CYCLER 2 (HRC2)
During installation, the auxiliary input must be connected and the HRC2 option selected. While
the siren is in standby, tap the horn ring to bring the unit out of standby into Wail tone.
Repeatedly tapping the horn ring will cycle through Wail, Yelp, and Phaser tones. Tapping the
horn ring twice quickly will stop the siren tones and return the unit to standby. Pressing and
holding the horn ring will produce Horn tone until released. Then the siren will return to its
previous siren tone or standby. See OPTION SWITCHES section for further details.
NOTE: Earlier units with S/N lower than 04190000 have a different version of HRC. In this
case the siren tones cycle through Standby, Wail, Yelp, and Phaser. The tone is stopped by
cycling to Standby.
RADIO VOLUME ADJUST
The radio repeat volume level is set using an adjustment on the side
of the amplifier. Set the Selector Switch to the Radio position and
turn on the power. With the radio volume itself set to a normal level,
set the siren radio volume adjust control to the desired level.
CUTOUT INPUT
During installation, a cutout input may be connected to a door switch. It turns off any siren tone
when the door is opened. The siren tone will continue to be cut off even when the door is
closed. Changing any switch or input will restore normal function.
PA
VOL
Radio Volume

Page 12 of 16 SA-430-10 Installation and Operating Instructions
CP4854E 03/31/10
SERVICE
This unit is designed to provide years of reliable service under even the worst conditions.
Many times there may appear to be a problem with the unit when the true problem is in the
speaker(s) or improper installation. The following chart shows typical symptoms and possible
causes.
A blown amplifier fuse doesn't necessarily mean that the unit is bad. If a speaker or speaker
lead is shorted this fuse will blow before the unit is damaged. Disconnect the SPKR leads and
replace the fuse. If the siren emits a sound when in the Yelp position it is OK. Check the
speaker(s) or leads for possible shorting.
PROBLEMS
Symptom Possible Cause Check
No power or
siren output
Power switch not turned on
Bad speaker(s)
Connector loose
Amplifier/control head fuse blown
Loose connection at power source
Does backlighting and power indicator on control head
come on?
Do you hear a "pop" when turned on?
Is an external fuse or circuit breaker used?
Are the negative leads connected to a good ground?
No siren tone
- PA works
High Voltage Protection
Mic button stuck
Cutout activated
Cutout polarity option set wrong
Input voltage must be less than highest rated voltage.
Does mic button release properly?
Does siren work when Cutout Input is disconnected?
Are the corresponding option switches set correctly?
No PA PA volume not set properly Have you tried turning the PA volume control?
Distorted
siren sound
Speaker assembly loose
Intermittent Aux Input connection
Low vehicle voltage
Is the speaker bell or tip loose?
Is the Aux Input used and wired properly?
Input voltage must be greater than lowest rated voltage.
Intermittent
siren tone
High Voltage Protection
Connector loose
Bad power connection
Mic button activation
Circuit breaker in supply connection
Is the vehicle voltage regulator working properly?
Are connections tight on the amplifier/control head?
Is there a loose connection on a power lead?
Is something lying on the microphone?
Is a circuit breaker used with at least a 50A rating?
Horn function
Or Manual
stuck on
Siren switch stuck
Aux Input improperly connected
Does the Siren switch return fully when released?
Is the Aux Input used and wired properly?
No Radio Unit not connected to radio
Radio volume too low
Is the radio connected properly to the unit?
Can you here the radio in the vehicle?
Have you tried turning the radio volume control?
Wrong siren
tone
Two-Tone option installed
Ground system noise
Is the Two-Tone option selected?
Are Control head and amplifier connected to good
ground?
Phaser not
working
Phaser disabled Is the Phaser Disable option selected?
Horn not
working
Horn disabled Is the Horn Disable option selected?
See www.carsonsirens.com for additional information.
or contact our Service Department at:
E-mail [email protected] or Phone [phone].

SA-430-10 Installation and Operating Instructions Page 13 of 16
03/31/10 CP4854E
PARTS and ACCESSORIES
The following parts and accessories are available from Carson Manufacturing Company, Inc.:
Part Description
CP5018 Button, Switch Cap Red (for Siren pushbutton)
CP4732 Control, 1K Vertical Trimmer (Amplifier)
CP4834 Control, 1K Ohm Vertical Mini-Pot (Control Head PA)
CP4812-1 Cover, Amplifier (Does not include Chassis)
CP3880 Cover, Control Head back
ATO/ATC 20A Fuse, 20 Amp Automotive
CP4852 Knob, Selector Switch Knob
CP4853 Knob, PA Volume Control
CP4840 Label, SA-430-10 Front Panel
CP4750 Microphone, Noise Canceling w/Connector
SR-15-1 Microphone Strain Relief
CP5014 Nut, 1/4-40 Dress (for Siren pushbutton)
8121D2V40 Switch, Momentary Push Button, Vertical (Siren pushbutton)
7101-T-C-Q Switch, Power Toggle
CP3599 Switch, Rotary 6-Pos. Selector, Vertical
CP4119 Transistor, Output (2 required)
Accessory Description * - standard accessory supplied with unit F or FX model
CP4872 Bracket, Control Head Console Mounting
CP3633 * Bracket, Microphone Clip with mounting Screws
CP3040 * Cable, 5-P Control Head Lead Assembly
ED1757 Cable, 10-P Amplifier Lead Assembly 8FT (made w/ CP4833-10 Conn)
CP3850 * Cable, Microphone Extension 18FT for FX model
CP4833-10 * Connector, 10-P Terminal Block Plug w/Locking Screws (Amplifier)
ES00028-10 * Microphone, Detachable Noise Canceling for FX model
SA-430-10AMP SA-430-10 Remote Amplifier (includes CP4833-10 Connector)
SA-430-10CH * SA-430-10 Control Head with attached Microphone for F model
SA-430-10CHX * SA-430-10 Control Head without Microphone for FX model
CP4854 * Manual, SA-430-10 Instruction
See www.carsonsirens.com for additional information.
or contact our Service Department at:
E-mail [email protected] or Phone [phone].

Page 14 of 16 SA-430-10 Installation and Operating Instructions
CP4854E 03/31/10
RETURN
If you have any questions concerning this or any other Carson product, please contact our
Technical Service Department at [phone]. Many issues can be handled over the
phone. We can also be reached via e-mail at [email protected]
If a product must be returned for any reason, please contact our Technical Service Department
to obtain a Returned Merchandise Authorization number (RMA#) before you ship the product
to Carson. Please write the RMA# clearly on the package near the mailing label. Be sure to
provide a return address, contact and phone number, along with a brief description of the
problem.
LIMITED WARRANTY
Carson Manufacturing Company, Inc. warrants this new product to be free from defects in
material and workmanship, under normal use and service, for a period of five (5) years
from the date of delivery to the first user-purchaser.
During this warranty period the obligation of Carson Manufacturing is limited to repairing
or replacing, as Carson Manufacturing may elect, any part or parts of such product which
after examination by Carson Manufacturing is determined to be defective in material
and/or workmanship.
This warranty does not cover labor charges for removal or re-installation of the product.
Fuses and lamps are not covered under this warranty.
This warranty does not extend to any unit that has been subjected to abuse, misuse,
improper installation or which has not been adequately maintained, nor to units which
have problems related to service or modification at any facility other than the
manufacturer.
THERE ARE NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL CARSON MANUFACTURING
COMPANY, INC. BE LIABLE FOR ANY LOSS OF PROFITS OR ANY INDIRECT OR
CONSEQUENTIAL DAMAGES ARISING OUT OF ANY SUCH DEFECT IN MATERIALS
OR WORKMANSHIP.

SA-430-10 Installation and Operating Instructions Page 15 of 16
03/31/10 CP4854E
CONTROL HEAD INSTALLATION TEMPLATE
5-1/4”
2-5/8”
5-7/8” 6-1/4”
1/2”
1/8”
2-7/8”
2-1/2”
This inner area
to be removed.
CAUTION: Please note that top and bottom
edges only provide 1/8” overlap. Cut carefully.

Page 16 of 16 SA-430-10 Installation and Operating Instructions
CP4854E 03/31/10
BLANK PAGE
