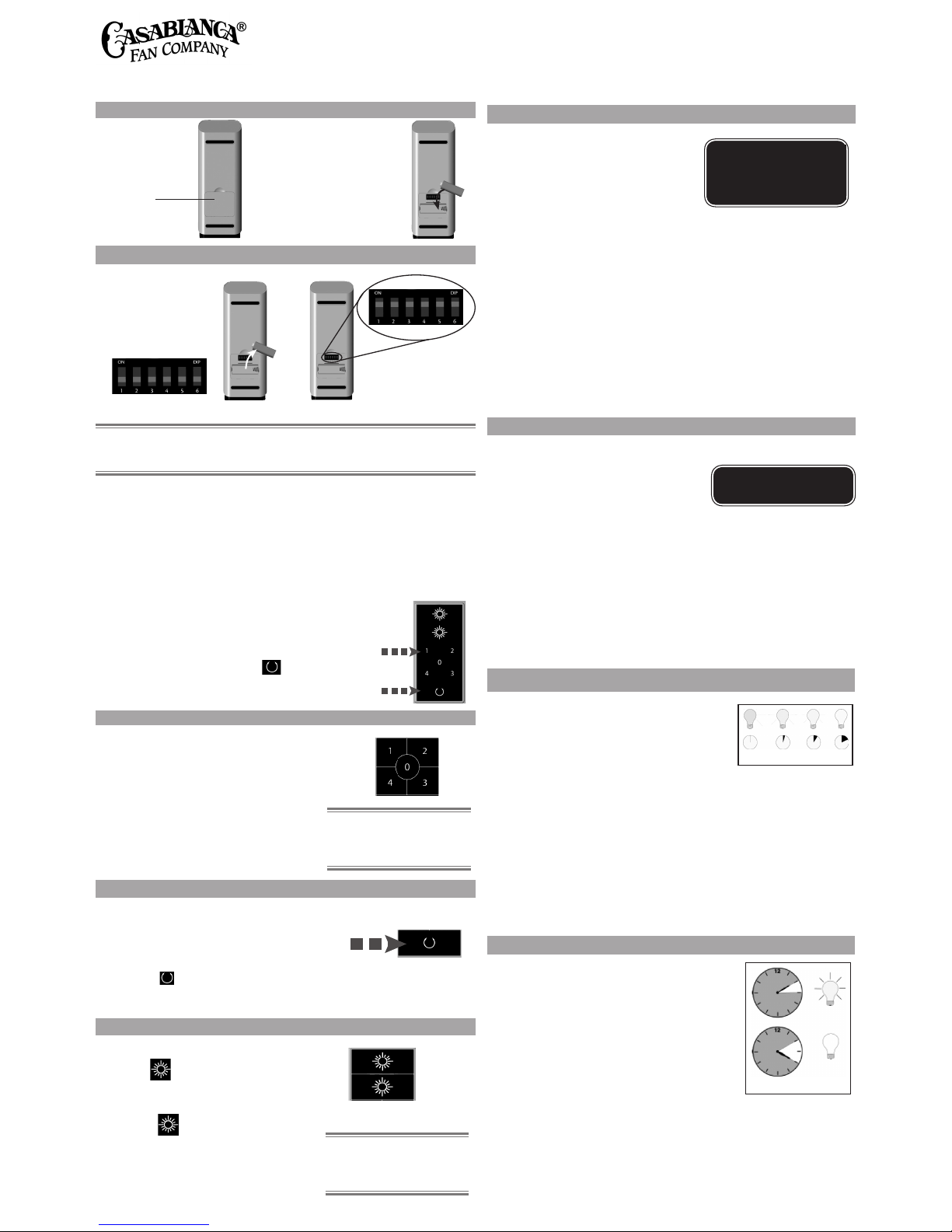

Casablanca W-75SL User manual

W-75WALLCONTROL 
W-75SLOperatesDownlightsONLY
W-75DLOperatesUpandDownlights
BATTERY INSTALLATION
Open Battery Door
by pressing down
on the insert tab
provided.
Install a “MN21/A23”
12v alkaline batterie
in the space provided.
Please observe proper
polarity placement.
Replace Battery Door.
Battery
Door
12V
CHANGING FREQUENCY SETTING
You will only have to
change the dip switch
settings in the remote
if you are using more
than one fan in the same
area and want to control
them separately. DIPSWITCHES
SETTO‘111111’
(FactorySetting)
NOTE: DO NOT set dip switch setting in the remote to ‘000000’, this may cause
frequency interference from other Casablanca Products.All fans leave the factory set to
“111111”
(Figure2)
(Figure1)
12V
DIPSWITCHES
SETTO‘000000’
To change frequency:
1. Turn power OFF at the circuit breaker or fuse box and at the
wall switch, for the fan you want to change.
2. Open the battery door and remove the battery as shown in
Figure #1
3. Change the dip switch settings, assuring that they are
match the Direct-Touch wall control. See Figure #2.
4. Re-install the battery with the proper polarity position and
the battery door.
5. At the circuit breaker or fuse box and at the wall switch,
turn the power on for the fan whose frequency you are
changing.
6. Within 20 seconds of restoring power to the ceiling fan
press and hold both the “1” and reverse buttons as
shown in Figure #3. For 3 seconds, you will hear an audible
tone indicating the command has been accepted. The Fan
and Lights will be off. The frequency is now changed.
OPERATIONSPEEDCONTROL
There are ve individual speed settings
for the fan. Each speed is indicated by the
number on the controller and an audible tone
for each speed.
To select the desired fan speed:
Press the number on the controller
corresponding to the speed desired. 4 is high,
3 medium, 2 low, 1 ultra-low, and 0 is off.
Note: It is normal for the fan to
start in the "High" position from
"Off" before changing to the selected
speed.
OPERATIONREVERSINGAIRFLOW
The direction of airow can be changed from
downward to upward or from upward to downward.
To reverse the airow:
1. Make sure the fan is on and blades are turning.
2. Press the reverse button. You will hear a
series of clicks from the fan as it speeds up
before coming to a stop and changing direction.
OPERATIONLIGHTS
To turn the lights off and on, press and
release the button for either the up or
down lights for less than one second.
To dim either the up or down light, Press
and hold the button for either the up or
down light for more than 1 second. The light
will come on at the last brightness setting
and increase in brightness until full power is
reached, then start dimming until the lowest
setting is reached. This cycle will repeat until
you release the light button.
Up Light
Down Light
Note: e dimming feature will only
work as long as the dimming feature
remains active. See "Operation CFL
mode".
Your fan has the ability to disable the
dimming feature to allow the use of CFL
bulbs.
To activate CFL mode:
1. Turn the fan off by using your wall switch.
2. Allow the fan to remain off for at least 5 seconds.
3. Turn the fan on by using your wall switch.
4. Immediately press and hold the "1" and "3" buttons for at least 5 seconds.
The fans lights will go to 100% brightness and the dimming function will
be disabled.
To cancel CFL mode:
5. Turn the fan off by using your wall switch. Allow the fan to remain off for
at least 5 seconds.
6. Turn the fan on by using your wall switch.
7. Immediately press and hold the "2" and "4" buttons for at least 5 seconds.
The fans lights will dim to 50% brightness and the dimming function will
be enabled. Press and hold the light buttons until the desired dimmer
setting is reached.
Caution: CFL bulbs will not
function properly when
dimmed, which may result
in ickering or reduced bulb
life.
OPERATION CFL MODE
AUTOMATICDEMONSTRATIONPROGRAM
Programmed into every Direct-Touch fan is an Automatic Demonstration
Program. It can be used to fully demonstrate
and test the operation of the fan.
To enter the demonstration program:
1. Turn the fan off for at least 5 seconds by
using your wall switch. This will clear the
fan memory ready for programming.
2. Turn the fan on by using your wall switch.
3. Immediately hold the "0" button for at least 5 seconds.
A multi-tone signal will verify the start of the test program. The fan and lights
will go through a series of changing fan speeds, reversing the fan operation
mode, turning off/on, and dimming the lights.
The complete cycle lasts slightly over one minute. It will continue to repeat
until the wall switch is turned off for more than ve seconds, cancelling the
program.
Note: With CFL mode active,
the lights will not dim.
OPERATION SAFE-EXIT®
The Safe-Exit Program gives you about thirty
seconds of light when you turn the lights off,
enabling you to exit your home before the lights go
out. To enter the Safe-Exit Program:
1. Turn the fan off by using your wall switch.
Allow the fan to remain off for at least 5
seconds.
2. Turn the Power on. Immediately press and hold the "4" button for 5
seconds. When a light button is pressed, an audio tone and series of
lights blinking will indicate the program is active.
3. With CFL mode disabled, Pressing a Light Button will cause the lights to
stay on at 50% brightness for 20 seconds then decrease in intensity for 30
seconds then turn off.
4. With CFL mode active, Pressing a Light Button will turn the lights off after
30 seconds.
5. To cancel the Safe-Exit Program, turn off power off using your wall switch
and leave off for ve seconds.
Safe-Exit
The Light-Minder Program automatically turns OFF
the fan mounted lights after two hours. To enter the
Light-Minder Program:
1. To operate the lights for Light Minder Program
Turn the fan off by using your wall switch.
Allow the fan to remain off for at least 5
seconds.
2. Turn the Power on. Immediately press and
hold the "1" button for 5 seconds. A series of
tones will be heard indicating the command
has been accepted. Once the lights turn on,
they will automatically turn off after 2 hours.
3. If you leave the room and turn OFF the lights, the lights will blink to
indicate the Light Minder command has been accepted. The lights will
stay on for 2 hours and then begin to dim. After thirty seconds have
elapsed, the lights will turn completely off. In CFL Mode, the lights will
not dim, but shut off after 2 hours.
4. To cancel the Light Minder Program, turn off power off using your wall
switch and leave off for ve seconds.
LIGHT-MINDER® PROGRAM
Light-Minder

OPERATIONHOME-SAFE®PROGRAM
TROUBLESHOOTINGTIPS
ONEYEARWARRANTY
OPERATIONFAN-MINDER™PROGRAM
1. To operate the Home-Safe Program –
Turn the fan off by using your wall
switch. Allow the fan to remain off for at
least 5 seconds.
2. Turn the Power on. Immediately press
and hold the "3" button for 5 seconds. A
series of tones will be heard indicating
the command has been accepted.
3. The lights will automatically cycle on and off in a controlled sequence as
follows: ON 1 hour, OFF ½ hour, ON 2 hours, OFF 1 hour, ON ½ hour then
OFF 2 hours. This seven hour pattern will repeat continuously so that a
different pattern of lighting is seen each day of the week.
4. To cancel the Home-Safe Program, turn off power off using your wall
switch and leave off for ve seconds.
The Fan-Minder feature will add to your comfort when used
in the bedroom. The program reduces the speed of the fan
each two-hour interval to compensate for cooling night air.
1. To activate the Fan Minder Program – Turn the fan off
by using your wall switch. Allow the fan to remain
off for at least 5 seconds.
2. Turn the Power on. Immediately press and hold the "2"
button for 5 seconds.
3. The fan will respond with three descending tones. A
timer is now initiated and the fan will reduce one speed
for each two-hour interval. The fan will not, however,
descend below the rst or the lowest speed.
4. You may increase the fan speed by pressing and holding any of the fan speed
buttons until the desired speed is reached, then release it. The fan will again
reduce one speed for each 2 hour interval.
5. To cancel the Fan-Minder Program, turn off power off using your wall switch
and leave off for ve seconds.
Note: This program overrides all manual
control of lights and fan.
Please refer to this troubleshooting guide before requesting service or contacting your dealer for assistance.
PROBLEM POSSIBLE REMEDIES
Fan will not start • Check the main circuit fuses, circuit breakers, and wall switch position.
• e battery is weak. Install a fresh battery.
• Check the frequency setting: --see instructions for changing the frequency setting.
Fan does not respond to remote control • Power to the fan is off.
• Wrong remote is being used.
• Remote dip settings changed --see instructions for changing the frequency setting.
Battery life is short • Replace with alkaline batteries.
Fan O.K., No light • Check for burned out light bulb. Check fan light wires.
Light O.K., No fan • Check connectors, may not be making good contact.
Remote control of fan is erratic • Check that the batteries are installed correctly.
• Install fresh ALKALINE batteries.
Fan starts working by itself • Frequency interference; Change dip switches --see instructions for changing the frequency setting.
If you have any problem installing or
operating your fan, do not return this
product to the dealer. Call our toll-free
Consumer Affairs hotline at 888-227-2178,
Monday through Friday,
8 a.m. to 4:30 p.m. Central.
Your request will be handled immediately.
is product is warranted to the original purchaser by Casablanca Fan Company against defects in material and workmanship for one (1) year from date of
purchase. During the warranty period, we will repair or, at our option, replace a defective product at no charge. For information on how to obtain service,
contact Casablanca’s Service Department by calling our toll-free number, 888-227-2178. Damage to the product caused by mishandling, improper installation or
modification is not covered by this warranty. is warranty is given in lieu of all other warranties expressed or implied. Some states do not allow limitations of time
on an implied warranty, therefore the above limitations may not apply in every case. is warranty states specific legal rights which may vary from state to state.
is device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
1. is device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
2. is equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. ese limits are designed to provide reasonable protection
against harmful interference in a residential installation. is equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures: Reorient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Note: Any changes or modifications to the transmitter or receiver not expressly approved by
Casablanca Fan Company may void one’s authority to operate this remote control.
