CAPISTRANO
OWNERS MANUAL

1
CIRCUIT BREAKER
(TRIP BREAKER FOR THE
CIRCUIT YOU WILL BE
WORKING ON)
FUSE BOX
(REMOVE FUSE FOR THE
CIRCUIT YOU WILL BE
WORKING ON)
18″
84″
70″
•Thebladesin each packarematchedforequal
weight to assure smooth fan operation. If
more than one fan is being installed, be
careful not to mix blades from different
cartons.
•Inspect the contents of your carton for
possible shipping or handling damage and
report any such damage directly to your
authorized Casablanca dealer.
•It is always a good idea to have an assistant
to help with the installation.
•When cleaning, painting, or working near
yourfan,bevery careful ofthefanandblades.
Always turn the power OFF to the ceiling fan
beforeservicingit, workingon it,or replacing
light bulbs.
•Never insert anything into the path of the
fan blades while the fan is in operation.
• Never install a fan over a pool or spa.
•Never operate a fan that has been damaged
in any way. Contact Casablanca Fan Company
bycalling1-800-759-FANS(3267), or contact
your local authorized Casablanca dealer for
assistance in obtaining service.
CONTENTS
READ AND SAVE THESE INSTRUCTIONS
•All wiring must be in accordance with the National Electric Code ANSI/NFPA 70-1993 and the appropriate local electrical
codes. The National Electric Code requires proper grounding as a precaution against electrical shock. A qualified electri-
cian should be consulted if you are unsure.
• This fan is designed to be installed on an existing electrical outlet box. The outlet box must be UL Listed for ceiling fan
installations, if it is not, a new box must be installed. Casablanca extension poles are available for sloped or high ceiling
installations.
•This ceiling fan requires a grounded electrical supply of 120 VAC, 60 Hz and a minimum 15 amp circuit. The maximum
current requirement for the fan with light fixture is 3.8 amps. The fan uses about 1 amp or 100 watts. Maximum light
current is 2.8 amps or 340 watts of lighting.
•Where wire nuts are employed, be sure all bare wires are within the connectors. When installing the canopy hatch, make
sure all wires are within the canopy and that no wires are being pinched.
For best performance and for your warranty to be valid,
use only genuine Casablanca blades, light fixtures, and accessories.
SAFE USE
Safety and the proper operation of your Casablanca fan both require a thorough knowledge of the
product and proper installation; therefore, before attempting to install and operate your Casablanca
fan, read this owner’s manual completely and carefully. Retain this manual for future reference.
SAFETY FIRST
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
MOUNTING RECOMMENDATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PREPARATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
FAN INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
CONTROL FEATURES:
3-SPEED OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
BEFORE YOU START
P/N 4643010 REV.A P/D MAR98PDG
CAUTION: To avoid possible electrical shock, make certain that electricity is turned off
at the circuit breaker or fuse box before attempting any installation procedure.

2
Calculation of 32°
Use the tear-off Ceiling Angle Template card inserted in the
back of this manual, it provides you with a simple ‘go’ or
‘no-go’ for installing your fan on a sloped ceiling.

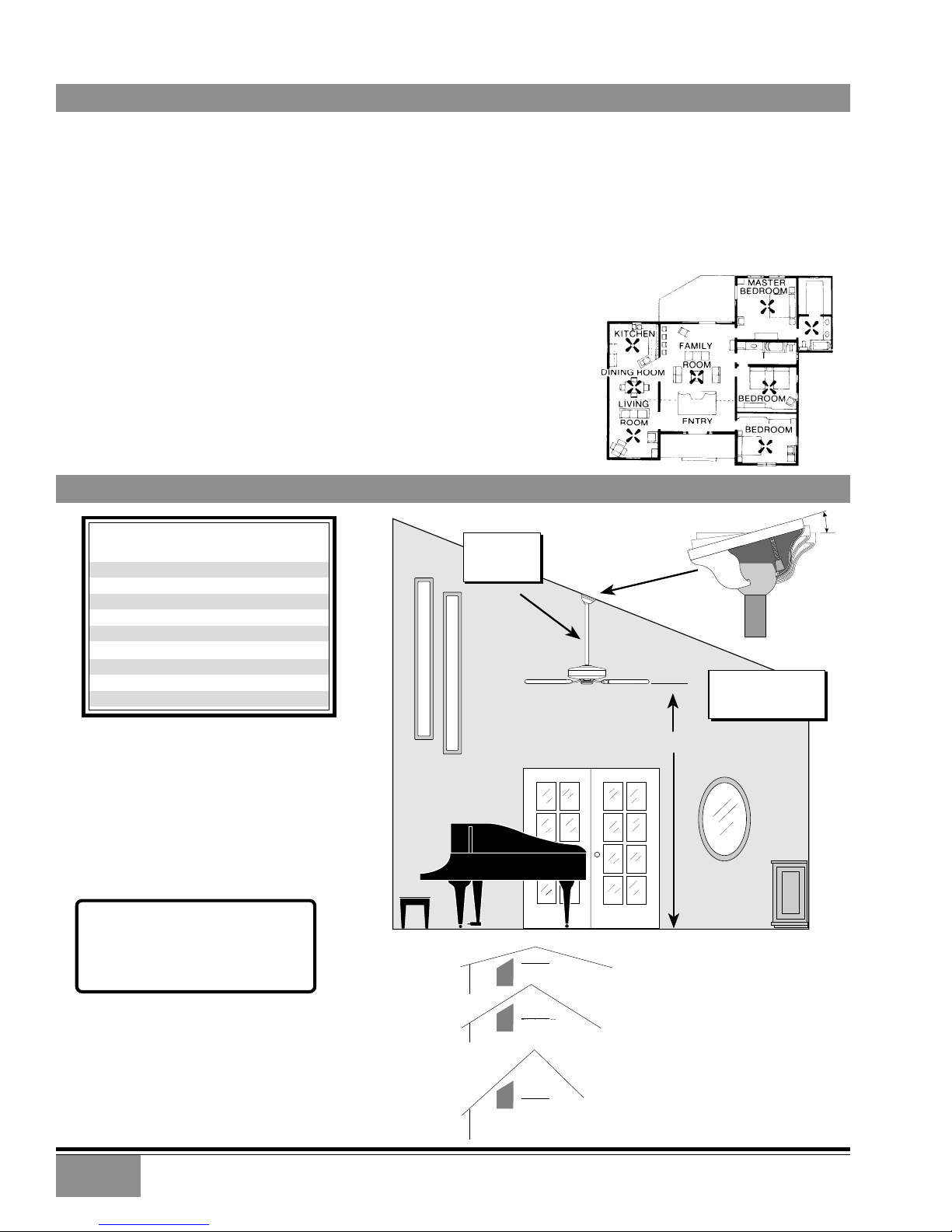

SLOPED CEILING INSTALLATIONS
MOUNTING RECOMMENDATIONS
7′MINIMUM
Pole Length
Standard
Standard
6″
12″
12″
18″
24″
36″
48″
Ceiling Height
8′
8′6″
9′
9′6″
10′
11′
12′
13′
14′
Suggested Extension Pole Lengths
When to Use Extension Poles
Forbest performance and bestappearance,
an extension pole should be used with
your Casablanca fan when installing on
high (cathedral) ceilings or sloped ceil-
ings. Casablanca offers standard poles in
increments of 6″up to 5′. Custom poles
are available in lengths up to 10′. See your
Authorized Casablanca Dealer for details.
32°
BLADES MUST BE A
MINIMUM OF 7′
ABOVE THE FLOOR
EXTENSION
POLE
MAXIMUM
HANG-TRU®
ANGLE 32º
Before mounting your Casablanca fan, read the following helpful recommendations. The location of the fan, air circulation,
and fan size are all important factors to consider before installation.
Location
Ceiling fans have practical uses in almost every room in your home. We suggest you follow these mount-
ing recommendations as you decide where to install your Casablanca fan.
• For safety reasons, the fan blades must be a minimum of 7′above the floor.
• Do not locate the fan in a doorway or above a swinging door.
• In any installation, the tips of the blades must be at least 18″from the wall in order to provide
sufficient clearance for the blades.
• In bedrooms, fans work best when mounted above the foot of the bed.
• Over pool tables, be sure to provide plenty of clearance to avoid damage from pool cues.
• In low ceiling locations, our optional low ceiling adaptor (LCS) - available at
extra cost can be used to gain 31/2″(not applicable to Stealth series).
• In kitchens be sure to allow for open cupboard doors to clear the fan blades.
• Do not install a fan close to, or over, a pool or spa. High humidity combined
with corrosive gases will destroy the finish and warp the blades.
Fan Size
Variable fan speed capability permits the use of a full-size 52″fan even in
smaller rooms. For very large rooms, two fans may be needed.
EXAMPLE 1
This slope is less than 32˚.
It is OK to install your fan.
EXAMPLE 2
This slope is 32˚. This is the maximum
slope that will allow the fan to hang
straight down. It is OK to install your
fan.
EXAMPLE 3
This slope is more than 32˚.
Your fan will not hang straight down, an
adaptor is necessary. Contact your local
Authorized Casablanca Dealer in regards
to purchasing a “Slope Ceiling Adaptor.”
EXAMPLE 1
This slope is less than 32°.
It is OK to install your fan.
EXAMPLE 3
This slope is more than 32°.
Your fan will not hang straight down,
an adaptor is necessary.
Contact you local Authorized
Casablanca Dealer in regards to
purchasing a 'Slope Ceiling Adaptor'.
EXAMPLE 2
This slope is 32°.
This is the maximum slope that
will allow the fan to hang straight
down. It is OK to install your fan.
Note: Fan may wobble or vibrate if
pole length is not long enough and
inside blade is too close to downslope
or side wall. Extending pole length
will usually solve problem.

3
PREPARATION INSTRUCTIONS
Unpacking: Before assembling and installing your ceiling fan, remove all parts from the shipping cartons and check them
against the parts listed here. Before discarding packaging material, be certain that all parts have been removed.
CEILING HARDWARE
CROSSBAR
MOUNTING
BRACKET
WIRE NUT (4)
FAN PREPARATION
GETTING STARTED
Installing a New Ceiling Fixture Outlet Box
If you do not have an existing fixture located where you wish
to place your Casablanca fan, an approved ceiling fixture
outlet box must be installed and wired.
Using Existing Ceiling Fixture Outlet Box
Afterturningthepower OFFat its source (eithercircuit breaker
or fuse box), lower the old fixture and disconnect the wiring.
Check the ceiling fixture outlet box to be sure that it is
marked ‘Approved for ceiling fan mounting’. If it is not, a new
box must be installed.
MOTOR
COUPLING
TAPERED
THREAD
MOTOR
WIRES
GROUND
WIRE
Step B. Thread the downrod into the motor coupling until it
stops turning, this will take at least four and a half full turns.
Step C. Securely tighten the locking bolt to ensure safe op-
eration of your fan.
NOTE: The downrod has a tapered thread
that is designed to lock completely when
correctly installed.
IMPORTANT SAFETY INFORMATION!
BEFORE STARTING THE INSTALLATION OF YOUR CEILING FAN,
INSTALL THE THREADED DOWNROD INTO THE MOTOR COUPLING AND
LOCK THE ASSEMBLY
LOCKING
BOLT
DOWNROD
&
BALL
ASSEMBLY
Warning: To reduce the risk of fire, electrical shock,
or personal injury, mount to outlet box marked
acceptable for ceiling fan support using the mount-
ing hardware provided with the outlet box.
ADDITIONAL HARDWARE
21/4″ x 8-32 ROUNDED
HEAD SCREW (2)
FLAT WASHER (2)
1″x 8-32 ROUNDED
HEAD SCREW (2)
LOCKING BOLT
(MOTOR COUPLING) DOWNROD & BALL
ASSEMBLY
PERMA•LOCK™ HARDWARE
Prepare for fan installation as follows:
Step A. Route the wires from the motor through the
Perma•Lock™ downrod and ball assembly, keeping the wires
to one side of the cross pin.
Casablanca
CAPISTRANO
CAUTION: Failure to fully lock in the down-
rod before securely tightening the locking
bolt may cause the fan to fall during nor-
mal operation!

4
CAUTION: To reduce the risk of
personal injury, use only the
mounting hardware provided with
the approved outlet box to install
the crossbar mounting bracket.
CROSSBAR MOUNTING BRACKET INSTALLATION
CEILING
WIRING
CROSSBAR
MOUNTING
BRACKET
FLAT
WASHER GREEN
GROUND
WIRE
CEILING FAN
APPROVED
OUTLET BOX
RIDGE
SIDE
DOWN
CANOPY INSTALLATION
CANOPY LOCK
WASHERS
CANOPY
SCREWS
CROSSBAR MOUNTING
BRACKET INSTALLED
CANOPY
CANOPY HARDWARE
CANOPY
CANOPY
HATCH CANOPY LOCK WASHER (4)
CANOPY SCREW (4)
OUTLET BOX
MOUNTING
HARDWARE
Note: On sloped ceilings, align the
canopy opening towards the top or
room peak.
Proceed with installation as follows:
Step 1. Route the wires from the ceiling outlet box through
thecrossbarmountingbracketcenter hole. Attachthebracket,
with ground wire and ridges down, to the ceiling fixture out-
let box with the mounting hardware included with the outlet
box.
Tighten the screws firmly by hand only, being careful not to
bend the bracket by over tightening.
Step 2. Attach the canopy to the crossbar mount-
ing bracket with three of the 8-32 x 21/4″long
canopy screws and canopy lock washers.
Tighten the screw firmly by hand only.
CAPISTRANO
Casablanca

5
CANOPY ELECTRICAL CONNECTIONS
Step 4a. Attach the fan wires to the ceiling fixture outlet
box wiring by placing the bare ends of the wires side by side
and then securing with a wire nut. Test that the connection
is secure by pulling on the wire nut. Connect in this order:
Step 4b.
• GREEN leads from mounting plate and fan to GROUND con-
ductor of power source. Secure with wire nut.
• WHITE wire from fan to white NEUTRAL wire in ceiling
fixture outlet box. Secure with wire nut.
• BLUE wire and BLACK power wire from fan to BLACK power
wire in ceiling outlet box. Secure with wire nut. 2 WHITE WIRES
2 BLACK WIRES
WIRE NUT
3 GREEN WIRES
HANGING THE FAN
Step 3. To hang the fan body in the
canopy, hold the fan body firmly and in-
sert the ball into the canopy opening.
Check that no wires were pinched. Ro-
tate the fan body until the slot in the
ball fits into the pin opposite the canopy
opening.
CAPPED
BLUE
D1-OPTION
WIRE ON
3-SPEED ONLY
FOR INDEPENDENT
W-8 LIGHT
CONTROL
PIN
SLOT
BALL
Casablanca
CAPISTRANO
CANOPY HATCH INSTALLATION
Step 5. Tuck the wires into the canopy
with the wire nuts pointed upwards, so
that the WHITE and BLACK wires are on
opposite sides of the canopy and all wires
are clear of the canopy opening.
Step 6. Install canopy hatch with the last
canopy screw and lock washer. To do this,
tilt the fan body away from the hatch
opening.
Using the screwdriver, tighten the screws
firmly by hand only. TILT THE
FAN TO
INSTALL
LAST
CANOPY
SCREW
CANOPY
HATCH
CANOPY
SCREW
LOCK
WASHER
Step 7. Straighten the fan, then check
to ensure that there is no movement be-
tween the canopy and ceiling or Hang-Tru
ball and top support shaft. Note: Write down the
Serial Number and the
model number for future
reference.
Note: Independent control of the
light fixture using a W-8/W-811 re-
quires an additional independent
power wire run from the wall switch
to the fan. See Page 10 for wiring.
Fan Hanging Weight
is 24 lbs

6
RUBBER GROMMET
(4 PER BLADE)
BLADE SCREW
(4 PER BLADE)
BLADE & BLADE HOLDER HARDWARE
BLADE
HOLDER
BLADE HOLDER
SCREW
(2 PER BLADE)
Step 9. Insert a rubber grommet through
each blade hole of every blade. Inspect
both sides of the blade to assure that
the lips of the grommet are fully engaged.
RUBBER GROMMET INSTALLATION
CORRECT INSTALLATION
INCORRECT INSTALLATION
Step 8. To reach the blade holder mounting
holes in the fan motor the dummy switch
housing must be removed.
Take out the two 5-32 X 9/32” screws secur-
ing the dummy switch housing and remove.
Put the two (2) screws aside for the mo-
ment, they will be used in Step 15 to install
the switch housing after the blades are in-
stalled.
Thedummy switch housing isused onlywhen
shipping the fan.
INSTALLING THE BLADE/BLADE HOLDER TO FAN MOTOR
PREPARATION
DUMMY
SWITCH HOUSING
MOUNT SCREW
5-32 X 9/32”
(2)
DUMMY
SWITCH
HOUSING
CAPISTRANO
Casablanca
Note: Save these two screws–they
will be used in Step 15!

7
BLADE/BLADE HOLDER INSTALLATION
Step 12. Using the five screws removed in
Step 11, and the five additional screws from
the pack, attach each blade/blade holder as-
sembly to the motor.
Using the screwdriver, tighten securely by
hand only.
Step 10. Attach each blade to a blade
holder securing it with the four blade
screws provided.
Using the screwdriver, tighten securely
by hand only. BLADE SCREW
(4 PER BLADE)
BLADE
BLADE
HOLDER
BLADE INSTALLATION
Step 11. On the flywheel remove the five
shippingblocksby unscrewingthe screws.
Set these screws aside for installing the
blades in Step 12.
Discard the five shipping blocks.
REMOVE SHIPPING BLOCKS
SHIPPING
BLOCKS
Casablanca
CAPISTRANO
Note: Save these five screws, they
will be used in Step 12!

8
COMPLETING INSTALLATION
Step 14. Hold the switch housing up to
the fan and connect the motor plug to
the switch housing socket. The connec-
tor is keyed to ensure correct installation.
PREPARATION
CONNECTING THE SWITCH HOUSING ASSEMBLY
Step 13. Locate the switch housing/cap
assembly and remove the two 8-32 X 3/8″
screws holding the cap onto the switch
housing.
SWITCH HOUSING
MOUNT SCREW
(REMOVED IN STEP 8)
5-32 X 9/32″
(2)
SWITCH
HOUSING
CONNECTOR
(SOCKET) MOTOR
CONNECTOR
(PLUG)
SWITCH HOUSING
AND
CAP
ASSEMBLY
CAP
REVERSE
SWITCH
SWITCH
HOUSING
SWITCH HOUSING
CONNECTOR
(SOCKET)
PULL CHAIN
SWITCH CAP SCREW
8-32 X 3/8″
(2)
Note: Save these two screws–they
will be used in Step 18!
Note: Do not force the connectors–
check that they are orientated so
the keying will match!
CAPISTRANO
Casablanca

9
INSTALLING THE SWITCH HOUSING ASSEMBLY
Step 17. Line up the two clearance holes
in the cap with the two threaded holes
on the raised rim of the switch housing.
Press the cap onto the switch housing to
seat the guide pins into the alignment
holes of the switch housing.
Step 18. Using the two (2) 8-32 X 3/8″
screws removed in Step 13, install the
cap onto the switch housing.
Tighten securely by hand only.
INSTALLING THE CAP
Step 15. Line up the two inner clear-
ance holes in the cap with the two
threaded holes in the switch mounting
plate standoffs.
Step 16. Use the two (2) 5-32 X 9/32″
screws removed in Step 8 to install the
switch housing assembly.
Tighten securely by hand only.
CAP SCREW
8-32 X 3/8″
(2)
SWITCH HOUSING
MOUNT SCREW
5-32 X 9/32″
(2)
CAUTION! Before continuing to the
next step check that a wire or com-
ponent inside the switch housing
will not be pinched as it is installed.
Casablanca
CAPISTRANO

10
3-SPEED ♦W-8/W-811 WALL CONTROL OF THE FAN & LIGHT(S)
3-SPEED ♦W-4/W-411 WALL CONTROL OF THE FAN
• The fan may be turned ON and OFF
by the W-8/W-811 wall control.
• The lights may be turned ON and
OFF by the W-8/W-811 and the
intensity adjusted from low to
high.
• Thefanmustbesuppliedwith two
independent 120V AC supply
wires.
• Set the FAN pull chain switch to
the HIGH speed setting.
• Turn the lights ON at the fan.
• The W-8/W-811 allows the choice
of four (4) different speed set-
tings.
• The W-4 allows the choice of four
(4) different speed settings.
• No light fixture is used.
• Set the FAN pull chain switch to
the HIGH speed setting.
• No changes in household or fan
wiring are required.
• The fan may be turned ON and OFF
by the W-4 wall control.
CAUTION! Failure to set the pull-chain
speed to HIGH can result in faulty
operation of the fan and damage to
the W-4/W-411 wall control. To con-
firm fan is set to HIGH: Turn W-4/
W-411 fan speed switch to 'HI' - set
fastest fan speed with pull chain.
CAUTION! Failure to set the pull-chain
speed to HIGH can result in faulty
operation of the fan and damage to
the W-8/W-811 wall control. To con-
firm fan is set to HIGH: Turn W-8/
W-811 fan speed switch to 'HI'—set
fastest fan speed with pull chain.
R
W-4/W-411
WALL CONTROL
W-8/W-811
WALL CONTROL

11
COLLAR
SWITCH
HOUSING
3-SPEED ♦OPTIONAL LIGHT FIXTURE INSTALLATION
REVERSE
SWITCH
3-SPEED ♦OPERATION
Pull-chain switches on the fan control the fan and lights.
Using the fan control pull-chain switch: Fan off at start.
First pull: fan ON, low speed
Second pull: medium speed
Third pull: high speed
Fourth pull: fan OFF
Using the optional light pull-chain switch: Light off at start.
First pull: light ON
Second pull: light OFF
Direction of blade rotation is controlled by the reverse slide
switch on the side of the switch housing.
No changes in household wiring are required.
1. Refer to light kit instructions to assemble and attach your light
kit correctly.
2. Remove the two 8-32 screws from the switch housing cap.
3. Remove the plug from switch housing.
4. Install pull-chain switch and finger tighten collar on switch.
5. Connect one wire from pull-chain switch to the BLUE D1-Option
wire. Secure splice with a wire nut.
6. Connect other wire from pull-chain switch to BLACK wire from
light kit. Secure splice with a wire nut.
7. Connect WHITE wire from switch housing to WHITE wire from light
kit. Secure splice with a wire nut.
8. At the canopy, connect the BLACK and BLUE wires.
3-SPEED ♦OPTIONAL WALL CONTROL
The W-4/W-411 wall control provides four-speed control of fan from a convenient wall
location. The W-4 is designed to replace a standard wall switch and will fit wall boxes with
a depth of 2" or greater. Not for use with single pull-chain fan/light option wiring.
To install a W-4/W-411 wall control in place of an existing wall switch, follow the instruc-
tions on the W-4/W-411 package.
Note: No rewiring is required if the fan is replacing an existing light fixture.
Operation of the fan from the wall switch is simple:
1. Turn knob to obtain desired speed setting.
3-SPEED ♦OPTIONAL WALL CONTROL
The W-8/W-811 wall control provides separate control of fan and light with two separate
knobs from a convenient wall location. The W-8/W-811 is designed to replace a standard
wall switch and wall boxes with a depth of 2" or greater. Requires two hot leads from wall
box to ceiling wiring box.
To install a W-8/W-811 wall control in place of an existing wall switch, follow the instruc-
tions on the W-8/W-811 package.
Operation of the fan from the wall switch is simple:
1. Turn the upper knob to the desired fan speed.
2. Turn the lower knob to the desired light setting.
FAN & SPEED
CONTROL
PULL CHAIN SWITCH
CAUTION! Failure to set the pull-chain speed to HIGH can result in faulty operation of
the fan and damage to the W-4/W-411 wall control. To confirm fan is set to HIGH: Turn
W-4/W-411 fan speed switch to 'HI'—set fastest fan speed with pull chain.
CAUTION! Failure to set the pull-chain speed to HIGH can result in faulty operation of
the fan and damage to the W-8/W-811 wall control. To confirm fan is set to HIGH: Turn
W-8 fan speed switch to 'HI' - set fastest fan speed with pull chain.
NOTE: If a separate circuit is used to control the lights from a wall
control, the BLUE D1-Option wire in the canopy should be connected
to that switch leg with the BLACK fan power wire.
R
LO
W-4/W-411
W-14/W-1411
W-8/W-811
W-18/W-1811

12
TROUBLESHOOTING
Before Requesting Service: Please follow this troubleshooting guide before contacting your dealer for assistance.
Caring for Finishes: For cleaning, a soft brush or lint-free cloth
should be used to prevent scratching the finish. A vacuum cleaner
brush nozzle can remove heavier dust. Surface smudges or an accu-
mulation of dirt and dust can easily be removed by using a mild
detergent and slightly dampened soft cloth. An antistatic agent
may be used, but never use abrasive cleaning agents. These will
damage the finish. Painted and high-gloss blades may be cleaned
in the same manner.
Blades: Wood finish blades should be cleaned with a furniture pol-
ishing cloth. Occasionally, a light coat of furniture polish may be
applied for added protection and beauty.
Never Lubricate this Fan!
The precision motor at the heart of your Casablanca fan features
sealed bearings that are lubricated for life. Do not attempt to oil
the motor.
Changing Light Bulbs
Be sure to turn power to the fan OFF at the wall switch or circuit
breaker before changing light bulbs. Replace bulbs with same type
as removed from the fixture. Each fan is rated for a maximum TOTAL
wattage of lighting.
Exceeding the rated maximum allowable wattage for the fan will
burn out the fan electronics module and void the warranty.
FAN WILL NOT START Check main circuit fuses, circuit breakers, or wall switch position.
Check all wire connections, making sure the power is turned off during this inspection.
Check that reverse switch is not set in center of throw.
FAN WOBBLES OR SHAKES Be sure canopy pin is properly set into the slot on the ball.
EXCESSIVELY Check the screws holding the blade holders to the flywheel (or direct drive motor). Tighten as necessary.
Check that bladeholders have not been bent during installation.
FAN NOISY DURING Check and tighten light fixture retaining screws, glass shade screws and/or the light bulb(s) as neccessary.
OPERATION Tighten the blade to bladeholder screws.
Tighten canopy screws and mounting plate assembly.
Check and tighten blade holders to flywheel (or direct drive motor).
Make sure all screws in the motor housing are snug, but not overly tight.
Check that the wire nuts inside the canopy and switch housing are not touching the metal parts or have
fallen off the wire splices. Tighten or adjust as necessary.
BREAK-IN PERIOD Let fan run at high speed for two (2) hours
DOES NOT RUN ON If new, “break-in” may be required - run at higher speed for several days
LOW SPEED
PROBLEM POSSIBLE REMEDIES..
3-SPEED
FAN RUNS SLOWLY IN EITHER DIRECTION IF ROTATION IS STARTED BY HAND; WILL NOT REVERSE: Defective reverse switch; defective
capacitor; or open motor winding: Replace reverse switch assembly; replace PCB assembly; or replace motor unit.
FAN WILL NOT OPERATE AT PROPER SPEEDS OR WILL NOT OPERATE AT ANY SPEED: Defective three-speed pull-chain switch assembly; or
defective capacitor: Replace three-speed pull-chain switch assembly; or replace PCB assembly.

14
©COPYRIGHT 1998 CASABLANCA F AN C OMPANY • U.S.PATENT P ENDING PRINTED IN ROC
761 CORPORATE C ENTER D RIVE • P OMONA,CA 91768 • 800-759-FANS (3267)
