Casablanca 55082 User manual

www.CasablancaFanCo.com 1.888.227.2178
Table of Contents
PAGE
10
Wiring
PAGE
7
Downrod
PAGE
4
Preparation
Canopy
PAGE
11
PAGE
5
Mounting Options
PAGE
6
Ceiling Bracket
Ladder
PAGE
3
Tools Needed
30 inches
7 feet
PAGE
2
What to Expect with
Your Installation
1
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company
PAGE
12
Blades
PAGE
14
Switch Housing Troubleshooting
?
?
PAGE
20
?
?
?
PAGE
15
Wall Control

www.CasablancaFanCo.com 1.888.227.2178
2
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company
What to Expect with Your Installation
Know your wiring
If you are unfamiliar
with wiring, use a
qualied electrician.
You may need a
friend to help you.
Check box to see
fan weight
Assess location
30 inches
from blade tip to
nearest wall or
obstruction 7 feet
from bottom
edge of blade
to the oor
Select a downrod length
w.1 - To reduce the risk of re, electrical shock, or personal
injury, mount fan directly from building structure and/or an
outlet box marked acceptable for fan support of 70 lbs (31.8 kg)
and use the mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or
servicing your fan, disconnect the power by turning off the
circuit breakers to the outlet box and associated wall switch
location. If you cannot lock the circuit breakers in the off
position, securely fasten a prominent warning device, such as a
tag, to the service panel.
w.3 - To reduce the risk of re, electrical shock, or motor damage,
use only Casablanca Solid State Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the blade
brackets when installing the blade brackets, balancing the blades,
or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
c.1 - All wiring must be in accordance with national and local
electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,
use a qualied electrician.
c.2 - Use only Casablanca replacement parts.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications.
Assess ceiling angle
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
CAUTIONS
Must be able to
secure the fan to
building structure or
fan-rated outlet box
1
2
3
Standard Downrod
for ceilings 8-10 feet high
Shorter Downrod
for fans installed close to ceiling
Longer Downrod
for ceilings 10 feet or higher
Ceiling angles greater
than 34° will require an
Angled Mounting Kit.
See page 4 for details.

www.CasablancaFanCo.com 1.888.227.2178
3
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company

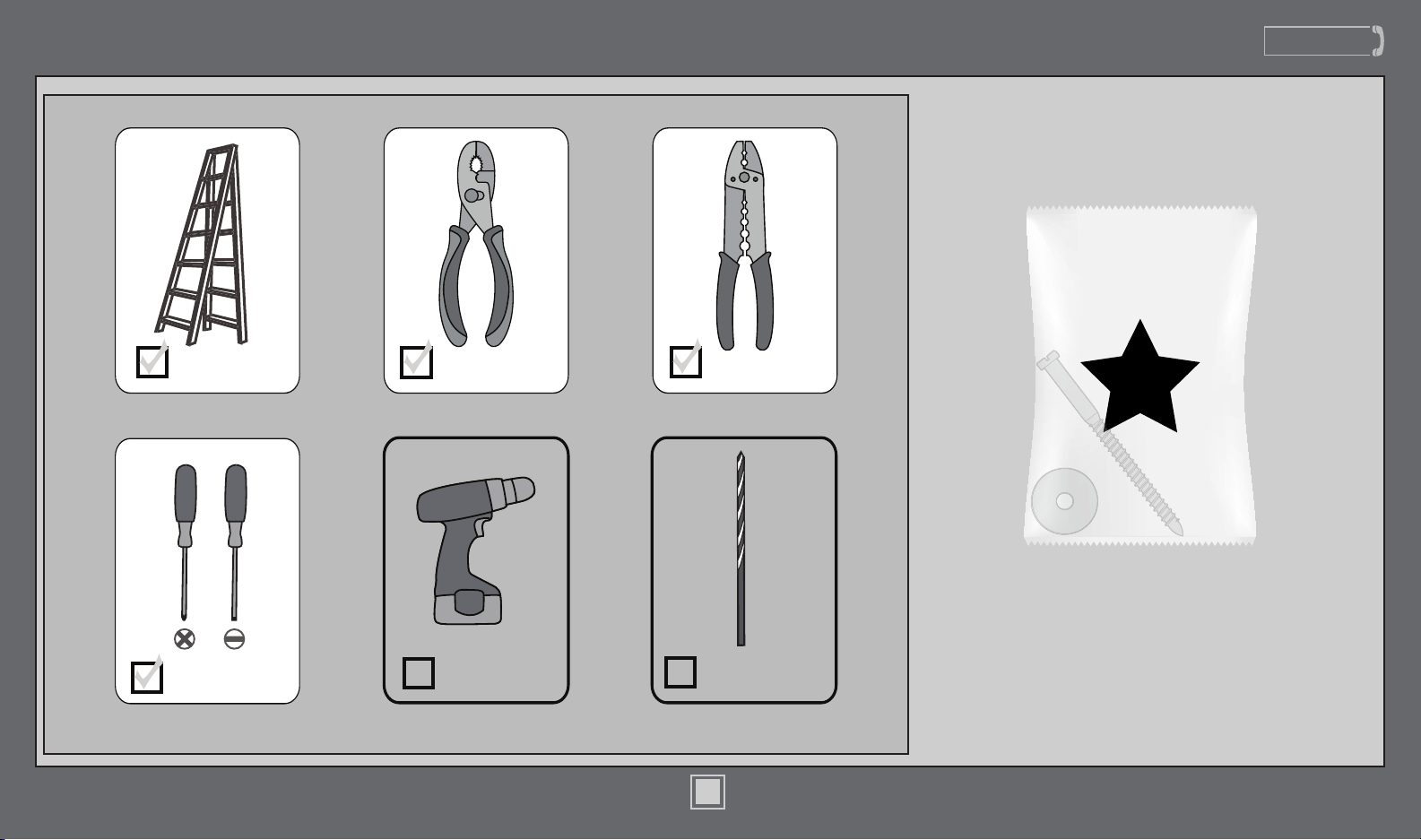

Tools Needed
Ladder
Power Drill
(optional)
9/64” Drill Bit
(optional)
Screwdrivers
Pliers Wire Strippers
If mounting to a support structure, you
will also need these tools.
Do not discard the hardware
bags or mix parts from different
bags. Make note of the symbol
printed on each hardware
bag. The symbols can be used
to identify the appropriate
hardware for each step.

www.CasablancaFanCo.com 1.888.227.2178

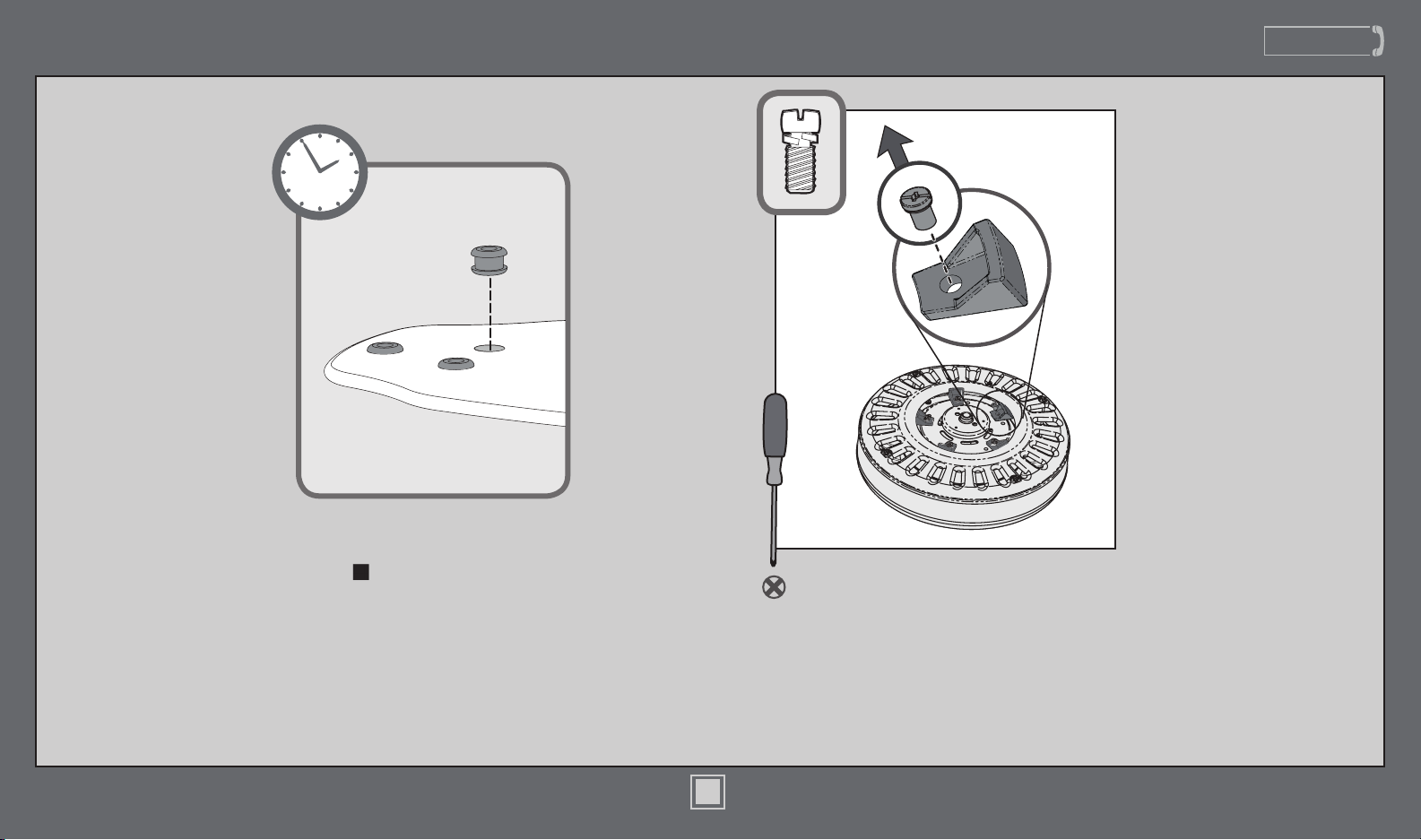

Preparation
D
I
S
C
A
R
D
K
E
E
P
!
Remove the shipping blocks from the
motor. Save the screws. They will be
needed for blade iron installation.
Note: Some fans will have a shipping
ring instead of shipping blocks. Please
remove the ring and save the screws.
Time Saver Tip: Get a helper
to insert grommets, found in
the hardware bag, into the
blades while you’re doing the
next couple of steps.
4
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
5
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company
If you have an angled ceiling:
1. You will need a longer downrod (sold separately).
2. If your ceiling angle is greater than 34°, you will
also need an Angled Mounting Kit (sold separately).
Guide Touches
BOTH Ceiling & Wall
S
I
T
U
A
T
I
O
N
1
Guide Touches Wall
but NOT Ceiling
S
I
T
U
A
T
I
O
N
2
You need BOTH
a Longer
Downrod &
an Angled
Mounting Kit
You need ONLY
a Longer
Downrod
*most common

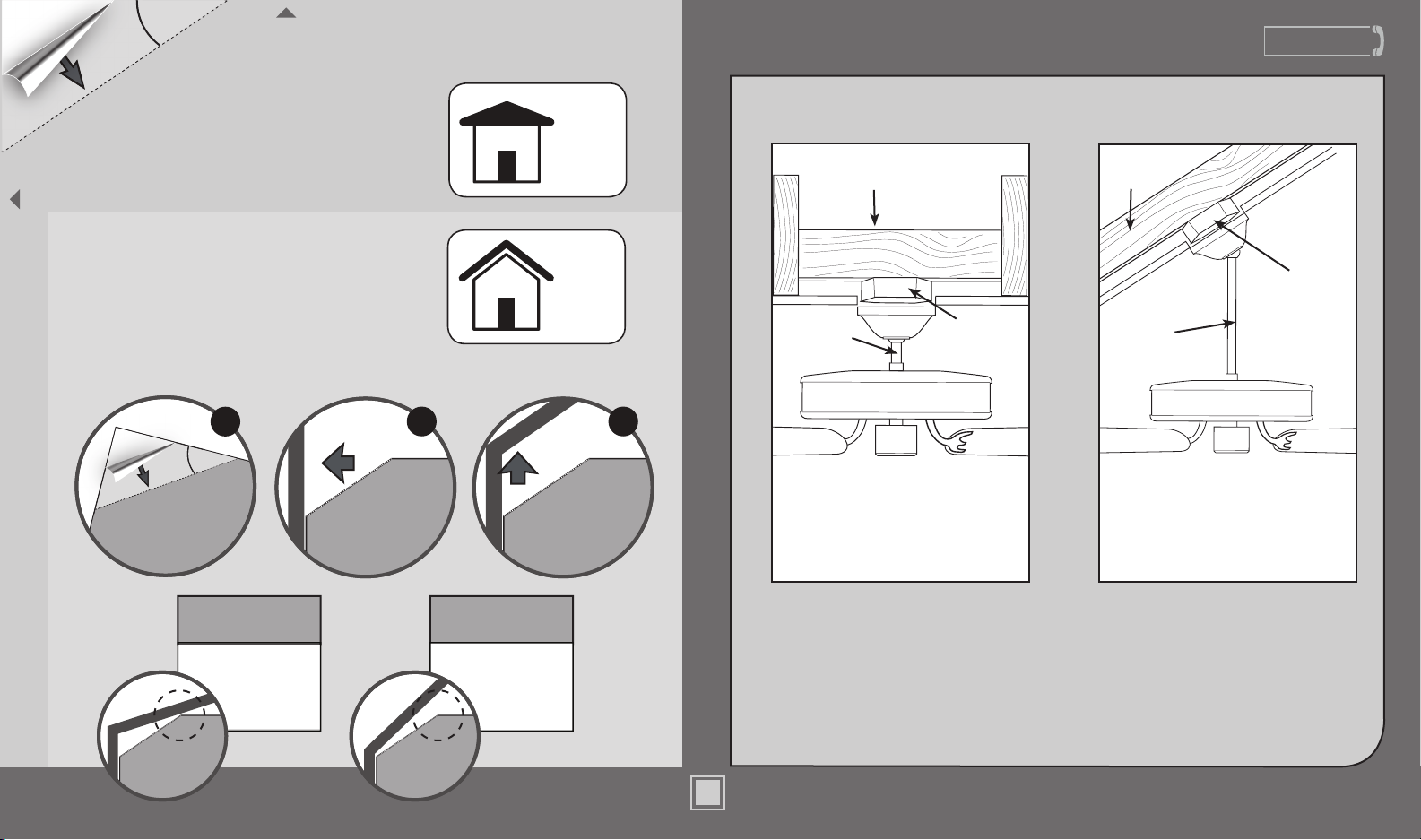

If you have a at ceiling:
Hang your fan by a standard downrod (included).
Mounting Options
Support
Structure
Ceiling
Outlet Box
(required)
Angled
Mounting
Style
Standard
Mounting
Style
Support
Structure
Ceiling
Outlet Box
(required)
Use Standard Mounting
or Low-Prole Mounting
to hang the fan from a at ceiling.
Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.
34OCEILING
WALL
OPTION
1
Standard
Mounting
OPTION 2
Angled
Mounting
2 3
SLIDE
toward ceiling
PLACE
against wall
1
FOLD
on dotted line
34°
Use the three steps below to determine if your ceiling angle is greater than 34°

www.CasablancaFanCo.com 1.888.227.2178
Ceiling Bracket
Refer to warning w.1 on pg. 2
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
For angled ceilings, point
opening toward peak.
If you are unable to do this,
call Technical Support at
1-888-277-2178.
Make sure all four bumpers are
still attached.
Use wood screws
(included) when securing
to support structure with
approved electrical outlet
box. Drill 9/64” pilot holes
in support structure to aid
in securing ceiling bracket
with hardware found in
the hardware bag.
Use machine screws
(provided with outlet
box) when securing to
existing ceiling fan-rated
outlet box. Make sure
it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
OFF
Turn Power
6
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

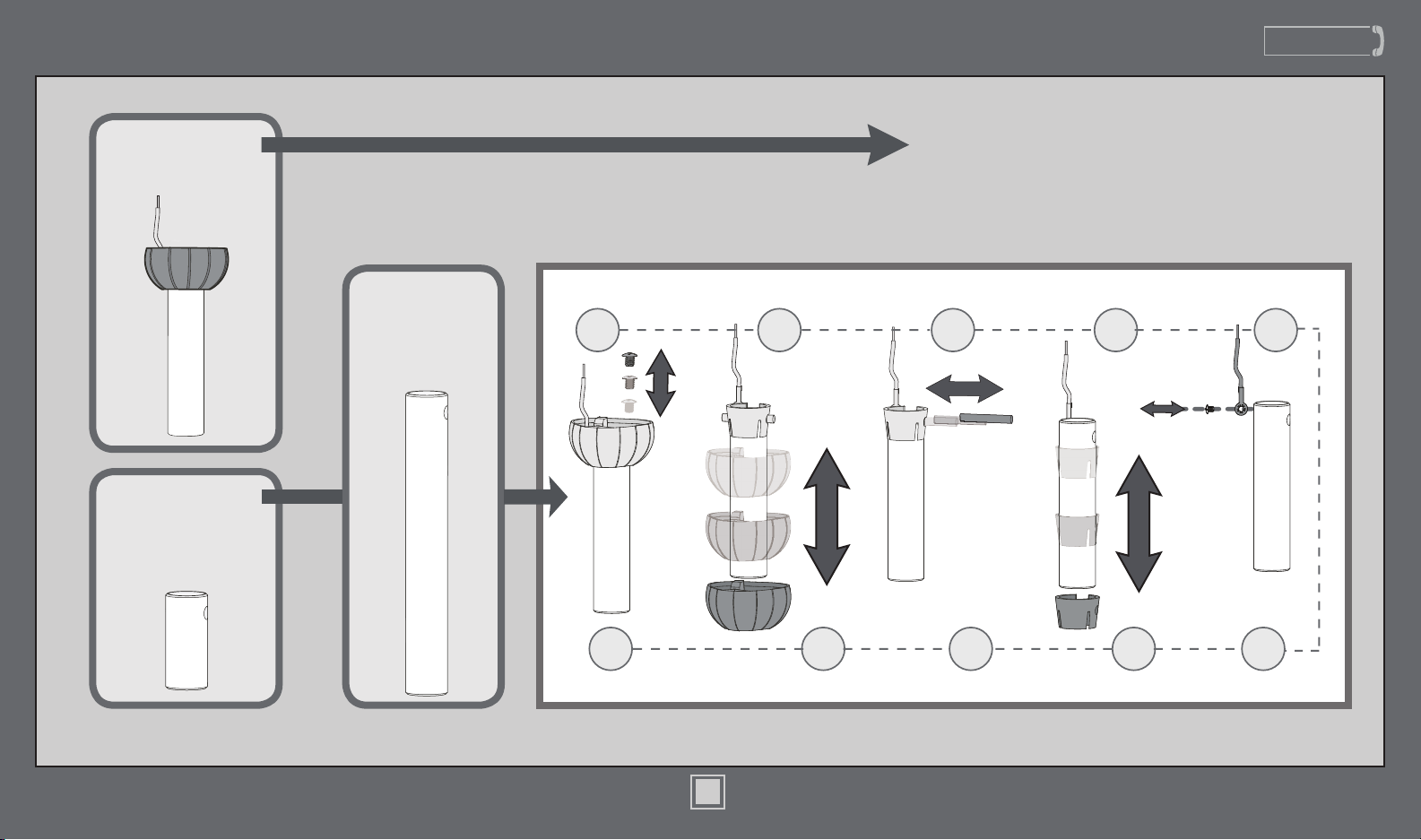

Downrod
Slide
Slide
1 2 3 4 5
678910
Sold Separately
Included
Longer
Downrod
for angled
ceilings or
ceilings 10’ or
higher
Shorter
Downrod
for fans installed
close to ceiling
Standard
Downrod
for ceilings 8-10’ high
Option 1Option 2
Option 3
skip to next page
If you need a different downrod length follow these steps:
Steps 1-5 to remove standard downrod pipe
Steps 6-10 to reassemble with new pipe
Included (pre-assembled)
7
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
KEEP!
8”
3/8”
C
U
T
&
S
T
R
I
P
(not to scale)

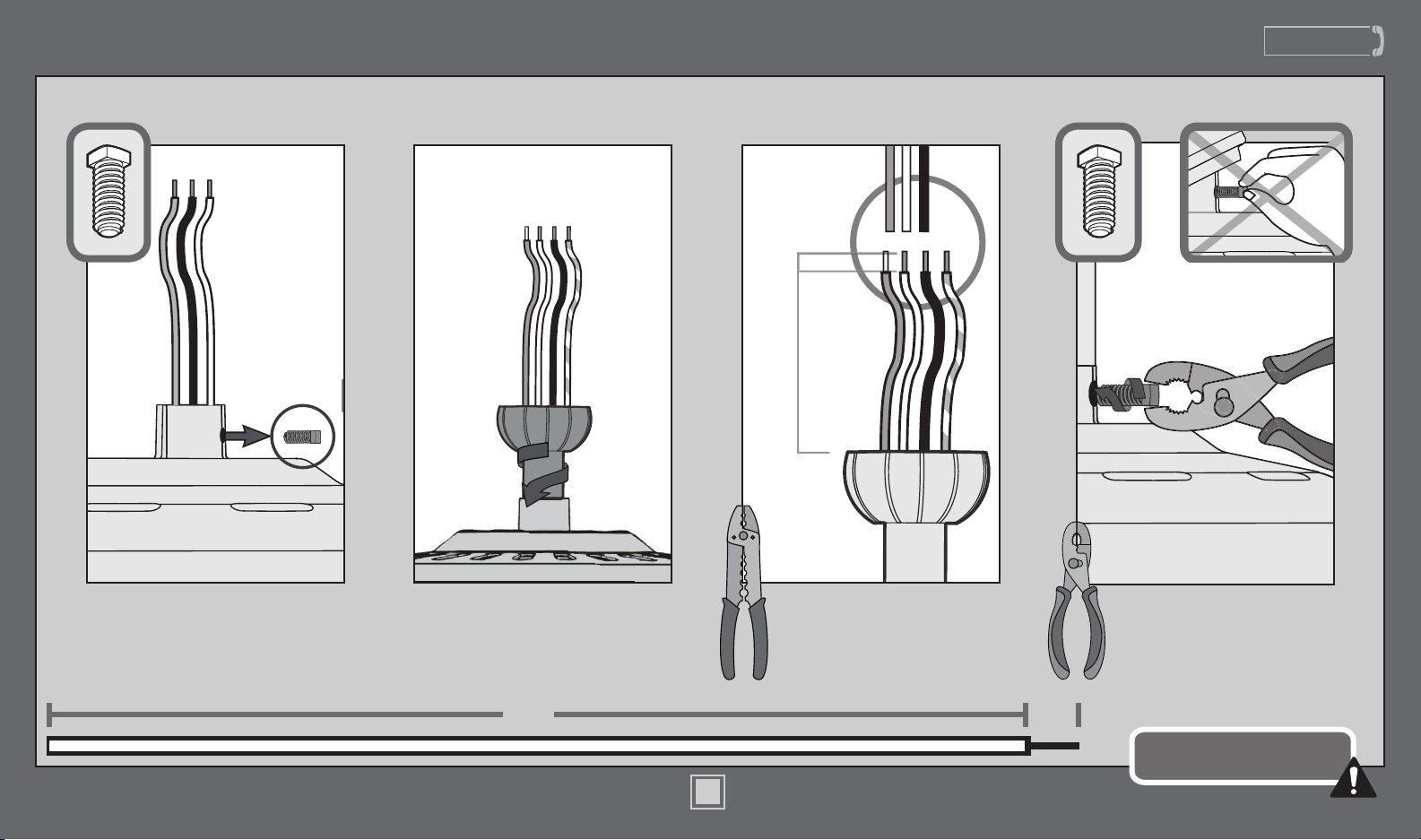

Remove the pre-installed
setscrew so that the downrod
can be inserted.
Hand tighten the downrod (at
least 4-5 full turns) until it stops.
The wires can be cut, but
leave at least 8” extending
from the top of the downrod.
Downrod (continued)
8” 3/8”
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
If the setscrew is not tightened
securely, the fan may fall.
K
E
E
P
!
8
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
Downrod (continued)
DO NOT PICK THE FAN UP BY THE
CANOPY OR WIRES. Place the downrod
ball into the slot in the ceiling bracket.
Put the wires and downrod through the canopy.
Let the canopy sit loosely on top of the fan.
9
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
Wiring
Note: Push the bare metal ends of the
wires together and slide a wire nut over
them. Then, twist the wire nut clockwise
until tight. Give it a gentle pull to make
sure none of the wires are loose.
Blue
Blue
Grounding
G
r
e
e
n
/
Y
e
l
l
o
w
S
t
r
i
p
e
Green/Yellow Stripe
Black
Black
Ungrounded
Connect the three grounding
wires (green, green/yellow
stripe, or bare copper) coming
from the ceiling, downrod, and
hanging bracket.
Connect the yellow wire
from the receiver to the
black wire from the fan.
Yellow
Connect the blue wire
from the receiver to the
blue wire from the fan.
Connect the white (grounded) wire
from the ceiling to both the white
wire from the receiver and the white
wire from the fan.
White
White
Grounded
Connect the black (ungrounded) wire from the
ceiling to the black wire from the receiver.
Slide the
remote
receiver onto
the top of the
bracket.
WARNING
All wiring must be in accordance with
national and local electrical codes ANSI/NFPA
70. If you are unfamiliar with wiring or in
doubt, consult a qualied electrician.
Turn the wires upward and push them carefully back through the hanger bracket
into the outlet box. Make sure that the wires are still attached to the wire nuts.
Receiver
10
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

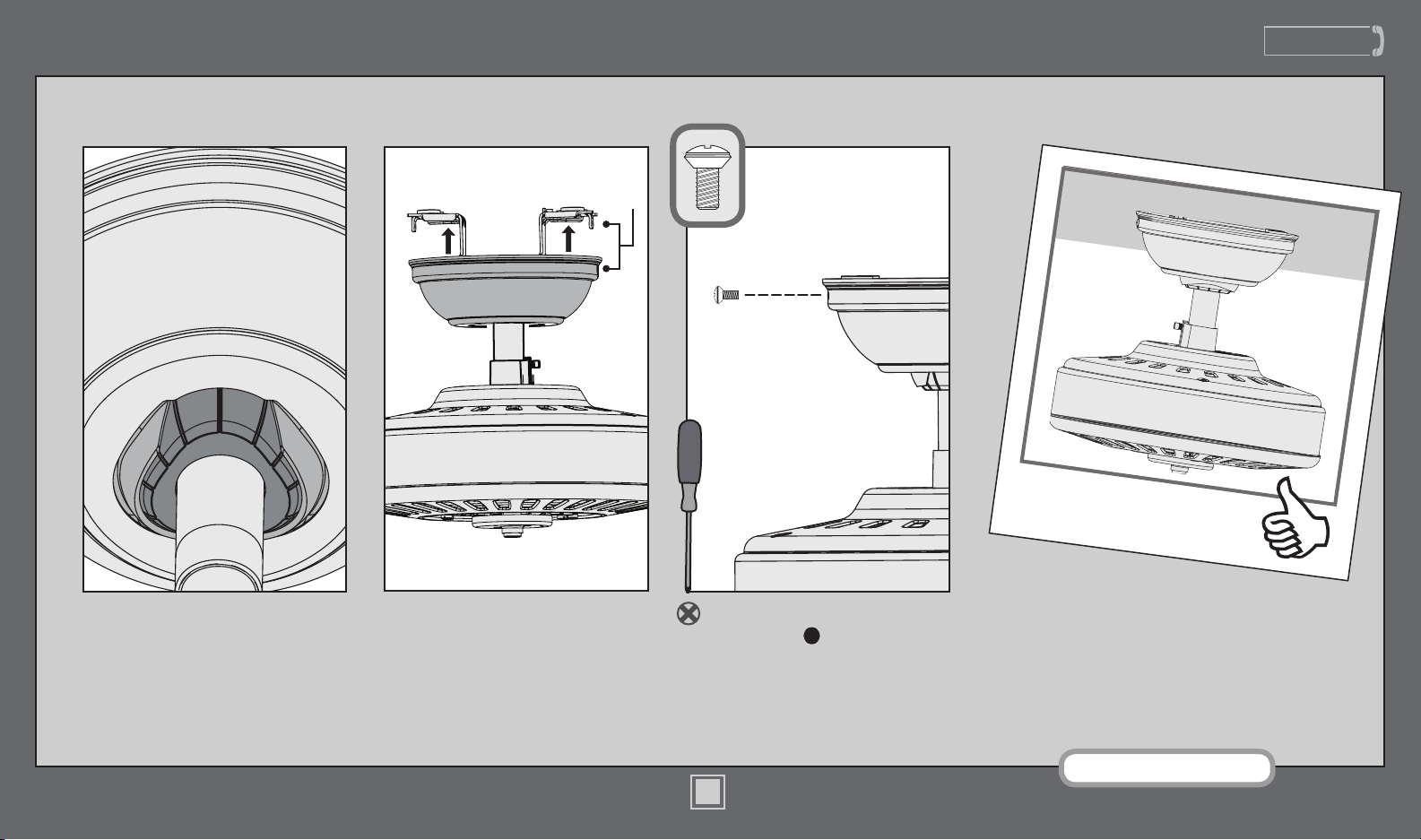

Canopy
Note: Fan style may vary.
Lift the canopy into place so that
the screw holes are aligned.
Position the canopy so that, when
lifted into place, the canopy ts into
the hanging bracket as shown.
Screw
Holes
Insert the two canopy screws
found in the hardware bag.
11
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
Blades
12
Insert grommets found in the hardware
bag into the holes in the blades, then
secure each blade to a blade iron with
screws found in the hardware bag.
Lightly attach the blade irons to the
motor with screws found in the
hardware bag, then securely tighten
after both screws are attached.
Remember the screws that you kept
after removing the shipping blocks
(page 6)? You need them plus ve more
from the hardware bag for this step.
12
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
Switch Housing
Make sure the upper switch housing is securely
attached to the mounting plate. Failure to properly
secure all 3 assembly screws could result in the switch
housing xture falling.
Feed the wire plug through the center
hole of the upper switch housing, then
wrap keyhole slots around the screws and
twist counterclockwise.
Screw two housing assembly screws
from the hardware bag halfway into
the motor housing. It does not matter
which two screw holes you choose.
Insert the third screw, found in
the hardware bag, into place and
then tighten all three screws.
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company
13

www.CasablancaFanCo.com 1.888.227.2178
Switch Housing (continued)
Connect the plugs from the upper
and lower switch housings. Make
sure to line up the colored markings
on the connectors.
Lift the glass and attach it to
the light xture using the three
thumbscrews. Tighten all three
screws securely by hand.
Lift the lower switch housing up until
the holes line up with the screw holes
in the upper switch housing. Install the
three switch housing screws, found in
the hardware bag.
Install the included LED bulb into the
socket. When necessary, replace with
bulb of same wattage.
Make sure the lower switch housing is securely
attached to the upper switch housing. Failure
to properly secure all 3 assembly screws could
result in the switch housing xture falling.
Cleaning the fan - use soft
brushes or cloths to prevent
scratching. Cleaning products
may damage the nishes.
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company
14

www.CasablancaFanCo.com 1.888.227.2178
15
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company
3Installing the Wall Plate Bracket
Snap the Wall Control into the
Wall Plate Bracket.
4Wiring the Wall Control
1. Connect the grounding wire
from the wall control to the
ground control from the switch
box using the provided wire
nuts.
2. Connect the “LIVE IN” from
the switch box to the “~VAC”
from the wall control using the
provided wire nuts.
3. Connect the “LIVE OUT” from
the switch box to the “FAN” out
from the wall control using the
provided wire nuts.
4. Push all wires into the switch
box.

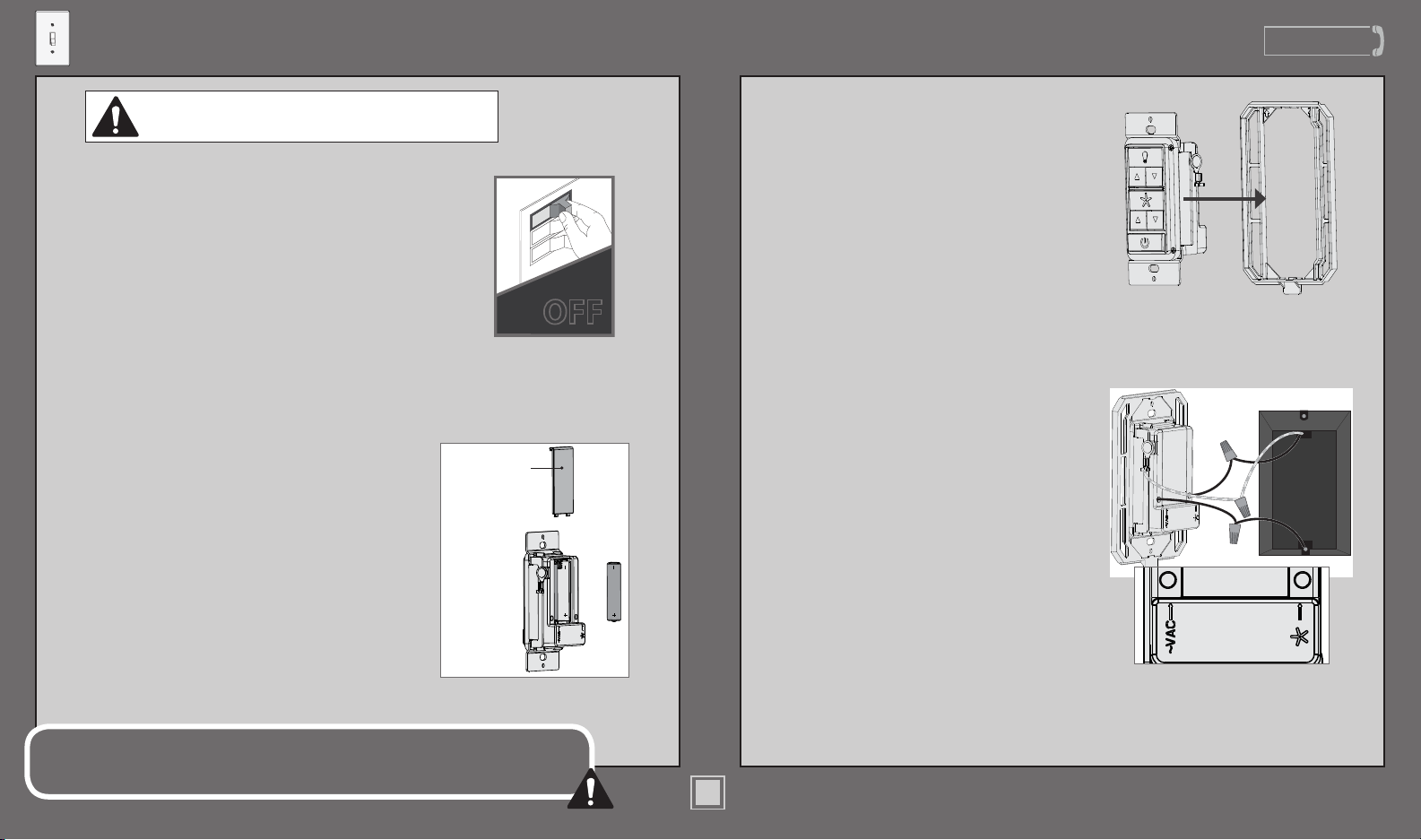

Wall Control For Single Switch
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Ensure the power is OFF at the outlet
box and wall switch location before
proceeding with installation.
Turn Power
OFF
1Turning off the power
2Installing the baery
To access the baery compartment,
slide the baery door up.
Replace the used baery with two AAA
baeries when needed.
Battery
Door
If you have a dual switch setup, go to page 18
for dual switch installation instructions.

www.CasablancaFanCo.com 1.888.227.2178
16
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company
6Installing the Wall Plate
Push the wall plate onto the
Wall Plate Bracket. It should
snap into place.
Turning on the power
Reference the included remote function card
for information on how to use your wall control!
ON
Turn Power
IMPORTANT
7
8
5Installing the Wall Control
Install the longer screws
through the slots in the wall
control into the switch box
screw holes.
Wall Control For Single Switch

www.CasablancaFanCo.com 1.888.227.2178
17
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company

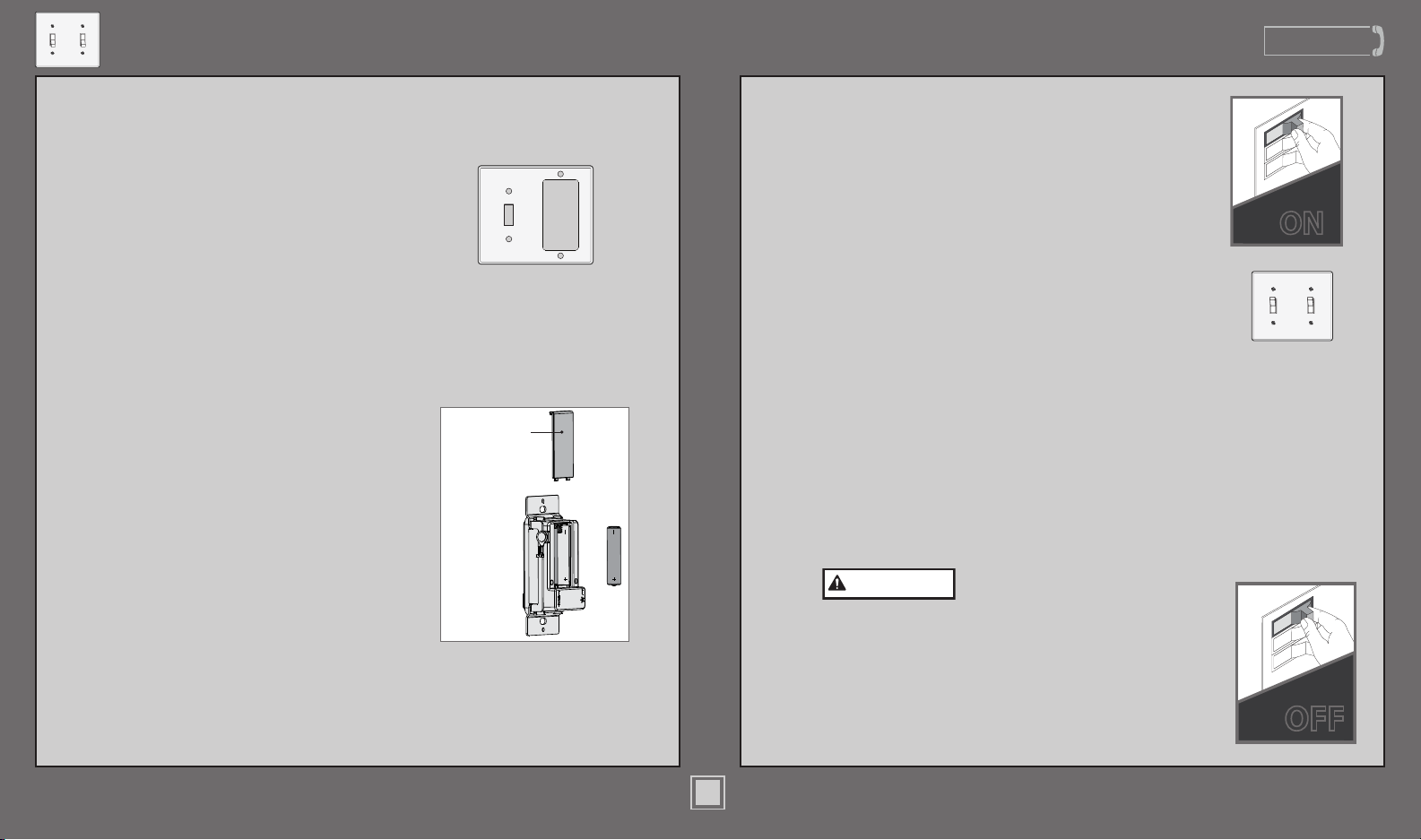

Wall Control For Dual Switches
Ensure the power is OFF at the outlet
box and wall switch location before
proceeding with installation.
Turn Power
OFF
3Turn off the power
1Installing the baery
To access the baery compartment,
slide the baery door up.
Replace the used baery with two AAA
baeries when needed.
1. Turn on power for the fan.
2. Push both existing wall switches to
the on position.
3. Press the Fan and Light buon on
the Casablanca Wall Control.
4. Your fan’s light and fan should be
on.
5. Push each of your existing wall
switches into the off position one at
a time to determine which switch
controls the Light.
6. The Light switch will not be
replaced when installing the
Casablanca Wall Control. You may
find it helpful to mark the Light
switch with a pencil or some other
non-permanent mark.
Battery
Door
Verify which switch controls the fan light.
ON
Turn Power
2
To install the Casablanca Wall Control into a dual switch location,
you will need a wall plate with both a standard switch and rocker
switch cut-out (sold separately).
IMPORTANT
If you are unfamiliar or
uncomfortable with wiring, please
contact a qualified electrician.
(Sold Separately)

www.CasablancaFanCo.com 1.888.227.2178
18
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company
Wall Control For Dual Switches
7Install the Wall Plate
Install the wall plate that fits
your setup (sold separately).
The existing light switch still
controls the light on/off.
Turn on the power
Installation complete
Reference the included remote function card
for information on how to use your wall control!
ON
Turn Power
IMPORTANT
9
8
10
4
5
Remove the existing wall plate
Remove the Casablanca Wall
Control frame.
Remove the existing wall plate.
Save the screws. You will need
them for the existing, marked
light switch.
Remove the frame from the
Casablanca Wall Control. You
will not need it for the dual
switch installation process.
6Wiring the Casablanca Wall
Control
1. Connect the grounding wire
from the wall control to the
ground control from the switch
box using the provided wire
nuts.
2. Connect the “LIVE IN” from
the switch box to the “~VAC”
from the wall control using the
provided wire nuts.
3. Connect the “LIVE OUT” from
the switch box to the “FAN” out
from the wall control using the
provided wire nuts.
4. Push all wires into the switch
box.
1. Use the screws you saved to
reinstall into the light switch.
2. Use the screws included

www.CasablancaFanCo.com 1.888.227.2178
19
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company

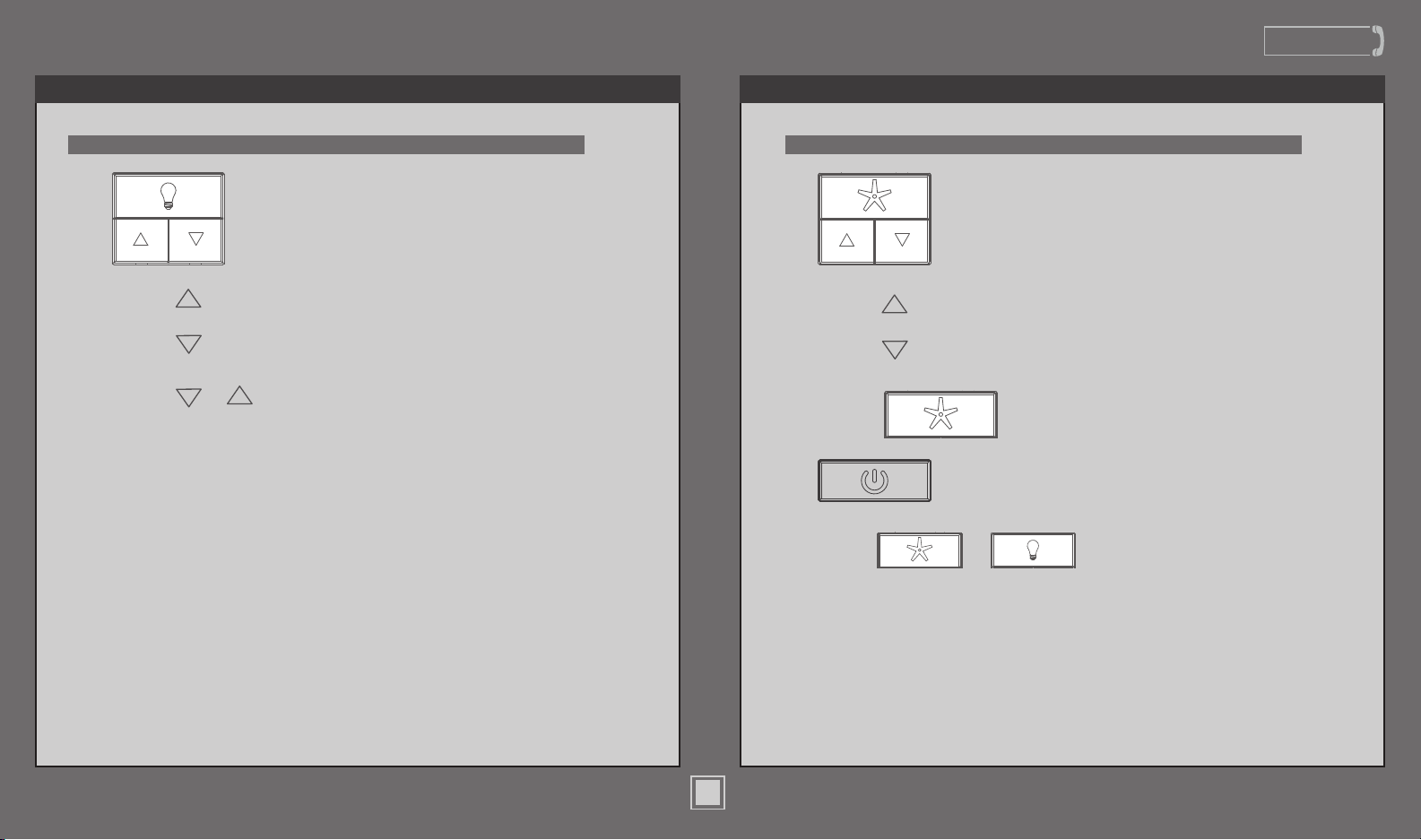

Wall Control
Light Dimming
Control
Dimming Mode
On/Off
+
Light On/Off
Light High
Light Low
Long
Press
Long
Press
Long
Press
Fan On/Off
+
Fan High
Fan Low
Fan Reverse
Pair Function
Power On/Off
Long
Press
Long
Press
Long
Press
Long
Press
Fan Speed
Control
LIGHTFUNCTIONS FANFUNCTIONS
KEYPRESS KEYPRESS
FUNCTION FUNCTION

www.CasablancaFanCo.com 1.888.227.2178
Troubleshooting
Fan doesn’t work
• Press a fan speed buttons up or
down.
• Check the circuit breaker to
ensure the power is turned on.
• Check the wall control battery.
• Make sure the blades spin freely.
• Turn off power from the circuit
breaker, then loosen the canopy
and check all the connections
according to the wiring diagram
on pages 10-11.
• Check the plug connection in
the switch housing.
Excessive wobbling
• Tighten all of the blade and
blade iron screws until they
are snug.
• Turn the power off, support
the fan carefully, and check
that the hanger ball is
properly seated.
• Use the provided balancing
kit and instructions to balance
the fan.
Noisy Operation
• Tighten the blade and blade
iron screws until they are snug.
• Check to see if any of the
blades are cracked. If so, replace
all of the blades.
AUTHORIZED SERVICE
CENTERS
For the most updated list of
Casablanca Authorized Service
Centers, visit
www.CasablancaFanCo.com or
call toll free 1-888-227-2178.
Remote does not work
• Make sure the battery is installed
correctly.
• Install a new battery.
• If the remote still does not
work, you may need to pair
your remote. To prevent faulty
operation, please disconnect
power (at the wall switch,
breaker, or fan) from all other
ceiling fans within range while
pairing. To pair: cycle power
to the fan by turning power off
and back on at the wall switch
(or circuit breaker if necessary).
Within three minutes, longpress
the fan on/off and light on/off
buttons for four seconds to pair
the remote. If applicable, the
fan will turn on and the lights
will ash and stay on to indicate
successful pairing.
20
M8551-01 • 09/25/18 • © 2018 Casablanca Fan Company
