Case HI farmall 45A User manual

Farmall 45A, Farmall 55A Tractors
Operator's Manual
8428 19 42 09 / 10
1st Printing
CASE ';'
AGRICULTURE

TO THE OWNER
This manual contains i nf ormation conce rning the adjustment and ma intenance of your Mode l Farmall 4 5A and
Farmall55A. You have purchased a dependable machine,butonly by propercare and operation can yo u expe ct
to receive the performan ce and long serv i ce built into this tr ac tor. Please have all operators read this manual
ca refu ll y and k ee p it ava il ab le for ready referen ce .
Your Case
IH dealer will instruct you in the general operation of your tractor. (Refer to the "Deli very Report" at
the back
of this manual .) Your dealer's staff of factory-train ed service technicians will be glad to answer any
questions that may ari
se regarding the operation of your tractor.
Your Case IH dealer carries a complete line
of genuine Case IH service parts. These parts are manufactured
and
ca refully inspected to insure high quality and accurate fi tting of any necessary replacement parts.
Model ______________ _
Product Identification Number
______ _
96097007
A WARNING A
This safety al ert sy mbol Indicates i mportant sa f ety messages in this manual. When you see this sym bol ,
carefully read the mes sage th at follows and be alert to th e possibili ty of personal iniury or death .
Mlnc
A WARNING A
Picture s in this manual m ay show protecti ve shielding open or removed to bett er illustrate a particular
featur e or a djustment.
Be certain , however, to close or replace all shie lding before operating th e m ac hin e.
101 1317
IMPROVEMENTS
CNH America LL C is continually striving to improve its products. We reserve the right to make improvements or
changes when it becomes practical and possible to do so , without incurring any obligation to make changes or
additions to the equipment sold previously.
0-1

CONTENTS
SAFETY .... ... ......................• .. ..... . ...... . •••.. . . .... 0·5
GENERAL INFORMATION ... .. .... ..... .. . ... .... .... ......... .. 1 -1
OPERATION . ... .. ... . ... . . . ...... .. . . ... . .... ... ... . . . . . . ... . . 2-1
FIELD OPERATION . . . ... . ... . . . . . . . . . . . . ..... .. . . . . . . . . . . . . . ... 3-1
LUBRICATION AND MAINTENANCE ..... . . .... ...... . . ... ..... . . 4-1
TROUBLESHOOTING . ..... .... .......... .. . .. .... . ........ . ... . 5-1
VEHICLE STORAGE . . . .... .. . .. . .. . .... . . . . . ..... . . ...... .. . . . . 6-1
SPECIFICATIONS ... . .. . .. ..... . . .. ....... . ... ... . . ..... ... . . . . 7-1
INDEX .. . ... . ........ . ... . .. ..... . .. ...... . ...•... ... ..... . . .. . 7·27
PREDEUVERY SERVICE ... . ...... . . ................ .. .. ........ 7-29
0-2

(North America Only)
(California Only)
CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of its constituents are known to the State of
California to cause cancer, birth defects, and other reproductive harm.
Battery posts, terminals and related accessories contain lead and lead
compounds. Wash hands after handling.
0-3

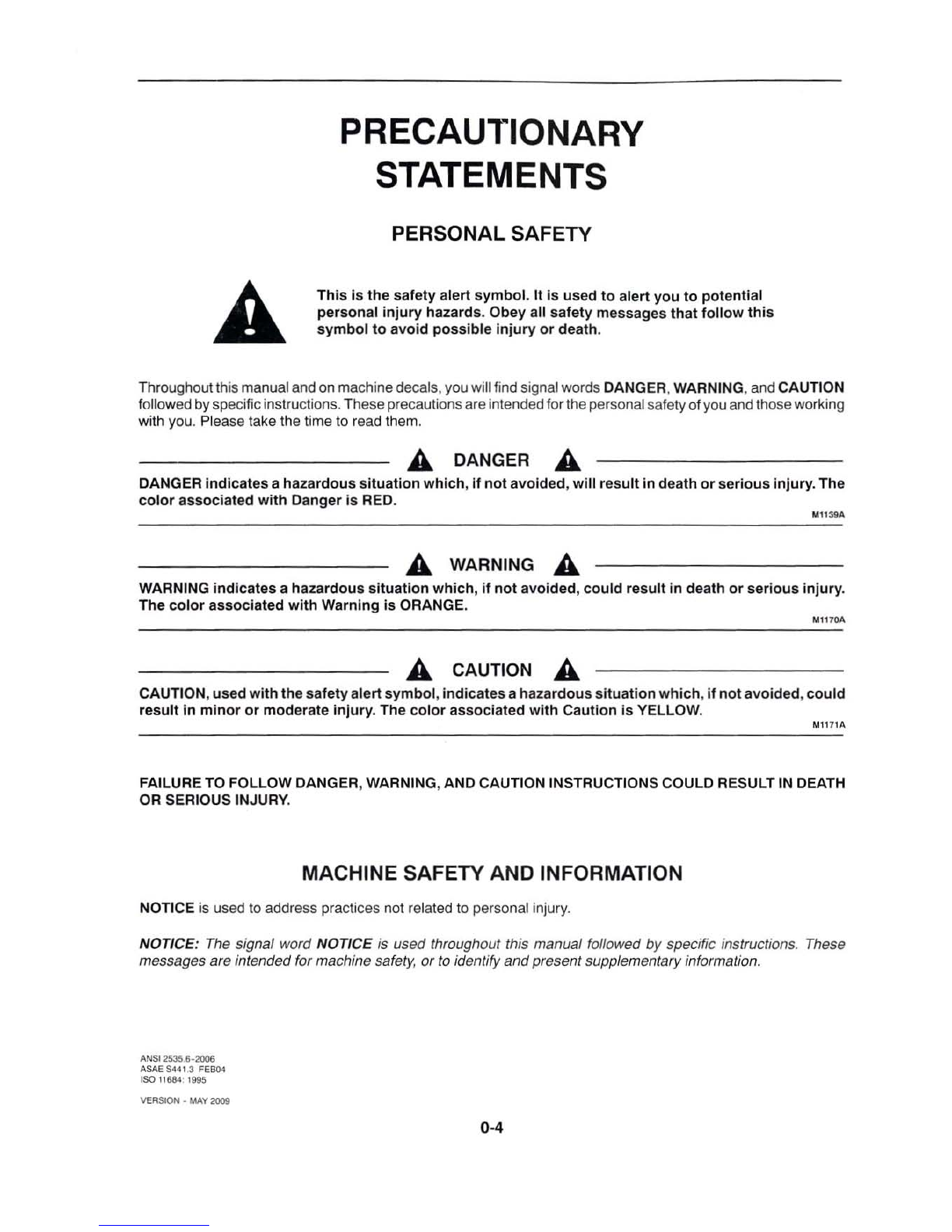

PRECAUTIONARY
STATEMENTS
PERSONAL SAFETY
This is the safety alert symbol. It Is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death .
Throughout this manual and on machinedecals. you wi ll find signal words DANGER ,WARNING, and CAUTION
followed by specif ic instructions. Th ese pre cau ti ons are intend ed fort he personal safelyofyou and those working
with you. Please take the time to read them.
A. DANGER A.
DANGER indicates a hazardous situation which, if not avoid ed. will result in death or serious injury. The
color associated with Danger is RED.
A. WARNING A.
WARNING indicates a hazardous situation which , if not avoided , could result in death or serious injury .
The
color associated with Warning is ORANGE.
Ml 110A
A. CAUTION A.
CAUTION, used with the safety alert symbol , indicates a hazardous situation which , if not avoided , could
result in minor or mode rate injury . The color associated with Caution is YELLOW.
M11 71A
FAILURE TO FOLLOW DANGER , WARNING, AND CAUTION INSTRUCTIONS COULD RESULT IN DEATH
OR SERIOUS INJURY .
MACHINE SAFETY AND INFORMATION
NOTICE is used to address practices not related to personal in jury.
NOTICE: The signal word NOTICE is used throughout this manual followed by specific instructions. These
messages are intended for machine safety,
or to identify andpresent supplementary information.
.f..N SI 2S3 S.6-2006
ASAE $441 .3 FEB04
I SO 11684· 1995
VERSIOH _MAY 2009
0-4

SAFETY
A PRECAUTIONARY STATEMENTS A
A careful operator is the best operator. Most accidents
can be avoided by observing certain precautions. To
help prevent accidents, read and take the following
precautions before driving, operating or servicing the
tractor. Equipment should be operated only by those
who are responsible and instructed to do so.
THE TRACTOR
1. Read this Operator's Manual carefully before
using the tractor. Lack of operating knowledge
can lead to accidents.
2. Only allow properlytrained and qualified persons
to
operate the tractor.
3.
To preventfalls, use the handrailsand stepplates
when getting on and off the tractor. Keep steps
and platform clear of mud and debris.
4. Replace all missing, illegible or damaged safety
decals.
5. Keep safety decals free of dirt or grime.
6. Do not permit anyone but the operator to ride on
the tracto r. It is unsafe for extra passengers to
travel.
7. Keep children away from the tractor and farm
machinery at all times.
8. Do not modify or alter or permit anyone else to
mOdify or alter the tractor or any of its
components or any tractor function without firsl
consulting your deal er.
9. Insta ll a ll guards before starting the engine or
operating the tract
or.
10. Tractor wheels are very heavy. They need to be
handled with care. Ensure that they are stored at
a place where they do not fall down & cause
injury.
0-5
DRIVING THE TRACTOR
1. Always sit in the driver's seat while starting or
driving the tractor.
2. When driv in g on public roads, have consider-
ation for other road users. Pu ll in to the lett side
of the road occasiona ll y to allow any following
traffic to pass. Do not exceed the legal speed limit
set for agricultur
al tractors.
3. Dip the tractor lights when meeting a vehicle at
nig h t. Make sure the lights are adjusted to prevent
blinding the driver of
an oncoming vehicle.
4. Reduce speed before turning or applying the
brakes. Brake both wheels Simultaneously when
making an emergency stop. Ensure that both
brake pedalsare locked together when Iravelling
at road speeds or when on public roads ensure
correct operation of trailer brakes.
5. Use exlreme caution and avoid hard application
of the tractor brakes when towing heavy loads at
road speeds.
6. Keep the tractor in the same gear when going
downhill as would be used when going uphil
l. Do
not coast or freewheel down hills.
7. Any towed vehicle whose total weight exceeds
that of the towing Iraclor must be equipped with
brakes for safe operation.

8. Never try to apply the differential lock when
tu
rn ing. When engaged, the differential lock will
prevent the tractor from turning.
9. Always check overhead clearance, especially
when transporting the tractor. Watch where you
are goi ng , especially at row ends, on ro ad s an d
around trees and low overhanging obstacles.
10. To avoid overturns,drive the tractor with care and
at speeds compatible with safety, especially when
operating over rou
gh ground, when crossing
ditches
or slopes and wh en turning corners.
11 . Use extreme caution when operating on steep
slopes.
12 . If thetractor becomes stuck or the tiresarefro zen
to the ground, reverse the tractor out to prevent
overturning.
OPERATING THE TRACTOR
1. Apply theparking brak e, place the PTa control in
the 'OFF' position, the
11ft control lever in the
down position, and the transmission levers
in
neutral be fore starting the tractor.
2. Do not start the
en gine or operate co ntrols while
standing beside the tractor. Always sit in the
t
ra ctor seat when starting the engine or operating
th e controls.
3. Do not bypass the transmission neutral start
switches. Consult your authorized dealer
if your
neutr
al start controls malfunction.
4. Use jump leads only in the re commended manner.
Improper use ca n result in a tractor runaway on its
ow n or causing damage to the battery.
0-6
5. Avoid accidental contactwith the gearshift levers
while the engine
is ru nning. Unexpected tractor
movement can result from such contact.
6. Do not get off
th e tractor while it is in motion.
7. Before leaving the tractor, park the tractor on
level ground, apply th e parking brak e, lower
attached implements
to the ground, disengage
t
he PTa and stop t he engine.
8. Do not
pa rk the tractor on a steep incline.
9. Do n ..... operate the tractor with parking brake
applied
-<c
"-
10, Do not r un the tractor engine in an enclosed
building without adequate ventilation. Exhaust
fumes are toxic
and can cause death.
11 . Pull only fr om the pick-up hitch, swingi ng
drawbar or the lower link drawbar in the lowered
position. Use only a drawbar
pin that locks in
place. Pu ll ing from th e tractor rear ax le or any
poi nt above the axle may cau se the tractor to
overturn.
1
2. Always select Po sition Control when attaching
equipment and when transporting equipment.
Be
sure hydraulic couplers are properly mounted
and will disconn
ect safely in case of accidental
detachment of the implement.

13. If the fr ont e nd of the tractor tends to rise when
heavy implements are
aHached to the three-
point hit ch , install fr on t end weights. Do not
operate the tractor with a light front end.
14. Engage the clutch sl ow ly when driving out of a
ditch, gully or up a steep
hi ll si de. Disengage the
clut ch promptly if the front wheels rise o ff the
ground.
15 . Ensure any aHached equipment or accesso ri es
are correctly installed, are approved for use with
the tractor,
do not overload the tractor and are
operated and maintained in accordance with
th e
instructions issued
by the equipment or
accessory manufacturer.
16. Remember that your tractor, if abused or
incorrectly used,
can be dangerous and become
a hazard both to the operator
and to bystanders.
Do not overload or operate with aHached
equ ipment which is unsafe, not designed for th e
parti
cu l ar task or is poorly maintained.
17. Do not leave equipment in the raised positi on
when the vehicle is stopped or unaHended.
18. Do not drive tractor/equipment near open fires.
t9. Always wear a protective mask when worki
ng
with t ox ic spray chemicals. Fo ll ow the directions
on
the chemical container.
PERATING THE PTO
1. Whenoperating PT a- driven eq uipment,shut off
the engine, switch off the
PTa and wait un til th e
PTO stops be fore geHing off the tractor.
, ,
2. Do not wear loose clothing when ope rat ing the
power ta
ke -off or especially wh en near rotating
eq uipment.
0-7
3. When operating stationa ry PTO -driven equip-
me nt, always apply t he tractor parking brake a nd
block the rear wheels front and back.
4. -To avo
id injury, do not clean, adjust, un clog or
service
PTO driven equipment when the tractor
engine
is running. Ensure that the PTa is
switched off.
5. Make su re the PTO guard is in posi ti on at all
times and always replace the
PTO cap when the
PTO is not in use.
SERVICING THE TRACTOR
1. The coo li ng system operates under pressure. It
isdangerous to remove t he cap while the system
is hot. Al ways turn the cap slowly to the first stop
and allow the pressure
to escape before
removing the cap full y.
2. Do not smoke while refuelling the tractor. Keep
any type
of open flame away.
3. Keep the tractor and equipment, particularly
brakes and steering, maintai ned in areliable and
satisfactory condition
to ensure your safety an d
comply with legal re
qu irements.
4. Stop the engine before performing any service
on the tractor.
5. To prevent fire or explosion, keep open flames
away from
baHery or cold weather starting aids.
To prevent sparks w hi ch could cause explosion,
use jumper cables accord
ing to instruc ti on s.

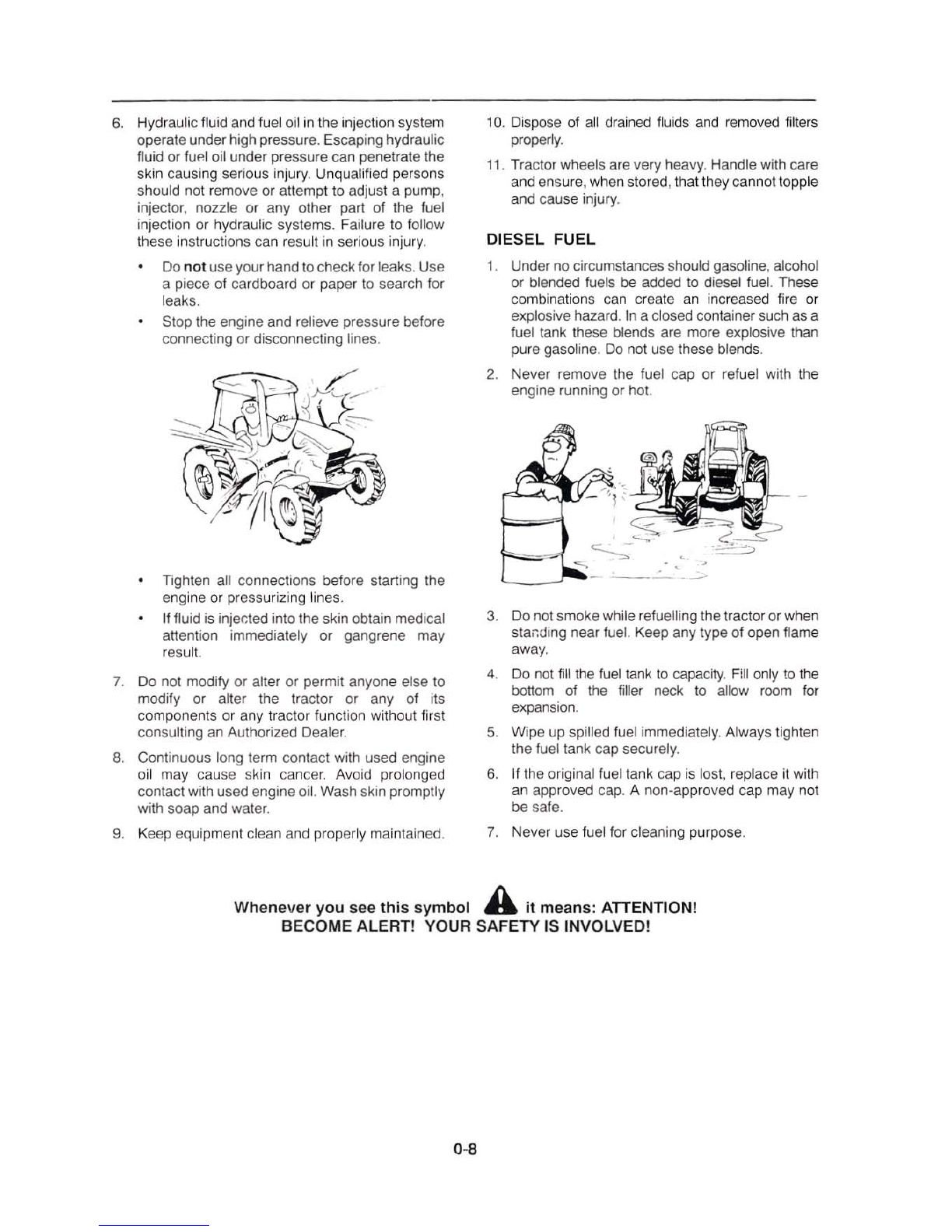

6. Hydraul ic fluid and fuel oi l in the injection system
operateunderhigh pressure. Escaping hydraulic
fluid or
fURl oil under pressure can penetrate the
sk in causing serious in jur y. Unqualified persons
should not remove or attempt to adjust a pump,
injector, nozzle or any other part of the fuel
injection or hydraulic systems. Failure to follow
these instructions can result in serious injury.
Do no t use your hand to check for leaks.Use
a piece of cardboard or paper to search for
leaks.
Stop the engine and relieve pressure before
connecting or disconnecting lines.
Tighten all connections before starting the
engine or pressurizing lines.
If fluid is injected into the skin obtain medical
attention immediately or gangrene may
result.
7.
00 not modify or alter or permit anyone else to
mOdify or alter the tractor or any of its
components or any tractor function without
fi rst
consulting an Authorized Dealer.
8. Continuous long term contact with used engine
oil may cause skin cancer. Avoid prolonged
contact with used engine
oi l. Wash skin promplly
with soap and water.
9. Keep equipment clean and properly maintained.
10 . Dispose of all drained fluids and removed filt e rs
properly.
11. Tractor wheels are very heavy. Handle with care
and ensure, when stored,that they cannot topple
and cause injury.
DIESEL FUEL
1. Under no circumstances should gasoline,alcohol
or blended fuels
be added to diesel fuel. These
combinations can create
an increased fire or
explosive hazard. In a closed container such
as a
fuel tank the
se blends are more explosive than
pure gasoline.
Do not use these blends.
2. Never remove the fuel cap or refuel with the
engine running or hot.
----~
3. Do not smoke while refuelling the tractor or when
standing near fuel. Keep any type of open flame
away.
4.
00 not f ill the fuel tank to capacity. F iJI only to the
bottom of the filler neck to allow
room for
expansion.
5. Wipe up spilled fuel immediately. Always tighten
the fuel tank cap securely.
6. If the original fuel tank cap is lost, replace it with
an approved cap. A non-approved cap may not
be safe.
7. Never use fuel for cleaning purpose.
Whene v er you see thi s sy mbol A it means: ATIENTION!
BECOME ALERT! YOUR SAFETY IS INVOLVED!
0-8

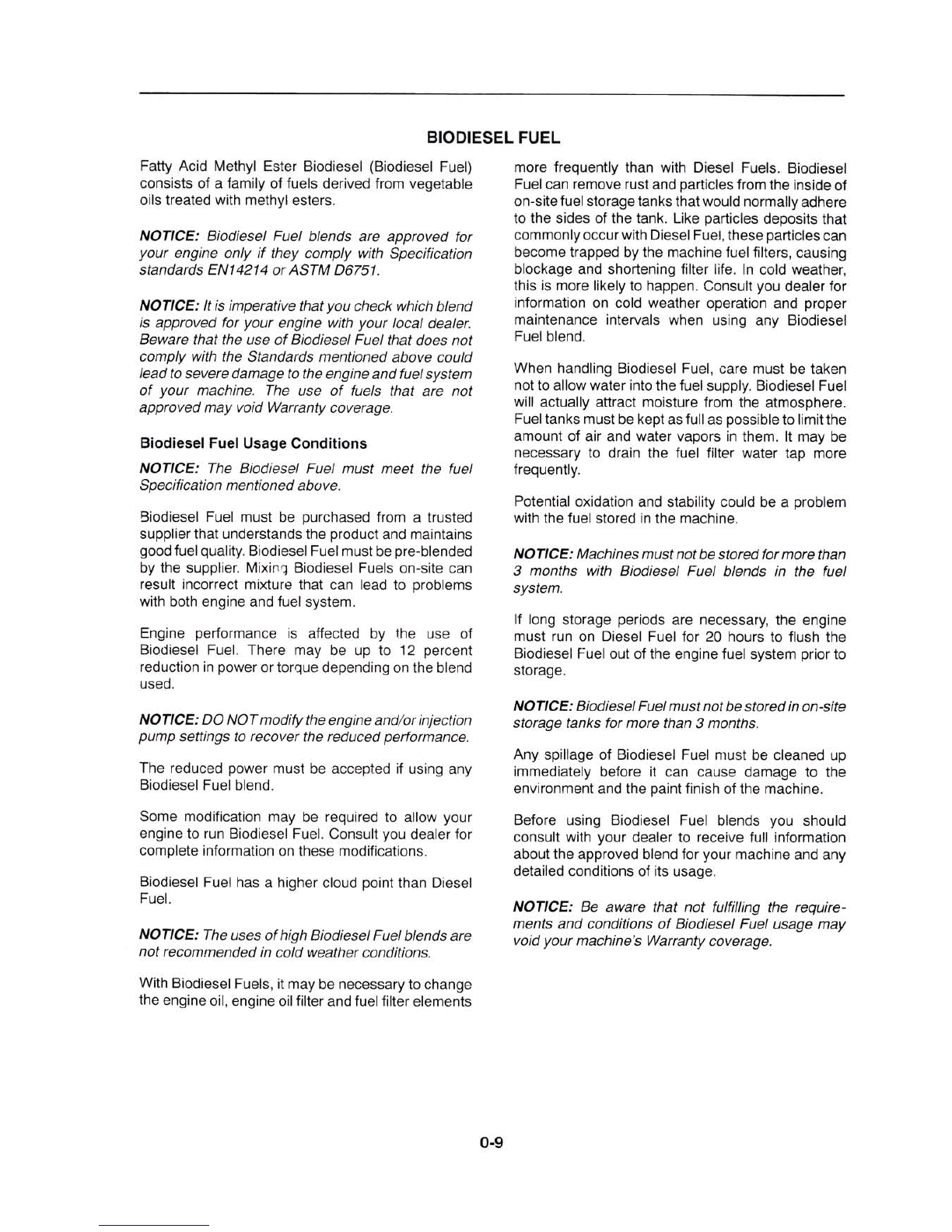

BIODIESEL FUEL
Fa tt y Acid Methyl Ester Biodiesel (Biodiesel Fuel)
consists of a family of fuels derived from vegetable
oils treated with methyl esters.
NOTICE: 8iodiesel Fuel blends are approved fo r
your engine only if they comply with Specification
standards £N14214 or ASTM 06751.
NOTICE : It is imperativethat you check which blend
is approved for your engine with your local deafer.
Beware that the use of Biodiesel Fuel that does not
comply with the Standards mentioned above could
lead to severedamage to the eng ine and fuelsystem
of your machine. The use of fuels that are not
approved may void Warranty coverage.
Bio dies el Fu el Usage Condition s
NOTICE: The Biodiesel Fuel must meet the fuel
Specification mentionedabove.
Biodiesel Fuel must be pu rchased from a trusted
su pp li er that understands the product and maintains
good
fu elquality. Biodiesel Fuel must be pre-blended
by the supplier. Mixirv
:j Biodiesel Fuels on -site can
result inco
rr ect mixture that can lead to problems
w
ith both engine and fuel system.
E
ng ine performance is affected by the use of
Biodiesel Fue
l. There may be up to 12 percent
reducti
on in power or torque depending on the blend
used.
NOTICE: DO NOT modifytheengine and / or injection
pump settings to recover the reduced performance.
The reduced power must be accept ed if usi ng any
Biodiesel Fuel blend.
Some modification may be required to allow your
engine to
ru n Biodiesel Fue l. Consult you dealer for
complete information
on these modifica ti ons.
Bi odiesel Fuel has a higher cloud poi nt than Diesel
Fuel.
NOTICE : The uses of high Biod/esel Fuel blends are
not recommended in cold weat her conditions.
W it h Biodiesel Fue ls , it may be necessary to change
the eng
in e oil. engine oil filter and fuel f il ter elements
0-9
more frequently than with Diesel Fuels. Bi odiesel
Fu elcan remove rust and particles from the inside of
on-sitefuelstorage ta
nk sthat would normallyadhere
to the sid
es of the ta nk . Li ke particles deposits that
commo
nl yoccurwith Di esel Fuel,these particlescan
become trapped by the machine fuel filters, causing
blockage and shortening filter
li fe. In co ld weather,
this
is more likely to happen. Consult you dealer for
in formation on cold weather operation an d proper
ma
in tenance intervals wh en using any Bi odiesel
Fu
el blend.
When handling 8iodiesel Fuel, care must be taken
not to a
ll ow water into the fuel suppl y. Biodiesel Fuel
will actually attract moisture f rom the atm os phere.
Fuel tanks must
be kept asfu ll as possible to lim it the
amou
nt of air and water vapors in them. It may be
necessary to drain the fuel filter water tap more
frequenlly.
Potential oxida
ti on and stability could be a problem
wi th the fu el stored in the machine.
NOTICE: Machines must not bestoredfor morethan
3 months with Biodiese/ F
uel blends in the fuel
system.
If long storage periods are necessary, the engine
must
run on Oiesel Fuel for 20 hours to flush the
Biodiesel Fuel out of the engine fuel system prior to
storage.
NOTICE: BiadieselFuelmust not bestoredin on-site
storage tanks for more than 3 months.
Any spi ll age of Biodiesel Fuel mu st be cleaned up
immediately before
it can cause damage to the
environment and the paint
fin i sh of the machine.
Be fore using Bi odi esel Fuel blends you should
consult
wi th your dealer to receive fu ll information
about the approved blend
fo r your machine and any
detailed condi
ti ons of its usage.
NOTICE : Be aware that not fulfilfing the require-
ments and conditions of Biadiesel Fuel usage may
void yo ur machine's Warranty coverage.

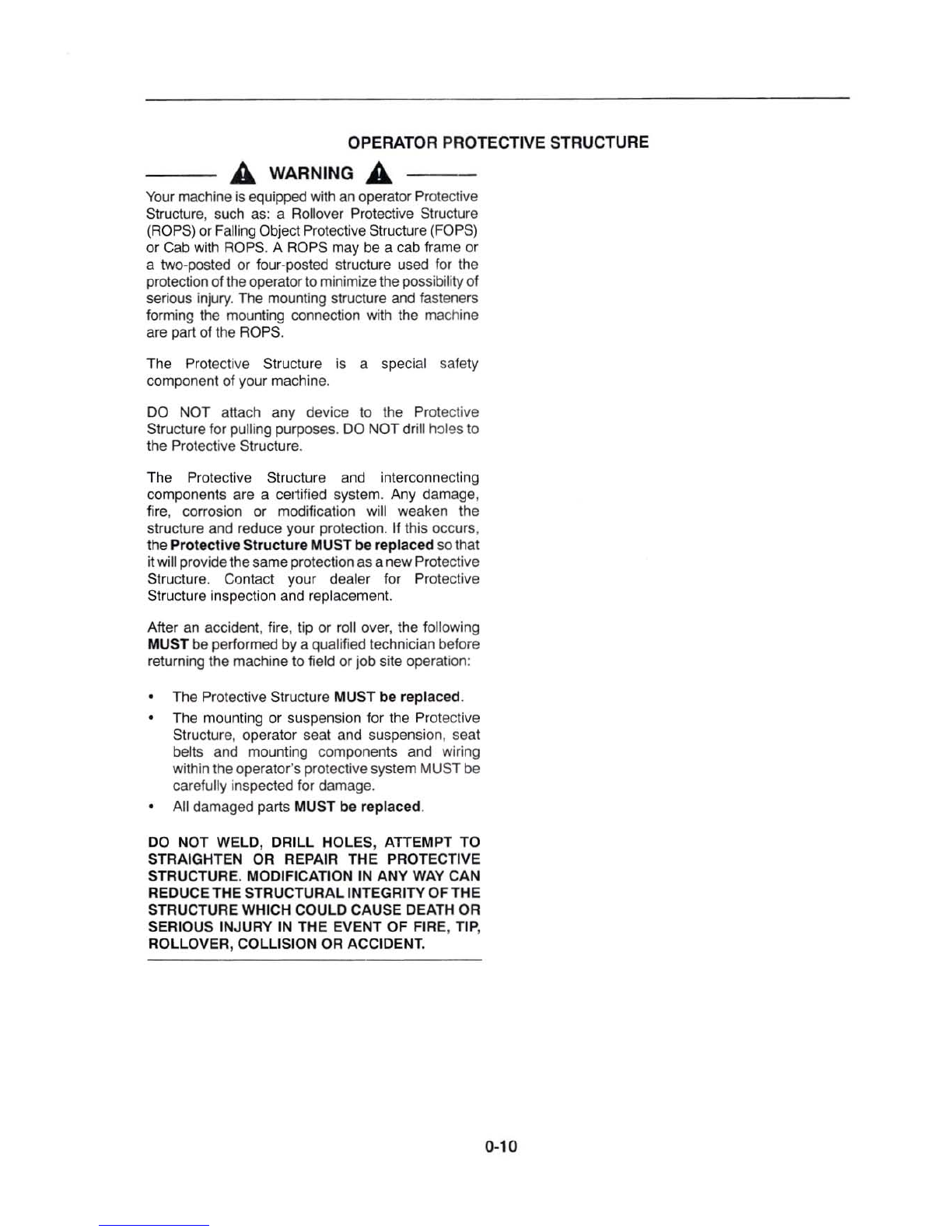

OPERATOR PROTECTIVE STRUCTURE
A WARNING A
Your machine is equipped with an operator Protective
Structure, such as: a Rollover Protective Structure
( ROP S) or Falling Object Pr otective Structure (FOPS)
or Cab with ROPS . A ROPS may be a cab frame or
a two-posted or four-posted structure used for th e
protection of the operator to minimize the pos si bility of
serious injury. The mounting structure and fasteners
forming the mounting connection with the machine
are part
of the ROPS .
The Protective Structure is a special safety
component of your machine.
DO NOT attach any device to the Protective
Structure for pulling purposes . DO NOT dr ill h~19S to
the Protective Structure.
The Protective Structure and in terconnecting
components are a cel1ified system. Any damage,
fire, corrosion or modification will weaken the
structure and reduce yo
ur protection. If this occurs,
the
Protectiv e Structure MUST be replaced so that
itwill provide the sameprotection asanewProtective
Structure. Contact your dealer for Protective
Structure inspection and replacement.
After an accident, fire, tip or roll over, the following
MUST be perfo
rm ed by a qualified technician before
returning the machine to field or job site operation:
• The Protective Structure MUST be replaced.
The mounting or suspension for the Protective
Structure, operator seat and suspension, seat
belts and mounting components and wiring
within the operator's protec
ti ve system MUST be
carefully inspected for damage.
All damaged parts MUST be replaced.
DO NOT WELD, DRILL HOLES, ATTEMPT TO
STRAIGHTEN OR REPAIR THE PROTECTIVE
STRUCTURE. MODIFICATION IN ANY WAY CAN
REDUCE THE STRUCTURAL INTEGRITY OF THE
STRUCTURE WHICH COULD CAUSE DEATH OR
SERIOUS INJURY IN THE EVENT
OF FIRE, TIP,
ROLLOVER, COLLISION OR ACCIDENT.
0-10

SERVICE AREA , FIRE EXTINGUISHER, FIRST AID KIT
NOTICE: Keep the area used for servicing the
machinecleanand dry. Wet oroily floors are slippery.
Wet spots can be dangerous when working with
electrical equipment.
8e sure a/l electrical outlets
and tools are properlygrounded.
It is good practice to carry a fire extinguisher on the
machine. Be sure the fire extinguisher is properly
used and maintained according to manufacturer's
instructions. II is advisableto keep a firstaidk it on the
machine.
Do Not Operate Tag
Before you start servicing the machine,attach a KOO
Not Operate" warning tag to the machine in an area
thaI will be visible.
0-11
R H01 N064
RH99E028
o
REASON
SIGNED BY:
RH99E029
o
SEE OTHER SIDE

SAFETY DECALS
The decals reproduced on the following pages were installed on yourtractor in the positions indicated in the drawings
below. They are intended for your safety and for those working with you. Please take this Manual and walk around
your tractor, noting the location of the decals and their significance. Review the decals and operating instructions
detailed
in this Manual with the machine operator s. Keep the decals clean and legible. If they become damaged or
illeg ible , obtain replacements from your authorized dealer.
76097 055
0-12

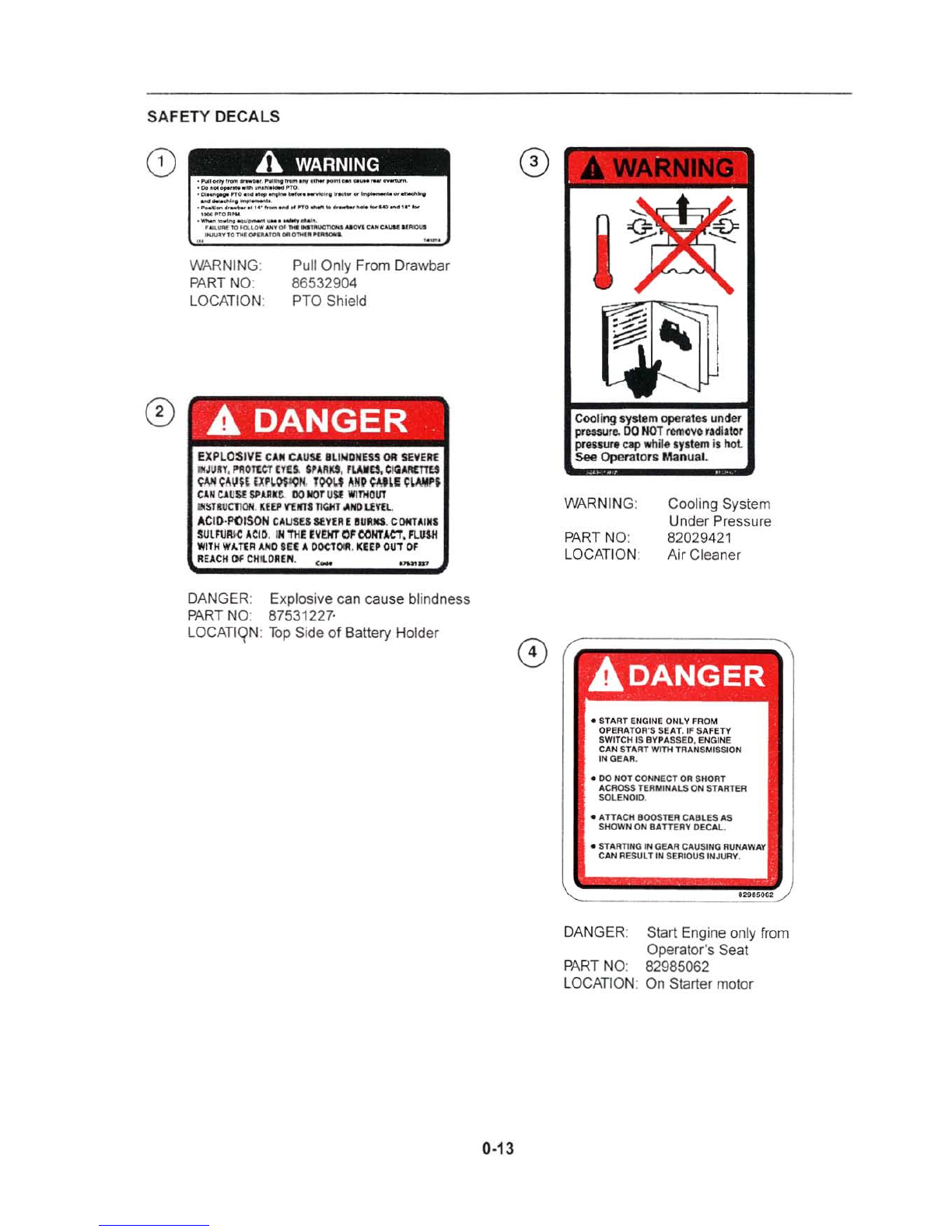

SAFETY DECALS
CD
A WARNING
........ --,-- .... ------
... -....--"" ._ .....
• __ "'0 ____ • __ .. _ .. _
---
. ___ .. "· __ .... 0_ .._ ....... __ ,,· ...
_ .. 0_
._--_. _-
. ....... l<I_>'ow ... ... _ .. , ~_< .. c..-_
""""""' .... -.., .. ""_ ... -
WARNING:
PART NO :
LOCATION:
Pull Only From Drawbar
86532904
PTO Shield
A DANGER
EXPLOSIVE CAM CAUSE. BL I NDNESS 0It SEVERt
IIJUIIY , PfilO Tt CT lfE5. n,uu , fWD, CI QM(nU
CAlf CA I,I U f ;l: ' ~ O$aO p(. 100 1. 1 AHO CMLe: Cl.Alil"
CAN tA uS!' $P.lRlt . DO Nor US! WlnlO\IT
Ifj!nR UC Tl OH .ItHJI ',onlllCOHT ,l,NO llYn.
ACID· PO ISON c. us n 1l"11I EIUIHIS. CONTA I NS
SUlF\lFU<: ACjO . INllIE EVOO OF eornJ.C'T . FlUSH
WITH WI.TEA ANO SEt A DOClCM . I(Up OU'T OF
IIEACH Of CH LOflfN. c_
DANGER Explosive can cause blindness
PART NO: 87531227·
LOCATlqN:
"K>p Side of Battery Holder
0-13
WA RNING:
PART NO:
LOCA
TI ON:
syl tem j
Manual.
Cooling System
Under Pressure
82029421
Air Cleaner
AOANGER
• SU.Fll ENGINE ONL V F RO M
OP
ER AT OR'S SE"T .IF S'-' FE TY
SWITCH IS
II YPASSED, ENGINE
CAN START WITH TRANSMISSION
INOE"'''.
• 00 N orCO NNECT Of! SHOAT
ACROSS TERMINALS ON STARTER
SOLENOID.
• ATTACH BOOSTER CABLES AS
SHOWN OH BATTERY DECAL .
• STARTING IN GE"'R CAUSING
CAN
Il ESULT IN SERIOUS INJURY.
DANGER:
PART NO:
LOCATION:
Start Engine only from
Operator
's Seat
82985062
On Starter mol or

SAFETY DECALS
A WARNING
Keep hands
and clot hi ng
away fr om
rotaling fan
and belt s.
Conlact with
moving part s
may cause
of finger s or
hand.
WARNING: Rotating Fan a nd Belts
PAR T NO: 86532907
LOCA TI ON: B ot h Sid es of Radiator
0-14
Operate controls
fro m Tr ac t or seat.
Failure to comply
co uld r es u lt in
,-,:= ,-1 death or serio us
WARNIN G: Operate Controls only from
Tractor seat
PA RT NO: 87300025
LOCATION: Right Si de of RQPS cross beam

SAFETY DECALS
• B.lo .. 01 0,, 1. , GO.
0' '' ''''9'
I'.o, w I' • •• ., .11 .. ...
.. 10 " " ' '''''''~ ' I. I ••
~:r~,I:;,'.,"_'1 .. , 0-
tl . .. t. , .r .. .1
~." . .... ".
l ............ . ........ ...
• 1 c .... ,I •.
F..... ,... " " h" .
' ~'''I ,."., ..,1 , (....
'P" "'" .. " ..!,.
'''''''''''''' ," "y "".
PTO ;;""0' <. o.d
h,~,," i. c •• t"I, I,
I. .. .'.. ,.,I!,.ft.
• ..... . . .. , • •• ,1 . on ""
.". 9'" ,M' ""< . n."
" . " ,;,. 10 "" " 0.
UM ,p. " . d ",,,.,
•••• ""' •• co , 'u oll .
• S I, . '0'" .. I.fft ., ,."~.
,. •• ,' .. .. (•••• I, •• ""
"F'"
' 0. .. , , .... , .......... '
n• •, ... 10< t ... j. Of> '1><
""''' ...... ... ...
1 •• " •• ".. .. ...t _, 0 ~ ...
", ... ,.
. lo, 1 b .. . .. .. ' U"" .. ..
. .. ,,;' " H I"" ,n, $M'I
_ "" "", I, ... ,...t ••
,.d •.
• ~::;" .. ~ ~~.~:: ... ~ 'o' t~·: : ",,,.
;~~t::t~:.: ·: . :!' ; 'I • •. ," "
"" '" , •• t.
• Ah" I' "';'10 . .. oJ.,
b," •••1... dI . _.~ , ;. t
T, ... . .... " •• ",II . ,'
"' . ... . ('""" h o .. ''''';.~
~ ... " . .. i, ' _ .' . ,1.
. ....... ,.,' , N"d . I. ploco
t •• , ... , •• ,«tI ..
H llU IIE 10 fO llO W A NY
Of TM( 'UTII\lCTt0H5
.ta OIl( UII C. \lS( 5(1110\1'
' '' J\lIIY TO IME OPEII.TOII
Oil OIM(It 'f~' C H '.
ATTENTI ON
- c • .." tow '" <''' •• 1 ...
oil ''' ....... i •• I ..... .. 0
I •• •• , ... .
• 10 , •••• " <ob d ..... '. '
~:~: .. !t;~'~ ... oI~r:.:·:~':" or
hi .. .. "0,111 •• ; .. ".",,,,, .
R. I .. 'ho , .. , .... . ' .1 .... ,
•• ~ ... <t o ~. UO , ..., ....
f . ,,,'0 ... " <, ........
• To ,. ... " ,. . .. " .....
.., ...... ,. « ... -." ,
!I \, .. u, I• • , ..... .
... ...,' • • • t ... " " •• , •
• t,,, t oll 1.0<1 opor •• ' ••.
21!lo ,,' • • ,." '011
," •• ttl. , ., 'II" roy .
"""' , .. ., ..... " •..
_ 00"", .,. ".., .. ,••"
lor 'i,. dr. l, '.od •.
• W
i," ", .." o "", pd ,,; ,.
,,, .... , ••" 0. .....
II ., "0'" ....
" .. . .... ' •• ,. ·" .. ~.t
t . .. • • •••• , j . ,.,10 ..
.. U ,n '''"
So. O~ . "I" . _ .01 t ..
' """,,,t o ''' '' .o,tI •••
WAR NING:
PART NO:
LOCATION:
Before Starting and Operating
82030 4 29
Inside Right Fender
0·15
When improperly operated,
a tractor can rollover or
upset.
For lower clearance use
only , the ROPS can be
lowered. No Protection Is
provided In the lowered
position .
Rai
se ROPS and insert"
locki
ng pi ns I mmediately after
lower clearance use or for
Transportation .
When ROPS is lowered, use
of seat belt is not
recomended.
Do not attach ropes or
chains to ROPS for
pulling purposes.
Do not operate vehicle
without ROPS locking pins
in position.
Do not attempt to Fold ROPS
when a ca nopy is fitted.
Use of ROPS and Seat Belt
reduce the chance of serious
bod i ly inj ury or dea thif rollover
or up set occurs .
"'"
DANGER:
PA RT NO:
LOCATION:
ROPS
876005 42
Side of ROPS

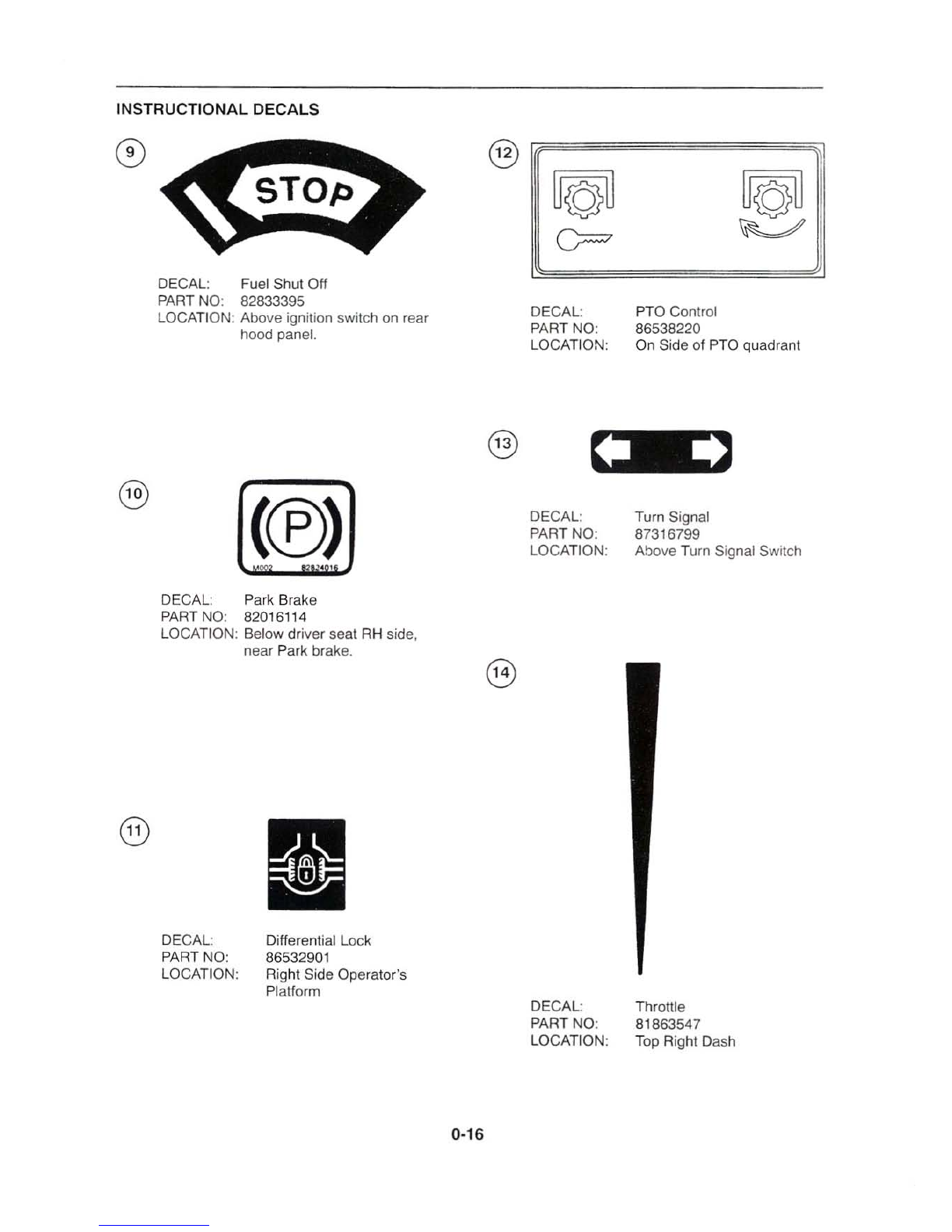

INSTRUCTIONAL DECALS
@
DE CAL: Fuel Shut O ff
PART NO: 82833395
LOCA TI ON: Above ignition switc h on rear
hood pan el.
(®)
DECAL: Park Brake
PART NO: 82016114
LOCATION:
Belo w driver seat RH side ,
near Pa
rk brake.
DECAl:
PART NO:
LOCATION:
Differ en t ial L oc k
86532901
Ri ght Side Operator's
Platform
@
DECAL:
PART NO:
LOCATIO N:
®
DECAl::
PART NO:
LOCATION:
DECA l:
PART NO:
LO CATION:
0-16
PTO Control
86538220
On Side of PTO quadrant
Tu rn Signal
87316799
Above T urn Signal Switch
T hr onle
81863547
T op R ight Da sh

SECTION 1
GENERAL INFORMATION AND SAFETY
TO THE OWNER
GENERAL
This Manual has been prepared to assist you in the
correct procedure for running-in, driving and
operating and for the maintenance of your new
tractor. Your tractor, which was designed to power
and propel itself, is intended for use in normal and
customary agricultural applications.
Read this Manual carefully and keep it in a
convenient place for future references. If at any time
you require advice concerning your tractor, do not
hesitate to contact your Authorized Dealer. He has
company trained personnel,genuine manufacturers'
parts and the necessary equipment to carry out all
your service requirements.
You r tractor has been designed and buill to give
maximum performance, economy and ease of
operation under a wide variety of operating
conditions. Prior to delivery, the tractor was carefully
inspected, both at the factory and by your dealer to
ensure that it reaches you in optimum condition.
To
maintain this condition and trouble·free operation, it
is important that the routine services, as specified in
Section 4 of this ma nual, are carried out at the
recommended intervals.
CLEANING THE TRACTOR
When cleaning the tractor, particularly if using a high
pressure washing machine. precaution has to be
taken
to safeguard electricalI electronic components
and connections. The pressure generated by some
of these machines is such that complete protection
against water ingress cannot be guaranteed.
While washing the tractor, using a hi
gh pressure
washing machine.
do not stand too close to the
tractor and avoid directing the jet
at electrical
connections, breathers, seals, filler caps, etc. Never
direct a cold water jet at a hot engine or exhaust.
SAFETY
Pages 0·5 to 0-9 include the list of precautions to be
observed
to ensure your safety and the safety of
others. Read the safety precautions and follow the
advice offered
before operating the tr ac tor.
SERVICE PARTS
It should be pointed out that genuineparts have been
examined and approved by the company. The
installation and/or usage of 'non-genuine' products
could have negative effects upon the desi
gn
characteristics of your tractor and thereby affect it's
safety. The Company is not liable for any
da mage
caused by the use
of ' non - genuine ' parts and
accessories.
Only Genuine Case IH replacement parts should be
used. The use
of non-genuine parts may invalidate
legal
app rovals associated with this product.
It is prohibited to carry out any modifications to the
tr
ac tor unless specifica ll y authorized, in writing, by
the After Sales Service department of the Company.
WARRANTY
Your tractor is warranted according to the current
legislation in our country and with contractual
agreements reached with the dealer at the time
of
sale. However, the warranty is no longer valid if the
rules and instructions forthe useand maintenanceof
thetractordescribed in this manualare notobserved.

SECTION 1 - GENERAL I NFORMA TION AND SAFETY

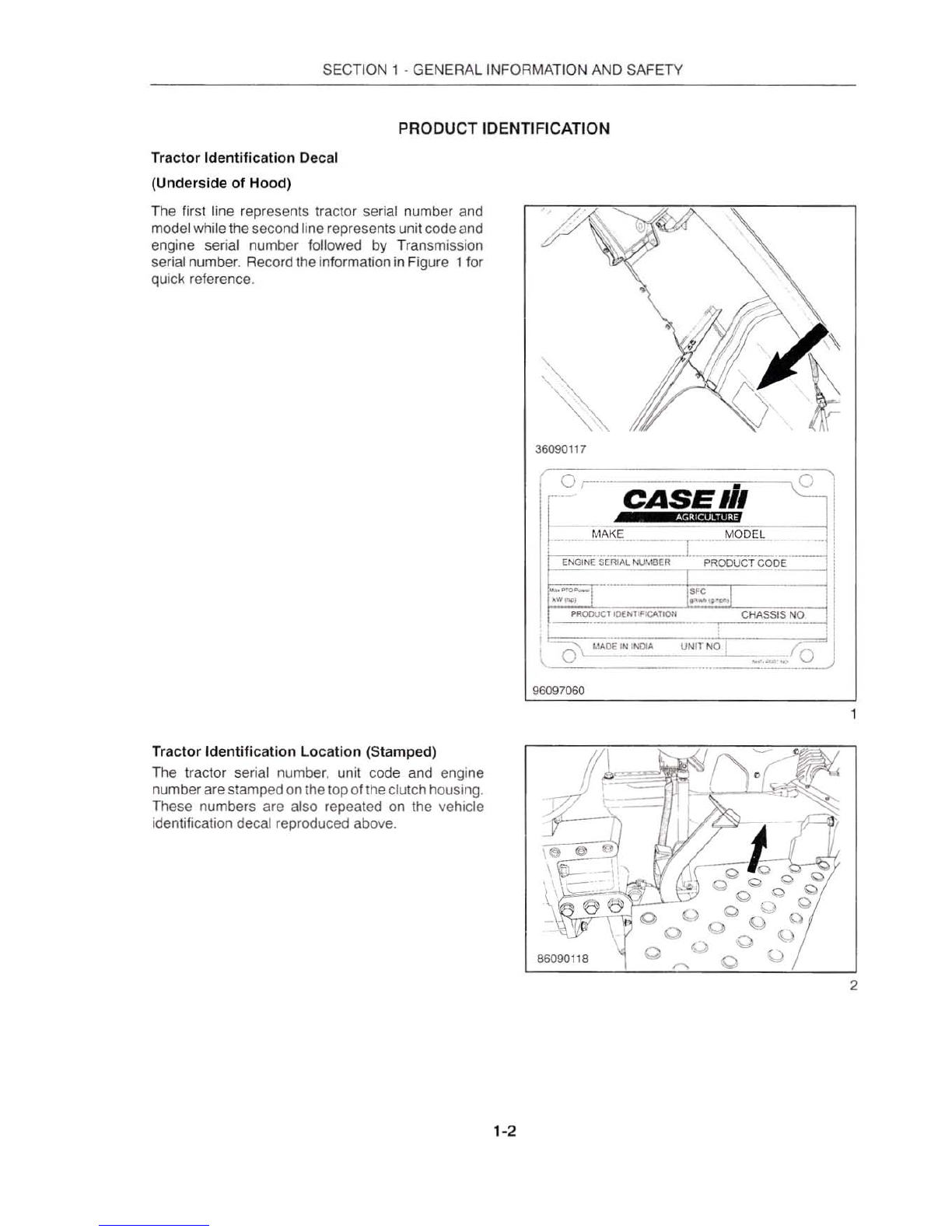

PRODUCT IDENTIFICATION
Tractor Identification Decal
(Unders
ide of Hood )
The first line represents tractor serial number and
modelwhile the second line represen ts unitcode and
engine serial number followed by Transmission
serial number. Record the information in Figure 1for
quick reference.
Trac tor Identificati on Location (S tamp ed)
The tractor serial number. unit code and engine
numberarestamped on thelop of theclutch housing.
These numbers are also repeated on the vehicle
identification decal reproduced abo ve.
1-2
36090117
(Or' =~ ~ '~_
f CASE Iii '---
1----- 'iAKE ,_,,_~,c ___ M _ O _ ~~ _ L _ I'
ENGINE ' S'ERIIIL NU~!eER PRODUCT CODE
..-
PROOVCllOE:HIIFlCAflON
CHASSIS NO
: ----- I
UN" ;.-or- - __ }c)"
~ ~wX ' ItlINOIA
, 0--
96097060
