Gravely 08499200B User manual

Parts Manual
Models
985114
985117
985119
985307
985309
985311
985312
985313
Professional 2-Wheel Tractor
08499200B 4/03
Supercedes 08499200,A
Printed in USA

2
T
HE
M
ANUAL
Before you operate your unit, carefully and completely
read manuals supplied with the unit. The contents will
provide you with an understanding of safety instructions
and controls during normal operation and maintenance.
For your safety and the safety of others always read,
understand, and follow all DANGER, WARNING, and
CAUTION messages found in manuals and on safety
decals.
Hardware descriptions are given in decimals.
S
ERVICE AND
R
EPLACEMENT
P
ARTS
When ordering replacement parts or making service
inquiries, know the Model and Serial numbers of your unit
and engine.
Numbers are located on the product registration card in
the unit literature package. They are printed on a serial
number label, located on the frame of your unit.
• Record Unit Model and Serial numbers here:
• Record Engine Model and Serial numbers here:
UNAUTHORIZED REPLACEMENT PARTS
Use only Gravely replacement parts. The replacement of
any part on this vehicle with anything other than a
Gravely authorized replacement part may adversely
affect the performance, durability, or safety of this unit
and may void the warranty. Gravely disclaims liability for
any claims or damages, whether warranty, property
damage, personal injury or death arising out of the use of
unauthorized replacement parts.
Decimals to Fractions
.063 1/16 .563 9/16
.125 1/8 .625 5/8
.188 3/16 .688 11/16
.250 1/4 .750 3/4
.313 5/16 .813 13/16
.375 3/8 .875 7/8
.438 7/16 .938 15/16
.500 1/2 1.00 1
P
RODUCT
R
EGISTRATION
The Gravely dealer must register the product at the time
of purchase. Registering the product will help the
company process warranty claims or contact you with the
latest service information. All claims meeting
requirements during the limited warranty period will be
honored, whether or not the product registration card is
returned. Keep a proof of purchase if you do not register
your unit.
Customer Note: If Dealer does not register your product,
please fill out, sign and return the product registration
card to Gravely.
Y
OUR
S
ATISFACTION
I
S
I
MPORTANT
Questions? Please follow these helpful steps:
1. Refer to the manuals supplied with your unit.
They will guide you through safe and proper
operation and maintenance.
They contain specifications on your unit.
If your questions are not answered in these manuals,
go to step number two.
2. Contact Your Dealer.
Our dealers will be happy to supply any service or
advice required to keep your unit operating at peak
efficiency.
A factory trained staff is available to support your
equipment needs. They stock genuine Gravely parts
and lubricants manufactured with the same precision
and skill as the original.
If your questions are not resolved by the support
staff, ask for the manager or owner.
When contacting your Dealer supply your model and
serial numbers.
TO SPEED PARTS ORDERING:
1. Know the model and serial numbers of your unit.
2. Know the part number required.
3. Know the quantity required.
4. Know the part description.

3
M
ODELS
Model 985114
16 HP Briggs & Stratton, Electric Start, 4 Speed,
Steering Brakes
Serial No. 000101 and up
Model 985115
8.5 HP Robin, Electric Start, 4 Speed
Serial No. 000101 and up
Model 985117
13.5 HP Robin, Electric Start, 4 Speed,
Steering Brakes
Serial No. 000101 and up
Model 985119
12.0 HP Kohler, Electric Start, 4 Speed,
Steering Brakes
Serial No. 000101 and up
Model 985307
8.5 HP Robin, Electric Start, 4 Speed
Serial No. 000101 and up
Model 985309
13.5 HP Robin, Electric Start, 4 Speed,
Steering Brakes
Serial No. 000101 and up
Model 985311
13.5 HP Robin, Electric Start, 4 Speed,
Differential Lock
Serial No. 000101 and up
Model 985312
13.5 HP Robin, Electric Start, 4 Speed
Serial No. 000101 and up
Model 985313
No Engine, 2 Speed, Differential Lock
Serial No. 000101 and up
T
ABLE
O
F
C
ONTENTS
D
ECALS
Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
M
AIN
F
RAME
Frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Optional Wheel Kits . . . . . . . . . . . . . . . . . . . . . . . . . . 8
O
PERATOR
C
ONTROLS
Gear Shift Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
PTO Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Direction Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Steering Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Handlebars. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
P OWER P LANT
Range/Differential Lock Control - 4 Speed. . . . . . . . 15
Swiftamatic Differential - 4 Speed . . . . . . . . . . . . . . 16
Locking Differential - 2 Speed . . . . . . . . . . . . . . . . . 18
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
F
UEL AND
E
XHAUST
S
YSTEM
8.5 HP Robin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
13.5 HP Robin & 12.0 HP Kohler . . . . . . . . . . . . . . . 26
16 HP Briggs & Stratton. . . . . . . . . . . . . . . . . . . . . . 28
E
LECTRICAL
S
YSTEM
Electrical System - Electric Start . . . . . . . . . . . . . . . 30
Continuity Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . 32
Wiring Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
© Copyright 2003, Ariens Company

4
D
ECALS
Model 985114
Item Part No. Qty. Description
1 07717500 1 Decal, 2 Wheel Maintenance
2 077247 1 Decal, 2 Wheel Instructions
3 07724300 1 Decal, Instrument Panel-2 Wheel Tractor
4 021090 1 Decal, Forward-Reverse
5 021091 1 Decal, Gear Shift
6 07740700 2 Decal, Gravely Professional 16
7 69201900 1 Decal Set Gravely Logo 17"
8 053168 1 Decal, Caution
CAUTION
DO NOT PARK ON SLOPE UNLESS WHEELS ARE CHOCKED.
!SAFETY FIRST
READ THE OPERATOR'S MANUAL
BEFORE USING TRACTOR •
DISENGAGE ALL CLUTCHES AND
SHIFT INTO NEUTRAL BEFORE
STARTING ENGINE •HANDLE
GASOLINE WITH CARE •KEEP
SHIELDS, GUARDS AND SAFETY
DEVICES IN PLACE •KEEP
HANDS AND FEET AWAY FROM
MOVING PARTS •NEVER LET
CHILDREN OPERATE TRACTOR •
BE ALERT FOR DANGER TO BY-
STANDERS, PROPERTY AND FOR
TERRAIN HAZARDS •REMOVE
IGNITION KEY BEFORE LEAVING
TRACTOR •ENGAGE FWD - REV
CONTROL AND HI - LO GEAR
CONTROLS WHEN PARKING
LOCK
BRAKE P
RELEASE
077247
077407
PROFESSIONALPROFESSIONAL
16
16
2 WHEEL
TRACTOR
SEE OPERATOR'S MANUAL FOR FULL INSTRUCTIONS
TWO-WHEEL TRACTOR MAI NTENANCE INSTRUCTIONS
ENGINE: CHECK OIL DAILY.
CHANGE OIL AND FILTER EVERY 100 HOURS
WITH SAE 10W30 CD.
REPLACE FUEL FILTER EVERY 300 HOURS.
KEEP ENGINE AND COOLING FINS CLEAN
AIR CLEANER: CHECK AND/OR CLEAN DAILY.
REPLACE ELEMENT WHEN CLOGGED
OR EVERY 300 HOURS.
TRANSMISSION: CHECK OIL LEVEL DAILY OR
AT ANY SIGN OF LEAKAGE.
CHECK BELTS EVERY 25 HOURS.
ADJUST TENSION OR REPLACE AS NEEDED.
1 GREASE 2-3 MOWER SPINDLE
2 GREASE 1 PIVOT PIN
3 GREASE 2 CASTER PIVOT
4 GREASE 2 WHEEL BEARING
OIL ALL PIVOT POINTS,AND
PIN CONNECTIONS
REF. LUBRICATION QTY. DESCRIPTION-LOCATION INTERVAL
TIRE PRESSURE: 18 PSI (124 kN/m2)
Daily 25 Hrs.
077175
TWICE
IMPORTANT: USE LITHIUM BASE GREASE
12
3
4
PIVOTING ATTACHMENTS
1
2
5
6
7
PH0034
8
4
3

5
D
ECALS
Model 985115, 117, 119, 307, 309, 311, 312, 313
Item Part No. Qty. Description
1 07717500 1 Decal, Two Wheel Maintenance
2 68516300 1 Decal Set, 2 Wheel Tractor
3 07748300 1 Decal, Parking Brake (117, 119, 309)
4 07740600 2 Decal, Professional 14 (117, 309, 311, 312)
07740500 2 Decal, Professional 8 (115, 307)
05359500 2 Decal, Professional 12 (119)
5 69201900 1 Decal Set Gravely Logo 17"
DANGER
SEE OPERATOR'S MANUAL FOR FULL INSTRUCTIONS
TWO-WHEEL TRACTOR MAI NTENANCE INSTRUCTIONS
ENGINE: CHECK OIL DAILY.
CHANGE OIL AND FILTER EVERY 100 HOURS
WITH SAE 10W30 CD.
REPLACE FUEL FILTER EVERY 300 HOURS.
KEEP ENGINE AND COOLING FINS CLEAN
AIR CLEANER: CHECK AND/OR CLEAN DAILY.
REPLACE ELEMENT WHEN CLOGGED
OR EVERY 300 HOURS.
TRANSMISSION: CHECK OIL LEVEL DAILY OR
AT ANY SIGN OF LEAKAGE.
CHECK BELTS EVERY 25 HOURS.
ADJUST TENSION OR REPLACE AS NEEDED.
1 GREASE 2-3 MOWER SPINDLE
2 GREASE 1 PIVOT PIN
3 GREASE 2 CASTER PIVOT
4 GREASE 2 WHEEL BEARING
OIL ALL PIVOT POINTS,AND
PIN CONNECTIONS
REF. LUBRICATION QTY. DESCRIPTION-LOCATION INTERVAL
TIRE PRESSURE: 18 PSI (124 kN/m2)
Daily 25 Hrs.
077175
TWICE
IMPORTANT: USE LITHIUM BASE GREASE
12
3
4
PIVOTING ATTACHMENTS
1
2 3
PH0044
2
2
4
5
2
2
2

6
F
RAME
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313
PH0391
1
2
3 4
5
6
7 8
9
10
11
12
13
5
14
15
16
14
3
17
18
19
20
21
17
22
23
24
11
25
11
26
27
28
29
30
14
31
32
33
11
34
35
36
37
38
39
40
11
25

7
F
RAME
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313
Item Part No. Qty. Description
1 040871 1 Hood 8 HP
2 05957900 2 Bolt-Hex .38-16 x 1.50 Grade 5
3 06436200 4 Washer-Flat-Steel .406 x .812 x .065
4 034738 1 Bushing-Flange .515 x .750 x .745 x 1.00
5 06442800 2 Washer-Flat-Steel .656 x 1.31 x .095
6 05968100 1 Bolt-Hex .625-11 x 2.00
7 06117900 4 Screw-Machine 6-32 x .75
8 018183 4 Bumper
9 06538900 4 Nut-Locking-Nylon 6-32
10 043922 2 Bushing
11 06529600 12 Nut-Locking-Center .375-16 Grade 2
12 034737 1 Ring-Retaining 1.000 x .748
13 044658 1 Plate, Instrument-Briggs Engine
08574100 1 Plate, Instrument-Robin and Kohler Engines
14 05959400 8 Bolt-Hex .38-16 x .75
15 06437300 2 Washer-Flat-Steel .281 x .620 x .065
16 06118100 2 Screw-Machine .25-20 x 1
17 06529700 6 Nut-Locking-Center .25-20 Grade 2
18 06435700 2 Washer-Flat-Steel .38 x .875 x .085
19 041622 2 Bushing, Flange .280 x .750 x .318
20 046387 1 Support, Hood
21 08574400 1 Bracket, Battery Mount
22 106319 4 Bolt-Hex .25-20 x .63
23 046796 1 Support, Handle Bar Right Hand
24 046824 1 Bracket, Tank Support
25 041075 2 Pad, Gas Tank
26 046388 1 Bracket
27 046797 1 Support, Handle Bar Left Hand
28 047190 1 Guard, Engine
29 06442000 1 Washer-Flat-Steel .563 x 1.30 x .109
30 06536300 2 Nut-Locking-Center .50-13 Grade 5
31 047527 1 Weldment, Hitch
32 06536300 1 Nut-Locking-Center .625-11 Grade 2
33 05962000 2 Bolt-Hex .50-13 x 1.50 Grade 5
34 013457 1 Handle, Adjusting
35 06307300 2 Washer-Lock .50 x .125 Reg.
36 05947100 2 Bolt-Hex .50-13 x 1 Grade 5
37 034062 1 Stand, Kick
38 05963300 2 Bolt-Hex .38-16 x 2.00 Grade 5 (114)
05958400 2 Bolt-Hex .38-16 x 2.50 Grade 5 (115, 117, 119, 307, 309, 311-313)
39 06714000 1 Pin-Hair-Internal .15 x 2.937
40 039760 2 Spacer

8

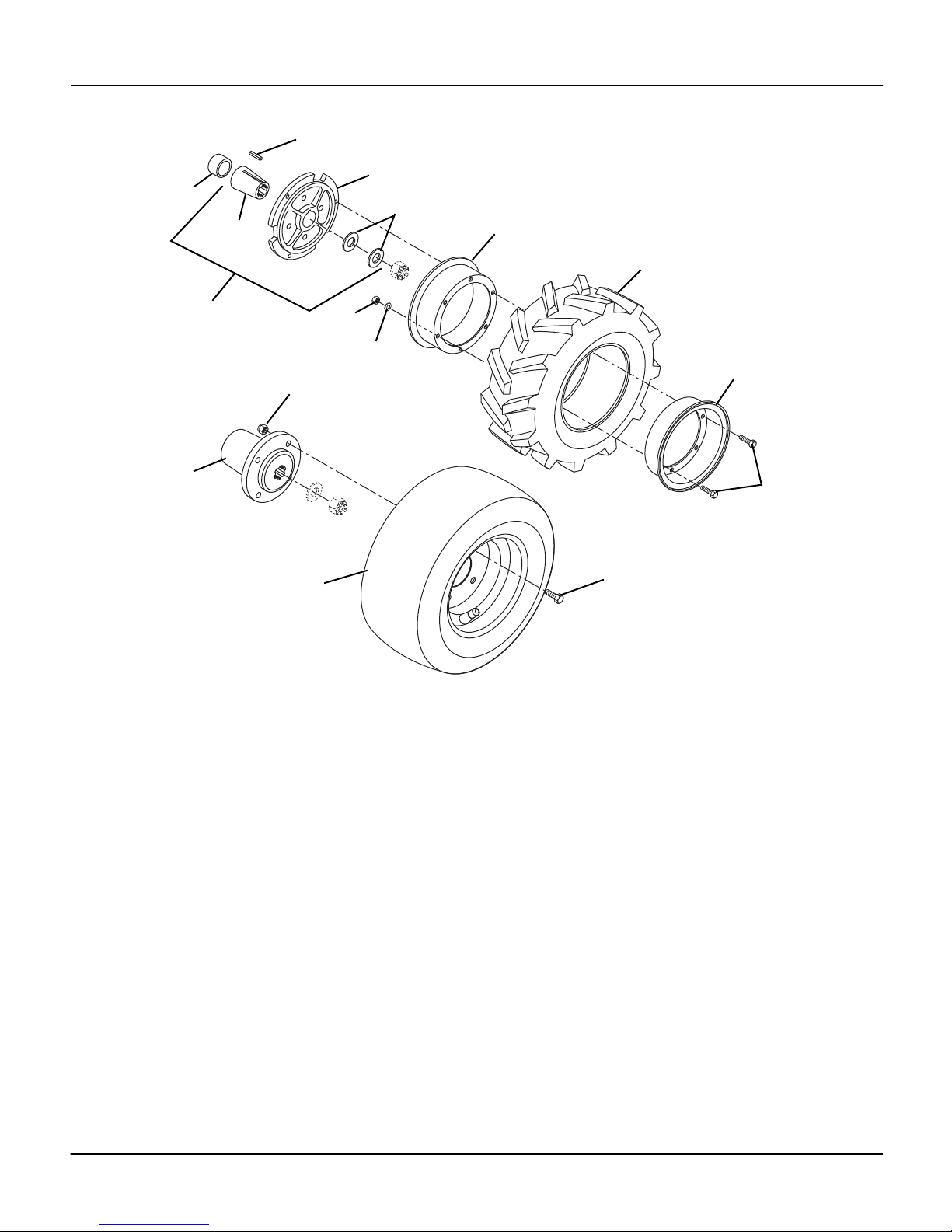

O
PTIONAL
W
HEEL
K
ITS
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313
Item Part No. Qty. Description
1 012674 1 Wheel 7.71 x 1.25
2 018762 1 Tire 16 x 5W x 3
3 012673 1 Wheel-Disc 6.75 x 9.219
4 06529400 3 Nut-Hex .38-16
5 06308800 3 Washer-Lock .375 x .094
6 05959400 6 Bolt-Hex .38-16 x .75 Grade 5
7 08742753 1 Hub-Wheel
8 022512 1 Bushing-Sleeve 1.02 x 1.37 x 1.13
9 06439800 2 Washer-Flat-Steel .812 x 2.00 x .148
10 018345 1 Key-Square .249 x 1.25 x .248
11 038230 1 Insert-Hub
12 046987 1 Tire/Wheel Assembly 8.50-8 x 18
07137700 1 Tire/Wheel Assembly 4.80/4.00-8
07137800 1 Tire/Wheel 4.80/4.00-8 R.H.
07138700 1 Tire/Wheel 4.80/4.00-8 L.H.
13 05962000 4 Bolt-Hex .50-13 x 1.50 Grade 5
14 06536300 4 Nut-Locking-Center .50-13 Grade 5
15 022551 1 Hub-7" Wheel
16 58501600 AR Kit, Heavy Duty Hub (Contains Items 7, 9-11)
PH0193
1
2
3
4
5
6
7
8 9
10
11
12 13
14
15
16

9
G
EAR
S
HIFT
C
ONTROL
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313
Item Part No. Qty. Description
1 06529600 1 Nut-Locking-Center .38-16
2 06535900 4 Nut-Jam .38-16
3 041614 1 Pivot-Hand Lever Left Hand
4 044139 1 Grip-Handle
5 041616 1 Handle-Control Right Hand
6 041615 1 Handle-Control Left Hand
7 106319 1 Bolt-Hex .25-20 x .62
8 06529700 2 Nut-Locking-Center .250-20 Grade 2
9 041594 1 Bushing Flange .751 x 1.13 x 1.07
10 06441900 1 Washer-Flat-Steel .531 x 1.062 x .095
11 047566 1 Bolt-Hex .38-16 x 3.75
12 041244 1 Bushing-Flange .257 x .38 x 1.080
13 05952500 1 Bolt-Hex .25-20 x 1.50 Grade 5
14 06437300 1 Washer-Flat-Steel .281 x .620 x .065
15 045575 1 Rod-Control Hi-Lo
16 06529400 2 Nut-Hex .375-16 Grade 2
17 045577 1 Rod-Extension
PH0380
1
2
2
3
4
5
6
7
8
9
8
10
11
12
13
14
15
16
17

10
PTO CONTROL
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313
Item Part No. Qty. Description
1 010683 1 Handle-Rubber Shifter
2 046798 1 Rod-Shifter
3 041042 1 Spring-Tension .041 x 1.25 x .50
4 06529600 1 Nut-Locking-Center .375-16 Grade 2
5 06436200 8 Washer-Flat-Steel .406 x .812 x .065
6 06529700 4 Nut-Locking-Center .250-20 Grade 2
7 06437300 4 Washer-Flat-Steel .281 x .620 x .065
8 040637 2 Cam-Shifter
9 05947700 2 Bolt-Hex .25-20 x 1.00 Grade 5
10 040599 1 Spring-Compression .081 x .720 x 2.75
11 05952500 2 Bolt-Hex .25-20 x 1.50 Grade 5
12 032353 2 Block-Shift Lever
13 046784 1 Link-Shifter Stop
14 039078 2 Spring Washer
15 06707300 2 Pin-Cotter .12 x .75
16 040849 1 Weldment, PTO Bellcrank
17 08573000 1 Rod-PTO
18 120369 1 Nut-Hex .375-24 Grade 2
19 02917100 1 Ball Joint
20 06538800 1 Nut-Locking Nylon .375-24 with Insert
21 021462 1 Shim-Mower Height Adjuster Bracket
PH0051
1
2
3
4 5
6
7
8
8
5
9
10
5
11
12
7
6
13
5 14
5
15
5
16
5
14
17
18
19
20
21

11
DIRECTION CONTROL
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313
Item Part No. Qty. Description
1 05952500 2 Bolt-Hex .25-20 x 1.50 Grade 5
2 06117900 1 Screw-Machine 6-32 x .75
3 041252 2 Knob-Handle Control
4 040601 1 Handle-Control Right Hand
5 040600 1 Handle-Control Left Hand
6 06437300 2 Washer-Flat-Steel .281 x .620 x .065
7 06529700 3 Nut-Locking-Center .250-20 Grade 2
8 06538900 1 Nut-Locking-Nylon 6-32
9 106319 1 Bolt-Hex .25-20 x .63
10 05957900 1 Bolt-Hex .38-16 x 1.50 Grade 5
11 047566 1 Bolt-Hex .38-16 x 3.5
12 06441900 1 Washer-Flat-Steel .531 x 1.062 x .095
13 041593 1 Sleeve-Handle Stop
14 041594 1 Bushing Flange .751 x 1.13 x 1.07
15 06529600 2 Nut-Locking-Center .38-16
16 012586 1 Spring-Compression .038 x .281 x .88
17 274301 1 Ball .312 Guard 2000
18 042170 1 Bracket-Handle Pivot
19 06535900 4 Nut-Jam .375-16
20 044361 1 Bushing-Flange .320 x .750 x 1.280
21 042169 1 Bushing-Flange .515 x .746 x 1.290 x 1.000
22 044362 1 Plate-Neutral
23 021506 1 Spring-Compression .072 x .561 x 2.50
24 041244 1 Bushing-Flange .257 x .38 x 1.080
25 045576 1 Rod-Control Forward Reverse
26 06529400 2 Nut-Hex .375-16 Grade 2
27 045577 1 Rod-Extension
PH0150
1
2
3
4
5
3
6
7
8
7
6
9
10
11
12
7 13
14
15
16
17
18
19
20
21
22
1
24
23
25
26
27
19

12

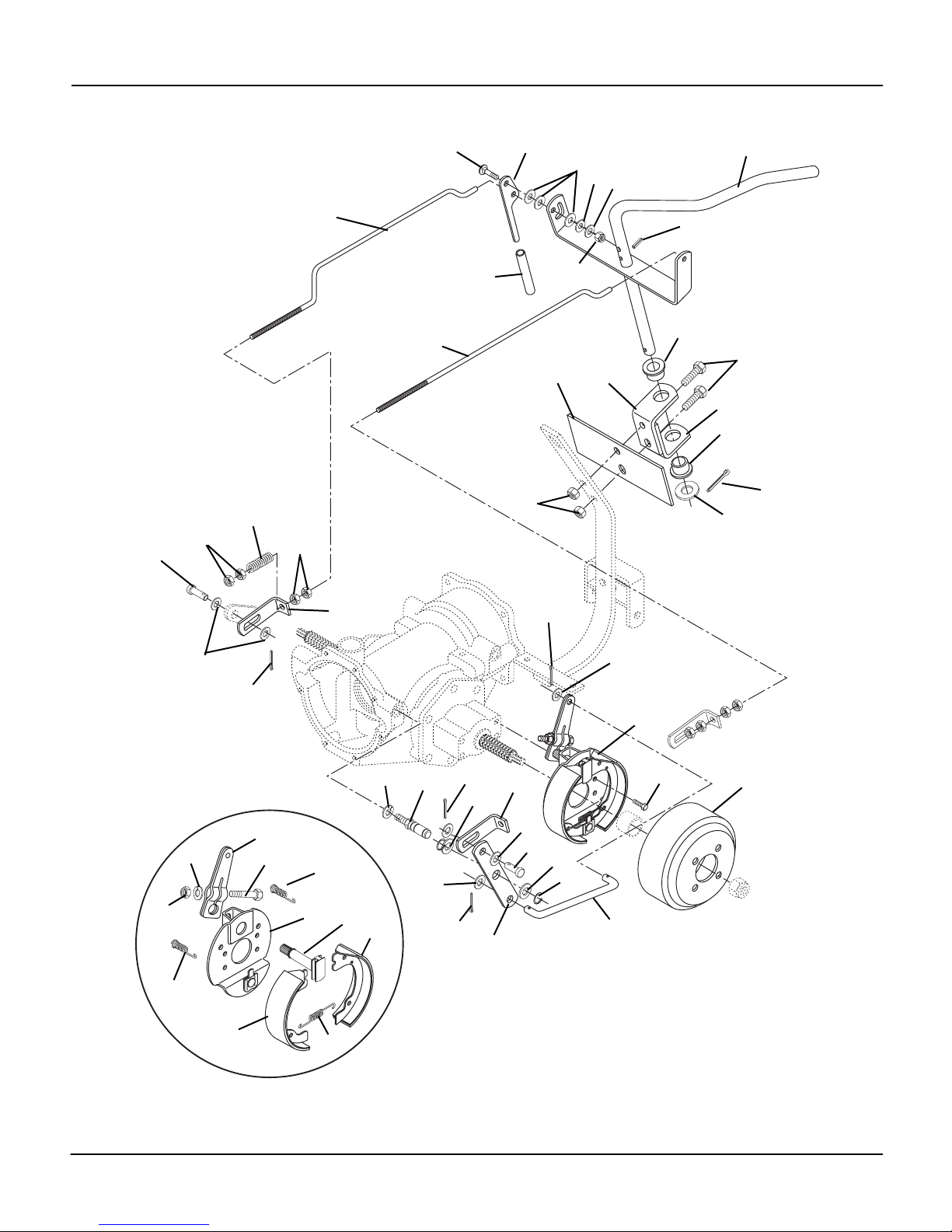

STEERING BRAKES
Model 985114, 117, 119, 309
PH0221
1
2 3
4
5 6
7
8
9
10
11
12
13
11
14
15
16
17 18
19
20
21
22
21
23
6
24
24
6
25
26 27
28
29
31
24
6
23
24
6
32
33
34
35
36
37
38 36
39 40
41
41
42
20 30
6

13
STEERING BRAKES
Model 985114, 117, 119, 309
Item Part No. Qty. Description
1 049731 1 Rod-Brake Right Hand
2 06224200 1 Bolt-Round Head Square Neck .38-16 x 1.50
3 023391 1 Handle-Parking Brake
4 020775 3 Washer-Flat-Nylon .375 x .75 x .060
5 023394 1 Washer-Rubber .375 x .75 x .125
6 06436200 12 Washer-Flat-Steel .406 x .812 x .065
7 06529600 1 Nut-Locking-Center .38-16 Grade 2
8 047160 1 Weldment-Brake Handle
9 273921 1 Pin-Roll .313 x 2.00
10 044347 1 Grip-Brake Handle
11 047070 2 Bushing-Flange 1.082 x 1.385 x .870 x 1.750
12 05959700 2 Bolt-Hex .50-13 x 2.00 Grade 5
13 041850 1 Bracket-Brake Handle
14 06712800 1 Pin-Cotter .188 x 1.50
15 06445300 1 Washer-Flat-Steel 1.120 x 1.500 x .092
16 06536300 2 Nut-Locking-Center .50-13 Grade 5
17 585010 1 Plate-Instruction
18 041851 1 Bracket-Brake Handle
19 049732 1 Rod-Brake Left Hand
20 431780 2 Pin-Clevis 3/8 x .750
21 06535900 8 Nut-Jam .375-16
22 023392 1 Spring-Compression .105 x .61 x 2.50
23 023389 2 Bracket-Adjustment
24 06706900 4 Pin-Cotter .09 x .75
25 023384 2 Brake 7 x 1-3/4 Mechanical
26 05959400 8 Bolt-Hex .380-16 x .75
27 04903400 2 Drum, Brake
28 023388 1 Rod-Brake Link
29 036372 2 Ring-Retaining-External .625 x .042
30 06442800 2 Washer-Flat-Steel .656 x 1.312 x .095
31 023387 1 Plate-Pivot
32 041847 1 Stud-Pivot
33 06307300 1 Washer-Lock .125 Reg.
34 06536700 2 Nut-Jam .312-24 Grade 2
35 06308600 2 Washer-Lock .313 x .078
36 023509 4 Spring-Shoe Ret Box
37 023505 2 Arm-Cam Lever
38 05968000 2 Bolt-Hex .31-24 x 1.75
39 023507 2 Plate-Back
40 023506 2 Cam-Brake
41 023539 2 Kit-Brake Shoe
42 023508 2 Spring-Shoe Return

14
HANDLEBARS
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313
Item Part No. Qty. Description
1 047162 1 Weldment-Handlebar
2 05958000 4 Bolt-Hex .38-16 x 1.25 Grade 8
3 06529600 4 Nut-Locking-Center .375-16
4 08855200 2 Insert-Handlebar
PH0070
1
3
2
4

15

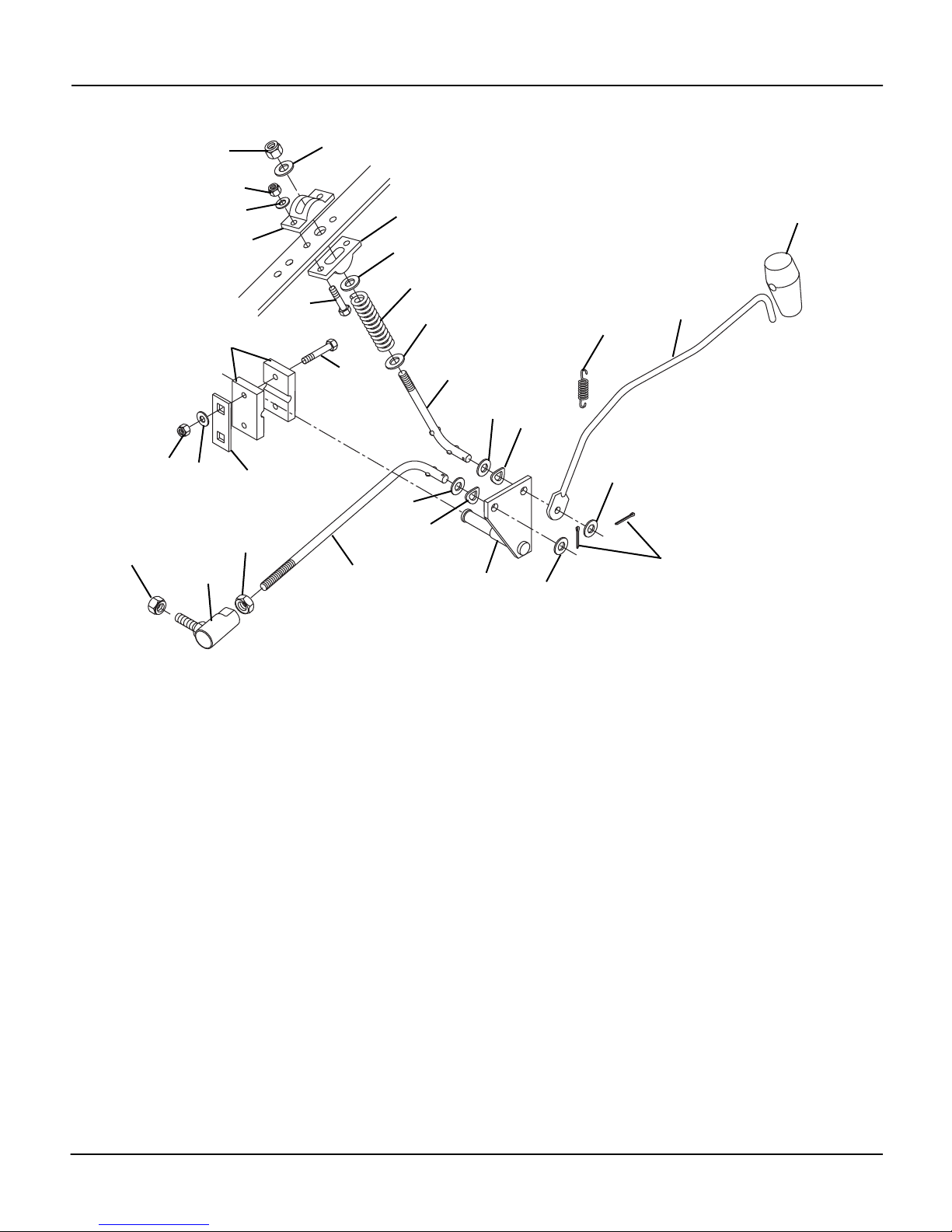

RANGE/DIFFERENTIAL LOCK CONTROL - 4 SPEED
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313
Item Part No. Qty. Description
1 06529600 3 Nut-Locking-Center .375-16 Grade 2
2 06436200 11 Washer-Flat-Steel .406 x .812 x .065
3 06529700 4 Nut-Locking-Center .250-20 Grade 2
4 06437300 4 Washer-Flat-Steel .281 x .620 x .065
5 040637 2 Cam-Shifter
6 05947700 22 Bolt-Hex .25-20 x 1.00 Grade 5
7 040599 1 Spring-Compression .081 x .720 x 2.75
8 041042 1 Spring-Tension .041 x 1.25 x .50
9 046798 1 Rod-Shifter
10 010683 1 Handle-Rubber Shifter
11 177923 2 Pin-Cotter .12 x .75
12 039078 2 Spring Washer
13 046784 1 Link-Shifter Stop
14 040632 1 Weldment-Shifter Crank
15 040648 1 Link-Shifter
16 011779 2 Spring-Compression .125 x .78 x 1.00
17 032353 2 Block-Shift Lever
18 05952500 2 Bolt-Hex .25-20 x 1.50 Grade 5
19 021462 1 Shim-Mower Height Adjuster Bracket
PH0241
1 2
3
4
5
6
7
2
5
2
1
2
16
2
2
1 16
8
9
10
11
12
2
13
14
2
12
15
17
18
19
4
3
2
11

16
SWIFTAMATIC DIFFERENTIAL - 4 SPEED
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313
Item Part No. Qty. Description
1 06537900 2 Nut-Locking-Jam-Nylon .75-10
2 06439000 2 Washer-Flat .812 x 1.50 x .135
3 022501 2 Spacer 1.008 x 1.377 x .509
4 05959400 8 Bolt-Hex .38-16 x .75 Grade 5
5 022503 2 Plate, End
6 032050 2 Bearing-Ball 1.0 x 2.0 x .56
7 022497 2 Ring-Retaining-Internal 2.210 x .062
8 022494 1 Housing, Axle, 2 Speed
PH0210
1 2
3
4
5
6
7
8
9 10
11
12
13
14
15
16
17
18
19
20
21
20
22
23 24
25
26
27
28
29
30
31
32
33 34
35
36 37
38
39
40
41 42 43
44
45
46
47
48
30
31
15
16 11
12
7
57
58
56
49
48
46
6
5
4
3
2
1
50
51
44 43 52 53
54
55
34
35
45
49
47

17
SWIFTAMATIC DIFFERENTIAL - 4 SPEED
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313
Item Part No. Qty. Description
9 012707 1 Washer-Nut .63 x .875 x .062
10 006734 1 Bolt-Hex .62-18 x .493 x 1.25
11 05947100 11 Bolt-Hex .50-13 x 1 Grade 5
12 06307300 8 Washer-Lock .50 x .125
13 011156 1 Clutch, Stationary
14 011632 1 Clutch, Shifting
15 022493 2 Axle, Straight
16 022506 2 Seal 1.1988 x 2.00 x .250
17 006732 1 O-Ring .437 x .625 x .093
18 006721 1 Pin-Clutch Sliding
19 05952700 1 Bolt-Round Head Square Neck .25-20 x 2.25 Grade 8
20 06436200 2 Washer-Flat-Steel .406 x .812 x .065
21 024382 1 Bushing-Sleeve .277 x .375 x 1.37
22 06437300 1 Washer-Flat-Steel .281 x .625 x .065
23 06529700 1 Nut-Locking-Center .250-20 Grade 2
24 06529800 1 Nut-Locking-Center .312-18 Grade 2
25 06437200 1 Washer-Flat-Steel .344 x .688 x .065
26 006724 1 Bushing-Sleeve .377 x .503 x .88
27 006723 1 Weldment, Arm Shifter
28 010505 1 Pivot, Stationary
29 006719 1 Yoke, Shifting
30 012597 AR Gasket, Axle Housing
31 012595 AR Assembly, Advance Casting
32 012500 1 Bearing-Race 4.34 x .741
33 012501 1 Bearing-Cone 2.69 x .87
34 018605 6 Wire, Bolt
35 018604 12 Bolt-Special .31-18 x .75
36 022496 1 Housing, Clutch
37 006740 1 Shim, .020 Clutch Worm Gear
38 006739 3 Shim, .005 Clutch Worm Gear
39 022500 2 Washer-Thrust 2.002 x 2.740 x .031
40 006743 1 Bearing-Needle-Thrust 2.0 x 2.74 x .010
41 022498 1 Shifter, Splined Pinned
42 034644 3 Pin-Dowel .375 x .375
43 006703 2 Gear, Pinned Bevel
44 006709 2 Gear, Differential Bevel
45 015733 2 Ring-Retaining .697 x .93
46 015734 2 Bushing, Flange .761 x 1.24 x 1.24
47 006741 2 Bearing-Needle-Thrust .754 x 1.24 x .078
48 006702 2 Gear, Differential Shifting Bevel
49 006708 2 Gear, Spider Bevel
50 022499 1 Pin, Spider
51 015729 1 Gear, Worm 8 Start
52 006714 3 Pin-Dowel .38 x .500
53 012126 1 Housing, Pinned
54 012131 1 Cone, Roller Bearing 50mm x 21.5mm
55 012130 1 Cup, Roller Bearing 82mm x 17mm
56 022495 1 Housing, Axle
57 045280 1 Seal-Oil Drain .563 x 1.250 x .091
58 05958900 1 Bolt-Hex .50-13 x 1.25 Grade 5

18
LOCKING DIFFERENTIAL - 2 SPEED
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313
Item Part No. Qty. Description
1 06537900 2 Nut-Locking-Jam-Nylon .75-10
2 06439000 2 Washer-Flat .812 x 1.469 x .134
3 022501 2 Bushing-Sleeve 1.02 x 1.37 x 1.37
4 05959400 8 Bolt-Hex .38-16 x .75 Grade 5
5 022503 2 Plate-End
6 032050 2 Bearing-Ball 1.0 x 2.0 x .56
7 022497 2 Ring-Retaining-Internal 2.210 x .062
8 022494 1 Housing-Axle-2 Speed
9 012707 1 Washer-Nut .63 x .875 x .062
PH0430
1 2
3
4
5
6
7 8
9 10
11
12
13
14
15
16
17
18
19
21
22
20
19
23
24 25
26
27
28
29
30
31
32
31
32
33
34
35
36 37
38
39
40
41
41
40
42
43 44
39
45
46
47
48
14
49
50
51
52
11
12
7
6
5
4
3
2
1

19
LOCKING DIFFERENTIAL - 2 SPEED
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313
Item Part No. Qty. Description
10 006734 1 Bolt-Hex .62-18 x .493 x 1.25
11 05947100 11 Bolt-Hex .50-13 x 1 Grade 5
12 06307300 8 Washer-Locking .50
13 041064 1 Axle-Straight Differential Locking
14 022506 2 Seal 1.188 x 2.000 x .250
15 041063 1 Clutch-Sliding Differential Locking
16 006732 1 O-Ring .437 x .625 x .093
17 006721 1 Pin-Clutch Sliding
18 05952700 1 Bolt-Round Head Square Neck .25-20 x 2.25
19 06436200 4 Washer-Flat-Steel .406 x .812 x .065
20 024382 1 Bushing-Sleeve .277 x .375 x 1.37
21 06535800 1 Nut-Locking-Nylon .375-16
22 010682 1 Spring-Compression .067 x .72 x 2.0
23 06437200 1 Washer-Flat-Steel .281 x .62 x .065
24 06531000 1 Nut-Locking-Nylon .250-20
25 06530200 1 Nut-Locking-Nylon .312-18
26 06437200 1 Washer-Flat-Steel .344 x .688 x .065
27 006724 1 Bushing-Sleeve .377 x .503 x .88
28 006723 1 Weldment-Arm Shifter
29 010505 1 Pivot-Stationary
30 006719 1 Yoke-Shifting
31 012597 AR Gasket-Axle Housing
32 012595 AR Shim-Axle Housing
33 012500 1 Bearing-Race 4.34 x .741
34 012501 1 Bearing-Cone 2.69 x .87
35 006739 2 Shim .005 Clutch Worm Gear
36 120368 4 Nut-Hex .312-24
37 06310500 4 Washer-Locking-Internal .313 x .030
38 041065 1 Housing-Differential Locking
39 006709 2 Gear-Differential Bevel
40 022505 2 Block-Drive
41 006708 2 Gear-Spider Bevel
42 012556 1 Pin-Spider Pinion
43 271089 1 Key-Woodruff .13 x .38
44 013497 1 Gear-4 Lead Worm
45 022504 1 Housing-Differential
46 181623 4 Bolt-Hex .31-24 x 2.75
47 012131 1 Cone-Roller Bearing 50mm x 21.5mm
48 012130 1 Cup-Roller Beaing 82mm x 17mm
49 022493 1 Axle Straight
50 022495 1 Housing Axle
51 045280 1 Seal-Oil Drain .563 x 1.250 x .091
52 013624 1 Bolt-Hex .50-13 x 1.312 Grade 5

20
TRANSMISSION
Model 985114, 115, 117, 119, 307, 309, 311, 312, 313
1
2
3
4
5
6
7
17
PH0201
8
9
10
11
12
13 14
15
16
11
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37 38 39
40
41
41
42
43 44
45
46
47
48
20
49
50
51
52
53
54
55
56
57
57
58
58
59 60
61
62
63
64
65
62
66
67
68
69
70
71
72
71
73
74
75
76
77 78
