GreenTec HXF 2302 User manual

1th edition 2015

GreenTec
HXF 2302
2

GreenTec
HXF 2302 3
Important information
GreenTec HXF 2302
Manual
1. Edition – May 2015
The information contained in this manual is correct at the time of publication.
However, in the course of constant development, changes in specification are
inevitable. Should you find the information given in this book different to the
machine it relates to please contact the “After Sales Department” for advice
© GreenTec Machinery Limited 2015
Please ensure that this manual is handed to the operator before
using the machine for the first time. The operator must fully
understand the contents of this manual before using this machine.
(If the machine is resold the Manual must be given to the new
owner.)
Merkurvej 25
DK 6000 Kolding
Danmark
Tlf: [phone]
Fax: [phone]
Email: [e-mail]
http: www.greentec.eu

GreenTec
HXF 2302
4
Contents
Contents .......................................................................................................................4
Introduction..................................................................................................................6
Useful information.......................................................................................................7
General Information.....................................................................................................8
CE Declaration of Conformity.....................................................................................9
Vehicle / tractor Preparation.....................................................................................10
Vehicle Ballast..........................................................................................................10
Front weights............................................................................................................10
Rear weights ............................................................................................................10
Factors that affect stability........................................................................................11
Suggestions to increase stability..............................................................................11

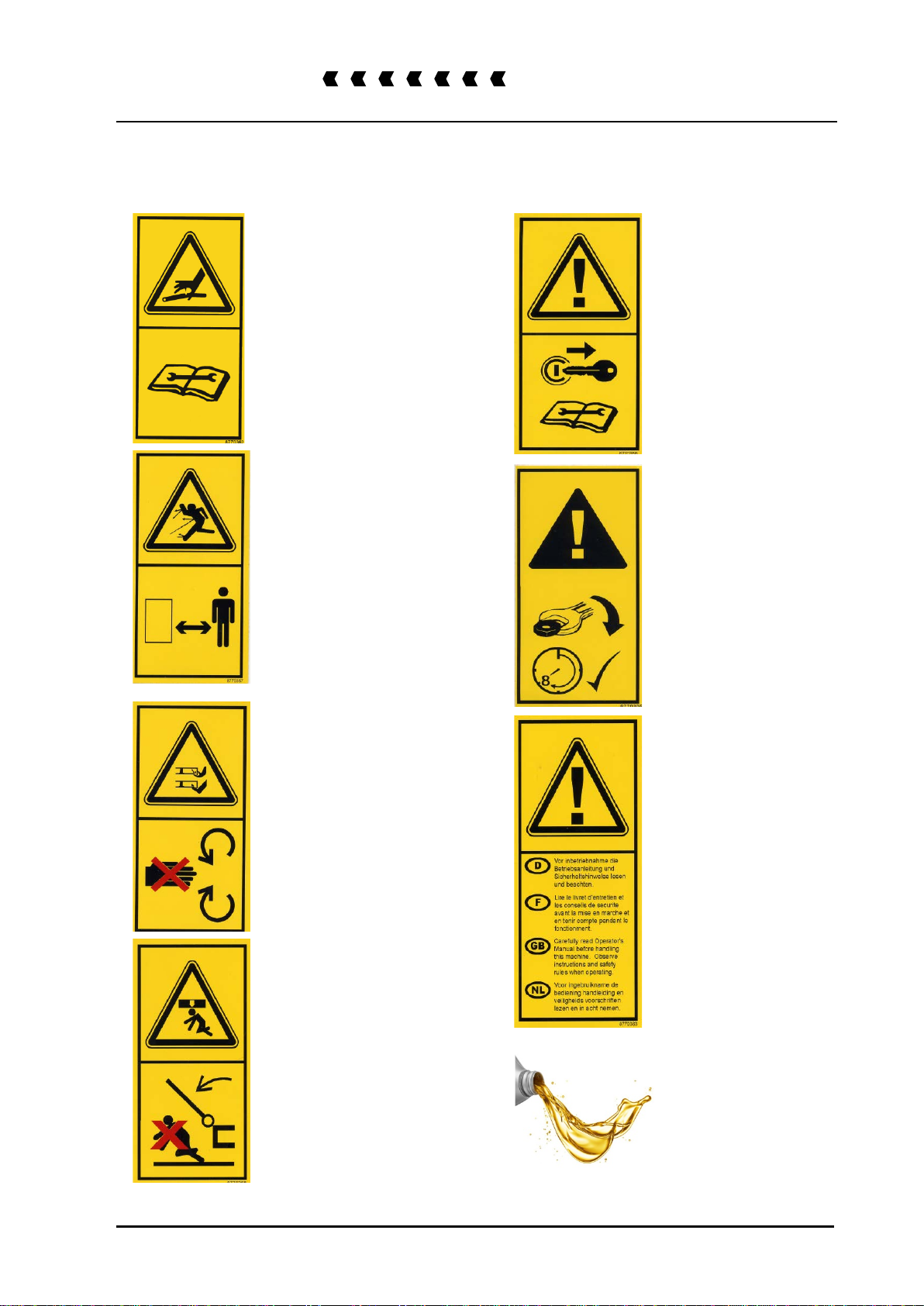

Safety Stickers .........................................................................................................12
Safety..........................................................................................................................13
Potential Dangers associated with the use of this machine......................................13
Additional Safety Advice...........................................................................................14
Before using this machine........................................................................................16
Specifications.............................................................................................................18
Before starting work..................................................................................................18
Adjusting to work position.........................................................................................18
Tool start..................................................................................................................19
Tool stop ..................................................................................................................20
Overhead power lines ..............................................................................................20
Mounting/Dismounting with HL or LRS tool............................................................21
Mounting/dismounting with RI-60 or 80...................................................................23
Transport position with LRS 1402 or HL 150-180.....................................................24
Work position with LRS 1402 or HL 150-180 ...........................................................25
Transport position with RI 60 or 80...........................................................................26
Work position with RI 60 or 80..................................................................................27
Work position of the arm with various tools..............................................................28
Operation/Introduction..............................................................................................29
Driving recommendations with saw and hedge cutter...........................................31
Driving recommendations with grass cutter...........................................................32
Storage .......................................................................................................................33
With RI-60 or 80.......................................................................................................33
With LRS 1402 and HL 150-180...............................................................................33
Extra equipment.........................................................................................................34
Electric start and cutting angle adjustment...............................................................34
Control panel............................................................................................................34
Splitter valve ”Advanced” with directional valve mounted.........................................34
Diagrams ....................................................................................................................35
Splitter valve ”Simple” ..............................................................................................35
Electric diagram........................................................................................................35
Hydraulic diagram Break-Back.................................................................................36
Hydraulic diagram with ”Advanced” Splitter valve ....................................................36
Maintenance...............................................................................................................37
Lubrication................................................................................................................37

GreenTec
HXF 2302 5
Hydraulic hoses........................................................................................................37
Oil supply .................................................................................................................39
Regular service chart ...............................................................................................39
Pins and bushes.......................................................................................................40
Storage.....................................................................................................................40
Problem solving.........................................................................................................41
GreenTec Warranty....................................................................................................42

GreenTec
HXF 2302
6
Introduction
Dear customer!
Your new Greentec machine is constructed with background in more than 20 years experience with
tractor mounted machines to maintenance of green areas. This machine is produced by the latest
technology and recognized safety regulations, standards and regulations.
We want to make a product available in such a way, that neither the use of the machine during
transportation or maintenance of the machine causes any damage or misunderstandings.
This manual contains information and instructions that are important and useful for maintaining your
Greentec machine's reliability, dependability and value. Please read this manual carefully as it will
familiarize you with the installation, use, care and maintenance. Pay particular attention to the
instructions regarding safety.
You are welcome to visit our website www.greentec.eu - where the login via the dealer's access gives
you the latest updates on instructional and part books on our entire product range. The password for
dealer log-in: PUBLISHER
We hope, you will be pleased with your new Greentec machine.
Best regards,
John Christensen
Sales Director Greentec A/S
Greentec’s vision is to develop and sell quality machines for the maintenance of green areas,
including in agriculture, in industry, at airports and in the local sector. Through innovative product
development, we will strive to become a leader in our field.
All machines are developed in a simple and functional design in close cooperation with dealers and end
users. It is our goal to cover every need in the market segment with preferably 2 different solutions. In-
depth analysis of requirements and serious advice to the customer is offered the best solution, where
individual needs can be met through the modularity of the product program.
Our goal is also to offer the best possible after sales service, and a quick and efficient spare parts
supply.

GreenTec
HXF 2302 7
Useful information
Before using the machine for the first time, it’s the seller’s responsibility that the buyer
is given this manual, and the seller is sure, that the buyer fully understands the
manual’s contents. If the machine is resold, the manual must be transferred to the new
owner.
Please fill out the list below to ensure that the necessary information is at hand when
ordering spare parts etc.
Serial No
Delivery date
Dealer
Tlf./ fax
Merkurvej 25
DK 6000 Kolding
Danmark
Tlf: [phone]
Fax: [phone]
Email: [e-mail]
http: www.greentec.eu
Åbningstid: mandag-fredag 8-16

GreenTec
HXF 2302
8
General Information
Read this manual before fitting or operating the machine or accessory. Whenever any
doubt exists contact your local dealer or the GreenTec Service Department for
assistance.
Only use ‘Genuine GreenTec Parts’ on GreenTec machinery and
equipment.
DEFINITIONS: The following definitions apply throughout this manual;
DANGER: Alerts to a hazardous situation which will result in death or serious injury if
not observed carefully.
WARNING: Alerts to a hazardous situation which could result in death or serious injury
if not observed carefully.
CAUTION: Alerts to a hazardous situation which could result in damage to the
machine and/or equipment if not observed carefully.
NOTICE: Specific or general information considered important or useful to emphasize.
LEFT HAND (LH) & RIGHT HAND (RH): These terms are applicable to the machine
when fitted to the tractor and viewed from the rear; these terms also apply to tractor
references.
SERIAL PLATE
All machines are equipped with a serial number plate containing important information
relating to the machine including a unique serial number used for identification
purposes.
Note: Images in this manual are provided for instruction and informational purposes
only and may not show components in their entirety. In certain instances images may
appear different to the actual machine; where this occurs the general procedure will be
basically the same.

GreenTec
HXF 2302 9
Merkurvej 25, DK-6000 Kolding, Denmark
CE Declaration of Conformity
Adapted EEC directive
EG Guideline 2006/42/EF, 89/392/EEC & 98/37/EC
We, GreenTec A/S, Merkurvej 25, 6000 Kolding, hereby declare that in terms of its design,
method of construction and our execution thereof, the item of machinery described below
complies with the basic health and safety regulations of the respective EU Directives. The
Machinery Directive is supported by the following harmonized standards:
Product: GreenTec HXF 2302
Product code: 9992302
Serial no:
Type: Armsystem
DS/EN ISO 12100 3rd edition 2011. Safety of Machinery – General principles for
design – Risk assessment and risk reduction.
DS/EN 953+A1 4th edition 2010. Safety of Machinery – Guards-General
requirements for the design and construction of fixed and movable guards.
DS/EN ISO 4413 1th edition 2010. Hydraulic fluid power – General rules and
safety requirements for systems and their components.
The EC Declaration only applies if the machine stated above is used in accordance
with the operating instructions.
On behalf of GreenTec A/S
Date: 24.11.2014 Signature:_________________________________
John Christensen Salgsdirektør

GreenTec
HXF 2302
10
Vehicle / tractor Preparation
We recommend vehicles are fitted with cabs
using ‘safety glass’ windows and protective
guarding when used with our machines.
Fit Operator Guard (See drawing) using
the hooks provided. Shape the mesh to cover
all vulnerable areas. The driver must be
looking through mesh and/or polycarbonate
glazing when viewing the working tool in any
working position - unless the vehicle/ cab
manufacturer can demonstrate that the penetration resistance is equivalent to, or
higher than, that provided by mesh/polycarbonate glazing. If the tractor has a roll bar
only, a frame must be made to carry both mesh and polycarbonate glazing. The
operator should also use personal protective equipment to reduce the risk of serious
injury such as; eye protection (mesh visor to EN1731 or safety glasses to EN166),
hearing protection to EN352, safety helmet to EN297, gloves and high visibility
clothing.
Vehicle Ballast
It is imperative when attaching ‘third-party’ equipment to a vehicle that the
maximum possible stability of the machine and vehicle combination is achieved – this
can be accomplished by the utilisation of ‘ballast’ in order to counter-balance the
additional equipment added.
Front weights
May be required for rear mounted machines to place 15% of total outfit
weight on the front axle for stable transport on the road and to reduce ‘crabbing’ due to
the drag of the cutting unit when working on the ground.
Rear weights
May be required to maintain a reasonable amount of rear axle load on the
opposite wheel from the arms when in work; for normal off-ground work i.e. hedge
cutting this should be 20% of rear axle weight or more for adequate control, and for
ground work i.e. verge mowing with experienced operators, this can be reduced to
10%.
All factors must be addressed in order to match the type and nature of the equipment
added to the circumstances under which it will be used – in the instance of Power Arm
hedge cutters it must be remembered that the machines centre of gravity during work
will be constantly moving and will differ from that during transport mode, therefore
balance becomes critical.
