Case IH BC1813E User manual

operation manual
BC1813E
electric
pressure washer
93780-LL

2
3 Introduction
4 Product Information
5 Safety Rules
6 Safety Information
8 Contents
9 Unpacking & Assembly
11 Operation
13 Storage
15 Troubleshooting Chart
16 Parts list & Specs
17 Warranty
table of contents

3
Using the Operator’s manual
The operating manual is an important part of your Pressure Washer. It
should be read thoroughly before initial use and referred to often to make
sure adequate safety and service concerns are being addressed.
Reading the owner’s manual thoroughly will help avoid any personal injury
or damage to your pump. By knowing how best to operate this machine
you will be better positioned to show others who may also operate the
unit.
You can refer back to the manual at any time to help troubleshoot any
specic operating functions, so store it with the machine at all times.
Attention: Read through the complete
manual prior to the initial use of your
Pressure washer
introduction

4
product identification
Record Identification Numbers
Pressure washer
If you need to contact an Authorized Dealer or Customer Service line
(1-855-850-6668) for information on servicing, always provide the
product model and identication numbers.
You will need to locate the model and serial number for the pump and
record the information in the places provided below.
Date of Purchase:
Dealer Name:
Dealer Phone:
Product Identification Numbers
Model Number:
Serial Number:

5
safety
The safety alert symbol ( ) is used with a signal word (DANGER,
CAUTION, WARNING), a pictorial and/or a safety message to alert you
to hazards.
DANGER indicates a hazard which, if not avoided, will result in death or
serious injury.
WARNING indicates a hazard which, if not avoided, could result in
death or serious injury.
CAUTION indicates a hazard which, if not avoided, might result in
minor or moderate injury.
NOTICE indicates a situation that could result in equipment damage.
Follow safety messages to avoid or reduce the risk of injury or death.
Hazard Symbols and Meanings
Save these Instructions
SAFETY RULES
This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
explosion fire
toxic fumes
hot surface
flying objects injection
moving parts
electric
shock
NOTICE
• This pressure washer is equipped with a microswitch sensitive to
water ow. This Total Stop System (TSS) senses water ow in the
pump. When the trigger is released, water stops owing through the
pump. The TSS then automatically turns the motor o to protect the
pump from overheating.

6
safety
1. WARNING—When using this product basic precautions should always be followed,
including the following:
2. Read all the instructions before using the product.
3. Know how to stop the product and bleed pressures quickly. Be thoroughly familiar
with the controls.
4. Keep operating area clear of all persons.
5. Do not overreach or stand on unstable support. Keep good footing and balance at all
times.
6. Follow the maintenance instructions specied in the manual.
7. To avoid personal injury and/or damage to property and to maximize your power
washing experience, carefully follow all of the safety tips, instructions, warnings and
safeguards and become familiar with all of the controls. Be sure you know how to
quickly bleed o the pressure from all parts of your power washer, and how to turn o
the power washer.
8. This power washer conforms to CSA and other safety and consumer standards. Do
not modify or rebuild any part of your power washer.
9. Do not use your power washer when you are under the inuence of alcohol or drugs.
Use this power tool carefully and only when you are alert .
10. Watch your balance and footing while using your power washer. Surfaces become
slippery when wet and are extra slippery when using a detergent or cleaner.
11. Never operate the power washer in bare feet, sandals, or open-toed shoes.
12. When using the power washer near children make sure they are closely supervised by
an adult to avoid injury. Never let a child use the power washer.
13. Keep ngers, hands, feet and any part of your body clear of the stream of high
pressure water. The powerful spray can cause blindness or blast holes in the skin. It
can break a window if you are too close when you pull the trigger on the spray gun.
14. Always wear eye protection to prevent injury to eyes when operating the power
washer.
15. To avoid mishaps or injury, always use the trigger safety lock when not using the
power washer even if the spraying stops for a moment.
16. The power washer is equipped with a Ground Fault Circuit Interrupter (GFCI) which
greatly reduces the chance of electric shock while the unit is in use. If Replacement
Of The Plug Or Cord Is Needed, Use Only Identical Replacement Parts.
17. Point the spray gun in a safe direction when beginning a power washing session.
18. Warning - Never spray directly at a person, animal, electrical device, or the unit itself.
19. When rst using the spray gun, hold the spray gun and lance with two hands when
pulling the trigger until you get used to the“kick back” from the spray gun (one hand
to pull the trigger and the other to stabilize the gun assembly).
20. When you press the power switch to turn o the power washer, water pressure
may remain in the system. To discharge the pressure, point the spray gun in a safe
direction and pull the trigger.
21. Never spray ammable liquids.
22. Never use the pressure washer in areas that contain combustible dust, liquids, or
vapors.
23. Avoid contact of the pressure hose with sharp objects and examine the hose regularly.
Replace if damaged. Due to the high pressure involved, it cannot be repaired if cut of
damaged.

7
safety
24. Only use detergent specically formulated for power washers and follow instructions
on the detergent’s label. We have a selection of power washer detergents to choose
from. Go to our website for more information and to order the detergents. Power washer
detergents are also available at your local hardware store.
25. Protect eyes, lungs, and skin from exposure to detergent. Dish or laundry soap is too thick
and will clog the nozzle of your detergent bottle.
26. Warning - If connection is made to a potable water source, the system should be
protected against back ow.
27. IMPORTANT: Store the power washer indoors to prevent the water in the unit from
expanding under freezing conditions. When the water freezes and expands, your
power washer will be damaged and become inoperable. Or, if storing outdoors, it is
recommended you use Pump Saver. Pump Saver can be purchased on our website. See
details in the Pump Saver section of this manual Never use hot water with your power
washer. It will overheat and damage the high pressure pump.
28. Never use hot water with your pressure washer. It will cause it to overheat and damage the
high pressure pump.
29. Never leave the power washer unattended while it is powered“on”.
30. Always turn the water supply“on ” before turning the power washer power to“on”.
Running the pump dry will cause damage to the internal components.
31. Never use a water supply to your power washer that exceeds 150 psi maximum.
32. Never disconnect the high pressure hose from the power washer while the system is
pressurized.
33. Never permanently engage the trigger mechanisms on the spray gun.
34. Never operate the power washer unless all components are properly and securely
connected.
35. Never allow the power washer pump to run for more than one minute, after you have
turned o the water supply. This can cause the motor and pump to overheat and fail.
36. Never use lances or other parts that have not been supplied with your power washer.
37. Never use an extension power cord since it defeats the eectiveness of the GFCI and
increases the chance of electrocuting the operator.
38. Never spray any electrical outlet with your power washer.
39. Inspect the power cord before using. Do not use it if it is damaged.
Servicing of a Double-Insulated Appliance
GROUND FAULT CIRCUIT INTERRUPTER PROTECTION
This pressure washer is provided with a ground-fault circuit-interrupter (GFCI) built into the
plugs of the power-supply cord. This device provides additional protection from the risk of
electric shock. Should replacement of the plug or cord become necessary, use only identical
replacement parts that include GFCI protection.
In a double-insulated product, two systems of insulation are provided instead of grounding.
Grounding means are not provided for a double-insulated product, nor should grounding means
be added to the product.
Servicing a double-insulated product requires extreme care and knowledge of the system, and
should only be done by quailed service personnel. Replacement parts for a double-insulated
product must be identical to the origi-nal parts. A double-insulated product is marked with the
words“Double Insula-tion”or “Double Insulated”. Product may also be marked with symbol
shown here.

8
contents
1. Pressure Washer Unit
2. Manual
3. Adjustable Spray Nozzle
4. Turbo Lance
5. Spray Gun (5A = Trigger Lock)
6. Detergent Bottle
7. Nozzle Cleaning Tool
8. Soft PVC High-Pressure Hose
9. Garden Hose Adapter
10. Accessory Holder
Contents
for storage use only

9
unpacking and assembly
• After unpacking the pressure washer, lay
out the parts and accessories. Familiarize
yourself with the parts in the package by
comparing them to those listed on the
“PACKAGE CONTENTS” page.
• The washer requires some minor assembly.
You’ll need a Phillips screwdriver to install the
accessory holders .

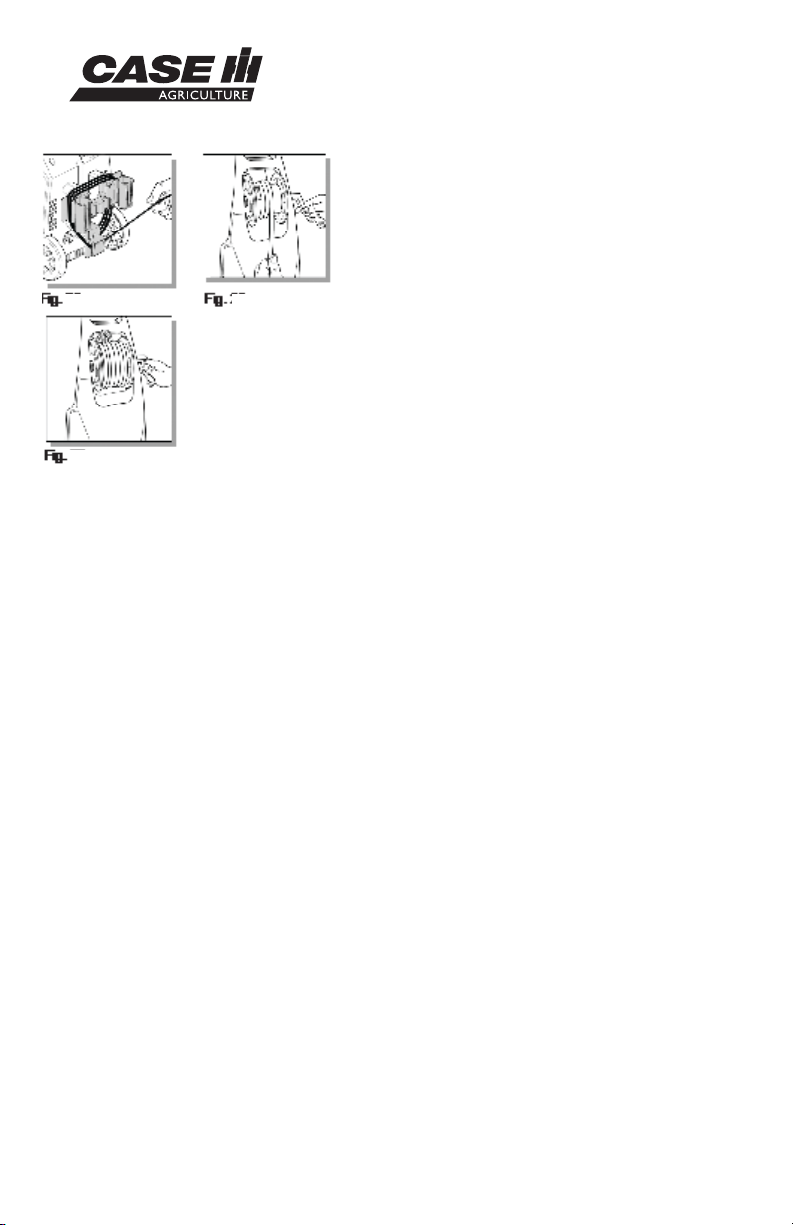

• Install the accessory holder on the back of
your washer (Fig. 1). You’ll notice where the
accessory holder meets the back of the unit.
You will see posts and holes enable easy
placement of the accessory holder and easy
tightening of the screws. Place the screws in
the holes provided on the accessory holder
and screw them in. Do not use power tools,
hand tighten instead.
• After installation, you will notice a square area
for easy storage and retrieval of the detergent
bottle (Fig.2).
• Using one of the supplied screws, install the
small electric power cord holder below the
accessory holder so that the “L” - shaped
holder faces downward. The electric
power cord can now be wrapped around
the accessory holder and the bottom “L” -
shaped holder while your power washer is
not in use (Fig. 1).

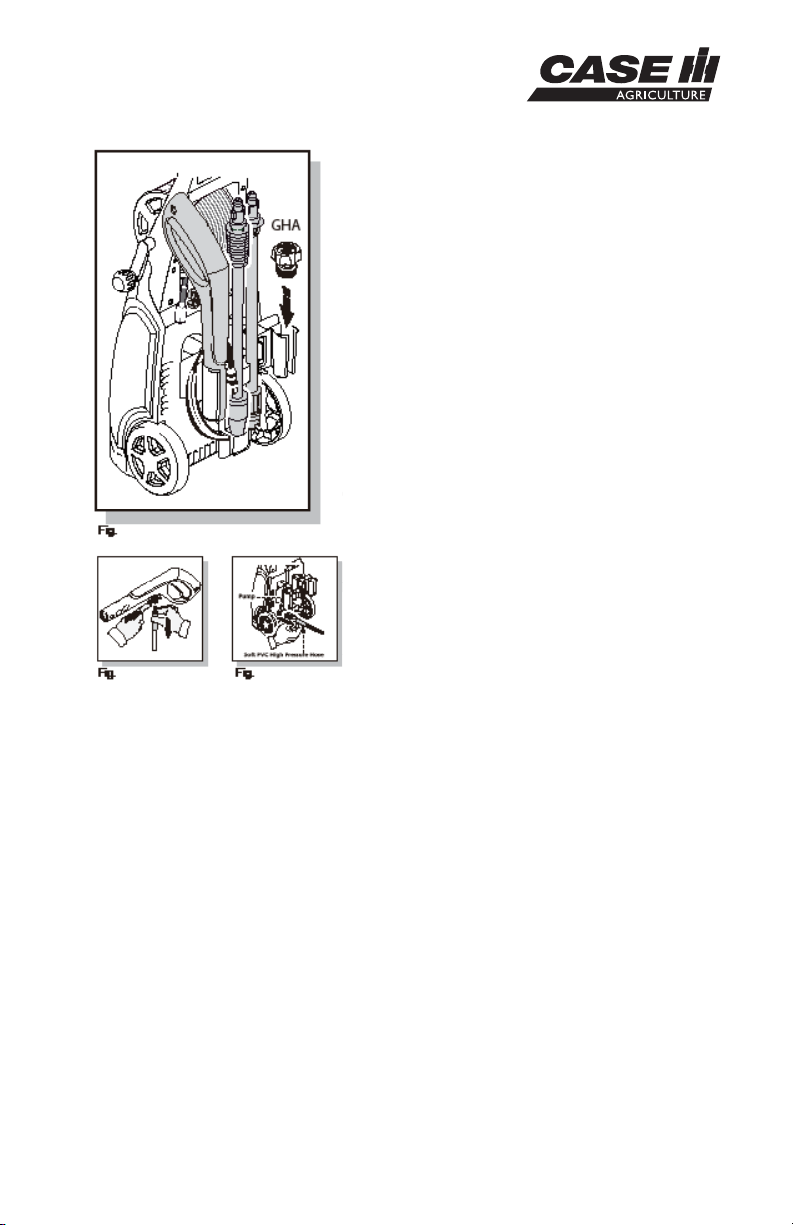

• Please refer to (Fig. 3) for accessory storage
locations on the accessory holder.
Soft PVC High Pressure Hose
• Screw the Soft PVC high pressure hose (clockwise) on the back of the unit at the bottom (Fig.
4). The end of the hose must be inserted into the water outlet far enough so the collar can
thread onto the outlet threads until hand tight. Do not use pliers or vice grips to tighten. If it
takes fewer than six or so turns you have not properly tightened the Soft PVC high pressure
hose tting. It is easier to position the power washer in front of you so to ensure that the
threads are started correctly. Failure to properly tighten the Soft PVC high pressure hose will
result in the hose slipping or popping o immediately upon turning the unit on. Do not worry
about damage if this occurs -just reinstall and take extra care at screwing on the Soft PVC
high pressure hose tting.
• Connect the other end of the Soft PVC high pressure hose to the spray gun by inserting the
brass metal tip of the Soft PVC high pressure hose into the tting just ahead of the trigger
guard. It will lock into the spray gun with a “click” (Fig. 5). Comrm the hose is locked into the
spray gun by pulling slightly on the hose. The hose is now securely attached to the spray gun.

10
unpacking and assembly
• To release the hose from the spray gun, press the blue
button on the underside of the gun toward the trigger
guard. The hose will slide out from the connection.
• To lock the trigger of the spray gun aim the gun away
from you and push the lock button from right to left,
(Fig. 6), after doing so, squeeze or pull the trigger to
make sure it is locked and will not move. Get in the
habit of leaving the lock button in the “locked” position
when the power washer is not in use. This ensures the
gun is in “safe” mode until it is ready for use.
• While the spray gun is in the locked position, insert
the turbo lance, the adjustable spray lance, or the
detergent bottle directly into the end of the spray
gun by inserting and pushing together and turning
clockwise simultaneously. To remove push together
and turn counter clockwise (Fig. 7). Push the safety
lock button to lock the trigger when changing lances or
detergent tank, to ensure that they do not accidentally
eject with force during removal.
• When using the turbo lance, make sure the turbo nozzle is screwed on tight at the end of the
lance, each time you use it. The Turbo lance is designed for high impact cleaning. Only use on
hard surfaces such as driveways, cement surfaces, patio bricks, etc. A test strip should be done
prior to avoid chance of damaging the surface.
• When using the adjustable spray lance, the spray pattern and intensity can be controlled
according to power of water needed for each task by twisting the spray nozzle at the far end
of the lance (Fig. 8). These can be used for sweeping leaves or debris from at surfaces or
curbing. This lance has the widest variety of applications as the fan degree allows for good
impact pressure and cleaning coverage. When using the detergent bottle, ll it with a properly
formulated detergent or cleaner with water ratio according to instructions on the container (Fig.
9). The detergent bottle comes with a straw which is tted into the screw-on top. If you do not
see the straw, looking inside the bottle and attach it to the screw-on top (Fig. 10).
• NOTE: the ratio of water to detergent is 10:1 or 10 parts water to 1 part detergent.
Spray Gun
Lance and Detergent Bottle

11
operation
• Attach collar of garden hose adapter directly to
power washer water inlet. Hand tighten (Fig. 11).
• Attach garden hose to the garden hose adapter
(Fig. 12). Note: Flush out garden hose before
connecting to garden hose adapter.
• You have now completed the assembly of your
pressure washer and are now ready to begin
using it. Remember ro read and observe all safety
instructions.
• Make sure the “ON/OFF” switch is in the “OFF”
position. The power switch has international
symbols for‘on’and‘o’: On (--) O (O). (Fig. 13)
• Unwind the power cord completely and plug the
GFCI into a grounded 120 volt outlet. (Fig. 14).
• Turn on the water supply at the faucet.
• Release the safety lock button on spray gun
(Fig. 15) while pointing the spray gun in a safe
direction, away from yourself and others squeeze
the trigger on the spray gun until there is a steady
stream of water, letting the water and air out of
the hose.
• Press the “ON” button. The motor and pump
should now be running and provide a powerful
spray.
• If you hear the motor run intermittently when the trigger is not being squeezed, that is
normal. The pump is priming itself so it is ready to operate when the trigger is squeezed.
Turn o the power washer if not being used for more than ve minutes.
• The o-rings on the bayonet end of the adjustable lance and detergent bottle should be
cleaned regularly and lubricated with non-water soluble grease.
• The screen inside the clear adapter should be cleaned periodically. Insert a pen or pencil
in small hole at the end of the adapter. The screen lter will slide out (Fig.16). Rinse it
with clean water, and then place it back in the adapter.
• Keep the nozzle cleaning wire, Which is taped to this manual for use in unclogging the
lance nozzle. If you lose the cleaning wire an unbent paper clip works ne.
Operating Instructions
Operating Tips and Maintenance
11 12
13 14
15 16

12
operation
• A clogged or partially clogged nozzle can
cause signicant reduction of water pressure
and can cause the unit to pulse/rattle while
spraying.
• Turn o the unit
• Turn o the water supply to the unit
• Relieve any pressure trapped in the hose by
squeezing the trigger 2-3 times, and then lock
the spray gun by pushing the lock button from
left to right.
• Take o the adjustable lance. Rotate the
nozzle on the adjustable lance to the narrow
stream setting which opens up the fan blades
(Fig. 17).
• Using the nozzle tip cleaner provided (or an
unfolded paper clip), insert the wire into the
nozzle hole and move back and forth until
debris is dislodged (Fig. 18). Back ush water
through the nozzles using garden hose and
highest pressure available (either standard
water nozzle or use your thumb over the nozzle
to create water pressure for back ush).
Cleaning Nozzles
• Damage to surfaces being cleaned occurs because the impact force of the water
pressure exceeds the durability of the surface. Bare wood can be penetrated; paint can
be peeled o, etc. You can vary the force of your power washer by controlling:
o the fan pattern of the nozzle (when using the adjustable nozzle)
o the angle of the surface being cleaned
o the distance of the nozzle from the surface being cleaned
• Never use a narrow high pressure stream of water or the turbo lance on soft surfaces
susceptible to damage.
• Use the adjustable spray lance when cleaning windows. Be sure to adjust the nozzle to
a wide fan spray pattern and place the nozzle approximately four to ve feet away from
the window with the nozzle at a forty-ve degree angle. Squeeze the trigger and vary the
fan spray pattern/angle until optimal cleaning results are achieved (Fig.19).
• Use detergents designed for power washers. We oer four power washer detergents.
They are Auto, Motorcycle, Boat and Universal. These can be purchased online at our
website, hardware stores, or home centers also have power washer detergents for
dierent cleaning projects. The cleaning solution should be the consistency of water in
order to prevent clogging your detergent bottle and nozzle.
How to Avoid Damaging Surfaces
Detergent Bottle
17 18
19

13
storage
• When using the detergent bottle, our power
washer’s application ratio of water to detergent
is 10:1 or 10 parts water to 1 part detergent.
You will need to adjust the concentration ratio of
the detergent, according to the manufacturer’s
instructions.
• This system applies detergent under low pressure.
The cleaning power of the detergents is enhanced
when applied with low pressure; and time is
allowed to break down the dirt and grime. The
combination of low pressure and chemical action
is very eective and can be better than scrubbing
if applied properly. Always spray detergent on a
dry surface, do not pre-soak area. Wetting the
surface rst dilutes the detergent and reduces its
cleaning ability. Do not allow detergent to dry on
surface. On vertical surfaces being cleaned, apply
detergent to lower surfaces and work your way up
to prevent detergent from causing streaks. Rinse
detergent by pressure washing from bottom up
for same reason.
• If a stain is particularly tough, it may be necessary
to reapply the detergent and use a sti bristled
brush to scrub the stain. Subsequent power
washing after brushing should successfully
complete the job.
• When your pressure washing session has been completed, turn o the power switch
located on the back of the power washer. Unplug the power cord from the outlet. Turn
o the water supply. Pull the trigger on the spray gun 2-3 times to drain excess water
and to release any remaining water pressure.
• The GHA should be stored in the accessory holder when your unit is not in use to
prevent loss or damage (Fig. 20).
• Remove Soft PVC high pressure hose from spray gun (Fig. 21) and unscrew the other
end of the high pressure hose from the power washer (Fig. 22).
• Remove lance or detergent bottle from the gun and place in the accessory holder. Place
the gun in the accessory holder in one of the slots. Lances are pressed into and stored
in the half circle notches (Fig. 20). Make sure to discard any remaining detergent from
the bottle. Flush the bottle and nozzle head with fresh water to prevent clogging.
• Wrap the power cord around the accessory holder using the extension tabs at the 3:00
& 9:00 position and the L-shaped power cord holder/tab located at the 6:00 position.
Storage
20
21 22

14
storage
• The pressure hose is stored on the hose reel
located above the accessory holder. With the
front of the power washer facing towards you,
insert the un-threaded end of the power hose
into the square hole on the inner reel and begin
turning the handle away from you (Fig. 23).
After inserted into the square hole, place the
hose under the indentation on the side of the
reel to keep it in place while winding it up (Fig.
24). when nished winding, push the handle in
to lock it in place. Please remember: the hose
reel is only for storing the high pressure hose.
The hose must be completely removed from the
hose reel each time you use the power washer.
• DO NOT store the power washer where it is
exposed to freezing temperatures unless
you use Pump Saver. It is recommended
that you use Pump Saver for storing in freezing
temperatures. Freezing will damage the pump
unless Pump Saver is added to the power
washer. If not using or if storing your power
washer for more than one month, run Pump
Saver through it. See the section on Pump
Saver for more information.
• Pump Saver is a product that protects and prolongs the life of the pump. This will keep the
internal parts of the pump lubricated and protected from freezing while being stored in ALL
climates. It also assists with protection from internal corrosion.
Pump Saver Instructions
• Follow the previous storage instructions for your power washer. To prevent staining, protect
the surface under the power washer from any excess uid. Wear eye protection when using
this product.
• Turn unit o and disconnect the gun before adding pump protector. Unscrew threaded top
from bottle to remove seal and reattach threaded top to bottle. Remove black cap from bottle.
1) Place top of pump saver bottle onto the garden hose adaptor previously
installed to pressure washer inlet.
2) Secure pump saver bottle by turning in a clockwise direction.
3) Turn power on.
4) Squeeze bottle to help it into the pump.
5) Turn power o when pump saver exits the machine’s water outlet.
Note: Pump Saver instructions are generic, not model specic.
Pump Saver
23 24
25

15
troubleshooting
Unit will not turn on. Make sure the power washer is in the“OFF”position. Plug in the
electrical cord to a grounded 120 volt outlet (no electrical extension
cord should be used). If the electrical cord will not plug into your
outlet, your electrical outlet is not properly grounded and should not
be used.
The high pressure (HP)
hose will not connect
/ stay connected to
the spray gun. Is this
a spray gun problem?
In most cases, the spray gun is not the problem. The problem is
the rubber sleeve covering the tting at the end of the high pressure
hose. It has likely slipped up toward the metal tip. The x: wiggle,
twist and/or pull the rubber sleeve down until the entire tip is visible
plus an 1/8”of the metal tting below the tip. Now try to insert the
hose tip into the spray gun. It should “click”into place and will not
come out until the hose is released by pushing in the lever on the
underside of the gun.
The unit is running but
there is not water flow.
Check the water source. Unclog the nozzle on the lance. (See nozzle
cleaning instructions under “Cleaning nozzles”.) Or take o the lance
and just spray out of the spray gun. This will indicate if the problem is
with the lance.
Why is water
leaking where the
high pressure hose
connects to the spray
gun?
Make sure there is an o-ring at the end of the metal tip of the high
pressure hose. If no o-ring is present, the connection between the
hose and spray gun will leak.
I can’t remove the
lance from the spray
gun. What should I
do?
All lances and the detergent tank are attached and removed from the
spray gun in the same manner. Insert the quick-release end of the
lance/detergent bottle into the spray gun. Press the spray gun and
lance together (about a 1/8”) and turn clockwise. The lance will lock
in place. Remove the lance by reversing this procedure. Press the
spray gun and lance together and turn counter clockwise. The lance
will slide out. Or, hold the spray gun and lance in an upright position
with the nozzle end on the oor. Push the whole assembly straight
down to loosen the connection, and then follow the removal process
again. You may also spray soapy water or a lubricant in the area
where the lance connects to the spray gun.
The power washer
turns on for 2 seconds,
shuts off, and will not
turn back on. Do I
have a defective unit?
It sounds like your power washer is working just ne. When the
water is connected, the accessories are assembled properly, and the
power switch is turned on, the power washer may turn on for 1 - 2
seconds to prime the pump. It automatically shuts o and waits for
the spray gun trigger to be pressed. When the trigger is pressed,
water starts owing through the pump. The water sensor in the pump
“senses”the moving water and automatically turns the power washer
on. Or, turn the power switch to o, hold in the trigger on the spray
gun, so that you have a steady stream of water. While you are holding
the trigger open on the spray gun, at the same time, turn the power
switch on.

16
parts list
Pos. Description Qty.
1Detergent Bottle 1
2Soft PVC Hose (QC) 1
3Spray Gun 1
4Adjustable Lance/Nozzle 1
5Turbo Lance/Nozzle 1
6Garden Hose Adapter 1
7GFCI Assembly 1
Specifications
Model Max PSI Max GPM Max Temp. Voltage AMPS Unit Weight
BC1813e 1900 1.5 Cold water only 120V 14 19.5 lBs

17
warranty
This product is under warranty to the original retail consumer against
defects in material and workmanship for a period of 1 (one) year and
is a complete “bumper to bumper” warranty including the spray gun,
the high pressure hose and all accessories from the date of purchase.
The warranty is not transferable or assignable. This warranty covers
replacement parts. This limited one year warranty applies only to products
used in consumer applications and is void in rental or any commercial
application. Reasonable care must be used in conformity with operation
and maintenance instructions in the owner’s manual and quick start guide.
Failure to follow these instructions will void this warranty. This warranty
givevs you specic legal rights. You may have other rights which vary from
region to region.
Keep your original receipt of purchase in case of warranty claim. Any power
washer or parts returned for a warranty claim must have a “RETURNED
MERCHANDISE AUTHORIZATION (RMA) NUMBER.”
You must obtain an RMA NUMBER by calling CASE IH at 1-855-
850-6668 Monday through Friday, 8 a.m. to 5 p.m. (CST), or e-mail
[email protected]. Any return without an RMA
NUMBER will be considered unauthorized and will be shipped back at the
expense of the sender. Freight costs to the company for warranty work
must be paid by the purchaser.
Cleaning and troubleshooting tips, manuals and other helpful information
are available on our website. For parts and accessories for your Case
IH washer, visit www.cnhpowerequipment.com. Ordering is easy and all
major credit cards are accepted.
CASE IH
Attn: Power Washer Warranty Department
Phone: [phone]
Email: [email protected]
Website: www.cnhpowerequipment.com

If you need assistance with the
assembly or operation of this
Pressure Washer please call
1-855-850-6668
