Casio 2674 User manual

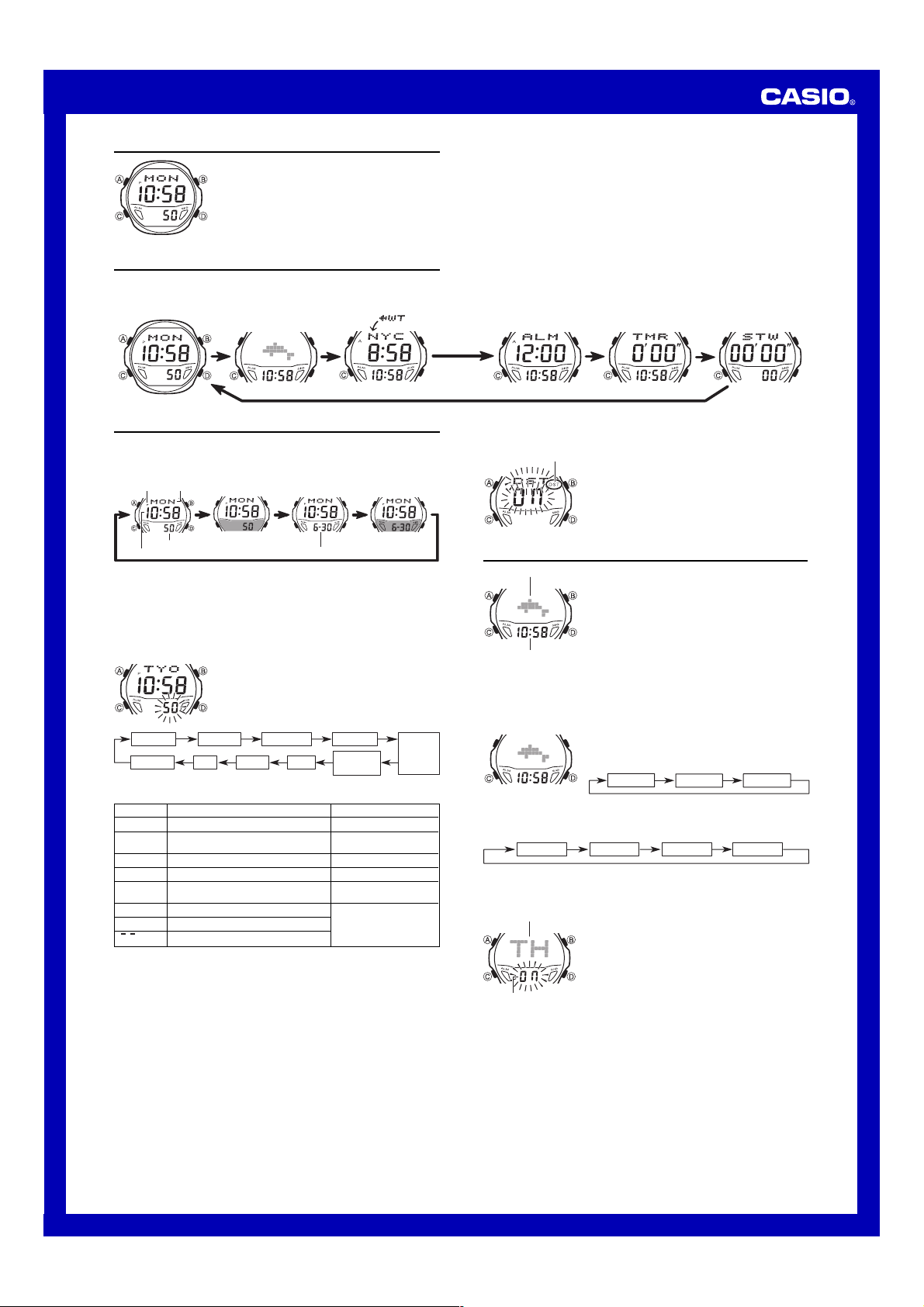

Operation Guide 2674
1
About This Manual
•Button operations are indicated using the letters shown
in the illustration.
•This watch is equipped with two color LCD panels. For
the sake of simplicity, the screen shots in this manual
are shown using only one color.
•Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the “Reference” section.
• For full information on city codes, see the “City Code Table”.
•See “Daylight Saving Time (DST)” for details about DST setting.
•The preset message you select here appears in the Animation Mode. See "Using
Graphic Animations" for more information.
•See the list of preset messages for information about the preset messages that
are available.
4. Press Ato exit the setting screen.
•With the 12-hour format, the P(PM) indicator appears on the display for times in the
range of noon to 11:59 p.m. and the A(AM) indicator appears for times in the range
of midnight to 11:59 a.m. The Aand Pindicators are not displayed with the current
time at the bottom of the display in other modes.
•With the 24-hour format, times are displayed in the range of 0:00 to 23:59, without
any indicator.
•The 12-hour/24-hour timekeeping format you select in the Timekeeping Mode is
applied in all modes.
•The day of the week is automatically displayed in accordance with the date (year,
month, and day) settings.
Daylight Saving Time (DST)
Daylight Saving Time (summer time) advances the time setting by one hour from Standard
Time. Remember that not all countries or even local areas use Daylight Saving Time.
DST indicator
Animation pattern
Timekeeping Mode time
(Hour : Minutes)
On/Preset message
function disabled (Off)
Message
General Guide
•Press Cto change from mode to mode.
•In any mode, press Bto illuminate the display.
Alarm Mode Countdown Timer Mode Stopwatch Mode
Timekeeping Mode Animation Mode World Time Mode
Press
C.
Timekeeping
Use the Timekeeping Mode to set and view the current time and date.
•Pressing Din the Timekeeping Mode cycles through available screen formats as
shown below.
Seconds
Hour : Minutes
PM indicator Day of week
Month – Day
Month – Day
Screen (color)
Seconds Screen
(color)
Month –Day
Screen
Seconds Screen
•When a color screen (seconds screen, month-day screen) is selected in the
Timekeeping Mode, the current time that appears at the bottom of the display in
other modes is also shown in color.
Read This Before You Set the Time and Date !
The times displayed in the Timekeeping Mode and World Time Mode are linked.
Because of this, make sure you select a city code for your Home City (the city where
you normally use the watch) before you set the time and date.
To set the time and date
1. In the Timekeeping Mode, hold down Auntil the
seconds start to flash, which indicates the setting
screen.
2. Press Cto move the flashing in the sequence shown
below to select other settings.
Minutes
12/24-Hour
Format
Seconds City Code Hour
Year
Message
DST
MonthDay
3. When the setting you want to change is flashing, use Dand Bto change it as
described below.
Screen
50
OFF
TYO
P10:58
12H
2003
6-30
OFF
To do this:
Reset the seconds to 00
Toggle between Daylight Saving Time (ON )
and Standard Time (OFF )
Change the city code
Change the hour or minutes
Toggle between 12-hour (12H ) and 24-hour
(24H ) timekeeping
Change the year
Change the month or day
Change the message
Do this:
Press D.
Press D.
Use D(east) and B(west).
Use D(+) and B(–).
Press D.
Use D(+) and B(–).
To toggle the Timekeeping Mode time between DST and Standard Time
1. In the Timekeeping Mode, hold down Auntil the
seconds start to flash, which indicates the setting
screen.
2. Press Cto display the DST setting screen.
3. Press Dto toggle between Daylight Saving Time (ON)
and Standard Time (OFF).
4. Press Ato exit the setting screen.
•The DST indicator appears on the display to indicate
that Daylight Saving Time is turned on.
Using Graphic Animations
In the Animation Mode, the current time is shown in the
lower part of the display, and a graphic animation is
displayed in the center of the display. You can specify one
of three different animation patterns.
You can also configure the Animation Mode so it
automatically displays the current time (as kept in the
Timekeeping Mode) for about three seconds whenever
you angle the watch towards your face for reading.
Animation Patterns
You can select any one of the following three animation
patterns for the Animation Mode.
•Animal (Dolphin →Leopard →Horse)
•G-ms (G→M→S)
•Seconds count of current time
To select an animation pattern
1. Use Cto enter the Animation Mode.
2. In the Animation Mode, each press of Dcycles
through the animation patterns in the sequence shown
below.
Seconds
G-ms
Animal
Preset Message Display
When the Animal animation pattern is selected, the watch will also display preset
message selected by you in the Timekeeping Mode at the timing shown below.
Dolphin Leopard Horse Message
•Note that the preset message does not appear if you disable the preset message
function.
To select a preset message
1. Use Cto enter the Timekeeping Mode.
2. In the Timekeeping Mode, hold down Auntil the
seconds start to flash, which indicates the setting
screen.
3. Press Cnine times to advance to the preset message
selection screen.
4. Use D(+) and B(–) to scroll through the preset
messages until the one you want appears on the
display.
•To disable the preset message function, display OFF
in step 4.
MA0306-EC

Operation Guide 2674
2
•The following is a list of available preset messages.
5. Press Ato exit the setting screen.
Auto Time Display
You can configure the Animation Mode so it automatically displays the current time (as
kept in the Timekeeping Mode) for about three seconds whenever you angle it
towards your face for reading, as shown in the illustration below.
•Be sure to wear the watch on the outside of your left wrist while using auto time
display.
Displayed Message
I ♥YOU
THNX
CONGRATS
CW2CU
MISN U
JST4U
U R GR8
Meaning
I LOVE YOU
THANKS
CONGRATULATIONS
CAN’T WAIT TO SEE YOU
MISSING YOU
JUST FOR YOU
YOU ARE GREAT
(Preset message function disabled.)
On/off status
Current time in the zone
of the selected city code
City code
Timekeeping Mode time
(Hour : Minutes)
DST indicator
Alarm time
(Hour : Minutes)
Timekeeping Mode time
(Hour : Minitues)
Alarm on
indicator
Hourly time
signal on
indicator
SecondsMinutes
Timekeeping Mode time
(Hour : Minutes)
Seconds
1/100 second
Minutes
Moving the watch to a position that is parallel to the ground and then tilting it
towards you more than 40 degrees causes the watch to display the current time
automatically.
•See “Auto Time Display Precautions”for other important information.
To turn auto time display on and off
1. Use Cto enter the Animation Mode.
2. In the Animation Mode, hold down Afor about one
second to toggle auto time display on (ON displayed)
and off (OFF displayed).
•The display returns to the animation screen
automatically after about one second.
More than 40 ° Parallel to ground
World Time
World Time shows the current time in 30 cities (27 time
zones) around the world.
•All of the operations in this section are performed in the
World Time Mode, which you enter by pressing C.
To view the time for another city code
In the World Time Mode, press Dto scroll through city
codes (time zones).
•For full information about city codes, see the “City Code
Table”.
•If the current time shown for a city is wrong, check your
Timekeeping Mode time and Home City code settings
and make the necessary changes.
To toggle a city code time between Standard Time and Daylight Saving Time
1. In the World Time Mode, use Dto display the city code
(time zone) whose Standard Time/Daylight Saving Time
setting you want to change.
2. Hold down Afor about one second to toggle between
Daylight Saving Time (DST displayed) and Standard
Time (DST not displayed).
•The DST indicator is on the display whenever you
display a city code for which Daylight Saving Time is
turned on.
•Note that the DST/Standard Time setting affects only the
currently displayed city code. Other city codes are not
affected.
Alarm
When the daily alarm is turned on, the alarm tone sounds
when the alarm time is reached.
You can also turn on an Hourly Time Signal (:00) that
causes the watch to beep twice every hour on the hour.
•All of the operations in this section are performed in the
Alarm Mode, which you enter by pressing C.
Alarm Operation
The alarm tone sounds at the preset time for about 10 seconds, regardless of the
mode the watch is in. If the watch is in the Timekeeping Mode, Animation Mode, or
Alarm Mode when an alarm starts to sound, an animation pattern also appears on the
display along with the alarm.
•To stop the alarm tone after it starts to sound, press any button. Stopping the alarm
also stops the animation associated with it.
To test the alarm
In the Alarm Mode, hold down Dto sound the alarm.
•Note that pressing Dto test the alarm also cycles through the daily alarm and
Hourly Time Signal settings described below.
To turn the Daily Alarm and Hourly Time Signal on and off
In the Alarm Mode, press Dto cycle through the on and
off settings as shown below.
Alarm On Indicator/Hourly Time Signal On Indicator
Alarm On
Signal Off
Alarm Off
Signal Off
Alarm On
Signal On
Alarm Off
Signal On
•The alarm on indicator flashes while the alarm is
sounding.
•The alarm on indicator and Hourly Time Signal on
indicator are displayed in all modes.
Countdown Timer
You can set the countdown timer within a range of one
minute to 60 minutes. The countdown starts automatically
as soon as you set a countdown start time. An alarm
sounds when the countdown reaches zero.
•All of the operations in this section are performed in the
Countdown Timer Mode, which you enter by pressing
C.
To use the countdown timer
Use Dto set the countdown start time you want. The countdown will start
automatically about one second after you set a time.
•Each press of Dincreases the start time by one minute.
•Pressing Dwhile a countdown is in progress increases the currently displayed time
by one minute.
•When the end of the countdown is reached, the alarm sounds for 10 seconds or until
you stop it by pressing any button.
•The countdown timer measurement operation continues even if you exit the
Countdown Timer Mode.
•Press Ato stop the countdown and return to the countdown start time to all zeros.
•If the watch is in the Timekeeping Mode, Animation Mode, or Countdown Timer
Mode when the end of a countdown is reached, an animation pattern also appears
on the display along with the alarm.
Stopwatch
The stopwatch lets you measure elapsed time, split times,
and two finishes.
•The display range of the stopwatch is 59 minutes,
59.99 seconds.
•The stopwatch continues to run, restarting from zero
after it reaches its limit, until you stop it.
•The stopwatch measurement operation continues even
if you exit the Stopwatch Mode.
•Exiting the Stopwatch Mode while a split time is frozen
on the display clears the split time and returns to
elapsed time measurement.
•All of the operations in this section are performed in the
Stopwatch Mode, which you enter by pressing C.
To measure times with the stopwatch
Elapsed Time
Start Stop Re-start Stop Clear
Start Split
(SPL displayed)
Split release Stop Clear
Start Split Stop Split release Clear
Split Time
Two Finishes
First runner
finishes.
Display time of
first runner.
Second runner
finishes.
Display time of
second runner.
•The time on the screen may not appear to stop immediately when you press a
button to stop timing or to perform a split operation. Despite this, the time recorded
by your button operation is accurate.
To set an alarm time
1. In the Alarm Mode, hold down Auntil the hour setting
of the alarm time starts to flash, which indicates the
setting screen.
•This operation automatically turns on the alarm.
2. Press Cto move the flashing between the hour and
minutes.
3. While a setting is flashing, use D(+) and B(–) to
change it.
•With the 12-hour format, set the time correctly as a.m.
(
A indicator) or p.m. ( P indicator).
4. Press Ato exit the setting screen.

Operation Guide 2674
3
PPG PAGO PAGO –11
HNL HONOLULU –10 PAPEETE
ANC ANCHORAGE –09 NOME
LAX
LOS ANGELES –08 SAN FRANCISCO, LAS VEGAS, VANCOUVER, SEATTLE,
DAWSON CITY
DEN DENVER –07 EL PASO, EDMONTON
CHI CHICAGO –06 HOUSTON, DALLAS/FORT WORTH, NEW ORLEANS,
MEXICO CITY, WINNIPEG
NYC NEW YORK –05 MONTREAL, DETROIT, MIAMI, BOSTON, PANAMA CITY,
HAVANA, LIMA, BOGOTA
CCS CARACAS –04 LA PAZ, SANTIAGO, PORT OF SPAIN
RIO RIO DE JANEIRO –03 SAO PAULO, BUENOS AIRES, BRASILIA, MONTEVIDEO
LON LONDON +00 DUBLIN, LISBON, CASABLANCA, DAKAR, ABIDJAN
PAR PARIS +01 MILAN, ROME, MADRID, AMSTERDAM, ALGIERS,
BER BERLIN HAMBURG, FRANKFURT, VIENNA, STOCKHOLM
CAI CAIRO +02 ATHENS, HELSINKI, ISTANBUL, BEIRUT, DAMASCUS,
JRS JERUSALEM CAPE TOWN
JED JEDDAH +03 KUWAIT, RIYADH, ADEN, ADDIS ABABA, NAIROBI, MOSCOW
THR TEHRAN +3.5 SHIRAZ
DXB DUBAI +04 ABU DHABI, MUSCAT
KBL KABUL +4.5
KHI KARACHI +05 MALE
DEL DELHI +5.5 MUMBAI, KOLKATA
DAC DHAKA +06 COLOMBO
RGN YANGON +6.5
BKK BANGKOK +07 JAKARTA, PHNOM PENH, HANOI, VIENTIANE
HKG HONG KONG +08 SINGAPORE, KUALA LUMPUR, BEIJING, TAIPEI, MANILA,
PERTH, ULAANBAATAR
SEL SEOUL +09 PYONGYANG
TYO TOKYO
ADL ADELAIDE +9.5 DARWIN
SYD SYDNEY +10 MELBOURNE, GUAM, RABAUL
NOU NOUMEA +11 PORT VILA
WLG WELLINGTON +12 CHRISTCHURCH, NADI, NAURU ISLAND

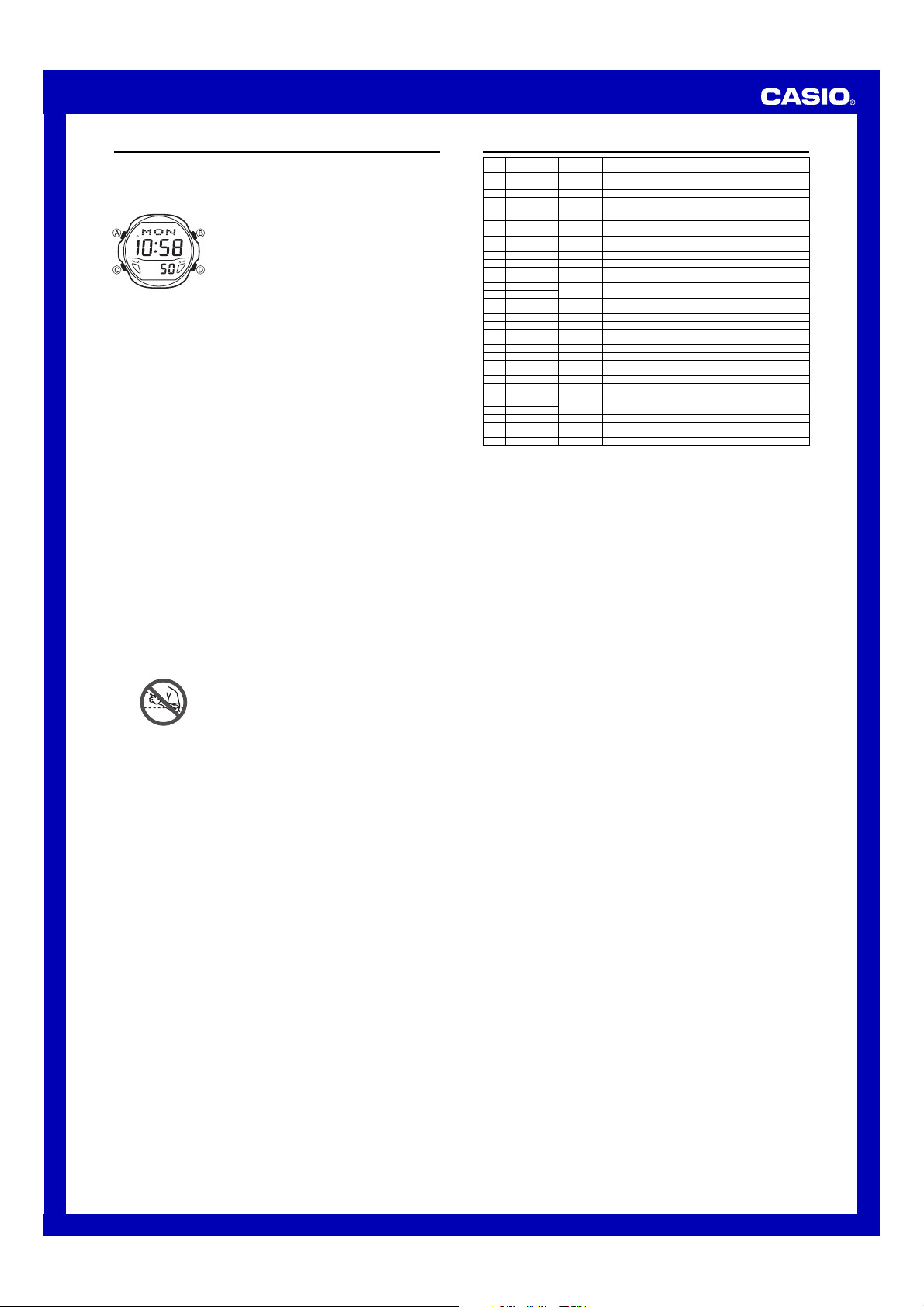

City City GMT Other major cities in same time zone
Code Differential
*Based on data as of December 2002.
Reference
This section contains more detailed and technical information about watch operation.
It also contains important precautions and notes about the various features and
functions of this watch.
Auto Display Auto Display continually changes the contents of the
digital display.
To turn off Auto Display
Press any button (except for B) to turn off Auto Display.
To turn on Auto Display
In the Timekeeping Mode, hold down Cfor about three
seconds until the watch beeps.
•Note that Auto Display cannot be performed while a
setting screen is on the display.
Auto Return Features
If you leave a screen with flashing digits on the display for two or three minutes
without performing any operation, the watch automatically saves any settings you
have made up to that point and exits the setting screen.
Scrolling
The Band Dbuttons are used in various modes and setting screens to scroll
through data on the display. In most cases, holding down these buttons during a scroll
operation scrolls at high speed.
Initial Screens
When you enter the World Time Mode, the data you were viewing when you last
exited the mode appears first.
Timekeeping
•Resetting the seconds to 00 while the current count is in the range of 30 to 59
causes the minutes to be increased by 1. In the range of 00 to 29, the seconds are
reset to 00 without changing the minutes.
•The year can be set in the range of 2000 to 2039.
•The watch’s built-in full automatic calendar makes allowances for different month
lengths and leap years. Once you set the date, there should be no reason to change
it except after you have the watch’s battery replaced.
World Time
•The seconds count of the World Time is synchronized with the seconds count of the
Timekeeping Mode.
•The current time in all World Time Mode cities is calculated in accordance with the
Greenwich Mean Time (GMT) differential for each city, based on the current Home
City time setting in the Timekeeping Mode.
•The GMT differential is the time difference of the time zone where the city is located
from Greenwich Mean Time.
•GMT differential is calculated by this watch based on Universal Time Coordinated
(UTC) data.
Auto Time Display Precautions
•The watch may not display the current time if its face is
more than 15 degrees above or below parallel. Make
sure that the back of your hand is parallel to the ground.
•The watch returns to the Animation Mode in about three
seconds, even if you keep the watch pointed towards
your face.
•Static electricity or magnetic force can interfere with
proper auto time display. If the watch does not display
the current time automatically, try moving the watch
back to the starting position (parallel with the ground)
and then tilt it back toward you again. If this does not
work, drop your arm all the way down so it hangs at
your side, and then bring it back up again.
•Under certain conditions, the watch may not display the current time until about one
second after you turn the face of the watch towards you. This does not necessarily
indicate malfunction.
•You may notice a very faint clicking sound coming from the watch when it is shaken
back and forth. This sound is caused by mechanical operation of auto time display,
and does not indicate a problem with the watch.
Backlight Precautions
The backlight uses an EL (electro-luminescent) panel that causes the entire display to
glow for easy reading in the dark.
In any mode, press Bto illuminate the display for about two seconds.
•The electro-luminescent panel that provides illumination loses power after very long
use.
•The illumination provided by the backlight may be hard to see when viewed under
direct sunlight.
•The watch may emit an audible sound whenever the display is illuminated. This is
due to vibration of the EL panel used for illumination, and does not indicate
malfunction.
•The backlight automatically turns off whenever an alarm sounds.
•Frequent use of the backlight shortens the battery life.
More than 15 degrees
too high
City Code Table
